OXO [T]Box RDM Installation instructions

User's Instruction
P RDM TROFESSIONAL ESTER
24-004-2696-00
Rev1.0

General Index
Page 3
Operation Guide
Main Menus.......................................................................................................................................Page6
DMX Packet.......................................................................................................................................Page7
1. Data Format
2. Data Timing
3. Data Level
General Information
Description........................................................................................................................................Page4
Unpacking.........................................................................................................................................Page4
Safety Instructions.............................................................................................................................Page4
Specifications....................................................................................................................................Page4
DMX Data RX....................................................................................................................................Page9
1. Barchart display
2. Value display
3. Min/Max display
DMX Data TX..................................................................................................................................Page12
1. 512 channel
2. Single channel
3. Cue/Memory
4. Run Cues(Scenes)
RDM Control...................................................................................................................................Page15
1. DISC_COMMAND
2. GET or SET COMMAND
DMX 1000K Mode...........................................................................................................................Page21
1. DMX-1000K RX
2. DMX-1000K TX
3. TX Single Chanl
Moving Light....................................................................................................................................Page23
1. Library Setting
2. Play mode
Save Cue(Scene)............................................................................................................................Page24
Cable Test.......................................................................................................................................Page25
MIDI Data-RX..................................................................................................................................Page26
System Setup..................................................................................................................................Page26
1. DMX Setting
2. English
3. Display Setting
General Instructions..........................................................................................................................Page5
Physical Diagram..............................................................................................................................Page5
Software Updating
.........................................................................................................................................................Page28

Thank you for your purchase of the [T]Box-RDM !
General Information
This unit has been thoroughly tested and carefully packed. For some unexpected reasons,
check it carefully to be sure that your product is not damaged and all accessories are not
missing. If your product happens to be damaged or missing, please do not use it. Contact the
local dealer or distributor without hesitation.
The [T]Box-RDM is a professional RDM tester with the features of stylish design and versatility .
Ten mainly menus are available for user adopt .With it's flexible dial wheel, the user may use
it to access all the menus and do the tests DMX packet and cable concerned , identify whether
any errors occurring on your console or dimmers. It's 4x20 characters LCD displays the menu
states and the received DMX data which makes the operation interface is very friendly. Prior
to use your new product, please read this user's instruction carefully and keep it well for the
possible future reference.
Description
Unpacking
Reduce the risk of electric shock or fire when using this unit.
Do not immense in or expose to water.
Turn off this unit, if not being used for a long time.
Do not use immediately in the event of malfunction.
Do not dismantle or modify the unit, only by qualified staff.
Safety Instructions
Model No: [T]Box-RDM
Power Input: 9V DC , 500mA
( an AC ~ DC adaptor included or
built-in rechargeable battery )
DMX In : 3 and 5 pins male XLR connectors
DMX Out : 3 and 5 pins female XLR connectors
MIDI In: 5 pins male XLR socket
Dimensions: 207.5 208 75 mm
Weight: 0.6 kg
Specifications
All rights reserved. No part of this manual may be reproduced in any form or
by anymeans without written permission.
User's Instruction
Page 4
[T]Box-RDM

User's Instruction
Page 5
General Instructions
10mm
DC INPUT:
9VDC, 500mA
MIDI IN
Under Voltage (Red)
Power (Green)
DMX IN DMX OUT
1=Ground; 2=Data-; 3=Data+; 4=NC; 5=NC
1=Ground; 2=Data-; 3=Data+; 4= ; 5=5 Volt(Midi) Signal(Midi)

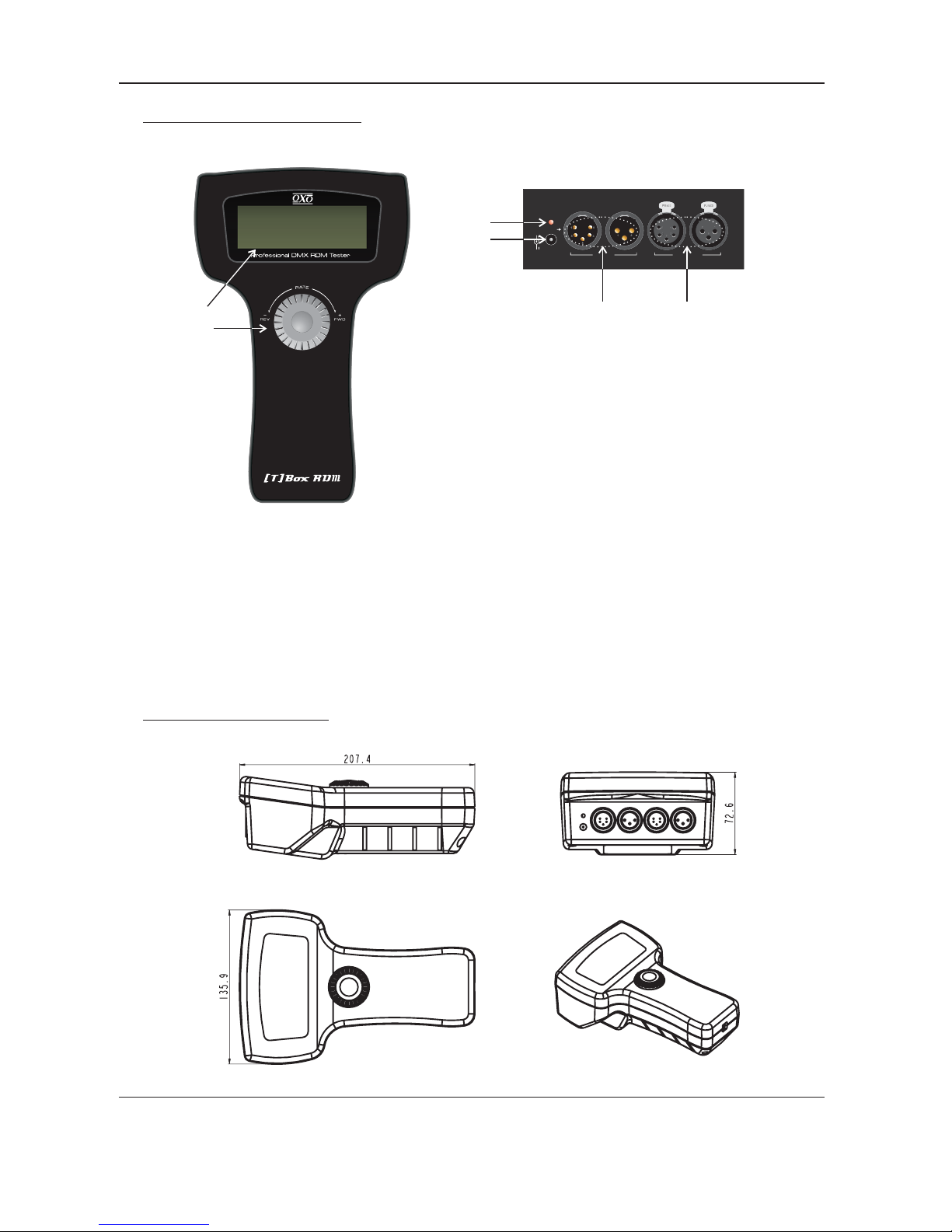

Physical Diagram
Displays the functions and guides you to operate the unit.
Used to operate this device
1. LCD :
2. Dial Wheel : .
It will light red when the unit is in the state of
"under voltage". It will light green when the
unit was supplied with the full power source .
Connects to the power of 9V DC, 500mA .
Used to input DMX signal via 5-pin or 3-pin
connector. To input MIDI via 5-pin connector.
Outputs DMX signal via 5-pin or 3-pin connector.
3. Power Indicator :
4. DC INPUT:
5. DMX/MIDI IN:
6. DMX OUT :
1
2
3
4
5 6
[T]Box-RDM

[T]Box-RDM can be applied in various lighting occasions to meet your requirements, provides
ample menu options in 20x4LCDwindow for you. The desired menu or window can be
activated by turning the Dial wheel, and by pressing this Dial wheel in the central place
will access to the menu functions.
: If you want to browse the next forward menu, please turn the Dial wheel right.
On the contrary, you may turn it left to browse the previous menu option.
The power of this unit can be supplied by built-in storage battery or DC 9V adaptor. When using
DC 9V adaptor for this unit, the built-in battery will automatically be charged at the same time.
To increase the charging speed, do not switch on this unit. The time for full charging battery is
about 3~5 hours, which can supply the unit for 6~8 hours. When switching the unit on at first,
with its switch at back cover, the LCD window shows main window information as follows:
NOTE
Operation Guide
Pressing the dial wheel will access the top window.
==== OXO ====
T-BOX512
REV1.00
Copyright 2009 >
<
DMX packet test, DMX dataRX,
DMX dataTX, RDM Control, DMX 1000K Mode,Moving light, Save Cue , Cable test, MIDI
data RX System setup.
There are 10 main menu options for your choice, including
and
< DMX Packet test >
DMX data--RX >
DMX data--TX >
RDM Control >
< DMX 1000K mode >
Moving Light >
Save Cue(Scene) >
Cable Test >
MIDI data-RX >
System Setup >
User's Instruction
Main Menus
Page 6
[T]Box-RDM

DMX packet test
Turn the Dial wheel right to select and then press the Dial wheel to access
this function.
DMX packet test
< DMX packet test:
1. Data format >
2. Data timing >
3. Data level ( Volt ) >
If there is no signal input and you have accessed each menu of Data format, Data timing, Data
level ( Volt ) by the Dial wheel, the LCD window shows the same as follows:
< DMX packet test:
Receive no signal ?
You may locate the cursor to the label ? for help. In this case, the help message usually shows:
< DMX-512 tester help
No signal or signal
not complying with
USITT DMX-512( 1990 )
On the contrary, if there is signal input, you can do some DMX packet tests .
< Data format: ?
RX-Chan: 192
Break:--OK--
Signal present
Means the total
channels of Sirocco
1. Data format
Turn the Dial wheel to select and press it for viewing the total channels of external
operator and the states of BREAK when receiving the signals.
The LCD window shows the channel information of external connected DMX operator.
( For example, here the external connected DMX operator is Sirocco from us . )
Data format
User's Instruction
Page 7
[T]Box-RDM

< Data format:
Indication of --OK--
means:Received
signal is good
To return to the previous menu, press the by Dial wheel.<
Turn the Dial wheel to select and press it for application. You can view all the
parameters of the received signals, including BREAK, MaB, START CODE, CHAN TIME,
Period Time. The LCD window will dynamically show data timing information.
( Here the external connected DMX operator is also Sirocco. )
Data timing
< Data timing: ?
BK: 135 s MaB:016 S
StartCode: 000 dec
Chan Time:053 s
uu
u
All the parameters can be
shown here.
Select > first and then press it can shift from Chan, Time to Period Time. In this case, the fourth
line of the LCD window shows the message " Period : 036 ms ".
Turn the Dial wheel to select and press it in the central place for
application.
The LCD window will dynamically shows the information of signal voltage .
( Here the external connected DMX operator is also Sirocco. )
3. Data level ( Volt )
Data level ( Volt )
< Data timing:
Break min.88 s
MaB min. 8 s
Chantime min. 44 s
u
u
u
< Data Level(Volt) ?
--Good-->
Level = 4.44V
...
For the further information, you may use the help function by pressing Dial wheel. The help
information shows as below.
2. Data timing
For the further information, you may use the help function by pressing Dial wheel. The help
information shows as below.
User's Instruction
Page 8
[T]Box-RDM

This DMX data--RX function can display the value of signal input by the means of Barchart and
Value and Min/max, complying with the display mode that can be adjusted in the System setup
menu.There are two display modes: Normal and Hold Mode.
In the display mode, when pushing the fader relative to the specific channel of external
operator ( e.g. Sirocco),therelative channel value of the LCD window will change
temporarily, conforming with the position of fader.
In the display mode, when pushing the fader relative to the specific channel of external
operator ( e.g. Sirocco),therelative channel value of the LCD window may not change
temporarily. The display value is only the max. value of all the adjustment by the fader.
Normal
Hold
< Data level
Reception may still
be possible with
lower level
<DMXdataRX
1. Barchart display >
2. Value display >
3. Min/ max display >
< RX Channel :000 ?
001: xxxxx xxxxx
011: xxxxx xxxxx
021: xxxxx xxxxx
Total channels of received
signal:000
Means: no signal input from
channel 1 to channel 10
For the further information, you may use the help function by pressing Dial wheel. The help
information shows as below.
For another menu available, you may turn the Dial wheel backward to return. Then select
the new entry by Dial wheel.
DMXdata--RX
Turn the Dial wheel forward to enter the Barchart display option. If there is no signal input,
the LCD window always show empty information as follows:
1. Barchart display
Turn the Dial wheel to select and then press the Dial wheel access this
menu function. There are 3 sub-menu options, including
DMX data--RX
Barchart display, Value display
and Min/max display.
User's Instruction
Page 9
[T]Box-RDM

The default total channels is set to be 000 and the start channel always is automatically preset
to be 001. If you would like to change the start channel, turn the Dial wheel to select > at
the right side of the LCD window. You can scroll to the desired channel No., then press the
Dial wheel again to confirm.
On the contrary, if there is signal input, the LCD window will display the values of received
signals in the following diagram. For example( e.g. Sirocco ).
< RX Channel :192 ?
001:
011:
021:
< 1. Barchart display
x = no signal
-=nodata
< RX Channel : 000 ?
Start Channel : 001 >
--- --- --- --- ---
>---------------
Each line can indicate the values of 10 channels in all. To browse the other values of channels,
turn the Dial wheel forward to select , then press the Dial wheel . At this time you can
turn Dial wheel backward or forward for this purpose.
>
On the contrary, if there is signal input, the LCD window will display the values of received
signals in the bar chart diagram.( e.g. Sirocco )
Each bar chart indicates the
different value of the fader.
For the further information, you may use the help function by pressing Dial wheel. The help
information shows as below.
This option can display the value of signal input by the means of decimal, hexadecimal and
percent. Turn the Dial wheel forward to enter the Barchart display option. If there is no
signal input, the LCD window always show empty information as follows:
2. Value display
< RX Channel 192 ?
Start Channel : 001 >
255 255 255 000 000
>000000000000000
User's Instruction
Page 10
[T]Box-RDM

On the contrary, if the signal input has been received correctly, the LCD window displays the
following diagram.( e.g. Sirocco )
< 2. Value display
Display ten number
in decimal, hexadeci-
malorpercent
< RX Channel : 000
Chan. Min typ max
>001 --- --- ---
>Count at : xxxxx Second
< RX Channel : 192
Chan. Min typ max
>001 000 28 70
>Count at : 00010 Second
Total channels
Time counter for reference.
For decimal, hexadecimal or percent display mode, you can turn the Dial wheel to select >
at the left side of the LCD window. And then press the Dial wheel to scroll to the desired
mode. The display values of the relative channels will temporarily be changed according to
the new setting.
NOTE: Other main display values of this unit may be converted, complying with the new
display mode.
For the further information, you may use the help function by pressing Dial wheel. The help
information shows as below.
3. Min / max display
You can also display the values in a simple way when using this option , only for min. value,
typical value, max. value. But the values will comply with the decimal, hexadecimal or percent
display mode what you have set.
Supposed that you have set the percent display mode. If there is no signal input, the LCD
shows as follows.
User's Instruction
Page 11
[T]Box-RDM

< 512 Channel ?
Mode: Modify mode
Chan : 001 >
Data : 000 = 000% >
To adjust the temporary value of the desired channel, first enable the Dial wheel to > at the
third line. Then adjust the "Data" at the fourth line. The "Data" display the value by the means
of decimal and percent.
You may turn the Dial wheel to scroll to the next page. The LCD window shows the values
of 10 channels at the following diagram.
This option can display the levels of 512 channels, and also be used for temporary adjustments,
while the actual channel value can be held. When using the Dial wheel to enter this
sub-menu, the LCD window usually shows as follows:
1. 512 Channel
Turn the Dial wheel to select and then press the Dial wheel to access
this menu function. There are 4 sub-menu options, including
DMX data--TX
512 Channel, Single Channel,
Cue/Memory, Run Cues ( Scenes ).
While accessing this DMX data--TX menu, new coming DMX signal will be disabled. You are
allowed to temporarily set the levels for the intended channels, and also have priority to
transmit cue ( scene ) at a set rate. Remember there are 99 cues available.
When switching on the unit, the receiving DMX signal can be transmitted automatically, with
the STARTCODE you have set. Supposed that you aren't in this DMX data--TX menu now and
there is no DMX signal input, if you have run the specific saved cue just now , the cue will be
transmitted repeatedly.
In this case the new coming DMX signal will have priority to be transmitted. However, when
accessing the Cable Test or MIDI data-RX menus, the transmitting signal will be halted.
DMXdata--TX
Note: The min value display is the min. value of all the adjustments referring to the present
channel; the typ value display is the set value of the present channel; the max display
is the max. Value of all the adjustments referring to the present channel.
To browse the value of each channel, turn the Dial wheel to select > at the third line of LCD
window, then press the Dial wheel. At this time you can browse the desired channel by
turning the Dial wheel backward or forward.
Channel: 001- 010]
000 000 000 000 000
000 000 000 000 000
Clear All >
>
Channel 1
Channel 2
Channel 5
Channel 10
Channel 3
User's Instruction
Page 12
[T]Box-RDM

You can set these values of 10 channels ( 001 -- 010 ).For example, set the value for channel
1. Locate the cursor to the desired channel, press the Dial wheel to select it.Then turning
the Dial wheel to adjust the level. When satisfying the adjustment, press the Dial wheel
again to confirm the settings.
You may also adjust the other 502 channels levels. Locate the cursor to > at the first line of
LCD,press the Dial wheel and turn it to the desired channels for new settings. Remember
that there are only 10 continual channels available for your choices every time.
If you would like to set these 512 channels to be 000, use the Clear All function by pressing
the > at the fourth line.
< 512 Channel
Modify = Each
Channel will hold
its preset value
Turn the Dial wheel to select option. You can adjust the speed, channel,
mode, level for your requirements when applying this function. The speed value can be
increased from 1 to 10. And there are 5 modes for reference, including Fade Only, Fade Fine,
Auto On/ Off, Ramping, Stop.
Fade Only: Changing the channel value by Dial Wheel in the range of 0~255.
Fade Fine: Based on the initial channel value of Fade Only , turn the dial wheel can
increase the value one by one. When the increment value is 31, turn the dial wheel
will change the channel value into the initial value.
Auto On/Off: The channel value will be changed between 000 and 255, complying with the
speed.
Ramping: The channel value will steadily increase one by one till to 255, complying with
the speed. Then repeat the sequence of 0 to 255.
Stop : The channel value can not be changed and held.
The LCD window usually shows the following diagram.
Single Channel
2. Single Channel
< Auto Speed : 01 > ?
Chan : 001 >
Mode: Fade Only >
Level : 000 = 000% >
Locate the label ? for more details. Help information shows as follows.
User's Instruction
Page 13
[T]Box-RDM

3. Cue/Memory
< 2. Signal Channel
512 data is same, or
one data is special
theothersarezero
< 3.TXdataasCue ?
Cue number: 001 >
< The 512 data of cue
come from RX or from
old cue which can be
modified in 'TX-512'
Locate the label ? for more details. Help information shows as follows.
To transmit data saved the desired cue, turn the Dial wheel to select the cue, then press
the Dial wheel again to confirm. The cue will automatically be transmitted.
This option can transmit the received data saved as cues. Remember that there are 99 Cues
available for you. Therefore the Cue number is at most 99. When turn the Dial wheel to select
this function, the LCD window shows a message as follows:
The Speed can only be taken effect when the mode is set to Auto On/Off or Ramping. In this
case,the level of the desired channel is adjusted automatically by this unit.
Locate the label ? for more details. Help information shows as follows.
You can adjust the level by dial wheel when the mode is set to Fader Only or Fader Fine.
However, there is only one channel level varied from the other 511 channels levels. And the
other 511 channels levels are zero.
In addition, when the channel is set to be " 001 - 512 ( all ) ", you can set all the 512 channels
to the same values.
User's Instruction
Page 14
If you desire to modify a saved CUE for sending or saving, you can raise this CUE from "TX
data as Cue" and go to "TX-512 Channel" menu for modification. Then you can save it into a
specific number while you accessed " Save Cue" menu. This function can be done only NO
DMX signal input.
[T]Box-RDM

4. Run Cues ( Scenes )
< 4. Run Cues(Scenes) ?
Running Cue : 1
End Cue : 99 >
Speed rate : 01 >
Default End Cue number
Default Speed rate
< 4. Run Cues(Scenes) ?
Fromcue1tothe
end cue conrinually
in speed rate
< RDM Control
1. DISC_COMMAND >
2. GET or
SET COMMAND >
Turn the Dial wheel to select and then press the Dial wheel to access this menu
function. There are 2 sub-menu options, including DISC COMMAND, GET or SET COMMAND
mode.The LCD window usually shows as follows:
RDM Control
RDM Control
Turning the Dial wheel to select , you can transmit cues continually
at a specific rate. When accessing this option, the LCD window shows the following diagram.
Run Cues( Scenes )
The default start cue is cue 1. You can adjust the end cue No. and speed rate(1-10)by
Dial wheel.
For more information, press ? for help.
User's Instruction
Page 15
In the RDM system the RDM function of [T]BOX-RDM was used as a controller.1)
For the 2 sub-menus of RDM control, you can carry out "SET or SET COMMAND" only you
successfully performed "DISC_COMMAND " first.
2)
[T]Box-RDM

< There isn't any
RDM device online,
GET or SET is un-
valid.
User's Instruction
2.GET or SET COMMAND
If your unit discovered any RDM devices linking to your unit, the LCD window will show you ,
Turn and press the Dial wheel to access GET or SET COMMAND function. If your unit doesn't
link to any RDM device, the LCD window will show you as follows:
< COMMAND: GET >
UID: XXXXXXXXX >
DEVICE_INFO: >
Turn the dial wheel to select the ">" of the first line right, you can swap "GET" and "SET". To
select "SET", the LCD show you as follows:
Turn the dial wheel to select the ">" of the second line right, you can select an unit ID and view
it.
Turn the dial wheel to select the ">" of the third line right, you can select and view the details
of each parameter. There are 45 parameters available for "COMMAND: GET"( Please refer to
the tables on the following pages for details).
< COMMAND: SET >
UID: XXXXXXXXX >
DMX_START >
ADDRESS
Page 16
< 1. DISC_COMMAND
DISCOVER: 002
RDM device online!
1. DISC-COMMAND
Turn and press the Dial wheel to access DISC-COMMAND function. If your unit have linked to
any RDM device, the LCD window will show you as follows:
Total discovered RDM devices.
[T]Box-RDM

User's Instruction
The manufacturer specific PIDs are displayed with hex form and which were excluded from
the above 45 or 28 PIDs .
.
3)
4)You can carry out GET "DMX_PERSONALITY_DESCRIPTION", GET"SENSOR_DIFINITION"
and GET"SENSOR_VALUE" only you if perform GET " DEVICE_INFO" first.
.
5)You can GET or SET the relevant PID only if you perform GET " PARAMETER_
DESCRIPTION" first.( " PARAMETER_DESCRIPTION" is a description for the relevant
manufacturer specific PID.)
.
For "COMMAND:GET", when the UID(Unique ID) was chosen, the PID (parameter ID) can
only be selected in the range of which the device supported, a part of the 45 PIDs or all
of them.
.
NOTE
1)
Likewise, for "COMMAND:SET", the PID can only be selected in the range of which the
device supported as well, a part of the 28 PIDs or all of them.
.
2)
Turn the dial wheel to select the ">" of the second line right, you can select the unit you want to
set the command for it.
Turn the dial wheel to select the ">" of the third line right, you can select and set the value for
each parameter. There are 28 parameters available for "COMMAND: SET"( Please refer to the
tables on the following pages for details).
.
Page 17
6)You can carry out GET "STATUS-ID_MESSAGES" only if you perform GET " STATUS_
MESSAGES" first.
.
[T]Box-RDM

User's Instruction
Get
Allowed
Set
Allowed
RDM Parameter ID's(Slot 21-22) Value Comment Required
Category-Network Management
DISC_UNIQUE_BRANCH
DISC_MUTE
DISC_UN_MUTE
PROXIED_DEVICES
PROXIED_DEVICES_COUNT
COMMS_STATUS
QUEUED_MESSAGE
STATUS_MESSAGES
STATUS_ID_DESCRIPTION
Category-Status Collection
CLEAR_STATUS_ID
SUB_DEVICE_STATUS_REPORT_THR
ESHOLD
Category-RDM Information
SUPPORTED_PARAMETRS
PARAMETER_DESCRIPTION
Category-Product Information
DEVICE_INFO
PRODUCT_DETAIL_ID_LIST
DEVICE_MODEL_DESCRIPTION
MANUFACTURER_LABEL
DEVICE_LABEL
FACTORY_DEFAULTS
LANGUAGE_CAPABILITIES
LANGUAGE
SOFTWARE_VERSION_LABEL
BOOT_SOFTWARE_VERSION_ID
BOOT_SOFTWARE_VERSION-LABEL
Category-DMX512 Setup
DMX_PERSONALITY
DMX_PERSONALITY_DESCRIPTION
DMX_STAR_ADDRESS
SLOT_INFO
SLOT_DESCRIPTION
DEFAULT_SLOT_VALUE
0x0001
0x0002
0x0003
0x0010
0x0011
0x0015
0x0020
0x0030
0x0031
0x0032
0x0033
0x0050
0x0051
0x0060
0x0070
0x0080
0x0081
0x0082
0x0090
0x00A0
0x00B0
0x00C0
0x00C1
0x00C2
0x00E0
0x00E1
0x00F0
0x0120
0x0121
0x0122
*Support required only if
supporting Parameters
beyond the minimum
required set.
*Support required for
Manufacture-Specific
PIDs exposed in
SUPPORTED_
PARAMETERS message
*Support required if
device uses a
DMX512 Slot.
*
-
*
Tabel-1:RDM Categories/Parameter ID Defines
See Table-2
See Table-2
See Table-2
Page 18
[T]Box-RDM

User's Instruction
Get
Allowed
Set
Allowed
RDM Parameter ID's(Slot 21-22) Value Comment Required
Category-Sensors
SENSOR_DEFINITION
SENSOR_VELUE
RECORD_SENSORS
DEVICE_HOURS
LAMP_STRIKES
LAMP_STATE
LAMP_ON_MODE
DEVICE_POWER_SYCLES
TILT_INVERT
IDENTIFY_DEVICE
RESET_DEVICE
POWER_STATE
PERFORM_SELFTEST
SELF_TEST_DESCRIPTION
CAPTURE_PRESET
PRESET_PLAYBACK
Manufacture-Specific PIDs
0x0200
0x0201
0x0202
0x04xx
0x0400
0x0402
0x0403
0x0404
0x0405
0x06xx
0x0601
0x10xx
0x1000
0x1001
0x1010
0x1020
0x1021
0x1030
0x1031
0x7FE0-
0X7FFF
Category-Dimmer Settings 0x03xx
0x02xx
Category-Power/Lamp Settings
LAMP_HOURS 0x0401
Category-Display Settings 0x05xx
DISPLAY_INVERT
DISPLAY_LEVEL
0x0500
0x0501
Category-Configuration
PAN_INVERT 0x0600
0x0602
PAN_TILT_SWAP
REAL_TIME_CLOCK 0x0603
Category-Control
ESTA Reserved Future RDM
Development
0x8000-
0XFFDF
ESTA Reserved Future RDM
Development
0xFFE0-
0XFFFF
Future
See Table-3
See Table-6
See Table-7
See Table-5
See Table-4
Page 19
[T]Box-RDM

Status Type Defines Value Comment
STATUS_NONE
0x02
0x03
Tabel-2: Status Type Defines
STATUS_GET_LAST_MESSAGE
STATUS_ADVISORY
STATUS_WARNING
STATUS_ERROR
0x00
0x01
0x04
Not allowed for use with GET:
QUEUED_MESSAGE
User's Instruction
Preset Playback Defines Value Comment
PRESET_PLAYBACK_OFF
Tabel-3: Preset Playback Defines
PRESET_PLAYBACK_SCENE
0x0000
0xFFFF
Returns to Normal DMX512
Input
Plays Scenes in Sequence if
supported.
PRESET_PLAYBACK_ALL
0x0001-0xFFFE Plays individual Scene #
Tabel-4: Lamp State Defines
Value Comment
LAMP_OFF
0x02
0x03
0x00
0x01
0x04
No demonstrate light out
Lamp State Defines
0x7F
0x80-0xDF
LAMP_ON
LAMP_STRIKE
LAMP_STANDBY
LAMP_NOT_PRESENT
LAMP_ERROR
Manufacturer_Specific States
Arc-Lamp ignite
Arc-Lamp Reduced Power Mode
Lamp not installed
Tabel-5: Lamp On ModeDefines
Value Comment
LAMP_ON_MODE_OFF
0x01
0x00
0x02
Lamp Stays off until directly
instructed to strikes.
Lamp On Mode Defines
0x80-0xDF
LAMP_ON_MODE_DMX
LAMP_ON_MODE_ON
Manufacturer_Specific States
Lamp Strikes upon receiving
a DMX512 signal.
Lamp Strikes automatically
at Power-up.
LAMP_ON_MODE_AFTER_CAL 0x03 Lamp Strikes after Calibration
or Homing procedure.
Page 20
[T]Box-RDM
