Oxy Heli 5 User manual

Instruction Manual

VERY IMPORTANT NOTE:
- Visit the Oxy Heli web site www.oxyheli.com to download the latest version of the manual.
- Inside Box 3 you will find your serial number card. Please take a moment to visit the Oxy Heli web site and follow the instructions to register your helicopter and serial number.
- It is important you take few minutes to register your helicopter and serial number with us. This is the only way to be in contact with us to receive news, promotional information and technical tips.
- We will also choose five serial numbers each year that will win a discount coupon worth 200USD each to spend at the Oxy Heli or Lynx Heli web sites.
- Thank you for your purchase, and we wish you the best enjoyment with your new Oxy 5 Helicopter.
Chapter 1, Specifications
page 2
- Main Blade Length:
- Main Grip Clamping:
- Tail Blade Length:
- Standard Main Gear:
- Standard Pinion:
- Standard Main Ratio:
- Standard Main Pulley:
- Standard Tail Pulley:
- Standard Tail Ratio:
- Tail Blade Clamping:
- RTF Approximately Weight:
- Motor size:
- 6S Max Battery Size:
- 12S Max Battery Size:
- 500 to 575mm.
- M4 / 10 and 12mm Root.
- 85mm to 105mm.
- 110T
- 12T (Optional 11-13-14)
- 9.166
- 84T
- 19T (Optional 18-20)
- 4.42
- M3 / 5 mm Root.
- 2900g (including batteries 6S).
- 4015-4020-4025-4030-4225 Shaft 6mm – L20/25.
- L150 x H55 x W50mm.
- L270 x H43 x W50mm

INDEX
Chapter 1 - Specifications ......................................................................................................................................................................................................................................................................................
Chapter 2 - Important Notes .....................................................................................................................................................................................................................................................................................
Chapter 3 - Required Tools for Assembly ................................................................................................................................................................................................................................................................
Chapter 4 - What's Inside The Box ..........................................................................................................................................................................................................................................................................
Chapter 5 - Pinion Selection & RPM .......................................................................................................................................................................................................................................................................
Chapter 6 - Tail Assembly .......................................................................................................................................................................................................................................................................................
Chapter 7 - Main Frame Assembly ..........................................................................................................................................................................................................................................................................
Chapter 8 - Align and Lock Frame Panel ................................................................................................................................................................................................................................................................
Chapter 9 - Main Gear Assembly .............................................................................................................................................................................................................................................................................
Chapter 10-Transmission Assembly..........................................................................................................................................................................................................................................................................
Chapter 11 - Belt Tension & Adjustment .................................................................................................................................................................................................................................................................
Chapter 12 - Main Rotor Assembly .........................................................................................................................................................................................................................................................................
Chapter 13 - Servo Dimension requestment ...........................................................................................................................................................................................................................................................
Chapter 14 - Servo & Servo Rod Prepareration .......................................................................................................................................................................................................................................................
Chapter 15 - Motor Installation ................................................................................................................................................................................................................................................................................
Chapter 16 - ESC and Flybarless Installation ..........................................................................................................................................................................................................................................................
Chapter 17 - Wire Suggestion .................................................................................................................................................................................................................................................................................
Chapter 18 - Adjustment Servo With Leveler ..........................................................................................................................................................................................................................................................
Chapter 19 - Landing Gear and Battery Installtion ..................................................................................................................................................................................................................................................
Chapter 20 - Main Blades & Tail Blades Installtion .................................................................................................................................................................................................................................................
Chapter 21 - Canopy Instllation ...............................................................................................................................................................................................................................................................................
Chapter 22: Exploded View ......................................................................................................................................................................................................................................................................................
Chapter 23: Spare Parts.............................................................................................................................................................................................................................................................................................
page 2
page 3
page 4
page 5 - 6
page 7
page 9 - 17
page 18 - 25
page 26
page 27
page 28
page 29-30
page 31-35
page 36
page 37-41
page 42
page 43
page 44
page 45-46
page 47-52
page 53
page 54
page 55-58
page 59-68
page 3

IMPORTANT NOTE:
This model helicopter has been designed and produced to be a high performance 3D machine. With its simple design and low parts count, pilots of all skill levels will appreciate its easy repairability. This is not a toy.
Please take care assembling the model, and take care and responsibility when you fly it. We take no responsibility for any damage or injuries, either direct or consequential, from the use of this product. If you are not
experienced in the assembly and flying of a high performance model helicopter we recommend you seek the assistance of an experienced pilot. Above all, fly safely and we hope you enjoy this model.
SAFETY GUIDELINES:
Only fly this model in areas designated for the use of model aircraft. Ensure you obtain indemnity insurance, normally available
through your National model aircraft association. Remain at least 6 meters (20 feet) from the model at all times. Never allow
spectators or animals any closer than 30 meters (100 feet) from the model.
NOTES FOR ASSEMBLY:
Please read this instruction manual fully before beginning assembly of this model helicopter. Be sure to use quality tools during the assembly process, and remember not to overtighten small fasteners. Note the following
symbols which are used in this manual. Use thread lock sparingly where indicated. If you are unsure about an assembly step, please seek the advice of an experienced pilot. Warranty on any parts is only applicable
prior to assembly of the part on the model. NONE OF THE PRE ASSEMBLED PARTS HAVE THREAD LOCK ON THE SCREWS. IS IMPORTANT TO READ AND FOLLOW THE ASSEMBLY NOTES IN EACH STEP.
INCORRECT ASSEMBLY OR NOT USING THREAD LOCK WILL CAUSE A CRASH OR INJURY.
Important note Use CA Glue Use Loctite 243 Medium Strength Use Loctite 648 Bonding Use Silicone Grease
page 3

TOOLS REQUIRED
Chapter 3, Required Tools for assembly
1.5mm Hex Screw Driver
(High quality)
One Tools Required
2mm Hex Screw Driver
(High quality)
2.5mm Hex Screw Driver
(High quality)
Needle Nose Pliers
Uniball Pliers
Caliper
page 4
One Tools Required
Note :
We recommend high quality steel tools during assembly.
Hex Screw driver in particular must have precise Tip
Hexagonal dimension.
3mm Hex Screw Driver
(High quality)
One Tools Required
4mm Hex Tip Key L
(High quality)
Two Tools Required

Tail Boom& Tail Push Rod
Canopy
Box2/bag 15 Main Frame
Box2/bag 17 ESC Plate
Box2/bag 18 CF Middle Plate
Box2/bag 19 CF Battery Tray Plate
Box2/bag 21 CF Front Length Plate
Box2/bag 22 CF Rear Length Plate
Box2 /Bag 28 Landing Gear
Box3/bag 1 Vertical Fin
Box3/bag 2 Tail Rotor
Box3/bag 3 Tail Shaft
Box3/bag 4 Tail Pitch Slider
Box3/bag 5 Tail Bell Crank
Box3/bag 7 Tail Servo Mount
Box3/bag 6 HTD3M 1698-Tail Belt
Box3/bag 8 Front Pulley Guide Belt
Box3/bag 9 Boom Clamp
Box3/bag 10 Upper Main Shaft Bearing Block
Box3/bag 11 Middle Main Shaft Bearing Block
Box3/bag 12 Lower Main Shaft Bearing Block
Box3/bag 13 Canopy Mount
Box3/bag 14 Motor Mount
Box3/bag 16 Anti Rotation Guide
Box3/bag 23 Main Gear
Box3/bag 24 Swash Plate
Box3/bag 25 Rotor Head
Box3/bag 26 Main Shaft
Box3/bag 27 Servo Set
Accessories
Chapter 4, What's inside the box
Outer Box
page 6

Chapter 5: Pinion Selection & RPM
page 7
OXY 5 - FLY STYLE / HEAD / TAIL SETTINGS
In order to choose the best setup for your OXY 5, and optimize performance, it is important to know some basic information:
1- Battery Pack you intent to use - (from 6S to 12S)
2- The Motor Kv - See your motor specifications.
3- Your target head speed, If you use a head speed calculator, use 110 Teeth for the main gear and one of the available pinions.
Or use this simple formula:
If you use governor, in order to assure that RPM will be constant during the fly, set a gear ratio to have theory Maximum RPM approximately 10% higher than you’re expected governed RPM.
Your TX Throttle value should be set between 75 to 85%
Example: Target RPM Governed at 80% throttle value = 2000, theory Max RPM should be approx. 2200.
This formula and value can be affected by many factors such: Battery quality, Battery C Rate, Motor Power and Fly Style.
In any case can give you basic information choosing your Motor KV and Pinion (Gear Ratio).
Table below will give you basic suggestion about RPM and Tail Setting (tail pulley / tail ratio) in order to guide on your OXY 5 Fly Style needs.
OXY 5 - ELECTRONICS AND POWER SUGGESTIONS
Head Speed Note: Although OXY 5 can handle very high Head Speed, we suggest not to exceed the maximum RPM on the table above, to maintain a good compromise between performances and efficiency.
Tail Settings, see above Info and Table: “Fly Style - Head - Tail Settings”
CONFIGURATION EXAMPLES:
Since the OXY 5 is a high performance 3D RC helicopter, we suggest using high quality electronics and power components including Servos, FBL , Motor, Battery and ESC.OXY 5 from box is designed to use Cyclic
Standard Size Servo and Rudder Standard or Mini Size Servo, however thanks a simple optional bracket system can use Cyclic Mini Size Servo. From our test we can suggest Cyclic Mini Size Servos for Main Blade
from 500 to 560 and Standard Servo Size from 550 to 570, in any case is hard for us give a precise direction, because in the end we don’t know your personal fly performance. In any case our basic direction cannot
be wrong.Remember that OXY 5 like any other top performance Heli require light components to maximize flight time and performance. Always consider the acceleration G force in fly, few extra gram can become Kg
during some maneuvers, compromising the best performance. Always choose the electronics and the power system suitable for your fly style, “more is not always better”!
remove table and add capital note : Fly Style - Head - Tail Settings Table - Working Process -Coming Soon

Chapter 5: Pinion Selection & RPM
FROM OUR TEST HERE OUR ELECTRONICS SUGGESTIONS:
CYCLIC SERVO: (Standard Kit) : Standard HELI Size Servo– With Optional Mini Servo Bracket: Mini HELI Size Servo.
RUDDER SERVO: Standard or Mini HELI Size Servo, narrow pulse and fast throw – (Suggested Specific Rudder Servos)
BATTERY: Hard to list here all the option OXY 5 gives, however if 6S from 3500 up 5500 and if 12S from 2500 up 4000. For more information about maximum battery size, please check
User Manual Page 2.
ESC: 100 to 150A
MOTOR: 4015, 4020, 4025 , 4035, 4225 - 500 / 1200 KV depending on your Battery Set-Up.
FBL System: The OXY 5 is designed around the Ikon / Brain and Neo V-Bar Systems. Many other FBL systems can be used, depending on your personal choice. Boom Clamp Bottom
Side can accept any of the current FBL available.
MAIN BLADE: OXY 5 can spin 500 up to 575mm Main Blade, 4mm Screw 10 or 12mm Root.
TAIL BLADE: OXY 5 can spin 85 up to 105mm Tail Blade, 3mm Screw 4mm Root.
FROM OUR TEST HERE OUR ELECTRONICS SUGGESTIONS:
page 8
OUR PILOTS STANDARD SET-UP
Name: Mark Alswager
Country: USA
Level: Advanced
Battery: 6s 5000mah
Esc: Kontronik jive pro 120hv
Motor: Xnova 4020 lightning 1200kv – A – 6mm
Pinion: 12T
Tail Pulley: 19T
Cyclic servos: MKS hbl599/hbl575
Tail servo:mks X8 hbl880
Fbl: Vbar Neo
Main Blade: VTX 557
Tail Blade: Rotortech 93
Headspeed: 2450-2550

Chapter 6: Tail Assembly
page 9

ID
5.2
ID
5
Vertical Fin Assembly
( Box3/bag 1)
Chapter 6: Tail Assembly
Side Case Assembly
(Box3/bag 1)
Important Note:
This part, for tuning reasons,
comes factory pre assembled,
it's ready to use.
Important Note:
This part, for tuning reasons,
comes factory pre assembled,
it's ready to use.
Important Note:
Tail Grip will have lateral movement on hub shaft.
This is normal. When Spinning centrippetal force will
hold grip outwards
This part comes pre assembled
WITHOUT thread lock. It MUST be
re-assembled with thread lock as shown.
Important Note:
This part, for tuning reasons,
comes factory pre assembled,
it's ready to use.
6x12x4 Radial Bearing
CA Glue
loctite 648
M2x5 Hex Cap Screw
loctite 243
loctite 243
Vertical Fin
loctite 648
6x12x4 Radial Bearing
Bearing Bushing
Bearing Bushing
Side Case
Tail Rotor Assembly
(Box3/bag 2)
Tail Grip
2 x 5x10x3 Radial bearing
CA Glue
add grease
loctite 243
page 10

Chapter 6: Tail Assembly
Tail Shaft Assembly
( Box3/bag 3 )
OXY0812-OXY5 Tail Shaft
OXY1059-2.5x14 Dowel Pin
OXY1061-Bushing 6x8.5x3.6
OXY0966-19T Tail Pulley
Set Screw M4x3
Tail Pitch Slider Assembly
( Box3/bag 4 )
Tail Pitch Slider Bushing
Important Note:
This part, for tuning reasons,
comes factory pre assembled,
it's ready to use.
8x12x3.5 Radial Bearing
Tail Pitch Slider Ring
Tail Pitch Slider Half Moon
OXY1038-2x3x3 Bushing
OXY1042-OXY5 Link Control
2xM2x6 Hex Cap Screw
page 11
loctite 243
loctite 243
Important note:
This part comes pre assembled
WITHOUT thread lock. It MUST be
re-assembled with thread lock as shown.
loctite 648

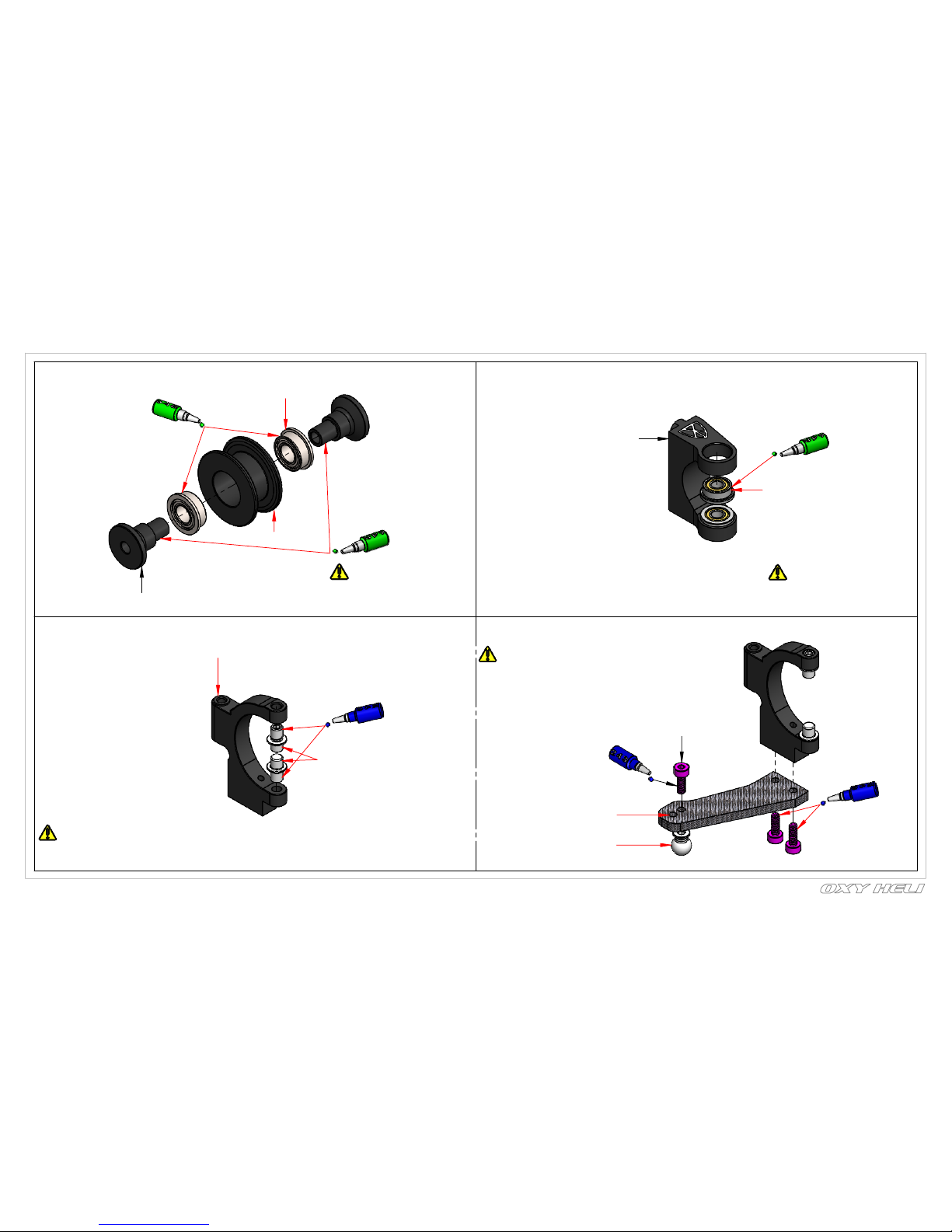

Tail Belt Crank Support Assembly
( Box3/bag 5 )
Chapter 6: Tail Assembly
Tail Belt Crank Support Assembly
( Box3/bag 5 )
Tail Belt Crank Support Assembly
( Box3/bag 5 )
Tail Belt Crank Support Assembly
( Box3/bag 5 )
OXY0883 - Belt Pulley
2 x 4x8x3 Flange Bearing
OXY0823 - Tail Belt Tensioner Bushing
OXY0817-OXY5 Tail Bell Crank
OXY1058 - Tail Bell Crank Pin
OXY0818 - Tail Bell Crank Support
2 x OXY0818
Tail Bell Crank Support
Important Note:
This part, for tuning reasons,
comes factory pre assembled,
it's ready to use.
OXY0977- Bell Crank Arm
OXY0874-5mm Ball Servo Arm
3 x M2x6 Hex Cap Screw
page 12
Important Note:
This part, for tuning reasons,
comes factory pre assembled,
it's ready to use.
Important Note:
This part comes pre assembled
WITHOUT thread lock. It MUST be
re-assembled with thread lock as shown
Important Note:
This part comes pre assembled
WITHOUT thread lock. It MUST be
re-assembled with thread lock as shown
loctite 648
loctite 648
loctite 243
loctite 648
loctite 243
loctite 243

31
0.60
Carbon Rod
DR1252-A-Linkage Ball
Step 1
Note: to install this
pin screw rotate
counter clock wire
Note Pin Screw Thread:
Pin Screw
Oxy designed the Pin Screw with
a counter clockwise thread. This
will help on the final locking
operation. Be careful to follow our
instructions to get a perfect assembly
OXY0620-Guide
Push Rod
Note: Install the Pin Screw
and leavea gap as shown.
Step 2
Important Note:
This part, for tuning reasons,
comes factory pre assembly,
it's ready to use.
Step 3
Push the part inside the
boom sockets as shown
Slide the parts as shown
Step 4
In order to lock the tail push rod
support, use a Flat Screw Driver
and turn clockwise. Do not
over tighten.
Step 5
Tail Push Rod Assembly
Chapter 6: Tail Assembly
page 13

Chapter 6: Tail Assembly
Fine Adjust Shims Note :
In order to give fine adjustment options,
in the Extra Hardware Bag you will find
extra shims 6X8X0.1.
Start assembly WITHOUT any
shims. If Tail Shaft has sideways play
more than 0.2mm,
add shims as required, to one side, as shown.
PRO TIPS: For best Tail performances little
side play is recommended.
Note: all screws in this step
need loctite during assembly.
before install any shim
read carefully fine
adjustment shims note.
Tensioner Assembly
3 x M3X6
Hex Cap Screw
Vertilcal Fin Plate
TCEM2.5X30 - M2.5X30
Hex Cap Screw
M2.5 Washer
Tail Shaft Assembly
1 x M3X6
Hex Cap Screw
OXY0821-OXY5
Tail Case Rod
M2.5 Washer
M2.5X6
Hex Cap Screw
Tail Bell Crank Suppport Assembly
Right Tail Case Assembly
2 x M3X6
Hex Cap Screw
HTD3M 1698 Timing Belt
Tail Case Insert
Tail Boom Assembly
Loctite 243
Loctite 243
Loctite 243
Loctite 243
Tail Belt
(Box3/bag 6)
OXY1061
Bushing 6x8.5x3.6
page 14

Tail Slider Assembly
Tail Rotor Assembly
Note: Line up the
holes, so the set
screw seats correctly
into tail shaft lock hole.
SCM4x4-
Set Screw M4x4
Loctite 243
Tail Bell
Crank Assembly
2 x TCEM2.5X6 - M2.5X6
Hex Cap Screw
Loctite 243
Tail Servo Support
(Box 3 / Bag 7 )
Note: don't install any screw
Chapter 6: Tail Assembly
page 15

Chapter 6: Tail Assembly
TAIL BELT ASSEMBLY AND DIRECTION CHECK:
In order to check correct belt install,
move belt position A counter clockwise and
the position B must rotate counter clockwise.
Before next step Tail Assembly check carefully
if Belt is installed per need.
Belt MUST move without any friction.
Step 5-1:
Tail belt is showed straight coming out,
from tail boom. Be careful to
check the belt if not twisted inside the boom.
Use a flashlight to check inside the boom, for better vision.
Rotate the belt 90 degrees CCW as shown.
90 CCW Rotation.
page 16

Chapter 6: Tail Assembly
Step 5-2:
Hold carefully Tail Belt as shown and insert
Front Boom Insert.A
Front Boom Insert
(Box 3/Bag )
Press in this insert parts into
Tail Boom to help Tail Belt
doesn't twist in the next
installation step
Step 5-3:
Final Tail Belt Direction Check:
Pull Tail Belt (as shown) and check the tail hub rotates
in the direction shown. If the Tail Rotor rotates
in the wrong direction, go back to the previous
instructions and double check your assembly.
Pull Tail Belt here
page 17

Chapter 7: Main Frame Assembly
page 18

Front Pulley Guide Belt
( Box3/bag 8 )
Chapter 7: Main Frame Assembly
pulley guide belt
4x8x3 Flange Bearing
4 x M2.5x6 Hex Cap Screw
loctite 243
Pulley Guide Belt Pin
Pulley Guide
Belt Support
loctite 648
Important Note:
This part, for tuning reasons,
comes factory assembled,
it's ready to use.
Belt Pulley Bridge
4 x Hex Rod 5 X 28
Boom Clamp Mount
M2x5 Button Screw
10x22x6 Radial Bearing
Upper Bearing Block
10x22x6 Radial Bearing
Middle Bearing Block
loctite 648
loctite 648
Upper Bearing Block Assembly
( Box3/bag 10 )
Middle Bearing Block Assembly
( Box3/bag 11 )
Boom Clamp Mount
( Box3/bag 9 )
Important Note:
This part, for tuning reasons,
comes factory assembled,
it's ready to use.
Important Note:
This part, for tuning reasons,
comes factory assembled,
it's ready to use.
page 19

Lower Bearing Block Assembly
( Box3/bag 12 )
loctite 648
Lower Bearing Block
Important Note:
This part, for tuning reasons,
comes factory assembled,
it's ready to use.
10x22x6 Radial Bearing
Canopy Mount Assembly
( Box3/bag 13 )
Canopy Mount Stiffener
Canopy Mount Stiffener
M2.5x6 Hex Cap Screw
Canopy
Mount Female
M2.5x6 Hex Cap Screw
Canopy
Mount Female
Left Side
Right Side
loctite 243 loctite 243
Chapter 7: Main Frame Assembly
ESC Plate Assembly
( Box2/bag 17 )
CF Middle Plate Assembly
( Box2/bag 18 )
ESC CF Plate
2 x M3x6 Flat Head Screw
2 x Frame Spacer
Middle CF Plate
4 x Frame Spacer
add loctte 243
to all Screw
add loctte 243
to all Screw
page 20
