Oxygenic Power XY-3 User manual

CONTENTS
WARNING
SAFETY PRECAUTIONS
BEFORE INSTALLATION
PLACEMENT
SAFETY CAUTION
PRODUCT FEATURE
TECHNICAL INDEXES
INSTALL AND USE
MAINTENANCE
TROUBLESHOOTING GUIDE
WORKING PRINCIPLE
ENGLISH In order to prevent power failure or oxygen concen-
trator failure, the person in need of oxygen must be
equipped with other oxygen supply equipment (such
as: oxygen cylinder, oxygen bag, etc.)!
The device is not considered for life support or life
extension !
Do not lie upside down the machine.
If the power supply voltage is unstable,beyond the
voltage range of plus or minus 10%,please connect
the regulator before use.
Please use a safe and qualified socket or a safe
electrician certified terminal. Non-professionals are
not allowed to open the case.
The machine should be placed in the room, ventilat-
ed place, avoid direct sunlight, away from walls and
other objects more than 10cm.
Do not place sundries, water and oil containers on
the machine. Do not stack sundries in the ventilator
at the back and bottom of the machine to prevent
the exhaust from being blocked, which may cause
shutdown or decrease of oxygen concentration due
to excessive temperature.
12

IN SERVE MAIN TECHNO-INDEX PARAMETER
THE WORKING PRINCIPLE
FUNCTIONAL FEATURES
NORMAL WORKING CONDITIONS
SCOPE OF APPLICATION: The product is designed according to the stan-
dard of household appliances and can supply oxygen for families
HEALTH CARE FUNCTION: Oxygen intake can improve the condition of
oxygen supply to the body and achieve the purpose of health care.
It is suitable for people with different physiological hypoxia, such as middle
and old people, people with poor physical fitness, pregnant women, stu-
dents, etc. Also can eliminate fatigue after heavy physical or mental work,
restore bodily function.
The machine is powered by AC220V power supply, takes air as raw mate-
rial, adopts high-efficiency molecular sieve to makes high-purity oxygen by
PSA (Pressure Swing Adsorption) method at room temperature.
INTELLIGENT CONTROL: LED display, timing function, easy to use.
OVERHEATING PROTECTION: There is overheat protector in the oil-free
compressor, which will automatically stop working when the temperature of
the compressor is too high, better protect the safety of the compressor and
the machine.
Ambient temperature range: 0℃-40℃
Relative humidity range: <80%
Atmospheric pressure range: 86Kpa -106Kpa
When the temperature is lower than 0 ℃, the equipment should be placed
in the normal ambient temperature for more than 4 hours before use.
34
Model No.: XY-3/3C/3S/3M
Oxygen Generation Method: PSA
Nominal Voltage: 220V ± 15V, 50±1Hz
Rated Current: 0.5A
Oxygen Purity: 26%-90% Adjustable
Oxygen Flow: 1L-7L/min Adjustable(XY-3/3C/3S)
2L-7L/min Adjustable (XY-3M)
Oxygen Pressure: 0.02-0.03 Mpa
Product Size: 325×180×350mm
Net Weight : 6.0KG±5%
Electrical classification: II
Display control: Touch button, LED timing display,
Intelligent chip control, Infrared remote control.
Carbon Dioxide: qualified
Carbon Monoxide: qualified
Alkalinity Acidity: qualified
Shape Identification: No color or odor. It is flame retardant.
Input Power: 110W(XY-3/3C/3S)
140W (XY-3M)

5 6
INSTALLATION AND USE: PREPARATORY WORK:
ADD WATER TO THE WATER TANK:

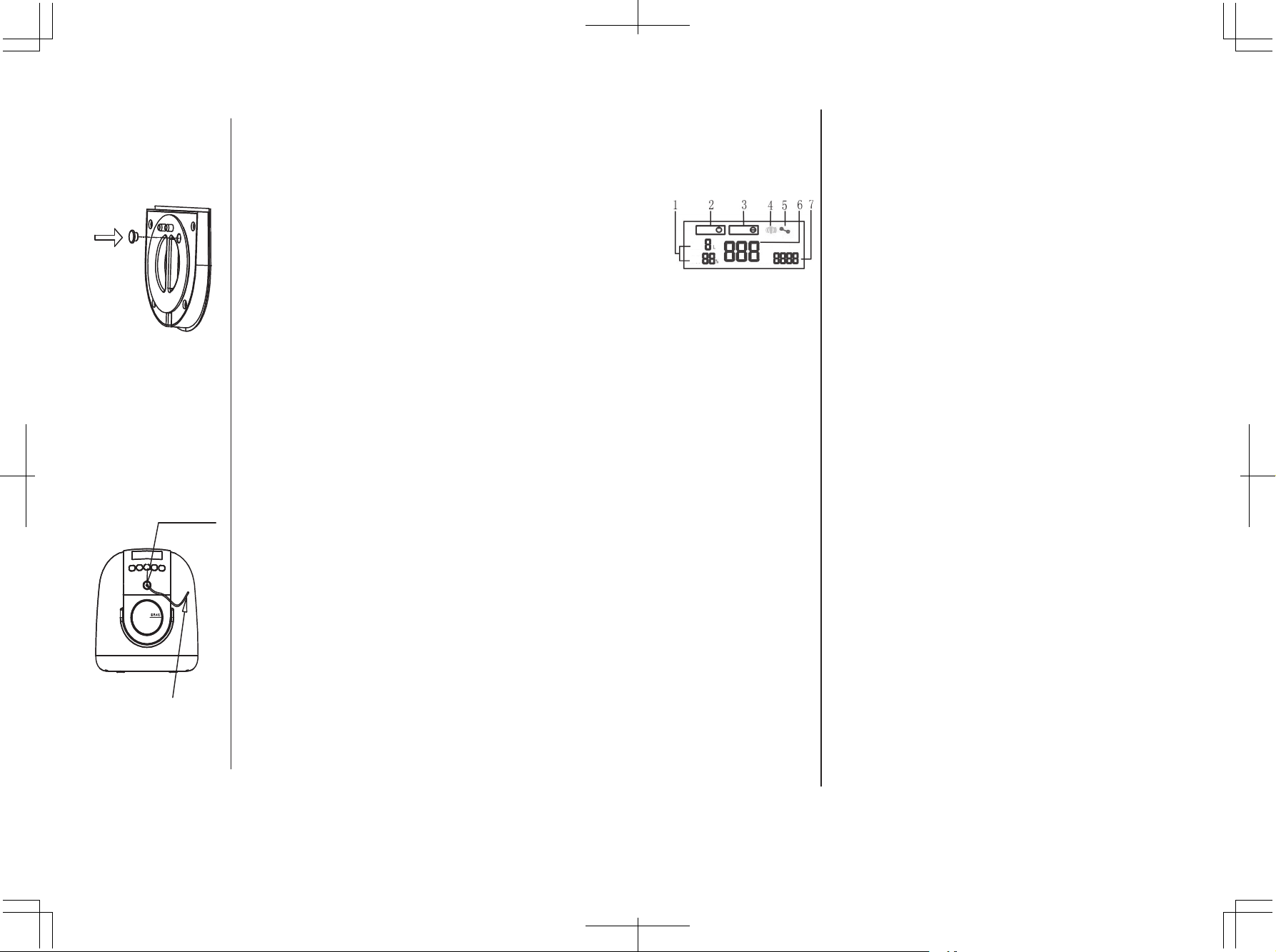

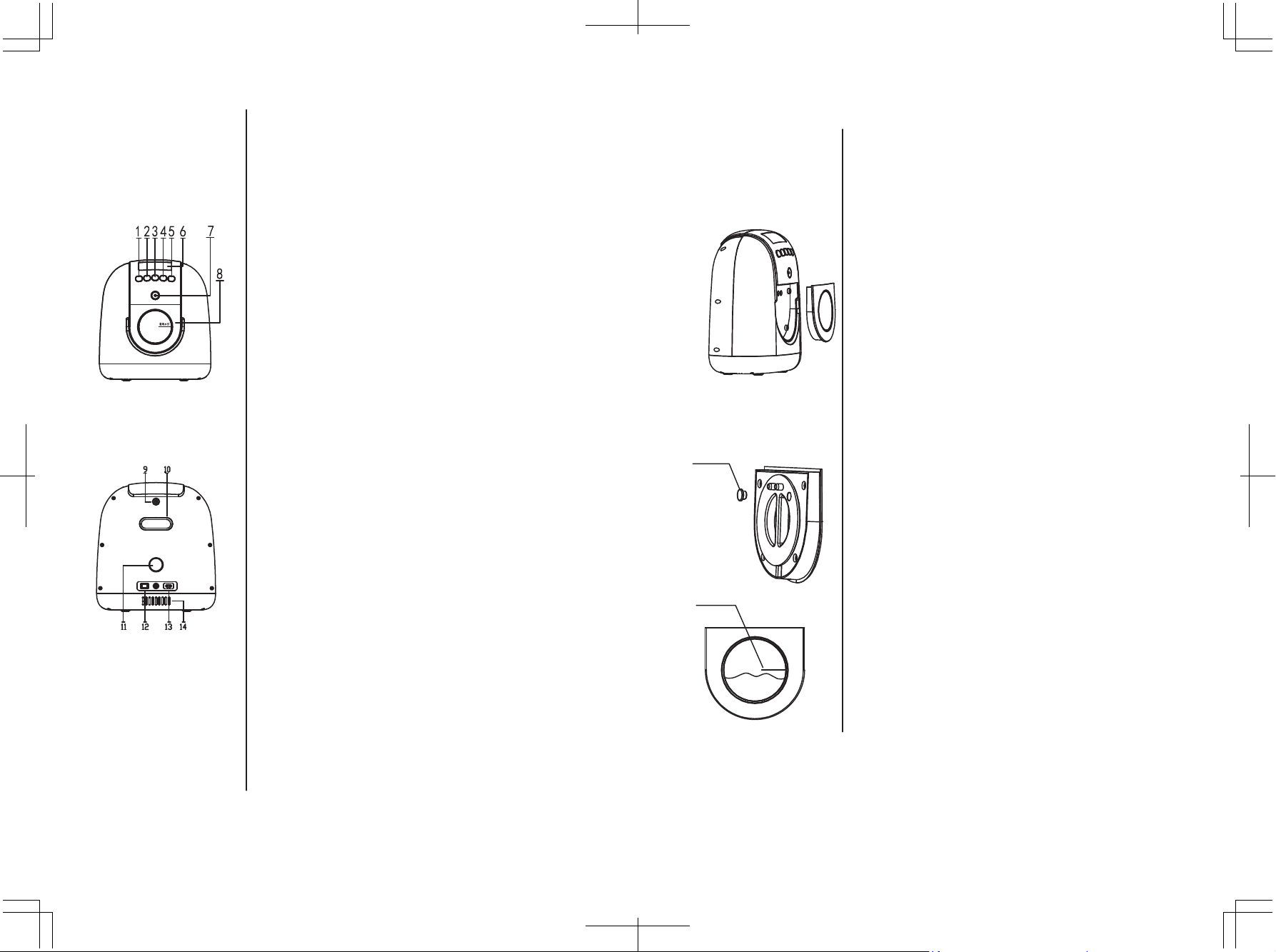

APPEARANCE SKETCH
UNPACKING INSPECTION
Before operating the product, the user shall first check
whether the appearance of the product is good and
whether the variety and quantity of accessories are
consistent with the list of accessories in the manual. If
there is any defect, please contact the distributor or
manufacturer in time.
(1) Switch Button
(2)Mode
(3)Anion
(4)Timing +
(5)Timing -
(6) LED Display
(7)Oxygen Outlet
(8)Water Tank
(9)Nebulizer Outlet (Atomzation Model Contains)
(10) Handle
(11) Filter
(12) Power Switch
(13) Power Cord Socket
(14)Heat-sink window
MAX LINE
SILICONE STOPPER
MAX LINE
Grab the left and right sides of the water tank with
both hands and pull evenly out of the water tank.
Open the silicone stopper on the back of the water
tank and add purified water to the Max water level.

1. POWER ON
When the oxygen machine is powered on, turn on the power
switch of the rear case, and the buzzer will sound for a long
time. All the lights on the LED screen will be on for 3
seconds, and will go out after automatic fault detection with
only the power indicator lights up and the machine enters
standby mode.
2. SWITCH
Switch between standby mode and operation of the
machine; the display screen will be on after starting, the
machine will have a slight nitrogen exhaust sound, and the
oxygen outlet will have oxygen exhaust.
3. ADD TIME
Adjust the setting time of the machine; after starting up,it
runs continuously by default; When the button is pressed for
the first time, the setting time is 15 minutes; when the button
is pressed continuously, the setting time is accumulated in
units of 15 minutes, and the maximum setting time is 180
minutes.
4.REDUCE TIME


     



CONNECTING OXYGEN TUBE
Connect one end of the oxygen tube with the oxygen outlet and
the other end with the oxygen inhaler.
OXYGEN OUTLET
OXYGEN TUBE
PREPARATORY WORK:
OPERATION OF INHALING OXYGEN:
FLOW
PURITY
POWER ANION
MIN
SUM
LED DISPLAY SCREEN
1,






78

5.MODE ADJUST
Control oxygen flow and purity through mode button, the
larger the oxygen flow, the smaller the purity. Please see
technical parameters for detailed flow and purity.
CLEAN THE SHELL
Clean the machine shell at least once a month, first cut off the
power, wipe with a clean soft cloth and prevent the liquid from
flowing into the shell gap.
Should clean everyday commonly.The outlet of the nasal inhaler
should be cleaned after each use.It is recommended to replace
the oxygen tube once a year.The oxygen tube should be kept dry
When preparing to not use this machine for a long time, please
follow the following steps:
1. Take out the humidification water tank, pour out the water in
the water tank, and then replace the water tank to its original
position.
2. Cut off the power supply and put away the power cord.
3. Oxygen tube and oxygen inhaler should be kept in a dry
environment to avoid direct sunlight and pollution.
4. Store the battery after it is fully charged. It is recommended to
charge and discharge it once a month to keep the battery active.
After long-term use, please follow the following steps:
1. Check the power cord.
2. Clean oxygen tube and oxygen inhalers and check if they are
broken, if so, please change them.
CLEAN THE WATER TANK
1,In order to keep the tank clean, should be filled with pure water
and replaced as much as possible every day.
2,As shown in the left picture, the tank is an integral tank, which
needs to be replaced every year to ensure health oxygen.
3After the water tank is loaded with pure water, remember to put
the water tank rubber plug back and wipe clean water beads on
the outside surface to ensure that the water tank is clean and tidy
6.ANION
Turn the anion function on or off. When the anion is turned
on, the corresponding anion icon on the display lights up at
the same time
7.NEBULIZER OUTLIET (
Atomzation Model Contains )
As shown on the left picture, rotate the nebulizer outlet nut
counterclockwise with your finger, connect one end of the
nebulizer tube with the nebulizer outlet.
8.REMOTE CONTROL
Remote control button function and control panel button
function consistent
USE AND STORAGE ENVIRONMENT
It is recommended that the temperature of this machine is
between 0°C to 40 °C , environment humidity less than
80%.The machine can be transported and stored in an
environment with a temperature of-20°C to -55°C and
humidity less than 93%.
ELECTROMAGNETIC ENVIRONMENT
In order to avoid interference from strong electromagnetic
environment or other electrical appliances, please keep the
machine at least 30CM apart from other household
appliances during use.
Symbol of safety requirements of this machine and its meaning.
Equipment of class II
ENVIRONMENTAL REQUIREMENTS
ENVIRONMENTAL REQUIREMENTS
CLEAN OXYGEN TUBE AND INHALER
HOW TO DEAL WITH LONG-TERM DISUSE
10
9


()























12
11













""

 
COMMON FAULTS AND TROUBLESHOOTING
















 









































 ( 
)


















