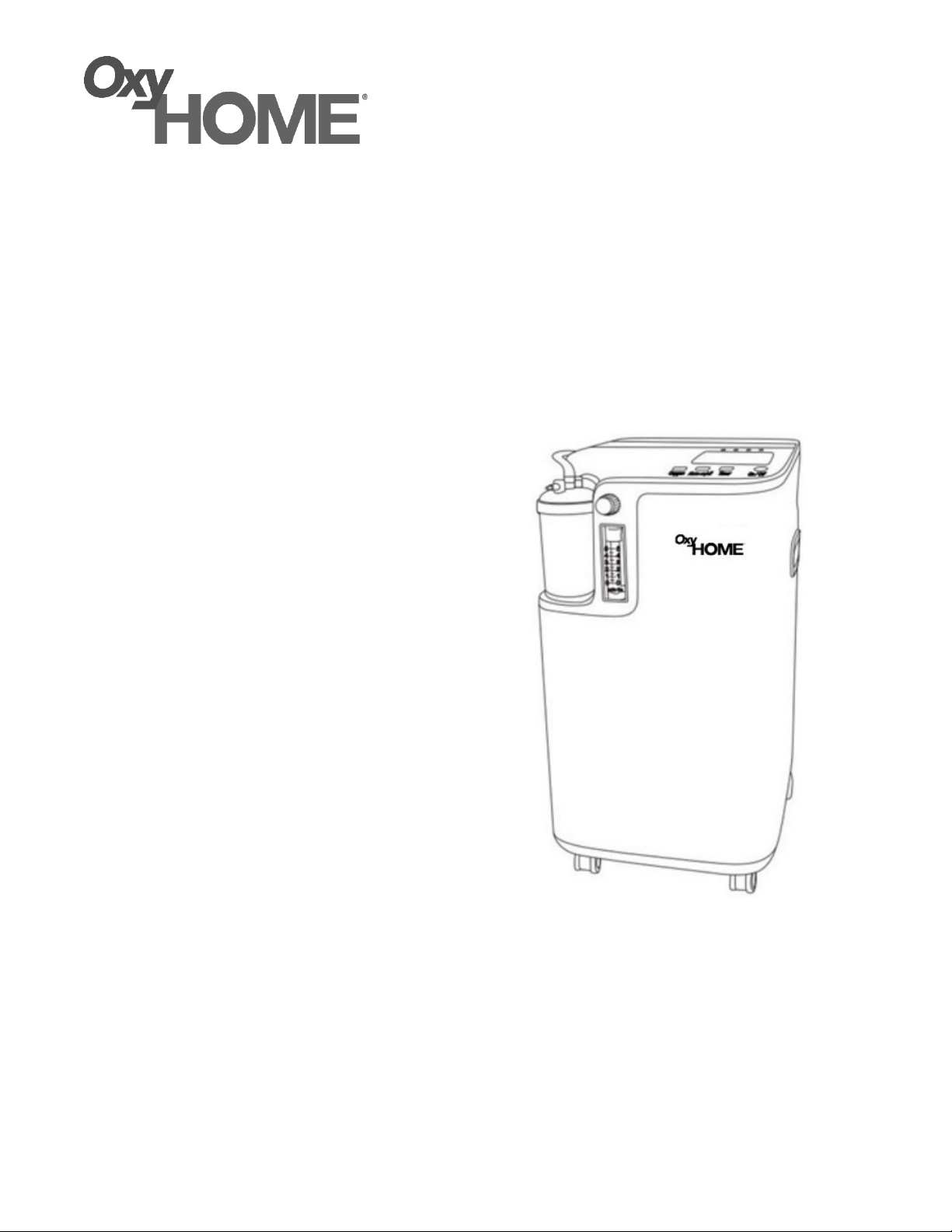

OxyGo OXYHOME 1400-5100 User manual

OXYGEN CONCENTRATOR
User Manual
Model: 1400-5100
RxOnly
Caution:Federal law restricts this device to sale by or on the order of aphysician. Read this instruction
manual carefully before use.

2
Contents
Glossary - Explanation of Packaging and Labelling Symbols.............................................................................3
Introduction...............................................................................................................................................................4
About OxyHome ....................................................................................................................................................4
General Information ..............................................................................................................................................4
How to Use this Manual........................................................................................................................................4
Intended Use..........................................................................................................................................................4
Contraindications and Precautions ....................................................................................................................4
Warnings Overview ..................................................................................................................................................5
Cautions Overview ...................................................................................................................................................6
Concentrator Features .............................................................................................................................................7
Front and Back of Concentrator..........................................................................................................................7
Side Panel ..............................................................................................................................................................7

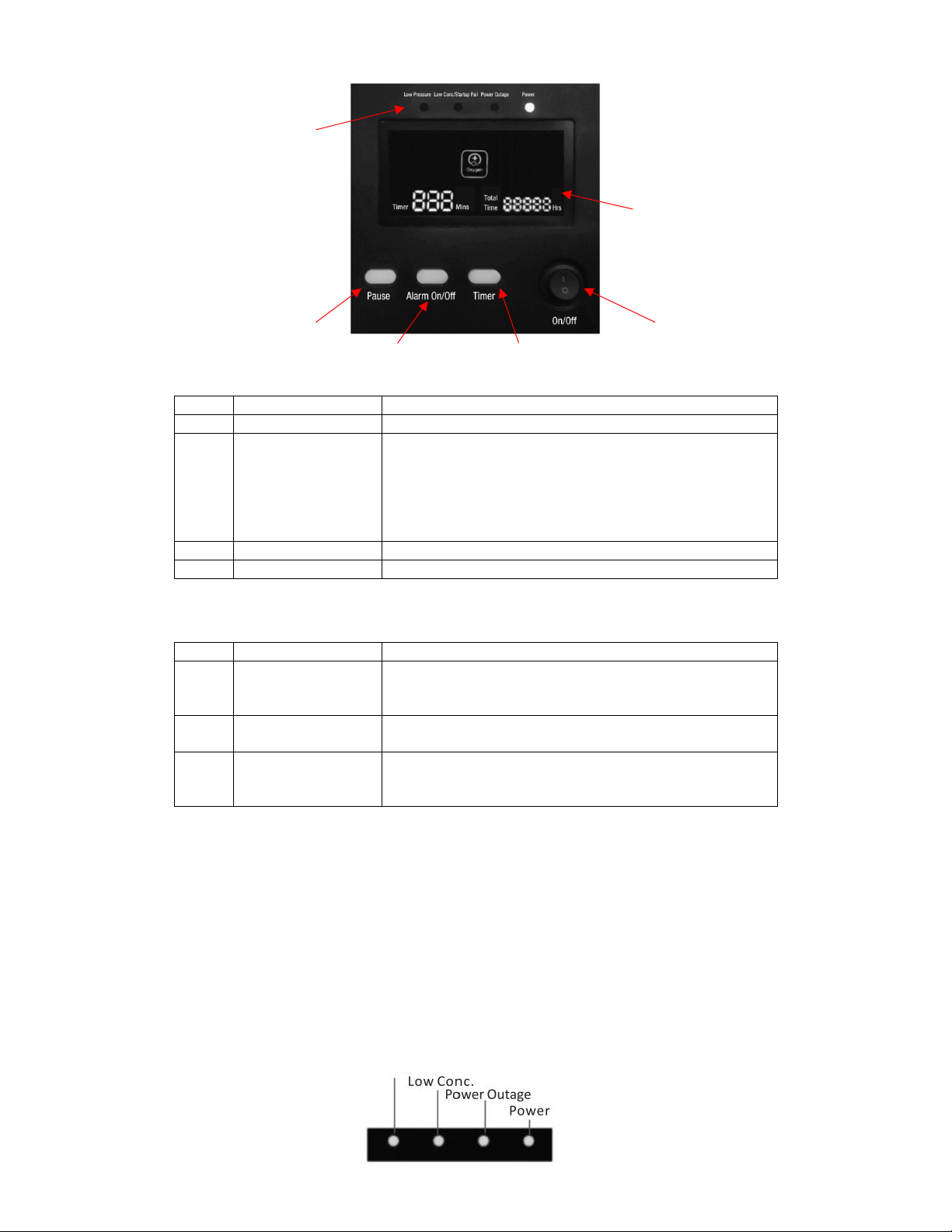

Control Panel.........................................................................................................................................................8
User Controls.....................................................................................................................................................8
User Interfaces...................................................................................................................................................8
Indicator Lights..................................................................................................................................................8
Flow Meter..........................................................................................................................................................9
Oxygen Outlet Port............................................................................................................................................9
Accessories ...........................................................................................................................................................9
Operating Instructions .......................................................................................................................................... 10
General Instructions .......................................................................................................................................... 10
Cleaning, Care, and Maintenance ........................................................................................................................ 11
Routine Maintenance and Repairs ................................................................................................................... 11
Case Cleaning .................................................................................................................................................... 11
Cannula Replacement ....................................................................................................................................... 11
Filter Replacement ............................................................................................................................................. 11
Disposal of Equipment and Accessories ........................................................................................................ 11
Troubleshooting .................................................................................................................................................... 12
Product Specifications.......................................................................................................................................... 12
Environmental .................................................................................................................................................... 13
EMC Information .................................................................................................................................................... 13
TERMS AND CONDITIONS.................................................................................................................................... 17
Trademarks and Disclaimer .............................................................................................................................. 18
Trademark ....................................................................................................................................................... 18
Disclaimer ....................................................................................................................................................... 18
This Document................................................................................................................................................ 18
For Help ........................................................................................................................................................... 18

3

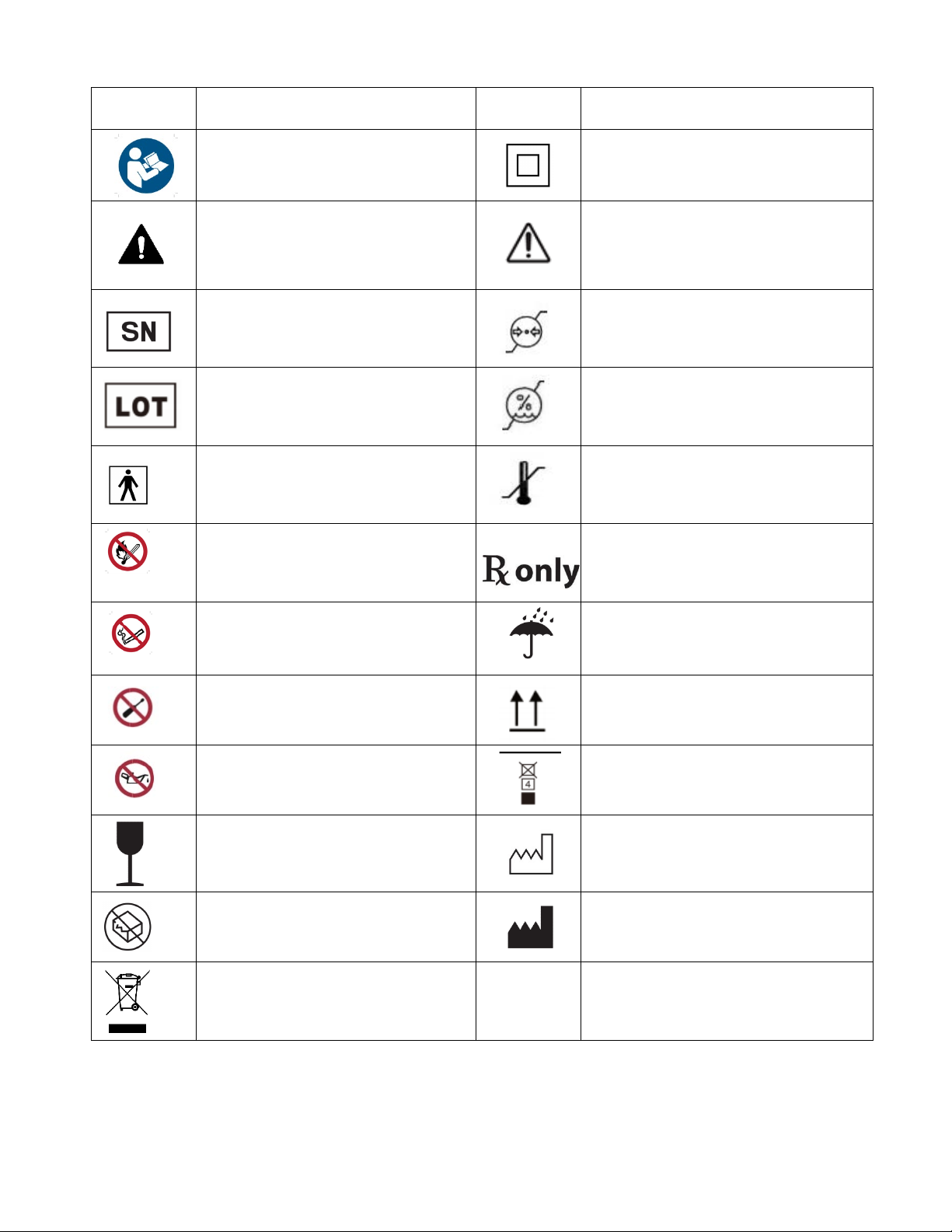

Glossary - Explanation of Packaging and Labelling Symbols
|
On (Power)
◯
Off (Power)
Refer to instruction
manual/booklet
Class II Device symbol
WARNING -
Statements that
describe serious adverse
reactions and potential safety
hazards.
CAUTION - Statements that call
attention to special care to be
exercised by the
practitioner/patient.
Serial Number
Operating atmospheric pres sure
Batch code
Humidity limitation
Type BF according to electrical
safety requirements
Storage temperature
No Open
Flames
No open flame when device is in
use or do not incinerate
U.S. federal law restricts this
device to sale by or on the order
of a physician
No Smoking
No smoking
Keep dry
Do not disassemble
(Contact your provider)
This side up
DO NOT use oil or grease
Stacking limit by number
Handle with care
Date of manufacture
Do not use if packaging is
damaged
Manufacturer
Separate collection for electrical
and electronic equipment

4
Introduction
The OxyHome Oxygen Concentrator is used on a prescriptive basis by patients requiring supplemental oxygen. It
supplies a high concentration of oxygen and is used with a nasal cannula to channel oxygen from the
concentrator to the patient. Please refer to this manual for detailed instructions on warnings, cautions,
specifications, and additional information.
About OxyHome
The OxyHome Oxygen Concentrator uses a pressure swing adsorption process and a molecular sieve to
separate and concentrate oxygen from the air. The device can provide a continuous flow of oxygen up to 5 LPM.
The concentration of supplied oxygen is from 93% + or –3%. The weight of the OxyHome Oxygen Concentrator is
41.8lbs (19kg).
General Information
This equipment is classified as:
•Class II
•Type BF
IMPORTANT: Users should read this entire manual before operating the OxyHome Oxygen Concentrator. Failure
to do so could result in personal injury and/or death. If you have questions about the information in this user
manual or about the safe operation of this system, contact your oxygen provider.
How to Use this Manual
This user manual contains warnings, cautions, and notes to help call attention to the most important safety and
operational aspects of the device. To help identify these items when they occur in the text, they are shown using
the following typographical conventions:
WARNING: Statements that describe serious adverse reactions and potential safety hazards.
CAUTION: Statements that call attention to information regarding any special care to be exercised by the
practitioner and/ or patient for the safe and effective use of the device.
IMPORTANT:Statements calling attention to additional significant information about the device or a procedure.
The Medical Devices Directive 93/42/EEC states that the product provider must ensure that all users of the device
are provided with the User Manual. The User Manual for this device has been written to account for training and
knowledge of the patient population to operate the device appropriately.
Intended Use
The OxyHome Oxygen Concentrator is for use by prescription only and intended to deliver concentrated oxygen
to adult patients with chronic pulmonary diseases, or any patient requiring supplemental oxygen. The OxyHome
Oxygen Concentrator may be used in a home environment or institutional environment. OxyHome is not intended
to be life-supporting or life-sustaining.
Contraindications and Precautions
The OxyHome Oxygen Concentrator is not intended to be used:
•In life-supporting or life-sustaining situations
•In an operating or surgical environment
•With a non-adult population
•In conjunction with the flammable anesthetic or flammable materials

5
Warnings Overview
1. Do not use the product without first reading the user manual.
2. Do not operate this device if unsure of its operation or function. Contact your home oxygen provider for
assistance or further information.
3. There is a risk of fire associated with oxygen equipment and therapy. Do not use near sparks or open
flames.
4. Geriatrics or any other patient unable to communicate discomfort can require additional monitoring to avoid
harm.
5. Smoking (including e-cigarettes) during oxygen therapy isdangerous and is likely to result infacial burns,
serious injury or death of the patient and others from fire. Do not allow smoking or open flames within
the same room astheoxygen concentrator orany oxygen carrying accessories.If you smoke, you
must always turn the oxygen concentrator off, remove the cannula and leave the room where either the
cannula or the concentrator islocated.
6. Use only water-based lotions that are oxygen compatible, before and during oxygen therapy. Never use
petroleum or oil-based lotions or salves when operating the device to avoid the risk of fire and burns.
7. Open flames during oxygen therapy are dangerous and are likely to result in fire or death. Do notallow
open flames within 3 meters (10 feet) of the oxygen concentrator or any oxygen carrying accessory.
8. Oxygen makes iteasier for a fire to start and spread. Do not leave the nasal cannula on bed coverings,
chair cushions or otherwise unattended with the concentrator on, but not in use; the oxygen will make the
materials flammable. Turn the concentrator off when not in use to prevent oxygen enrichment.
9. Explosion hazard. Do not use in the presence of flammable anesthetics, cleaning agents, or other
chemical vapors.
10. Do not use this device in the presence of pollutants or fumes.
11. Do not submerge this device in liquid. Do not expose to water or precipitation. Do not expose to dusty
conditions.
12. Do not use a device or any accessory that shows any sign of damage.
13. Do not use lubricants on this device or any of its accessories.
14. Use of this device at an altitude above 10,000 feet (3,000 m),or outside the temperature range of 41°F (5°
C) to 104°F (40°C), or outside the humidity range of 5% to95% may adversely affect the flowrate and
percentage of oxygen and consequently the quality of therapy. When not in use, the device should be
stored in a clean, dryenvironment between -13°F and 158°F (-25°C and 70°C). Use and/or storage outside
of the valid conditions may damage the product.
15. If feeling ill or are experiencing discomfort while using this device, contact your clinician or seek medical
assistance immediately to avoid harm.
16. Your home oxygen provider mustverify the compatibility of the device and all accessories used prior to
use. To ensure you are receiving the therapeutic amount ofoxygen for your medical condition, the device
and accessories mustonly be used after one of moresettings havebeen determined or prescribed for you
atyour specific activity levels by a healthcare professional.
17. The electrical cord and tubing could present a tripping or strangulation hazard. Keep away from children
and pets.
18. Do not disassemble or modify this device or any of its accessories. Do not attempt any maintenance other
than tasksdescribed in the Troubleshooting section.Disassembly can create an electric shock hazard and
will void the warranty. Contact your distributor for servicing by authorized personnel.
19. Use only spare parts recommended by the manufacturer to ensure proper function and to avoid the risk of
fire and burns.
20. Do not repair or perform service work while the device is in use by the patient.

6
Cautions Overview
1. Keep away from heat sources (fireplaces, radiant heaters, etc.) that could cause the operating temperature
at or near the device to exceed 104°F (40°C).
2. The display may be difficult to read under bright lighting conditions (sunlight, interior lights, etc.), move
away from direct light for viewing the display.
3. Keep away from lint or other loose material that could block the air intake vents.
4. Some countries restrict this device to be sold by or on an order of a prescribing clinician. Please ensure
you comply with relevant local laws.
5. Non-prescribed oxygen therapy can be hazardous under certain circumstances. Use this device only when
prescribed by a duly licensed clinician.
6. Always operate the device at the flow rate prescribed by a clinician. Do not alter the flow rate unless
prescribed by a clinician. Periodic reassessment of the flow settings should be done by a clinician.
7. It isrecommended for an alternate source of oxygen to be made available in the event of power outage or
mechanical failure. Consult your home oxygen provider or clinician for an appropriate backup system.
8. It isthe responsibility of the patient to make alternative or backup arrangements for oxygen when traveling.
9. This device may not reach specified oxygen concentration purity until ithas been in use for up to 2 minutes
at set flowrate.
10. This device is designed for use by one patient at a time.
11. The device can be re-used by a new patient. The device should be cleaned as indicated in this user
manual and, according to local laws and prescriptions prior to delivering to a new patient.
12. If you are unable to hear or see alarms or cannot communicate discomfort, consult a clinician before using
this device.
13. If oxygen concentration drops below the specified level, an alarm will indicate this condition. Ifalarm
persists, stop using this device, switch to an alternate source of oxygen, and contact your home oxygen
provider.
14. Only use approved accessories with this device. Using unapproved accessories may impair the
performance of this device.
15. Always follow the cannula manufacturer’s instructions for proper use.
16. Replace the cannula on a regular basis. Check with your home oxygen provider or clinician to determine
how often the cannula should be replaced.
17. Do not use cleaning agents other than those specified in this manual. Allow the cleaning solution to dry
from the cleaned surface before use.
18. Always turn off this device when not in use.
19. Do not use extension cords with power cord provided.
20. Always disconnect power and turn offthis device before cleaning, see “Cleaning, Care, and Maintenance.”
21. Do not obstruct air intake orexhaust vents when operating this device. Blockage can cause buildup of
internal heat and shut down or damage this device.
22. Do not place objects on top of this device.
23. Keep away from children and pets to prevent damage to the device and accessories and/ or inadvertent
setting changes.
24. Keep the device away from petsand pests.
25. Do not use in dusty or wet conditions.
26. Always use in a well-ventilated location.
27. If this device indicates an abnormal condition, see the Troubleshooting section.
28. Use caution when touching this device in high ambient temperatures.
29. The device can be isolated from power by disconnecting the power supply from the input connector.

7
Concentrator Features
Front and Back of Concentrator
Side Panel
Cabinet
Display
Oxygen Outlet Port
Flow Setting Knob
Humidifier Bottle
Flow Meter
Pause Button
Alarm On/Off
Timer
Switch On/Off
Top Handle
Built-in Filter Box
Universal Wheels
Oxygen Outlet Port
Circuit Breaker
Side Handle

8
Control Panel
User Controls
User Interfaces
Indicator Lights
There are 4 indicator lights on the device, please see below for descriptions.
1. Low outlet pressure indicator (Low Pressure): Outlet pressure is less than 2.2 psi, the indicator light
will flash yellow every two seconds and an alarm will sound.
2. Low oxygen purity indicator (Low Conc.): If the oxygen concentration drops below 82% (V/V) the
indicator light will flash yellow, and the alarm will sound.
3. Power loss indicator (Power Outage): When there is a power outage, the indicator light will flash yellow
every 2 seconds and the alarm will sound.
4. Power status indicator: When the concentrator ispowered on, the indicator light will remain solid green
if the concentrator is working normally.
Item
Description
Function
1
On / Off Switch
Press the switch to turn the device “On” or “Off”
2
Timer
After the device starts to deliver the oxygen, you can
set the treatment time by pressing and holding the
Timer button for 10 seconds. You can set the timer
from 10 minutes to 300 minutes in 10-minute
increments. After the timer setting expires, oxygen
delivery will be shutdown automatically.
3
Alarm On / Off
Press and hold this button for 10s to mute alarm sounds.
4
Pause Button
Press the button to pause oxygen delivery.
Item
Description
Function
5
Display
The LCD panel displays total running time, timer, and
alarm indicators. Alarm indicators will appear when
there is an error.
6
Indicator Lights
There are four indicator lights on the device, see table
below for descriptions.
7
Audible Signals
An audible signal (beep) indicates either a change in
operating status or a condition that may need
response (alert).
1
2
3
4
5
6
Low Pressure

9
Item
No. Alarm type Priority
Alarm Signals /Indicator light
Auditory
Yes/No
Alarm
condition
delay/ s
Alarm
signal
generation
delay/sColor
Flashing
frequency
Vacancy
ratio
1
Power supply failure
alarm Med Yellow
Flashing
every two
seconds50% Yes 5s 5s
2 Start-up fail alarm Med Yellow
Flashing
every two
seconds50% Yes 5s 5s
3
Low oxygen concentration
ALARM (non-startup) Med Yellow
Flashing
every two
seconds
50% Yes 5 s 5s
4 Pressure failure alarm Med Yellow
Flashing
every two
seconds
50% Yes 5 s 5s
Flow Meter
WARNING: Always operate the device at the flow rate prescribed byyour physician ortherapist. Do
not change theL/min setting on theflowmeter unless a change has been prescribed.
Rotate the knob on top of the flow meter to set the flow as prescribed by your physician or doctor. The position of
the black ball inside of the flow meter indicates the flow rate.
Oxygen Outlet Port
Connection port for cannula or humidifier bottle.
Accessories
CAUTION: Only use approved accessories with this device. The accessories listed below are
recommended for use with this device. The use of any other accessories which are not specified for
use with this device may reduce performance and void the manufacturer’s warranty. Contact your
distributor for updated information and accessories or if additional, optional, or replacement
accessories are needed.
Description
Part Number
User Manual
1170-5400
Cabinet Filter
1170-5401
Compressor Inlet Filter
1170-5402
HEPA Filter
1170-5403
Locking Wheel
1170-5404
Flow Control Knob
1170-5405
