OYPLA DIY 4714 User manual

Page 1
Manual Version: V1.0
Model Code: 4714
Oypla.com LLP / www.oypla.com
User Manual
Model Code: 4714
20kW Industrial
Heater
Contents
1 Front Cover
2 Safety
Instructions
4 Operating
Instructions
5 Cleaning
Instructions
7 Trouble
Shooting
8 Back Cover

Page 2
Manual Version: V1.0
Model Code: 4714
Oypla.com LLP / www.oypla.com
Safety Instructions
Notice: Ensure you read and fully understand instructions before use
While every attempt is made to ensure the highest degree of protection in all equipment, we cannot
guarantee freedom from injury. The user assumes all risk of injury due to use. All merchandise is sold
on this condition, which no representative of the company can waive or change.
-Make sure all fastenings are tightly in place and that everything is in order before using
the product. This should be checked periodically by an adult.
-Never carry out any alterations or modifications to this product.
-This product is not a toy, and is only to be used for its designated purpose.
-Never leave the product unattended whilst it is switched on. If you have to leave the
product unattended, even for a short while, always switch it off.
-Keep the product out of children’s reach, and do not allow children to operate it.
-Do not place the mains cable on or near any hot surface.
-Do not touch the product if your hands are moist or wet.
-Do not attempt to move the product by pulling on the power cord.
-Do not place the heater next to, or above, an electrical socket.
-Do not cover the heater in any way.
-Do not place the heater close to flammable materials or explosive gases/liquids.
-Only place the heater in a position that will allow for the flow of hot air to not be
blocked.
-Always unplug the heater when it is not in use. Even at the lowest setting, the heater is
still operating, making it a potential fire hazard.
-Clean only with a damp cloth. Do not use strong industrial cleaning substances or
abrasive materials as these may damage the product. Make sure the product is
switched off, unplugged from the socket and been left for an hour before cleaning, to
remove the risk of electrical shock.
-This appliance should only be used by persons aged 8 or above.
-This appliance is not intended for use by children or other persons without assistance
or supervision if their physical, sensory or mental capabilities prevent them from using
it safely.
-If the power cable is damaged, it must be replaced by the manufacturer or its service
agent, or similarly qualified person in order to avoid a hazard.
-Some parts of this product can become very hot and cause burns. Particular attention
must be given where children and/or vulnerable people are present.
-When using the heater for the first time, you may notice a slight emission of smoke.
This is quite normal and it will stop after a short time. The heating element is made
from stainless steel and coated in protection oil during production. The smoke is
caused by the oil when heated.
-This appliance is not suitable for use outdoors in damp weather, in bathrooms or in
other wet or damp environments.
-The appliance can become very hot and therefore should be placed a safe distance
away from any flammable objects or furniture.
Contents
1 Front Cover
2 Safety
Instructions
4 Operating
Instructions
5 Cleaning
Instructions
7 Trouble
Shooting
8 Back Cover

Page 3
Manual Version: V1.0
Model Code: 4714
Oypla.com LLP / www.oypla.com
Contents
1 Front Cover
2 Safety
Instructions
4 Operating
Instructions
5 Cleaning
Instructions
7 Trouble
Shooting
8 Back Cover
-The appliance must not be placed directly below a socket outlet.
-Do not connect the appliance using an on/off timer or other equipment which can
automatically switch the device on.
-The appliance must not be used in rooms where flammable liquids or gases are used or
stored.
-If an extension cord is used, it must be as short as possible and always be fully
extended.
-Do not use the appliance in the immediate surroundings of a batch, a shower or a
swimming pool.
-Make sure the appliance is always under surveillance to keep children and animals
away from it.
-Do not place the appliance on moving vehicles or somewhere easy to be tipped over.
-Never remove the plug by pulling on the cord.
-Keep the heater far away from objects such as curtains where the air inlet can easily be
blocked.
-The power coupler is waterproof when not in use. In order to prevent possible electric
shock or leakage current, never use the appliance with wet or damp hands, or operate
the appliance when there is water, or any liquid, on the power cord.
-Always keep your work area clean and well lit. Cluttered or dark areas invite accidents.
-Appliance plug must match the outlet. Never modify the plug in any way. Do not use
any adapter plugs with the appliance.
-If operating a heater in a damp location is unavoidable, use a residual current device
(RCD) protected supply.
-Avoid unintentional starting. Ensure the switch is in the off position before connecting
the appliance to the power source.
-Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from
moving parts and the air intake.
-Do not move the appliance when it is in operation or when plugged into the mains
supply. Only move the appliance once it has cooled and it has been unplugged.
-Never point the appliance directly at persons nearby.
-Operate only on a stable, level surface.
-Warning –failure to comply with the precautions and instructions provided with this
heater can result in death, serious bodily injury and property loss/damage from
hazards of fire, explosions, burns, asphyxiation, carbon monoxide poisoning and/or
electrical shock.
-Check the heater thoroughly for damage. Do NOT operate a damaged heater.
-Warning –Fire, burn, inhalation and explosion hazard. Keep solid combustibles such as
building materials, cardboard and paper a safe distance away from the heater. Never
use the heater in spaces which do or may contain volatile or airborne combustibles, or
products such as gasoline, solvents, paint thinner, dust particles or unknown chemicals.
-Do not insert any objects through the air intake or outlet.
-Only install the heater in a normal, upright position.
-If the product is damaged or defective, please contact cservic[email protected].

Page 4
Manual Version: V1.0
Model Code: 4714
Oypla.com LLP / www.oypla.com
Operating Instructions
This heater is intended for use in outdoor open areas or in indoor well-ventilated areas. For indoor use, provide
permanent ventilation openings of at least 25cm²/kW, equally distributed between floor and high level, with a
minimum of 250cm².
Contents
1 Front Cover
2 Safety
Instructions
4 Operating
Instructions
5 Cleaning
Instructions
7 Trouble
Shooting
8 Back Cover
Start Up
1) Fill the tank with clean fuel. Only use Diesel or Kerosene. The fuel gauge on top of
the tank allows you to check the fuel level.
2) Connect the power cord plug to an AC220V-240V 50Hz earthed electrical supply
system. Earthing is mandatory.
3) When steps 1 and 2 are complete, the power indicator light will turn on. Push the
power switch to the “on”position. If the thermostat control knob is set to higher
than the ambient temperature, the electrodes start sparking. After 7 seconds, the
heater will start.
4) If the thermostat knob is set to lower than the ambient temperature, turn it to your
desired temperature. Then, the electrodes will start sparking, and the heater will
start after 7 seconds.

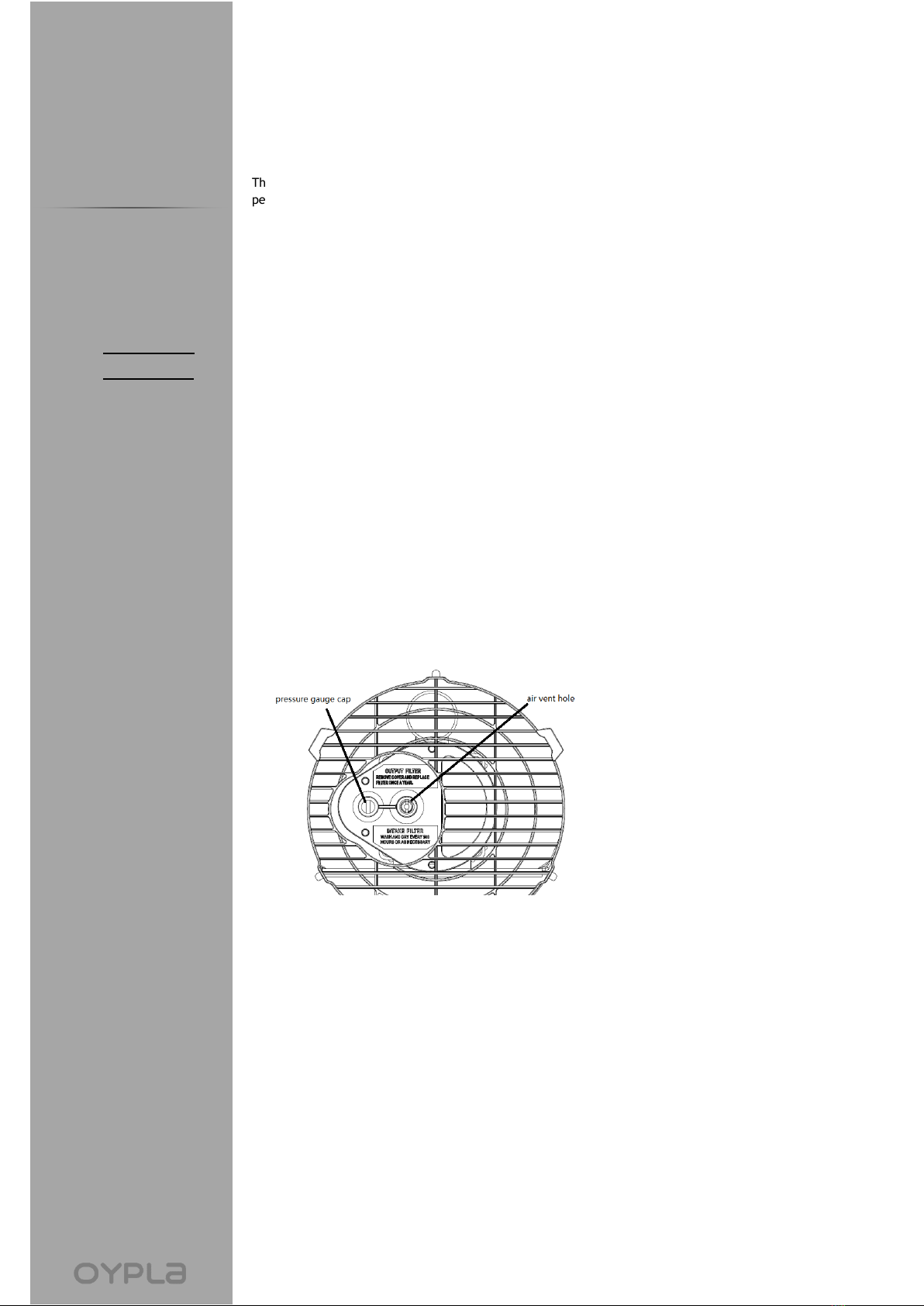

-Note: If you are starting the heater up in cold conditions, you may place a finger over
the air vent hole (see diagram below) during ignition to make start-up easier.
-Note: In case of malfunction (flame failure, reduced air flow, bad combustion, etc.)
the heater stops and the power indicator starts flashing.
Shut Down
1) Move switch to the “OFF”position.
-Note: Never disconnect the heater from the mains to stop it whilst it is in operation.
The heater outlet is very hot whilst in operation and after use –do not touch. Use
personal protection equipment if needed. Unplug the heater before moving it. Never
pull the cable to unplug or move the unit.

Page 5
Manual Version: V1.0
Model Code: 4714
Oypla.com LLP / www.oypla.com
Contents
1 Front Cover
2 Safety
Instructions
4 Operating
Instructions
5 Cleaning
Instructions
7 Trouble
Shooting
8 Back Cover
Cleaning &
Maintenance
Instructions
This heater is intended for use in outdoor open areas or in indoor well-ventilated areas. For indoor use, provide
permanent ventilation openings of at least 25cm²/kW, equally distributed between floor and high level, with a
minimum of 250cm².
-Regularly wipe the enclosure using a soft sponge or cloth. For very dirty parts, use a
sponge dampened by lukewarm water and a mild detergent, then dry using a clean
cloth. Never perform this cleaning when the unit is operating or plugged in.
-Regularly inspect the power cable. If worn, cracked or damaged have it replaced by a
technical service.
-Before storing the heater, make sure it is perfectly cool and dry. Cover the unit with a
plastic bag, put in its packing box and store it in a dry, well-ventilated place.
-Clean only with a damp cloth. Do not use strong industrial cleaning substances or
abrasive materials as these may damage the product. Make sure the product is
switched off, unplugged from the socket and been left for an hour before cleaning, to
remove the risk of electrical shock.
-Before starting any cleaning or maintenance task, shut down, unplug and let the heater
cool down for at least an hour.
-Do not attempt any electrical repair yourself. If the heater needs service or repair,
contact a qualified technician.
-When cleaning, take care to make sure that water does not enter the unit.
-Do not spray water into the heater.
-Do not open the enclosure to clean the inner parts.
-Never use solvents, gasoline, toluene or similar aggressive chemicals to clean the
heater.
The following checks may only be conducted by a qualified technician. They are
recommended before each seasonal use.
-Nozzle; Carefully unscrew the nozzle from the nozzle fitting. Blow compressed air
through the nozzle orifice to free it from dirt. Replace nozzle if necessary.

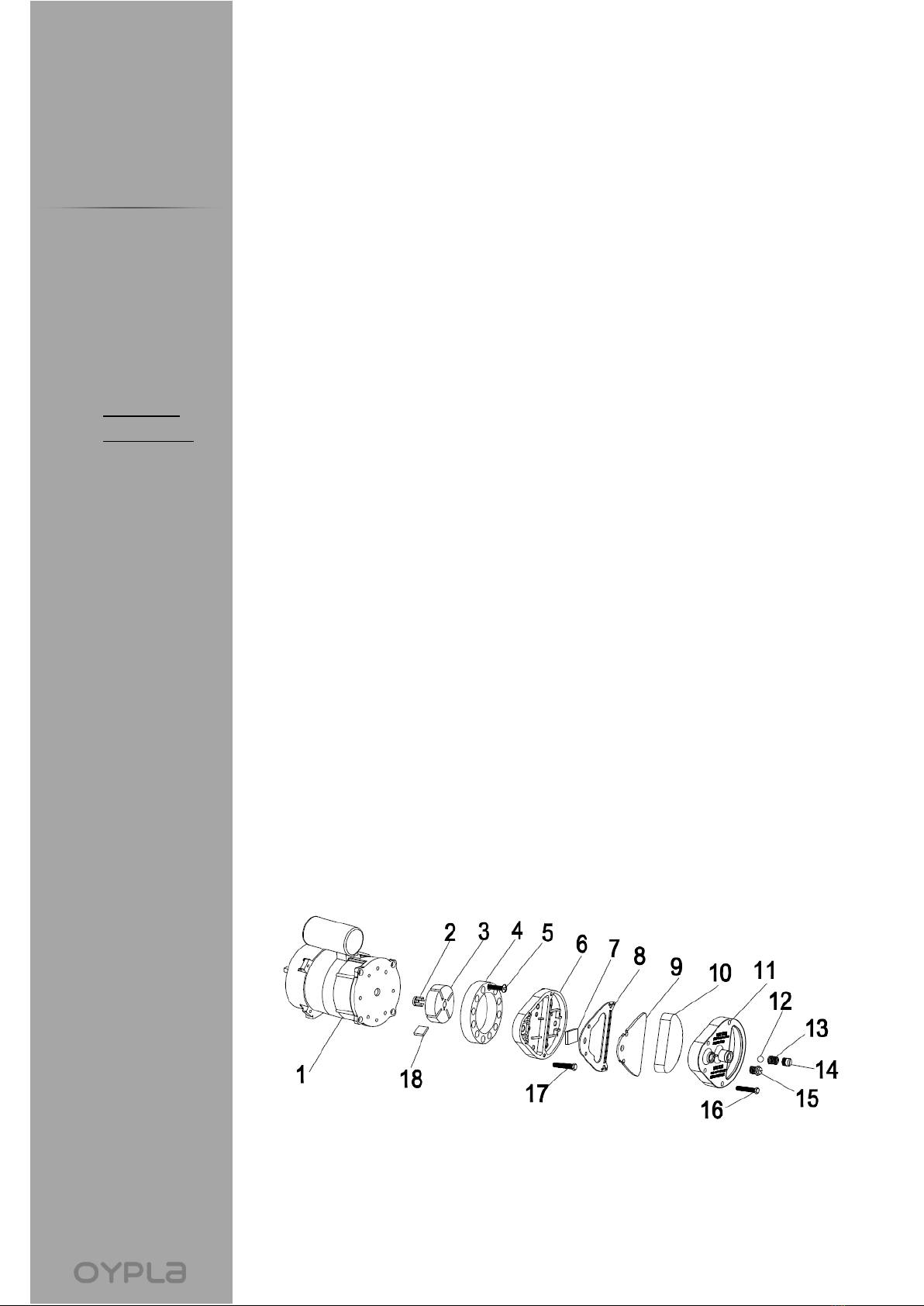

-Air filters; Clean air filters. Remove filter end cover (11), wash air intake filter (10) using
a light detergent and dry it thoroughly before re-installing. Replace air delivery filter (9)
once per year. (Fig 2)

Page 6
Manual Version: V1.0
Model Code: 4714
Oypla.com LLP / www.oypla.com
Contents
1 Front Cover
2 Safety
Instructions
4 Operating
Instructions
5 Cleaning
Instructions
7 Trouble
Shooting
8 Back Cover

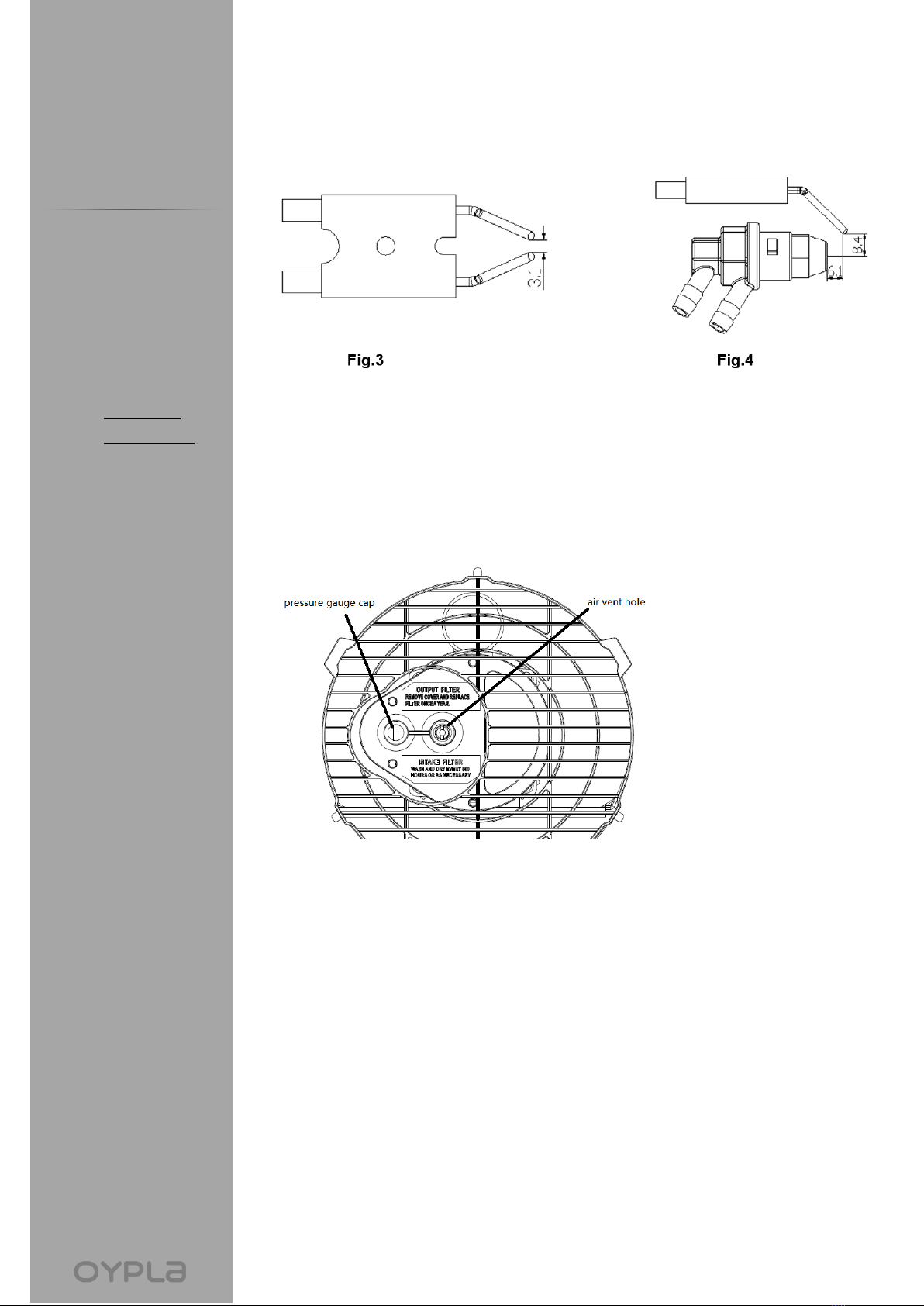

-Ignition electrodes; Clean, adjust and if necessary, replace ignition electrode. For
electrode gaps see Fig. 3-4 (dimensions in mm)
-Compressor pressure adjustment (see Fig. 5); Remove pressure gauge cap. Connect a
pressure gauge on the pressure measuring port on the rear guard. Start heater and
read air pressure value. If necessary, adjust pressure to the correct value turning the
adjusting screw (the air vent hole in the adjusting screw middle) clockwise to increase,
anti-clockwise to decrease the pressure. The compressor pressure is factory set and
must be checked and adjusted ONLY by qualified technicians. Tampering with the
unit may be dangerous. The target air pressure is 0.31bar.
-Electrical; Inspect cables, electrical parts and connections.

Page 7
Manual Version: V1.0
Model Code: 4714
Oypla.com LLP / www.oypla.com
Contents
1 Front Cover
2 Safety
Instructions
4 Operating
Instructions
5 Cleaning
Instructions
7 Trouble
Shooting
8 Back Cover

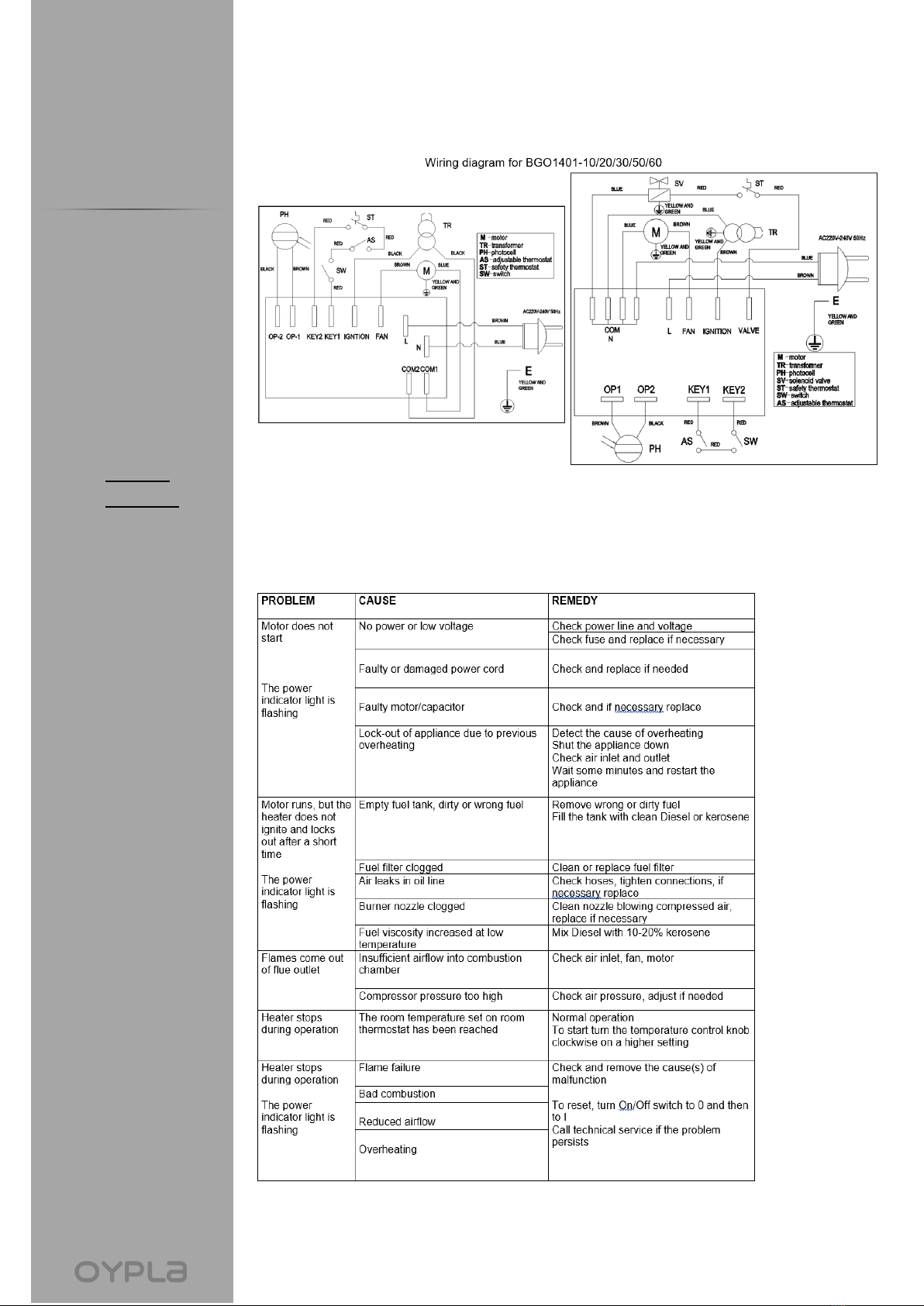

-Wiring Diagram
Troubleshooting

Page 8
Manual Version: V1.0
Model Code: 4714
Oypla.com LLP / www.oypla.com
Environmental Protection
Products bearing the symbol shown below means that used electrical and electronic equipment (WEEE)
should not be mixed with general household waste. For proper treatment, recovery and recycling, please take
this product(s) to designated collection points where it will be accepted free of charge. Disposing of this
product correctly will help save valuable resources and prevent any potential negative effects on human
health and the environment, which could otherwise arise from inappropriate waste handling. Please contact
your local authority for further details of your nearest designated collection point. Penalties may be applicable
for incorrect disposal of this waste, in accordance with your national legislation.
Imported by Oypla.com LLP, Uxbridge, UB8 2FX
Contents
1 Front Cover
2 Safety
Instructions
4 Operating
Instructions
5 Cleaning
Instructions
7 Trouble
Shooting

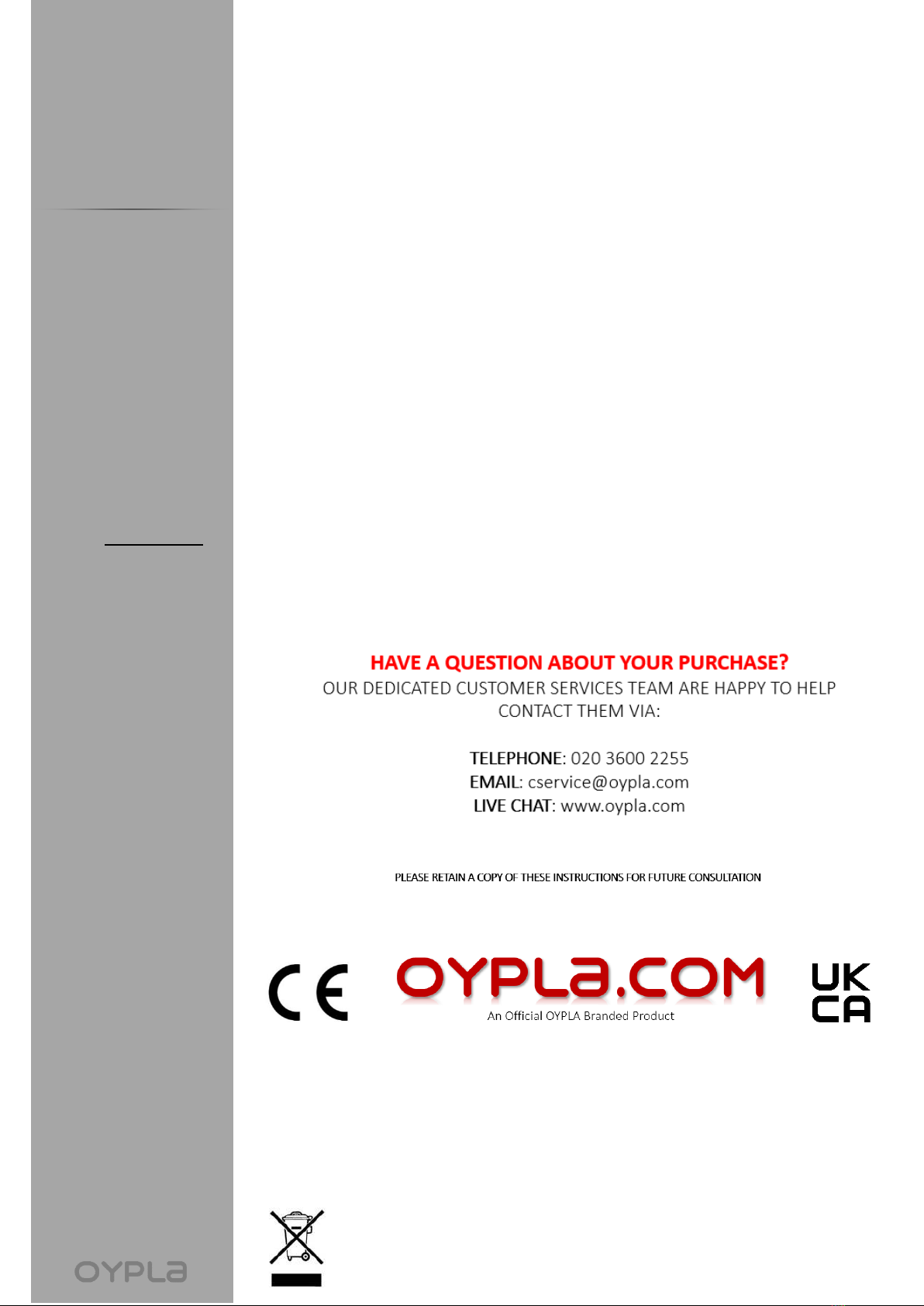

8 Back Cover
