Ozito ACP-24151 User manual

AIR
COMPRESSOR
24L 1.5HP
INSTRUCTION MANUAL
SPECIFICATIONS
Input: 230-240V ~50Hz
Motor: 1,100W
No Load Speed: 2,850min-1
Tank Volume: 24 litres
Max. Pressure: 8 bar (116psi)
Max. Air Delivery: 161 l/min
Free Air Delivery: 67 l/min*
Pump Type: Oil free
Weight: 23kg
*The free air delivery value was
measured in accordance with AS4637
ACP-24151
STANDARD EQUIPMENT
IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from
the original date of purchase. If a product is defective it will
be replaced in accordance with the terms of this warranty.
Warranty excludes consumable parts, for example: Wheels.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
ozito.com.au
0520
Air Compressor
Wheels x 2, Bolts x
2, Washer x 4, Spring
Washer x 2, Nut x 2
Air Intake Filter
Support Foot
psi
bar
bar
psi
0
2
4
6
50
100 150
200
50
150
170
100
230
0
8
10
12
14
16
12
10
8
6
4
2
0
1.5 HP
8
MAXIMUM
BAR
24 LITRE
AIR COMPRESSOR
psi
bar
bar
psi
0
2
4
6
50
100 150
200
50
150
170
100
230
0
8
10
12
14
16
12
10
8
6
4
2
0
1.5HP
8
MAXIMUM
BAR
24LITRE
AIRCOMPRESSOR

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
1 Motor Housing
2 Overload Reset Button
3 Air Intake Filter
4 Tank
5 On/O󰀨Switch
6 Pressure Regulating Knob
7 Transport Handle
8 Quick-Release Air Outlet
9 Wheel
10 Drain Valve
11 Support Foot
12 Safety Valve
13 Tank Pressure Gauge
14 Regulated Pressure Gauge
AIR COMPRESSOR
KNOW YOUR PRODUCT
1. ASSEMBLY
SETUP & PREPARATION
psi
bar
bar
psi
0
2
4
6
50
100 150
200
50
150
170
100
230
0
8
10
12
14
16
12
10
8
6
4
2
0
1.5 HP
8
MAXIMUM
BAR
24 LITRE
AIR COMPRESSOR
1 2 3 4 5 6 7 8
psi
bar
0
2
4
6
50
100 150
200
230
0
8
bar
psi
50
150
170
100
6
4
2
0
11
109
12
13
14
WARNING! ENSURE THE TOOL IS SWITCHED OFF AND
DISCONNECTED FROM THE POWER SUPPLY BEFORE
PERFORMINGANY OF THE FOLLOWING PROCEDURES.
Pre-Setup Checks
Fitting the Wheels
• Examine the machine for signs of transit damage. If damaged, do
not use, contact Ozito.
• The compressor should be set up near the area of use.
• Avoid long air lines and long supply lines (extensions).
• Make sure the intake air is dry and dust-free.
• Do not set up the compressor in damp or wet rooms.
• The compressor may only be used in suitable rooms (with good
ventilation and an ambient temperature from 5°C to 40°C). There
mustbenodust,acids,vapours,explosivegasesorinammable
gases in the room.
• The compressor is designed to be used in dry rooms. It is prohibited
to use the compressor in areas where work is conducted with
sprayed water. Before you use the machine, make sure that the
mainsvoltagecomplieswiththespecicationsontheratingplate.
Note: You must fully assemble the compressor before using it for the
rsttime.
1 Place a washer onto
wheel bolt and insert the
wheel bolt through the
hole in the wheel bracket,
below the tank.
2 From the inside of the
wheel bracket, place a
washer and spring washer
on the wheel bolt. Fasten
the wheel bolt in position
with a nut.
3 Repeat this process with the second wheel.
ACP-24151

2. OPERATION
OPERATION
Fitting the Supporting Foot
Fitting the Air Intake Filter

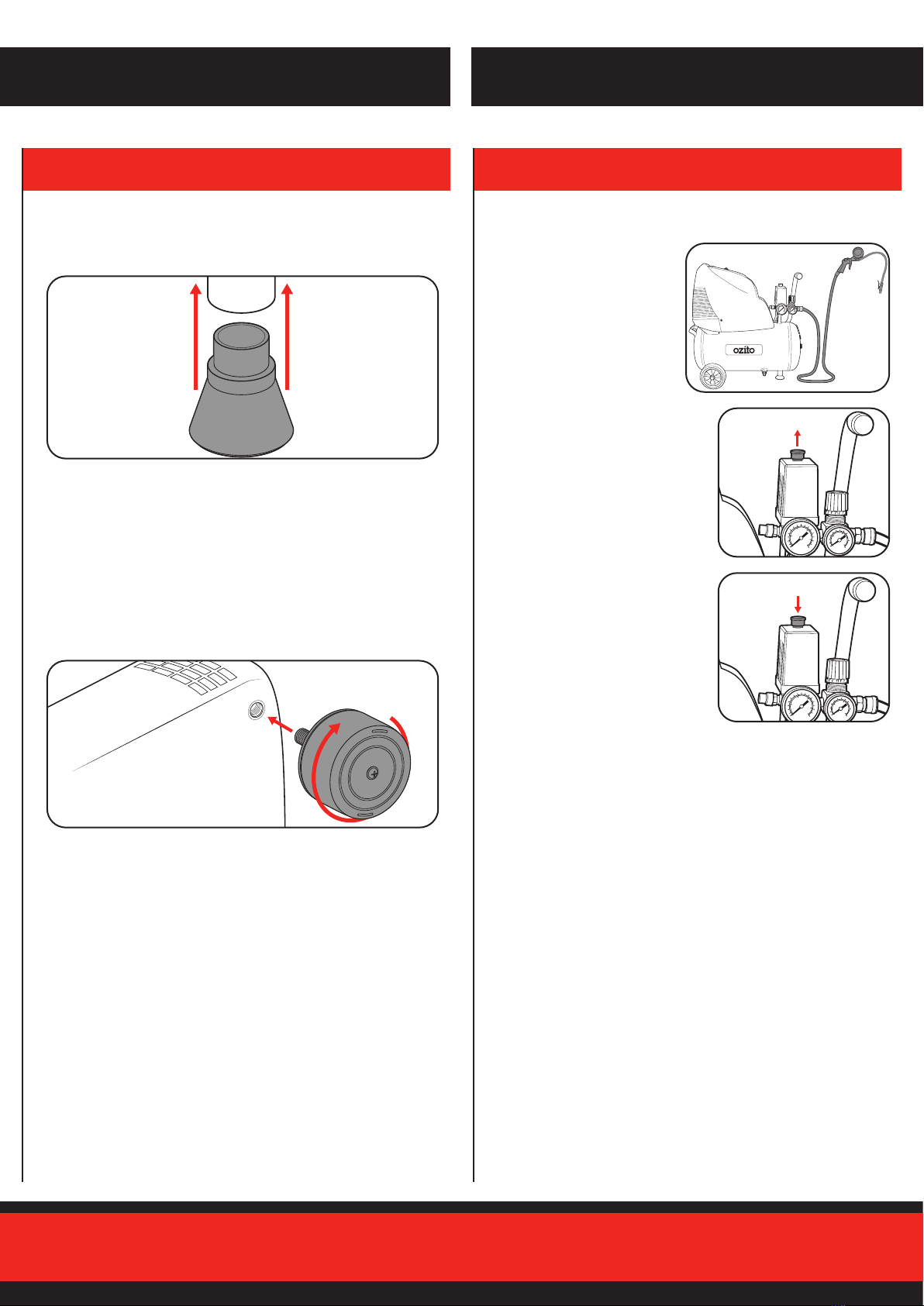

1 Push the rubber supporting foot into the pole below the tank.
1 Screwtheairlterintotheholeinthesideofthemotorhousingina
clockwise direction.
The air compressor may be transported with a plug to prevent anything
enteringtheintake.Removethisplugfromtheairintakeholeiftted.
Switching On / O󰀨
1 Attach the desired tool
to the quick release air
outlet.
2 To switch the compressor on,
pulltheon/o󰀨switchupintothe
on position.
3 Toswitchthecompressoro󰀨,
pushtheon/o󰀨switchdowninto
theo󰀨position.
psi
bar
bar
psi
0
2
4
6
50
100 150
200
50
150
170
100
230
0
8
10
12
14
16
12
10
8
6
4
2
0
psi
bar
bar
psi
0
2
4
6
50
100 150
200
50
150
170
100
230
0
8
10
12
14
16
12
10
8
6
4
2
0
psi
bar
bar
psi
0
2
4
6
50
100 150
200
50
150
170
100
230
0
8
10
12
14
16
12
10
8
6
4
2
0

Adjusting the Pressure
1 To increase the air
pressure, rotate the
regulating knob clockwise.
2 To decrease the pressure,
rotate the regulating knob
anti-clockwise, past the
desired pressure. Then
rotate the regulating knob
clockwise to meet the
desired pressure.
Note:Airmustbeowingthroughthequickreleaseairoutlet,andthe
attached air tool in order to obtain the correct output reading on the
pressure gauge.
Once set up and operating you can adjust the air pressure by turning
the pressure regulating knob.
psi
bar
bar
psi
0
2
4
6
50
100 150
200
50
150
170
100
230
0
8
10
12
14
16
12
10
8
6
4
2
0
Preset Pressure
Switch-On pressure: 6 bar
Switch-O󰀨pressure:8bar
Note: When the maximum preset tank pressure is reached, the
motorwillautomaticallyswitchO󰀨.Asthecompressedairisused,the
pressure will drop until it reaches the preset minimum pressure, when
the minimum pressure is reached the compressor will turn on again
automatically to build up/maintain pressure.
The minimum and maximum
preset tank pressure is set at
the factory and the operator
should not alter it.
psi
bar
bar
psi
0
2
4
6
50
100 150
200
50
150
170
100
230
0
8
10
12
14
16
12
10
8
6
4
2
0
Turning O󰀨
1 Pushtheon/o󰀨switch
downintotheo󰀨position
to switch the compressor
o󰀨.
After the job has been completed, the compressor should be switched
o󰀨andthepressurereleasedfollowingthestepsbelow.
2 Switcho󰀨themainspower
supply and remove the electrical
plug.
psi
bar
bar
psi
0
2
4
6
50
100 150
200
50
150
170
100
230
0
8
10
12
14
16
12
10
8
6
4
2
0
3 Release the remaining
compressed air in the tank by
use of an air tool (blow gun
etc).

ACP-24151
3. TROUBLE SHOOTING
Problem Cause Solution
The compressor
does not start
No power supply Check the power
supply, the power
plug and the socket-
outlet
Outside temperature is
too low
Never operate
with an outside
temperature of
below 5°C
Motor is overheated Allow the motor
to cool down. If
necessary, remedy
the cause of the
overheating
The compressor
starts but there
is no pressure
Leak in the quick
connect
Replace the quick
connect
Regulating knob set
too low
Adjust the
regulating knob to a
higher pressure
The drain plug leaks Tighten the lever
by hand. Check the
seal and replace if
necessary
The compressor
starts, pressure
is shown on the
pressure gauge,
but no pressure to
the air tool.
Loose hose
connections
Check the
compressed air
hose and tools and
replace if necessary
Leak in a quick-lock
coupling
Check the quick-
lock coupling and
replace if necessary
Insu󰀩cientpressure
set on the pressure
regulator
Open the pressure
regulator further
WARNING! DO NOT ATTEMPT TO ADJUST/MODIFY
THE SAFETY VALVE IN ANY WAY. THE SAFETY VALVE
INSTALLED ON THIS AIR COMPRESSOR IS DESIGNED
TO AUTOMATICALLY RELEASE PRESSURE IN CASE
OF EXCESS PRESSURE BUILD UP IN THE TANK.

4. CLEANING & MAINTENANCE
MAINTENANCE
Removing Condensation Water
• Check the tank for signs of rust and damage each time before
using. Do not use the compressor with a damaged or rusty tank.
Note: This air compressor is designed to operate without oil.
Cleaning
• Keep the safety devices free of dirt and dust as far as possible.
Wipe the equipment with a clean cloth or blow it with compressed
air at low pressure.
• We recommend that you clean the appliance immediately after you
use it.
• Clean the appliance regularly with a damp cloth and some soft soap.
Do not use cleaning agents or solvents; these may be aggressive to
the plastic parts in the appliance. Ensure that no water can get into
the interior of the appliance.
• You must disconnect the hose and any spraying tools from the
compressor before cleaning. Do not clean the compressor with
water, solvents or the like.
WARNING! ENSURE THE TOOL IS SWITCHED OFF AND
DISCONNECTED FROM THE POWER SUPPLY BEFORE
PERFORMINGANY OF THE FOLLOWING PROCEDURES.
WARNING! WAIT UNTIL THE COMPRESSOR HAS
COMPLETELY COOLED DOWN. RISK OF BURNS!
WARNING! ALWAYS DEPRESSURIZE THE TANK BEFORE
CARRYING OUT ANY CLEANING AND MAINTENANCE
WORK.
The drain plug can be opened
rotating anti-clockwise by hand.
Tilt the pressure tank so that the
drain valve is the lowest point of
the tank and the condensed water
candraino󰀨completely.
Thecondensationwatermustbedrainedo󰀨aftereachusebyopening
the drain valve, at the bottom of the tank.
Cleaning the Air Filter
1 Removetheairlterfrom
the compressor by rotating
it anti-clockwise.
3 Openthelterand
carefully clean by tapping
or blowing it with low
pressure compressed air
(approx. 3 bar).
4 Reassemblethelterandthenttotheaircompressor.
Theairlterpreventsdustanddirtbeingdrawnin.Itisessentialto
cleanthislterafteratleastevery300hoursofservice.Acloggedair
lterwilldecreasethecompressor’sperformancedramatically.
2 Remove the screw at the top of
thelter.

DESCRIPTION OF SYMBOLS
CARING FOR THE ENVIRONMENT
Power tools that are no longer usable should not be disposed of
with household waste but in an environmentally friendly way. Please
recycle where facilities exist. Check with your local council authority
for recycling advice.
Recyclingpackagingreducestheneedforlandllandrawmaterials.
Reuse of recycled material decreases pollution in the environment.
Please recycle packaging where facilities exist. Check with your
local council authority for recycling advice.
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
SPARE PARTS
Wear hearing protection
Warning
Regulatory Compliance Mark
(RCM)
VVolts Hz
W
Hertz
~
n0
min-1
Alternating Current Watts
No load speed
Revolutions or reciprocations
per minute
bar
LPressure RatingLitres
Read Instruction Manual
IP20 Sound power levelIngress protection
96
Beware of electrical voltage
Warning! The equipment is remote
-controlled and may start up without
warning
Warning! Risk of injury! Do not
reach into the running saw blade
5. STORAGE
WARNING! PULL THE MAINS PLUG OUT OF THE
SOCKET AND VENTILATE THE APPLIANCE AND ALL
CONNECTED PNEUMATIC TOOLS. SWITCH OFF THE
COMPRESSOR AND MAKE SURE THAT IT IS SECURED
IN SUCH A WAY THAT IT CANNOT BE STARTED UP AGAIN
BY ANY UNAUTHORISED PERSON.
WARNING ! STORE THE COMPRESSOR ONLY IN
A DRY LOCATION WHICH IS NOT ACCESSIBLE TO
UNAUTHORISED PERSONS. ALWAYS STORE UPRIGHT,
NEVER TILTED!

The appliance is not to be used by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction. Young children should be supervised to ensure that they do not play with the
appliance.
WARNING. Before connecting a tool to a power source (mains switch power point receptacle,
outlet,etc.)besurethatthevoltagesupplyisthesameasthatspeciedonthenameplate
ofthetool.Apowersourcewithavoltagegreaterthanthatspeciedforthetoolcanresultin
serious injury to the user, as well as damage to the tool. If in doubt, do not plug in the tool.
Using a power source with a voltage less than the nameplate rating is harmful to the motor.
Always remove the plug from the mains socket before making any adjustments or maintenance.
• Toreducetheriskofreorexplosion,neversprayammableliquidsinaconnedarea.Itisnormal
for the compressor motor and pressure switch to produce sparks during use. If sparks come into
contactwithpetrolvapoursorsolvents,theymayignitethevapoursandcauseareorexplosion.
• Always operate the compressor in a well ventilated area. Do not smoke while spraying. Do not
spraywheresparksoramesarepresent.Keepthecompressorasfarawayfromthesprayarea
as possible.
• The solvents trichloroethane and methylene chloride can chemically react with the aluminium
used in some paint spray guns and form an explosion. If these solvents are used, ensure that only
stainlesssteelsprayequipmentisconnected.Thecompressorisnota󰀨ectedbytheuseofthese
solvents.
• Never directly inhale the compressed air produced by a compressor and do not use it for charging
breathing tanks.
• Do not use welding equipment in close proximity to the compressor. Do not weld anything to the air
tank of the compressor: this could dangerously weaken the tank and will void the warranty.
• Do not use the compressor outdoors when it is raining or on a wet surface; either situation could
cause an electric shock.
• Alwaysshuto󰀨thecompressorafteruseandbeforeservicing.Pushtheon/o󰀨knobdown,waitfor
the pressurised air to bleed from the tank from the release valve and then remove the electrical plug
from the power supply.
• Check the maximum pressure rating of any tools or accessories that you intend using with the
compressor. The output pressure of the air from the compressor must be regulated so that it never
exceeds the rated pressure of the tool or accessory.
• To avoid the risk of burns and injury from moving parts, do not operate the compressor with the
safety shield removed. Allow hot parts to cool before handling or servicing.
• Be certain to read all the labels on the containers of paint or other materials to be sprayed. Closely
follow all safety instructions. Use a respirator mask if there is a chance that you might otherwise
inhalethespraymaterial.Carefullycheckthee󰀨ectivenessofanyrespiratormaskyouintendusing.
• Always wear safety goggles or glasses when using the air compressor. Never point the nozzle of an
accessory towards any part of your body or towards another person.
• Do not attempt to adjust the pressure switch or the release valve located under the pressure switch
cover.
• Drain the moisture from the tank daily. It will help prevent corrosion.
• Keep the compressor at least 300mm from the nearest wall to ensure adequate ventilation for
cooling purposes.
• Before transporting the compressor make sure that the pressurised air is bled from the tank and
thatthecompressorisrmlysecured.
• Protect the air hose and cordset from damage. Inspect for weak or worn spots regularly and replace
if necessary.
• Avoid using an extension cord with this product. Use additional air hose instead of an extension
cord to prevent power loss and possible damage to the motor. Use of an extension cord voids the
warranty.
• After long working periods external metal parts could be hot.
• Alwayspresstheon/o󰀨buttondowntoswitcho󰀨thecompressorbeforeswitchingo󰀨thepoweror
removing the power plug.
• Afterusingthecompressor,switcho󰀨theon/o󰀨button,disconnectthepowersupplyandusea
blow gun or similar to release the remaining pressure in the tank.
• Do not attempt to remove any part of the machine whilst it is under pressure.
• Do not attempt to adjust/modify the safety valve in any way. The safety valve installed on this air
compressor is designed to automatically release pressure in case of excess pressure build up in
the tank.
• Use safety equipment including safety goggles or shield, ear protection, breathing or respirator
mask and protective clothing.
• Never attempt to remove any part of the compressor whilst the tank is under pressure.
Wear goggles, wear earmu󰀨s, wear a breathing mask
Neverapplytheoutletairofthiscompressordirectlyontoanypartofaperson’sbody.Donotattemptto
blocktheairoutletwithyourngeroranypartofyourbody.
The tool must be used only for its prescribed purpose. Any use other than those mentioned in this
Manual will be considered a case of misuse. The user and not the manufacturer shall be liable for any
damage or injury resulting from such cases of misuse.
The manufacturer shall not be liable for any changes made to the tool nor for any damage resulting from
such changes.
Even when the tool is used as prescribed it is not possible to eliminate all residual risk factors. The
followinghazardsmayariseinconnectionwiththetool’sconstructionanddesign:
• Damagetothelungsifane󰀨ectivebreathingmaskisnotworn.
• Damagetohearingife󰀨ectiveearmu󰀨sarenotworn.
• Damagetotheeyesife󰀨ectivesafetygogglesorshieldarenotworn.
WARNING.Intheeventthatanairlineiscutorbroken,theairsupplymustbeturnedo󰀨atthe
compressor. A broken air line which is not supported is extremely dangerous and can whip around
very quickly, both with the capability of striking people, and blowing foreign particles into the air.
Donotattempttocatchtheairlinebutimmediatelykeepbystanderswellclearandturno󰀨theair
supplytothehose,turno󰀨thecompressorattheOn/O󰀨button,andthenremovethehosefromthe
compressor.
AIR COMPRESSOR SAFETY WARNINGS
WARNING! When using mains-powered tools, basic safety precautions, including
the following, should always be followed to reduce risk of re, electric shock,
personal injury and material damage.
Readthewholemanualcarefullyandmakesureyouknowhowtoswitchthetoolo󰀨inan
emergency, before operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
The electric motor has been designed for 230V and 240V only. Always check that the power supply
corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New
Zealand.
If operating a power tool in a damp location is unavoidable use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualiedpersonsinordertoavoidahazard.
WARNING! Read all safety warnings and all instructions. Failure to follow the
warningsandinstructionsmayresultinelectricshock,reand/orseriousinjury.
Save all warnings and instructions for future reference. The term “power tool” in the
warnings refers to your mains-operated (corded) power tool or battery-operated (cordless)
power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b.
Do not operate power tools in explosive atmospheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause
you to lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.Unmodiedplugsand
matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges
and refrigerators. There is an increased risk of electric shock if your body is earthed or
grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use a power tool while you are tired or under the inuence of drugs, alcohol
or medication.
A moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the o󰀨-position before connecting
to power source and/or battery pack, picking up or carrying the tool. Carrying power
toolswithyourngerontheswitchorenergisingpowertoolsthathavetheswitchoninvites
accidents.
d. Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control
of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities,
ensure these are connected and properly used. Use of dust collection can reduce dust-
related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct
power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and o󰀨. Any power tool that
cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool
before making any adjustments, changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar
with the power tool or these instructions to operate the power tool. Power tools are
dangerous in the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of
parts and any other condition that may a󰀨ect the power tool’s operation. If damaged,
have the power tool repaired before use. Many accidents are caused by poorly maintained
power tools.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the
powertoolforoperationsdi󰀨erentfromthoseintendedcouldresultinahazardoussituation.
5. Service
a. Have your power tool serviced by a qualied repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
GENERAL POWER TOOL SAFETY WARNINGS - PERSONAL SAFETY
ELECTRICAL SAFETY
