Ozito GGK-030 User manual

GLUE GUN
KIT
30W 11mm
INSTRUCTION MANUAL
SPECIFICATIONS
Input: 220-240V ~ 50Hz
Pre-Heating Time: 5min
Heating Power: 200W
Operating Temp.: 1950C
Glue Stick Diameter: 11mm
Glue Stick Length: 100mm
Weight: 0.3kg
GGK-030
STANDARD EQUIPMENT
Glue Gun
Glue Sticks
Kit Box
IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from
the original date of purchase. If a product is defective it will
be replaced in accordance with the terms of this warranty.
Warranty excludes consumable parts, for example: grinding discs,
carbon brushes, disc guard, flange.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
ozito.com.au
Nozzles
0818

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
KNOW YOUR PRODUCT
1. CHANGING NOZZLES
7 Glue Sticks x 4
8 Standard Nozzle
9 ProledNozzle
10 Long-Nosed Nozzle
ACCESSORIES
SETUP & PREPARATION
1 Nozzle Cover
2 Monitoring Window
3 Glue Stick Inlet
4 Glue Stick
5 Flow Control Trigger
6 Support Stand
GLUE GUN KIT
Installing New Nozzles

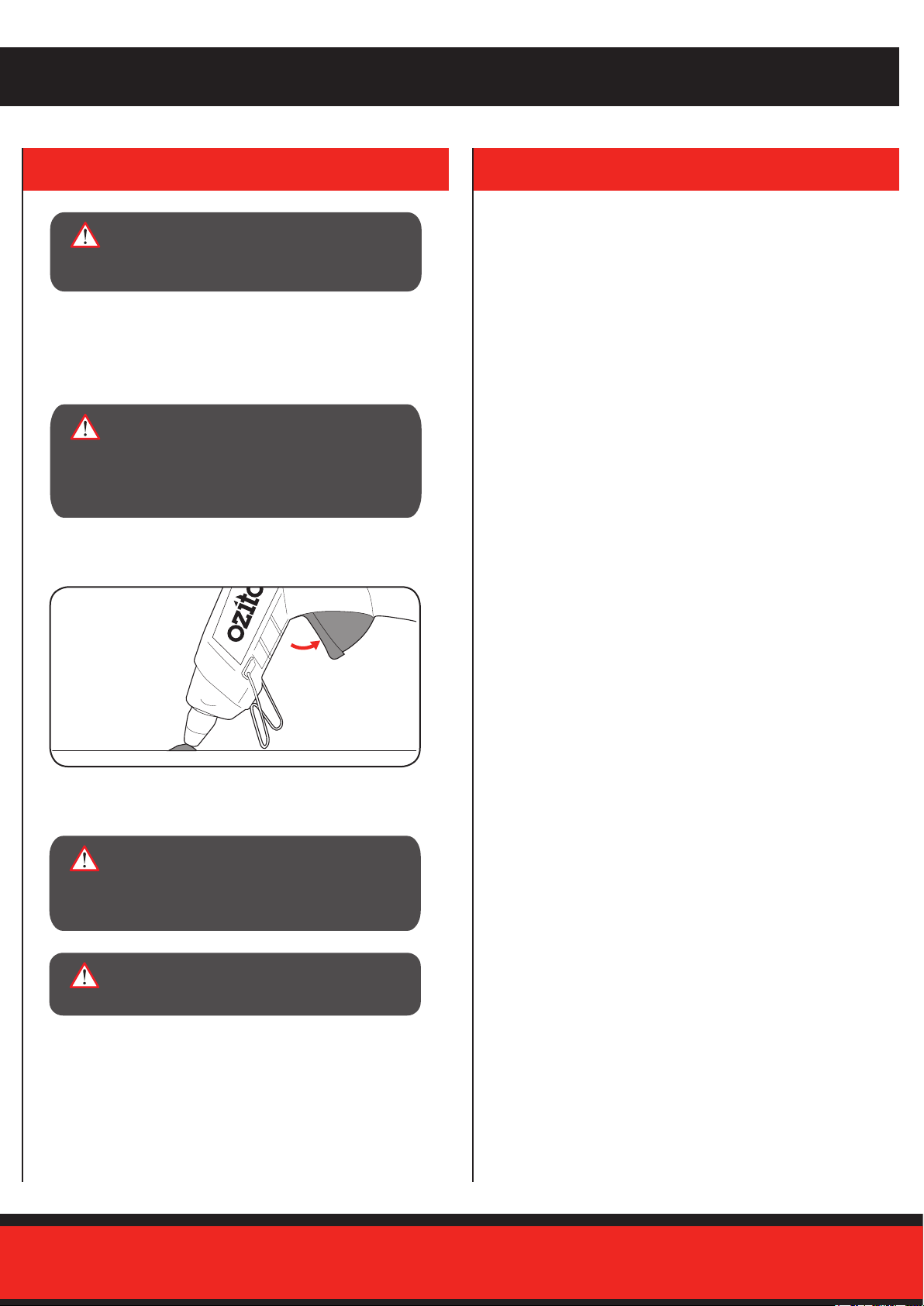

1 RemovetherubberNozzleCoverbypullingito󰀨thegluegun.
2 Unscrew the Nozzle by turning it anti-clockwise with a 13mm
spanner (not supplied).
Note: Inspect the rubber O-Ring on the Nozzle for damage before
ttingit.IftheO-Ringisworn,replaceitbeforecontinuingtouse
the Nozzle.
3 Fit the desired Nozzle onto the end of the glue gun and tighten it
by turning it clockwise.
4 Fit the Nozzle Cover back onto the new Nozzle.
The nozzle on this glue gun can be changed to better suit the task
at hand.
WARNING! ENSURE THE TOOL IS
SWITCHED OFF AND ALLOWED TO COOL
DOWN BEFORE PERFORMING ANY OF THE
FOLLOWING TASKS.
1 2 3 4
56
7 8 9 10

2. LOADING GLUE STICKS
OPERATION
3. CONTROLS
Installing Glue Sticks
1 Insert the Glue Stick into the Glue Stick Inlet.
2 Squeeze the Flow Control Trigger multiple times to push the
Glue Stick down.
Note: EnsuretheGlueSticksareheatedfullytoallowanevenow
of glue.
Theowrateoftheglueisdependentonhowmuchpressureis
applied to the Flow Control Trigger.
Flow Control Trigger
1 Squeeze the Flow Control Trigger to release the glue.
2 Tostoptheowofgluefromthegun,releasetheFlowControl
Trigger.
CAUTION! THE GLUE GUN WILL REMAIN
HOT FOR A FEW MINUTES AFTER USE. DO
NOT STORE THE GLUE GUN DIRECTLY AFTER
USE. ALLOW THE GLUE GUN TO COOL AND THE
GLUE TO SOLIDIFY BEFORE STORING.
WARNING! ALWAYS REST THE GLUE
GUN ON ITS SUPPLIED SUPPORT STAND
DURING AND AFTER USE.

GGK-030
4. GLUING
Applying Glue
1 Hold the Nozzle against the surface to be glued and press the
Flow Control Trigger to deposit glue.
2 Press both surfaces together immediately and apply pressure.
Hold for 30 seconds to allow the glue to set.
Turn on the glue gun by plugging it into a mains powered outlet.
Allow the glue gun to heat up for approximately 5 minutes before
use.
WARNING! THE GLUE GUN NOZZLE AND
HEATED GLUE GUN BECOME HOT WHILE
IN USE. IN THE EVENT OF ACCIDENTAL SKIN
CONTACT WITH HOT GLUE, RUN UNDER COLD
WATER IMMEDIATELY.
WARNING! DO NOT ALLOW HOT GLUE TO
COME INTO CONTACT WITH THE PRODUCT
HOUSING DURING USE.
CAUTION! THE TOOL IS RECOMMENDED
FOR USE WITH A RESIDUAL CURRENT
DEVICE WITH A RATED RESIDUAL CURRENT OF
30mA OR LESS.
CAUTION! THE GLUE GUN HOUSING
BETWEEN THE NOZZLE AND HANDLE MAY
BECOME HOT DURING USE. THIS IS PERFECTLY
NORMAL, HOWEVER AVOID PROLONGED
CONTACT WITH THE AREA UNTIL THE GLUE GUN
HAS COOLED DOWN.

MAINTENANCE
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
SPARE PARTS
DESCRIPTION OF SYMBOLS
CARING FOR THE ENVIRONMENT
Power tools that are no longer usable should not be disposed of
with household waste but in an environmentally friendly way. Please
recycle where facilities exist. Check with your local council authority
for recycling advice.
Recyclingpackagingreducestheneedforlandllandrawmaterials.
Reuse of recycled material decreases pollution in the environment.
Please recycle packaging where facilities exist. Check with your
local council authority for recycling advice.
VVolts Hz Hertz
~Alternating current WWatts
/min Revolutions or
reciprocation per minute
Double insulated Regulator compliance mark
Read instruction manual
Always wear gloves
Wear eye protection
Hot surface; do not touch
Always wear ear, eye and
safety mask
noNo load speed
• Whennotinuse,thegluegunshouldbestoredinadry,frost
freelocation,keepoutofchildren’sreach.
• Keep the air vents and motor housing free of dirt and dust as far
as possible. Wipe equipment with a clean cloth or blow it with
compressed air at low pressure.
• It is recommended that the tool is cleaned immediately after
each use.
• Do not use cleaning agents or solvents; these could attack the
plastic parts of the equipment.
• Ensure that no water can seep into the device. Ingress of water
into an electric tool poses the risk of electric shock.
Note: Ozito Industries will not be responsible for any damage or
injuries caused by repair of the glue gun by an unauthorised person
or by mishandling.
WARNING! ENSURE THE TOOL IS
SWITCHED OFF AND UNPLUGGED BEFORE
PERFORMING ANY OF THE FOLLOWING TASKS.
Cleaning
Ifthereplacementofthesupplycordisnecessary,thishastobedone
by the manufacturer or his agent in order to avoid a safety hazard.
Power Supply Cords

This appliance is not intended for use by persons (including children) with
reducedphysical,sensoryormentalcapabilities,orlackofexperienceand
knowledge,unlesstheyhavebeengivensupervisionorinstructionconcerninguse
of the appliance by a person responsible for their safety. Young children should be
supervised to ensure that they do not play with the appliance.
This tool must be placed on its stand when not in use.
Safety Tips
• Be careful when using the appliance in places where there are combustible
materials;
• Do not apply to the same place for a long time;
• Do not use in the presence of an explosive atmosphere;
• Be aware that heat may be conducted to combustible materials that are out of
sight;
• Place the appliance on its stand after use and allow it to cool down before storage;
• Do not leave the appliance unattended when it is switched on.
• Do not touch hot glue.
• Do not leave glue gun unattended while in use or directly after use.
• Do not touch the nozzle end of the gun while in use or directly after use.
• Do not inhale vapours generated while in use.
• Donotattempttofeedanyothermaterialsthroughthegluegun,eg.crayons,
sealants,candlesetc.
Recommendations for the use of a residual current device with a rated residual
current of 30mA or less.
Ensure the area is well ventilated.
GLUE GUN SAFETY INSTRUCTIONS
The electric motor has been designed for 230V and 240V only. Always check that the power supply
corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.
This tool is double insulated; therefore no earth wire is required.
Ifthesupplycordisdamaged,itmustbereplacedbyanelectrician
or a power tool repairer in order to avoid a hazard.
Note: Double insulation does not take the place of normal safety precautions when operating this tool. The
insulation system is for added protection against injury resulting from a possible electrical insulation failure
within the tool.
Using an Extension Lead
Alwaysuseanapprovedextensionleadsuitableforthepowerinputofthistool.Beforeuse,inspectthe
extensionleadforsignsofdamage,wearandageing.Replacetheextensionleadifdamagedordefective.
Whenusinganextensionleadonareel,alwaysunwindtheleadcompletely.Useofanextensionleadnot
suitableforthepowerinputofthetoolorwhichisdamagedordefectivemayresultinariskofreandelectric
shock.
GENERAL POWER TOOL SAFETY WARNINGS
ELECTRICAL SAFETY
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructionsmayresultinelectricshock,reand/orseriousinjury.
Save all warnings and instructions for future reference. The term “power tool” in the
warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power
tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Donotoperatepowertoolsinexplosiveatmospheres,suchasinthepresenceofammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools.Unmodiedplugsandmatchingoutletswill
reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase
the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do
notuseapowertoolwhileyouaretiredorundertheinuenceofdrugs,alcoholormedication. A
moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask,non-skidsafetyshoes,hardhat,orhearingprotectionusedforappropriateconditionswillreduce
personal injuries.
c. Preventunintentionalstarting.Ensuretheswitchisintheo󰀨-positionbeforeconnectingto
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your
ngerontheswitchorenergisingpowertoolsthathavetheswitchoninvitesaccidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts.Looseclothes,jewelleryorlonghaircanbecaughtinmovingparts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h. Do not let familiarity gained from frequent use of tools allow you to become complacent and
ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
b. Donotusethepowertooliftheswitchdoesnotturnitonando󰀨. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and
anyotherconditionthatmaya󰀨ectthepowertool’soperation.Ifdamaged,havethepowertool
repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operationsdi󰀨erentfromthoseintendedcouldresultinahazardoussituation.
h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5. Service
a. Haveyourpowertoolservicedbyaqualiedrepairpersonusingonlyidenticalreplacement
parts. This will ensure that the safety of the power tool is maintained.
