Ozito Power Garden SSH-240 User manual

Silent Shredder
2400W
Instructi n Manual
2 Year Replacement Warranty
SSH-240
CAUTION: Read this perati n manual bef re using this t l.
T view the full range visit: www. zit .c m.au
0114

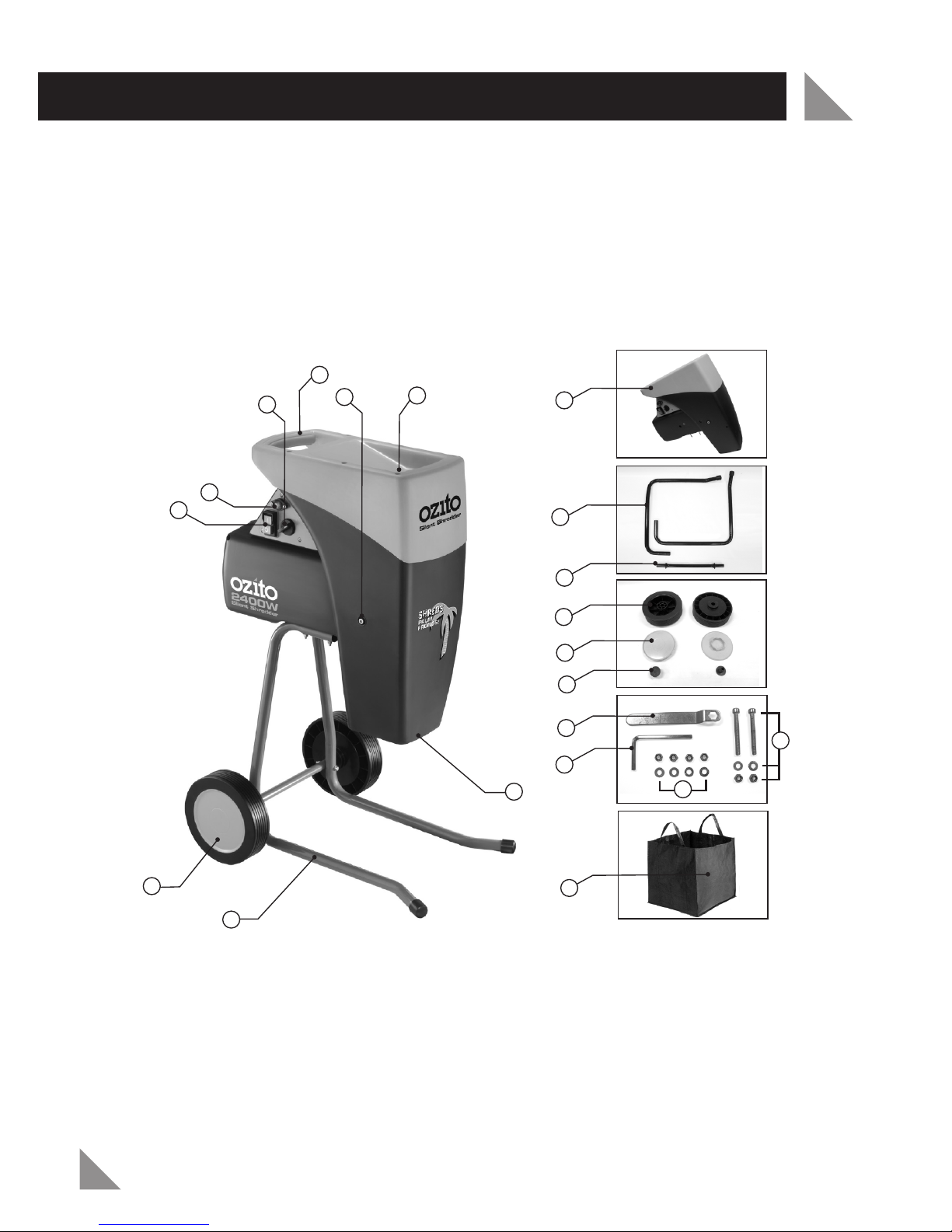

1. On/off switch
2. Reset button/overload protector
3. Direction control switch
4. Cutting adjustment bolt
5. Feeding hopper
6. Discharge chute
7. Transport handle
8. Stand
9. Wheels
SPECIFICATIONS - MODEL NO. SSH-240
2
1
9
3
2
6
Motor:
Input:
No load speed:
Max cutting diameter:
Blades:
Protection class:
Tool weight:
2400W (S1 2000W / S6 (40%) 2400W)
Duty type S1: continuous running duty
S6: continuous-operation / periodic duty
(4 min. Full load 6 min. No load)
230-240V ~ 50Hz
40/min
40mm
Roller cutting system
I (earthed appliance)
23kg
Assembly components
10. Shredder housing
11. Support legs (x2)
12. Wheel axle
13. Wheels (x2)
14. Wheel caps (x2)
15. Wheel locking insert (x2)
16. Nut & washers (to attach legs) (x4)
17. 55mm screws nut & washers (to attach axle) (x2)
18. Hex wrench
19. Hex key
20. Collection bag
5
8
10
11
13
14
20
7
4
17
19
18
16
15
12

3
TABLE OF CONTENTS
SPECIFICATIONS ………………………………………..
INTRODUCTION………………………………………...
GENERAL SAFETY RULES………………………………
ASSEMBLY ……………………………………………….
OPERATION ……………………………………………..
MAINTENANCE …………….…………………………..
TROUBLESHOOTING ……….………………………….
WARRANTY………………………………………………
Page 2
Page 4
Page 5
Page 8
Page 9
Page 12
Page 13
Page 16

INTRODUCTION
4
WARNING When using mains-powered equipment basic safety
precautions including the following should always be followed to reduce
risk of fire electric shock personal injury and material damage.
Read and understand the manual prior to operating this tool.
Save these instructions and other documents supplied with this tool for future reference.
The electric motor has been designed for 230V and 240V only. Always check that
the power supply corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for
Australia and New Zealand.
Using an extension lead
Always use an approved extension lead suitable for the power input of this tool.
Before use inspect the extension lead for signs of damage wear and ageing.
Replace the extension lead if damaged or defective. When using an extension lead
on a reel always unwind the lead completely. Use of an extension lead not
suitable for the power input of the tool or which is damaged or defective may
result in a risk of fire and electric shock.
Congratulations on purchasing an Ozito Silent Shredder. We aim to
provide quality tools at an affordable price. We hope you will enjoy
using this shredder for many years.
The SSH-240 Silent Shredder has been designed for shredding
garden material including dry plant residue twigs sticks and
branches up to 40mm thick.
The shredder quietly breaks your waste into small pieces which helps
accelerate the composting process. The shredded material can be
recycled used for composting purposes or spread over garden beds
to provide nutritional value to your plants.
This product is intended for DIY use only.
ELECTRICAL SAFETY
GENERAL SAFETY INSTRUCTIONS
!

!
5
GENERAL SAFETY RULES
WARNING Read all instructions. Failure to follow all instructions listed
below may result in electric shock fire and/or serious injury. The term "power
tool" in all of the warnings listed below refers to your mains-operated (corded)
power tool or battery-operated (cordless) power tool.
SAVE THESE INSTRUCTIONS
Save these instructions
1) Work area
a) Keep work area clean and well lit. Cluttered and dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Power tools create sparks which
may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions
can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric shock if
your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power
tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating
a power tool. Do not use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment of inattention while
operating power tools may result in serious personal injury.
b) Use safety equipment. Always wear eye protection. Safety equipment such as
dust mask non-skid safety shoes hard hat or hearing protection used for
appropriate conditions will reduce personal injuries.
c) Avoid accidental starting. Ensure the switch is in the off-position before
plugging in. Carrying power tools with your finger on the switch or plugging in
power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A
wrench or a key left attached to a rotating part of the power tool may result in
personal injury.

6
e) Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts. Loose clothes jewellery or
long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and
collection facilities, ensure these are connected and properly used. Use of
these devices can reduce dust related hazards.
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at the rate
for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any
power tool that can not be controlled with the switch is dangerous and must
be repaired.
c) Disconnect the plug from the power source before making any
adjustments, changing accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools, unplugged & out of the reach of children and do
not allow persons unfamiliar with the power tool or these instructions to
operate the power tool. Power tools are dangerous in the hands of untrained
users.
e) Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power
tools operation. If damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc., in accordance with
these instructions and in the manner intended for the particular type of
power tool, taking into account the working conditions and the work to
be performed. Use of the power tool for operations different from intended
could result in a hazardous situation.
5) SERVICE
a) Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the power tool
is maintained.
b) If the supply cord is damaged, it must be replaced by the manufacturer its
service agent or similarly qualified persons in order to avoid a hazard.
GENERAL SAFETY RULES (cont.)

7
ADDITIONAL SAFETY INSTRUCTIONS FOR SHREDDERS
This appliance is not intended for use by persons (including children) with reduced
physical sensory or mental capabilities or lack of experience and knowledge unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Recommendations for the use of a residual current device with a rated residual
current of 30mA or less.
• Only operate the machine in open space (eg. not close to a wall or other fixed
object) and on a firm level surface.
• Do not operate the machine on a paved or gravel surface where ejected material
could cause injury.
• Before starting the machine look into the feeding chamber to make certain that it
is empty.
• Keep your face and body away from the feed intake opening.
• Always stand clear of the discharge zone when operating this machine.
• Do not transport this machine while the power source is running.
• Do not tilt the machine while the power source is running.
• When the machine is stopped for servicing inspection or storage or to change an
accessory shut off the power source disconnect the spark plug wire from the spark
plug (electric unit disconnect from supply) make sure that all moving parts have
come to a complete stop and where a key is fitted remove the key. Allow the
machine to cool before making any inspections adjustments etc.
• Only use the shredder in dry conditions and never outdoors when it is raining.
• Do not allow children or any person who has not read this instruction manual or
who is not familiar with the shredder operate the product.
• Remember that the operator may be held responsible for accidents or hazards
occurring to other people and/or their property.
• Ensure the shredder is placed on a firm and level surface prior to using.
• Never use the shredder with damaged safety devices or without protection.
• Wear ear protection when operating the shredder.
• Do not allow processed material to build up in the discharge chute. This may prevent
proper discharge and can result in kickback of material through the feeding hopper.
• If the machine becomes clogged switch off the machine and disconnect from the
power. Allow the cutter to come to a stop. Clear debris from the cutter assembly.
• Never attempt to shred bones stone glass metals plastic or rags.
• Wear protective gloves safety glasses and avoid loose clothing.
WARNING Rotating cutter head. Keep hands and feet out of openings
• Store shredder upright in a dry place when not in use.
• Never put your hands in the cutter area while the cutter assembly is running or the
shredder is plugged in. The cutter continues to run for a few seconds after the
shredder has been switched off.
• If the cutter strikes any foreign objects or if the shredder starts making any unusual
noise or vibration switch off the shredder immediately and disconnect the power.
Allow the cutter to come to a stop and take the following steps:
- Inspect for damage.
- Check and tighten any loose parts.
- Have any damaged parts replaced and /or repaired by an electrician or power
tool repairer.
• Always switch off the shredder and disconnect the power whenever you leave the
work area.
!

8
1. Remove the silent shredder and all components from the carton.
WARNING You may require assistance lifting the
shredder out of the carton.
2. Carefully place the shredder housing (10) upside down
on a flat surface (Fig. 1).
3. Place each leg over the 2 screws on the base of the
shredder housing. For maximum stability ensure that
the legs are facing outwards (Fig. 2).
4. Place a flat washer followed by the locking nut (16)
over each of the 4 screws. Lightly tighten using the
hex wrench (18) supplied (Fig. 3).
5. Fit the wheel axle (12) to the base of the legs ensuring
that it is positioned towards the rear of the shredder.
6. Secure the axle onto the legs using 2 x 55mm screws
nuts & washers (17).
a. Fit a flat washer over each screw and place the screw
through the hole in the leg followed by the axle.
b. Attach the nut (17) onto the screw and tighten
using the hex wrench (18) and hex key (19) (only
partially tighten at this stage) (Fig. 4).
c. Repeat for the opposite leg.
7. Securely tighten the 4 screws on the base of the
shredder followed by the 2 screws on the wheel axle.
Ensure the stand and axle are secure and do not wobble.
8. Fit a wheel (13) onto each side of the axle (Fig. 5).
9. Fit a wheel locking insert (15) onto each end of the axle to secure the wheels on the
axle. Use a rubber mallet and lightly tap the inserts into position on the axle (Fig. 6).
10. Fit a wheel cap (14) over each wheel making sure they click into position (Fig. 7).
11. Carefully turn the shredder over onto its stand.
ASSEMBLY
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5 Fig. 6 Fig. 7
!

9
OPERATION
Prior to Operation
The shredder operates by using a rolling cutter head the cutter head rotates and pulls
the material past a metal plate which grinds and cuts the material.
Prior to operation the metal plate will need to be adjusted to ensure efficient
performance. Adjust the metal plate as follows:

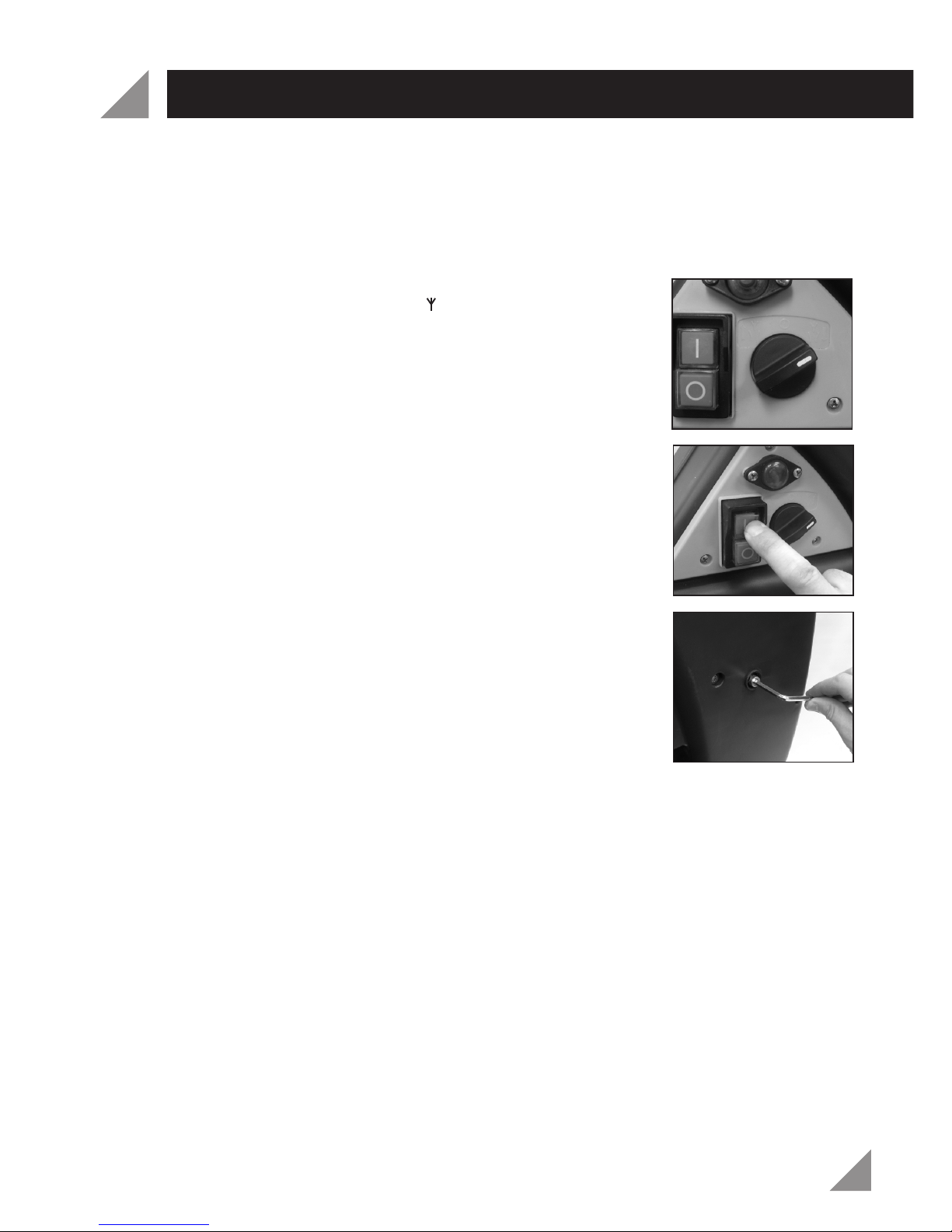

1. Turn the rotation direction switch (3) to the right hand
side so it is set to the feed iposition (Fig. 8).
2. Turn on the shredder by pressing the green ON button "I"
on the on/off switch (1) (Fig. 9).
3. Using the 5mm hex key (19) adjust the cutting adjustment
bolt (4) located on the left hand side of the shredder
(when viewed from the front) (Fig. 10).
Note: Rotating the bolt in a clockwise direction will move the
metal plate closer to the rolling cutter head rotating in an
anti-clockwise direction will move the metal plate away from
the cutter head.
4. With the motor running slowly adjust the cutting adjustment bolt by turning in a
clockwise direction continue to do this until a scraping noise is heard (metal plate
making contact with the cutter head). Fine metal shavings will fall from the
discharge chute (6).
5. As soon as the scraping noise is heard rotate the adjustment bolt (4) anti-clockwise
1/4 of a turn. Ensure that the metal plate is not making contact with the cutter
head.
6. Once adjustment is complete check that the shredder is cutting efficiently by
feeding some material into the feeding hopper (5). Do this by following the
instructions outlined in the “Shredding” section.
Note: When shredding hard material it may need to be put through the shredder
twice firstly to crush the material and secondly to cut it. In order to crush material the
cutting adjustment bolt (4) will need to be loosened by turning it anti-clockwise half a
turn this will increase the gap between the metal plate and the rolling cutter head.
Re-adjust the metal plate once crushing is complete.
Fig. 8
Fig. 9
Fig. 10

OPERATION (cont.)
10
Direction Control Switch
WARNING The direction control switch can only be used when the
shredder is turned off.
1. Prior to operation the direction control switch (3) must be set either to the feed i
or reverse hposition.
2. When set to the feed iposition the shredder will pull
material through the hopper into the rolling cutter head
and shred it (Fig. 11).
3. When set to the reverse hposition the shredder will
run in the opposite direction and release any blocked
or clogged material (Fig. 12).
Note: The direction control switch will not start the motor
it only sets the direction of the rolling cutter head.
Starting the Shredder
WARNING Prior to starting the motor ensure that the shredder is empty.
1. Connect the shredder power cord to an appropriate extension cord and plug
the extension cord into a mains power point.
2. Set the direction control switch (3) to either the feed ior reverse hposition.

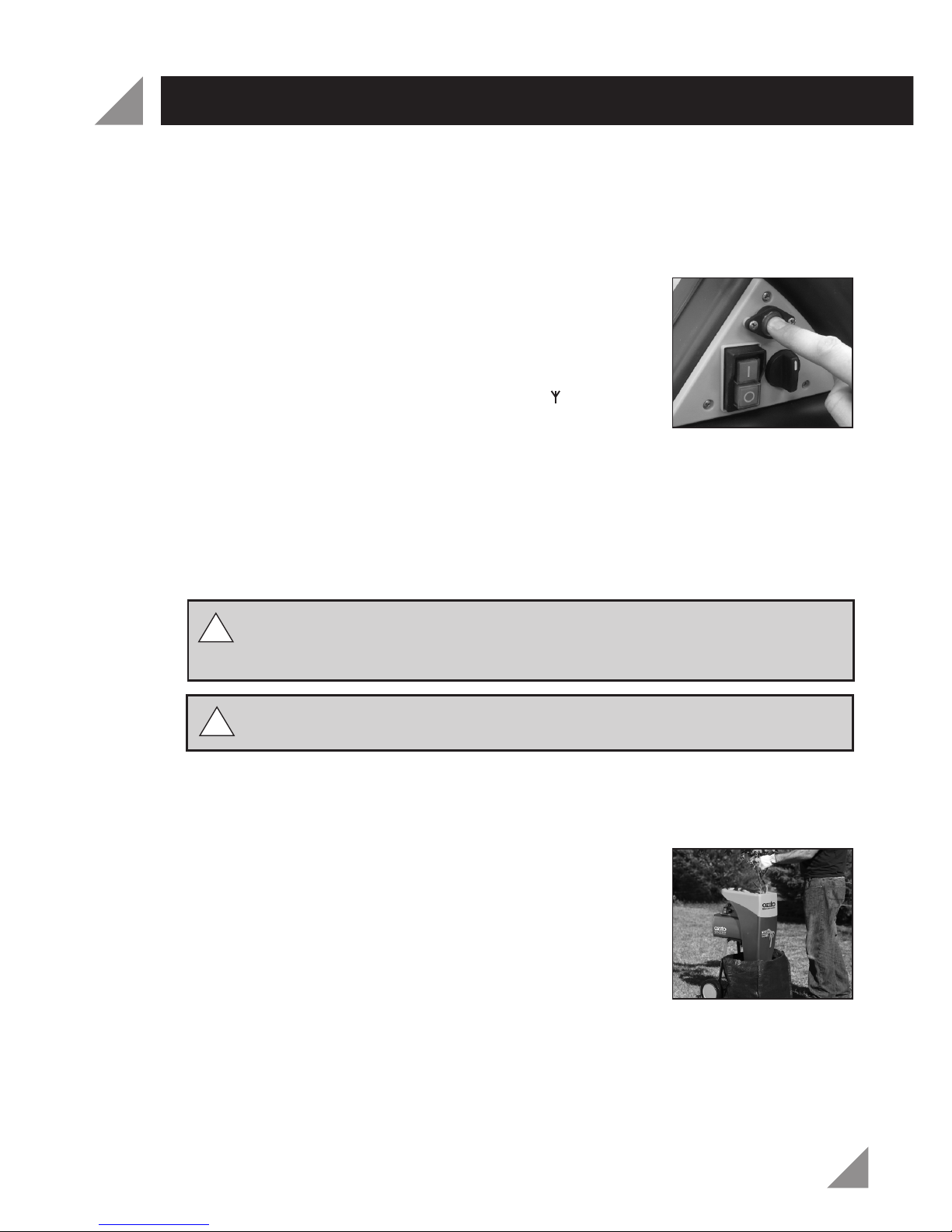

3. To start the shredder press the green “I” button on
the on/off switch (1) (Fig. 13).
4. To stop the shredder press the red “O” button on the
on/off switch (1) (Fig. 14).
WARNING Do not feed material into the
shredder after the shredder has been stopped
this can lead to material being trapped in the
shredder and make it very difficult to remove.
Fig. 11
Fig. 12
Fig. 13
Fig. 14
!
!
!

OPERATION (cont.)
Overload Protection
1. The shredder is equipped with a built-in motor protection system that prevents
the motor from being overloaded. The motor will switch off automatically in the
event of overloading.
2. If overloading occurs disconnect the shredder from the power supply and move
the direction control switch (3) to the “O” position.
3. Allow at least 5 minutes for the motor to cool down.
4. Press the reset button (2) (Fig. 15).
5. Plug the shredder back into mains power and switch on.
6. If the cutting blades are jammed turn off the shredder and
turn the direction control switch (3) to the hposition turn
on the shredder to clear any blocked or clogged material.
No-volt Release Switch
1. The shredder is equipped with an internal no-volt release switch. If there is a loss
of power the machine will automatically turn-off.
2. To re-start the shredder reconnect the power cord to the extension lead and press
the green “I” button on the on/off switch (1).
Shredding
WARNING The shredder is not recommended for materials including glass
metal plastic bags stones fabric earth covered roots soft leafy material
and waste without a firm consistency (eg. kitchen waste).
WARNING To prevent damage to the machine it is recommended that
garden material greater than 40mm is not fed into the shredder.
The following types of material can be used in the shredder:
• Twigs • Branches
• Waste from cut bushes • Waste from hedge trimming
1. Feed the material to be shredded into the feeding
hopper (5) (Fig. 16).
2. The shredder will automatically pull the material through
the rolling cutter head shred it and extract it through the
discharge chute (6).
Following the below procedures will improve operation and
prolong the life of the shredder.
• Branches and twigs should be shredded shortly after they are cut. They become
extremely hard once dry and the maximum cutting diameter is reduced.
• Garden waste such as fresh foliage creepers and vines contain a lot of moisture
this can result in material sticking to the cutter head. Such material should be
allowed to dry for a few days before being fed into the shredder.
• Always check material before shredding ensure it does not contain any stones or
nails as this may severely damage the shredder.
• Always store the shredder indoors in a dry place.
Fig. 15
Fig. 16
11
!
!

OPERATION (cont.)
12
Mulching Palm Fronds
The shredder can shred palm fronds reducing them to an easily disposable waste.
If the head of the palm frond is particularly large or hard it will need to be
removed before being inserted into the shredder.
If the material is very hard the cutting adjustment bolt (4) may need to be adjusted
as described in “Prior to operation” and run through the shredder once to soften
it. Retighten the cutting adjustment bolt and insert the material a second time to
effectively shred it.
Composting
The shredded material can be composted in many various ways:
• The material can be placed in a heap directly on the ground (cold composting).
• The material can be placed in a plastic container wooden crate skeleton
container or similar (cold composting).
• The material can be placed in an insulated compost holder. The heat is then
maintained for longer periods and the rotting process continues during the
winter. This method produces faster results (warm composting).
• The material can be spread directly onto the garden (surface composting).
WARNING Always use a dust mask and safety gloves when handling
composted material to prevent contamination from micro organisms.
WARNING Always disconnect the shredder from the power supply
before performing any maintenance.
The shredder requires very little maintenance. In order to maintain the efficiency of
the machine and achieve a long service life observe the following:
• Keep the air openings clean and free of obstructing material.
• Periodically check that all nuts and screws are secure.
• Spray the rolling cutter head after each use with a spray lubricant to protect
against corrosion.
• Always clean the shredder after each use. Brush away dirt and plant residue
which may be caught in the roller cutter. Wipe clean the outside of the shredder
with a cloth which has been moistened with a mild detergent and water.
• Store the shredder upright in a dry place.
Note: Ozito Industries will not be responsible for any damage or injuries caused by
the repair of the tool by an unauthorised person or by mishandling of the tool.
MAINTENANCE
!
!

13
MAINTENANCE (cont.)
TROUBLE SHOOTING
Cleaning
Always clean the shredder after each use.
WARNING Never use a high-pressure washer or running water when
cleaning the shredder!
Brush away dirt and plant residue which may be caught in the rolling cutter blade.
Wipe clean the outside of the shredder with a cloth which has been moistened with a
mild detergent and water.
Causes
The motor does not run
The material to be shredded
is not pulling through the unit
Material is not being
shredded sufficiently
Solutions
• Set the direction control switch (3) to
position “0” and press the reset button (2).
• Turn the direction control switch to either
the feed or reverse position and turn on
the shredder.
• Possible power failure check the power
supply/cord and house fuse box.
• The cutting blade is running in reverse.
Turn off the shredder and change the
direction control switch to the feed
position.
• The material is jammed in the roller blade.
Set the control switch to the “O” position
and switch the shredder on. Pull the
material from the hopper. Carefully re-
feed thick branched material making sure
the blade does not immediately grasp the
pre-cut notches again.
• The rolling cutter head is blocked. Set the
direction switch to the reverse position
and switch the shredder on. The cutter
head will now run backwards and release
the blocked material.
Ensure the metal plate is correctly adjusted in
relation to the rolling cutter head. Refer to the
“Prior to operation” section for detailed
instructions.
CAUTION Only change the direction of rotation after the shredder has come to
a complete stop and the blades have stopped rotating.
!

Limited spare parts are available subject to availability. Please contact your local
Bunnings Special Orders Desk to order the required spare parts.
Most common spare parts listed below
Spare Part/Accessories Part No.
Blade Holder SPSSH240-49
Blade SPSSH240-53
Blade Plate SPSSH240-56
Switch SPSSH240-85

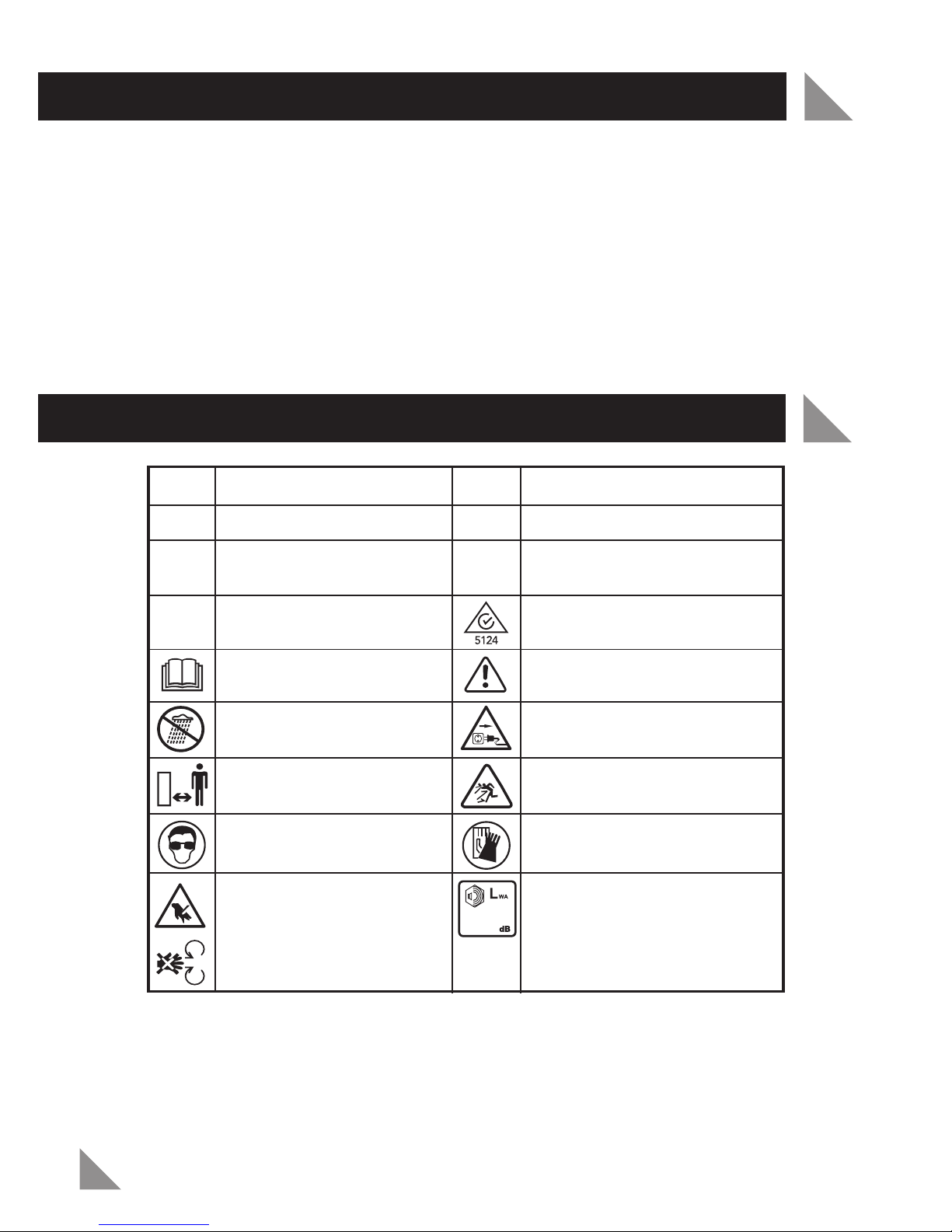

Regulator compliance mark
VVolts Hz Hertz
~Alternating current WWatts
/min Revolutions or
reciprocation per minute
dB Decibel (noise) rating
no No load speed
Warning
Read operator’s manual
Keep by standers away
Wear eye protection
Danger - Rotating blades.
Keep hands and feet out
of openings while
machine in running
Wear safety gloves
Sound power level
Beware of debris being
ejected from the shredder
Do not use in wet weather
Disconnect and discontinue use
should the power-cord be damaged
93
DESCRIPTION OF SYMBOLS
SPARE PARTS
14

AUSTRALIA (Head Office)
1 - 23 Letcon Drive Bangholme Victoria Australia 3175
Telephone: [phone]
Facsimile: [phone]
Website: www.ozito.com.au
Email: [email protected]
1 x Shredder housing
2 x Support legs
1 x Wheel axle
2 x Wheels
2 x Wheel caps
2 x Wheel locking inserts
Power tools that are no longer usable should not be
disposed of with household waste but in an environmentally
friendly way. Please recycle where facilities exist. Check with
your local council authority for recycling advice.
Recycling packaging reduces the need for landfill and raw
materials. Reuse of recycled material decreases pollution in the
environment. Please recycle packaging where facilities exist.
Check with your local council authority for recycling advice.
CARING FOR THE ENVIRONMENT
CONTENTS
OZITO INDUSTRIES PTY LTD
15
4 x Nut & washers (to attach legs)
2 x 55mm screws nut & washers (to attach axle)
1 x Hex wrench
1 x Hex key
1 x Collection bag
1 x Instruction manual

2 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 24 months from the original date of purchase
and is intended for DIY (Do It Yourself) use only. If a product is defective it will be replaced in
accordance with the terms of this warranty. Warranty excludes consumable parts, for example:
rolling cutter heads, wheels and wheel caps.
.
WARNING
The following actions will result in the warranty being void.
Professional, Industrial or high frequency use.
If the tool has been operated on a supply voltage other than that specified on the tool.
If the tool shows signs of damage or defects caused by or resulting from abuse, accidents
or alterations.
Failure to perform maintenance as set out within the instruction manual.
If the tool is disassembled or tampered with in any way.
OZITO
Australia/New Zealand (Head Office)
1-23 Letcon Drive, Bangholme, Victoria, Australia 3175
•
•
•
•
•
OW8
WARRANTY
YOUR WARRANTY FORM SHOULD BE RETAINED BY YOU AT ALL TIMES. IN ORDER
TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST RETURN THE PRODUCT TO
YOUR NEAREST BUNNINGS WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT.
PRIOR TO RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE OUR
CUSTOMER SERVICE HELPLINE:
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
The benefits provided under this warranty are in addition to other rights and remedies which
are available to you at law.
Our goods come with guarantees that cannot be excluded at law. You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if
the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Generally you will be responsible for all costs associated with a claim under this warranty,
however, where you have suffered any additional direct loss as a result of a defective product
you may be able to claim such expenses by contacting our customer service helpline above.
`Australia 1800 069 486
New Zealand 0508 069 486
