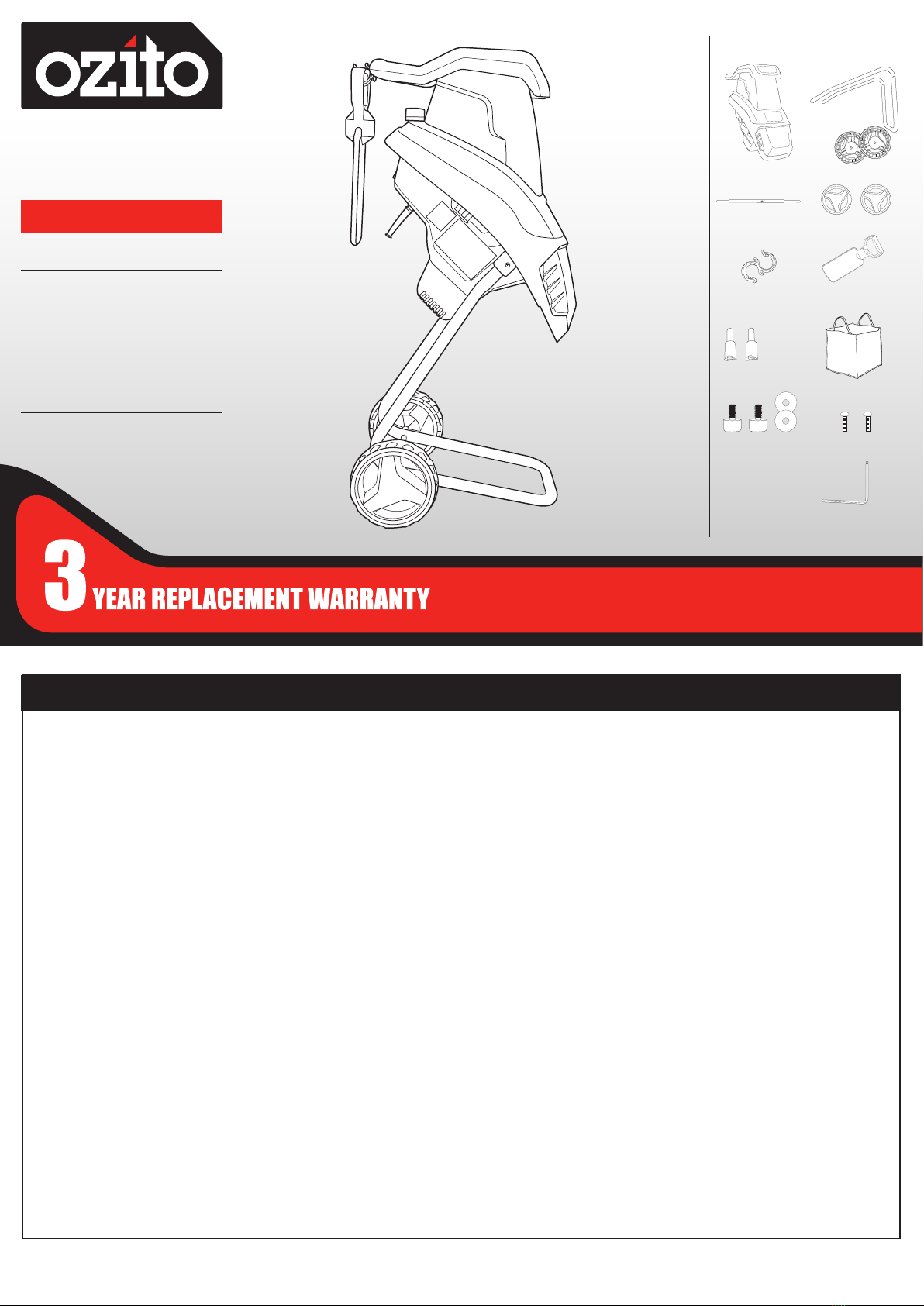

Ozito RSH-2535 User manual

RAPID
SHREDDER
2400W
INSTRUCTION MANUAL
SPECIFICATIONS
Power Rating: 2400W (S6 40%), 2000W (S1)
No Load Speed: 3,800/min
Max Cutting: Ø35mm
Noise Level: 106 dB
Blades: Reversible
Collection Bag: 45 litre
Protection Class: II (Double Insulated)
Weight: 10.3 kg
RSH-2535
STANDARD EQUIPMENT
IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from
the original date of purchase. If a product is defective it will
be replaced in accordance with the terms of this warranty.
Warranty excludes consumable parts and included accessories, for
example: Blades, push stick, collection bag and wheels.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
ozito.com.au
0719
Shredder Housing
Stand
Wheels x 2
Axle Wheel Caps x 2
Collection Bag
Push Stick
Holder
Push Stick
Assembly Screws x 2
Wheel Spacer x 2
Socket Screw
and Washer x 2
Hex Key

3
ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.

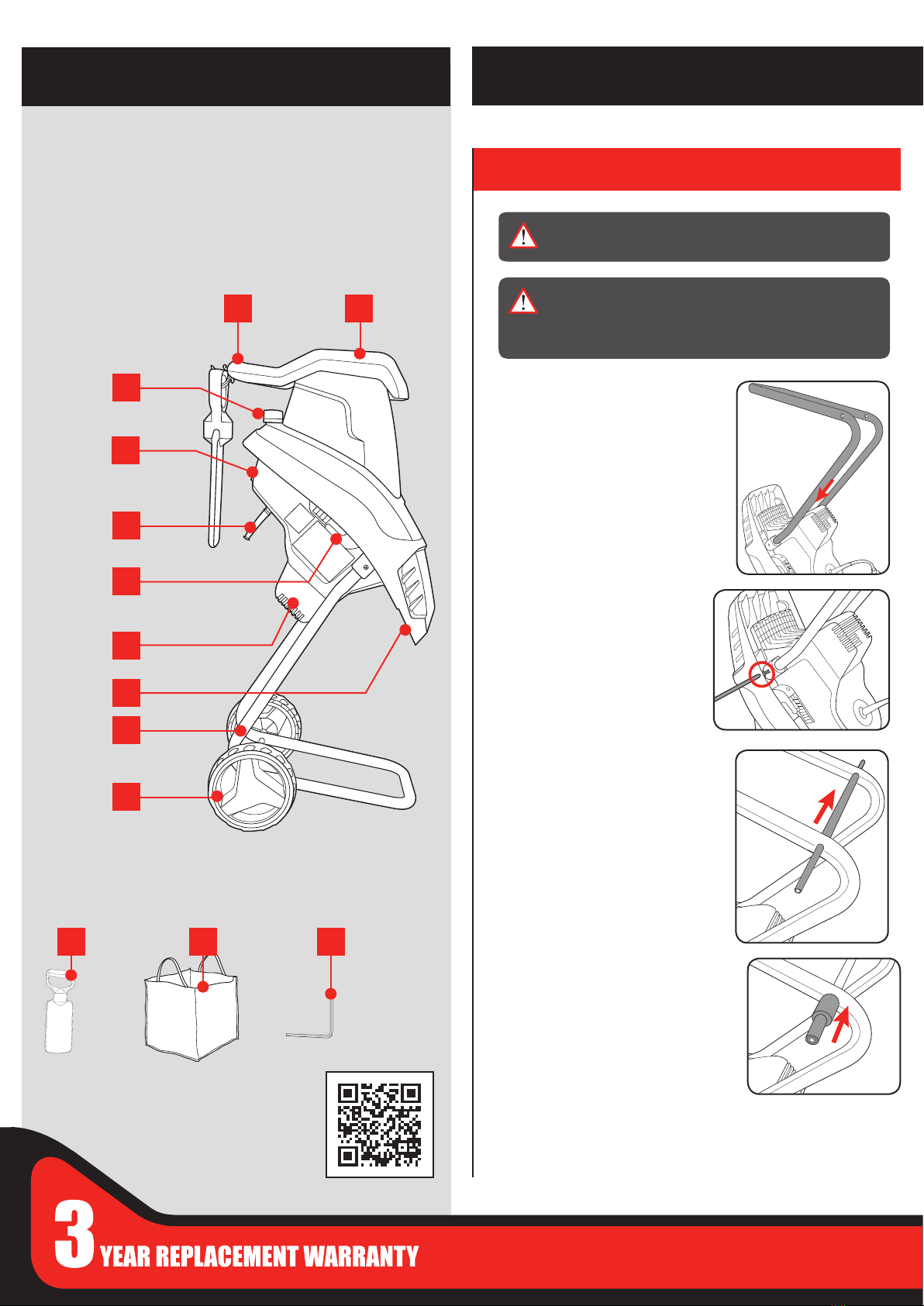

After removing the shredder from
the carton, check that the shredder
has not been damaged. Unpack the
contents.
Fitting the wheels and stand
1. Carefully place the shredder
housing upside down on a at
surface. Place each leg of the
stand into the two holes at the
base of the shredder housing.
2. Using a screwdriver
(not included) secure the
legs using the two assembly
screws provided, turn in a
clockwise direction to tighten.
3. Thread the axle through
the leg stand.
4. Place wheel spacer over protruding
ends of axle.
1. Transport handle
2. Hopper
3. Locking knob
4. On/Off switch
5. Power cord
6. Collection bag hook
7. Motor housing
8. Discharge chute
9. Stand
10.Wheel
11. Push stick
12. Collection bag
13. Hex key
RAPID SHREDDER
ACCESSORIES
KNOW YOUR PRODUCT
1. WHEELS & STAND
ASSEMBLY
1 2
3
4
5
6
7
8
9
WARNING! YOU MAY REQUIRE ASSISTANCE
LIFTING THE SHREDDER OUT OF THE CARTON.
11 12
WARNING! ENSURE THE TOOL IS TURNED OFF
AND DISCONNECTED FROM THE POWER SUPPLY
BEFORE PERFORMING ANY OF THE FOLLOWING
OPERATIONS.
10
13

Starting the shredder
1. Connect the power cord to an appropriate heavy duty
extension cord and plug the extension cord into the mains
power point.
Note: The device has a internal zero voltage switch. This
prevents the device restarting unintentionally after a power
failure.
2. To start the shredder move the on/off
switch to the ON “I” position. When the
shredder is turned on there will be a short
delay before the motor starts and the
speed will uctuate for a few seconds.
This is normal as the shredder is tted
with a preset speed controller designed
to keep the shredder at its optimal speed
when in use.
3. To stop the shredder move the on/off
switch
to the OFF “O” position.

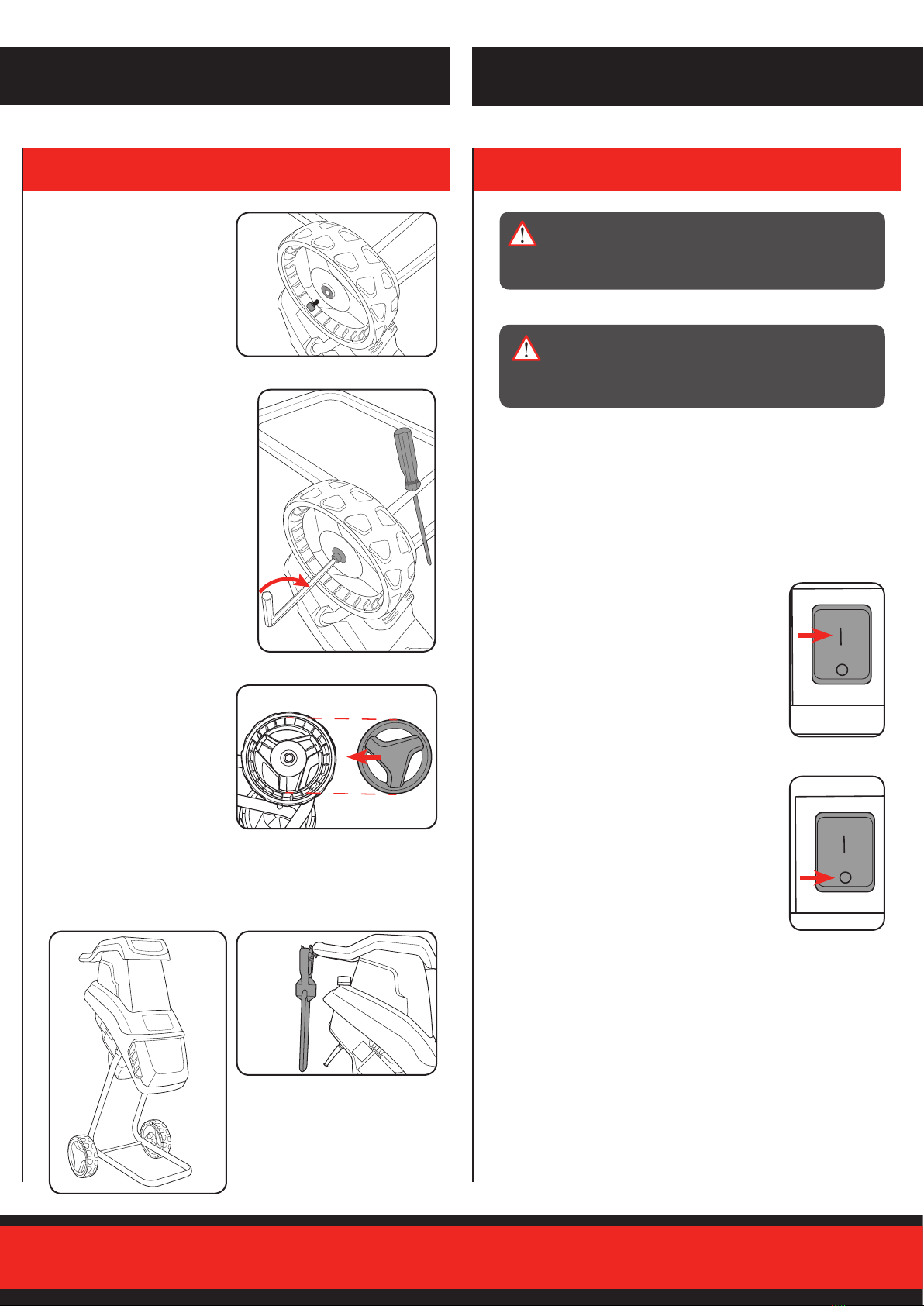

5. Insert each wheel over
the wheel spacers, then
secure with washer and
socket screws.
Note: Ensuring that the
larger inner diameter of the
wheel is facing outwards.
This allows the wheel cap to
be tted.
6. Insert a screwdriver through
the holding hole on the axle
and tighten the socket screws
with hex key provided, turn in
a clockwise direction.
7. Place the wheel cap onto
the wheel and click in
place.
8. Once fully assembled
carefully lift the shredder
into its correct position
supported by the stand
and wheels.
2. STARTING
OPERATION
WARNING! PRIOR TO STARTING THE MOTOR
ENSURE THE SHREDDER IS EMPTY. ENSURE
YOU WEAR SAFETY GLOVES, SAFETY GLASSES
AND EARMUFFS WHEN THE SHREDDER IS IN USE.
ON
OFF
ON
OFF
WARNING! THE POWER SUPPLY FOR THIS
PRODUCT SHOULD BE PROTECTED BY A
RESIDUAL CURRENT DEVICE RATED AT 30mA OR
LESS.
9. Attach push stick holder to
stand for easy access of your
push stick.

3. OPERATING THE SHREDDER
Overload protection
1. The shredder is equipped with a built in motor circuit-
breaker that prevents the motor from being overloaded.
The motor will switch OFF “O” automatically in the event of
overloading.
2. If overloading occurs wait 1-5
minutes and allow the motor to
cool down before restarting the
shredder.
3. Move the on/off switch to the
ON “I” position to restart the
shredder.
4. If the shredder motor does not
restart disconnect from the mains power supply.
Note: Refer to Cleaning the hopper plate section or
Troubleshooting.
Safety interlock
The shredder is tted with a safety
switch on the closure between
the shredder housing and motor
housing.
This acts as a safety mechanism
to prevent the shredder from
operating if it is not closed
correctly.
- If the housing is not closed correctly and secured with
the locking knob, the safety switch will prevent the
shredder from being turned on.
- If this occurs open the housing and ensure no debris is
preventing closure. Ret and tighten the locking knob in
a clockwise direction. Take care to correctly line up the
thread on the locking knob before tightening to avoid
cross threading.
Note: See Cleaning section for further details.
Shredding
The following types of
material can be used in the
shredder:
•Twigs
•Branches
•Waste from cut bushes
•Waste from hedge
trimming
1. Feed the material to be
shredded into the feeding
hopper.
2. The shredder will
automatically pull the
material through the
feeding hopper. The
push stick can be used
to assist in feeding the
garden material.
Note: The shredder may
clog if too much ne
material is fed in. To prevent
clogging, mix ne material
with larger material.
WARNING! THE SHREDDER IS NOT SUITABLE
FOR MATERIALS INCLUDING GLASS, METAL,
PLASTIC BAGS, STONES, FABRIC, EARTH COVERED
ROOTS, SOFT LEAFY MATERIAL AND WASTE
WITHOUT A FIRM CONSISTENCY (EG. KITCHEN
WASTE).
WARNING! TO PREVENT DAMAGE TO THE
SHREDDER IT IS RECOMMENDED THAT GARDEN
MATERIAL GREATER THAN 35MM IN DIAMETER IS
NOT FED INTO THE SHREDDER.
Ø35mm
Ø35mm
MAX
WARNING! NEVER LOOSEN THE LOCKING KNOB
WHEN THE POWER IS ON. ALWAYS ENSURE THE
POWER IS TURNED OFF AND PULLED OUT OF THE
MAINS POWER.
ON
OFF

RSH-2535
4. TIPS
MAINTENANCE
5. CLEANING
WARNING!: ALWAYS USE A DUST MASK AND
SAFETY GLOVES WHEN HANDLING COMPOSTED
MATERIAL TO PREVENT CONTAMINATION FROM
MICRO ORGANISMS.
Shredding
Following the below procedures will improve operation and
prolong the life of the shredder.
•Branches and twigs should be shredded shortly after they
are cut. They become extremely hard once dry and the
maximum cutting diameter is reduced.
•Garden waste such as fresh foliage, creepers and vines
contain a lot of moisture, this can result in material sticking
to the cutter head. Such material should be allowed to dry
for a few days before being fed into the shredder.
•Always check material before shredding, ensure it does
not contain any stones or nails as this may severely
damage the shredder.
•Material that contains dirt will rapidly blunt the cutting
blades and should be avoided.
•Always store the shredder indoors in a dry place.
Composting
The shredded material can be composted in many various
ways:
•The material can be placed in a heap directly on the
ground (cold composting).
•The material can be placed in a plastic container, wooden
crate, skeleton container or similar (cold composting).
•The material can be placed in an insulated compost
holder. The heat is then maintained for longer periods
and the rotting process continues during the winter. This
method produces faster results (warm composting).
•The material can be spread directly onto the garden
(surface composting).
Cleaning
Always clean the shredder after each use.
Cleaning the hopper plate
1. Ensure the shredder is turned off
and pulled out of the mains power.
Unscrew the locking knob in an anti-
clockwise direction. The thread on
the locking knob is quite lengthy the
operation will require approximately
15 rotations to fully open the
housing.
2. After unscrewing the locking knob lift
the housing upwards to gain access
to the cutting blades.
3. Carefully clean out the
cutting and discharge
area. Ensure that all
debris is removed to
prevent the blades from
clogging. The discharge
area should be free of
all organic matter. If the
shredder is full of organic
matter it will burn out the motor and prevent operation.
4. Once the shredder blades are completely clean gently
lower the housing and tighten the locking knob by rotating
in a clockwise direction. Ensure it is securely tted to the
housing.
5. Connect mains power before turning on shredder.
WARNING!: NEVER USE A HIGH-PRESSURE
WASHER OR RUNNING WATER WHEN CLEANING
THE SHREDDER!
WARNING!: PRIOR TO STARTING THE MOTOR
ENSURE THE SHREDDER IS EMPTY. ENSURE
YOU WEAR SAFETY GLOVES, SAFETY GLASSES AND
EARMUFFS WHEN THE SHREDDER IS IN USE.

6. BLADE REPLACEMENT
MAINTENANCE cont.
4. Place a screwdriver (not
supplied) though the slot
in the blade plate, this will
secure the rotating blade
plate in its position allowing
you to remove both blades.
The screws may be tight
due to corrosion and dirt
buildup. Ensure that the
supplied hex key is a good t into the screw and that the hex
key is held rmly and at right angles to the blade plate.
Remove the 2 blade securing screws by rotating the hex key
in the anti-clockwise direction.
To remove the second blade repeat step 4.
5. If the opposite side of the blades are new, the blades can be
reversed to use the new side. If both sides of the blades are
worn then replace the blades and retighten the blades by
following steps 4-5 in reverse. If new blades are being tted
ensure that the new blade securing screws are tted at the
same time. Ensure all blade securing screws are tight prior to
operation.
Note: It is recommended to add Loctite®222 Threadlocker
to the thread of the blade securing screw, Loctite®222
Threadlocker is available from all Bunnings stores. This assists
in securing the screw and reduces the chance of the blade
securing screw vibrating loose whilst in operation.
6. Once the blades are removed/
reversed, ret cover plate, lower
the housing and tighten the
locking knob by rotating in a
clockwise direction. Ensure it is
securely tted to the housing.
General maintenance
The shredder requires very little maintenance. In order to maintain the efciency of
the machine and achieve a long service life observe the following:
• Keep the air openings clean and free of obstructing material.
• Periodically check that all nuts and screws are secure.
• Spray the rolling cutter head after each use with a spray lubricant to protect
against corrosion.
• Always clean the shredder after each use. Brush away dirt and plant residue
which may be caught in the roller cutter. Wipe clean the outside of the shredder
with a cloth which has been moistened with a mild detergent and water.
• Store the shredder upright in a dry place.
Note: Ozito Industries will not be responsible for any damage or injuries caused
by the repair of the tool by an unauthorised person or by mishandling of the tool.
WARNING! ENSURE THE BLADE SECURING
SCREWS SECURING THE BLADES ARE FULLY
TIGHTENED PRIOR TO OPERATION. IF THERE IS ANY
VIBRATION OR ABNORMAL NOISE AFTER RE-STARTING
THE SHREDDER, IMMEDIATELY STOP OPERATION.
DISCONNECT FROM THE MAINS POWER AND CHECK
THAT THE BLADES ARE ASSEMBLED CORRECTLY AND
SECURELY TIGHTENED.

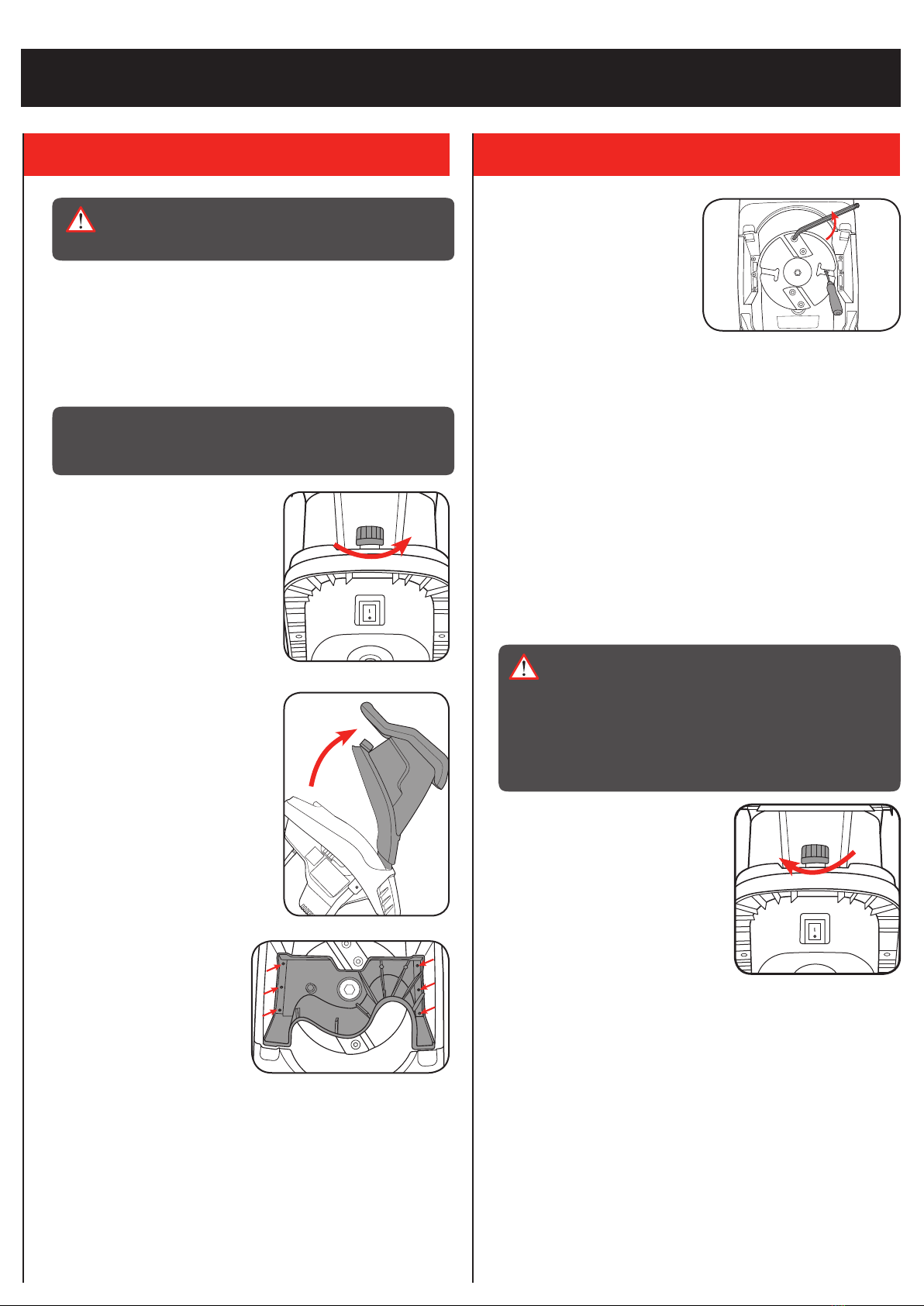

Replacing blades
The blades supplied with the shredder are reversible. The
blades can also be re-sharpened if they become blunt over a
period of time. Additional blades & bolts can be obtained as
spare parts. Always reverse or replace both blades at the same
time.
To remove the blades proceed as follows:
1. Ensure the shredder is turned off
and disconnect from the mains
power. Unscrew the locking knob
in an anti-clockwise direction.
The thread on the locking knob
is quite long, the operation
will require approximately
15 rotations to fully open the
housing.
2. After unscrewing the locking
knob lift the housing upwards
to gain access to the cutting
blades.
3. There are two blades and
these are each xed to the
rotating blades plate with
two hex head screws. To
remove the blades rst
clean out any debris and
build up of material from
the blades. Then undo the
6 screws and remove the
cover plate.
WARNING! BLADES ARE SHARP, HANDLE WITH CARE,
IT IS RECOMMENDED TO USE GARDENING OR SAFETY
GLOVES WHEN HANDLING THE BLADES.
WARNING!: ALWAYS DISCONNECT THE
SHREDDER FROM THE POWER SUPPLY BEFORE
PERFORMING ANY MAINTENANCE.

DESCRIPTION OF SYMBOLS
CARING FOR THE ENVIRONMENT
Power tools that are no longer usable should not be disposed
of with household waste but in an environmentally friendly way.
Please recycle where facilities exist. Check with your local
council authority for recycling advice.
Recycling packaging reduces the need for landll and raw
materials. Reuse of recycled material decreases pollution in the
environment. Please recycle packaging where facilities exist.
Check with your local council authority for recycling advice.
SPARE PARTS
Read instruction manual
VVolts Hz Hertz
~Alternating current WWatts
/min Revolutions or
reciprocation per minute no No load speed
Warning
Do not expose to rain
dB Decibel (noise) rating
Beware of debris being
ejected from the shredder
Keep by standers away
Wear ear protection
Wear safety gloves
Sound power level
Danger - Rotating blades. Keep hands and feet out
of openings while machine is running
106
Disconnect and discontinue
use should the power cord
be damaged
Double insulated
Wear eye protection
Regulator compliance mark
Problem Cause Solutions
The motor does
not run
The shredder
may have been
overloaded.
Wait 1-5 minutes and allow
the motor to cool down.
Move the on/off switch
to the ON “I” position to
restart the shredder.
The closure
between the
shredder housing
and motor housing
has not been closed
correctly.
The safety interlock
will not allow power to
the shredder. Open the
housing and ensure the
contact surfaces are
clean. Ret and tighten
the locking knob in a
clockwise direction.
Power failure. Check the power supply/
cord and house fuse.
The material to
be shredded
is not pulling
through the unit
The hopper plate is
blocked.
Disconnect all power and
unscrew the locking knob.
Carefully clean all debris
and free organic matter
from the discharge area.
Lower the housing and
tighten the locking knob to
ensure it is secure.
The blades are blunt
and need to be
changed.
Reverse or replace the
blades.
The motor is
cutting out on
overload
The blades are blunt
and need to be
changed.
Reverse or replace the
blades.
Smoke is coming
out of the hopper
The cutter assembly
is clogged.
Open the shredder and
clean out the hopper.
TROUBLESHOOTING
Read the operating instructions.
Wear safety goggles.
Safety class II
Never expose the
device to rain
Wear ear protection
If the cable is damaged or cut, disconnect the power plug from
the mains immediately.
Maximum cutting length / chain speed vu: 13.5 m/s
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]

This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
Recommendations for the use of a residual current device with a rated residual current of
30mA or less.
• Only operate the machine in open space (eg. not close to a wall or other xed object) and
on a rm, level surface.
• Do not operate the machine on a paved or gravel surface where ejected material could
cause injury.
• Always stand clear of the discharge zone when operating this machine.
• Do not transport this machine while the power source is running.
• Do not tilt the machine while the power source is running.
• Only use the shredder in dry conditions and never outdoors when it is raining.
• Do not allow children or any person who has not read this instruction manual or who
is not familiar with the shredder.
• Remember that the operator may be held responsible for accidents or hazards occurring
to other people and/or their property.
• Ensure the shredder is placed on a rm and level surface prior to using.
• Before starting the shredder, ensure the chute is empty.
• Never use the shredder with damaged safety devices or without protection.
• Never operate the shredder unless the chute is in place and securely fastened.
• Wear ear protection when operating the shredder.
• Never look directly into the outlet while the shredder is running as loose debris
may be ejected.
• Do not allow processed material to build up in the discharge chute. This may prevent
proper discharge and can result in kickback of material through the feeding hopper.
• If the machine becomes clogged, switch off the machine and disconnect from the power.
Allow the cutter to come to a stop. Clear debris from the cutter assembly.
• Never attempt to shred bones, stone, glass, metals, plastic or rags.
• Ensure the customer assembled all screws and nuts are properly tightened.
• Wear protective gloves, safety glasses and avoid loose clothing.
WARNING! Rotating cutter head. Keep hands and feet out of openings
• Store shredder upright in a dry place when not in use.
• Never put your hands in the cutter area while the cutter assembly is running or the shredder
is plugged in. The cutter continues to run for a few seconds after the shredder has been
switched off.
• If the cutter strikes any foreign objects or if the shredder starts making any unusual noise or
vibration, switch off the shredder immediately and disconnect the power.
Allow the cutter to come to a stop and take the following steps:
- Inspect for damage
- Check and tighten any loose parts
- Have any damaged parts replaced and/or repaired by an electrician or power tool repairer.
• Always switch off the shredder and disconnect the power whenever you leave the work area.
WARNING! Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of
ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or
fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause
you to lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use
any adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching
outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your body is earthed
or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use a power tool while you are tired or under the inuence of drugs,
alcohol or medication. A moment of inattention while operating power tools may result in
serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before
connecting to power source and/or battery pack, picking up or carrying the tool.
Carrying power tools with your nger on the switch or energising power tools that have the
switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a
key left attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better
control of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and
gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in
moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities,
ensure these are connected and properly used. Use of dust collection can reduce dust-
related hazards.
h. Do not let familiarity gained from frequent use of tools allow you to become
complacent and ignore tool safety principles. A careless action can cause severe injury
within a fraction of a second.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct
power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that
cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool
before making any adjustments, changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar
with the power tool or these instructions to operate the power tool. Power tools are
dangerous in the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of
parts and any other condition that may affect the power tool’s operation. If damaged,
have the power tool repaired before use. Many accidents are caused by poorly maintained
power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these
instructions, taking into account the working conditions and the work to be performed.
Use of the power tool for operations different from those intended could result in a hazardous
situation.
5. Service
a. Have your power tool serviced by a qualied repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
GENERAL POWER TOOL SAFETY WARNINGS
ADDITIONAL SAFETY INSTRUCTIONS FOR SHREDDERS
ELECTRICAL SAFETY
WARNING! When using mains-powered tools, basic safety precautions, including
the following, should always be followed to reduce risk of re, electric shock,
personal injury and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an
emergency, before operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
The manufacturer cannot accept any liability for damage or accidents which arise due to a
failure to follow these instructions and the safety information.
This product has been designed for 230V and 240V only. Always check that the power supply
corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V is interchangeable for Australia and New Zealand.
This tool is double insulated therefore no earth wire is required.
The power supply for this product should be protected by a residual current device (rated at
30mA or less). A residual current device reduces the risk of electric shock.
If the supply cord of this power tool is damaged, it must be replaced by a specially prepared
cord available through the service organization.
Note: Double insulation does not take the place of normal safety precautions when operating
this tool. The insulation system is for added protection against injury resulting from a possible
electrical insulation failure within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use,
inspect the extension lead for signs of damage, wear and ageing. Replace the extension lead
if damaged or defective. When using an extension lead on a reel, always unwind the lead
completely. Use of an extension lead not suitable for the power input of the tool or which is
damaged or defective may result in a risk of re and electric shock.
