TABLE SAW
200mm 800W
INSTRUCTION MANUAL
SPECIFICATIONS
Motor: 800W (S2 10min)
Input: 230-240V ~ 50Hz
No Load Speed: 2,950/min
Blade: Ø200mm x Ø16 x 2.4mm
Blade Teeth 24TCT
Depth of Cut: 43mm @ 90°
32mm @ 45°
Bevel Angle: 0-45°left
Table Size: 500x335mm
Dust Port: Ø36mm
Weight: 10.65kg
TSB-0808
WHAT’S IN THE BOX
Push Stick
Mitre Guide
Table Saw
Rip Fence
IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from
the original date of purchase and is intended for DIY (Do It
Yourself) use only. If a product is defective it will
be replaced in accordance with the terms of this warranty.
Warranty excludes consumable parts, for example: blade,push stick,
spanners & bearings.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
ozito.com.au
1217
Spanners

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.

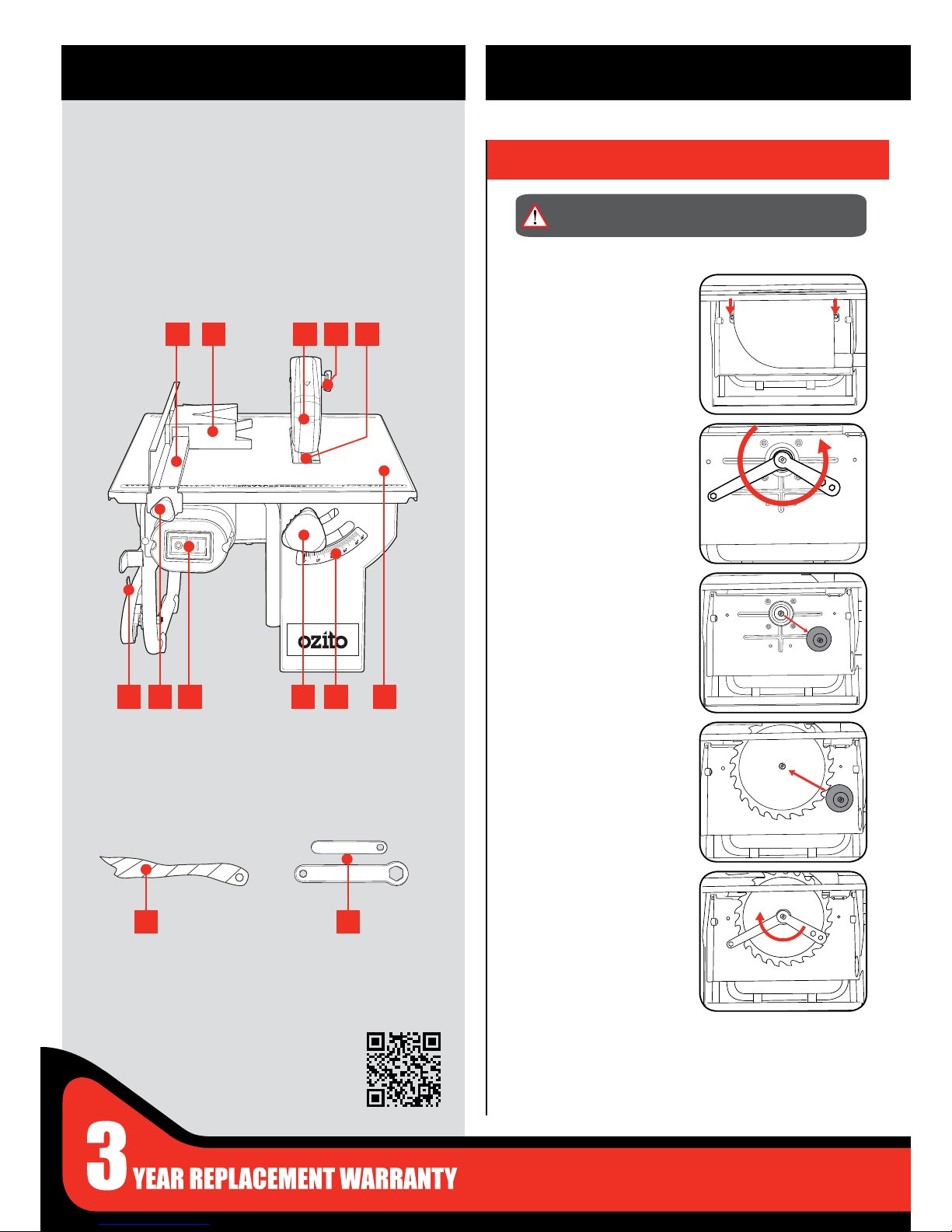

1 Rip Fence
2 Mitre Guide
3 Blade Guard
4 Blade Guard Mounting Bolt
5 Saw Blade
6 Push Stick Holder
7 Rip Fence Lock Knob
8 On/Off Safety Switch
9 Bevel Lock Knob
10 Bevel Angle Gauge
11 Saw Table
TABLE SAW
KNOW YOUR PRODUCT
1. ASSEMBLY
SETUP & PREPARATION
WARNING!: ENSURE THE TOOL IS DISCONNECTED
FROM THE POWER SUPPLY BEFORE ASSEMBLY
12 Push Stick 13 Blade Spanners x 2
1 Remove the chip bin
cover by removing the 2
xing screws either side.
3 Remove the outer
ange.
Note: Ensure the mounting
ange is clean and free of
grease prior to tting the
blade.
2 Remove the blade
nut by rotating anti-
clockwise using the
supplied spanners.
4 Fit the blade onto the
spindle, ensuring the
blade direction matches
the directional arrows
on the housing.
5 Ret the outer ange
and blade nut. Tighten
using the supplied
spanners to secure the
blade.
Fitting the Blade
6
12 13
1 2 3 4 5
7 8 9 10 11
REPLACEMENT BLADES:
You will nd a selection of blades available from the Tool Shop
at Bunnings Warehouse.
If the required saw blade size is not available at Bunnings,
this part can be ordered from the Special Orders Desk at
your local Bunnings Warehouse.

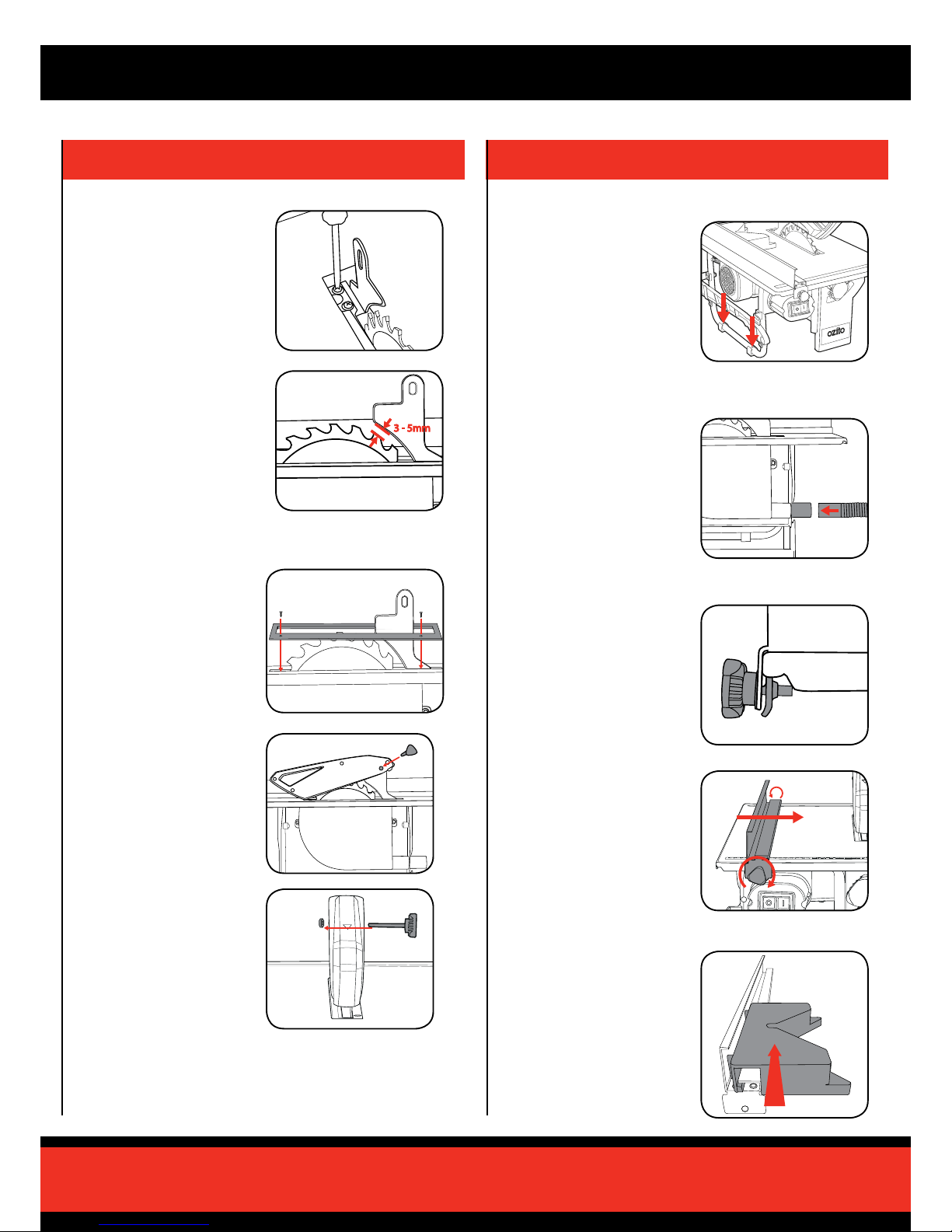

1 Insert the Splitter by
securing in pace with
the 2 xing screws.
Ensure the table saw it set up
on a level work bench or sturdy
table
The base of the saw has
bench mounting holes that
can be used to mount it to a
workbench if desired.
A vacuum can be tted to the
dust extraction port at the
back of the table saw to help
remove dust while operating.
2 Slide the rip fence onto
the table and secure in
the desired position by
tightening both locking
knobs.
Note: The fence can be used
with either the low or high side
facing the blade, depending on
the thickness of the material.
1 To t the rip fence, the 2
locking knobs must rst be
tted.
Place the locking plate
behind the fence tab and
then insert the locking
knob with washer through
the fence tab and into the
locking plate.
The mitre guide can be slid
into the end of the rip fence to
allow for simple 450cuts.
4 Mount the blade guard
onto the top of the
splitter.
2 Fit the splitter loosely
using the 2 screws.
Adjust so that is 3-5mm
away from the blade
then tighten the screws
to secure in position.
Note: The distance between the splitter and saw blade should be
checked each time the blade is changed.
5 Insert the mounting
bolt through the blade
guard and splitter and
then tighten the knob to
secure.
3 Fit the table insert and
secure using the 2
screws.
Fitting the Splitter and Blade Guard Mounting the Table Saw to a Bench
Dust Extraction Port
Rip Fence
Mitre Guide
3 - 5mm

TSB-0808

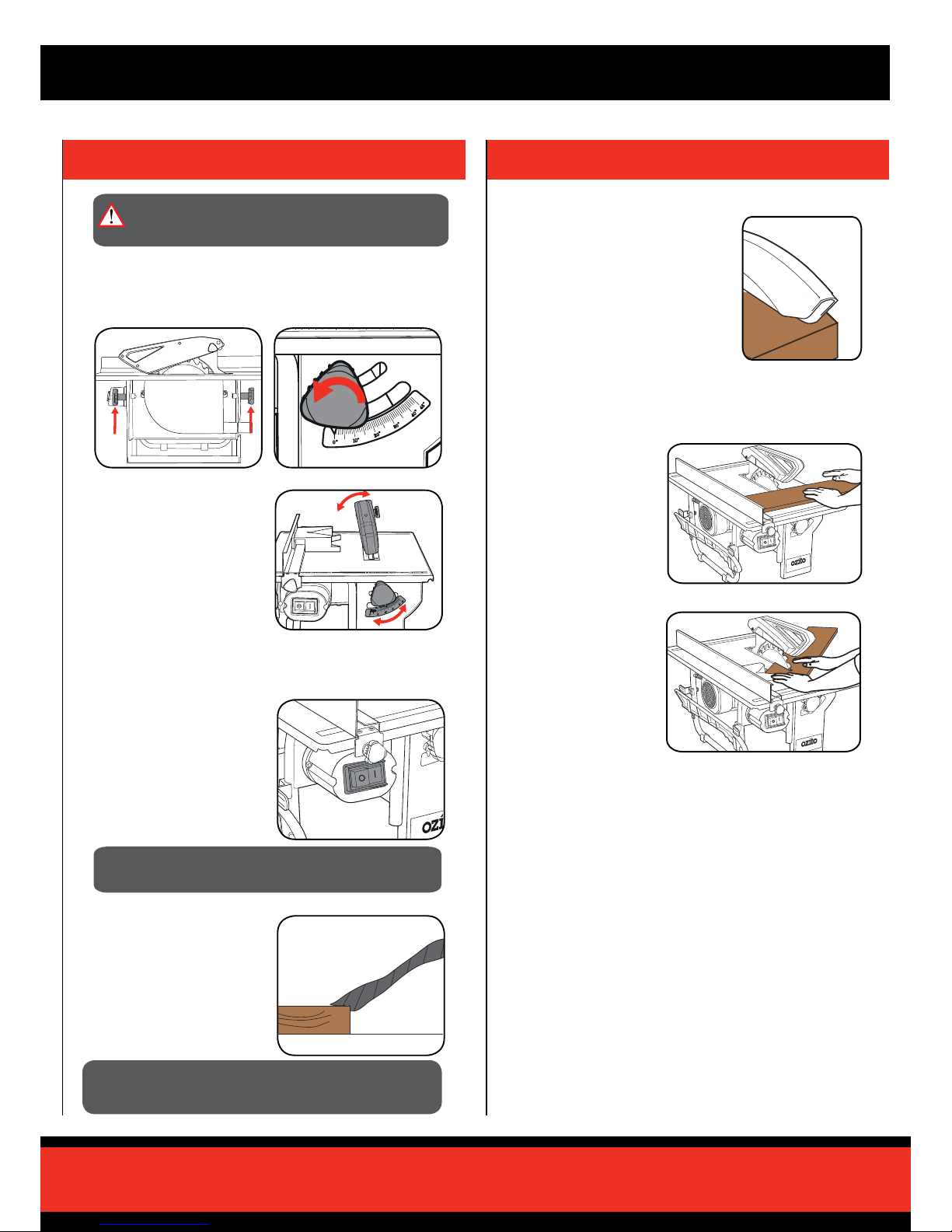

2. ADJUSTMENTS & CONTROLS 3. OPERATING THE TABLE SAW
OPERATION
The tool is recommended for use with a residual current device
with a rated residual current of 30mA or less.
CAUTION!: DO NOT USE THE TABLE SAW TO CUT
METAL OR MASONRY.
Workpiece
WARNING!: ENSURE THE TOOL IS DISCONNECTED
FROM THE POWER SUPPLY BEFORE MAKING ANY
ADJUSTMENTS.
Place the workpiece at
on the table top with one
edge pressed against the
rip fence.
When making a cut push
workpiece in a steady
motion towards the rear
and cut in a single pass.
When cutting using the
mitre guide, place the
workpiece at on the
table top with one corner
pressed against the mitre
guide.
When making the cut push
mitre guide forward along
the rip fence.
Set the saw blade to the required cutting
angle and cutting width. The blade guard
must rest with its front edge on the
workpiece.
Note: Before performing a cut, ensure the blade is at full speed.
Failure to do this will cause the blade to become blunt and cause
the blade to lock-up.
2 Adjust to the desired
angle and then lock both
locking knobs to secure the
position.
2 To turn the table saw off,
press the red off button.
1 Unlock both angle locking knobs.
1 To turn the table saw on,
press the green on button
in.
Adjusting Angle of Cut (Bevel)
Turning On and Off
Push Stick
IMPORTANT! WHEN HANDLING NARROWER WORKPIECES,
IT IS ESSENTIAL TO USE A PUSH STICK. THE PUSH STICK
MUST ALWAYS BE KEPT CLOSE AT HAND.
The push stick protects against
contact with the saw blade.
Use the stick to push the
workpiece through the saw
blade.

MAINTENANCE
DESCRIPTION OF SYMBOLS
CARING FOR THE ENVIRONMENT
Power tools that are no longer usable should not be disposed of
with household waste but in an environmentally friendly way. Please
recycle where facilities exist. Check with your local council authority
for recycling advice.
Recycling packaging reduces the need for landll and raw materials.
Reuse of recycled material decreases pollution in the environment.
Please recycle packaging where facilities exist. Check with your
local council authority for recycling advice.

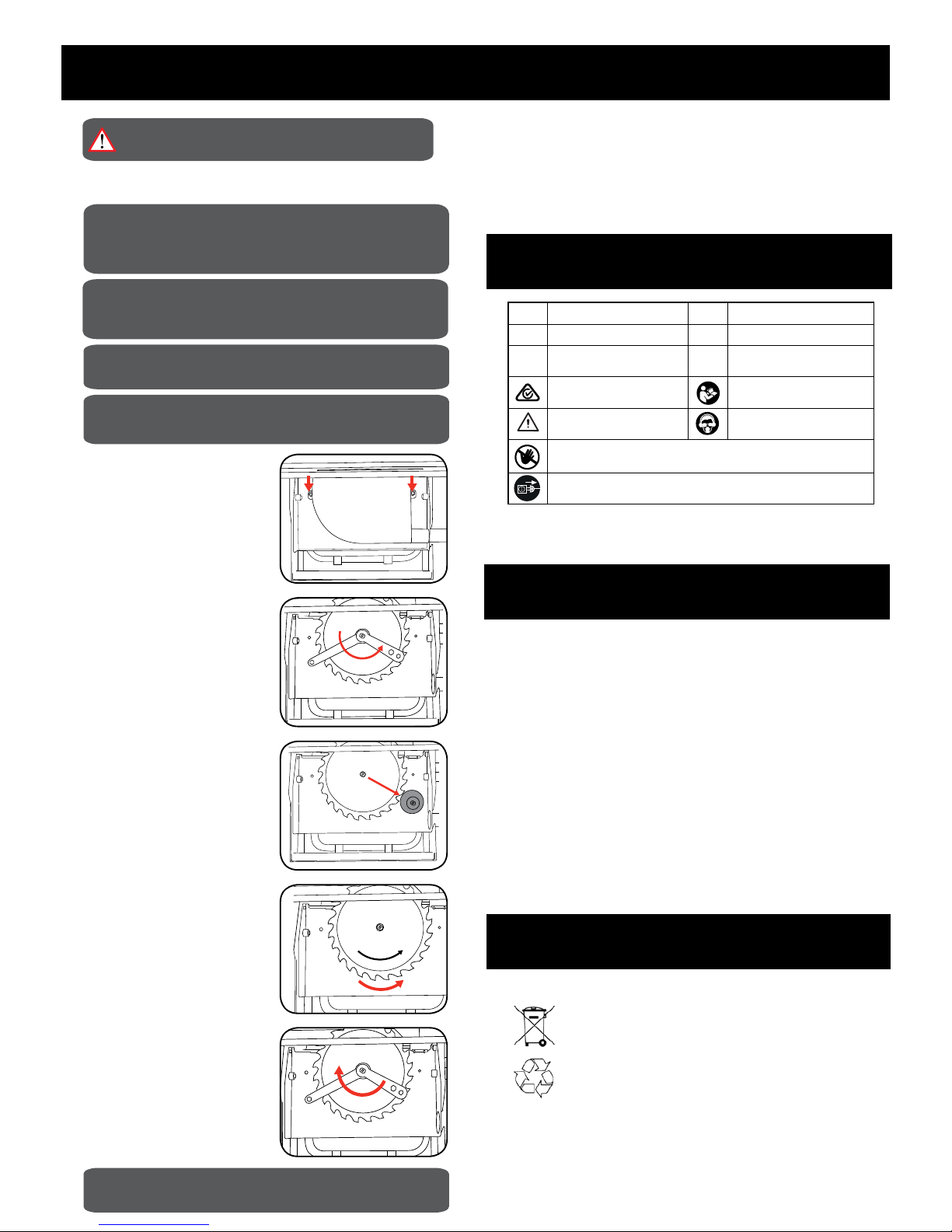

Changing the Blade
REPLACEMENT BLADES:
You will nd a selection of blades available from the Tool Shop
at Bunnings Warehouse.
If the required saw blade size is not available at Bunnings,
this part can be ordered from the Special Orders Desk at
your local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
SPARE PARTS
CAUTION! NEVER TRY TO USE A BLADE THAT IS LARGER THAN
THE STATED CAPACITY OF THE TABLE SAW. IT MIGHT COME INTO
CONTACT WITH THE BLADE GUARDS AND RISK PERSONAL INJURY
OR DAMAGE TO THE TABLE SAW. THIS WILL NOT BE COVERED
UNDER WARRANTY.
CAUTION! NEVER USE A BLADE THAT IS TOO THICK TO ALLOW
THE OUTER BLADE WASHER TO ENGAGE WITH THE FLATS ON
THE SPINDLE. IT WILL PREVENT THE BLADE NUT FROM PROPERLY
SECURING THE BLADE ONTO THE SPINDLE.
CAUTION! ENSURE THAT ANY SPACERS AND SPINDLE RINGS THAT
MAY BE REQUIRED SUIT THE SPINDLE AND BLADE THAT ARE FITTED.
CAUTION! ENSURE THAT THE SAW BLADE IS SUITABLE FOR THE
MATERIAL TO BE CUT AND THAT THE MAXIMUM POSSIBLE SPEED IS
NOT LESS THAN THE MAXIMUM TOOL SPEED.
CAUTION! USE ONLY SAW BLADES WHERE THE SPLITTER IS NOT
THICKER THAN THE WIDTH OF THE GROOVE CUT BY THE SAW
BLADE AND NOT THINNER THAN THE BODY OF THE SAW BLADE.
Note: Ozito Industries will not be responsible for any damage or
injuries caused by the repair of the table saw by an unauthorised
person or by mishandling of the table saw.
1 Remove the chip bin cover by
removing the 2 xing screws
either side.
3 Remove the outer ange and
blade.
Note: Ensure the mounting
ange is clean and free of grease
prior to tting the blade.
2 Remove the blade nut by
rotating anti-clockwise using
the supplied spanners.
4 Replace the blade onto the
spindle, ensuring the blade
direction matches the
directional arrows on the
housing.
5 Ret the outer ange and
blade nut. Tighten using the
supplied spanners to secure
the blade.
VVolts Hz
~Alternating current W
/min Revolutions or
reciprocation per minute
no
Warning Wear hearing, breathing
and eye protection
Regulator compliance mark Read instruction manual
Important. Risk of injury! Do not reach into the running saw blade
Pull the power plug before beginning any repair or maintenance work
Hertz
Watts
No load speed
WARNING!: ENSURE THE TOOL IS DISCONNECTED FROM THE
POWER SUPPLY BEFORE PERFORMING ANY MAINTENANCE.

GENERAL POWER TOOL SAFETY WARNINGS - PERSONAL SAFETY
ELECTRICAL SAFETY
WARNING! When using mains-powered tools, basic safety precautions, including the
following, should always be followed to reduce risk of re, electric shock, personal injury and
material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before
operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
The electric motor has been designed for 230V and 240V only. Always check that the power supply
corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.
This tool is double insulated therefore no earth wire is required.
If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in order to avoid a
hazard.
Note: Double insulation does not take the place of normal safety precautions when operating this tool. The
insulation system is for added protection against injury resulting from a possible electrical insulation failure
within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the
extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not
suitable for the power input of the tool or which is damaged or defective may result in a risk of re and electric
shock.
This appliance is not intended for use by young or inrm persons unless supervised by a
responsible person to ensure that they can use the appliance safely. Young children should
be supervised to ensure that they do not play with the appliance.
WARNING! Before connecting a tool to a power source (mains switch power point
receptacle, outlet, etc.) be sure that the voltage supply is the same as that specied on
the nameplate of the tool. A power source with a voltage greater than that specied for the
tool can result in serious injury to the user,as well as damage to the tool. If in doubt, do not plug in
the tool.
Using a power source with a voltage less than the nameplate rating is harmful to the motor.
a) This tool is designed to cut timber products only.
Do not use the tool to cut any other materials.
b) Do not cut rewood with this tool. The irregular shape of rewood makes it unsafe to cut
with this tool.
c) Prior to operating, connect a dust extractor to the tool. This will ensure a dust- free
environment for safer operation.
d) Always use recommended size blade. Do not use smaller or larger blades.
e) Do not use dull or damaged blades. Unsharpened or improperly set blades produce narrow
*kerf causing excessive friction, blade binding and kickback.
f) Never use damaged or incorrect blade washers or blade bolts. The blade bolt and
washers are specically designed for the tool for optimum performance and safety of operation.
g) Ensure the blade is properly tted and rotates in the correct direction.
Incorrectly tted blades can cause damage to the material and tool and injury to the operator.
h) Do not use damaged blades. This can result in serious injury to the operator and damage to
the tool.
i) Do not use abrasive or dado blades. This can result in serious injury to the operator and
damage to the tool.
j) When the blade binds in material being cut, switch off the tool and wait for blade to
come to a complete stop. Investigate and take corrective action to eliminate cause of binding.
k) Blade depth and bevel adjusting locking levers must be tight and secure before making
a cut. If blade adjustment shifts while cutting, it may cause binding and kickback.
l) Do not use the tool without guards in place and operating correctly. Failure to adhere to
this may cause damage to the material and tool and injury to the operator.
m) Ensure all clamps, levers and locking knobs are securely tightened prior to operation.
This will result in projects being produced accurately and safely.
n) Support large panels to minimise risk of blade pinching and kickback. Large panels
tend to sag under their own weight. The use of roller stands and/or extension tables is
recommended.
o) Allow motor to reach full speed prior to inserting blade into timber. This will result in safe
operation and clean cuts.
p) Never place any part of your body in the blade area while the power is connected. Injury
will be prevented by the accidental starting of the tool.
q) Never attempt to stop the blade by wedging an object against the blade. This can result in
serious injury to the operator and damage to the tool.
r) Extremely small pieces of timber should not be cut with this tool in either mode. This can
result in serious injury to the operator caused by ying debris.
s) Recommendation for the use of a residual current device with a rated residual current
device of 30mA or less.
t) When ripping, always use the rip fence. This improves the accuracy of cut and reduces the
chance of the blade binding.
u) Always use the push stick, especially when cutting narrow pieces of timber. Do not place
hands in the near vicinity of the blade while operating the tool.
v) Ensure that the riving knife is properly positioned prior to operating. This will prevent the
timber from binding up and stalling the blade.
w) Do not over reach to retrieve material from behind the blade. This can result in serious
injury to the operator.
x) Do not use the saw to perform rebate or groove cuts unless suitable guarding, such as
tunnel guard, is tted above the saw table.
y) Do not use the saw for slotting (stopped groove) cuts.
z) Use only transportation devices and never use the cuttings guards for handling or
transportation when transporting the machine.
aa) Always ensure the blades are covered by the blade guard during transportation.
bb) Always store the push stick together with the table saw when not in use.
*kerf - groove cut in timber
TABLE SAW SAFETY WARNINGS
IMPORTANT! RISK OF INJURY!
NEVER REACH INTO THE RUNNING SAW BLADE.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the
warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power
tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching
outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock
if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase
the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable
for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your
nger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the power tool may result
in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h. Do not let familiarity gained from frequent use of tools allow you to become complacent and
ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may affect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5. Service
a. Have your power tool serviced by a qualied repair person using only identical replacement
parts. This will ensure that the safety of the power tool
is maintained.
