Ozito CMS-210 User manual

COMPOUND
MITRE SAW
210mm (81/4”)
INSTRUCTION MANUAL
SPECIFICATIONS
Motor: S1:1200W, S6 25%:1500W
Input: 230-240V ~ 50Hz
No Load Speed: 5,000/min
Blade: Ø210mm x Ø16 x 48T
Mitre Angle: 0-45°left & right
Bevel Angle: 0-45°left
Max. Cutting Capacity:
Mitre 0° x Bevel 0°: 120x60mm wood
Mitre 45°x Bevel 0°: 80x60mm wood
Mitre 0°x Bevel 45°: 120x35mm wood
Mitre 45°x Bevel 45°: 80x35mm wood
CMS-210
WHAT’S IN THE BOX
Compound Mitre Saw
Material & Rear
Support Bars
Hex Key
Dust Bag
ozito.com.au

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
MITRE SAW
19 Hex key
ACCESSORIES
KNOW YOUR PRODUCT

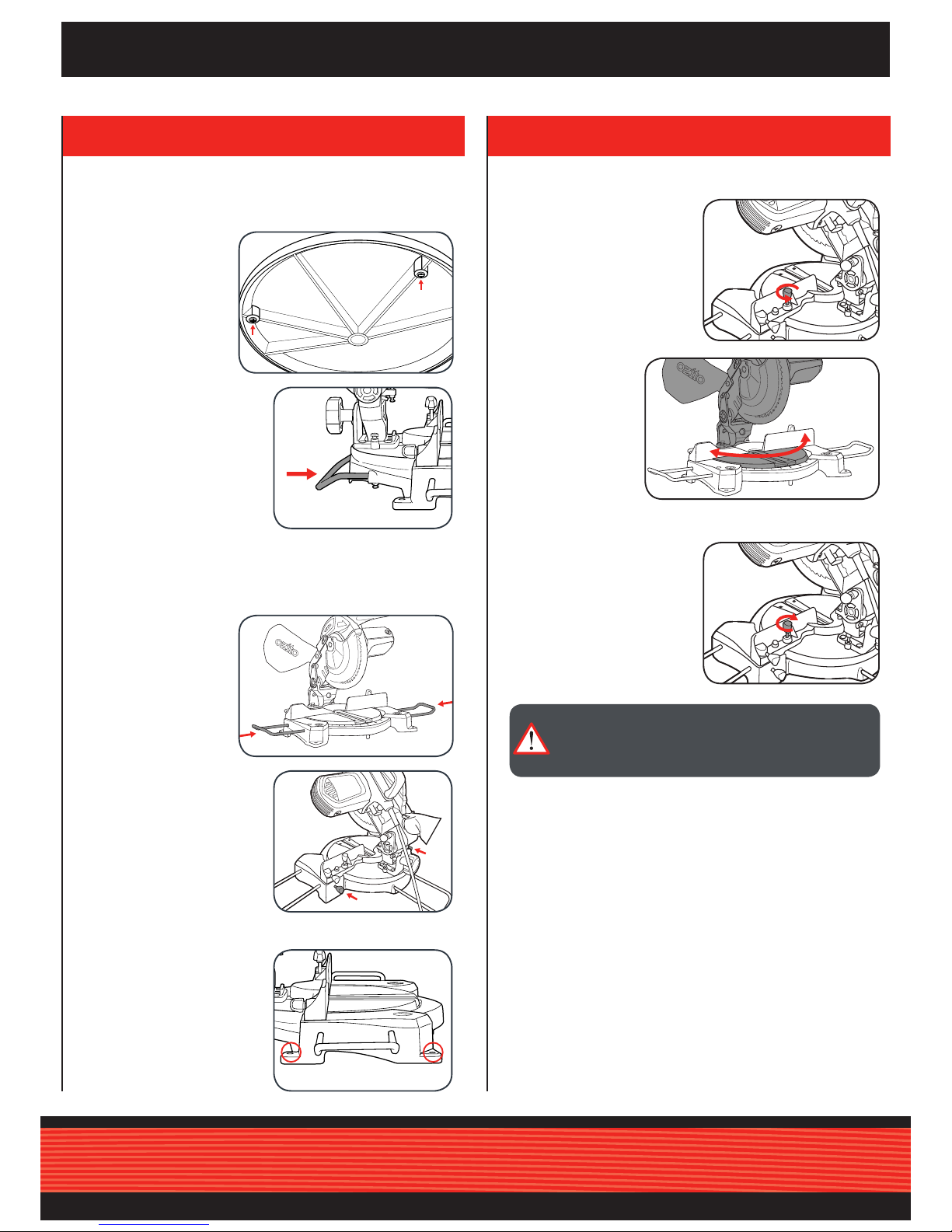

1. ASSEMBLING THE SAW
SETUP & PREPARATION
WARNING! ENSURE THE SAW IS SWITCHED OFF AND
DISCONNECTED FROM THE POWER SUPPLY BEFORE
PERFORMING ANY OF THE FOLLOWING ASSEMBLY.
Release Cutting Head From Transport Position
Fitting the Dust Bag
2 Pull the head locking pin out
and the cutting head will now
be free to move.
2 Slide the end of the dust bag
over the dust extraction port
and release the clamp.
1 Press the cutting
head down gently.
The mitre saw is shipped with the cutting head locked down and will
need to be released before operation.
1 Squeeze the clamp
at the end of the
dust bag.
1
2
3
4
5
6
7
8
9
10
17
18
19
11
12
13
14
15
16
1 Dust bag
2 Cutting head
3 Blade
4 Rear fence
5 Side support bars
6 Operating handle
7 Carbon brush cap
8 Retractable safety guard
9 Rotating mitre table
10 Table insert (kerf plate)
11 On/Off switch
12 Carry handle
13 Spindle lock button
14 Head locking pin
15 Mitre table lock knob
16 Side support bar lock knob
17 Bevel adjustment lock knob
18 Rear support bar

2. ADJUSTING THE MITRE SAW
WARNING! ENSURE THE MITRE LOCK KNOB IS TIGHT
BEFORE MAKING A CUT. FAILURE TO DO SO MAY
RESULT IN THE ROTATING TABLE MOVING DURING
OPERATION AND CAUSE SERIOUS INJURY.
Mitre Angle Adjustment
3 Secure the desired table angle
by turning the mitre table
locking knob clockwise.
1 Loosen the mitre table
lock knob by rotating anti-
clockwise.
2 Rotate the mitre
table to the desired
angle using the mitre
angle scale.
Note: The mitre table features click stops at 00, 150, 22.50, 300and 450
for quick setting.
2 Insert the rear support bar
through the 2 holes at the
rear of the base.
2 Secure the side supports by
rotating the support bar lock
knobs clockwise.
1 Loosen the phillips
head screws on the
base of the mitre saw.
1 Insert the side support
bars into the 2 holes
on either side of the
base.
Note: Ensure they are
fully inserted.
3 Tighten the phillips head
screws to secure the rear
support bar in place.
The rear support bar provides additional stability for the mitre saw base.
When working with long workpieces, the side support bars provide
additional support to the workpiece during the cutting operation.
Rear Support Bar
Side Support Bars
Bench Mounting
The base of the Mitre Saw has
four bench mounting holes that
can be used to mount it to a
workbench or mitre saw stand.

3. STRAIGHT AND ANGLE CUTTING
A compound mitre cut involves using
a mitre angle and a bevel angle at
the same time.
Max. cutting capacity:
Wood:
80 x 35mm.
45º< >45º
0º
Mitre 45º< >45º Mitre
>45ºLeft
0º
0º
>45ºLeft
A straight cut is made by cutting the
grain of the workpiece. A 90°straight
cut is made with the mitre scale set in
the 0°position.
Max. cutting capacity
Wood:
120 x 60mm.
45º< >45º
0º
Mitre 45º< >45º Mitre
>45ºLeft
Mitre cuts are made with the mitre
scale set at an angle other than 0°
either to the right or left
Max. cutting capacity
Wood:
80 x 60mm.
0º
0º
>45ºLeft
A bevel cut involves using a bevel
angle other than 0°, tilting the saw
head to the left
Max. cutting capacity
Wood:
120 x 35mm.
Note: To obtain good cuts when performing bevel or compound cuts the
workpiece should be clamped.
WARNING! ENSURE THE BEVEL LOCK KNOB IS TIGHT
BEFORE MAKING A CUT. FAILURE TO DO SO MAY
RESULT IN THE CUTTING HEAD MOVING DURING
OPERATION AND CAUSE SERIOUS INJURY.
Bevel Angle Adjustment
Retractable Safety Guard
3 Secure the cutting head by
tightening the bevel lock knob.
1 Loosen the bevel lock knob by
rotating anti-clockwise.
The safety guard provides
protection to your hands and
limbs when the mitre saw head
is in the up position or during
operation.
The safety guard automatically
retracts over the upper guard as
the saw is lowered into the work
piece.
2 Tilt the cutting head
to the desired bevel
angle using the
bevel angle scale
CAUTION! FOR ALL TYPES OF CUTS ENSURE THE SAW
IS LOCKED INTO POSITION.

Note: Before performing a cut,
ensure the blade is at full speed.
Failure to do this will cause the
blade to become blunt and cause
the blade to lock-up.
Note: When the cut is complete
allow the blade to stop rotating
before raising the cutting head.
This is required for safe operation
of the unit to prevent personal
injury.
CMS-210

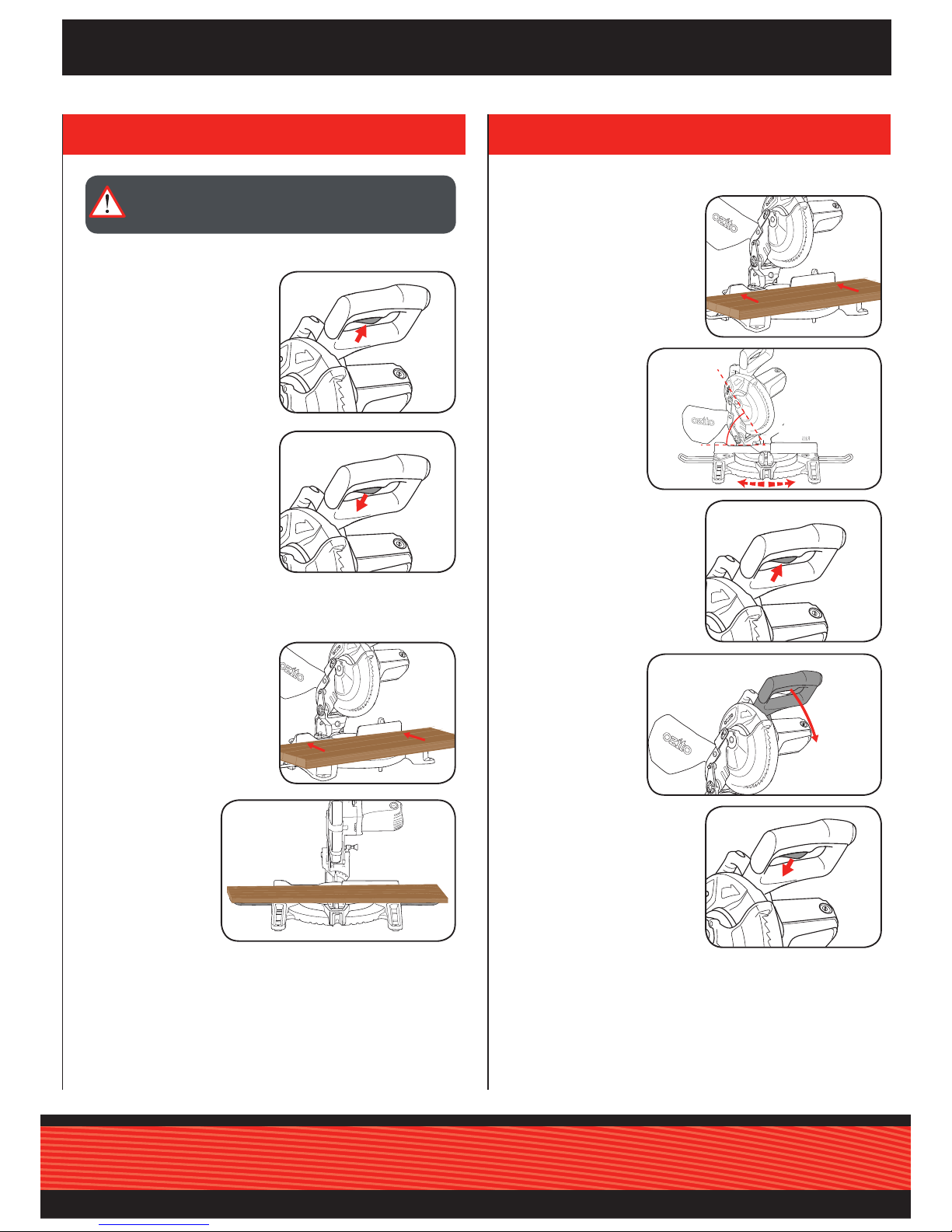

4. OPERATING THE MITRE SAW
OPERATION
Turning On and Off
Making a Cut
1 To turn the mitre saw on,
depress the on/off switch.
2 To turn the mitre saw off,
release the on/off switch.
CAUTION! TO REDUCE THE RISK OF ELECTRICAL
SHOCK, THE USE OF A RESIDUAL CURRENT DEVICE
(RATED 30mA OR LESS) IS RECOMMENDED.
Workpiece
Place the workpiece at on the
rotating mitre table with one edge
securely against the rear fence.
Note: If the workpiece is warped,
ensure the convex side is against
the rear fence.
When cutting long
pieces of timber,
support the opposite
end of the timber with
the material support
bars.
1 Ensure the bench or stand and
mitre saw is stable and the
work piece is pushed against
the rear fence.
3 Press the on/off switch
and allow the saw to reach
maximum speed.
5 Once the cut has been made,
release the on/off switch.
When the blade has stopped
you can then raise the cutting
head.
2 Set the mitre and
bevel angle for the
desired cut.
4 Lower the cutting
head and perform a
smooth cut.
45º< >45º
0º
Mitre 45º< >45º Mitre
>45ºLeft

1 Ensure the cutting head is raised. If the head
locking pin is locked in place, pull the head
locking pin and gently raise the cutting head.
2 Lift and hold the retractable safety guard up,
exposing the blade bolt.
3 Place a hex key on the blade bolt
and loosen by turning in a clockwise
direction while holding the spindle lock
in.
4 Remove the blade bolt with the outer
blade washer.
5 Remove the blade from the spindle and
replace the blade.
6 Fit and fasten the new blade in the
reverse order.
7 Check that the blade guard operates
correctly and covers the blade as the
saw arm is lowered.
Carbon Brushes
When the carbon brushes wear out, the mitre saw will
spark and/or stop. Discontinue use as soon as this
happens. They should be replaced prior to recommencing
use of the mitre saw. Carbon brushes are a wearing
component of the mitre saw therefore not covered under
warranty. Continuing to use the mitre saw when carbon
brushes need to be replaced may cause permanent
damage to the mitre saw. Carbon brushes will wear out after many uses but when
the carbon brushes need to be replaced, take the mitre saw to an electrician or
a power tool repairer for a quick and low cost replacement. Always replace both
carbon brushes at the same time.
Note: Ozito Industries will not be responsible for any damage or injuries
caused by the repair of the mitre saw by an unauthorised person or by
mishandling of the mitre saw.
Sparking visible through the housing air vents
A small amount of sparking may be visible through the housing vents. This is
normal and does not indicate a problem.
MAINTENANCE

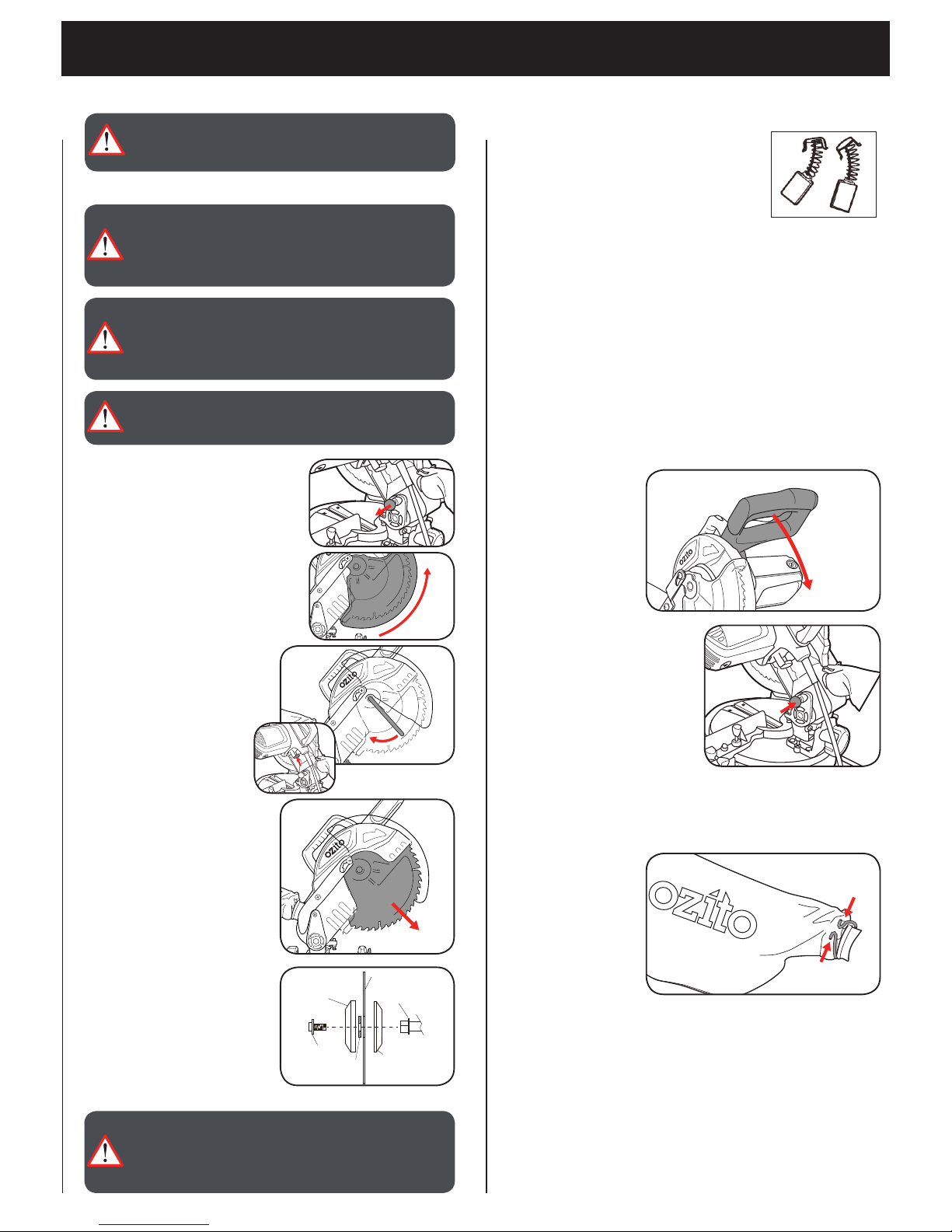

Changing the Blade
WARNING! ENSURE THE SAW IS SWITCHED OFF AND
DISCONNECTED FROM THE POWER SUPPLY BEFORE
PERFORMING ANY OF THE FOLLOWING MAINTENANCE.
WARNING! NEVER TRY TO USE A BLADE THAT IS
LARGER THAN THE STATED CAPACITY OF THE SAW.
IT MIGHT COME INTO CONTACT WITH THE BLADE
GUARDS AND RISK INJURY OR DAMAGE TO THE MITRE
SAW. THIS WILL NOT BE COVERED UNDER WARRANTY.
WARNING! NEVER USE A BLADE THAT IS TOO THICK
TO ALLOW THE OUTER BLADE WASHER TO ENGAGE
WITH THE FLATS ON THE SPINDLE. IT WILL PREVENT
THE BLADE SCREW FROM PROPERLY SECURING THE
BLADE ONTO THE SPINDLE.
WARNING! TO ENSURE THE CORRECT BLADE
ROTATION ALWAYS INSTALL THE BLADE WITH THE
BLADE TEETH POINTING DOWNWARDS. ENSURE THE
ARROW DIRECTION ON THE BLADE CORRESPONDS
WITH THE ARROW ON THE UPPER BLADE GUARD.
CAUTION! ENSURE THAT ANY SPACERS AND SPINDLE
RINGS THAT MAY BE REQUIRED SUIT THE SPINDLE AND
BLADE THAT ARE FITTED.
Transportation
Emptying the Dust Bag
2 Push the head locking pin in
to stop the cutting head from
raising.
2 Empty the dust bag and then ret the bag by squeezing the clamp
and placing over the dust port.
1 Press the cutting
head down.
1 Remove the dust
bag by squeezing
the clamp and then
remove.
The head locking pin is provided for holding the cutting head down for
transporting of storing the mitre saw.
Blade Bolt
Inner Flange
Outer Flange
Blade
Spindle
Blade Bush
if Required

DESCRIPTION OF SYMBOLS
CARING FOR THE ENVIRONMENT
Power tools that are no longer usable should not be disposed of
with household waste but in an environmentally friendly way. Please
recycle where facilities exist. Check with your local council authority
for recycling advice.
Recycling packaging reduces the need for landll and raw materials.
Reuse of recycled material decreases pollution in the environment.
Please recycle packaging where facilities exist. Check with your
local council authority for recycling advice.
Bunnings Warehouse. Spare parts can be ordered from the
Special Orders Desk at your local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
SPARE PARTS
VVolts Hz Hertz
~Alternating current WWatts
min¯ Revolutions or
reciprocation per minute
Double insulated Regulator compliance mark
no No load speed
Warning Wear eye, ear and face
Wear safety gloves
Danger! Keep hands away
from blades
Read instruction manual
protection
TROUBLESHOOTING
Problem Possible Cause Solution
Sparking visible through the housing
vents
A small amount of sparking is normal
Excessive sparking could be due to worn carbon
brushes
Does not indicate a problem
Replace carbon brushes
Saw will not start No power supply Ensure saw is connected to a mains outlet
Saw starts but runs and performs
poorly
Workpiece too thick
Incorrect blade size
Motor difculties
Ensure workpiece is within the saws cutting capacity
Ensure correct blade size is tted
Contact Ozito customer service
Mitre table will not rotate The mitre lock knob not loosened Loosen the mitre lock knob before rotating
Bevel angle will not adjust The bevel angle knob needs to be loosened rst Loosen the bevel angle knob then tilt the cutting head

SPARE PARTS Tool: 210mm Compound Mitre Saw
Model No. CMS-210
Item
No. Description Part No.
How To Order
41
48
73
82
125
Fence
Carbon Brush, Pair
Dust Bag
Lower Guard
Vice Assembly (not inc.)
SPCMS210-041
SPCMS210-048
SPCMS210-073
SPCMS210-082
SPCMS210-125
Available spare parts can be ordered through the Special Orders Desk at any Bunnings Warehouse. If you have any
further questions, please contact Ozito Customer Service on:
Australia: 1800 069 486
New Zealand: 0508 069 486
[email protected]
The following is a list of spare parts carried by Ozito.
Please contact Customer Service for any parts not
listed.
124
123
122
121
120 119
118
117
116
115
115
114
113
112
111
110
109
108
107
106
105
104
103
102
101 100
99 98 97
96
95
94
93 92
91 90
89
88
87
86 85
84 83
82
81
80 79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56 55
54
53
52
51
50
49
48
47
46
45
44
43
43
42
42
41
40
39 38 37 36
35
34
33 32
31
30
29
28
27
26
26
25
24
23
22
21
20
19
18
17
16
16
16
15
14
13
12
11
10
9
8
7
6
5
5
4
32
2
2
1
79
Item
No. Description Part No.

This appliance is not intended for use by young or inrm persons unless supervised by a
responsible person to ensure that they can use the appliance safely. Young children should be
supervised to ensure that they do not play with the appliance.
WARNING! Before connecting a tool to a power source (mains switch power
point receptacle, outlet, etc.) be sure that the voltage supply is the same as that specied on the
nameplate of the tool. A power source with a voltage greater than that specied for the tool can result
in serious injury to the user,as well as damage to the tool. If in doubt, do not plug in the tool.
Using a power source with a voltage less than the nameplate rating is harmful to the
motor.
Your tool is double insulated for additional protection against a possible electrical insulation failure
within the tool.
Always remove the plug from the mains socket before making any adjustments or
maintenance, including changing the blade.
• When operating the saw, use safety equipment including safety goggles or shield, ear protection,
dust mask and protective clothing including safety gloves.
• Ensure that there is adequate general or localised lighting.
• Do not use the saw unless the guards are in place.
• Do not use the saw to cut metal or masonry.
• Do not let anyone under 18 years operate this saw.
• Ensure that the operator is adequately trained in the use, adjustment and operation of the
machine.
• Do not use this saw to cut rewood.
• Keep the area free of tripping hazards.
• Report faults in the machine, including guards and saw blades, as soon as they are discovered.
• Ensure that the machine is always xed to a bench, whenever possible.
• Always stand to one side when operating the saw.
• Never use a cracked or distorted saw blade.
• When cutting round wood, use clamps that prevent the workpiece from turning on both sides of the
blade.
• Never use your hands to remove sawdust, chips or waste close by the blade.
• Do not use blades of High Speed Steel (HSS blades).
• If the table insert is damaged or worn, have it replaced by a power tool repairer.
• Rags, cloths, cord and string and the like should never be left around the work area.
• Avoid cutting nails. Inspect the workpiece and remove all nails and other foreign objects before
operating the saw.
• Support the work properly.
• Refrain from removing any cut-offs or other parts of the workpiece from the cutting area whilst the
machine is running and the saw head is not in the rest position.
• Do not attempt to free a jammed blade before rst switching off the machine.
• Do not slow or stop a blade with a piece of wood. Let the blade come to rest without assistance.
• If you are interrupted when operating the saw, complete the process and switch off before looking
up.
• Periodically check that all nuts, bolts and other xings are properly tightened.
• Do not store materials or equipment above a machine in such a way that they could fall into it.
• Always hold the saw on parts that are insulated. If you accidentally cut into hidden wiring or the
saw’s own cable, the metal parts of the saw will become “live”. Switch off at the mains and remove
the plug immediately.
• Never saw near combustible liquids or gases.
• Note the direction of rotation of the motor and the blade.
• Do not lock the movable guard in the open position and always ensure that it is working properly,
freely rotating and returning to fully cover the teeth of the blade.
• Connect the saw to a dust collection device and ensure that it is operating properly. As the
operator of the saw, please make sure that you understand factors that inuence exposure to dust,
including the type of material to be cut, the importance of local extraction and the proper
adjustment of hoods/bafes/chutes of your dust extraction system. We recommend that you
always wear a dust mask when operating this saw.
• Wear gloves when handling saw blades and rough materials.
• Saw blades shall be carried in a holder wherever possible.
• Select saw blades in relation to the material being cut.
• Use correctly sharpened saw blades and observe the maximum speed marked on the blade.
• Take additional care when trenching (slotting).
• The mitre saw can be safely carried by the carrying handle but only once it has been removed
from the mains power and secured in the locked down position.
• Ensure that the arm is properly secure when bevelling.
• Keep the oor area around the machine level, well maintained and free of loose materials.
• Ensure that you are trained in the use, adjustment and operation of the machine.
• Do not remove any cut-offs from the cutting area until the mitre saw head is in the full upright
position, the blade guard is fully enclosing the blade and the blade has come to a rest or complete
stop.
• When cutting long pieces which extend well over the table width, ensure that the ends are
adequately supported at the same height as the saw table top. Supports should be positioned in
such a way to ensure that the workpiece does not fall to the ground once the cut has been made.
Operating Mitre Saws with out the correct hearing protection may result in impairment of hearing.
A number of supports at regular intervals may be required if the workpiece is extremely long.
- Wear goggles
- Wear earmuffs
- Wear a breathing mask
MITRE SAW SAFETY WARNINGS
WARNING! When using mains-powered tools, basic safety precautions, including the
following, should always be followed to reduce risk of re, electric shock, personal injury
and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before
operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
The electric motor has been designed for 230V and 240V only. Always check that the power supply
corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.
This tool is double insulated in accordance with AS/NZS 60335-1;
therefore no earth wire is required.
If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in order to avoid
a hazard.
Note: Double insulation does not take the place of normal safety precautions when operating this tool. The
insulation system is for added protection against injury resulting from a possible electrical insulation failure
within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the
extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not
suitable for the power input of the tool or which is damaged or defective may result in a risk of re and electric
shock.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the warnings refers
to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching
outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock
if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase
the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable
for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your
nger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the power tool may result
in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may affect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
5. Service
a. Have your power tool serviced by a qualied repair person using only identical replacement
parts. This will ensure that the safety of the power tool
is maintained.
b. If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualied persons in order to avoid a hazard.
GENERAL POWER TOOL SAFETY WARNINGS - PERSONAL SAFETY
ELECTRICAL SAFETY

IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from
the original date of purchase and is intended for DIY (Do It
Yourself) use only. If a product is defective it will
be replaced in accordance with the terms of this warranty.
Warranty excludes consumable parts, for example: blades etc.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
1114
