Ozito CSW-7000 User manual

CIRCULAR
SAW
1200W
INSTRUCTION MANUAL
SPECIFICATIONS
Motor: 1200W
No Load Speed: 4800/min
Blade Diameter: 185mm (71/4”)
Blade Bore: 16mm
Depth of Cut: 65mm @ 90°
44mm @ 45°
Weight: 4kg
CSW-7000
WHAT’S IN THE BOX
Circular Saw
Allen Key
Rip Fence
ozito.com.au
185MM X 16MM X 2.4MM X 24T
185MM X 16MM X 2.4MM X 24T

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
KNOW YOUR PRODUCT SETUP & PREPARATION
1. DEPTH & BEVEL ADJUSTMENT
Depth Adjustment
Depth should be adjusted so that no more than one tooth is
protruding through the timber. This helps to minimise splintering.
1 Baseplate
2 Dust Extraction Port
3 Lower Blade Guard Lever
4 Blade
5 Lower Blade Guard
6 Blade Flange
7 Upper Blade Guard
8 Front Handle
9 Rip Fence
10 Cutting Guide Notch
CIRCULAR SAW
11 Rip Fence Lock Knob
12 Bevel Adjustment Knob
13 Bevel Scale
14 Spindle Lock Button
15 On/Off Switch
16 Lock Off Button
17 Depth Adjustment Scale
18 Depth Adjustment Knob
19 Allen Key
185MM X 16MM X 2.4MM X 24T
Bevel Adjustment
4. Loosen bevel
adjustment knob. Align
baseplate to desired
angle on bevel scale.
5. Tighten bevel adjustment
knob.
1. Loosen the depth
adjustment knob.
2. Hold the baseplate down
with one hand. Raise
or lower the saw to the
desired depth, referring to
the scale.
3. Tighten depth adjustment
knob.
Ensure the tool is disconnected from the power supply before
performing any of the following operations.

2. CUTTING ANGLE CHECK 3. ON/OFF SWITCH
2. Loosen bevel adjustment knob.
Set to 0° on the scale. Tighten
bevel adjustment knob.
1. Set baseplate to maximum
depth of cut.
3. Conrmtheanglebetweenthebladeandthebaseplateis90°
using a square.
4. The cutting guide will give an approximate line of cut. For a
straight cut, use the 0° notch. For a 45° cut, use the 45° notch.
OPERATION
3. To turn the saw on,
depress the lock off
switch then the on/off
switch.
4. To stop the saw, release
the on/off switch.
WARNING: AFTER USE, HOLD THE SAW AWAY
FROM YOUR BODY UNTIL THE BLADE STOPS
COMPLETELY. THIS MAY HELP TO PREVENT
SERIOUS INJURY.
Cutting Guide Notch
185MM X 16MM X 2.4MM X 24T
45°
cut
straight
cut
a
b
The tool is recommended for use with a residual current
device with a rated residual current of 30mA or less.
1. Connect the tool to the mains power supply.
2. Securely clamp your workpiece.

CSW-7000
4. CUTTING GUIDE 5. BLADE FITMENT
6. Tighten blade bolt.
The combination blade provided with your saw is for both cross cuts and
rip cuts. Ripping is cutting lengthwise with the grain of the wood. Rip cuts
are made easy with the addition of a rip fence.
Rip Fence
If the rip fence is not wide enough to allow the desired width of cut,
clamp a straight piece of timber to your workpiece and use the right side
of the baseplate to guide the saw along the desired path.
Rip Board Guide
2. Use allen key to rotate
blade until lock engages.
Remove blade bolt and
outerbladeange.
1. Press spindle lock button.
185MM X 16MM X 2.4MM X 24T
4. Remove and replace
blade. Ensure arrows on
the blade point in the same
direction as the arrow on
the upper blade guard.
185MM X 16MM X 2.4MM X 24T
3. Retract lower blade guard
fully.
1. To attach rip
fence, insert
through slots
in baseplate.
3. Tighten rip fence lock
knob.
2. Set to desired width
by aligning the scale
with the cutting guide
notch.
width of
cut
4. Measure distance
between cut
line and edge of
baseplate. measure
cut
5. Clamp board along
edge of baseplate
to rip desired
width.
185MM X 16MM X 2.4MM X 24T
saw
direction
blade
direction
185MM X 16MM X 2.4MM X 24T
5. Fitouterbladeange
and blade bolt. Depress
spindle lock.
The tool is recommended for wood cutting only and is not
recommended for use with abrasive wheels or masonry/diamond
cutting wheels. Only use 185mm wood cutting blades.

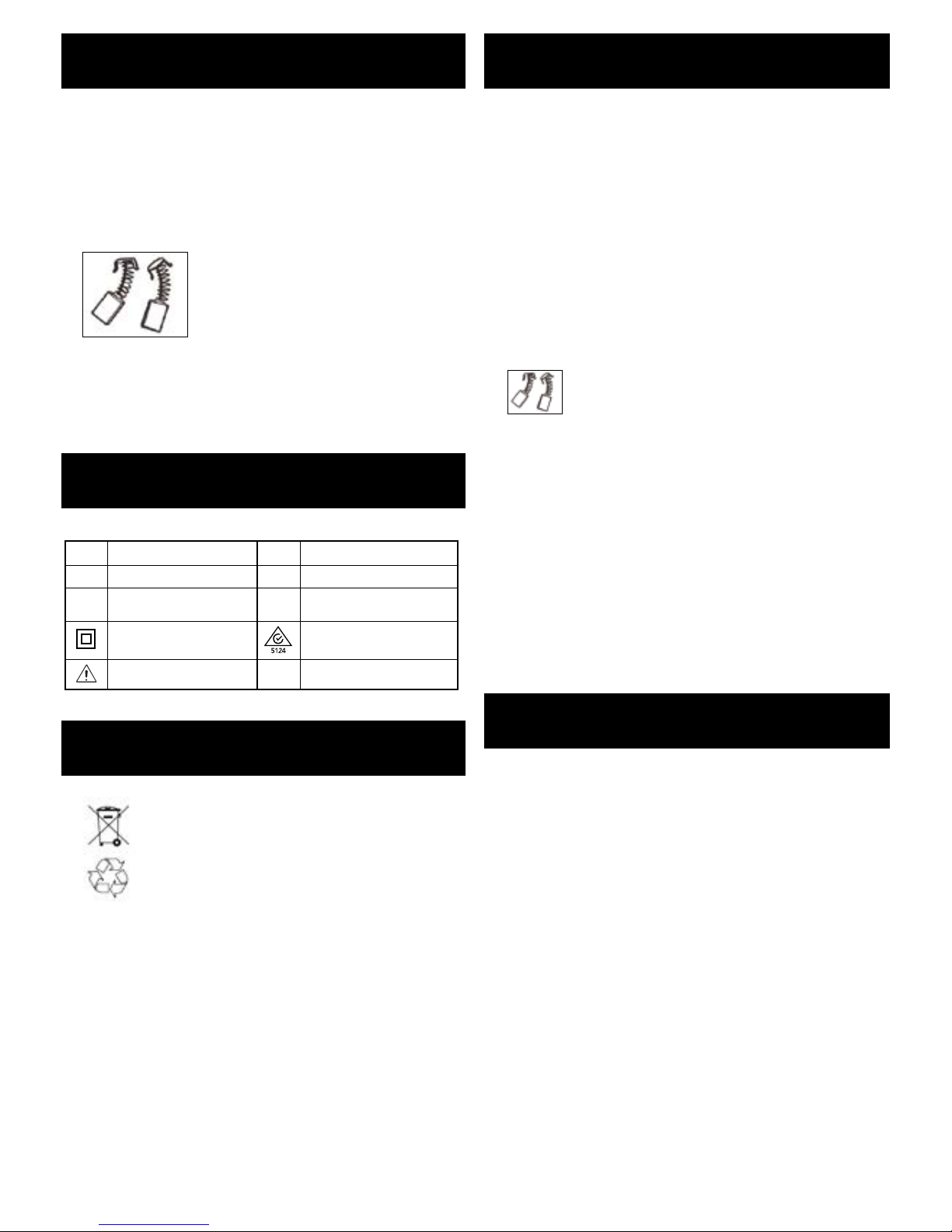

MAINTENANCE
DESCRIPTION OF SYMBOLS
CARING FOR THE ENVIRONMENT
TROUBLE SHOOTING
Power tools that are no longer usable should not be disposed of
with household waste but in an environmentally friendly way. Please
recycle where facilities exist. Check with your local council authority
for recycling advice.
Recyclingpackagingreducestheneedforlandllandrawmaterials.
Reuse of recycled material decreases pollution in the environment.
Please recycle packaging where facilities exist. Check with your
local council authority for recycling advice.
•Keeptheventsofthesawcleanatalltimes.Ifpossible,preventforeignmatter
from entering the vents.
•Aftereachuse,blowairthroughthesawhousingandguard,toensureitis
free from all dust particles which may build up. Build up of dust particles may
cause the saw to overheat and fail.
•Iftheenclosureofthesawrequirescleaning,donotusesolventsbutamoist
soft cloth only. Never let any liquid get inside the saw; never immerse any part
of the saw into a liquid.
Carbon Brushes
When the carbon brushes wear out, the saw will
spark and/or stop. Discontinue use as soon as
this happens. They should be replaced prior to
recommencing use of the saw. Carbon brushes are a
wearing component of the saw therefore not covered
under warranty. Continuing to use the saw when
carbon brushes need to be replaced may cause
permanent damage to the saw. Carbon brushes
will wear out after many uses. When the carbon brushes need to be replaced,
take the saw to an electrician or a power tool repairer for a quick and low cost
replacement. Always replace both carbon brushes at the same time.
Note: Ozito Industries will not be responsible for any damage or injuries
caused by the repair of the saw by an unauthorised person or by mishandling
of the saw.
Circular Saw Tips
Always hold the soft grip handle with one hand and the front handle with the other.
Maintainarmgripandoperatetheon/offswitchwithapositiveaction.
Never force the saw. Use light and continuous pressure.
When cutting is interrupted, to resume cutting, depress the lock-off button and
squeeze the on/off switch and allow the blade to reach full speed, re-enter the cut
slowly and resume cutting.
Whencuttingacrossthegrain,thebresofthewoodhaveatendencytotearand
lift.Advancingthesawslowlyminimizesthiseffect.Foranishedcut,acrosscut
blade or mitre blade is recommended.
Sparking visible through the housing air vents
A small amount of sparking may be visible through the housing vents.
This is normal and does not indicate a problem.
Excessive sparking visible through the housing air vents
and/or the saw failing to operate
May indicate the carbon brushes have worn out and need to be
replaced.Carbonbrushesshouldonlybereplacedbyaqualied
electrician or power tool repairer.
WARNING: THE SAW IS RECOMMENDED FOR WOOD
CUTTING ONLY AND IS NOT INTENDED TO BE USED
WITH ABRASIVE OR MASONRY/WET DIAMOND WHEELS.
USING WATER OR OTHER LIQUID COOLANTS WITH THIS
MACHINE MAY RESULT IN SHOCK OR ELECTROCUTION.
WARNING: AFTER COMPLETING A CUT AND THE ON/OFF
SWITCH IS RELEASED, BE AWARE OF THE TIME IT TAKES
FOR THE BLADE TO COME TO A COMPLETE STOP. HOLD
THE SAW AWAY FROM YOUR BODY UNTIL THE BLADE
STOPS COMPLETELY. THIS MAY HELP TO PREVENT
SERIOUS INJURY.
WARNING: AVOID ACCIDENTAL STARTING BY
DISCONNECTING THE TOOL FROM THE POWER SOURCE
BEFORE ASSEMBLING OR MAKING ANY ADJUSTMENTS.
Blade Bolt SPCSW7000-01
Outer Flange SPCSW7000-03
Inner Flange SPCSW7000-05
Carbon Brush (Pair) SPCSW7000-44
Brush Holder (Pair) SPCSW7000-45
Switch SPCSW7000-51
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
SPARE PARTS
VVolts Hz Hertz
~ Alternating current WWatts
/min Revolutions or
reciprocation per minute
Double insulated Regulator compliance mark
noNo load speed
Warning

SPARE PARTS Tool: 1200W Circular Saw
Model No. CSW-7000
Item
No. Description Part No.
How To Order
1
3
11
44
45
51
70
Blade Bolt & Washer
Inner & Outer Flange
Spring
Carbon Brush (Pair)
Carbon Brush Holder (Pair)
Switch
Guide Ruler
SPCSW7000-01
SPCSW7000-03
SPCSW7000-11
SPCSW7000-44
SPCSW7000-45
SPCSW7000-51
SPCSW7000-70
Available spare parts can be ordered through the Special Orders Desk at any Bunnings Warehouse. If you
have any further questions, please contact Ozito Customer Service on:
Australia: 1800 069 486
New Zealand: 0508 069 486
[email protected]
The following is a list of spare parts carried by Ozito.
Please contact Customer Service for any parts not
listed.
70
69
68
67 66 65
64
63 62 61605958 57
56
55
54
53
52
51
50
49
48
48
47
47
47
47
46
45
44
43
41
42
40
39
38
37
36
34
35
32
31
30
29
28
27
26
25
24
23
22
21 20
19
18
17
16
15
6
14
13
12
8
7
6
5
4
3
2
1
11
10
9
33
58
Item
No. Description Part No.

WARNING!
a) Keep hands away from cutting area and the blade. Keep your second hand on auxiliary handle, or
motor housing. If both hands are holding the saw, they cannot be cut by the blade.
b) Do not reach underneath the workpiece. The guard cannot protect you from the blade below the
workpiece.
c) Adjust the cutting depth to the thickness of the workpiece. Less than a full tooth of the blade teeth
should be visible below the workpiece.
d) Never hold piece being cut in your hands or across your leg. Secure the workpiece to a stable
platform. It is important to support the work properly to minimize body exposure, blade binding, or loss of
control.
e) Hold power tool by insulated gripping surfaces when performing an operation where the cutting
tool may contact hidden wiring or its own cord. Contact with a “live” wire will also make exposed metal
parts of the power tool “live” and shock the operator.
f) When ripping always use a rip fence or straight edge guide. This improves the accuracy of cut and
reduces the chance of blade binding.
g) Always use blades with correct size and shape (diamond versus round) of arbour holes. Blades
that do not match the mounting hardware of the saw will run eccentrically, causing loss of control.
h) Never use damaged or incorrect blade washers or bolt. The blade washers and bolt were specially
designed for your saw, for optimum performance and safety of operation.
Further safety instructions for all saws
Causes and operator prevention of kickback:
• Kickback is a sudden reaction to a pinched, bound or misaligned saw blade, causing an uncontrolled saw
to lift up and out of the workpiece toward the operator;
•Whenthebladeispinchedorboundtightlybythekerfclosingdown,thebladestallsandthemotor
reaction drives the unit rapidly back toward the operator;
•Ifthebladebecomestwistedormisalignedinthecut,theteethatthebackedgeofthebladecandiginto
the top surface of the wood causing the blade to climb out of the kerf and jump back toward the operator.
Kickback is the result of saw misuse and/or incorrect operating procedures or conditions and can be avoided
by taking proper precautions as given below.
a) Maintain a rm grip with both hands on the saw and position your arms to resist kickback forces.
Position your body to either side of the blade, but not in line with the blade. Kickback could cause the
saw to jump backwards, but kickback forces can be controlled by the operator, if proper precautions are
taken.
b) When blade is binding, or when interrupting a cut for any reason, release the trigger and hold the
saw motionless in the material until the blade comes to a complete stop. Never attempt to remove
the saw from the work or pull the saw backward while the blade is in motion or kickback may occur.
Investigate and take corrective actions to eliminate the cause of blade binding.
c) When restarting a saw in the workpiece, centre the saw blade in the kerf and check that saw teeth
are not engaged into the material. If saw blade is binding, it may walk up or kickback from the workpiece
as the saw is restarted.
d) Support large panels to minimise the risk of blade pinching and kickback. Large panels tend to sag
under their own weight. Supports must be placed under the panel on both sides, near the line of cut and
near the edge of the panel.
e) Do not use dull or damaged blades. Blunt or improperly set blades produce narrow kerf causing
excessive friction, blade binding and kickback.
f) Blade depth and bevel adjusting locking levers must be tight and secure before making cut. If
blade adjustment shifts while cutting, it may cause
binding and kickback.
g) Use extra caution when making a “plunge cut” into existing walls or other blind areas. The
protruding blade may cut objects that can cause kickback.
h) Check lower guard for proper closing before each use. Do not operate the saw if lower guard does
not move freely and close instantly. Never clamp or tie the lower guard into the open position. If saw
is accidentally dropped, lower guard may be bent. Raise the lower guard with the retracting handle and
make sure it moves freely and does not touch the blade or any other part, in all angles and depths of cut.
i) Check the operation of the lower guard spring. If the guard and the spring are not operating
properly, they must be serviced before use. The lower guard may become sluggish due to, gummy
deposits, or a build-up of debris.
j) Lower guard may be retracted manually only for special cuts such as “plunge cuts” and
“compound cuts.” Raise lower guard by retracting handle and as soon as blade enters the material,
the lower guard must be released. For all other sawing, the lower guard should operate automatically.
k) Always observe that the lower guard is covering the blade before placing saw down on bench or
oor. An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in its path.
Be aware of the time it takes for the blade to stop after switch is released.
This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
Recommendations for the use of a residual current device with a rated residual current of 30mA or
less.
Never hold piece being cut in your hands or across your leg. Secure the workpiece to a stable
platform. It is important to support the work properly to minimize body exposure, blade binding, or
loss of control.
Do not use the tool with abrasive or masonry/wet diamond wheels.
Only use blade diameter(s) in accordance with the markings on the tool.
CIRCULAR SAW SAFETY WARNINGS
WARNING! When using mains-powered tools, basic safety precautions, including the
following, should always be followed to reduce risk of re, electric shock, personal injury
and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before
operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
The electric motor has been designed for 230V and 240V only. Always check that the power supply
corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.
This tool is double insulated in accordance with AS/NZS 60745-1;
therefore no earth wire is required.
If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in order to avoid
a hazard.
Note: Double insulation does not take the place of normal safety precautions when operating this tool. The
insulation system is for added protection against injury resulting from a possible electrical insulation failure
within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the
extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not
suitableforthepowerinputofthetoolorwhichisdamagedordefectivemayresultinariskofreandelectric
shock.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructionsmayresultinelectricshock,reand/orseriousinjury.
Save all warnings and instructions for future reference. The term “power tool” in the
warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power
tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.Unmodiedplugsandmatching
outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock
if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase
the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable
for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your
ngerontheswitchorenergisingpowertoolsthathavetheswitchoninvitesaccidents.
d. Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the power tool may result
in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may affect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
5. Service
a. Have your power tool serviced by a qualied repair person using only identical replacement
parts. This will ensure that the safety of the power tool
is maintained.
b. If the supply cord is damaged, it must be replaced by the manufacturer,
itsserviceagentorsimilarlyqualiedpersonsinordertoavoidahazard.
GENERAL POWER TOOL SAFETY WARNINGS
ELECTRICAL SAFETY

IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from
the original date of purchase. If a product is defective it will
be replaced in accordance with the terms of this warranty.
Warranty excludes consumable parts, for example: saw blades,
carbon brushes, allen key.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
0812
