Ozito OZLT550WA User manual

LINE TRIMMER
550W MODEL NO. OZLT550WA
OPERATING INSTRUCTIONS
To view our entire range visit www.ozito.com.au

1. Cordset
2. Rotatable Main Handle
3. On/Off Switch
4. Extension cord securing lug
5. Lock Button
6. Locking Knob
7. Adjustable Handle
8. Telescopic Handle
9. Telescopic Latch
10. Adjustable Head Lock button
11. Safety Guard
12. Cutter Head
13. Edging Wheel
14. Edging Guide
15. Cutting Blade
16. Motor Housing
Voltage: 230V, 50Hz
Power: 550W
No load speed: 9500/min
Sound pressure level (dB): ≤83
Sound Power level Lwa (dB(A)): ≤96
Soft grip: Yes
Cutting diameter: 300mm
Cutting line thickness: 1.5mm
Cutting line feed: automatic
Features: Removable Edging Guide
Rotatable Main Handle
Adjustable Head Angle
Automatic Line Feed
Telescopic Handle
SPECIFICATIONS - MODEL NO. OZLT550WA
1
5
1
12
13
2
3
4
6
7
8
9
10
11
14
15
16

2
TABLE OF CONTENTS
SPECIFICATIONS …………………………………………
TABLE OF CONTENTS…………………………………..
INTRODUCTION………………………………………...
SAFETY INSTRUCTIONS………………………………..
OPERATION ……………………………………………..
MAINTENANCE …………….…………………………..
CONTENTS ……………………………………………...
WARRANTY………………………………………………
Page 1
Page 2
Page 3
Page 3
Page 8
Page 12
Page 13
Page 15

INTRODUCTION
3
Congratulations on purchasing the Ozito Line Trimmer. We
aim to provide quality tools at an affordable price. We hope
you will enjoy using this combo kit for many years.
Your Ozito Line Trimmer OZLT550WA has been designed for
trimming lawn edges and grass around shrubs and trees.
This product is intended for DIY use only.
Warning! When using mains-powered tools, basic safety precautions,
including the following, should always be followed to reduce risk of fire,
electric shock, personal injury and material damage.
Read the whole manual carefully and make sure you know how to switch the tool
off, in an emergency, before operating the tool.
Save these instructions and other documents supplied with this machine for
future reference.
The electric motor has been designed for 230V only. Always check that the power
supply corresponds to the voltage on the rating plate.
This tool is double insulated in accordance with AS/NZS3100; therefore no
earth wire is required.
If the supply cord is damaged, it must be replaced by an electrician or a
power tool repairer in order to avoid a hazard.
Note: Double insulation does not take the place of normal safety precautions
when operating this tool. The insulation system is for added protection against
injury resulting from a possible electrical insulation failure within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool.
Before use, inspect the extension lead for signs of damage, wear and ageing.
Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use
of an extension lead not suitable for the power input of the tool or which is
damaged or defective may result in a risk of fire and electric shock.
It is recommended that the extension lead is a maximum of 25m in length. Do Not
use multiple extension leads.
SAFETY INSTRUCTIONS
!
!
ELECTRICAL SAFETY

!
!
4
GENERAL SAFETY RULES
Warning! Read all instructions, Failure to follow all instructions listed below
may result in electric shock, fire and/or serious injury. The term “Power Tool”
in all of the warnings listed below refers to your mains operated (corded)
power tool or battery operated (cordless) power tool.
SAVE THESE INSTRUCTIONS
1) WORK AREA
a) Keep work area clean and well lit. Cluttered and dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases, or dust. Power tools create sparks which
may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions
can cause you to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric shock if
your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power
tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging
the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of
electric shock.
3) PERSONAL SAFETY
a) Stay alert, watch what you are doing and use common sense when operating a
power tool. Do not use a power tool while you are tired or under the influence
of drugs, alcohol or medication. A moment of inattention while operating power
tools may result in serious personal injury.
b) Use safety equipment. Always wear eye protection. Safety equipment such as
dust mask, non-skid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
c) Avoid accidental starting. Ensure the switch is in the off position before
plugging in. Carrying power tools with your finger on the switch or plugging in
power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A
wrench or a key left attached to a rotating part of the power tool may result in
personal injury.

5
e) Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of these
devices can reduce dust related hazards.
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at the rate
for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any
power tool that can not be controlled with the switch is dangerous and must be
repaired.
c) Disconnect the plug from the power source before making any
adjustments, changing accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools, unplugged & out of the reach of children and do
not allow persons unfamiliar with the power tool or these instructions to
operate the power tool. Power tools are dangerous in the hands of untrained
users.
e) Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tools
operation. If damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc., in accordance with
these instructions and in the manner intended for the particular type of
power tool, taking into account the working conditions and the work to be
performed. Use of the power tool for operations different from intended could
result in a hazardous situation.
5) SERVICE
a) Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the power tool
is maintained.
GENERAL SAFETY RULES (cont.)

6
• Before use check the supply and extension cord for signs of damage or aging. If
the cord becomes damaged during use, disconnect the cord from the supply
immediately. DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY.
Do not use the line trimmer if the cord is damaged or worn.
• Keep extension cord away from cutting line.
• Never allow children or people unfamiliar with these instructions to use the
line trimmer.
• Avoid using the line trimmer, while people, especially children or pets, are nearby.
• Use the line trimmer only in daylight or good artificial light.
• Never operate the line trimmer with damaged guards or without guards in place.
• Switch on the line trimmer only when the hands and feet are away from the cutting
head.
• Never fit metal cutting blades.
• Use only the manufacturer's recommended replacement parts and accessories.
• Always disconnect the line trimmer from the mains when leaving the line trimmer
unattended.
• Disconnect the line trimmer from the mains before carring out maintenance or
cleaning work.
• Inspect and maintain the line trimmer regularly. Have the line trimmer repaired only
by an authorized repairer.
• Take care against injury from the blade(s) fitted for trimming the cutting line length.
After extending new cutting line, always return the line trimmer to its normal
operating position before switching on.
• When not in use, store the line trimmer out of the reach of children.
• Face the cutting head away from yourself, other people and animals while the
power is connected to the line trimmer (especially during operation).
• Disconnect the power when changing spools or clearing grass from under the guard.
• Disconnect the power from the line trimmer before making any adjustments.
• Use both handles.
• Keep ventilation openings clear of debris. Keep handles dry, clean and free of oil
and grease.
• Never reach underneath the line trimmer (the cutting line area) until it has
completely stopped and the power has been disconnected.
ADDITIONAL SAFETY INSTRUCTIONS FOR LINE TRIMMERS

!
!
!
!
7

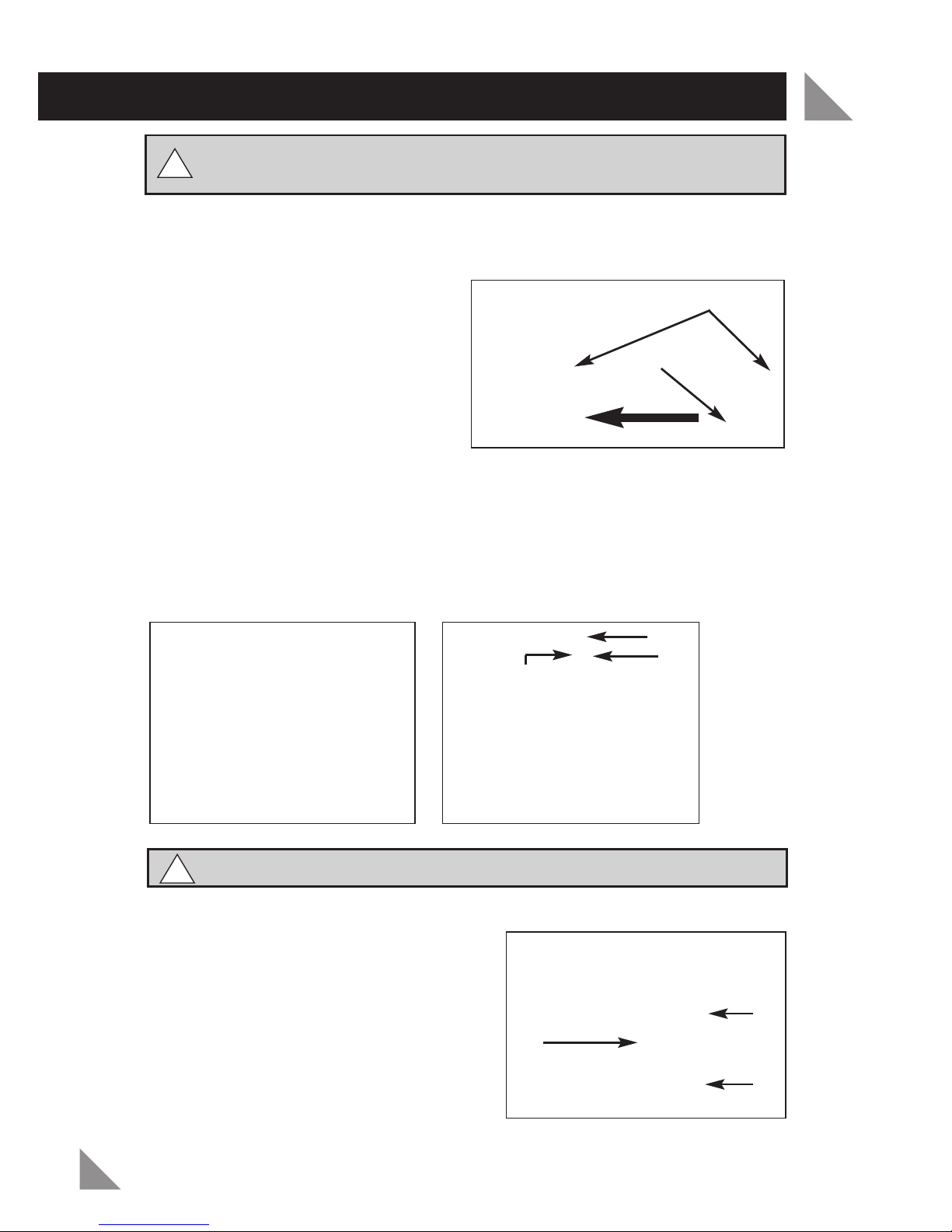

Warning! Before assembly, make sure that the tool is switched off
and unplugged.
Telescopic handle assembly
1. Line up the two parts of the telescopic handle assembly.
2. Slide the telescopic latch (9) in the
direction as shown in Fig. A. Hold
while inserting the lower end of
telescopic handle (8) into the upper
telescopic handle.
3. Determine the working height of the
line trimmer required and select the
appropriate notch on the lower end
of the telescopic handle (8).
Fitting the guard
1. Place the safety guard (11) onto the tool as shown in Fig.B.
2. Rotate the safety guard (11) until it is in place.
3. Secure the safety guard (11) with screw (11a).
4. Secure the edge guide (13) wheel with the screws (13a).
Warning! Never use the tool unless the guard is properly fitted.
Fitting the secondary handle
1. Place the adjustable handle (7) on the
tool as shown in Fig.D
2. Pass the bolt through the adjustable
handle (7) and the main handle (2).
3. Screw locking knob (6) onto the bolt.
4. Select the most comfortable position
and tighten the locking knob (6).
Do not overtighten.
ASSEMBLY
Fig.D
2
7
6
Fig. A
8
9
Fig.B Fig.C
11
11a
13a
13
13a

!
!
8
OPERATION
Preparing the trimmer for use
Warning! Never attempt to lock the on/off switch in the ''on'' position
Hints for use
1. To achieve optimum results only cut dry grass.
2. Hold the tool in the upright position.
3. Gently swing the tool from side to side.
4. When cutting long grass, cut in stages from the top of the grass to the bottom of
the grass.
5. If the motor starts to slow down, reduce cutting load.
To start the trimmer:
1. Obtain an extension cord and thread it through the slot at the rear of the main
handle (2) as shown in Fig.E.
2. Loop the extension cord and secure the loop over the extension cord securing lug
(4).
3. Connect the cordset (1) to the extension cord plug.
4. Connect the extension cord to a power supply.
5. Squeeze the on/off switch (3) to start motor operating.
Edging mode
1
4
Fig.E
2

OPERATION (cont.)
9
For edging, the cutter head (12) should be in the position shown, if it is not:
• Depress the lock button (5)
• Rotate the main handle (2) while depressing the lock button (5).
• When the main handle (2) is in position, the lock button (5) will lock into place.
Note: The main handle (2) will only rotate in one direction.
Adjusting cutter head angle
1. Depress the adjustable
head lock button (10) on
both sides of the motor
housing (16).
2. Move the telescopic handle
(8) to the desired position.
3. Release the adjustable
head lock button (10).
Fig.F
Fig.G
5
2
8
10
16
12

OPERATION (cont.)
10
Removing & replacing spool & line assembly (Fig.H)
1. Unplug the line trimmer and turn upside down.
2. Keep the tabs (e) depressed and remove the spool cover (a) from the spool
housing (c).
3. Remove the empty spool (b) from the spool housing (c).
4. Remove any dirt and grass from the spool cover (a) and spool housing(c).
5. Insert the rewound spool (f) into the spool housing (c). Rotate the spool (f)
slightly until it is seated.
6. Unclip the end of one of the cutting lines and guide the line into one of the
eyelets (g). The line should protrude approx. 11cm from the spool housing (c).
7. Unclip the end of the other cutting line and guide the line into the other
eyelet. The line should produce approx. 11cm from the spool housing (c).
8. Align the tabs (e) on the spool cover (a) with the cut outs (d) in the spool
housing (c).
9. Push the cover (a) onto the housing (c) until it snaps securely into place.
Warning! If the cutting lines protrude beyond the trimming blade, cut
them off so that they just reach the blade.
Winding new line onto a spool (Fig.J)
5
1
2
3
4
6
!
!
7
8
Fig.H
Fig.J
d
c
g
b
ae
b
ac
f

OPERATION (cont.)
11
You may wind new cutting line onto an empty spool. Cutting line is available from
any Bunnings Warehouse.
1. Remove the empty spool from the tool as described above.
2. Remove any remaining cutting line from the spool.
3. First feed 10cm of cutting line (a) into the two eyelets (b) in the upper section
of the spool housing (c) as shown.
4. Wind the cutting line onto the spool in the direction of the arrow on the spool (c).
Make sure to wind the line on neatly and in layers. Do not cross-cross.
5. Complete winding the line and ensure that line does not protrude past the
end of the spool edge.
6. Secure ends of line into the notches (d) while replacing the spool as in
Fig. H above.
Lengthening the line
While the line trimmer is operating, the cutting line gets worn down and becomes
shorter. This line trimmer is equipped with Automatic Line Advancement which
automatically feeds the additional line to the correct length as it wears down.
1. If the line does not automatically advance, then the trimmer line may be tangled
or the spool empty. If empty refer to Fig. J above to rewind or untangle line.
2. To advance the line, restart the trimmer. Upon starting, the line will
automatically advance.
Before each use
1. Make sure the safety guard (11) is correctly installed. Tighten the guard screw.
2. Before trimming, inspect the cutting area for string, wire, branches or other
material that may become entangled in the cutting line and thrown.
During each use
1. Only trim grass when you have adequate lighting.
2. Hold the line trimmer by rotatable main handle (2) and the adjustable handle (7)
for best control and balance.
3. Stand with the cutting head tipped down at an angle in front, guiding the line
trimmer in a semi-circular motion around you.
4. If possible, guide the line trimmer to the left to cut. The line will cut as soon as
it leaves the guard, and the clippings are thrown away from you.
5. To produce a smoothly trimmed area, move the line trimmer in and out of the
area being cut with consistent speed and height.
6. Use only the tip of the cutting line to do the trimming especially near walls and
fences. Trimming with the side of the cutting line may overload the motor, wear
out the line faster, and break the line more often.
7. If the grass is higher than 15cm (6”) high, trim in stages.
8. When the line trimmer is turned off and the spool stops rotating, the cutting
line will relax and may retract. Feed extra cutting line before storing the unit to
avoid losing the line completely into the spool.

12
OPERATION (cont.)
9. If the diameter of the cutting are gets smaller, the line is worn down and needs to
be advanced more often.
10. If the line trimmer is not cutting correctly, the cutting line may not be feeding
properly. Remove and rewind the line spool.
1. If the housing of the tool requires cleaning, do not use solvents but a moist, soft
cloth only.
2. Never let any liquid get inside the tool.
3. Never immerse any part of the tool into liquid.
4. Keep the motor air vents cleaned and dust-free.
5. No lubrication is required as bearings are sealed.
6. Store in a cool, dry place after use.
Note: Ozito Industries will not be responsible for any damage or injuries caused by
the repair of the tool by an unauthorised person or by mishandling of the tool.
MAINTENANCE

AUSTRALIA (Head Office)
1 - 23 Letcon Drive, Bangholme, Victoria, Australia 3175
Telephone: [phone]
Website: www.ozito.com.au
Email: [email protected]
1 x Line Trimmer OZLT550WA
1 x Safety guard
1 x Spool and Line (fitted)
1 x Operation manual
13
CONTENTS
OZITO INDUSTRIES PTY LTD
DESCRIPTION OF SYMBOLS
VVolts Hz Hertz
~Alternating current WWatts
/min Revolutions or
reciprocation per minute
Double insulated Regulator compliance mark
n o No load speed
Power tools that are no longer usable should not be
disposed of with household waste but in an environmentally
friendly way. Please recycle where facilities exist. Check with
your local council authority for recycling advice.
Recycling packaging reduces the need for landfill and raw
materials. Reuse of recycled material decreases pollution in
the environment. Please recycle packaging where facilities
exist. Check with your local council authority for recycling
advice.
CARING FOR THE ENVIRONMENT

WARRANTY
THIS WARRANTY FORM AND CONFIRMED BUNNINGS REGISTER RECEIPT SHOULD BE
RETAINED BY THE CUSTOMER AT ALL TIMES
The warranty is only made available by returning the product to your nearest
Bunnings Warehouse with a confirmed Bunnings register receipt
PURCHASED FROM:__________________________________________________
DATE PURCHASED: __________________________________________________
2 YEAR REPLACEMENT WARRANTY
Your Ozito tool is guaranteed for a period of 24 months from the original date of
purchase and is intended for DIY (Do it yourself) use only.
WARNING
The following actions will result in the warranty being void.
• Professional, Industrial or high frequency use.
• If the tool has been operated on a supply voltage other than that specified on the
tool.
• If the tool shows signs of damage or defects caused by or resulting from abuse,
accidents or alterations.
• If the tool is disassembled or tampered with in any way.
Note: Warranty excludes consumable parts such as batteries, nylon line, drive
sockets, fuses, blades & accessories.
YOUR WARRANTY FORM SHOULD BE RETAINED
BY YOU AT ALL TIMES.
SHOULD YOU HAVE ANY QUESTIONS PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY OR
REPAIR PLEASE TELEPHONE OUR CUSTOMER
SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL NUMBER
AND DATE OF PURCHASE AVAILABLE. AN OZITO CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL AND ANSWER ANY QUESTIONS
YOU MAY HAVE RELATING TO THE WARRANTY POLICY OR PROCEDURE.
