Ozito LTP-200 User manual

0809
LTP-200 Manual.qxd 9/11/09 Page 1
Black
Cyan
Magenta
Yellow
Code: LTP-200
Date: 11/09/09 Edition: 09 Op: Even

Motor: 250W
Input: 230-240V ~ 50Hz
No load speed: 14,000/min
Cutting diameter: 200mm
Line diameter: 1.2mm
Feed type: Bump
Weight (tool only): 1.2kg
SPECIFICATIONS - MODEL NO. LTP-200
1

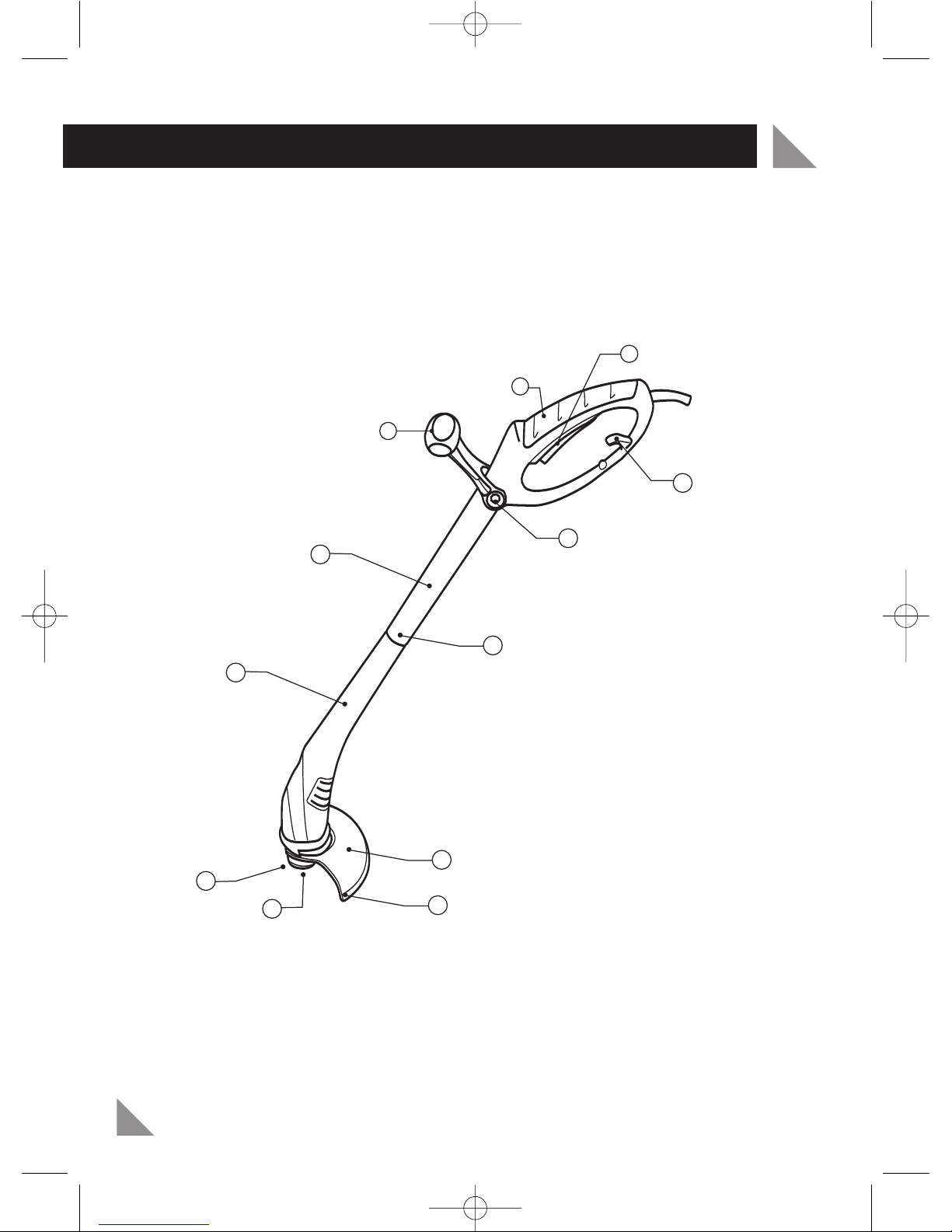

1. Main Handle
2. Secondary Handle
3. On/Off Switch
4. Upper Handle Assembly
5. Lower Housing
6. Housing Locking Bolt
7. Handle Locking Bolt
8. Cord Retainer
9. Safety Guard
10. Spool & Line
11. Bump Knob
12. Line Cutting Blade
1
2
4
5
10
11 12
9
6
7
8
3
LTP-200 Manual.qxd 9/11/09 5:16 PM Page 2

2
TABLE OF CONTENTS
SPECIFICATIONS …………………………………………
INTRODUCTION………………………………………...
SAFETY INSTRUCTIONS………………………………..
ASSEMBLY………………………………………………..
OPERATION ……………………………………………..
MAINTENANCE …………….…………………………..
CONTENTS ……………………………………………...
WARRANTY………………………………………………
Page 1
Page 3
Page 3
Page 7
Page 8
Page 11
Page 13
Page 15
LTP-200 Manual.qxd 9/11/09 5:16 PM Page 3

INTRODUCTION
3
Congratulations on purchasing the Ozito Line Trimmer. We
aim to provide quality tools at an affordable price. We hope
you will enjoy using this line trimmer for many years.
Your Ozito Line Trimmer LTP-200 has been designed for
trimming lawn edges and grass around shrubs and trees.
This product is intended for DIY use only.
Warning! When using mains-powered tools, basic safety precautions,
including the following, should always be followed to reduce risk of fire,
electric shock, personal injury and material damage.
Read the whole manual carefully and make sure you know how to switch the tool
off, in an emergency, before operating the tool.
Save these instructions and other documents supplied with this machine for
future reference.
The electric motor has been designed for 230V and 240V only. Always check that
the power supply corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for
Australia and New Zealand.
This tool is double insulated in accordance with AS/NZS 3100: 2002;
therefore no earth wire is required.
If the supply cord is damaged, it must be replaced by an electrician or a power
tool repairer in order to avoid a hazard.
Note: Double insulation does not take the place of normal safety precautions
when operating this tool. The insulation system is for added protection against
injury resulting from a possible electrical insulation failure within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool.
The type of extension cords used shall not be lighter than ordinary polyvinylchloride
sheathed flexible cord. Before use, inspect the extension lead for signs of damage,
wear and ageing. Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use
of an extension lead not suitable for the power input of the tool or which is
damaged or defective may result in a risk of fire and electric shock.
SAFETY INSTRUCTIONS
!
!
ELECTRICAL SAFETY
LTP-200 Manual.qxd 9/11/09 5:16 PM Page 4

!
!
4
GENERAL SAFETY RULES
Warning! Read all instructions. Failure to follow all instructions listed below
may result in electric shock, fire and/or serious injury. The term “Power Tool”
in all of the warnings listed below refers to your mains operated (corded)
power tool or battery operated (cordless) power tool.
SAVE THESE INSTRUCTIONS
1) WORK AREA
a) Keep work area clean and well lit. Cluttered and dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases, or dust. Power tools create sparks which
may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions
can cause you to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric shock if
your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power
tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging
the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) Recommendation that the appliance should be supplied with a residual
current device (RCD) with a tripping current of not more than 30mA.
3) PERSONAL SAFETY
a) Stay alert, watch what you are doing and use common sense when operating a
power tool. Do not use a power tool while you are tired or under the influence
of drugs, alcohol or medication. A moment of inattention while operating power
tools may result in serious personal injury.
b) Use safety equipment. Always wear eye protection. Safety equipment such as
dust mask, non-skid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
c) Avoid accidental starting. Ensure the switch is in the off position before
plugging in. Carrying power tools with your finger on the switch or plugging in
power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A
wrench or a key left attached to a rotating part of the power tool may result in
personal injury.
LTP-200 Manual.qxd 9/11/09 5:16 PM Page 5

5
e) Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of these
devices can reduce dust related hazards.
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at the rate
for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any
power tool that can not be controlled with the switch is dangerous and must
be repaired.
c) Disconnect the plug from the power source before making any
adjustments, changing accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools, unplugged & out of the reach of children and do
not allow persons unfamiliar with the power tool or these instructions to
operate the power tool. Power tools are dangerous in the hands of
untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tools
operation. If damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc., in accordance with
these instructions and in the manner intended for the particular type of
power tool, taking into account the working conditions and the work to be
performed. Use of the power tool for operations different from intended could
result in a hazardous situation.
5) SERVICE
a) Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the power tool
is maintained.
b) If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
GENERAL SAFETY RULES (cont.)
LTP-200 Manual.qxd 9/11/09 5:16 PM Page 6

6
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Recommendations for the use of a residual current device with a rated residual
current of 30mA or less.
• Before use check the supply and extension cord for signs of damage or aging. If
the cord becomes damaged during use, disconnect the cord from the supply
immediately. DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY.
Do not use the line trimmer if the cord is damaged or worn.
• Keep extension cord away from cutting line.
• Never allow children or people unfamiliar with these instructions to use the
line trimmer.
• Avoid using the line trimmer, while people, especially children or pets, are nearby.
• Use the line trimmer only in daylight or good artificial light.
• Never operate the line trimmer with damaged guards or without guards in place.
• Switch on the line trimmer only when the hands and feet are away from the
cutting head.
• Never fit metal cutting blades.
• Use only the manufacturer's recommended replacement parts and accessories.
• Always disconnect the line trimmer from the mains when leaving the line
trimmer unattended.
• Disconnect the line trimmer from the mains before carring out maintenance or
cleaning work.
• Inspect and maintain the line trimmer regularly. Have the line trimmer repaired only
by an authorised repairer.
• Take care against injury from the blade(s) fitted for trimming the cutting line length.
After extending new cutting line, always return the line trimmer to its normal
operating position before switching on.
• When not in use, store the line trimmer out of the reach of children.
• Face the cutting head away from yourself, other people and animals while the
power is connected to the line trimmer (especially during operation).
• Disconnect the power when changing spools or clearing grass from under the guard.
• Disconnect the power from the line trimmer before making any adjustments.
• Use both handles.
• Keep ventilation openings clear of debris. Keep handles dry, clean and free of oil
and grease.
• Never reach underneath the line trimmer (the cutting line area) until it has
completely stopped and the power has been disconnected.
ADDITIONAL SAFETY INSTRUCTIONS FOR LINE TRIMMERS
LTP-200 Manual.qxd 9/11/09 5:16 PM Page 7

!
!
7
Warning! Before assembly, make sure that the tool is switched off
and unplugged.

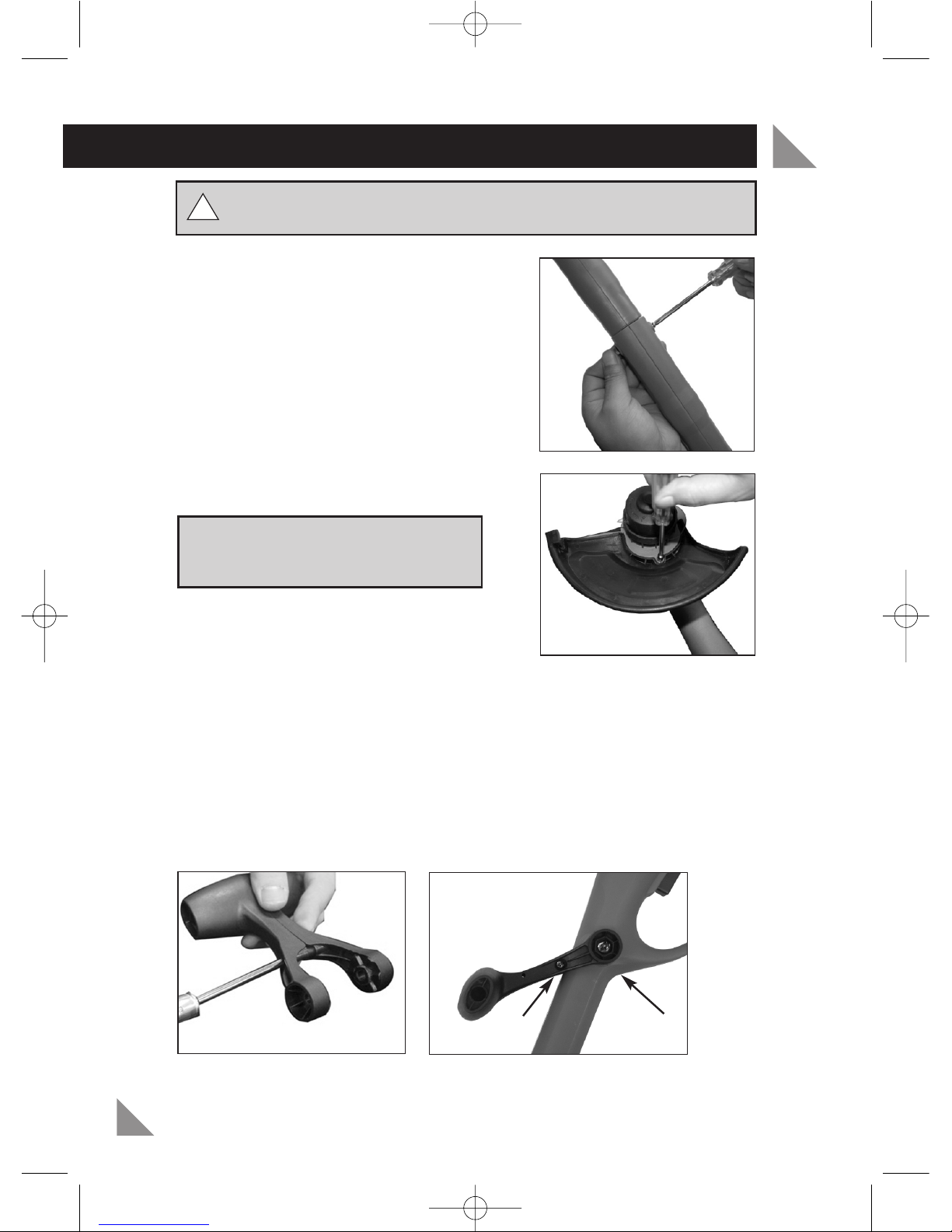

Installing the upper handle assembly (4) on the
lower housing (5)
Remove the locking bolt (6) from the upper
handle assembly (4).
Fit the upper handle assembly (4) onto the lower
housing (5) and insert it as far as possible (Fig. 1).
Re-fit the locking bolt and tighten with a Phillips
head screwdriver.
Note: Do not over tighten the locking bolt as it
could cause damage to your line trimmer.
To install the safety guard (9)
Warning! Never operate the tool with
damaged guards or shields or without
guards or shields fitted to the unit.
Turn the line trimmer upside down. Slide the
safety guard (9) tabs into the 2 slots on the
motor housing. Secure with the Phillips head
screw supplied (Fig. 2).
Attaching the secondary handle (2)
The secondary handle (2) is assembled as shown (Fig. 4).
Loosen the bottom screw (A) a 1/4turn anti-clockwise (Fig. 3).
Carefully align the secondary handle into the grooves on the upper handle (4). There
are two positions you can fix the handle (1) into, lower or higher. Select the desired
position and insert the bolt through the handle. Attach the nut on the other end of the
bolt and tighten using a Phillips head screwdriver. Re-tighten the bottom screw (A).
ASSEMBLY
Fig. 1
Fig. 2
Fig. 3 Fig. 4
B
A
LTP-200 Manual.qxd 9/11/09 5:16 PM Page 8

8
OPERATION
Before starting
Before use, check that the tool is in good working order and that the length of the
trimmer line is correct, as follows:
1. Ensure the switch is in the off position and disconnect the cable plug from the
mains supply.
2. Examine the general condition of the tool. Inspect the guard, switch, cordset and
extension cord. Check for loose screws, misalignment, binding of moving parts,
improper mounting, broken parts and any other condition that may affect its safe
operation. If abnormal noise or vibration occurs during operation, turn the line
trimmer off immediately and have the problem corrected.
3. Ensure that you are on a flat surface and have secure footing.
4. Check that the line touches or goes beyond the edge of the guard.
Increasing the cutting line
1. Before starting ensure the cutting line is the
correct length. Pull the cutting line to the edge
of the safety guard (9) (Fig. 5).
2. If the line is to short push down on the bump
knob (9) and at the same time pull the line out
so that it extends a few centimetres past the
edge of the guard (Fig. 5).
3. Remove the cover from the line cutting blade (12).
4. To increase the cutting line length during
operation tap the bump knob (11) onto the ground, preferably a hard surface. Do
not hold the bump knob on the ground as this may overload the unit.
Note: Only remove the cover from the line cutting blade (12) when all operational
checks have been carried out.
Replace the line cutting blade cover when the line trimmer is not in use.
Starting the trimmer
1. Feed an extension cord through the slot at the
rear of the main handle (1). Loop the extension
cord over the cord retainer (8) (Fig. 6) and
connect the extension cord to the line trimmer
cordset.
2. Connect the extension cord to a power outlet.
3. Press and hold the On/Off switch (3) (Fig. 6).
4. To switch off, release the switch.
Warning! The tool runs for approximately 5
seconds after it has been switched off.
Allow the motor to come to a complete standstill before setting the tool down.
Fig. 5
Fig. 6
12
3
8
LTP-200 Manual.qxd 9/11/09 5:16 PM Page 9

OPERATION (cont.)
9
Trimming
Warning! Make sure that the work area is free of rocks, debris, lines and other
foreign objects.
1. Start the trimmer before approaching the grass to be cut.
2. After each bump the bump line feed mechanism releases 2mm of cutting line
from each side of the spool.
3. Cut the grass by moving the trimmer from right to left and proceed slowly,
keep the trimmer inclined forwards at an angle of about 30°. Light cuts are
better than heavy cuts as they allow the cut grass to fall away from the spool
preventing the grass from clogging the spool.
4. Start cutting nearest the mains power source and work away from it to make it
easier to avoid the extension cord.
5. High grass should be cut in layers always beginning from the top. Do not cut
damp or wet grass. Do not overload your trimmer.
6. If you push the line too close to hard edges/objects it will break off at the
eyelet and the line will retract into the spool. You will have to manually
remove the spool cover and re-thread the line.
7. To prevent the line from breaking and retracting ensure you approach the
edge/object slowly and let the TIP of the line do the work.
8. Feed out some line periodically to prevent the line from retracting into the
spool.
9. Watch out for kickbacks in the event of impact with hard objects.
10. After finishing the cutting operation, keep the head close to ground level,
release the switch and allow the motor to come to a complete standstill.
Place the trimmer on the ground, switch off and remove the cable plug from
the mains supply.
Note: Periodically clean out the grass between the spool and the rim of the guard
to prevent the tool from vibrating.
Replacing the spool & line (9)
Warning! Before assembly, make sure that
the tool is switched off and unplugged.
1. Holding the line trimmer upside down.
Rotate the spool cover anti-clockwise to the
unlock position. Lift off the spool cover (Fig. 7).
Note: Ensure you do not misplace the spring.
2. Remove the empty spool. Fig. 7
LTP-200 Manual.qxd 9/11/09 5:16 PM Page 10

OPERATION (cont.)
10
Fitting a new pre-wound spool
1. Thread the ends of the line on the new spool through the eyelets in the spool
cover (Fig. 8).
2. Holding the line trimmer upside down fit the
spring into the spool housing assembly, push
the spool and spool cover back into the spool
housing. Rotate clockwise to lock the spool in
position (Fig. 9).
Note: Gently lift the spool cover to ensure it is
fitted securely..
3. Ensure that the blade cover is removed from the line cutting blade (12). The
cutting blade is used to control the length of the line.
Winding new line onto a spool
You may wind new cutting line onto an empty spool. Cutting line is available from
any Bunnings Warehouse. Only use cutting line that is 1.2mm in diameter, using
different diameter line can result in poor performance and damage the motor.
1. Remove the empty spool from the line trimmer as described in "Replacing the
spool & line".
2. Remove any remaining cutting line from the spool.
3. Divide the line evenly so you find the half-way point and fit the centre of the
line into the groove (Fig. 10a).
4. Wind the cutting line onto the spool, ensure you wind the line on neatly and in
layers (Fig. 10b). Do not cross the line as this will stop it from feeding.
5. Feed both ends of the line through the holes in the spool cover (one on either
side).
Fig. 8
Fig. 9
Fig. 10bFig. 10a
LTP-200 Manual.qxd 9/11/09 5:16 PM Page 11

MAINTENANCE
11
• Keep the ventilation vents of the tool clean at all times, if possible, prevent
foreign matter from entering the vents.
• After each use, blow air through the tool housing to ensure it is free from all
dust particles which may build up. Build up of dust particles may cause the
tool to overheat and fail.
• If the enclosure of the tool requires cleaning do not use solvents but a moist
soft cloth only. Never let any liquid get inside the tool; never immerse any part
of the tool into a liquid.
• No lubrication is required as bearings are sealed.
• Store in a cool, dry place after use
Note: Ozito Industries will not be responsible for any damage or injuries caused
by the repair of the tool by an unauthorised person or by mishandling of the tool.
Limited spare parts are available subject to availability. Please contact your local
Bunnings Special Orders Desk to order the required spare parts.
Most common spare parts listed below
Spare PartPart No.
Spool Cover SPLTP200-01
Spool & Line Assembly SPLTP200-03
Spring SPLTP200-04
Carbon Brush (set of 2) SPLTP200-18
Brush Holder (set of 2) SPLTP200-19
Switch SPLTP200-38
SPARE PARTS
LTP-200 Manual.qxd 9/11/09 5:16 PM Page 12

12
DESCRIPTION OF SYMBOLS
VVolts Hz Hertz
~Alternating current WWatts
/min Revolutions or
reciprocation per minute
Double insulated
n o No load speed
Warning
Read the user instructions carefully to make sure you understand all
the controls and what they do.
Switch Off! Remove plug from mains before adjusting, cleaning or if
cable is entangled or damaged. Keep the cable away from the blade.
Beware of servering toes or hands. Do not put hands or feet near
a rotating blade.
Blade continues to rotate after the machine is switched off. Wait until
all machine components have completely stopped before touching them.
Do not mow in the rain or leave the lawnmower outdoors
while raining.
Warning Wear eye protection
Wear hearing protection
Wear a dust mask
Do not operate in the rain
Read operator’s manual
Beware of debris being
ejected from the
planer thicknesser
Keep bystanders away
Regulator compliance mark
VVolts Hz
~Alternating currentW
/min Revolutions or
reciprocation per minute
Double insulated
n o
ø Diameter Warning
Wear eye protection
Regulator compliance mark
Read operator’s manual
Keep bystanders away
Keep bystanders awayKeep bystanders away
Disconnect the mains plug if
the cord is damaged or
entangled
Do not operate in the rain
Hertz
Watts
No load speed
CARING FOR THE ENVIRONMENT
Power tools that are no longer usable should not be
disposed of with household waste but in an environmentally
friendly way. Please recycle where facilities exist. Check with
your local council authority for recycling advice.
Recycling packaging reduces the need for landfill and raw
materials. Reuse of recycled material decreases pollution in
the environment. Please recycle packaging where facilities
exist. Check with your local council authority for recycling
advice.
LTP-200 Manual.qxd 9/11/09 5:16 PM Page 13

AUSTRALIA (Head Office)
1 - 23 Letcon Drive, Bangholme, Victoria, Australia 3175
Telephone: [phone]
Facsimile: [phone]
Website: www.ozito.com.au
Email: [email protected]
1 x Line Trimmer
1 x Spool & Line (fitted)
1 x Secondary Handle
1 x Bolt & Nut (for secondary handle)
1 x Safety Guard
1 x Phillips Head Screw (for safety guard)
1 x Operation Manual
13
CONTENTS
OZITO INDUSTRIES PTY LTD
LTP-200 Manual.qxd 9/11/09 5:16 PM Page 14

WARRANTY
THIS WARRANTY FORM AND CONFIRMED BUNNINGS REGISTER RECEIPT SHOULD BE
RETAINED BY THE CUSTOMER AT ALL TIMES
The warranty is only made available by returning the product to your nearest
Bunnings Warehouse with a confirmed Bunnings register receipt
PURCHASED FROM:__________________________________________________
DATE PURCHASED: __________________________________________________
2 YEAR REPLACEMENT WARRANTY
Your Ozito tool is guaranteed for a period of 24 months from the original date of
purchase and is intended for DIY (Do it yourself) use only.
WARNING
The following actions will result in the warranty being void.
• Professional, Industrial or high frequency use.
• If the tool has been operated on a supply voltage other than that specified on the
tool.
•If the tool shows signs of damage or defects caused by or resulting from abuse,
accidents or alterations.
• If the tool is disassembled or tampered with in any way.
Note: Warranty excludes consumable parts such as batteries, nylon line, drive
sockets, fuses, blades & accessories.
YOUR WARRANTY FORM SHOULD BE RETAINED
BY YOU AT ALL TIMES.
SHOULD YOU HAVE ANY QUESTIONS PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY OR
REPAIR PLEASE TELEPHONE OUR CUSTOMER
SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL NUMBER
AND DATE OF PURCHASE AVAILABLE. AN OZITO CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL AND ANSWER ANY QUESTIONS
YOU MAY HAVE RELATING TO THE WARRANTY POLICY OR PROCEDURE.
LTP-200 Manual.qxd 9/11/09 5:16 PM Page 16
