Code: LTR-250
Date: 11/09/09 Edition: 06 Op: Even

Motor: 400W
Input: 230-240V ~ 50Hz
No load speed: 10,000/min
Cutting diameter: 250mm
Line diameter: 1.6mm
Feed type: Bump
Weight (tool only): 2.55kg
SPECIFICATIONS - MODEL NO. LTR-250
1
10
1
5
13
11

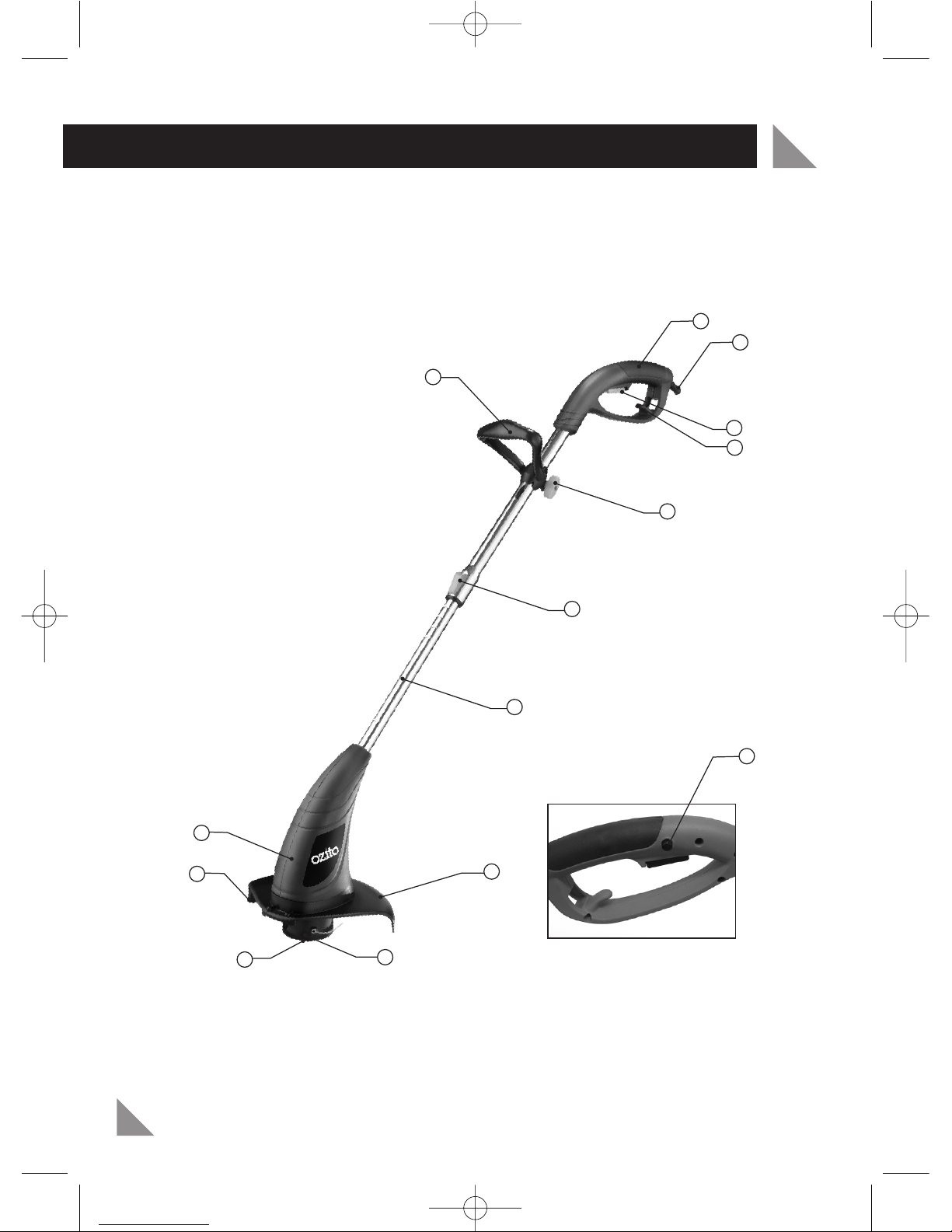

1. Main Handle
2. Cordset
3. Lock-off Button
4. On/Off Switch
5. Cord Retainer
6. Handle Locking Knob
7. Telescopic Shaft Latch
8. Telescopic Shaft
9. Safety Guard
10. Spool
11. Bump Knob
12. Cutting Blade
13. Motor Housing
14. Adjustable Secondary Handle
4
7
6
14
9
2
8
12
3
LTR-250 Manual.qxd 9/11/09 4:07 PM Page 2

2
TABLE OF CONTENTS
SPECIFICATIONS …………………………………………
INTRODUCTION……………………………………….…
GENERAL SAFETY INSTRUCTIONS……………………
GENERAL SAFETY RULES…………………..………..….
ADDITIONAL SAFETY INSTRUCTIONS………………..
ASSEMBLY…………………………………………………
OPERATION ………………………………………………
MAINTENANCE …………….……………………………

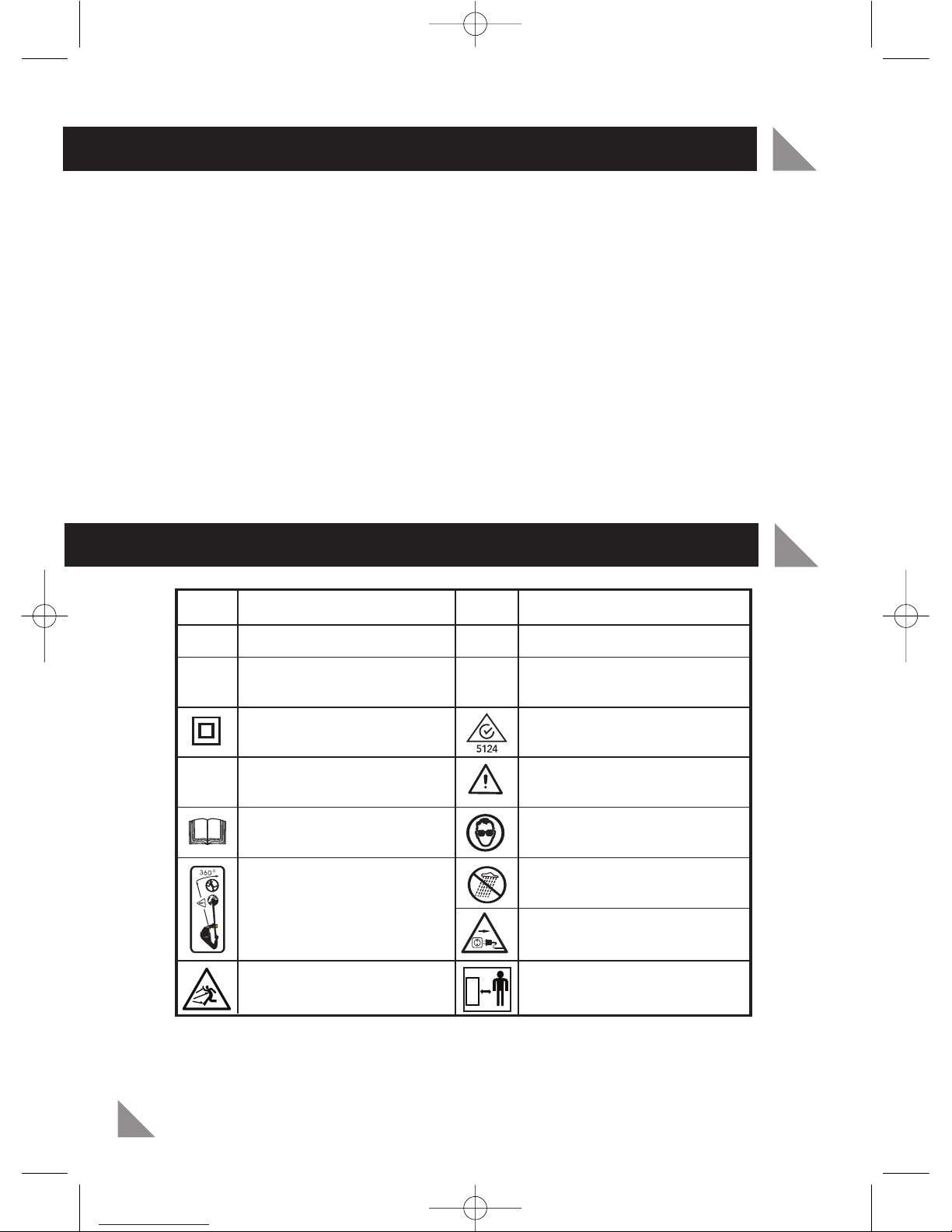

DESCRIPTION OF SYMBOLS …………………………...
CONTENTS ……………………………………………….
WARRANTY………………………………………………..
Page 1
Page 3
Page 3
Page 4
Page 6
Page 7
Page 8
Page 10
Page 11
Page 12
Page 13
LTR-250 Manual.qxd 9/11/09 4:07 PM Page 3

INTRODUCTION
3
Congratulations on purchasing the Ozito Line Trimmer. We
aim to provide quality tools at an affordable price. We hope
you will enjoy using this line trimmer for many years.
Your Ozito Line Trimmer LTR-250 has been designed for
trimming lawn edges and grass around shrubs and trees.
This product is intended for DIY use only.
Warning! When using mains-powered equipment, basic safety
precautions, including the following, should always be followed to reduce
risk of fire, electric shock, personal injury and material damage.
Read and understand the manual prior to operating this tool.
Save these instructions and other documents supplied with this tool for future reference.
The electric motor has been designed for 230V and 240V only. Always check that
the power supply corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for
Australia and New Zealand.
This tool is double insulated in accordance with AS/NZS 60335; therefore
no earth wire is required.
If the supply cord is damaged, it must be replaced by an electrician or a power
tool repairer in order to avoid a hazard.
Note: Double insulation does not take the place of normal safety precautions
when operating this tool. The insulation system is for added protection against
injury resulting from a possible electrical insulation failure within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool.
Before use, inspect the extension lead for signs of damage, wear and ageing.
Replace the extension lead if damaged or defective. When using an extension
lead on a reel, always unwind the lead completely. Use of an extension lead not
suitable for the power input of the tool or which is damaged or defective may
result in a risk of fire and electric shock.
ELECTRICAL SAFETY
!
!
GENERAL SAFETY INSTRUCTIONS
LTR-250 Manual.qxd 9/11/09 4:07 PM Page 4

!
!
4
GENERAL SAFETY RULES
Warning! Read all instructions. Failure to follow all instructions listed below
may result in electric shock, fire and/or serious injury. The term “Power Tool”
in all of the warnings listed below refers to your mains operated (corded)
power tool or battery operated (cordless) power tool.
SAVE THESE INSTRUCTIONS
1) WORK AREA
a) Keep work area clean and well lit. Cluttered and dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases, or dust. Power tools create sparks which
may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions
can cause you to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric shock if
your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power
tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging
the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) Recommendation that the appliance should be supplied with a residual
current device (RCD) with a tripping current of not more than 30mA.
3) PERSONAL SAFETY
a) Stay alert, watch what you are doing and use common sense when operating a
power tool. Do not use a power tool while you are tired or under the influence
of drugs, alcohol or medication. A moment of inattention while operating power
tools may result in serious personal injury.
b) Use safety equipment. Always wear eye protection. Safety equipment such as
dust mask, non-skid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
c) Avoid accidental starting. Ensure the switch is in the off position before
plugging in. Carrying power tools with your finger on the switch or plugging in
power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A
wrench or a key left attached to a rotating part of the power tool may result in
personal injury.
LTR-250 Manual.qxd 9/11/09 4:07 PM Page 5

5
e) Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of these
devices can reduce dust related hazards.
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at the rate
for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any
power tool that can not be controlled with the switch is dangerous and must
be repaired.
c) Disconnect the plug from the power source before making any
adjustments, changing accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools, unplugged & out of the reach of children and do
not allow persons unfamiliar with the power tool or these instructions to
operate the power tool. Power tools are dangerous in the hands of
untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tools
operation. If damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc., in accordance with
these instructions and in the manner intended for the particular type of
power tool, taking into account the working conditions and the work to be
performed. Use of the power tool for operations different from intended could
result in a hazardous situation.
5) SERVICE
a) Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the power tool
is maintained.
b) If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
GENERAL SAFETY RULES (cont.)
LTR-250 Manual.qxd 9/11/09 4:07 PM Page 6

6
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Recommendations for the use of a residual current device with a rated residual
current of 30mA or less.
• Before use check the supply and extension cord for signs of damage or aging. If
the cord becomes damaged during use, disconnect the cord from the supply
immediately. DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY.
Do not use the line trimmer if the cord is damaged or worn.
• Keep extension cord away from cutting line.
• Never allow children or people unfamiliar with these instructions to use the
line trimmer.
• Avoid using the line trimmer, while people, especially children or pets, are nearby.
• Use the line trimmer only in daylight or good artificial light.
• Never operate the line trimmer with damaged guards or without guards in place.
• Switch on the line trimmer only when the hands and feet are away from the
cutting head.
• Never fit metal cutting blades.
• Use only the manufacturer's recommended replacement parts and accessories.
• Always disconnect the line trimmer from the mains when leaving the line
trimmer unattended.
• Disconnect the line trimmer from the mains before carring out maintenance or
cleaning work.
• Inspect and maintain the line trimmer regularly. Have the line trimmer repaired only
by an authorised repairer.
• Take care against injury from the blade(s) fitted for trimming the cutting line length.
After extending new cutting line, always return the line trimmer to its normal
operating position before switching on.
• When not in use, store the line trimmer out of the reach of children.
• Face the cutting head away from yourself, other people and animals while the
power is connected to the line trimmer (especially during operation).
• Disconnect the power when changing spools or clearing grass from under the guard.
• Disconnect the power from the line trimmer before making any adjustments.
• Use both handles.
• Keep ventilation openings clear of debris. Keep handles dry, clean and free of oil
and grease.
• Never reach underneath the line trimmer (the cutting line area) until it has
completely stopped and the power has been disconnected.
ADDITIONAL SAFETY INSTRUCTIONS FOR LINE TRIMMERS
LTR-250 Manual.qxd 9/11/09 4:07 PM Page 7

!
!
7
Warning! Before assembly, make sure that the tool is switched off
and unplugged.

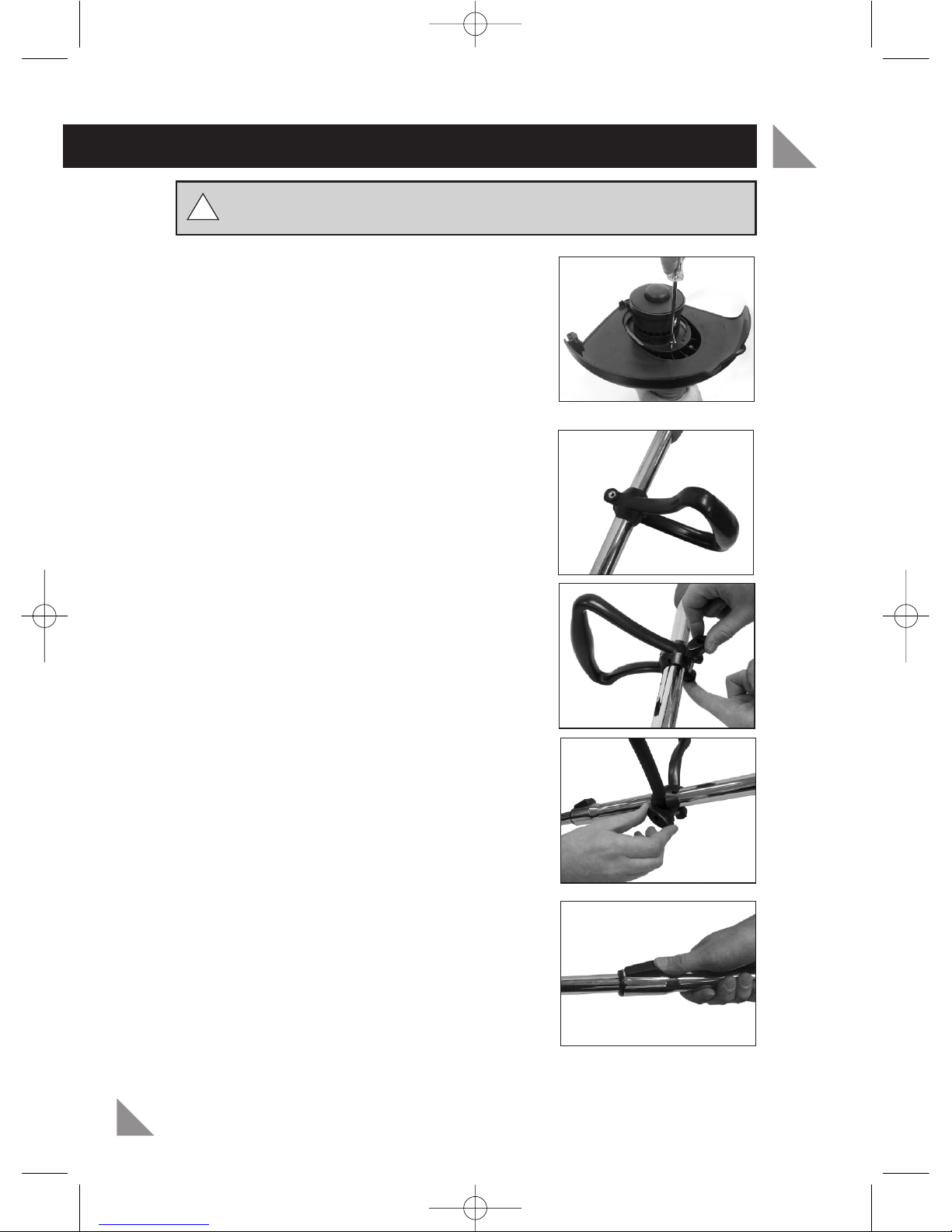

Fitting the safety guard
1. Align the 4 screw holes in the safety guard (9)
with the screw holes in the base of the motor
housing (13).
2. Place the 4 screws through the guard followed
by the motor housing and tighten with a Phillips
head screwdriver (Fig. 1).
Fitting the secondary handle
1. Remove the handle locking knob (6) and bolt
from the secondary handle (14).
2. Place the secondary handle (14) over the top
section of the telescopic shaft until it clicks into
position (Fig. 2).
3. Pass the bolt through the holes at the base of
the secondary handle (14) (Fig. 3).
4. Screw the locking knob (6) onto the bolt, do not
fully tighten (Fig. 4).
5. Adjust the secondary handle to the most
comfortable position and tighten the locking
knob (6). Do not overtighten.
Telescopic shaft adjustment
1. The line trimmer shaft can be adjusted to suit the
height of the operator.
2. Push the telescopic shaft latch (7) forward and
whilst holding the latch forward adjust the shaft
up or down to the appropriate position (Fig. 5).
3. Release the telescopic shaft latch (7) once
adjustment is complete.
Extension cord support
There is a cord retainer located below the on/off
switch which is used as an extension cord retention
device. To avoid detaching the extension cord always check that it is attached
firmly during use.
ASSEMBLY
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
LTR-250 Manual.qxd 9/11/09 4:07 PM Page 8

8
OPERATION
1. Make a loop in the extension cord and push it through
the square hole behind the cord retainer (5).
2. Place the end of the loop around the cord retainer (5)
and pull back on the cord so it is firmly held in place
(Fig. 6).
3. Connect the extension cord socket to the line
trimmer cordset.
Before starting
Before use, check that the tool is in good working order and that the length of the
trimmer line is correct, as follows:
1. Ensure the switch is in the off position and disconnect the cable plug from the
mains supply.
2. Examine the general condition of the tool. Inspect the guard, switch, cordset and
extension cord. Check for loose screws, misalignment, binding of moving parts,
improper mounting, broken parts and any other condition that may affect its safe
operation. If abnormal noise or vibration occurs during operation, turn the line
trimmer off immediately and have the problem corrected by a qualified repair person.
3. Ensure that you are on a flat surface and have secure footing.
4. Check that the line touches or goes beyond the edge of the guard.
Increasing the cutting line
1. Before starting ensure the cutting line is the correct
length. Pull the cutting line to the edge of the safety
guard (9).
2. If the line is to short push down on the bump knob
(11) and at the same time pull the line out so that it
extends a few centimetres past the edge of the
guard (9) (Fig. 7).
3. Remove the cover from the line cutting blade (12).
4. To increase the cutting line length during operation tap the bump knob (12) onto
the ground, preferably a hard surface. Do not hold the bump knob on the ground
as this may overload the unit.
Note: Only remove the cover from the line cutting blade (12) once all operational
checks have been carried out. Replace the line cutting blade cover when the line
trimmer is not in use.
Starting the trimmer
1. Connect the extension cord to power.
2. Press the lock-off button (3), whilst holding the lock-off
button press the On/Off switch (4) (Fig. 8).
3. To switch off, release the On/Off switch (4).
Warning! The tool runs for approximately 5 seconds
after it has been switched off. Let the motor come to
a complete standstill before setting the tool down.
Fig. 6
Fig. 7
Fig. 8
LTR-250 Manual.qxd 9/11/09 4:07 PM Page 9

OPERATION (cont.)
9
Trimming
Warning! Make sure that the work area is free of rocks, debris, lines and other
foreign objects.
1. Start the trimmer before approaching the grass to be cut.
2. After each bump the bump line feed mechanism releases approximately 2mm
of cutting line from each side of the spool.
3. Cut the grass by moving the trimmer from right to left and proceed slowly,
keep the trimmer inclined forwards at an angle of about 30°. Light cuts are
better than heavy cuts as they allow the cut grass to fall away from the spool
preventing the grass from clogging the spool.
4. Start cutting nearest the mains power source and work away from it to make it
easier to avoid the extension cord.
5. High grass should be cut in layers always beginning from the top. Do not cut
damp or wet grass. Do not overload your trimmer.
6. If you push the line too close to hard edges/objects it will break off at the
eyelet and the line will retract into the spool. You will have to manually
remove the spool cover and re-thread the line.
7. To prevent the line from breaking and retracting ensure you approach the
edge/object slowly and let the TIP of the line do the work.
8. Feed out some line periodically to prevent the line from retracting into the spool.
9. Watch out for kickbacks in the event of impact with hard objects.
10. After finishing the cutting operation, keep the head close to ground level,
release the switch and allow the motor to come to a complete standstill. Place
the trimmer on the ground, switch off and remove the cable plug from the
mains supply.
Note: Periodically clean out the grass between the spool and the rim of the guard
to prevent the tool from vibrating.
Replacing the spool & line
Warning! Before maintenance, make sure that
the tool is switched off and unplugged.
1. Press the sides of the spool cover as shown and
remove it with the spool (Fig. 9). Ensure that you
do not lose the spring.
2. Remove the empty spool.
Fitting a new pre-wound spool
1. Holding the line trimmer upside down fit the
spring into the spool housing assembly.
2. Thread the ends of the line on the new spool
through the eyelets in the spool housing (Fig. 10).
3. Push the spool and spool cover back into the
spool housing until they click into position (Fig. 11).
Fig. 9
Fig. 10
LTR-250 Manual.qxd 9/11/09 4:07 PM Page 10

OPERATION (cont.)
4. Ensure that the blade cover is removed from the line
cutting blade (11). The cutting blade is used to
control the length of the line.
Winding new line onto a spool
You may wind new cutting line onto an empty spool.
Cutting line is available from any Bunnings Warehouse.
Only use cutting line that is 1.6mm in diameter, using
different diameter line can result in poor performance
and damage the motor.
1. Remove the empty spool from the line trimmer as described in "Replacing the
spool & line".
2. Remove any remaining cutting line from the spool.
3. Divide the line evenly so you find the half-way point
and cut it in half.
4. Place each end of the cutting line through the hole
at the top of the spool and loop it around into the
other hole to lock it into place (Fig. 12).
5. Wind the cutting line onto the spool, ensure you
wind the line on neatly and in layers (Fig. 13). Do
not cross the line as this will stop it from feeding.
6. Holding the line trimmer upside down fit the spring
into the spool housing assembly.
7. Thread the ends of the line through the eyelets in
the spool housing.
8. Push the spool and spool cover back into the spool
housing until they click into position.
9. Ensure that the blade cover is removed from the line cutting blade (12). The
cutting blade is used to control the length of the line.
• Keep the ventilation vents of the tool clean at all times, if possible, prevent foreign
matter from entering the vents.
• After each use, blow air through the tool housing to ensure it is free from all dust
particles which may build up. Build up of dust particles may cause the tool to
overheat and fail.
• If the enclosure of the tool requires cleaning do not use solvents but a moist soft
cloth only. Never let any liquid get inside the tool; never immerse any part of the
tool into a liquid.
• No lubrication is required as bearings are sealed.
• Store in a cool, dry place after use
Note: Ozito Industries will not be responsible for any damage or injuries caused by
the repair of the tool by an unauthorised person or by mishandling of the tool.
MAINTENANCE
Fig. 11
Fig. 12
Fig. 13
10
LTR-250 Manual.qxd 9/11/09 4:07 PM Page 11

VVolts Hz Hertz
~Alternating current WWatts
/min Revolutions or
reciprocation per minute
Double insulated
n o No load speed
Warning
Read the user instructions carefully to make sure you understand all
the controls and what they do.
Switch Off! Remove plug from mains before adjusting, cleaning or if
cable is entangled or damaged. Keep the cable away from the blade.
Beware of servering toes or hands. Do not put hands or feet near
a rotating blade.
Blade continues to rotate after the machine is switched off. Wait until
all machine components have completely stopped before touching them.
Do not mow in the rain or leave the lawnmower outdoors
while raining.
Warning Wear eye protection
Wear hearing protection
Wear a dust mask
Do not operate in the rain
Read operator’s manual
Beware of debris being
ejected from the
planer thicknesser
Keep bystanders away
Regulator compliance mark
VVolts Hz
~Alternating currentW
/min Revolutions or
reciprocation per minute
Double insulated
n o
ø Diameter Warning
Wear eye protection
Regulator compliance mark
Read operator’s manual
Keep bystanders away
Keep bystanders awayKeep bystanders away
Disconnect the mains plug if
the cord is damaged or
entangled
Do not operate in the rain
Hertz
Watts
No load speed
11
SPARE PARTS
Limited spare parts are available subject to availability. Please contact your local
Bunnings Special Orders Desk to order the required spare parts.
Most common spare parts listed below
Spare Part Part No.
Safety Guard SPLTR250-06
Spring SPLTR250-10
Spool & Line Assembly SPLTR250-11
Spool Cover SPLTR250-13
Secondary Handle SPLTR250-25
Switch SPLTR250-37
Carbon Brushes (Set of 2) SPLTR250-47
DESCRIPTION OF SYMBOLS
LTR-250 Manual.qxd 9/11/09 4:07 PM Page 12

12
CONTENTS
OZITO INDUSTRIES PTY LTD
Power tools that are no longer usable should not be
disposed of with household waste but in an environmentally
friendly way. Please recycle where facilities exist. Check with
your local council authority for recycling advice.
Recycling packaging reduces the need for landfill and raw
materials. Reuse of recycled material decreases pollution in
the environment. Please recycle packaging where facilities
exist. Check with your local council authority for recycling
advice.
AUSTRALIA (Head Office)
1 - 23 Letcon Drive, Bangholme, Victoria, Australia 3175
Telephone: [phone]
Facsimile: [phone]
Website: www.ozito.com.au
Email: [email protected]
1 x Line Trimmer LTR-250
1 x Spool & Line (fitted)
1 x Safety Guard
1 x Secondary Handle
4 x Screws (to attach safety guard)
1 x Operation Manual
CARING FOR THE ENVIRONMENT
LTR-250 Manual.qxd 9/11/09 4:07 PM Page 13

WARRANTY
THIS WARRANTY FORM AND CONFIRMED BUNNINGS REGISTER RECEIPT SHOULD BE
RETAINED BY THE CUSTOMER AT ALL TIMES
The warranty is only made available by returning the product to your nearest
Bunnings Warehouse with a confirmed Bunnings register receipt
PURCHASED FROM:__________________________________________________
DATE PURCHASED: __________________________________________________
2 YEAR REPLACEMENT WARRANTY
Your Ozito tool is guaranteed for a period of 24 months from the original date of
purchase and is intended for DIY (Do it yourself) use only.
WARNING
The following actions will result in the warranty being void.
• Professional, Industrial or high frequency use.
• If the tool has been operated on a supply voltage other than that specified on the
tool.
•If the tool shows signs of damage or defects caused by or resulting from abuse,
accidents or alterations.
• If the tool is disassembled or tampered with in any way.
Note: Warranty excludes consumable parts such as batteries, nylon line, drive
sockets, fuses, blades & accessories.
YOUR WARRANTY FORM SHOULD BE RETAINED
BY YOU AT ALL TIMES.
SHOULD YOU HAVE ANY QUESTIONS PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY OR
REPAIR PLEASE TELEPHONE OUR CUSTOMER
SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL NUMBER
AND DATE OF PURCHASE AVAILABLE. AN OZITO CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL AND ANSWER ANY QUESTIONS
YOU MAY HAVE RELATING TO THE WARRANTY POLICY OR PROCEDURE.
LTR-250 Manual.qxd 9/11/09 4:07 PM Page 16
