Ozito VWD-1220PT User manual

WET & DRY
VACUUM
1250W 20L
INSTRUCTION MANUAL
SPECIFICATIONS
Mains Voltage: 230 – 240V ~ 50Hz
Input Power: 1250W
Suction Power Max.: 180 mbar
Air Flow: 68 l/s
Tank Capacity: 20 l
Power Outlet Max.: 1150W
Psum: 2400W
IP Rating: IP24
Product weight: 4.7 kg
VWD-1220PT
WHAT’S IN THE BOX
ozito.com.au
Suction Hose Ø36mm x 1.5m
Extension Tubes x 3
Crevice Tool
Castors x 4
Adapters
Floor Tool
Foam
Filter
Dust Bag
Filter Bag

3
ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
WET & DRY VACUUM
ACCESSORIES

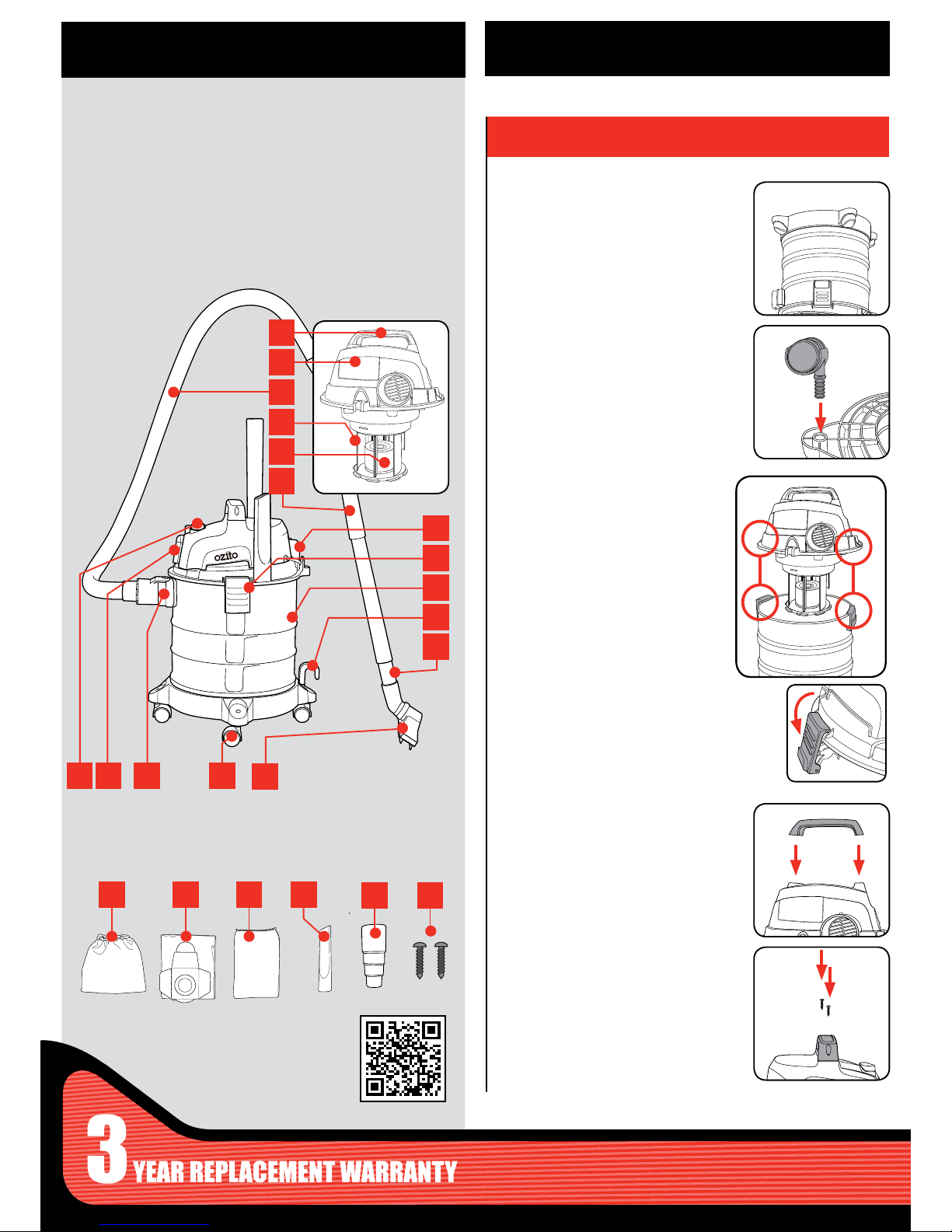

KNOW YOUR PRODUCT
1. ASSEMBLY
SETUP & PREPARATION
Assembling the Castors
1. Turn the container upside down.
2. Insert the castor assemblies into
the base of the tank. Use rm hand
pressure. Use of a hammer may damage
the castor.
Fitting the Motor
1. When tting the motor to the tank,
position it so that the motor securing
clips on the tank align with the
fastening points on the motor.
2. Fasten the motor securing clips to the
motor, making sure that they
lock into place correctly.
3. To remove the motor, open the
motor securing clip and lift the motor out
of the tank.
Fitting the Handle
1. Align the holes on either side of the
handle with the holes in the top side
of the motor.
2. Insert two screws (supplied) into the
handle and tighten with a screwdriver (not
supplied).
1. Handle
2. Motor
3. Suction Hose
4. Filter Basket
5. Safety Float
6. Extension Tubes
7. Blow Outlet
8. Motor Securing Clips
9. Tank
10.Cable Hook
11.Adapter
12.On/Off/Auto Switch
13.Auto Power-Outlet
14.Vacuum Inlet
15.Castors
16.Floor Tool
17.Filter Bag
18.Dust Bag
19.Foam Filter
20.Crevice Tool
21.Electric Tool Adaptor
22.Handle Screws
1
2
3
4
5
6
7
8
9
10
11
13 14 16
17 18 19 20
1512
2221

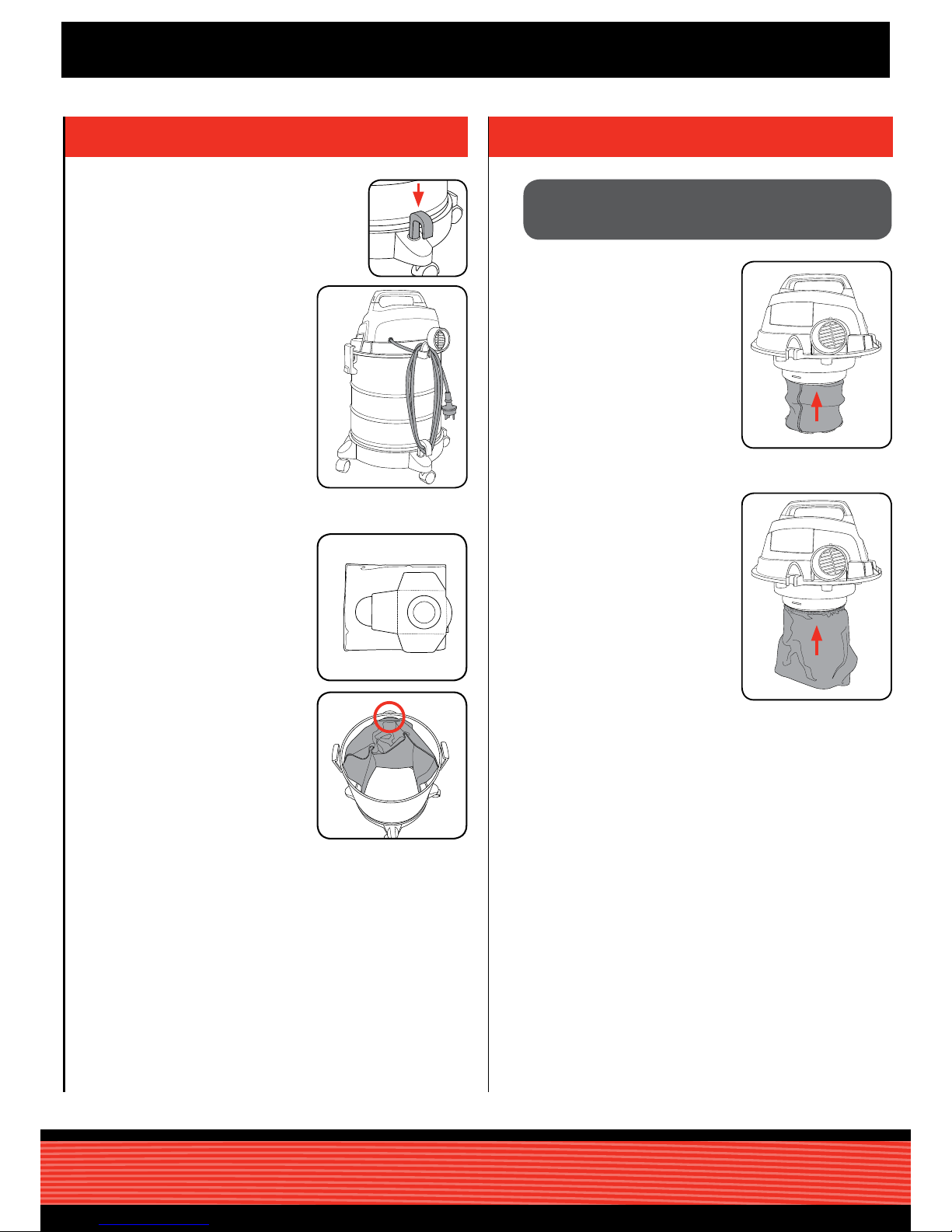

Mounting the Cable Hook
1. Press the cable hook for the cable store
into the mount on the base of the unit.
2. After use, the power cable can
be conveniently wound onto the
cable hooks.
Fitting the Dust Bag
1. For vacuuming ne, dry dirt it is
recommended that you t the dust
bag. The dust bag is suitable for dry
vacuuming only. Using the dust bag
makes it easier to dispose of the
dust that has been collected.
2. To attach, slip the dust bag over
the vacuum inlet.
NOTE: Do not use the dust bag when
vacuuming liquid.
Fitting the Foam Filter -
Vacuuming Liquid
For wet-vacuuming, slip the supplied
foam lter over the lter basket.
NOTE: Do not use the lter bag and/or
dust bag when vacuuming liquid
Fitting the Filter Bag -
Vacuuming Dry Matter
For dry vacuum cleaning always use the
lter bag. Mount the lter bag, so that
no air is sucked through the lter cage
without being ltered.
NOTE: Do not use the foam lter when
vacuuming dry matter.
2. FITTING THE FILTER
IMPORTANT! NEVER USE THE WET AND DRY VACUUM
CLEANER WITHOUT A FILTER! ALWAYS ENSURE THAT
THE FILTERS ARE PERFECTLY SECURE!

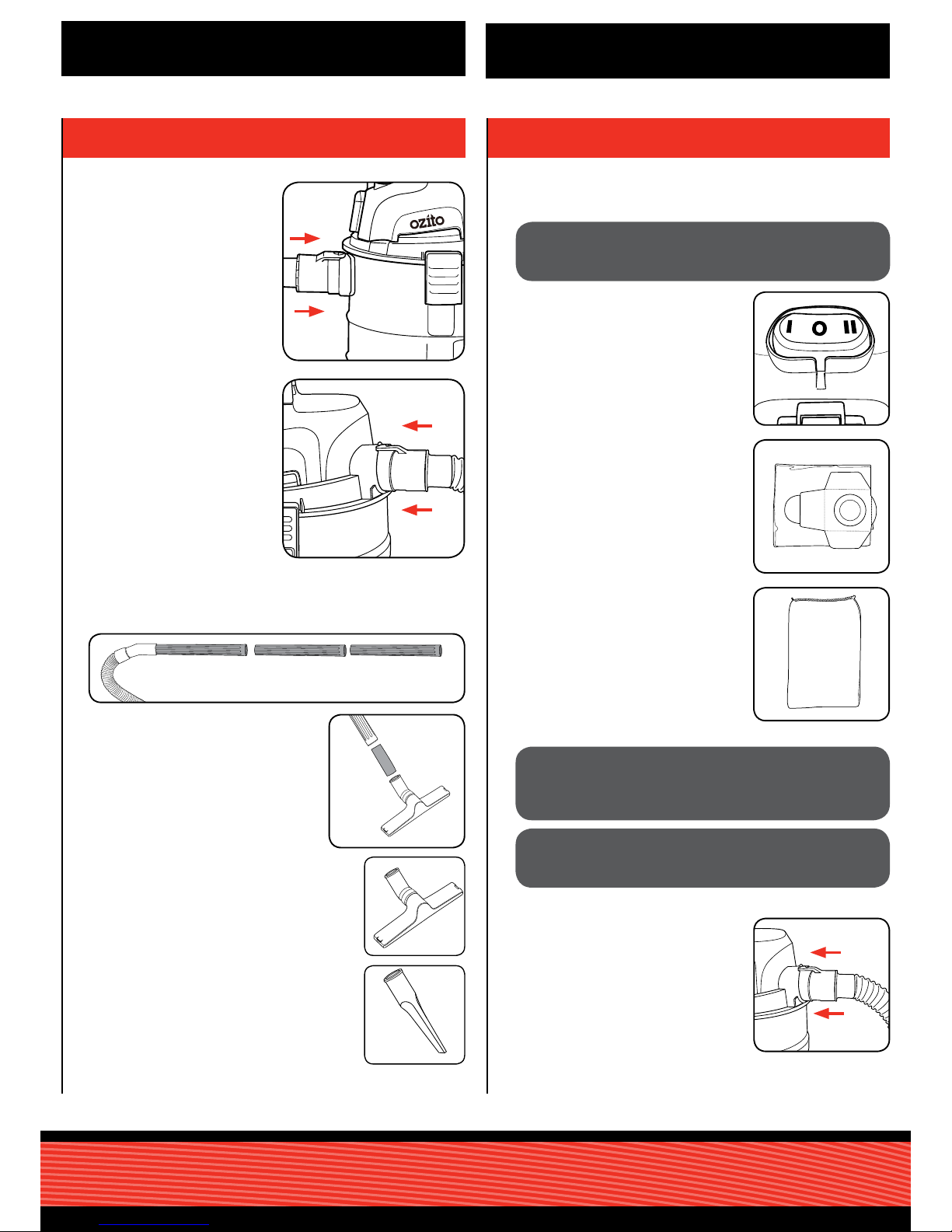

3. FITTING HOSES & NOZZLES 4. OPERATION
Connect the suction hose to the
corresponding connector on the
wet and dry vacuum, depending on
the application required:
Vacuuming
Connect the suction hose to
the vacuum inlet
Blowing
Connect the suction hose to
the blow outlet.
Extension Tube and Adaptor
1. The suction hose can be extended by attaching one or more sections
of the 3 part extension tubes.
2. The adapter must be inserted between
the extension tube and whichever of the
nozzles is required.
Suction Tools
Floor Tool
The oor tool is for vacuuming solids and liquids
over medium to large areas.
Crevice Tool
The crevice tool is designed for cleaning crevices
and edges.
OPERATION
IMPORTANT! SWITCH OFF THE EQUIPMENT IF LIQUID
OR FOAM IS EMITTED WITH THE EXHAUST AIR WHEN
WET VACUUM CLEANING.
IMPORTANT! WHEN WET VACUUMING, THE SAFETY
FLOAT TURNS OFF THE WET AND DRY VACUUM
CLEANER AUTOMATICALLY WHEN THE MAXIMUM
LEVEL IS REACHED.
IMPORTANT! THE WET AND DRY VACUUM CLEANER
IS NOT SUITABLE FOR THE VACUUMING OF
COMBUSTIBLE LIQUIDS.
VWD-1220PT
On/Off Switch
Switch position 0: OFF
Switch position I: Normal operation
Switch position II: Automatic mode
Dry Vacuuming
Use the dust bag and the lter bag for dry
vacuuming (see 2. Fitting the Filter).
Check that the lter is securely tted at all
times.
Wet Vacuuming
For wet-vacuuming, use the foam lter
(see 2. Fitting the Filter).
Check that the lter is securely tted
at all times.
NOTE: The tank will collect 12 Litre max of
uid and the oat switch will turn off the vac.
Blowing
Connect the suction hose to the blow outlet
on the wet and dry vacuum cleaner.
This vacuum must be used with a residual current device
with a rated residual current of 30mA or less.

Cleaning
Keep all safety devices, air vents and the motor housing free
of dirt and dust as far as possible.
We recommend that you clean the equipment immediately after
you use it.
Cleaning the motor housing
Clean the appliance regularly with a damp cloth and some soft soap.
Do not use cleaning agents or solvents; these may be aggressive to the
plastic parts in the appliance.
Cleaning the tank
The tank can be cleaned with a damp cloth and some soft soap or under
running water, depending on the amount of dirt.
Cleaning the foam lter
Clean the foam lter with a little soft soap under running water and allow
it to air-dry.
MAINTENANCE CONT.
DESCRIPTION OF SYMBOLS
CARING FOR THE ENVIRONMENT
Power tools that are no longer usable should not be disposed of
with household waste but in an environmentally friendly way. Please
recycle where facilities exist. Check with your local council authority
for recycling advice.
Recycling packaging reduces the need for landll and raw materials.
Reuse of recycled material decreases pollution in the environment.
Please recycle packaging where facilities exist. Check with your
local council authority for recycling advice.
Dust Bag (Pkt 5) VWDA-001
Foam Filter 234221001038
Suction Hose 234221001035
Filter Bag 234221001036
Crevice Tool 234221001033
Floor Tool 234221001034
Extension Tubes 234221001037
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]

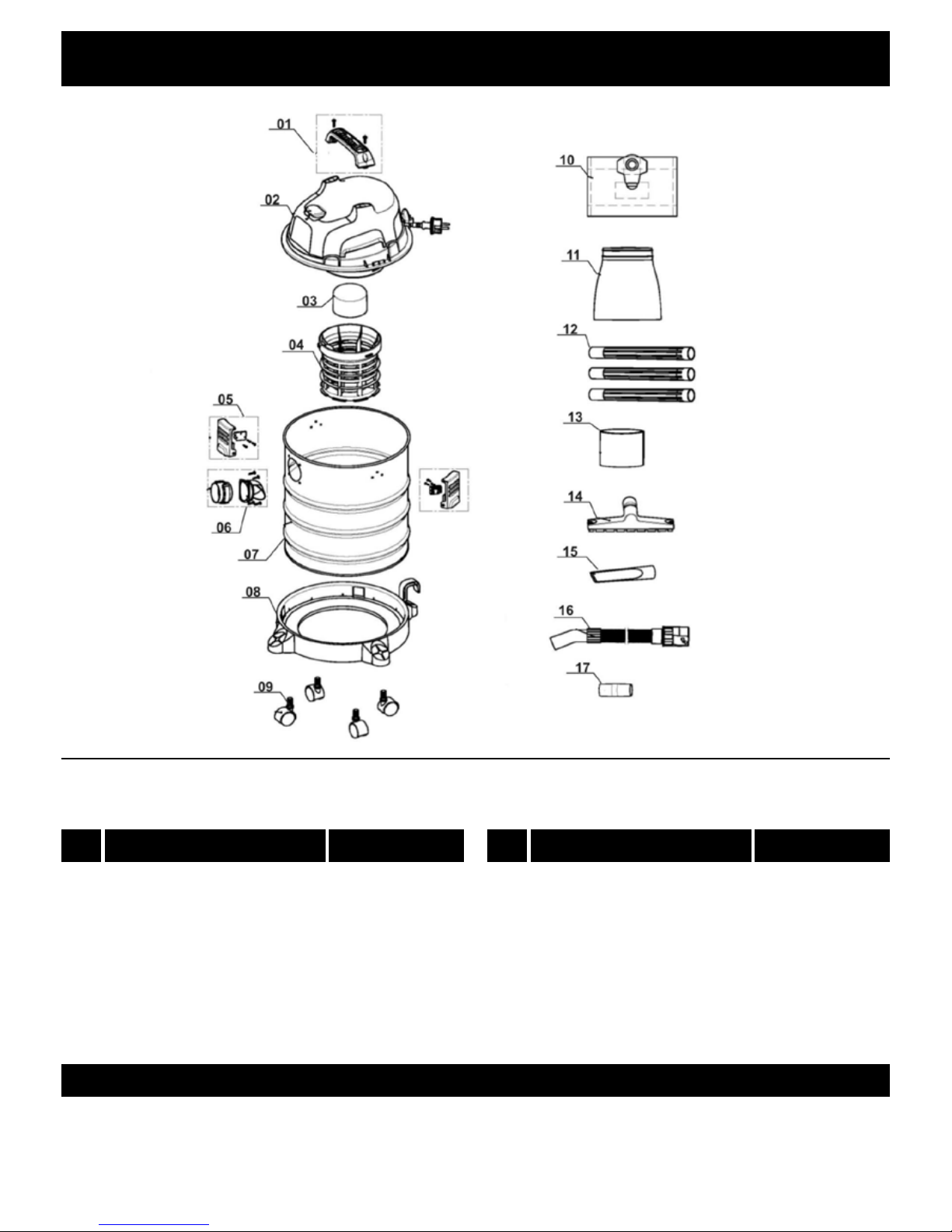

SPARE PARTS
4. OPERATION CONT.
VVolts Hz Hertz
~Alternating current WWatts
ILitres
Regulator compliance
mark l/s Litres per second
Read instruction manual Warning
IP24 Ingress protection from
water mbar Pressure rating (millibar)
5124
IMPORTANT! BEFORE CLEANING YOUR WET & DRY VAC
OR CARRYING OUT ANY MAINTENANCE PROCEDURE,
MAKE SURE THAT THE MOTOR IS OFF AND THE VAC
DISCONNECTED FROM THE POWER SUPPLY TO
PREVENT ACCIDENTAL STARTING.
OPERATION
Storing
Ensure the Wet & Dry Vac has been fully emptied of any dry matter or
liquid before it is stored.
Wrap the power cable around the cable hooks.
Keep all the accessories with the unit to avoid losing them.
Keep in a dry place out of reach of children.
MAINTENANCE

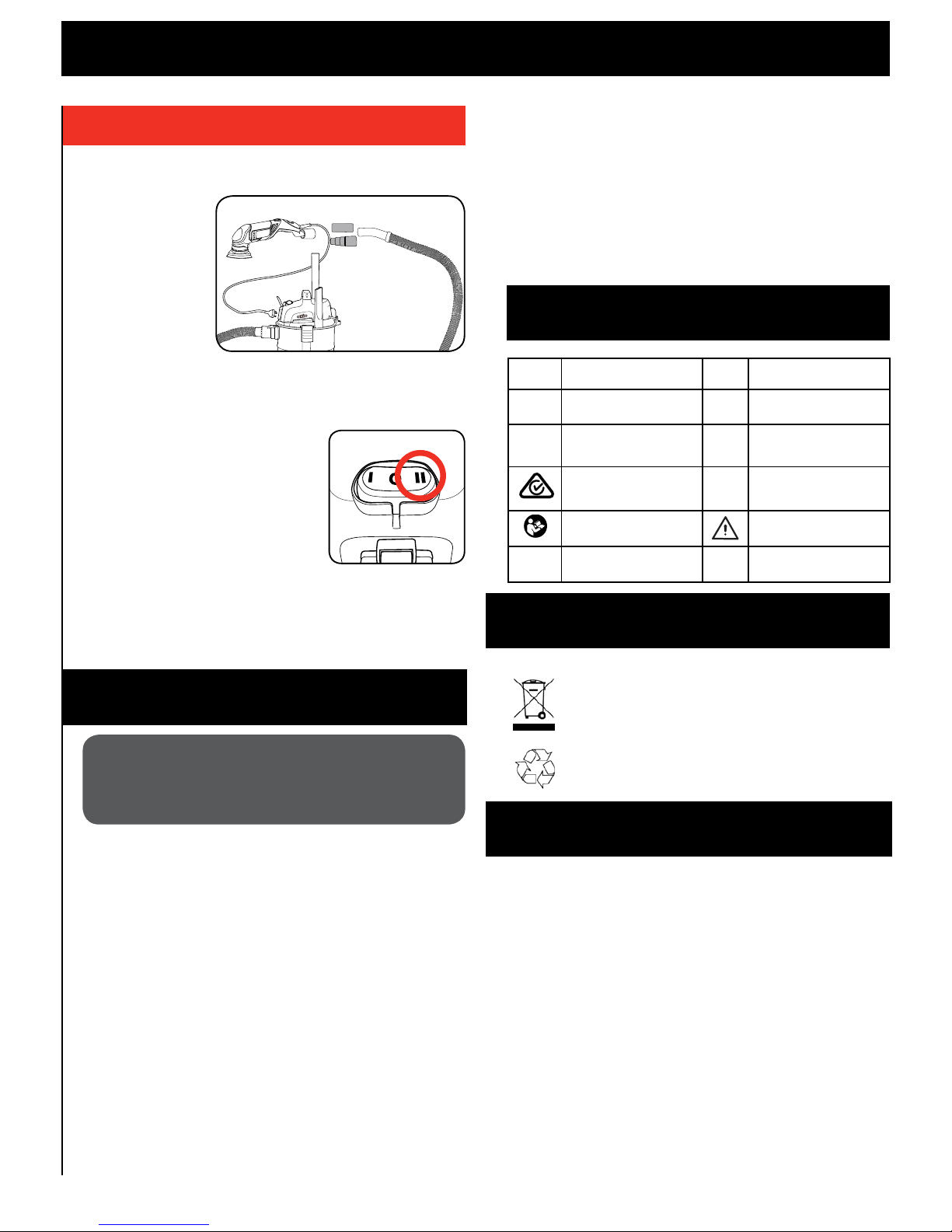

Automatic Mode (1150W max.)
Connect the power
cable on your electric
tool to the automatic
power-outlet and
connect the suction
hose to the extractor
connector on your
electric tool. Check that
the connections are
secure and airtight.
You can use the supplied adaptor or electric tool adaptor to
connect the suction hose to the electric tool. To do so, t it
between the suction hose and the extractor port on the electric
tool.
Set the switch on the wet and dry vacuum
cleaner to position II, automatic mode. The
moment you switch on the electric tool, the
wet and dry vacuum cleaner switches on as
well. When you switch off the electric tool, the
wet and dry vacuum cleaner switches off as
well after a preset delay.

IMPORTANT!
When using the equipment, a few safety precautions must be observed to avoid injuries
and damage. Please read the complete operating manual with due care. Keep this manual
in a safe place so that the information is available at all times. If you give the equipment to any other
person, give them these operating instructions as well.
We cannot accept any liability for damage or accidents which arise due to a failure to follow these
instructions and the safety information.
• Do not leave appliance unattended when plugged in. Unplug from outlet when not in use and
before servicing and cleaning.
• To avoid electric shock, do not expose to rain. Store indoors.
• Never use in the presence of explosive liquids, vapours or explosive dust – such as coal
or grain.
• Never pick up asbestos or asbestos dust.
• Wood dust and chips in a conned area can give rise to re or an explosion. Guard against
possible ignition sources.
• Do not pick up anything that is burning or smouldering – such as metal grinding dust, cigarette
ends, hot coals, matches or similar.
• The appliance is not intended for use by young children or inrm persons without supervision.
Young children should be supervised to ensure they do not play with the appliance.
• Use only manufacturer’s recommended attachments and consumables.
• Never modify the cleaner in any way - this is dangerous and will invalidate the warranty.
• Do not use cleaner without the lter in place.
• If motor sound becomes higher pitched always check for the following:
- Blocked hose or accessory.
- Blocked lter.
- Full container.
• Never try to move the cleaner by pulling with the mains lead.
• Always check that the lter is clear and not blocked. Keep all openings clear of any blockages.
• When lifting the unit, always lift it with the handle or under rim of bucket. Beware of excess
weight.
• Always switch the unit off before changing attachments or connecting different power tools.
• Always disconnect equipment from the appliance when it is not in use.
• If the cordset is damaged have it repaired by an authorised service centre.
• This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• The wet and dry vacuum cleaner is designed for wet and dry vacuuming using the appropriate
lter. The appliance is not suitable for the vacuuming of combustible, explosive or harmful
substances.
• The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a
case of misuse. The user / operator and not the manufacturer will be liable for any damage or
injuries of any kind caused as a result of this.
WET & DRY VACUUM SAFETY WARNINGS
WARNING! When using mains-powered tools, basic safety precautions, including
the following, should always be followed to reduce risk of re, electric shock,
personal injury and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an
emergency, before operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
The electric motor has been designed for 230V and 240V only. Always check that the power
supply corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and
New Zealand.
Note: The power outlet used for the vacuum must be protected by a 30mA residual current device
or earth leakage circuit breaker.
The supply cored assessed as type Y attached by using AS/NZS 60335-1.
If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in
order to avoid a hazard.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use,
inspect the extension lead for signs of damage, wear and ageing. Replace the extension lead if
damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension
lead not suitable for the power input of the tool or which is damaged or defective may result in a
risk of re and electric shock.
WARNING! Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the
warnings refers to your mains-operated (corded) power tool or battery-operated (cordless)
power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b.
Do not operate power tools in explosive atmospheres, such as in the presence of
ammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or
fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause
you to lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools. Unmodied plugs and
matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges
and refrigerators. There is an increased risk of electric shock if your body is earthed or
grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device
(RCD) protected supply with a rated residual current of 30 mA or less. Use of an RCD
reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use a power tool while you are tired or under the inuence of drugs, alcohol
or medication.
A moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting
to power source and/or battery pack, picking up or carrying the tool. Carrying power
tools with your nger on the switch or energising power tools that have the switch on invites
accidents.
d. Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control
of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities,
ensure these are connected and properly used. Use of dust collection can reduce dust-
related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct
power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that
cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool
before making any adjustments, changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar
with the power tool or these instructions to operate the power tool. Power tools are
dangerous in the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of
parts and any other condition that may affect the power tool’s operation. If damaged,
have the power tool repaired before use. Many accidents are caused by poorly maintained
power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the
power tool for operations different from those intended could result in a hazardous situation.
5. Service
a. Have your power tool serviced by a qualied repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
b. If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualied persons in order to avoid a hazard.
GENERAL POWER TOOL SAFETY WARNINGS
ELECTRICAL SAFETY

SPARE PARTS Tool: 20L Wet & Dry Vacuum
Model No. VWD-1220PT
Item
No. Description Part No.
How To Order
Available spare parts can be ordered through the Special Orders Desk at any Bunnings Warehouse. If you have any
further questions, please contact Ozito Customer Service on:
Australia: 1800 069 486
New Zealand: 0508 069 486
[email protected]
The following is a list of spare parts carried by Ozito.
Please contact Customer Service for any parts not
listed.
Item
No. Description Part No.
TH-VC 1820 S for Kit
Wet/Dry Vacuum Cleaner (elect)
Artikel-Nr.: 2342166
Ident-Nr.: 11011
38
35
36
33
34
37
Dust Bag (Pkt 5)
Foam Filter
Suction Hose
Filter Bag
Crevice Tool
Floor Tool
Extension Tubes
VWDA-001
234221001038
234221001035
234221001036
234221001033
234221001034
234221001037

IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from
the original date of purchase. If a product is defective it will
be replaced in accordance with the terms of this warranty.
Warranty excludes consumable parts, for example: Filters and dust
bag.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
0515
