Ozito VWD-1235PT User manual

Floor Tool & Crevice Tool
Hose & 3 x Extension Tubes
Pleated Filter, Dust Bag & Foam
Filter
2 x Castor Wheels, 2 x Wheels & 2
x Handle Screws
WET & DRY
VACUUM WITH
POWER TAKE OFF
1200W 35L
INSTRUCTION MANUAL
SPECIFICATIONS
Mains Voltage: 220–240V ~ 50-60Hz
Input Power: 1200W
Max. Suction Power: 180mbar
Air Flow: 32L/s
Tank Capacity: 35L
Power Outlet Max.: 1200W
Psum: 2400W
IP Rating: IPX4
Weight: 6.2kg
VWD-1235PT
STANDARD EQUIPMENT
IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from
the original date of purchase. If a product is defective it will
be replaced in accordance with the terms of this warranty.
Warranty excludes consumable parts, for example: valve adapters
and accessories.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
ozito.com.au
35L Wet & Dry Vacuum
0119

ONLINE MANUAL
Scan this QR Code with
your mobile device to take
you to the online manual.

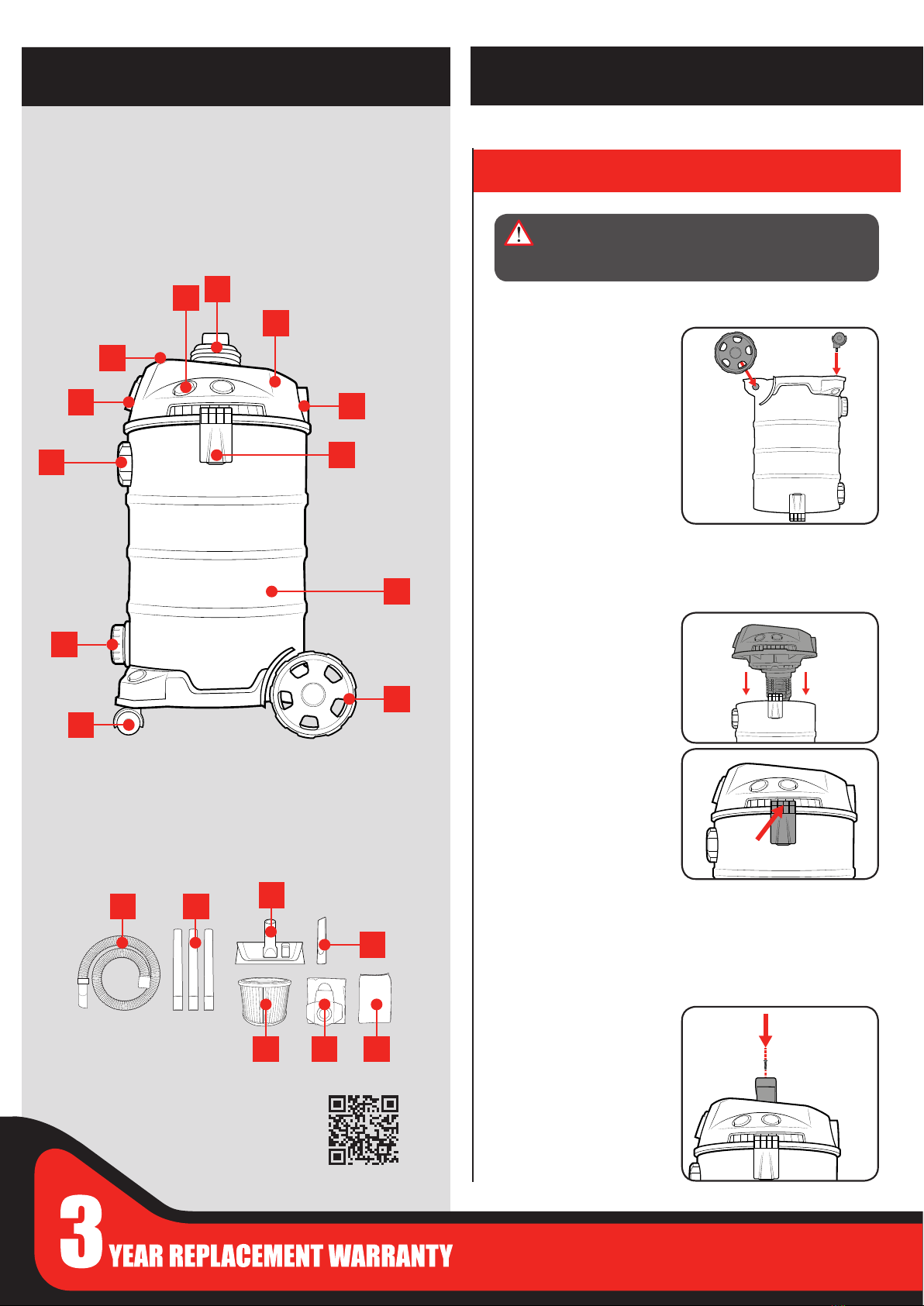

Assembling The Wheels & Castors
1. Turn the container upside
down.
2. Insert the castor assemblies
into the frame at the base
of the tank. Use rm hand
pressure.
3. Press the wheels into either
side of the frame at the base
of the tank.
Fitting the Motor
1. When tting the motor to the
tank, position it so that the
motor securing clips on the
tank align with the fastening
points on the motor.
2. Fasten the motor securing
clips to the motor, making
sure that they lock into place
correctly.
3. To remove the motor, open the motor securing clip and lift the
motor out of the tank.
Fitting the Handle
1. Align the base of the handle
with the grooves on the motor
housing.
2. Insert the two supplied screws
into the holes in the handle
and fasten in place with a
screwdriver (not supplied).
1. Accessory Mount
2. Cord Retaining Carry Handle
3. Motor
4. Blower Outlet
5. Motor Securing Clips
6. Tank
7. Wheels
8. Castors
9. Tank Drainage Outlet
10.Vacuum Inlet
11. Power Take-O󰀨 Socket
12. On/O󰀨/Power Take O󰀨 Switch
WET & DRY VACUUM
ACCESSORIES
KNOW YOUR PRODUCT
1. ASSEMBLY
SETUP & PREPARATION
13.Hose
14.Extension Tubes
15.Floor Tool
16.Crevice Tool
17.Foam Filter
18. Dust Bag
19.Pleated Filter
12
13 14 15
3
171819
10
11
9
8
12
4
7
16
6
5
WARNING! ENSURE THE TOOL IS TURNED OFF
AND DISCONNECTED FROM THE POWER SUPPLY
BEFORE PERFORMING ANY OF THE FOLLOWING
OPERATIONS.

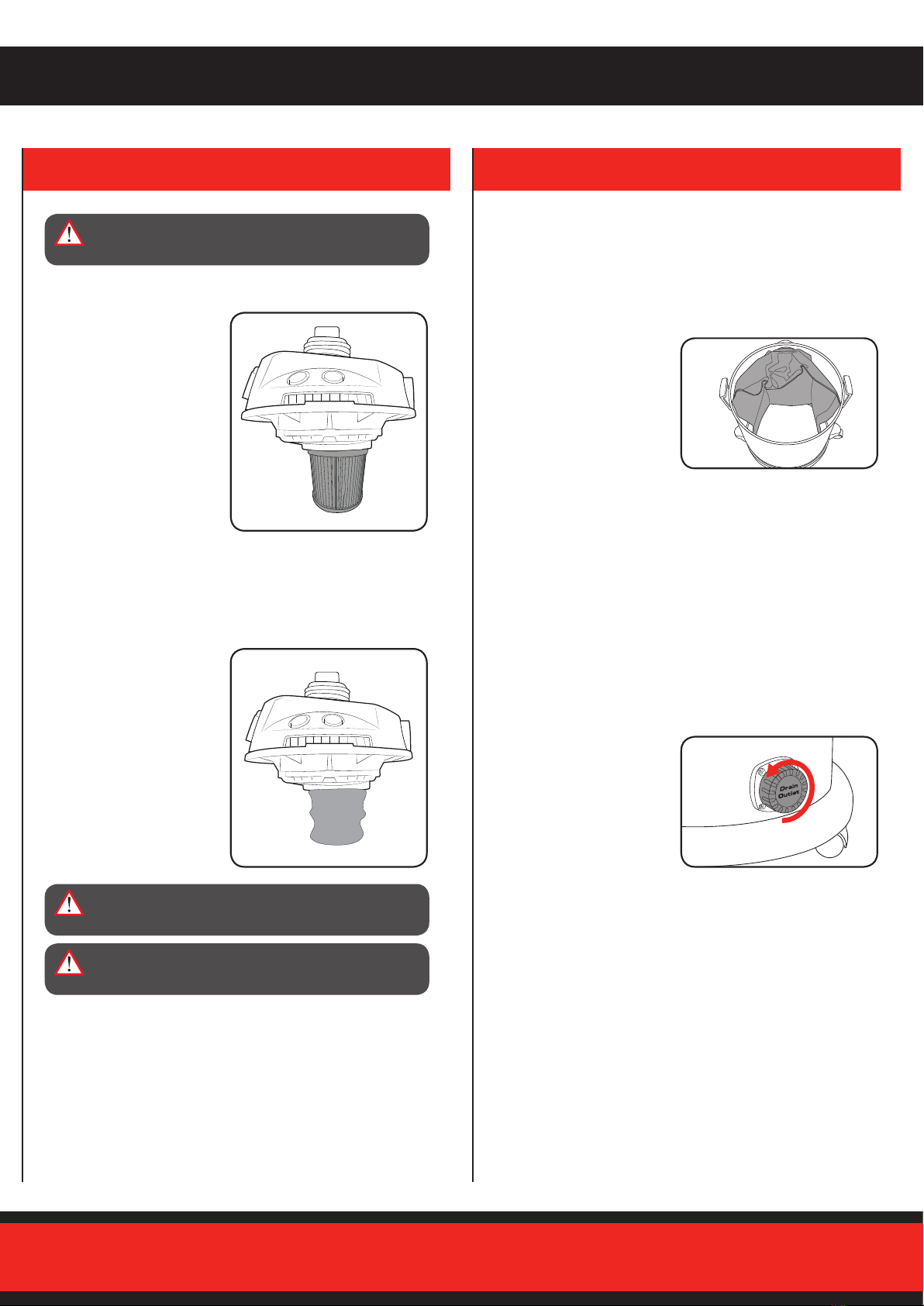

Fitting the Pleated Filter - Vacuuming Dry Matter
For dry vacuum cleaning always
use the pleated lter. Mount the
pleated lter, so that no air is
sucked through the lter cage
without being ltered.
1. Press the open end of the
pleated lter onto the lter
cage.
2. To remove the lter, grasp the
hard plastic base of the lter
and pull it o󰀨 the lter cage.
NOTE: Do not use the foam lter when vacuuming dry matter.
Fitting the Foam Filter - Vacuuming Liquid
For wet-vacuuming, slip the
supplied foam lter over the lter
cage.
NOTE: Do not use the pleated
lter and/or dust bag when
vacuuming liquid.
WARNING! SWITCH OFF THE EQUIPMENT IF LIQUID
OR FOAM IS EMITTED WITH THE EXHAUST AIR
WHEN WET VACUUM CLEANING.
WARNING! THE WET & DRY VACUUM IS NOT
SUITABLE FOR THE VACUUMING OF COMBUSTIBLE
LIQUIDS.
Fitting a Dust Bag - Vacuuming Dry Matter
For vacuuming ne, dry dirt it is recommended that you t a 35 litre
dust bag. This will ensure that the pleated lter does not clog up so
quickly and help maintain the vacuuming power. A dust bag is suitable
for dry vacuuming only. Using the dust bag makes it easier to dispose
of the dust that has been collected.
1. To attach, slip the dust bag
over the vacuum inlet on the
inside of the tank.
Draining Liquids From The Tank
Spills and puddles can be vacuumed directly into the tank with the
addition of the foam lter for easy clean up and disposal.
1. Hold the vacuum over a laundry sink or household drain.
Note: Only dispose of liquid waste into household sinks & drains
if safe to do so. Improper disposal of hazardous waste can cause
pollution and harm.
2. Turn the drain outlet cap
anti-clockwise to loosen and
remove it.
3. Allow any collected liquid in the tank to ow out. Tip the vacuum
slightly to allow any liquid at the bottom of the tank to ow out too.
4. Replace the drain outlet cap and rinse out the tank if necessary.
2. FILTER SELECTION 3. WASTE DISPOSAL
WARNING! NEVER USE THE WET AND DRY VACUUM
CLEANER WITHOUT A FILTER. ALWAYS ENSURE
THAT THE FILTERS ARE PERFECTLY SECURE!

Vacuuming or Blowing
1. Press the right side of the
switch to turn the unit on.
2. Press the switch to the centre position to turn the unit o󰀨.
WARNING! WHEN WET VACUUMING, THE
SAFETY FLOAT STOPS THE VACUUM SUCTION
AUTOMATICALLY WHEN THE MAXIMUM CAPACITY
IS REACHED. TURN OFF THE VACUUM & EMPTY
THE TANK BEFORE CONTINUING TO VACUUM.
Note: Moving the vacuum back and forth across certain ooring types
can cause a buildup of static on the tank, which may give you a shock
when you touch it. An anti static chain has been attached to the tank
to prevent this from happening.
Power Take O󰀨 Mode (Max. Supplied Power: 1200W)
The power take o󰀨 mode allows you to start the vacuum cleaner
automatically by turning the connected power tool on. When you
switch o󰀨 the power tool, the wet and dry vacuum cleaner switches
o󰀨 as well after a preset delay.
1. Connect the power cable
on your electric tool to the
Power Take O󰀨 Socket
and connect the suction
hose to the extractor
connector on your power
tool. Check that the
connections are secure
and airtight.
2. Set the switch on the wet and
dry vacuum cleaner to the
power take o󰀨 mode.
3. Follow normal operating procedures for the connected power tool.

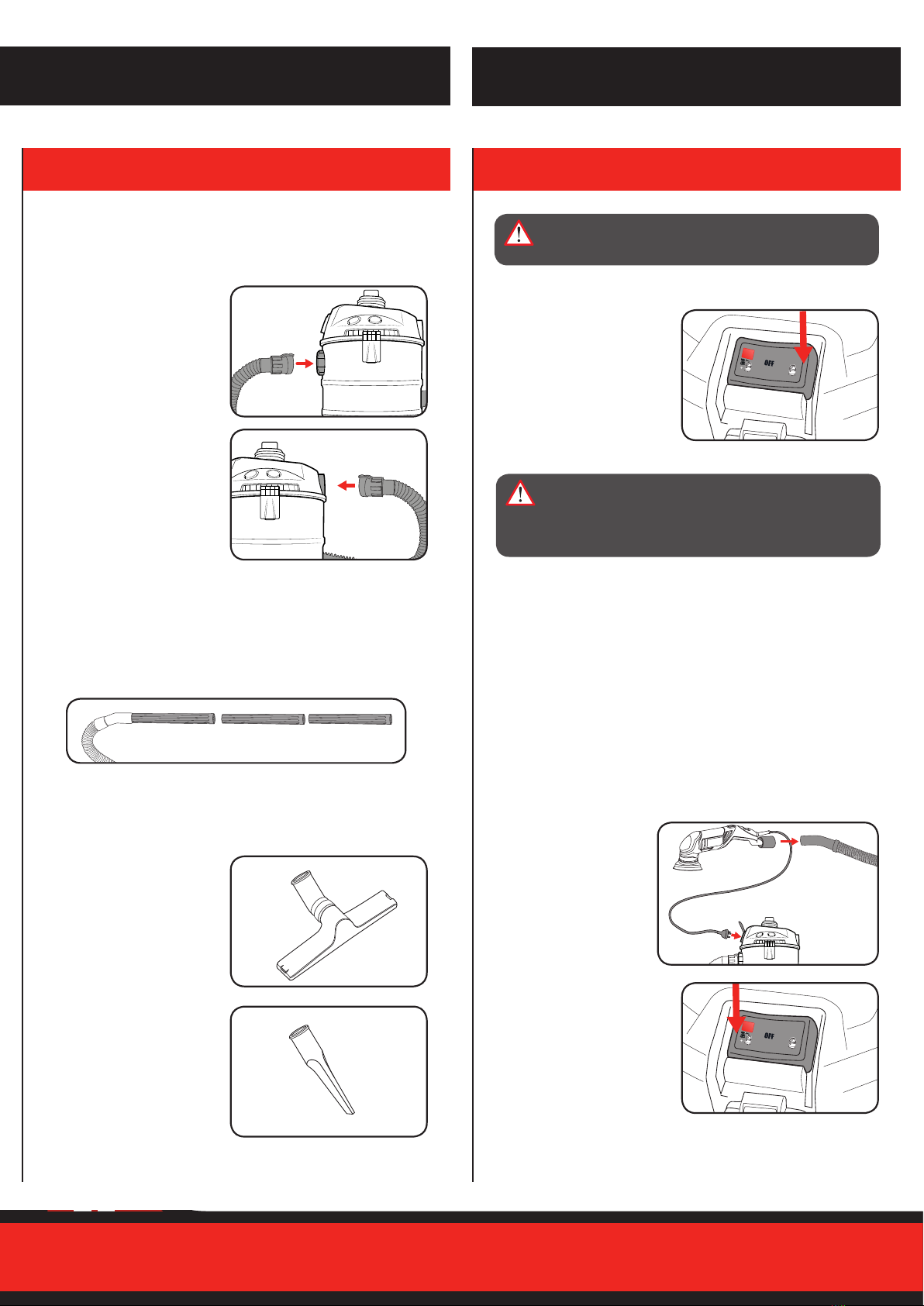

Hose Outlet Selection
Connect the suction hose to the appropriate outlet on the wet and dry
vacuum, depending on the application required:
Vacuuming
Connect the suction hose to the
vacuum inlet.
Blowing
Connect the suction hose to the
blow outlet.
Extension Tubes
1. The suction hose can be extended by attaching one or more
sections of the 3 part extension tubes.
Suction Tools
Floor Tool
The oor tool is for vacuuming
solids and liquids over medium
to large areas.
Crevice Tool
The crevice tool is designed for
cleaning crevices and edges.
VWD-1235PT
4. ATTACHING HOSES & NOZZLES 5. CONTROLS
OPERATION
POWER
TAKE OFF
VACUUM/
BLOWER
POWER
TAKE OFF
VACUUM/
BLOWER
WARNING! TO REDUCE THE RISK OF ELECTRICAL
SHOCK, A RESIDUAL CURRENT DEVICE (RATED
30mA OR LESS) SHOULD BE USED.

6. APPLIANCE CARE
MAINTENANCE DESCRIPTION OF SYMBOLS
Cleaning
• We recommend that you clean the appliance immediately after
you use it.
• Keep the safety devices, air vents, and the motor housing free
of dirt and dust as much as possible. Wipe the equipment with a
clean cloth.
• Clean the appliance regularly with a damp cloth and some soft
soap. Do not use cleaning agents or solvents; these may be
aggressive to the plastic parts in the appliance.
Cleaning The Motor Housing
Clean the appliance regularly with a damp cloth. Do not use cleaning
agents or solvents; these may be aggressive to the plastic parts in the
appliance.
Cleaning The Tank
The tank can be cleaned with a damp cloth and some soft soap or
under running water, depending on the amount of dirt.
Cleaning The Foam Filter
Clean the foam lter with a little soft soap under running water and
allow it to air-dry.
Storage
Ensure the Wet & Dry Vac has been fully emptied of any dry matter
or liquid before it is stored. Wrap the power cable around the cable
hooks. Keep all the accessories with the unit to avoid losing them.
Keep in a dry place out of reach of children.
Supply Cords
If the replacement of the supply cord is necessary, this has to be done
by a certied electrician in order to avoid a safety hazard.
Note: Ozito Industries will not be responsible for any damage or
injuries caused by the repair of the tool by an unauthorised person or
by mishandling of the tool.
WARNING! BEFORE CLEANING YOUR VACUUM
CLEANER OR CARRYING OUT ANY MAINTENANCE
PROCEDURE, MAKE SURE THAT IT IS
DISCONNECTED FROM THE POWER SUPPLY TO
PREVENT ACCIDENTAL STARTING.
VVolts Hz Hertz
~Alternating current WWatts
Litres L/s Litres per second
Ingress Protection from water
Read instruction manual Double Insulation
L
mbarIPX4 Pressure rating (millibar)
Warning Regulator Compliance Mark
Power tools that are no longer usable should not be
disposed of with household waste but in an environmentally
friendly way. Please recycle where facilities exist. Check
with your local council authority for recycling advice.
Recycling packaging reduces the need for landll and raw
materials. Reuse of recycled material decreases pollution in
the environment. Please recycle packaging where facilities
exist. Check with your local council authority for recycling
advice.
CARING FOR THE ENVIRONMENT
SPARE PARTS
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]

ELECTRICAL SAFETY
The appliance is not to be used by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction.
Young children should be supervised to ensure that they do not play with the appliance.
WARNING! When using the equipment, a few safety precautions must be observed
to avoid injuries
and damage. Please read the complete operating manual with due care. Keep this
manual in a safe place so that the information is available at all times. If you give the equipment
to any other person, give them these operating instructions as well.
We cannot accept any liability for damage or accidents which arise due to a failure to follow these
instructions and the safety information.
• Do not leave appliance unattended when plugged in. Unplug from outlet when not in use and
before servicing and cleaning.
• To avoid electric shock, do not expose to rain. Store indoors.
• Never use in the presence of explosive liquids, vapours or explosive dust – such as coal
or grain.
• Never pick up asbestos or asbestos dust.
• Wood dust and chips in a conned area can give rise to re or an explosion. Guard against
possible ignition sources.
• Do not pick up anything that is burning or smouldering – such as metal grinding dust, cigarette
ends, hot coals, matches or similar.
• The appliance is not intended for use by young children or inrm persons without supervision.
Young children should be supervised to ensure they do not play with the appliance.
• Use only manufacturer’s recommended attachments and consumables.
• Never modify the cleaner in any way - this is dangerous and will invalidate the warranty.
• Do not use cleaner without the lter in place.
• If motor sound becomes higher pitched always check for the following:
- Blocked hose or accessory.
- Blocked lter.
- Full container.
• Never try to move the cleaner by pulling with the mains lead.
• Always check that the lter is clear and not blocked. Keep all openings clear of any blockages.
• When lifting the unit, always lift it with the handle or under rim of bucket. Beware of excess
weight.
• Always switch the unit o󰀨 before changing attachments or connecting di󰀨erent power tools.
• Always disconnect equipment from the appliance when it is not in use.
• If the cordset is damaged have it repaired by an authorised service centre.
• The wet and dry vacuum cleaner is designed for wet and dry vacuuming using the
appropriate lter. The appliance is not suitable for the vacuuming of combustible,
explosive or harmful substances.
• The equipment is to be used only for its prescribed purpose. Any other use is deemed to
be a case of misuse. The user / operator and not the manufacturer will be liable for any
damage or injuries of any kind caused as a result of this.
WET & DRY VACUUM SAFETY WARNINGS
WARNING! When using mains-powered tools, basic safety precautions, including
the following, should always be followed to reduce risk of re, electric shock, personal
injury and material damage.
Read the whole manual carefully and make sure you know how to switch the tool o󰀨 in an emergency,
before operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
The electric motor has been designed for 230V and 240V only. Always check that the power supply
corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.
If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in order to
avoid a hazard.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the
extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead
not suitable for the power input of the tool or which is damaged or defective may result in a risk of re and
electric shock.
The power outlet for the compressor is recommended to be protected by a 30amp residual current device
GENERAL POWER TOOL SAFETY WARNINGS
WARNING! Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the warnings
refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will
reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase
the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the o󰀨-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your
nger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h. Do not let familiarity gained from frequent use of tools allow you to become complacent and
ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power
tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and o󰀨. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any
other condition that may a󰀨ect the power tool’s operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations di󰀨erent from those intended could result in a hazardous situation.
h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5. Service
a. Have your power tool serviced by a qualied repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
