Ozito VWD-1220U User manual

OZITO UK Unit 9 Stadium Court, Wirral International Business Park, Plantation Road, Bromborough, Wirral, CH62 3QG
All of our products undergo strict quality checks to ensure that they reach
you in perfect condition. In the unlikely event that your device develops a
fault, please contact our service department at the address shown on this
guarantee card. You can also contact us by telephone using the customer
service number shown. Please note the following terms under which
guarantee claims can be made:
1. These warranty terms regulate additional warranty services, which the
manufacturer mentioned below promises to buyers of its new products
in addition to their statutory guarantee claims are not affected by this
guarantee. Our guarantee is free of charge to you.
2. The warranty services only covers defects due to material or
manufacturing faults on a product which you have bought from the
manufacturer mentioned below are limited to either the rectication of said
defects on the product or the replacement of the product, whichever we
prefer.
Please note that our devices are not designed for use in commercial, trade
or professional applications. A guarantee contract will not be created if the
device has been used by commercial, trade or industrial business or has
been exposed to similar stresses during the guarantee period.
3. The following are not covered by our guarantee:
- Damage to the device caused by a failure to follow the assembly
instructions or due to incorrect installation, a failure to follow the operating
instructions (for example connecting it to an incorrect mains voltage or
current type) or a failure to follow the maintenance and safety instructions
or by exposing the device to abnormal environmental conditions or by lack
of care and maintenance.
- Damage to the device caused by abuse or incorrect use (for example
overloading the device or the use or unapproved tools or accessories),
ingress of foreign bodies into the device (such as sand, stones or dust,
transport damage), the use of force or damage caused by external forces
(for example by dropping it).
- Damage to the device or parts of the device caused by normal or natural
wear or tear or by normal use of the device.
4. Your Product is guaranteed for a period of 36 months from the original
date of purchase and is intended for DIY (Do It Yourself) use only. Warranty
excludes consumable parts. Guarantee claims should be submitted
before the end of the guarantee period within two weeks of the defect
being noticed. No guarantee claims will be accepted after the end of the
guarantee period. The original guarantee period remains applicable to the
device even if repairs are carried out or parts are replaced. In such cases,
the work performed or parts tted will not result in an extension of the
guarantee period, and no new guarantee will become active for the work
performed or parts tted. This also applies if an on-site service is used.
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST
RETURN THE PRODUCT TO THE PLACE OF PURCHASE WITH YOUR
REGISTER RECEIPT.
Please refer to the restrictions of this warranty concerning wearing parts,
consumables and missing parts as set out in the service information in
these operating instructions.
CUSTOMER SERVICE HELPLINE
GB: 0151 294 4488
IRL: 1850 882711
Ozito-diy.co.uk
WET & DRY
VACUUM
1250W 20L
ORIGINAL INSTRUCTIONS
SPECIFICATIONS
Input Power: 1250W
Suction Power Max.: 180 mbar
Air Flow: 68 l/s
Tank Capacity: 20 l
IP Rating: IP24
Product weight: 4.7 kg
VWD-1220U
WHAT’S IN THE BOX
WARRANTY
ozito-diy.co.uk
0416
Suction Hose Ø36mm x 1.5m
Extension Tubes x 3
Crevice Tool
Castors x 4
Adapter
Floor Tool
Foam
Filter
Dust Bag
Filter Bag

3
ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
VWD-1220U
1. Handle
2. Motor
3. Suction Hose
4. Extension Tubes
5. Filter Basket
6. Safety Float
7. On/Off Switch
8. Motor Securing Clips
9. Vacuum Inlet
10.Tank
11.Adapter
12.Blow Outlet
13.Castors
14.Floor Tool
WET & DRY VACUUM
ACCESSORIES

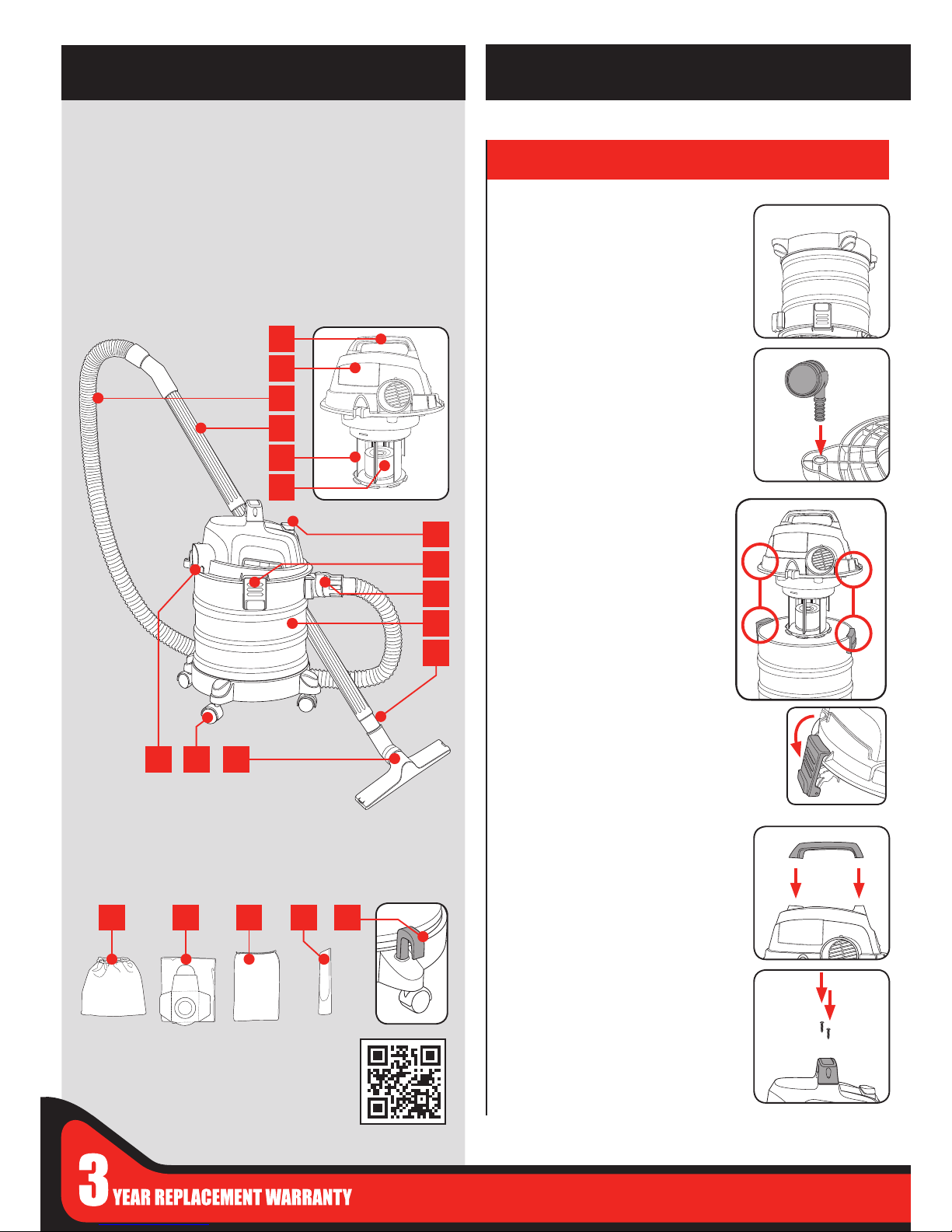

KNOW YOUR PRODUCT
1. ASSEMBLY
SETUP & PREPARATION
Assembling the Castors
1. Turn the container upside down.
2. Insert the castor assemblies into
the base of the tank.
Fitting the Motor
1. When tting the motor to the tank,
position it so that the motor securing
clips on the tank align with the
fastening points on the motor.
2. Fasten the motor securing clips to the
motor, making sure that they
lock into place correctly.
3. To remove the motor, open the
motor securing clip and lift the motor out
of the tank.
Fitting the Handle
1. Align the holes on either side of the
handle with the holes in the top side
of the motor.
2. Insert two screws (supplied) into the
handle and tighten with a screwdriver (not
supplied).
15.Filter Bag
16.Dust Bag
17.Foam Filter
18.Crevice Tool
19.Cable Hook
19
1
2
3
4
5
6
7
8
9
10
11
13 1412
15 16 17 18

Mounting the Cable Hook
1. Press the cable hook for the cable store
into the mount on the base of the unit.
2. After use, the power cable can
be conveniently wound onto the
cable hooks.

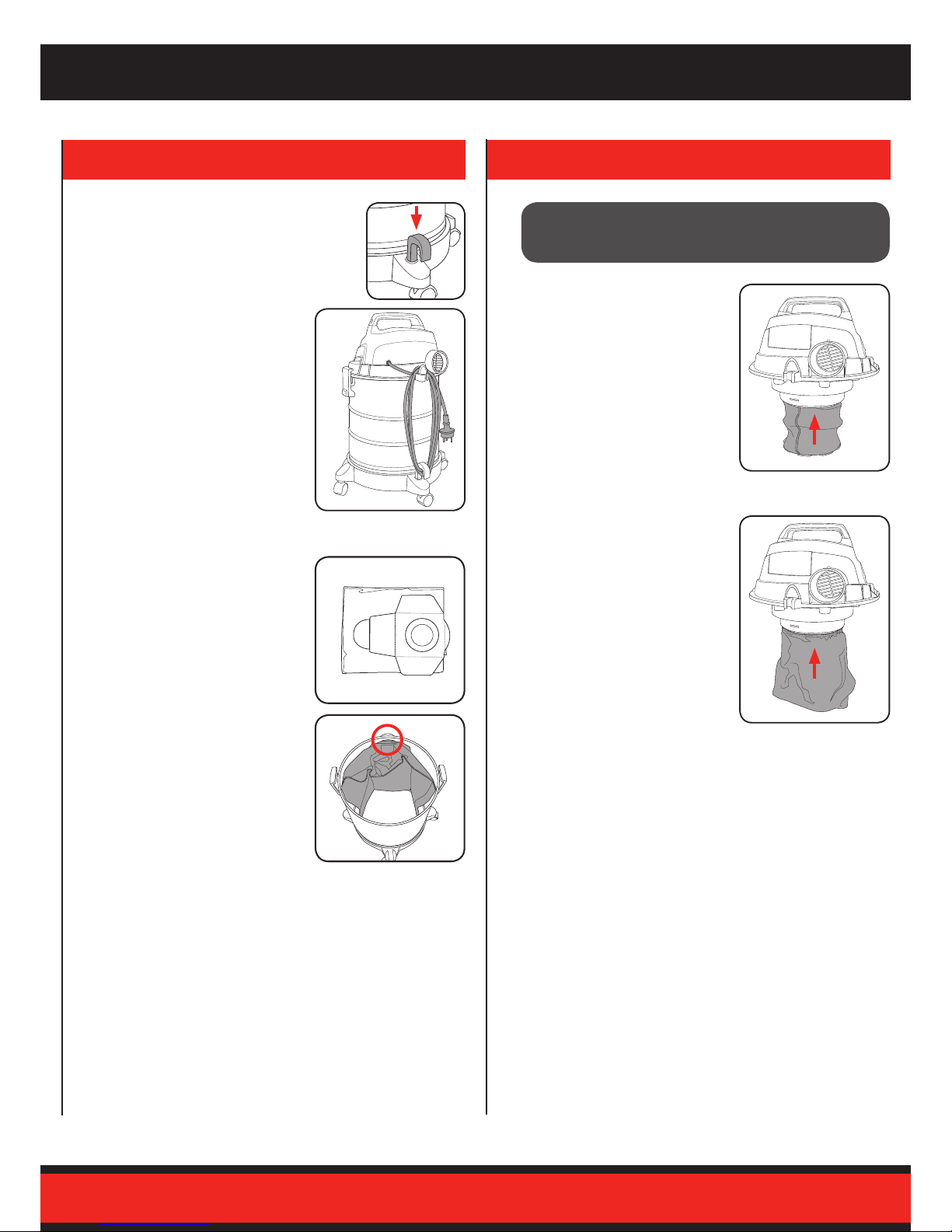

Fitting the Dust Bag
1. For vacuuming ne, dry dirt it is
recommended that you t the dust
bag. The dust bag is suitable for dry
vacuuming only. Using the dust bag
makes it easier to dispose of the
dust that has been collected.
2. To attach, slip the dust bag over
the vacuum inlet.
Fitting the Foam Filter -
Vacuuming Liquid
For wet-vacuuming, slip the supplied
foam lter over the lter basket.
NOTE: Do not use the lter bag and/or
dust bag when vacuuming liquid
Fitting the Filter Bag -
Vacuuming Dry Matter
For dry vacuum cleaning always use the
lter bag. Mount the lter bag, so that
no air is sucked through the lter cage
without being ltered.
NOTE: Do not use the foam lter when
vacuuming dry matter.
2. FITTING THE FILTER
IMPORTANT! NEVER USE THE WET AND DRY VACUUM
CLEANER WITHOUT A FILTER! ALWAYS ENSURE THAT
THE FILTERS ARE PERFECTLY SECURE!

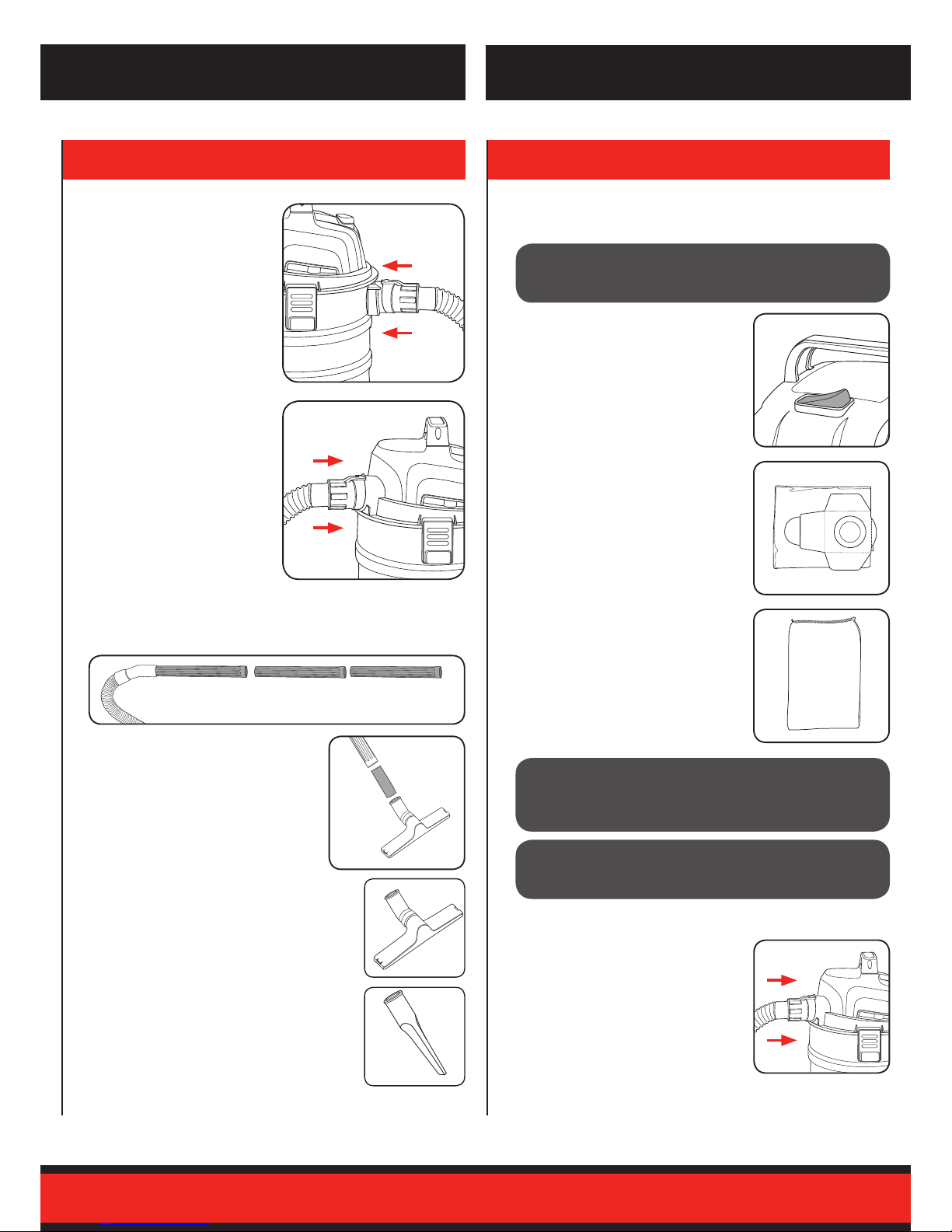

3. FITTING HOSES & NOZZLES 4. OPERATION
Connect the suction hose to the
corresponding connector on the
wet and dry vacuum, depending on
the application required:
Vacuuming
Connect the suction hose to
the vacuum inlet
Blowing
Connect the suction hose to
the blow outlet.
Extension Tube and Adaptor
1. The suction hose can be extended by attaching one or more sections
of the 3 part extension tubes.
2. The adapter must be inserted between
the extension tube and whichever of the
nozzles is required.
Suction Tools
Floor Tool
The oor tool is for vacuuming solids and liquids
over medium to large areas.
Crevice Tool
The crevice tool is designed for cleaning crevices
and edges.
OPERATION
IMPORTANT! SWITCH OFF THE EQUIPMENT IF LIQUID
OR FOAM IS EMITTED WITH THE EXHAUST AIR WHEN
WET VACUUM CLEANING.
IMPORTANT! WHEN WET VACUUMING, THE SAFETY
FLOAT TURNS OFF THE WET AND DRY VACUUM
CLEANER AUTOMATICALLY WHEN THE MAXIMUM
LEVEL IS REACHED.
IMPORTANT! THE WET AND DRY VACUUM CLEANER
IS NOT SUITABLE FOR THE VACUUMING OF
COMBUSTIBLE LIQUIDS.
VWD-1220U
On/Off Switch
Switch position 0: OFF
Switch position I: ON
Dry Vacuuming
Use the dust bag and the lter bag for dry
vacuuming (see 2. Fitting the Filter).
Check that the lter is securely tted at all
times.
Wet Vacuuming
For wet-vacuuming, use the foam lter
(see 2. Fitting the Filter).
Check that the lter is securely tted
at all times.
NOTE: The tank will collect 12 Litre max of
uid and the oat switch will turn off the vac.
Blowing
Connect the suction hose to the blow outlet
on the wet and dry vacuum cleaner.
This vacuum must be used with a residual current device
with a rated residual current of 30mA or less.

Cleaning
Keep all safety devices, air vents and the motor housing free
of dirt and dust as far as possible.
We recommend that you clean the equipment immediately after
you use it.
Cleaning the motor housing
Clean the appliance regularly with a damp cloth and some soft soap.
Do not use cleaning agents or solvents; these may be aggressive to the
plastic parts in the appliance.
Cleaning the tank
The tank can be cleaned with a damp cloth and some soft soap or under
running water, depending on the amount of dirt.
Cleaning the foam lter
Clean the foam lter with a little soft soap under running water and allow
it to air-dry.
Storing
Ensure the Wet & Dry Vac has been fully emptied of any dry matter or
liquid before it is stored.
Wrap the power cable around the cable hooks.
Keep all the accessories with the unit to avoid losing them.
Keep in a dry place out of reach of children.
MAINTENANCE DESCRIPTION OF SYMBOLS
SPARE PARTS
5. CLEANING & STORING
VVolts Hz Hertz
~Alternating current WWatts
ILitres Double insulated
l/s Litres per second
Read instruction manual Warning
IP24 Ingress protection from
water mbar Pressure rating (millibar)
IMPORTANT! BEFORE CLEANING YOUR WET & DRY VAC
OR CARRYING OUT ANY MAINTENANCE PROCEDURE,
MAKE SURE THAT THE MOTOR IS OFF AND THE VAC
DISCONNECTED FROM THE POWER SUPPLY TO
PREVENT ACCIDENTAL STARTING.
Spare parts can be ordered from the Special Orders
Desk at your local Bunnings Warehouse or Homebase
store.
For further information, or any parts visit
www.ozito-diy.co.uk or contact Ozito Customer Service:
Great Britain: 0151 294 4488
Ireland: 1850 882711
E-mail: [e-mail]

IMPORTANT!
When using the equipment, a few safety precautions must be observed to avoid injuries
and damage. Please read the complete operating manual with due care. Keep this manual
in a safe place so that the information is available at all times. If you give the equipment to any other
person, give them these operating instructions as well.
We cannot accept any liability for damage or accidents which arise due to a failure to follow these
instructions and the safety information.
• Do not leave appliance unattended when plugged in. Unplug from outlet when not in use and
before servicing and cleaning.
• To avoid electric shock, do not expose to rain. Store indoors.
• Never use in the presence of explosive liquids, vapours or explosive dust – such as coal
or grain.
• Never pick up asbestos or asbestos dust.
• Wood dust and chips in a conned area can give rise to re or an explosion. Guard against
possible ignition sources.
• Do not pick up anything that is burning or smouldering – such as metal grinding dust, cigarette
ends, hot coals, matches or similar.
• The appliance is not intended for use by young children or inrm persons without supervision.
Young children should be supervised to ensure they do not play with the appliance.
• Use only manufacturer’s recommended attachments and consumables.
• Never modify the cleaner in any way - this is dangerous and will invalidate the warranty.
• Do not use cleaner without the lter in place.
• If motor sound becomes higher pitched always check for the following:
- Blocked hose or accessory.
- Blocked lter.
- Full container.
• Never try to move the cleaner by pulling with the mains lead.
• Always check that the lter is clear and not blocked. Keep all openings clear of any blockages.
• When lifting the unit, always lift it with the handle or under rim of bucket. Beware of excess
weight.
• Always switch the unit off before changing attachments or connecting different power tools.
• Always disconnect equipment from the appliance when it is not in use.
• If the cordset is damaged have it repaired by an authorised service centre.
• This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• The wet and dry vacuum cleaner is designed for wet and dry vacuuming using the appropriate
lter. The appliance is not suitable for the vacuuming of combustible, explosive or harmful
substances.
• The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a
case of misuse. The user / operator and not the manufacturer will be liable for any damage or
injuries of any kind caused as a result of this.
WET & DRY VACUUM SAFETY WARNINGS
WARNING! When using mains-powered tools, basic safety precautions, including
the following, should always be followed to reduce risk of re, electric shock,
personal injury and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an
emergency, before operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
Before you connect the appliance to the mains supply make sure that the data on the rating plate
are identical to the mains data. The appliance may only be connected to a shockproof socket.
This tool is double insulated therefore no earth wire is required.
If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in
order to avoid a hazard.
Note: Double insulation does not take the place of normal safety precautions when operating this
tool. The insulation system is for added protection against injury resulting from a possible electrical
insulation failure within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use,
inspect the extension lead for signs of damage, wear and ageing. Replace the extension lead if
damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension
lead not suitable for the power input of the tool or which is damaged or defective may result in a
risk of re and electric shock.
WARNING! Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the
warnings refers to your mains-operated (corded) power tool or battery-operated (cordless)
power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of
ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or
fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause
you to lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools. Unmodied plugs and
matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges
and refrigerators. There is an increased risk of electric shock if your body is earthed or
grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device
(RCD) protected supply with a rated residual current of 30 mA or less. Use of an RCD
reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use a power tool while you are tired or under the inuence of drugs, alcohol
or medication.
A moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting
to power source and/or battery pack, picking up or carrying the tool. Carrying power
tools with your nger on the switch or energising power tools that have the switch on invites
accidents.
d. Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control
of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities,
ensure these are connected and properly used. Use of dust collection can reduce dust-
related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct
power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that
cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool
before making any adjustments, changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar
with the power tool or these instructions to operate the power tool. Power tools are
dangerous in the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of
parts and any other condition that may affect the power tool’s operation. If damaged,
have the power tool repaired before use. Many accidents are caused by poorly maintained
power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the
power tool for operations different from those intended could result in a hazardous situation.
5. Service
a. Have your power tool serviced by a qualied repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
b. If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualied persons in order to avoid a hazard.
GENERAL POWER TOOL SAFETY WARNINGS
ELECTRICAL SAFETY
VVolts Hz Hertz
~Alternating current WWatts
ILitres Double insulated
l/s Litres per second
Read instruction manual Warning
IP24 Ingress protection from
water mbar Pressure rating (millibar)

size 445 x 210 mm
Danger! - Read the operating instructions to re-
duce the risk of inquiry
The reprinting or reproduction by any other me-
ans, in whole or in part, of documentation and
papers accompanying products is permitted only
with the express consent of the iSC GmbH.
Subject to technical changes
VWD-1220U
GB Additonal operating & safety instructions Wet & Dry Vacuum
Service information
We have competent service partners in all countries named on the guarantee certicate whose contact
details can also be found on the guarantee certicate. These partners will help you with all service re-
quests such as repairs, spare and wearing part orders or the purchase of consumables.
Please note that the following parts of this product are subject to normal or natural wear and that the
following parts are therefore also required for use as consumables.
Category Example
Defect with regard to material or construction
Wear parts* Combination nozzle, crevice nozzle, upholstery
nozzle, electric tool adapter, etc.
Consumables* Pleated lter, foam lter, dirt bag, additional lter,
etc.
Missing parts
* Not necessarily included in the scope of delivery!
In the eect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Plea-
se ensure that you provide a precise description of the problem and answer the following questions in all
cases:
• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.
Yang/Product-ManagementWeichselgartner/General-Manager
- 135 -
explains the following conformity according to EU directives and norms for
the following product
Wet & Dry Vacuum VWD-1220U (Ozito)
2014/29/EU
X2005/32/EC_2009/125/EC
2014/35/EU
2006/28/EC
X2014/30/EU
2014/32/EU
2014/53/EC
2014/68/EU
90/396/EC_2009/142/EC
89/686/EC_96/58/EC
X2011/65/EU
2006/42/EC
Annex IV
Noti ed Body:
Noti ed Body No.:
Reg. No.:
2000/14/EC_2005/88/EC
Annex V
Annex VI
Noise: measured LWA = dB (A); guaranteed LWA = dB (A)
P = KW; L/Ø = cm
Noti ed Body:
2004/26/EC
Emission No.:
Standard references: EN 60335-1; EN 60335-2-2; EN 62233;
EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3
Landau/Isar, den 09.05.2016
First CE: 16 Archive-File/Record: NAPR014238
Art.-No.: 23.422.12 I.-No.: 11016 Documents registrar: Robert Gerhard
Subject to change without notice Wiesenweg 22, D-94405 Landau/Isar
ISC GmbH · Eschenstraße 6 · D-94405 Landau/Isar
Declaration of conrmity
Beiblatt_VWD_1220U.indd 1 11.05.16 15:59

size 445 x 210 mm
Items supplied
Please check that the article is complete as
specied in the scope of delivery. If parts are
missing, please contact our service center or the
sales outlet where you made your purchase at
the latest within 5 working days after purchasing
the product and upon presentation of a valid bill
of purchase. Also, refer to the warranty table in
the service information at the end of the operating
instructions.
• Open the packaging and take out the equip-
ment with care.
• Remove the packaging material and any
packaging and/or transportation braces (if
available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for
transport damage.
• If possible, please keep the packaging until
the end of the guarantee period.
Danger!
The equipment and packaging material are
not toys. Do not let children play with plastic
bags, foils or small parts. There is a danger of
swallowing or suocating!
Proper use
The wet and dry vacuum cleaner is designed
for wet and dry vacuuming using the approp-
riate lter. The appliance is not suitable for the
vacuuming of combustible, explosive or harmful
substances.
The equipment is to be used only for its prescri-
bed purpose. Any other use is deemed to be a
case of misuse. The user / operator and not the
manufacturer will be liable for any damage or inju-
ries of any kind caused as a result of this.
Please note that our equipment has not been de-
signed for use in commercial, trade or industrial
applications. Our warranty will be voided if the
machine is used in commercial, trade or industrial
businesses or for equivalent purposes.
Technical data
Mains voltage: ........................220-240 V ~ 50 Hz
Power input: ........................................... 1.250 W
Container volume: ..........................................20 l
Weight: .......................................................4.7 kg
Protection class: ...........................................II / &
The specied vibration value was established in
accordance with a standardized testing method. It
may change according to how the electric equip-
ment is used and may exceed the specied value
in exceptional circumstances.
The specied vibration value can be used to
compare the equipment with other electric power
tools.
The specied vibration value can be used for initi-
al assessment of a harmful eect.
Keep the noise emissions and vibrations to a
minimum.
• Only use appliances which are in perfect wor-
king order.
• Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
• Do not overload the appliance.
• Have the appliance serviced whenever
necessary.
• Switch the appliance off when it is not in use.
• Wear protective gloves.
Caution!
Residual risks
Even if you use this electric power tool in ac-
cordance with instructions, certain residual
risks cannot be rules out. The following ha-
zards may arise in connection with the equip-
ment’s construction and layout:
1. Lung damage if no suitable protective dust
mask is used.
2. Damage to hearing if no suitable ear protecti-
on is used.
3. Health damage caused by hand-arm vibra-
tions if the equipment is used over a pro-
longed period or is not properly guided and
maintained.
For EU countries only
Never place any electric power tools in your
household refuse.
To comply with European Directive 2012/19/EC
concerning old electric and electronic equipment
and its implementation in national laws, old elec-
tric power tools have to be separated from other
waste and disposed of in an environment-friendly
fashion, e.g. by taking to a recycling depot.
Recycling alternative to the return request:
As an alternative to returning the equipment to
the manufacturer, the owner of the electrical
equipment must make sure that the equipment
is properly disposed of if he no longer wants to
keep the equipment.The old equipment can be
returned to a suitable collection point that will
dispose of the equipment in accordance with the
national recycling and waste disposal regulations.
This does not apply to any accessories or aids
without electrical components supplied with the
old equipment.
Beiblatt_VWD_1220U.indd 2 11.05.16 15:59
