P1 P70DKH User manual

P70DKH, P125DKH, P215DKH
Diesel (Kerosene) Forced Air Heater
User Manual
FOR YOUR SAFETY
You must read and understand
this manual before use.
Keep this manual for future
reference.

2

Contents
3
Contents
Introduction.......................................................4
Safety Information........................................5-17
Features.....................................................18-19
Unboxing.........................................................20
Assembly....................................................21-23
Operation....................................................24-25
Starting Procedure...........................................26
Stopping Procedure.........................................27
Storage.......................................................28-29
Maintenance...............................................30-35
Wiring Diagrams..............................................36
Troubleshooting...............................................37
Technical Data............................................38-39
Recycling & Disposal.......................................40
Useful Information............................................41
Contact Us.......................................................42
Declaration Of Conformity...............................43

19
4
Introduction
Thank You For Purchasing Your P1PE Product
We work very hard to give all of our customers the best possible service. If you have any
problems, before leaving negative feedback, please contact us to give us a chance to resolve
the issue. We would be delighted if you left us positive feedback! Thank you for purchasing this
product.
Important!
This manual has been produced by P1 Power Equipment and should be kept with the product.
Please read and understand these instructions before you use your product. Failure to do this
may result in personal injury or damage to the product.
The safety precautions and warnings are to ensure your safety and protect you from harm or
damage to the product.
The information contained in this manual was accurate at the time of production, however
P1 Power Equipment may make modifications to the product without notification.
WARNING : READ THE INSTRUCTION BOOKLET THOROUGHLY BEFORE
USING THE MACHINE. Keep for future reference and pass it on if the machine is
loaned or sold to another user.
!

5
Safety Information
Symbols On The Machine
We have provided safety messages in this manual and on the machine. This information alerts
you to potential hazards that could hurt you or others. Please read these messages carefully.
However, we may not have listed all of the possible hazards, you must also use your own
judgment.
IMPORTANT
Please read this instruction
manual carefully, especially the
safety warnings marked with the
symbol.
CE SYMBOL
This product complies with the
applicable European directives and
an evaluation method of conformity
for these directives was done.
DANGER! Indicated an immediately hazardous situation which, if not avoided, WILL result in
death or serious injury.
!
WARNING! Indicated a potentially hazardous situation which, if not avoided, COULD result in
death or serious injury.
!
CAUTION! Indicated a potentially hazardous situation which, if not avoided, MAY result in
minor or moderate injury.
!

19
6
Safety Information
Understand Your Machine
!
•WARNING! You must read these instructions carefully before operating the machine. Make
sure that you are familiar with the controls and properly operate the machine. You must learn how
to stop the machine quickly. If you do not follow the warnings and instructions, it may result in fire
and/or serious injury. Make sure to save all warnings and instructions for future reference.
• Read this manual and labels affixed to the machine to understand its limitations and potential
hazards.
• Be thoroughly familiar with the controls and their proper operation. Know how to stop the
machine and disengage the controls quickly.
• If the unit is to be used by someone other than original purchaser, or is to be loaned, rented, or
sold, always provide this manual and any needed safety training before operation. The user can
prevent and is responsible for accidents or injuries that may occur to themselves, to other
people, or to property.
• Do not force the machine beyond its limits. Use the correct machine for your application.
• Know how to stop the machine quickly in case of emergency. Understand the use of all
controls.
• ALL MAINTENANCE other than that listed in this manual, should be carried out by
professionally trained and certified personnel.
Personal Safety
!
• WARNING! Never allow children or people unfamiliar with these instructions to use the
product. Local regulations can restrict the minimum age of the operator.
• Keep children, pets, and other people not using the unit away from the work area. Be alert and
shut off the unit if anyone enters work area. Keep children under the watchful care of a
responsible adult.
• Stay alert, watch what you are doing and use common sense when operating the machine.
Never operate the machine when unwell or tired, or if you have taken alcohol, medicine, drugs or
any substances which may slow your reflexes and compromise judgment. A moment of
inattention while operating the machine may result in serious personal injury.
• Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when operating
or repairing the machine. Always wear anti-slip and resistant work footwear and long trousers
while using the machine. Do not use the machine when barefoot, wearing sandals or similar
lightweight footwear. Do not wear chains, bracelets or clothing that is loose fitting or hanging
ties or cords. Tie long hair back. Always wear protective earplugs. Loose clothes, jewellery, or
long hair can be caught in moving parts. Protect eyes, face, and head from objects that may be
thrown from the unit. Always wear safety goggles or safety glasses with side shields when
operating.

7
Safety Information
• Always keep hands and feet away from all moving parts during operation. Moving parts can cut
or crush body parts.
• Always keep hands and feet away from all pinch points.
• Do not touch parts that might be hot from operation. Allow parts to cool before attempting to
maintain, adjust, or service.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of
the machine in unexpected situations. Extending your body too far can result in a loss of balance
and you may fall which will result in injury.
• Never place any part of your body where it would be in danger if movement should occur
during assembly, installation, and operation, maintenance, repairing or moving.
• Start the machine carefully according to instructions and with feet away from the moving parts.
• Do not place your hands or feet near or under rotating parts. Keep away from any discharge
openings.
• Keep in mind that the operator or user is responsible for accidents, hazards or unexpected
events involving the machine that occur to other people or their property. It is the responsibility of
the user to assess the potential risk of the area where work is being carried out. The operator or
user must take all necessary precautions to ensure their own safety and that of others, especially
on slopes or rough, slippery and unstable ground.
Inspect Your Machine
• Check your machine before starting it. Keep guards in place and in working order. Make
sure all nuts, bolts, etc., are securely tightened.
• You must check the general condition of the machine before use.
• Never operate the machine when it is in need of repair or is in poor mechanical condition.
Replace damaged, missing, or failed parts before using it. Check for fuel leaks. Keep the machine
in safe working condition.
• Do not use the machine if the switch does not turn off the machine when running. Any machine
that can’t be controlled with the switch is dangerous and must be replaced.
• Regularly check to see that keys and adjusting wrenches are removed from the machine area
before starting it. A wrench or a key that is left attached to a rotating part of the machine may
result in personal injury.
• If the machine should start to vibrate abnormally, stop the engine and check immediately for the
cause. Vibration is generally a warning sign of trouble.
!

19
8
Safety Information
Work Area
•Make sure you thoroughly inspect the entire work area. Any liquid spilled on the floor may result
in you slipping.
•You must only work in daylight or with good artificial light in good visibility conditions. Keep
people, children and animals away from the working area.
• Operate on flat, level ground.
• DO NOT work on wet ground. If there has been heavy rain on the working site, wait until the
ground has dried up.
• Never park the machine in a place with unstable ground which could give way.
• You must be careful near ravines, ditches or embankments.
• Do not work in the rain or when there is a thunderstorm or lightning risk. If there is bad weather
conditions, do not use the machine.
!
• Avoid accidental starting. Be sure the machine is off before transporting the machine or
performing any maintenance or service on the unit. Transporting or performing maintenance or
service on a machine with its switch on invites accidents.
• Do not tamper with or disable safety systems.
• Only use manufacturer-recommended attachments.
• Before using, always visually inspect to see that the tools are not worn out or damaged.
Replace worn out or damaged elements and bolts in set to preserve balance.
• Keep all nuts, bolts and screws tight to ensure the equipment is in safe working condition.
• Keep the machine in good operating condition. Operating the machine in poor or questionable
condition could result in serious injury.
• Be sure all safety devices are in working order and warning labels are in place. These items are
installed for your safety.
Inspect Your Machine (Continued)
!

9
Safety Information
During Use
• Walk, never run with the machine. Be very careful when pulling the machine toward you. You
must look behind you to make sure there are no obstacles before and during operations in
reverse gear (if applicable). Do not allow the machine to pull you along, you must walk and never
run.
• WARNING! If something breaks or an accident happens whilst working, you must turn off the
machine immediately and move the machine away to prevent further damage. If an accident
happens with injuries or third parties are injured, carry out the first aid measures most suitable
for the situation immediately and contact the medical authorities for any necessary health care.
Carefully remove any debris that might cause damage or harm persons or animals should it not
be seen.
• Do not carry passengers.
• Always turn off the machine and ensure that all moving parts have come to a complete stop
before making any repairs, adjustments, or inspections.
!
WARNING! Risk on indoor air pollution!
!
• Use this heater only in well ventilated areas. Provide at least a three square foot (2800sq cm)
opening of outside air for every 29kW/hr or heater rating.
Minimum clearance from combustibles:
P70DKH P125DKH P215DKH
Top 125cm 125cm 125cm
Side 125cm 125cm 125cm
Front 250cm 250cm 250cm
WARNING! Risk of burns / fire / explosion!
!
• NEVER use fuels such as gasoline, benzene paint thinners, or other oil compounds in this
heater (RISK OF FIRE OR EXPLOSION).
• NEVER refill the heater’s fuel tank while heater is operating or still hot. This heater is
EXTREMELY HOT while operating.
• Keep all combustible materials away from this heater.
• NEVER block air inlet or air outlet of the heater.
• NEVER use duct work in front or at rear of heater.
• NEVER move or handle heater while still hot.
• NEVER transport heater with fuel in its tank.
• If equipped with a thermostat, the heater may start at any time.
• ALWAYS locate heater on a stable and level surface.
• ALWAYS keep children and animals away from the heater.
• Bulk fuel storage should be a minimum of 762cm from heaters, torches, portable generators
or other sources of ignition. All fuel storage should be in accordance with federal, state, or local
authorities have jurisdiction.
• NEVER use this heater in living or sleeping areas.
• NEVER use this heater where flammable vapours may be present.

19
10
Safety Information
WARNING! Risk of electric shock!
!
• Use only the electrical power (voltage and frequency) specified on the model plate of the heater.
Use only a local correct plug, grounded outlet and extension cord.
• ALWAYS install the heater so that it is not directly exposed to water spray, rain, dripping water,
or wind.
• ALWAYS unplug the heater when not in use.
Electrical Safety
WARNING! It is the responsibility of the owner to check this electrical product before use to
ensure it is safe. You must inspect power cables, plugs, sockets, etc for signs of wear or
damage. You must ensure this risk of electric shock is minimised by the installation of
appropriate safety devices. A residual current circuit breaker (RCCB) should be incorporated in
the main distribution board. We also recommend a residual current device is used (RCD). An RCD
is particularly important for mobile devices that are connected to a supply without an RCCB. Any
fault rectification or electrical work including the connection of a plug must be carried out by a
qualified electrician.
You must also comply with electrical safety requirements including the Electricity at Work Act
1989 which requires portable electrical appliances used on business premises be PAT tested
annually. The Health & Safety at Work Act 1974 places responsibility for safe condition of
electrical appliances upon owners. Power cables and plugs should always be regularly inspected
for safety. If in doubt about electrical safety, you must consult a qualified electrician.
!
ELECTRICITY CAN KILL - NEVER WORK ON LIVE/ENERGISED EQUIPMENT.
DANGER!
• Prior to carrying out any maintenance work you MUST identify electrical isolation methods and
isolate all electrical supplies.
• Prior to use and with all electrical supplies isolated, you MUST check all electrical cables, plugs
and connectors for the following;
- Are intact and have no signs of damage, to include but not limited to bare wires, chaffing, cuts
and loose wiring.
- If there are any signs of damage, the damaged item MUST be taken out of service until the
damage has been repaired by an electrically competent person.
- All trailing cables should be routed so as not to cause any kind of trip hazard.
- NEVER work on or near electricity with wet hands, wet clothing and wet gloves.

11
Safety Information
Carbon Monoxide
!
CARBON MONOXIDE IS A COLOURLESS, ODOURLESS GAS. INHALING THIS GAS CAN
CAUSE DEATH OR SERIOUS LONG-TERM HEALTH PROBLEMS SUCH AS BRAIN DAMAGE.
Never operate the engine in a confined space where dangerous carbon monoxide fumes can
develop. All ignition operations have to be effected in an open or well-ventilated area. Always
remember that exhaust fumes are toxic.
The symptoms of carbon monoxide poisoning can include but are not limited to the following;
Headaches, dizziness, nausea, breathlessness, collapsing or loss of consciousness.
Carbon monoxide poisoning symptoms are similar to flu, food poisoning, viral infections and
simply tiredness. It is quite common for people to mistake this very dangerous poisoning for
something else.
To avoid carbon monoxide poisoning DO NOT use Petrol/Diesel powered equipment inside any
of the following; Home, garage, tent, camper van, mobile home, caravan or boat. DO NOT use
in an enclosed area or moving vehicle. This is not exhaustive and if you are in any doubt contact
your dealer.
If you think you have or someone around you has been affected by carbon monoxide poisoning;
Get them fresh air immediately, by leaving the affected area or by opening doors and windows. If
safe and practical to do so make sure that the machine is turned off. DO NOT enter a room you
suspect of having carbon monoxide present – instead call the emergency services.
Contact a Doctor immediately or go to Hospital – let them know that you suspect carbon
monoxide poisoning.
!
Engine exhaust fumes contain Carbon Monoxide. This is a poisonous gas and can kill in
minutes. NEVER use inside a building or in an area with poor ventilation. NEVER use inside
a confined space, such as but not limited to a house, garage, vehicle, boat or tent. ONLY
use outside and far away from windows, doors and vents.
DANGER!

19
12
Safety Information
Spilled Fuel
• If you have spilled fuel, make sure you do not attempt to ignite the engine but move the
machine away from the area of spilled fuel and avoid creating any source of ignition until the fuel
has evaporated and fuel vapours have dissipated.
• When fuel is spilled on yourself or your clothes, wash your skin and change clothes
immediately.
• ALWAYS clean up spills promptly using absorbent granules and a lidded bin.
Fuel Safety
!
CAUTION! ALL FUELS ARE HIGHLY FLAMMABLE AND PETROL VAPOUR IS
EXPLOSIVE. TAKE EXTREME CARE WHEN HANDLING FUEL. KEEP FUEL OUT OF
REACH OF CHILDREN.
General Safety
• Do not smoke each time fuel is handled.
• ALWAYS avoid inhaling fumes.
• ALWAYS carry fuel in the correct and clearly marked container.
• ALWAYS wear correct, suitable and fit for purpose Personal Protective Equipment (PPE),
suggested items are but not limited to safety gloves and overalls.
• To avoid sparking or arcing, keep grounded conductive objects – such as tools – away from
exposed, live electrical parts and connections. These events could ignite fumes or vapours.
• Do not operate the machine with known leaks in the fuel system.
• Fire hazard - keep fuel away from all sources of ignition for example heaters, lamps, sparks
from grinding or welding.
• DO NOT carry out hot work on tanks that have contained fuel.
• ALWAYS keep the work area tidy.
• ALWAYS dispose of waste fuels correctly.
• Serious personal injury can occur when petrol is spilled on yourself or your clothes. Rinse your
skin and change your clothes immediately.
General Safety

13
Safety Information
• ALWAYS fuel and de-fuel in a well ventilated area outside of buildings. Use a funnel to add fuel,
only outdoors. Do not smoke during this and each time fuel is handled.
• Add fuel before igniting the engine, never remove the fuel tank cap or add fuel whilst the engine
is running or when it is hot.
• When de-fueling ALWAYS use a proper fuel retriever.
• Never overfill the fuel tank. Engine heat can cause fuel to expand, never fill the tank to more
than 1/2” below the bottom of the filler neck. This will provide space for fuel expansion.
• When refilling or draining the fuel tank, use an approved fuel storage container while in a clean,
well-ventilated outdoor area. While adding fuel or operating the unit, do not smoke, and stay
away from sparks, open flames, or other sources of ignition near the area of operation.
• Always stop the engine and allow it to cool before filling the fuel tank. Never remove the cap of
the fuel tank or add fuel while the engine is running or when the engine is hot.
• Loosen the fuel tank cap slowly to relieve any pressure in the tank.
• ALWAYS keep the handles dry, clean and free of oil and fuel.
• After fueling, ensure to tighten the cap securely.
• Never use the lock-function when filling with fuel.
Fueling / De-Fueling
• Store fuel in containers specifically designed and approved for fuel storage.
• Store fuel in a cool, well-ventilated area, safely away from sparks, open flames, or other
sources of ignition.
• Never store fuel – or a machine with fuel in the tank – inside a building where fumes may reach
a spark, open flame, or any other source of ignition (such as a water heater, furnace, or clothes
dryer). Allow the engine to cool before storing in any enclosure.
• Replace all fuel tank and container caps securely and wipe up spilled fuel. Never operate the
unit without the fuel cap securely in place.
Storage

19
14
Safety Information
Batteries (Where Present)
Batteries present a risk if they become damaged by the possible leaking of electrolyte. This
electrolyte is an acid and can cause serious burn injuries. Care should be taken when working on
or near them. NOTE the electrolyte may be in a liquid or gel form.
Should you come in to contact with electrolyte you should;
• Remove all clothing contaminated with
electrolyte. If you cannot remove then saturate them in water.
• Get medical assistance as soon as possible.
You must advise the medical staff of the type of acid.
• Lead/acid battery = dilute sulphuric acid.
• Nickel/cadmium = potassium hydroxide alkali electrolyte.
• Use fresh running water to wash off excess electrolyte, continue this until medical assistance
arrives. Make sure that you do not wash the electrolyte to another part of your body or face.
• If electrolyte comes in to contact with Eyes the electrolyte needs to be immediately washed
away with large amounts of water. Make sure that you do not wash the electrolyte to another part
of your face or body.
• Gasses from charging batteries are highly flammable and great care should be taken to charge
in well ventilated areas.
!
• There is an explosion risk if the battery terminals are short circuited, when
connecting/disconnecting ALWAYS exercise great care so that the terminals or battery
leads are NOT allowed to touch and cause a spark. ALWAYS use suitable insulated tools.

15
Safety Information
• Prolonged use of hand held (operated) machines will cause the user to feel the effects of/from
vibrations. These vibrations can lead to white finger (Raynaud’s phenomenon) or carpal tunnel
syndrome. This condition reduces the ability of the hand to feel and regulate temperature,
causing numbness and heat sensations and may cause nerve damage and circulatory tissue
death.
• Not all factors that lead to white finger disease are known, but cold weather, smoking and other
diseases that affect blood vessels and blood circulation as well as large and long-lasting impact
of shocks are considered factors in the formation of white finger. Note the following to reduce the
risk of white finger and carpal tunnel syndrome;
• Wear gloves and keep your hands warm.
• Take regular breaks.
• All of the above precautions may help reduce the risk of white finger disease but not rule out
the carpal tunnel syndrome. Long-term and regular users are therefore recommended to observe
the condition of your hands and fingers. Seek medical attention immediately if any of the above
symptoms should occur.
Vibrations (Where Applicable)
!
• The operating noise of the machine can damage your hearing. When wearing protection such
as earplugs or ear defenders to protect your hearing. Long-term and regular users are advised to
have hearing checked regularly. Be especially vigilant and cautious when wearing ear protection
because your ability to hear alarm warnings will be reduced.
• Noise emissions for this equipment is unavoidable. Carry out noisy work at approved times and
for certain periods. Limit the working time to a minimum. For your personal protection and
protection of people working nearby it is also advisable for them to wear hearing protection.
• See Certificate of Conformity section for Outdoor Noise declaration of conformity.
Noise (Where Applicable)
!

19
18
Safety Information
Personal Protective Equipment
!
HAND PROTECTION MUST BE WORN
Protective electrically non-conductive gloves are highly recommended when working.
HEARING PROTECTION MUST BE WORN
Suitable safety hearing protection is recommended.
EYE PROTECTION MUST BE WORN
Always wear safety glasses/goggles and/or face shields. Everyday eyeglasses have
only impact resistant lenses; they are not safety glasses/goggles.
FOOT PROTECTION MUST BE WORN
Non-skid heavy duty footwear are highly recommended when working.
PROTECTIVE CLOTHING MUST BE WORN
Do not wear loose clothing, gloves, scarfs, neckties or jewellery
(rings, wrist watches), which can be caught in moving parts.
HEAD PROTECTION MUST BE WORN
Wear a safety helmet with a safety visor.
FACE SHIELD MUST BE WORN
Wear a face shield to protect your face.
RESPIRATOR MUST BE WORN
Wear a respirator.
Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when
operating or repairing the machine. No protective equipment can ensure 100%
protection.
When selecting PPE, make sure it’s CE marked and it suits the user in terms of size, fit, etc. If
more than one item of PPE is worn at the same time, make sure they can be used together, e.g.
wearing safety glasses may disturb the seal of a respirator, causing air leaks.
16

17
General Safety
• This product is not suitable for use on wood floors or other combustible materials.
IMPORTANT! Read and understand all of the directions in this manual before assembling,
starting, or servicing the heater. Improper use of this heater can cause serious injury. Keep
manual for future reference.
!
DANGER! NOT FOR USE IN NON-ADEQUATELY VENTILATED ENCLOSED AREAS.
!
WARNING! Fire, burn, inhalation and explosion hazard. Keep combustibles, such as building
materials, paper or cardboard, a safe distance away from the heater as recommended by these
instructions. Never use the heater is spaces which contain products such as gasoline, solvents,
paint thinners, dust particles, voliate or airbourne combustibles, or any unknown chemicals. This
is an unvented portable heater. It uses air (oxygen) from the area in which it is used. Adequate
combustion and ventilation air must be provided. Refer to VENTILATION.
!
WARNING! Do not operate this heater until you have read, and thoroughly understand these
safety and operating instructions. Failure to comply with the precautions and instructions
provided with this heater can result in death, serious bodily injury, property loss or damage from
the hazards of fire, soot production, explosion, burns, asphyxiation or carbon monoxide
poisoning. Only persons who can read and understand these instructions should use or service
this heater. Not for use in home or recreational vehicles.
!
This is a Diesel (1-K Kerosene) directed-fire forced air heater. It is primarily intended for use for
temporary heating of buildings under construction, alteration or repair. Directed-fired means that
all of the combustion products of the heater enter the heated space. This appliance is rated at
98% combustion efficiency, but does produce small amounts of Carbon Monoxide. Carbon
Monoxide is toxic.
For optimal performance of this heater, it is strongly suggested that 1-K Kerosene is used, 1-K
Kerosene has been refined to virtually eliminate contaminants, such as sulfur. Which can cause
a rotten egg odour during the operation of the heater. However, #1 or #2 fuel oil-diesel may also
be used if K-1 Kerosene is not available. Be advised that these fuels do not burn as clean as 1-K
Kerosene, and care should be taken to provide more fresh air ventilation to accommodate any
added contaminants that may be added to the heated space. Use of #1 or #2 fuel oil may result
in more periodic maintenance.
Safety Information

19
18
Features

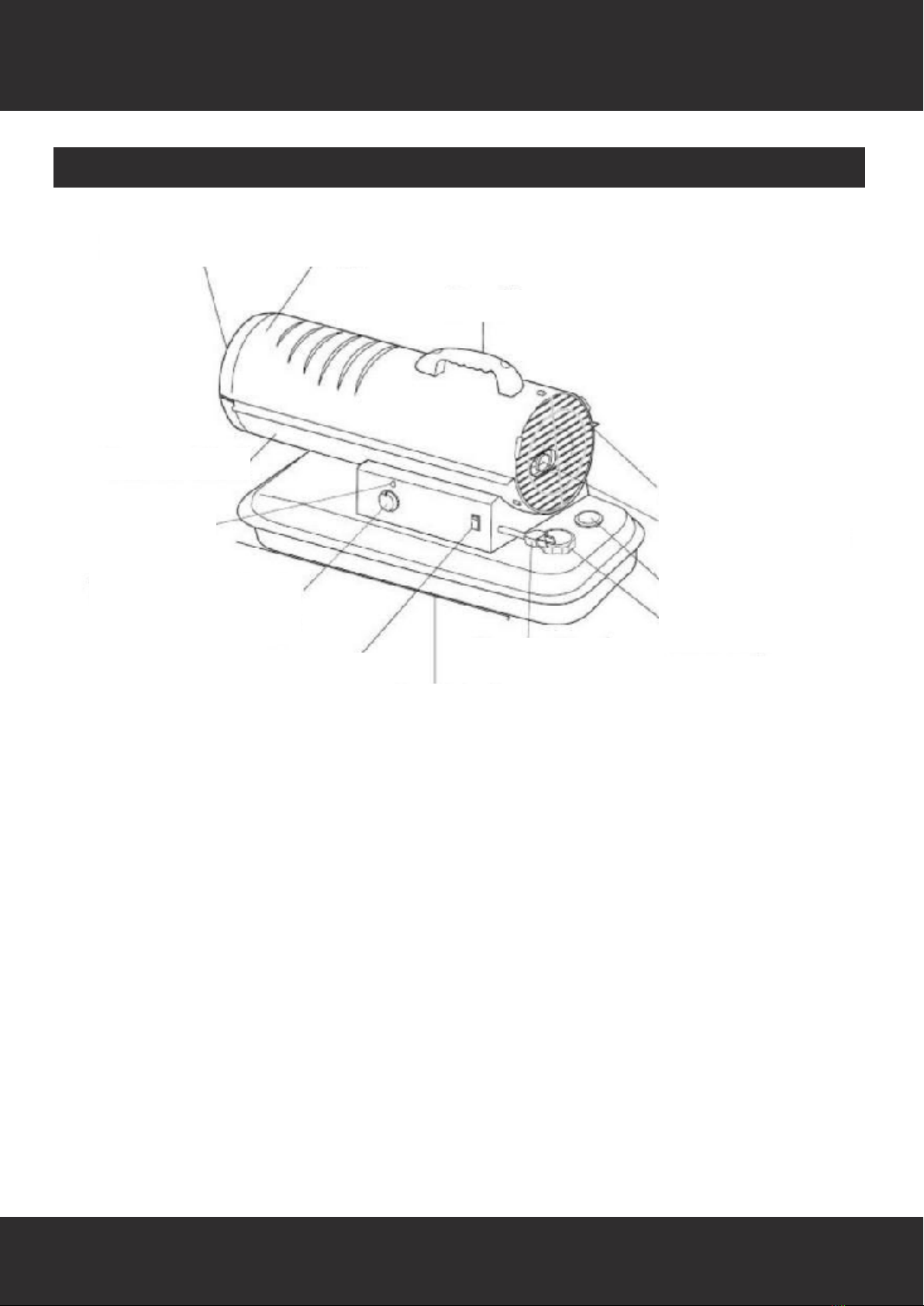

Space Heater Features (P70DKH)
Hot Air Outlet Upper Shell
Handle
Fan Guard
Pressure Gauge
Fuel Gauge
Fuel Cap
Power Cord
Fuel Tank
Power/Reset Switch
Thermostat Knob
Side Cover Lamp
Lower Shell

19
Features
Space Heater Features (P125DKH & P215DKH)
Hot Air Outlet Upper Shell
Fuel Tank
Fan Guard
Power/Reset Switch
Fuel Gauge
Lower Shell
Rear Handle
Pressure
Gauge
Drain Plug
Power Cord
Wheel Support Frame
Digital Temperature
Display
Lamp
Side
Cover Thermostat
Knob

19
20
Unboxing
WARNING! Unboxing and assembling the machine should be done on a flat, stable surface
with enough room. Disposal of the packaging should be done in accordance with the local
regulations in force.
Carefully remove the product from the packaging and examine it for any sign of damage caused
during shipping. Lay the contents out and check them. If any part is damaged or missing, you
must not use the machine. Contact P1 Power Equipment immediately. You must keep the
packaging material in case the machine needs to be returned or repaired.
WARNING! Some of the packaging material may be harmful to children. Keep out of reach of
children.
Ensure that you have all the accessories and tools you need for assembly and operation including
the suitable personal protective equipment.
Unboxing Safety
!
!
!
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO
A POWER SOURCE.
Screws and
Nuts (P70DKH)
