Pacific energy BROADWAY User manual

020215-36 5055.66-E
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
WARNING: If the information in these
instructions is not followed exactly a fire or
explosion may result causing property
damage, personal injury or death.
FOR YOUR SAFETY
Do not store or use gasoline or other
flammable vapours and liquids in the vicinity
of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
•Do not try to light any appliance.
•Do not touch any electrical Switch.
•Do not use any phone in your building.
•Immediately call your gas supplier
from a neighbour’s phone. Follow the
gas supplier’s instructions.
•If you cannot reach your gas supplier
call the fire department.
Installation and service must be performed
by a qualified installer, service agency or the
gas supplier.
This appliance may be installed in an
aftermarket permanently located,
manufactured home (USA only) or mobile
home, where not prohibited by local codes.
This appliance is only for use with the type of
gas indicated on the rating plate. This
appliance is not convertible for use with
other gases unless a certified kit is used.
This appliance is suitable for installation in a
bedroom or bed sitting room.
BROADWAY & BRENTWOOD
INSTALLATION AND
OPERATING INSTRUCTIONS
MODEL: BROADWAY /
BRENTWOOD
SERIES: A
DIRECT VENT GAS INSERT

020215-36 2 5055.66-E
Important Note for the Commonwealth of Massachusetts:
From Massachusetts Rules and Regulations 248 CMR 5.08:
(a) For all side wall horizontally vented gas fuelled equipment installed in every dwelling, building or structure used in whole or in part for
residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven
(7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisfied.
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fuelled equipment,
the installing plumber or gas fitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the
floor level where the gas equipment is to be installed, in addition, the installing plumber or gas fitter shall observe that a battery operated or hard-
wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served by the side wall
horizontal vented gas fuelled equipment. It shall be the responsibility of the property owner to secure the services of qualified licensed professionals
for the installation of hard-wired carbon monoxide detectors.
a. In the event that the side wall horizontally vented gas fuelled equipment is installed in a crawl space or an attic, the hard-wired carbon
monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
b. In the event that the requirements of this subdivision cannot be met at the time of completion of installation, the owner shall have a period of
thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon
monoxide detector with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions shall
comply with NFPA 720 and be ANSI/UL 2034 listed as IAS certified.
3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight (8)
feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fuelled heating appliance or equipment. The sign shall
read, in print size no less than one-half (1/2) inch in size, ‘‘GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS’’.
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fuelled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR
5.089(2)(a) 1 through 4.
(b) EXEMPTIONS. The following equipment is exempt from 248 CMR 5.089(2)(a) 1 through 4.
1. The equipment listed in Chapter 10 entitled ‘‘Equipment Not Required To Be Vented’’ in the most current edition of NFPA 54 as adopted by the
Board; and
2. Product Approved side wall horizontal vented gas fuelled equipment installed in a room or structure separate from the dwelling, building or
structure used in whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS - -- GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product Approved
side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the instructions
provided by the manufacturer for installation of the equipment and the venting system shall include:
1. Detailed instructions for the installation of the venting system design or the venting system components; and
2. A complete parts list for the venting system design or venting system.
(d) MANUFACTURER REQUIREMENTS - -- GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a Product
Approved side wall horizontally vented gas fuelled equipment does not provide the parts for venting the fuel gases, but identifies ‘‘special venting
systems’’, the following requirements shall be satisfied by the manufacturer.
1. The referenced ‘‘special venting system’’ instructions shall be included with the appliance or equipment installation instructions; and
2. The ‘‘special venting systems’’ shall be Product Approved by the Board, and the instructions for that system shall include a parts list and
detailed installation instructions.
(e)) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fuelled equipment, all venting instructions,
all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the
installation.

5055.66-E 3020215-36
Table Of Contents
Caution..............................................................4
Safety................................................................5
Owners Information
First Fire............................................................6
Remote control..................................................7
Maintenance .....................................................13
Lighting Instructions..........................................14
Installer information
Fireplace Dimensions........................................15

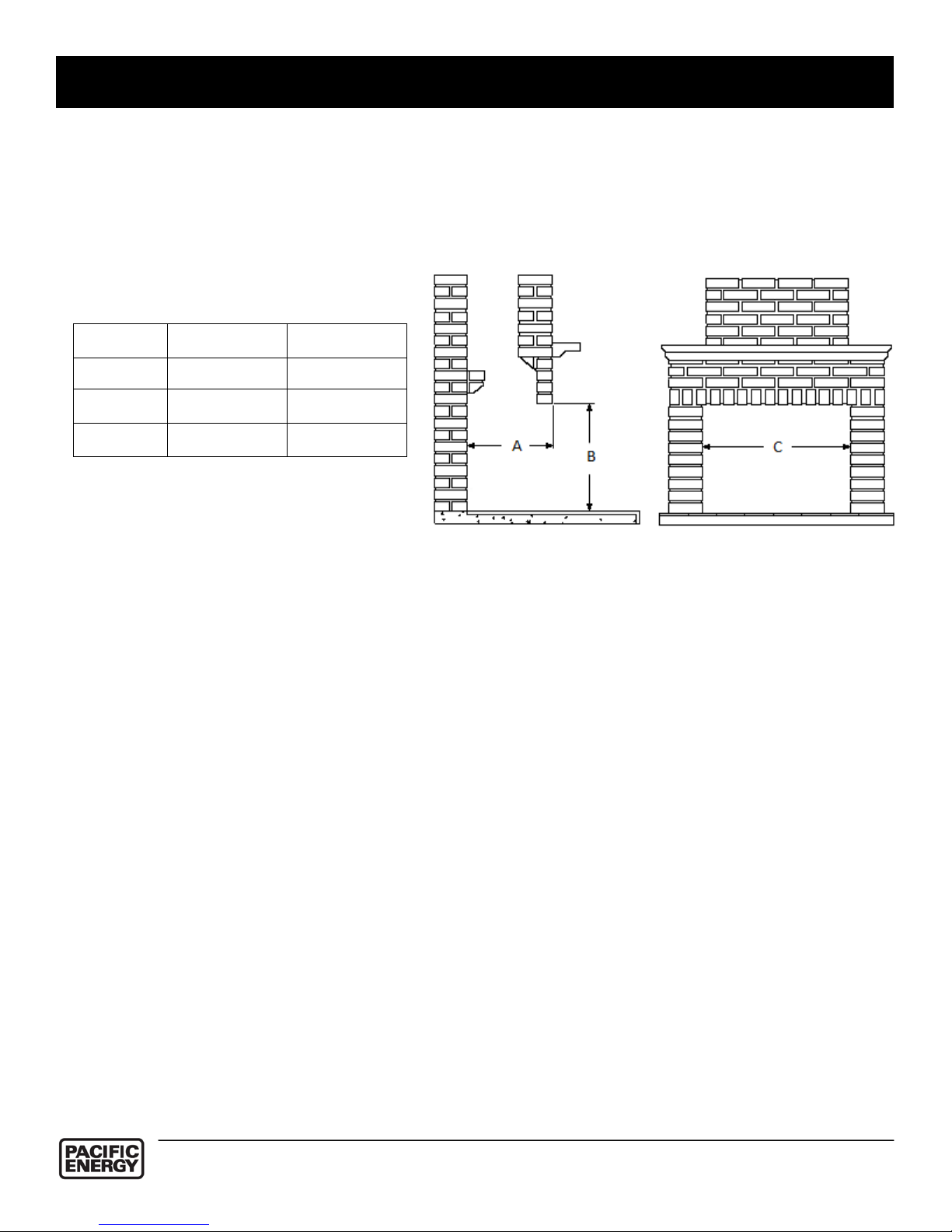

Existing Fireplace Preparation..........................16

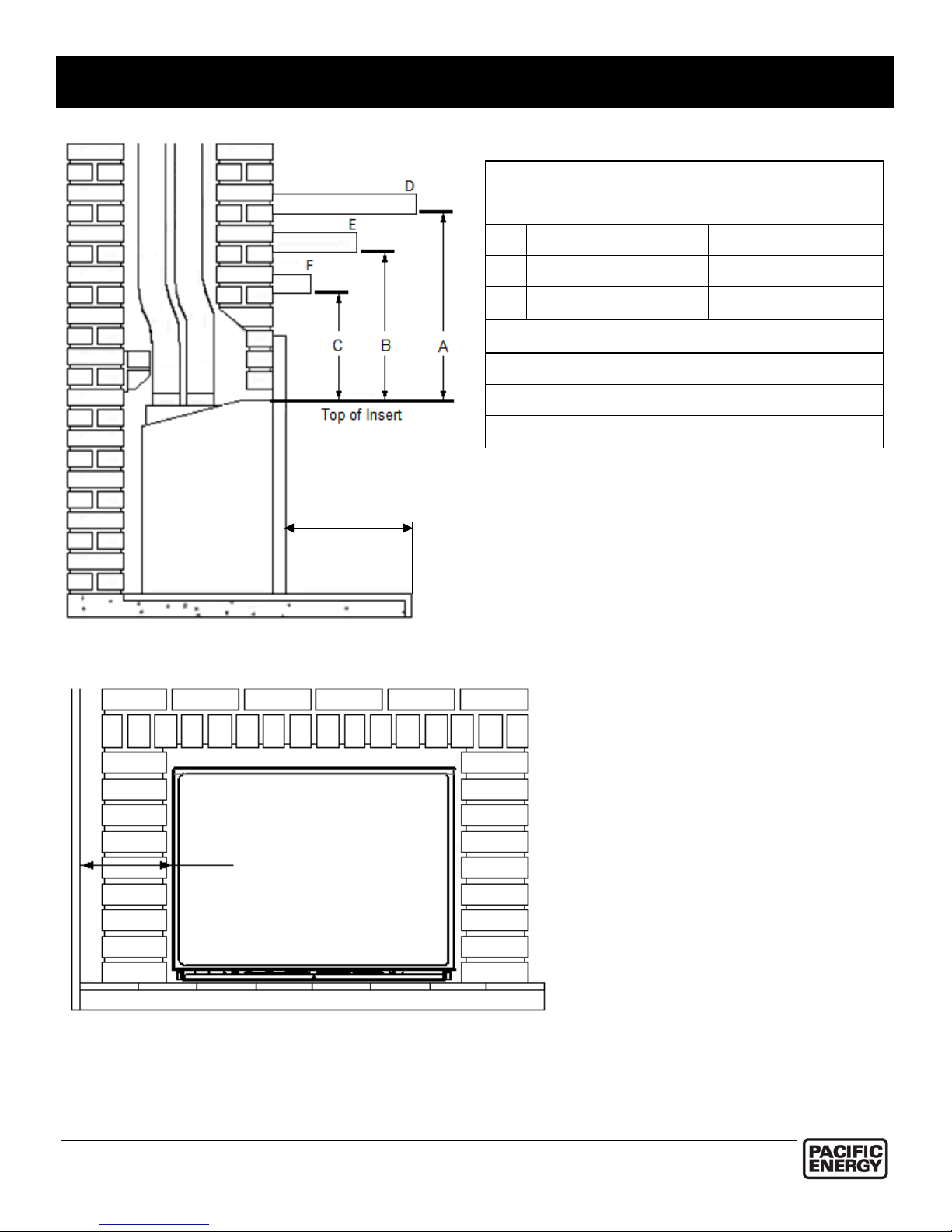

Clearances to Combustibles.............................17

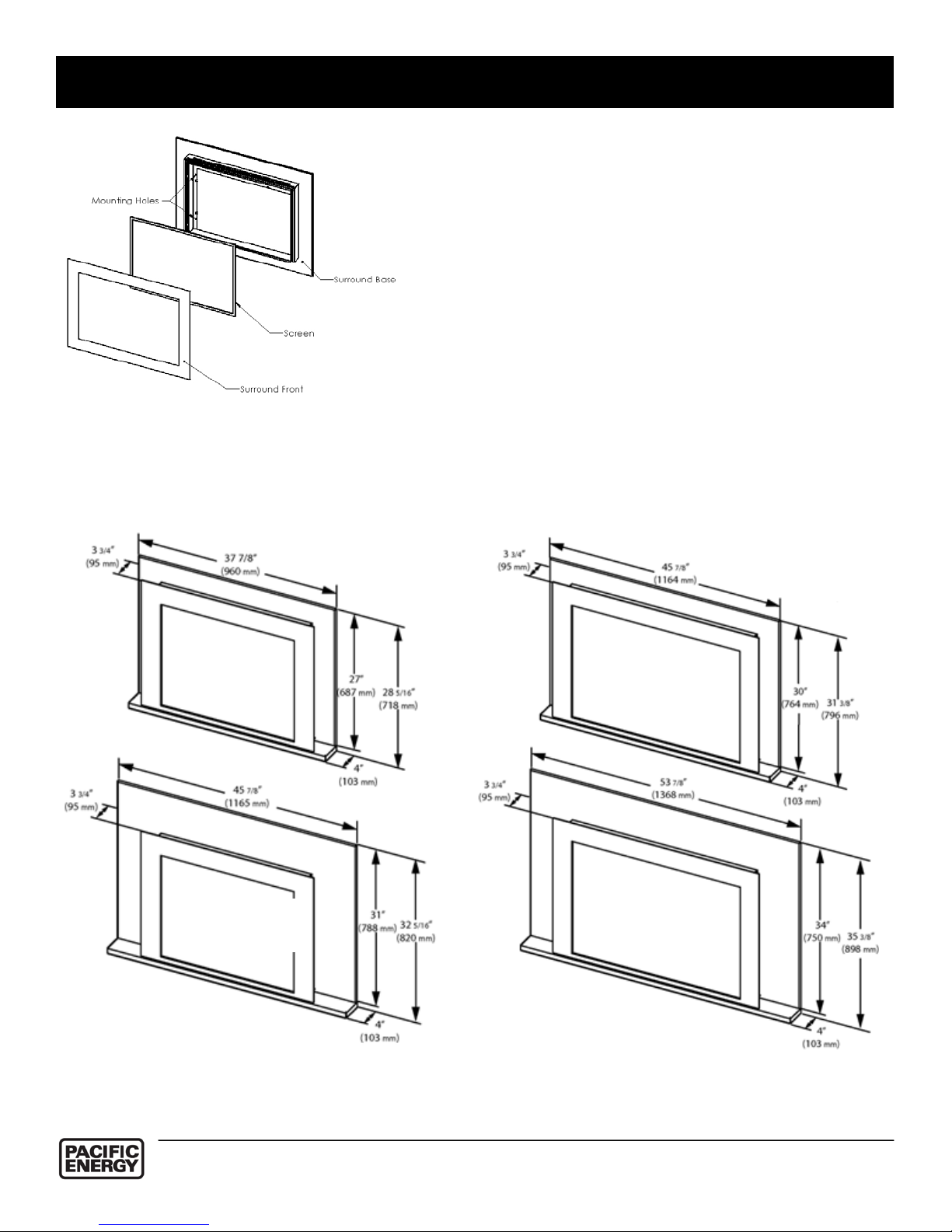

Surround Installation.........................................18
Venting..............................................................19

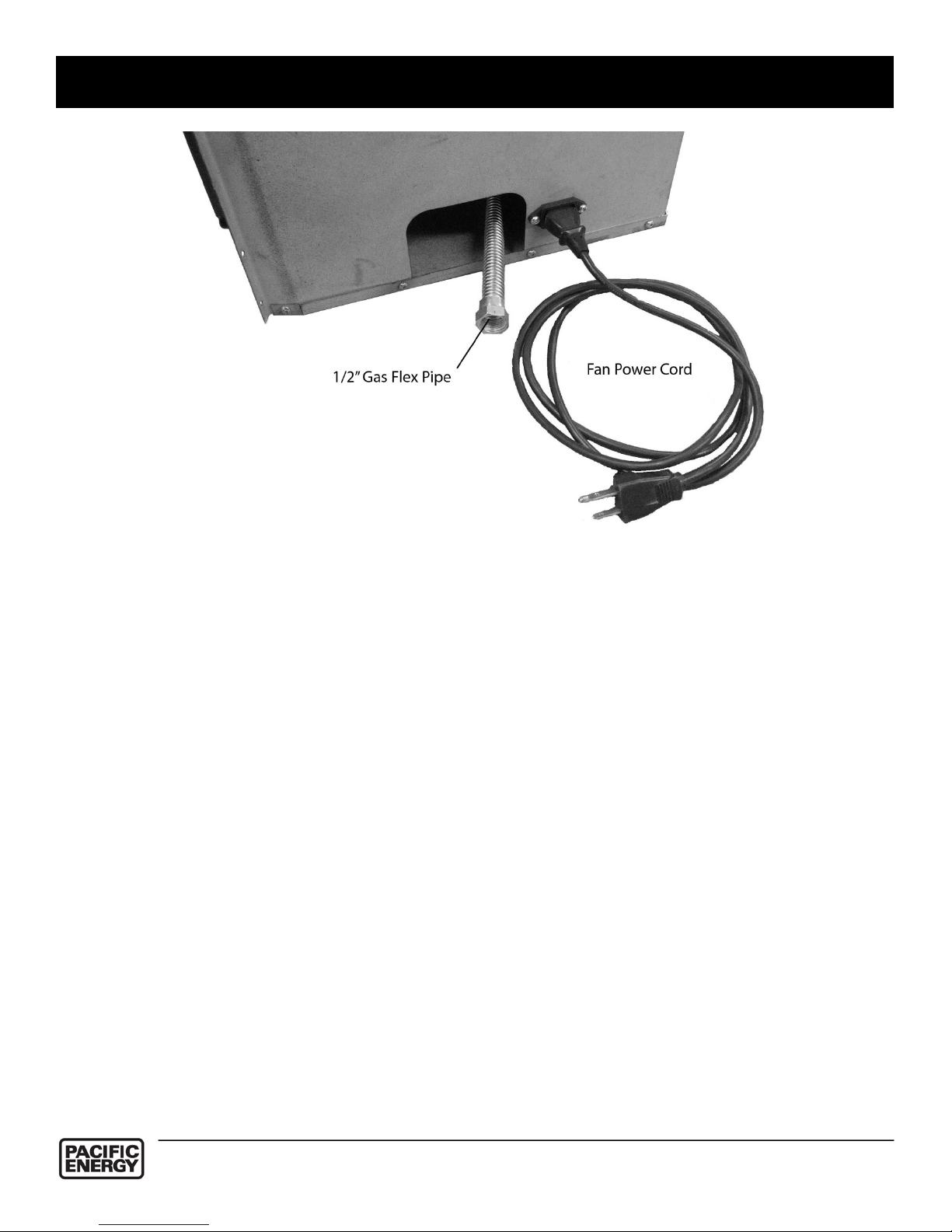

Plumbing and Electrical.....................................20
Gas Supply .......................................................21
Gas Pressure Check / Output / Efficiency.........21
Gas Pressure Testing Procedure......................22
Pilot Adjustment................................................22
Propane Conversion .........................................23
Door Installation / Removal...............................24
Fan Installation/ Removal..................................24
Panel Installation/Removal................................25
Log Burner Kit Installation/Removal..................26
Log Set Installation/Removal ............................27
Rustic Log Set Installation/Removal .................28
Glass Burner Kit Installation/Removal...............29
Replacement Parts / Kits List............................31
Wiring Diagram .................................................32
Broadway Rating Label.....................................33
Brentwood Rating Label....................................34

020215-36 4 5055.66-E
FOR YOUR SAFETY - Do not install or operate your Pacific Energy appliance without first reading and
understanding this manual. Any installation or operational deviation from the following instructions voids the Pacific
Energy Warranty and may prove hazardous.
This appliance and its individual shut off valve must be disconnected from gas supply piping system during any
pressure testing of that system at test pressures in excess of 1/2 psig
(3.5 kPa).
This appliance must be isolated from the gas supply piping system by closing its individual manual shut off valve
during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig (3.5
kPa).
Do not use the fireplace if any part has been under water. Immediately call a qualified service technician to inspect
the fireplace and to replace any part of the control system and any gas control which has been under water.
This unit must be installed with a Burner Set, Panel Set, and Surround Kit component.
Caution
This fireplace is equipped with a micro mesh safety screen for your protection and
must be installed with the unit. Removal of the safety screen will cause the fireplace
to become a burn hazard.

5055.66-E 5020215-36
•Due to high temperatures, this gas appliance should be located out of traffic and away
from furniture and draperies.
•
Children and adults should be alerted to the hazards of high surface temperatures and
should stay away to avoid burns or clothing ignition.
•
Young children should be carefully supervised when they are in the same room as the
appliance. Toddlers, young children and others may be susceptible to accidental contact
burns. A physical barrier is recommended if there are at risk individuals in the house. To
restrict access to a fireplace or stove, install an adjustable safety gate to keep toddlers,
young children and other at risk individuals out of the room and away from hot surfaces.
•Clothing or other flammable material should not be placed on or near the appliance.

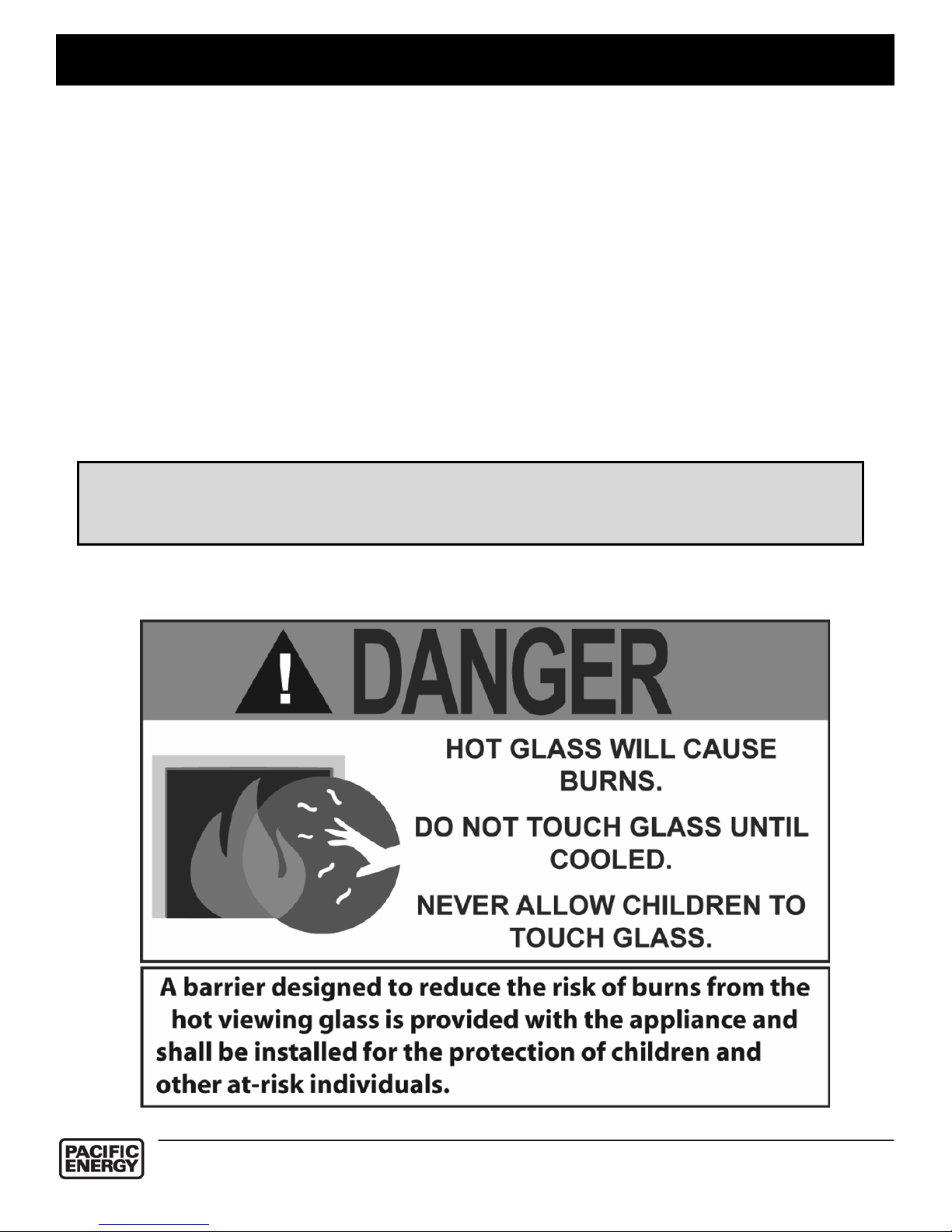

•A barrier designed to reduce the risk of burns from the hot viewing glass is provided with
the Surround Kit component and shall be installed.
•If the barrier becomes damaged, the barrier shall be replaced with the manufacturers
barrier for this appliance.
•Any grill, panel or door removed for servicing the unit must be replaced prior to operating.
•
Installation and repair should be done by a qualified service person. The appliance should
be inspected before use and at least annually by a professional service person. More
frequent cleaning may be required due to excessive lint from carpeting, bedding material,
etc. It is imperative that control compartments, burners and circulating air passageways of
the appliance be kept clean.
•This ap
pliance must not be connected to a chimney flue serving a separate solid fuel
burning appliance.
•
It is our policy that no responsibility is assumed by the Company or by any of its
employees or representatives for any damages caused by an inoperable, inadequate, or
unsafe condition which is the result, either directly or indirectly, of any improper operation
or installation procedures.
Safety

020215-36 6 5055.66-E
OWNER’S
INFORMATION
Congratulations on your purchase of a Pacific Energy Gas Appliance.
Your fireplace has been professionally installed by:
Dealer name: ___________________
Phone Number:_________________
If you discover any problems with your gas appliance contact your dealer immediately to have the
unit repaired.
Caution: Do not attempt to repair the fireplace because you may cause injury to yourself or others,
and risk causing damage to the unit.
Before operating your appliance carefully read this manual and pay close attention to all Safety
Warnings. The manual contains important information on the unit’s safe operation and
maintenance.
When lit for the first time, the fireplace will emit a slight odor for a couple of hours. This is due to
the curing of paints, sealants and lubricants used in the manufacturing process. This condition is
temporary. Open doors and windows to ventilate area. Odor caused by the curing process may
cause discomfort to some individuals.
It is normal for fireplaces fabricated of steel to give off some expansion and/or contraction noises
during the start up or cool down cycle. Similar noises are found with your furnace heat exchanger
or cook stove oven.
First Fire

5055.66-E 7020215-36
OWNER’S
INFORMATION
`
Remote Control Operation
System Description
The Proflame Remote Control System consists of two elements:
1. Proflame Transmitter.
2. Proflame Integrated Fireplace Control (IFC) board and a wiring harness to connect the IFC
to the gas valve and stepper motor.
Transmitter (Remote Control with LCD Display)
The Proflame Transmitter uses a streamline design with a simple button layout and informative
LCD display (Fig. 1). The transmitter is powered by 3 AAA type batteries. A Mode key is provided
to Index between the features and a Thermostat key is used to turn on/off or index through
thermostat functions (Fig. 1 & 2).
Figure 1: Proflame Transmitter

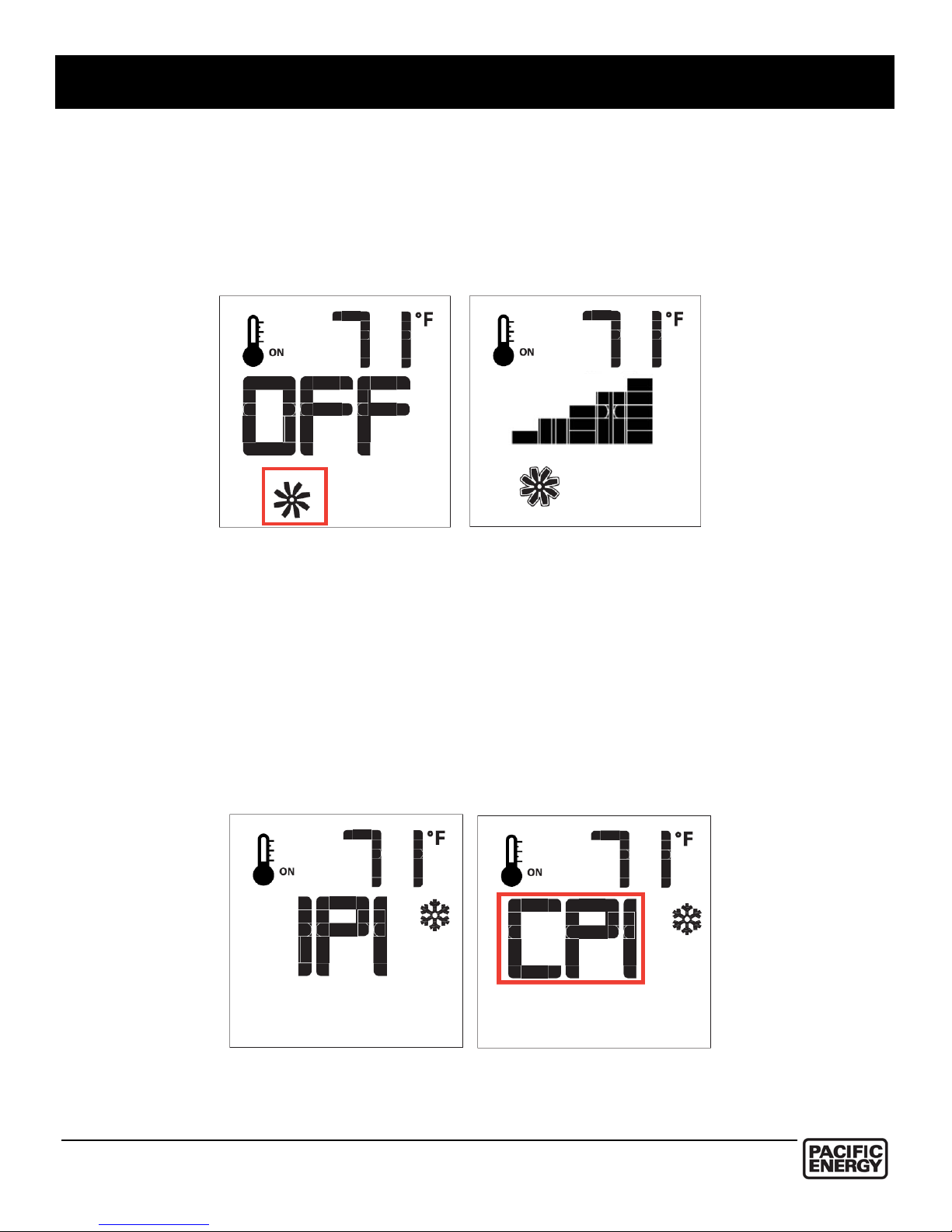

Figure 2: Transmitter LCD display

020215-36 8 5055.66-E
OWNER’S
INFORMATION
OPERATING PROCEDURE
Initializing the
Install the 4 AA batteries into the battery box located on the rear of the fireplace (Fig. 4). Note the
polarity of the battery and insert into the battery box as indicated on the Battery cover (+/-). Set the
main ON/OFF switch to remote. Press the program button on the On/Off switch. The IFC will “beep”
three (3) times to indicate that it is ready to synchronize with a Transmitter. Install the 3 AAA type
batteries in the battery bay, located on the base of the hand held Transmitter. With the batteries
installed in the Transmitter, push the ON button. The IFC will “beep” four times to indicate the
Transmitter’s command is accepted. If a second Transmitter is to be registered, it can be turned
ON. The IFC will beep again four (4) times and exit the synchronization phase. If only one
transmitter is used, then press the program button again to exit the synchronization phase. The
system is now initialized.
IFC Module
The Proflame 2 Integrated Fireplace Control (IFC) board (Fig. 3) is a device located at the rear
side of the fireplace or stove, that allows the automatic ignition and pilot flame supervision, and to
command the functions of a hearth appliance. It is configured to control the ON/OFF main burner
operation via a hand-held transmitter unit (Fig. 1), giving the choice of both IPI (intermittent pilot
ignition), and CPI (continuous pilot ignition) modes.
The Proflame 2 IFC board controls and connects directly to the pilot assembly and the automatic
valve of the Proflame 880, 886 and 885 families using low electric power.
The IFC Board can be powered by an AC and battery pack for back up (ATMO Systems only). The
Proflame 2 offers the added ability to control the comfort fan speed from OFF through six (6)
speeds, a remotely actuated auxiliary outlet and a dimmable light outlet. The external batteries can
provide DC power to the IFC allowing the batteries to be used only when line power is interrupted
l
Figure 3. IFC (integrated
fireplace control) module.
Figure 4. On/Off switch. Position switch
in the middle to use the hand-held remote
control switch.
Figure 5. On/Off switch cover

5055.66-E 9020215-36
OWNER’S
INFORMATION
Temperature indication Display
With the system in the “OFF” position, press the Thermostat Key and the
Mode Key at the same time. Look at the LCD screen on the transmitter to
verify that a C or F is visible to the right of the Room Temperature display.
(Fig. 6 & 7)
Turn on the Appliance
First, turn the main ON/OFF switch (Fig. 4) located at the rear of the
fireplace or stove to the REMOTE position (Fig 5). With the fireplace or stove
OFF, press the ON/OFF Key on the handheld Transmitter. The Transmitter
display will show all active Icons on the screen. At the same time IFC will be
commanded to start the ignition process. Once the pilot flame is proven, the
IFC board will open the main valve outlet and the appliance main burner will
also ignite. A single “beep” from the IFC module will confirm reception of the
command.
Turn off the Appliance
With the system ON, press the ON/OFF Key on the Transmitter. The
Transmitter LCD display will only show the room temperature. At the same
time the IFC will be commanded to turn off the burner. Depending on the
system mode (IPI or CPI) the pilot may shut off (IPI) or remain lit (CPI) and
the appliance burner turns OFF. A single “beep” from the Receiver confirms
reception of the command.
Manual Bypass of the Remote System
If the batteries of the receiver or transmitter are low or depleted, the
appliance can be turned off manually using the ON/OFF switch located on
battery box at the rear of the fireplace or stove (Fig. 4). This will bypass the
remote control feature of the system.
Key Lock
This function will lock the keys to avoid unsupervised operation.
To activate this function, press the MODE and UP keys at the same time
(fig.8). To de-activate this function, press the MODE and UP keys at the
same time.
Figure 6: Display in Fahrenheit
Figure 7: Display in Celsius
Figure 8

020215-36 10 5055.66-E
OWNER’S
INFORMATION
Remote Flame Control
The Proflame has six (6) flame levels. With the
system on, and the flame level at the maximum in
the appliance, pressing the down arrow key once
will reduce the flame height by one step until the
flame is turned off.
The Up Arrow Key will increase the flame height
each time it is pressed. If the Up Arrow Key is
pressed while the system is on but the flame is off,
the flame will come on in the high position. (Fig. 9)
A single “beep” will confirm reception of the
command.
ROOM THERMOSTAT (Transmitter Operation)
The Remote Control can operate as a room thermostat. The
thermostat can be set to a desired temperature to control the
comfort level in a room.
To activate this function, press the Thermostat key (Fig. 1). The
LCD display on the transmitter will change to show that the room
thermostat is “ON” and the set temperature is now displayed
(Fig.10). To adjust the set point, press the up or down arrow keys
until the desired set point temperature is displayed on the LCD
screen of the transmitter.
Smart Thermostat (Transmitter Operation)
The Smart Thermostat function adjusts the flame height in
accordance to the difference between the set point and the room
temperatures. As the room temperature gets closer to the set point
the Smart Function will modulate the flame downwards. If the
room temperature is cool the Smart function will modulate the
flame upwards. To activate this function, press the THERMOSTAT
key (Fig. 1) repeatedly until the word "SMART" appears to the
right of the temperature bulb graphic (Fig. 11). To adjust the set
point, press the up or down arrow keys until the desired set point
temperature is displayed on the LCD screen of the transmitter
(Fig. 12).
Figure 9:
Figure 10
Figure 11: Smart Flam
Function
Figure 12

5055.66-E 11 020215-36
OWNER’S
INFORMATION
Comfort Fan Speed Control
If the appliance is equipped with a hot air circulating fan, the speed of the fan can be
controlled by the Proflame system. The fan speed can be adjusted through six (6) speeds.
To activate this function use the Mode Key (fig.1) to locate the fan control icon (Fig. 13).
Use the Up/Down Arrow Keys (Fig.1) to turn on, off or adjust the fan speed (fig. 10). A
single “beep” will confirm reception of the command.
Continuous Pilot/Intermittent Pilot (CPI/IPI) selection
With the handheld transmitter in the "OFF" position, press the Mode Key (fig. 1) to index to
the CPI mode icon (fig.14).
Pressing the Up Arrow Key will activate the Continuous Pilot Ignition mode (CPI). Pressing
the Down Arrow Key will return to IPI. A single “beep” will confirm the reception of the
command.
Figure 13: Fan Control
Figure 14: CPI/IPI Selection

020215-36 12 5055.66-E
OWNER’S
INFORMATION
Low Battery Power Detection
Transmitter
The life span of the remote control batteries depends on various
factors: the quality of the batteries used, the number of ignitions
the fireplace or stove has made, the number of changes to the
room thermostat set point, etc.
When the handheld transmitter batteries are low, an Icon will
appear on the LCD display of the transmitter (Fig. 15) before all
battery power is lost. When the batteries are replaced this Icon
will disappear.
Receiver
The life span of the IFC batteries depends on various factors: quality of the batteries used, the
number of ignitions of the appliance, the number of changes to the room thermostat set point,
etc. When the IFC batteries are low, a "double-beep” will be emitted from the IFC board when it
receives a command from the transmitter. This is an alert for a low battery condition for the IFC
board. When the batteries are replaced the “beep” will be emitted from the IFC board when a
key is pressed (See Initialization of The System).
Warnings and Cautions
WARNING
Fire Hazard. Can cause severe injury or death
The Receiver causes ignition of the appliance. The appliance can turn on suddenly. Keep
away from the appliance burner when operating the remote system or activating manual
bypass of the remote system.
WARNING
Shock Hazard. Can cause severe injury or death
This device is powered by line voltage. Do not try to repair this device.
In no way is the enclosure to be tampered with or opened.
Disconnect from line voltage before performing any maintenance.
Figure 15

5055.66-E 13 020215-36
OWNER’S
INFORMATION
Turn off gas and electrical power supply (if applicable) and allow ample time for unit to cool
before servicing appliance. It is recommended that the fireplace and its venting should be
inspected at least once a year by a qualified service person.
Glass Door:
Warning: Do not operate fireplace with glass door removed, cracked or broken. Replacement of
the glass door should be done by a licensed or qualified service person.
Do not strike or otherwise impact the glass in any way that may cause it to break. If the glass
becomes cracked or broken it must be replaced before using the fireplace. Replacement door can be
obtained from your nearest Pacific Energy dealer. Do not substitute with any other type.
To remove broken glass, remove Door as noted in "Door Removal" section.
Annual Inspection:
a) Remove glass door and decorative media (such as logs and rocks). Inspect decorative media
and burner assemblies for soot buildup. If excessive buildup of soot is present, have a
qualified service person inspect and adjust unit for proper combustion. Clean burners with a
brush or vacuum cleaner, paying close attention to burner ports.
b) Check the pilot system for proper flame size and operation. Clean pilot free of soot, dust or
any other deposits.
c) Check that the vent pipe and vent terminal are open and free from blockage or debris. If the
venting is disassembled for cleaning, it must be properly assembled and re-sealed. Refer to
VENTING section for proper procedure.
d) Check glass panel gasket, replace if necessary. It is important that the glass seal be
maintained in good condition.
e) Check and replace batteries as needed.
Note: The appliance area must be kept clear and free from combustible materials, gasoline and
other flammable vapors and liquids.
Periodically:
a) Viewing glass may be cleaned as necessary with fireplace glass cleaner.
b) Exterior finish may be cleaned with mild soap and water.
CAUTION:
Do not use abrasive cleaners on glass or any other part of the fireplace.
Do not clean glass when hot.
Maintenance

020215-36 14 5055.66-E
OWNER’S
INFORMATION
Lighting Instructions

5055.66-E 15 020215-36
INSTALLER
INFORMATION
Fireplace Dimensions
Broadway:
Brentwood:
Figure 17: Brentwood Dimensions
Figure 16: Broadway Dimensions
14 3/4”

020215-36 16 5055.66-E
INSTALLER
INFORMATION
Dimension
Broadway
Brentwood
A
13”
15”
B
21”
23”
C
26”
34”
The Broadway and Brentwood Gas inserts are certified to be installed into pre-existing approved
fire place cavities. The minimum cavity requirements are listed in Figure 18 below.
Before installing the Broadway or Brentwood inserts have the chimney swept and fireplace,
including ash dumps and clean outs, cleaned to remove any creosote and soot residue that
may cause odors and stains after the insert has been installed. The fireplace chimney should
be in good working order and made of non-combustible material. Make sure chimney cleanouts
fit properly.
When preparing an existing fireplace to install a gas insert, any modifications that will
compromise the integrity of the existing fireplace are not allowed. To make way for the insert’s
venting the fireplace flue dampener may be blocked open or removed. Refractory, glass doors,
screen rails, screen mesh and log grates can be removed from the fireplace before installing
the insert. Also, smoke shelves, shields and baffles may be removed if attached by mechanical
fasteners. Cutting any sheet metal parts of the fireplace, in which the gas fireplace insert is to
be installed, is prohibited.
If the factory-built fireplace has no gas access hole(s) provided, an access hole of 1.5”
(37.5mm) or less may be drilled through the lower sides or bottom of the firebox in a proper
workmanship like manner. This access hole must be plugged with non-combustible insulation
after the gas supply line has been installed.
Existing Fireplace Preparation
Figure 18: Cavity Dimensions

5055.66-E 17 020215-36
INSTALLER
INFORMATION
16”
*MANTEL CLEARANCE
Broadway
Brentwood
A
20 1/2”
32”
B
16”
32”
C
11”
32”
** MANTEL DEPTH
D
12”
E
9”
F
6”
Clearances to Combustibles
8”
Figure 19: Mantel Clearances
Figure 20: Sidewall Clearances
Minimum hearth depth
As measured from glass

020215-36 18 5055.66-E
INSTALLER
INFORMATION
Surround Installation Instructions
Figure 21: Contemporary Surround
Installation
1. Fasten the surround base to the fireplace using
supplied screws and mounting holes located
along the inner edge of the base.
2. Install the safety screen by aligning it with
surround base and then pressing it into place.
Note: Install screen insuring the step faces
inward.
3. Install the surround front by positioning it so as
to clear the notches and secure by applying a
downward pressure in order to engage the
locking tabs.
Figure 22: Surround Dimensions
Brentwood
Broadway
GBWY.STBKA
GBWY.STSSA
GBWY.STBKOSA
GBWY.STSSOSA
GBNT.STBKA
GBNT.STSSA
GBNT.STBKOSA
GBNT.STSSOSA

5055.66-E 19 020215-36
INSTALLER
INFORMATION
Note: The following Simpson Duravent kits are
recommended for use with this appliance.
High-Wind
(Broadway 46DVA-CL33)
(Brentwood 46DVA-CL34)
Prairie Co-Linear Kit
(Broadway 46DVA-CL33P)
(Brentwood 46DVA-CL34P)
Only certified venting systems or components may
be installed with this fireplace.
1) Measure chimney height, cut flex liner (min.10') as
required. Mark one pipe at both ends to identify
combustion air intake pipe from flue outlet pipe.
2) Attach marked flex liner pipe to the intake side of
vent terminal. Seal and secure with sealant and
screws provided. Attach the other pipe to the outlet
side of vent terminal. Seal and secure with sealant
and screws provided.
3) Insert both flex liners from top of the chimney, down
through the damper opening.
4) Before attaching vent terminal to top of chimney,
apply a bead of caulking to top of clay liner. Slip
vent terminal over liner and secure in place with
lateral retaining bolts.
5) For larger chimneys, an optional flashing is
available which may be cut and fitted to suit. The
flashing attaches to the underside of the terminal
with four nuts provided. Caulk the flashing in place
to seal any gaps.
MAX. Vent Height
35’ (10.7m)
Venting
Figure 23: Venting
Figure 24: Flue Adaptor Plate Conections
Figure 25: High Wind Vent Terminal
Min. Vent Height
10’ (3m)
10’-16’
Full Open
16’-26’
1/2 Open
26’-35’
Full Closed
Intake Damper Position

020215-36 20 5055.66-E
INSTALLER
INFORMATION
Plumbing and Electrical
Figure 26: Gas and Electrical Connections
Note: Installation requires that an electrical outlet be installed into existing fireplace
cavity before insert is installed.
To make the required electrical and gas connections start by positioning the gas insert
within the existing fireplace. Connect the gas supply line to the 1/2” flex tubing that extends
out of the unit as seen in Figure 26. Please see the gas supply section of the manual for
requirements of the gas supply. Next, plug the power cord into the unit as shown in Figure
26 and plug them into the electrical outlet within the existing fireplace cavity.
NOTE: The appliance, when installed must be electrically grounded in accordance
with local codes or, in the absence of local codes, with the National Electrical
Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.
