Pacific energy ESPRIT User manual

090314 ESPR.BODYA 5056.201
33333
INSTALER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
WARNING: If the information in these
instructions is not followed exactly a fire or
explosion may result causing property
damage, personal injury or death.
FOR YOUR SAFETY
Do not store or use gasoline or other
flammable vapours and liquids in the vicinity
of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical Switch.
Do not use any phone in your building.
Immediately call your gas supplier
from a neighbour’s phone. Follow the
gas supplier’s instructions.
If you cannot reach your gas supplier
call the fire department.
Installation and service must be performed
by a qualified installer, service agency or the
gas supplier.
This appliance may be installed in an
aftermarket permanently located,
manufactured home (USA only) or mobile
home, where not prohibited by local codes.
This appliance is only for use with the type of
gas indicated on the rating plate. This
appliance is not convertible for use with
other gases unless a certified kit is used.
This appliance is suitable for installation in a
bedroom or bed sitting room.
LINEAR GAS FIREPLACE
INSTALLATION AND
OPERATING INSTRUCTIONS
MODEL: ESPRIT
ESPR.BODYA
ZERO CLEARANCE FIREPLACE

2
Important Note for the Commonwealth of Massachusetts:
From Massachusetts Rules and Regulations 248 CMR 5.08:
(a) For all side wall horizontally vented gas fuelled equipment installed in every dwelling, building or structure used in whole or in part for
residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven
(7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisfied.
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fuelled equipment,
the installing plumber or gas fitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the
floor level where the gas equipment is to be installed, in addition, the installing plumber or gas fitter shall observe that a battery operated or hard-
wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served by the side wall
horizontal vented gas fuelled equipment. It shall be the responsibility of the property owner to secure the services of qualified licensed professionals
for the installation of hard-wired carbon monoxide detectors.
a. In the event that the side wall horizontally vented gas fuelled equipment is installed in a crawl space or an attic, the hard-wired carbon
monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
b. In the event that the requirements of this subdivision cannot be met at the time of completion of installation, the owner shall have a period of
thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon
monoxide detector with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions shall
comply with NFPA 720 and be ANSI/UL 2034 listed as IAS certified.
3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight (8)
feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fuelled heating appliance or equipment. The sign shall
read, in print size no less than one-half (1/2) inch in size, GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS .
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fuelled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR
5.089(2)(a) 1 through 4.
(b) EXEMPTIONS. The following equipment is exempt from 248 CMR 5.089(2)(a) 1 through 4.
1. The equipment listed in Chapter 10 entitled Equipment Not Required To Be Vented in the most current edition of NFPA 54 as adopted by the
Board; and
2. Product Approved side wall horizontal vented gas fuelled equipment installed in a room or structure separate from the dwelling, building or
structure used in whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS --- GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product Approved
side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the instructions
provided by the manufacturer for installation of the equipment and the venting system shall include:
1. Detailed instructions for the installation of the venting system design or the venting system components; and
2. A complete parts list for the venting system design or venting system.
(d) MANUFACTURER REQUIREMENTS --- GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a Product
Approved side wall horizontally vented gas fuelled equipment does not provide the parts for venting the fuel gases, but identifies special venting
systems , the following requirements shall be satisfied by the manufacturer.
1. The referenced special venting system instructions shall be included with the appliance or equipment installation instructions; and
2. The special venting systems shall be Product Approved by the Board, and the instructions for that system shall include a parts list and
detailed installation instructions.
(e)) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fuelled equipment, all venting instructions,
all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the
installation.

3
Table of Contents
Caution 4
Safety 5
Owners Information
First Fire 6
Remote Control Operation 7
Maintenance 15

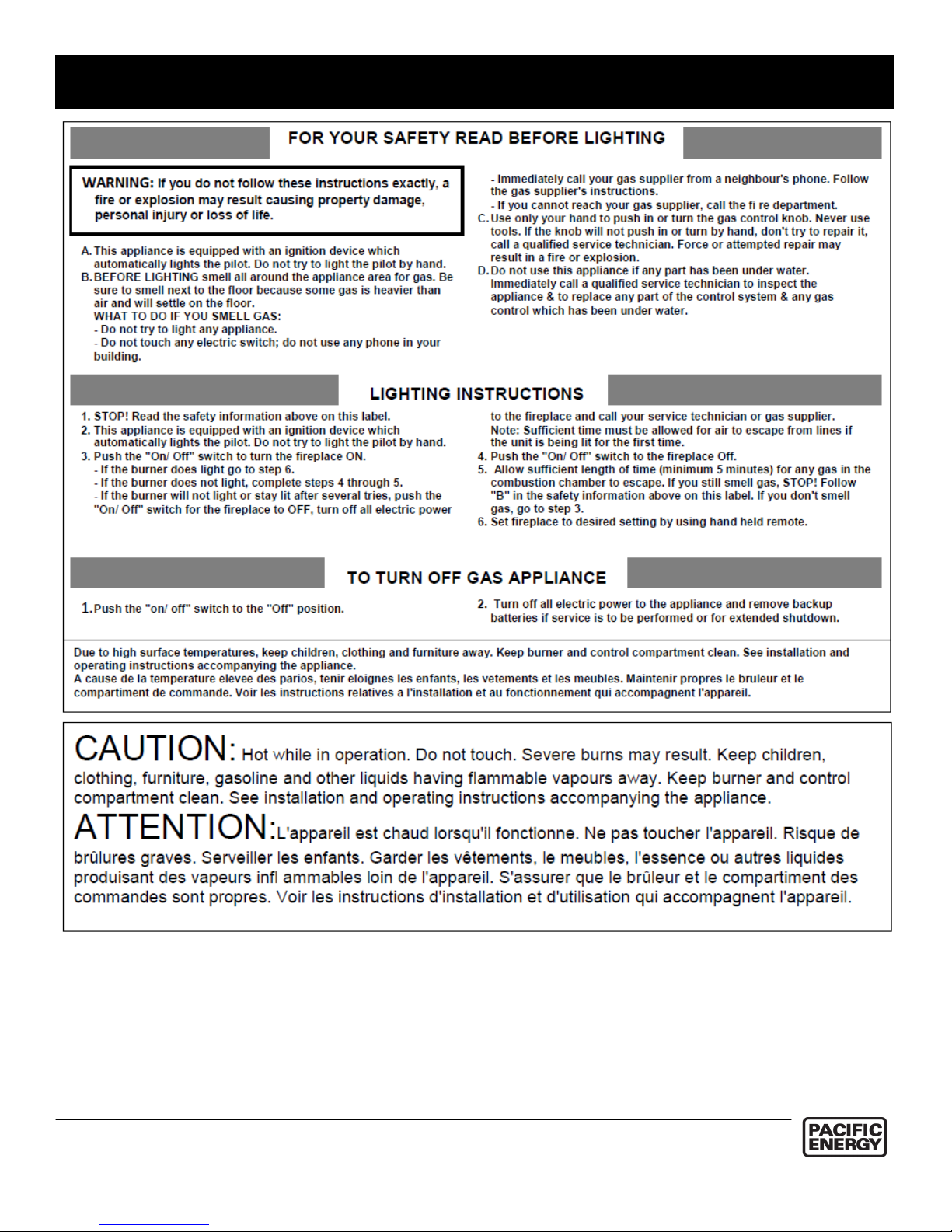

Lighting Instructions 17
Installer information
Fireplace Dimensions 18
Clearances to Combustibles 20
Locating the Fireplace 21
Surround Installation 22
Venting 23
Venting Components 25
Plumbing and Electrical 26
Gas Supply 27
Gas Pressure Check 27
Gas Pressure Testing Procedure 28

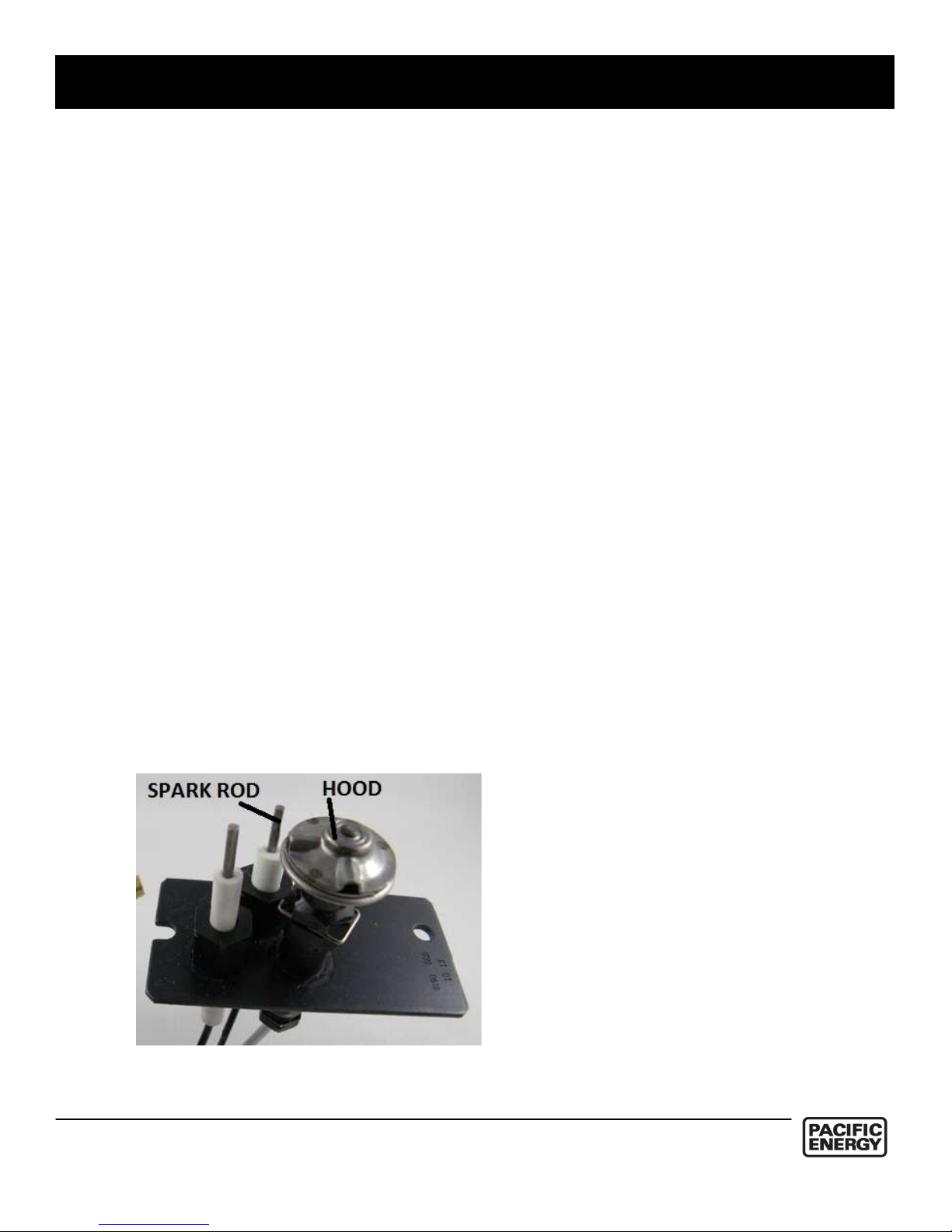

Pilot Adjustment 28
Propane Conversion 29
Door Installation / Removal 30
Fan Installation/ Removal 30
Panel Installation/Removal 31
Burner And Tray Installation/Removal 32
Log Set Installation/Removal 33
Glass Burner Kit Installation/Removal 34
Intake Air Damper Installation 35
Sales Codes 36
Wiring Diagram 37
Installation Notes 38

4
FOR YOUR SAFETY - Do not install or operate your Pacific Energy fireplace without first
reading and understanding this manual. Any installation or operational deviation from the
following instructions voids the Pacific Energy Warranty and may prove hazardous.
This appliance and its individual shut off valve must be disconnected from gas supply piping
system during any pressure testing of that system at test pressures in excess of 1/2 psi
(3.5 kPa).
This appliance must be isolated from the gas supply piping system by closing its individual
manual shut off valve during any pressure testing of the gas supply piping system at test
pressures equal to or less than 1/2 psi (3.5 kPa).
Do not use the fireplace if any part has been under water. Immediately call a qualified service
technician to inspect the fireplace and to replace any part of the control system and any gas
control which has been under water.
Caution
This fireplace is equipped with a micro mesh safety screen for your protection and
must be installed with the unit. Removal of the safety screen will cause the fireplace
to become a burn and fire hazard.

5
Due to high temperatures, this gas appliance should be located out of traffic and away
from furniture and draperies.
Children and adults should be alerted to the hazards of high surface temperatures and
should stay away to avoid burns or clothing ignition.
Young children should be carefully supervised when they are in the same room as the
appliance. Toddlers, young children and others may be susceptible to accidental contact
burns.
A physical barrier is provided if there are at risk individuals in the house. To restrict access
to a fireplace or stove, install an adjustable safety gate to keep toddlers, young children
and other at risk individuals out of the room and away from hot surfaces.
Clothing or other flammable material should not be placed on or near the appliance.
A barrier designed to reduce the risk of burns from the hot viewing glass is provided with
the appliance and shall be installed.
If the barrier becomes damaged, the barrier shall be replaced with the manufacturer’s
barrier for this appliance.
Any safety screen, guard, or barrier removed for servicing the appliance, must be replaced
prior to operating the appliance.
Installation and repair should be done by a qualified service person. The appliance should
be inspected before use and at least annually by a professional service person. More
frequent cleaning may be required due to excessive lint from carpeting, bedding material,
etc. It is imperative that control compartments, burners and circulating air passageways of
the appliance be kept clean.
This appliance must not be connected to a chimney flue serving a separate solid fuel
burning appliance.
It is our policy that no responsibility is assumed by the Company or by any of its
employees or representatives for any damages caused by an inoperable, inadequate, or
unsafe condition which is the result, either directly or indirectly, of any improper operation
or installation procedures.
Safety

6
OWNER’S
INFORMATION
Congratulations on your purchase of a Pacific Energy Gas Fireplace.
Your fireplace has been professionally installed by:
Dealer name: ___________________
Phone Number: _________________
If you discover any problems with your gas fireplace contact your dealer immediately to have the
unit repaired.
Caution: Do not attempt to repair the fireplace, you may cause injury to yourself or others and risk
causing damage to the unit.
Before operating your fireplace carefully read this manual and pay close attention to all Safety
Warnings. The manual contains important information on the unit’s safe operation and
maintenance.
When lit for the first time, the fireplace will emit a slight odour for a couple of hours. This is due to
the curing of paints, sealants, gaskets, and lubricants used in the manufacturing process. This
condition is temporary. Open doors and windows to ventilate the area. Odour caused by the curing
process may cause discomfort to some individuals.
It is normal for fireplaces fabricated from steel to give off some expansion and/or contraction
noises during the start up or cool down cycle. Similar noises are found with your furnace heat
exchanger or cook stove oven.
First Fire

7
OWNER’S
INFORMATION
`
Remote Control Operation
Important
The Proflame Transmitter is an integrated part of the Proflame System, which consists of:
• Proflame Transmitter, to be used in conjunction with
• Integrated Fireplaces Control (Proflame IFC)
The Proflame Transmitter provides for controlling of the following hearth appliance functions:
1. Main Burner On/Off
2. Main Burner flame modulation (6 levels)
3. Choice of standing or intermittent pilot (CPI/IPI)
4. Thermostat and Smart thermostat functions
5. Accent light modulation (6 levels)
6. Split flow valve
7. Comfort Fan speed modulation (6 levels)
Transmitter (Remote Control with LCD Display)

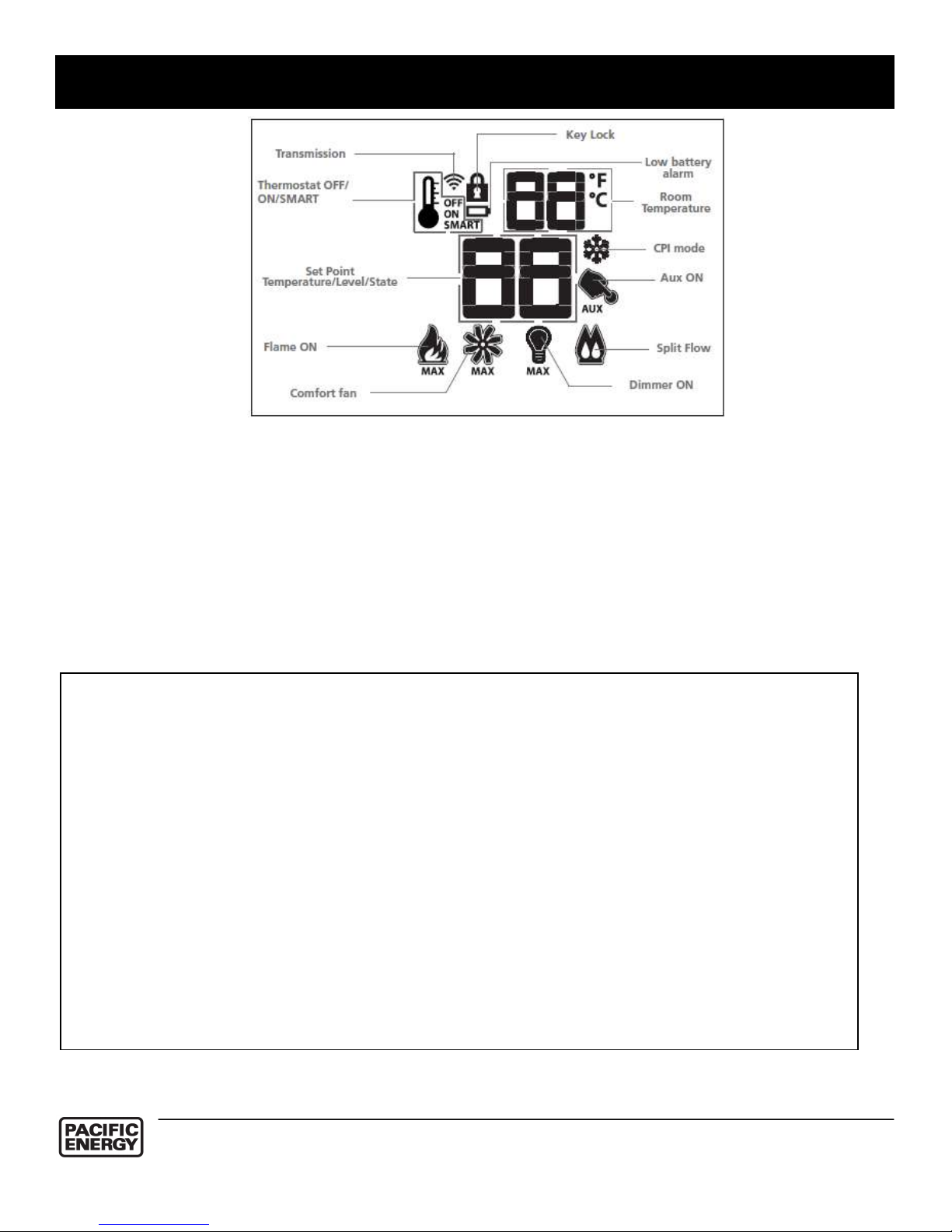

The Proflame Transmitter uses a streamline design with a simple button layout and informative
LCD display (Fig. 1). A Mode Key is provided to index between the features and a Thermostat Key
is used to turn on/off or index through Thermostat functions (Fig. 1 & 2). Additionally, a Key Lock
feature is provided (Fig. 21).
Figure 1: Proflame Transmitter

8
OWNER’S
INFORMATION
Technical Data
Remote Control
Supply voltage 4.5 V (three AAA LR03 1.5 V batteries)
Ambient temperature ratings 0 - 50 °C (32 - 122 °F)
Typical operative distance in free air 12 m
Radio frequency 315 MHz ( FCC version )
433.92 MHz ( CE version )
WARNING
THE TRANSMITTER AND RECEIVER ARE RADIO FREQUENCY DEVICES.
PLACING THE TRANSMITTER IN OR NEAR METAL MAY SEVERELY REDUCE THE
SIGNAL RANGE.
METALLIC STRUCTURES OR RADIO INTERFERENCES CAN REDUCE THE OPERATIVE
DISTANCE OF THE DEVICE DEPENDING ON TYPE OF FIREPLACE, INSTALLATION AND
ENVIROMENT.
ATTENTION!
- TURN “OFF” THE MAIN GAS SUPPLY OF THE APPLIANCE DURING INSTALLATION OR
MAINTENANCE OF THE RECEIVER DEVICE.
- TURN “OFF” MAIN GAS SUPPLY TO THE APPLIANCE PRIOR TO REMOVING OR
REINSERTING THE BATTERIES.
- IN CASE OF REMOTE CONTROL MALFUNCTION TURN OFF THE IFC DEVICE USING
THE “ON/OFF” MAIN SWITCH.
- FOR INSTALLATION/MAINTENANCE SWITCH OFF THE IFC DEVICE REMOVING MAIN
POWER SUPPLY PLUG.
- THE DEVICE IS NOT SUITABLE FOR THE USE OF RECHARGABLE BATTERIES AND ITS
OPERATIVE DISTANCE IS REDUCED WITH LOW BATTERY LEVEL.

9
OWNER’S
INFORMATION
OPERATING PROCEDURE
Initializing the System for the first time
Power the receiver. Activate the procedure of the receiver
address programming, see the receiver instruction (*).
The Receiver will “beep” three (3) times to indicate that
it is ready to synchronize with a Transmitter. Install the
3 AAA type batteries in the Transmitter battery bay, located
on the base of the Transmitter. (fig. 3) With the batteries
already installed in the Transmitter, push the On button.
The Receiver will “beep” four times to indicate the
Transmitter’s
command is accepted and sets to the particular code
of that Transmitter. The system is now initialized.
(*) The receiver may be independent or integrated to the IFC hearth
appliance control module. The receiver instruction may not be
independent when part of the IFC.
Figure 3: Battery
compartment
Wall mounting
The Proflame remote control is supplied with an adapter for wall mounting.
Install the controller 1.5 m above floor level, well away from heat sources, kitchens, doors or
windows.
Metallic structures or radio interferences can reduce the operative distance of the device.
Make sure to attach the adapter in a level plane without any distortion. Proceed as follows:
• Detach the adapter from the body of the remote control; see Fig. A.
• Position the adapter on the wall, mark the points for the fixing holes and drill the wall.
• Fix the adapter on the wall using the mounting hardware supplied with the remote control.
• Insert the remote control onto the adapter as shown in Fig. B.
Figure A: Detach the adapter from the body
Figure B: Adapter and remote control

10
OWNER’S
INFORMATION
Temperature indication Display
With the system in the “OFF” position, press the Thermostat Key and the
Mode Key at the same time. Look at the LCD screen on the transmitter to
verify that a C or F is visible to the right of the Room Temperature display.
(Fig. 4 & 5)
Turn on the Appliance
With the system OFF, press the ON/OFF Key on the
Transmitter. The Transmitter display will show some other
active Icons on the screen. At the same time the Receiver
will activate the appliance. A single “beep” from the
Receiver will confirm reception of the command.
Turn off the Appliance
With the system ON, press the ON/OFF Key on the
Transmitter. The Transmitter LCD display will only show
the room temperature (Fig. 6). At the same time the
Receiver will turn off the appliance. A single “beep” from
the Receiver confirms reception of the command.
Remote Flame Control
The Proflame has six (6) flame levels. With the
system on, and the flame level at the maximum in
the appliance, pressing the down arrow key once
will reduce the flame height by one step until the
flame is turned off.
The Up Arrow Key will increase the flame height
each time it is pressed. If the Up Arrow Key is
pressed while the system is on but the flame is off,
the flame will come on in the high position. (Fig. 7)
A single “beep” will confirm reception of the
command.
Figure 4: Display in Fahrenheit
Figure 5: Display in Celsius
Figure 7:
Figure 6: Remote Control
Display

11
OWNER’S
INFORMATION
ROOM THERMOSTAT (Transmitter Operation)
The Remote Control can operate as a room thermostat. The
thermostat can be set to a desired temperature to control the
comfort level in a room.
To activate this function, press the Thermostat key (Fig. 1). The
LCD display on the transmitter will change to show that the room
thermostat is “ON” and the set temperature is now displayed
(Fig.8). To adjust the set point, press the up or down arrow keys
until the desired set point temperature is displayed on the LCD
screen of the transmitter.
Smart Thermostat (Transmitter Operation)
The Smart Thermostat function adjusts the flame height in
accordance to the difference between the set point and the room
temperatures. As the room temperature gets closer to the set point
the Smart Function will modulate the flame down. If the room
temperature is cool the Smart function will modulate the flame up.
To activate this function, press the THERMOSTAT key (Fig. 1)
until the word "SMART" appears to the right of the temperature
bulb graphic (Fig. 9). To adjust the set point, press the up or down
arrow keys until the desired set point temperature is displayed on
the LCD screen of the transmitter (Fig. 10).
Note. When Smart Thermostat is activated, manual flame height
adjustment is disabled
Figure 8
Figure 9: Smart Flame
Function
Figure 10
Fan Speed Control
If the appliance is equipped with a hot air circulating fan, the speed of the fan can be
controlled by the Proflame system. The fan speed can be adjusted through six (6) speeds.
To activate this function use the Mode Key (Fig.1) to index to the fan control icon (Fig. 11).
Use the Up/Down Arrow Keys (Fig.1) to turn on, off or adjust the fan speed (Fig. 12). A
single “beep” will confirm reception of the command.
Figure 11
Figure 12

12
OWNER’S
INFORMATION
Continuous Pilot/Intermittent Pilot (CPI/IPI) selection
With the system in "OFF" position press the Mode Key (Fig. 1) to index to the CPI mode
icon (fig. 13 & 14).
Pressing the Up Arrow Key will activate the Continous Pilot Ignition mode (CPI). Pressing
the Down Arrow Key will return to IPI. A single “beep” will confirm the reception of the
command.
NOTE: this function is available only with Proflame IFC.
NOTE: If the system is equipped with a CPI/IPI toggle switch:
• Set the CPI/IPI switch to CPI position(switch closed) to enable remote CPI/IPI
operation.
• Set the CPI/IPI switch to IPI position (switch open) to disable remote CPI/IPI
operation. The system will now work in IPI mode only regardless of the selection on
the remote control hand set.
Figure 13
Remote dimmer control (Light)
The dimmer function controls the Light power outlet by power light control. To activate this
function use the Mode Key (Fig. 1) to index to the Light icon (Fig. 15 & 16).
The intensity of the output can be adjusted through six (6) levels. Use the Up/Down Arrow Keys
(Fig.1) adjust the output level. A single “beep” will confirm reception of the command.
Note. This function is available only with the Proflame IFC.
Figure 15
Figure 16
Figure 14

13
OWNER’S
INFORMATION
KEY LOCK
This function will lock the keys to avoid unsupervised operation.
To activate this function, press the MODE and UP Keys at
the same time (Fig. 21).
To de-activate this function, press the MODE and UP Keys
at the same time.
LOW BATTERY POWER DETECTION
Transmitter
The life span of the remote control batteries depends on
various factors: quality of the batteries used, the number
of ignitions of the appliance, the number of changes to
the room thermostat set point, etc.
When the Transmitter batteries are low, a Battery Icon
will appear on the LCD display of the Transmitter (Fig. 22)
before all battery power is lost. When the batteries are
replaced this Icon will disappear.
WARNING
Fire Hazard. Can cause severe injury or death
The Receiver causes ignition of the appliance. The appliance can turn on suddenly. Keep
away from the appliance burner when operating the remote system or activating manual
bypass of the remote system.
Figure 21
Figure 22

14
OWNER’S
INFORMATION
DIMENSIONAL DRAWINGS
Fig. 23: PROFLAME Transmitter dimensional drawing

15
OWNER’S
INFORMATION
Turn off gas and electrical power supply (if applicable) and allow ample time for unit to cool
before servicing appliance. It is recommended that the fireplace and its venting should be
inspected at least once a year by a qualified service person.
Glass Door:
Warning: Do not operate fireplace with glass door removed, cracked or broken. Replacement of
the glass door should be done by a licensed or qualified service person.
Do not strike or otherwise impact the glass in any way that may cause it to break. If the glass
becomes cracked or broken it must be replaced before using the fireplace. Replacement door can be
obtained from your nearest Pacific Energy dealer. Do not substitute with any other type.
Only the door certified with the appliance shall be used
To remove broken glass, remove Door as noted in "Door Removal" section.
Annual Inspection:
The following procedures must be performed each year by certified personnel.
a) Remove glass door and decorative media (such as logs and rocks). Inspect decorative media
and burner assemblies for soot buildup. If excessive buildup of soot is present, have a
qualified service person inspect and adjust unit for proper combustion. Clean burners with a
brush or vacuum cleaner, paying close attention to burner ports.
b) Check the pilot system for proper flame size and operation. Pilot light flame must be long
enough to overlap the burner ports. Clean pilot hood and spark rod free of soot, dust or any
other deposits.
.
Maintenance

16
OWNER’S
INFORMATION
c) Check that the vent pipe and vent terminal are open and free from blockage or debris. The flow
of combustion and ventilation air must not be obstructed. If the venting is disassembled for
cleaning, it must be properly assembled and re-sealed.
d) Check glass panel gasket, replace if necessary. It is important that the glass seal be maintained
in good condition.
e) Check and replace batteries as needed.
Note: The appliance area must be kept clear and free from combustible materials, gasoline and other
flammable vapors and liquids.
Periodically:
a) Viewing glass may be cleaned as necessary with fireplace glass cleaner.
b) Exterior finish may be cleaned with mild soap and water.
CAUTION:
Do not use abrasive cleaners on glass or any other part of the fireplace.
Do not clean glass when hot

17
OWNER’S
INFORMATION
Lighting Instructions

18
INSTALLER
INFORMATION
Fireplace Dimensions
Fig. 24: Fireplace Dimensions
Fig. 25: Framing
The installation must conform with local codes or, in the absence of local codes, with the
National Fuel Gas Code, ANSI Z223.1/NFPA 54, or the National Gas and Propane
Installation Code, CSA B149.1
A manufactured home (USA only) or mobile home OEM installation must conform with
the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or,
when such a standard is not applicable, the Standard for Manufactured Home
Installations, ANSI/NCSBCS A225.1, or standard for Gas Equipped Recreational Vehicles
and Mobile Housing , CSA Z240.4

19
INSTALLER
INFORMATION
Fig. 26: Framing At The Corner
Fig. 27: Minimum Clearance
Corner Framing

20
INSTALLER
INFORMATION
Clearances to Combustibles
Minimum Clearance to Combustible Materials
ENCLOSED SIDE WALL 1.75"
ENCLOSED BACK WALL NCR*
ENCLOSED CEILING 4"
ECLOSED FRONT WALL 24" From top of the glass
EXPOSED SIDE WALL 8" From side of the glass
VENT ENCLOSURE 1"
EXTERIOR SOFIT 16"
*NCR STANDS FOR NO CLEARANCE REQUIRED; YOU MAY USE COMBUSTIBLE CONSTRUCTION
MATERIALS IN DIRECT CONTACT WITH THE APPLIANCE ON THESE SURFACES.
When the appliance is installed directly on carpeting, tile or other combustible material other
than wood flooring, the appliance shall be installed on a metal or wood panel extending the full
width and depth of the appliance. Specified clearances shall be maintained from the top surface
of carpeting, tile, etc.

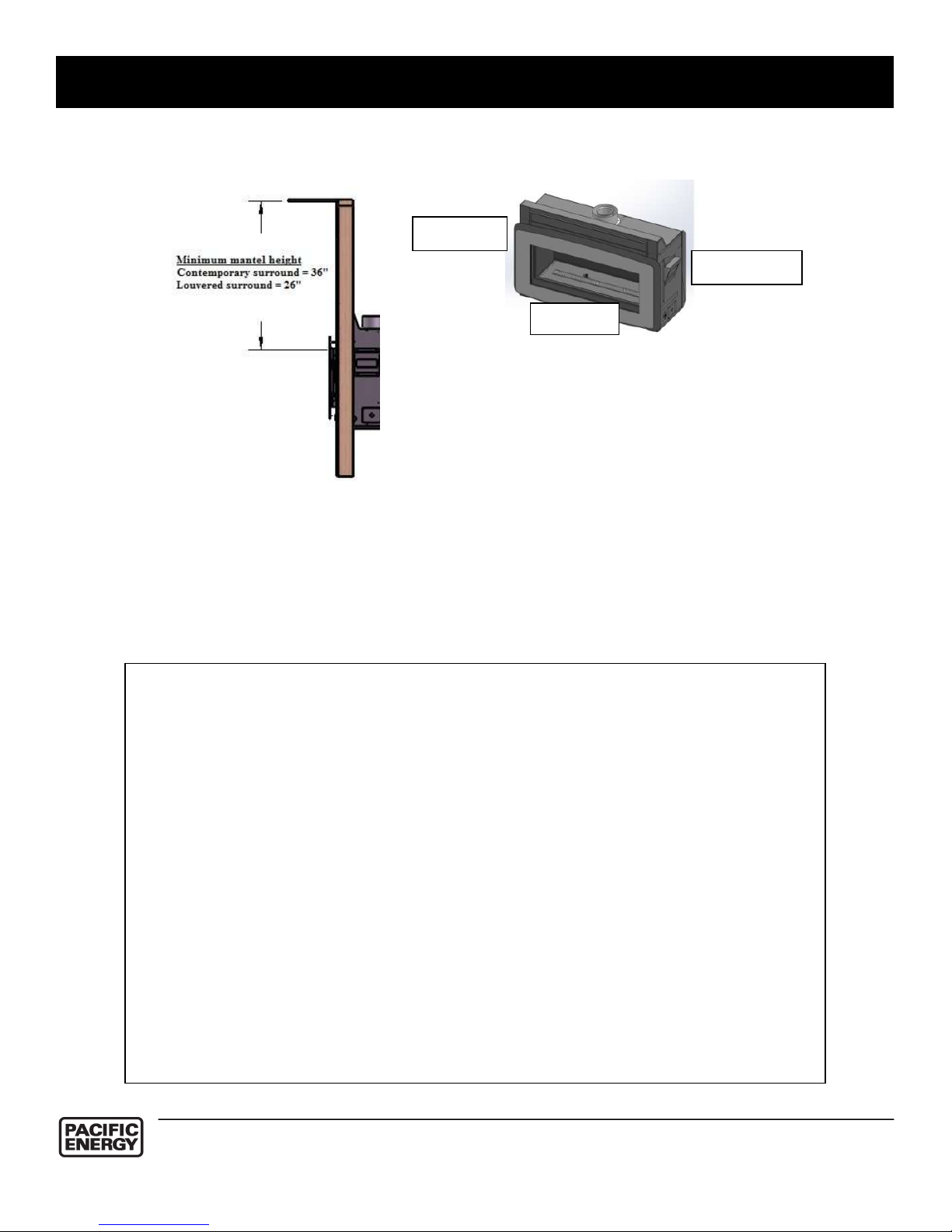

Figure 28: Minimum Distance
From Top Of The Glass To Ceiling
Figure 29: Front and Side Definitions
Front of the appliance is an open side of the combustion chamber
covered with the glass.
Facing the front of the appliance side from left is the left side of the
appliance and side from right is the right side of the appliance.
LEFT SIDE
RIGHT SIDE
FRONT
