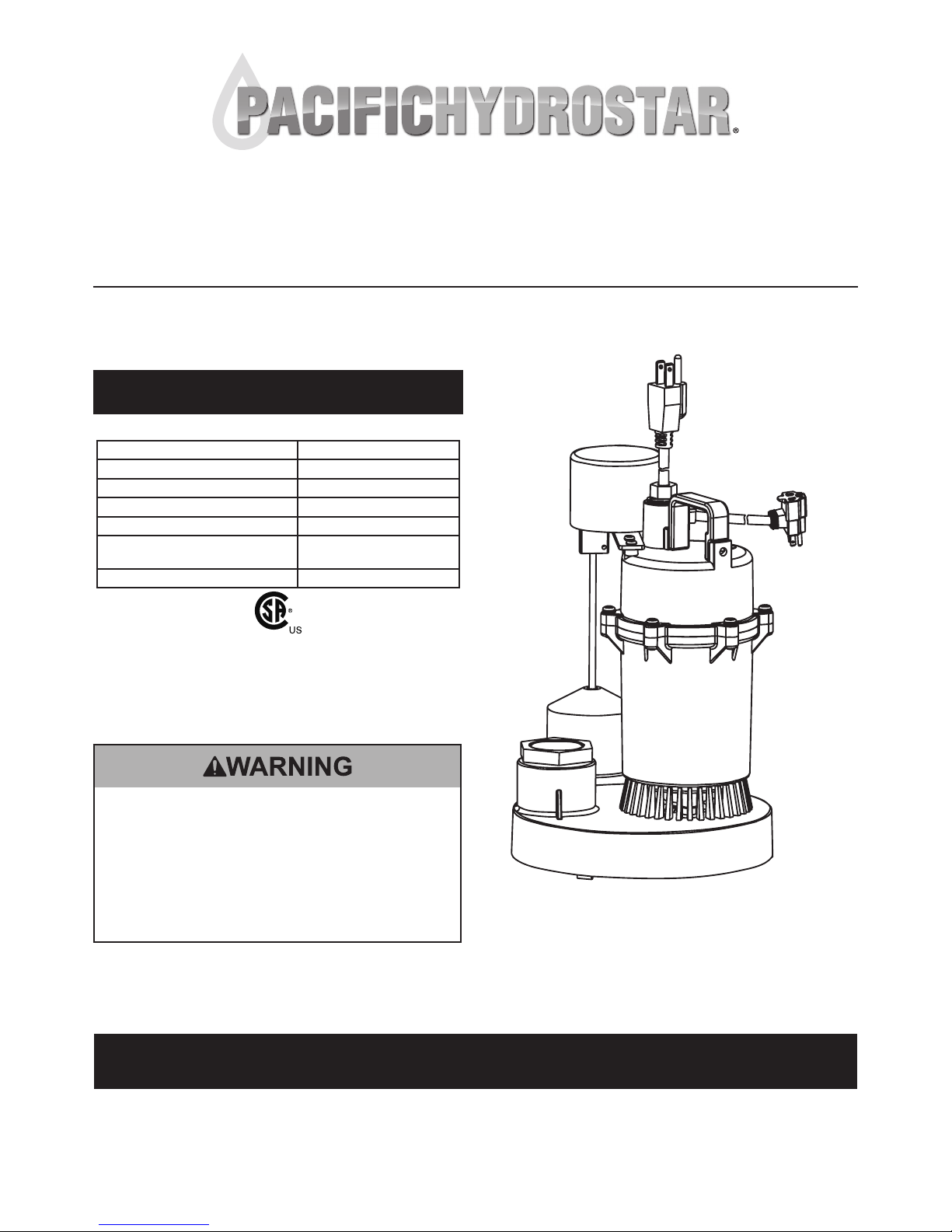

Pacific hydrostar PACIFIC HYDROSTAR 1/3 HP Submersible Sump Pump with Vertical Float... User manual

1/3 HP Submersible Sump Pump
with Vertical Float Switch
Item 68476 Specications
Float Switch Operation Height 7.1 IN. ON / 2.8 IN. OFF
Electrical Requirements 120V~ / 60Hz / 7.6A
Power Cord Length 10 FT.
Maximum Capacity 3000 GPH
Maximum Delivery Height 25 FT.
Discharge Size 1.5 IN. NPT
(includes 1.25 IN. Adaptor)
Maximum Water Temperature 77° F (25°C)
252728
Read the separate Sump Pump Safety Warnings,
Installation and Operation Instructions before
using this product.
Failure to do so can result in serious injury.
SAVE THIS SPECIFICATION SHEET AND
THE SUMP PUMP SAFETY WARNINGS,
INSTALLATION AND OPERATION
INSTRUCTIONS FOR FUTURE REFERENCE.
When unpacking, make sure that the product is intact and undamaged.
If any parts are missing or broken, please call 1-800-444-3353 as soon as possible.
Visit our website at: http://www.harborfreight.com
Copyright©2011 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork contained herein may be reproduced in any shape
or form without the express written consent of Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for assembly and service may not be included.

For technical questions, please call 1-800-444-3353. SKU 68476
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

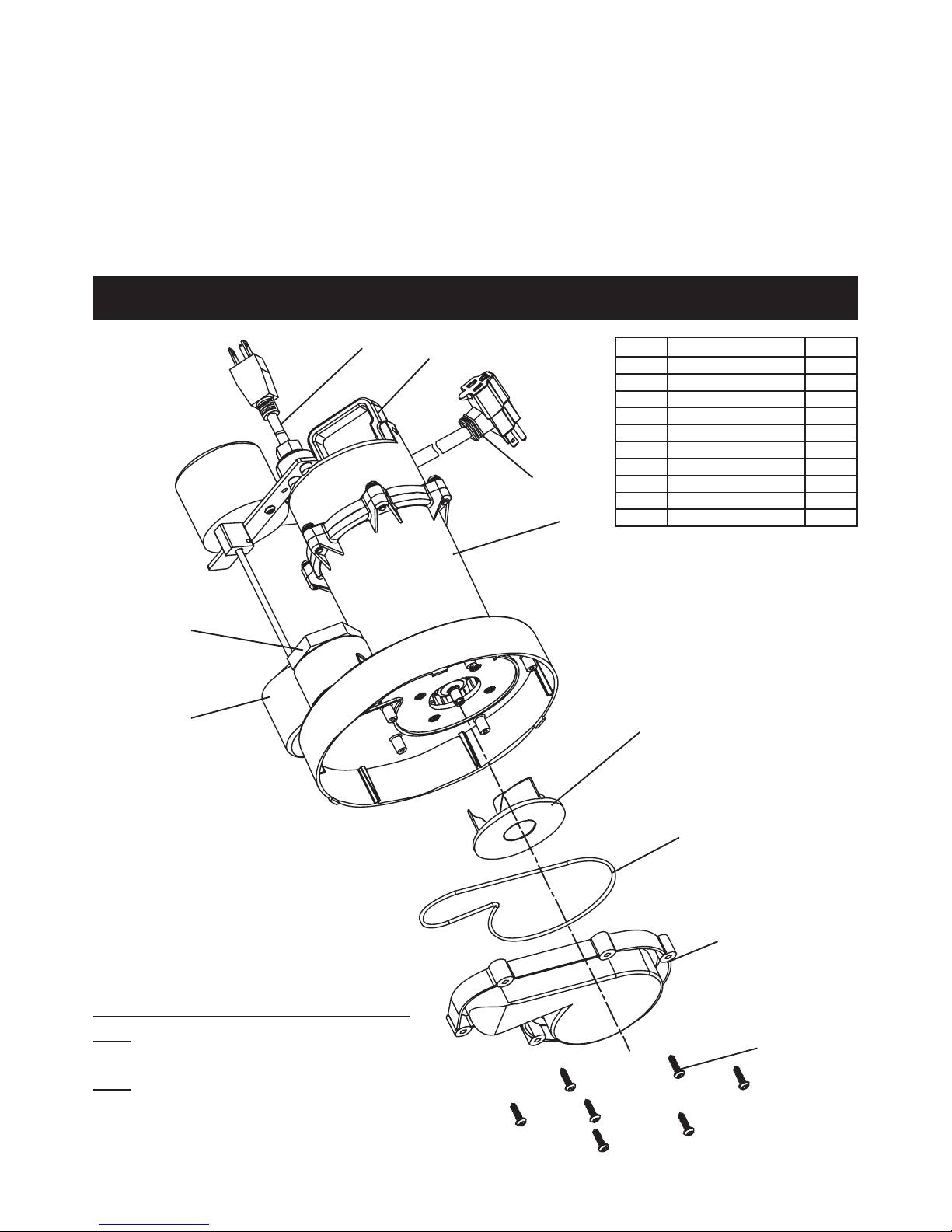

Parts List and Assembly Diagram
Part Description Qty.
1 Pump Cord 1
2 Handle 1
3 Motor 1
4 Impeller 1
5 Gasket 1
6 Volute 1
7 Screw 7
8 Float Switch 1
9 Inlet 1
10 Float Switch Cord 1
Record Product’s Serial Number Here:
Note: If product has no serial number,
record month and year of purchase instead.
Note: Some parts are listed and shown
for illustration purposes only, and are not
available individually as replacement parts.
3
12
84
5
6
7
9
10

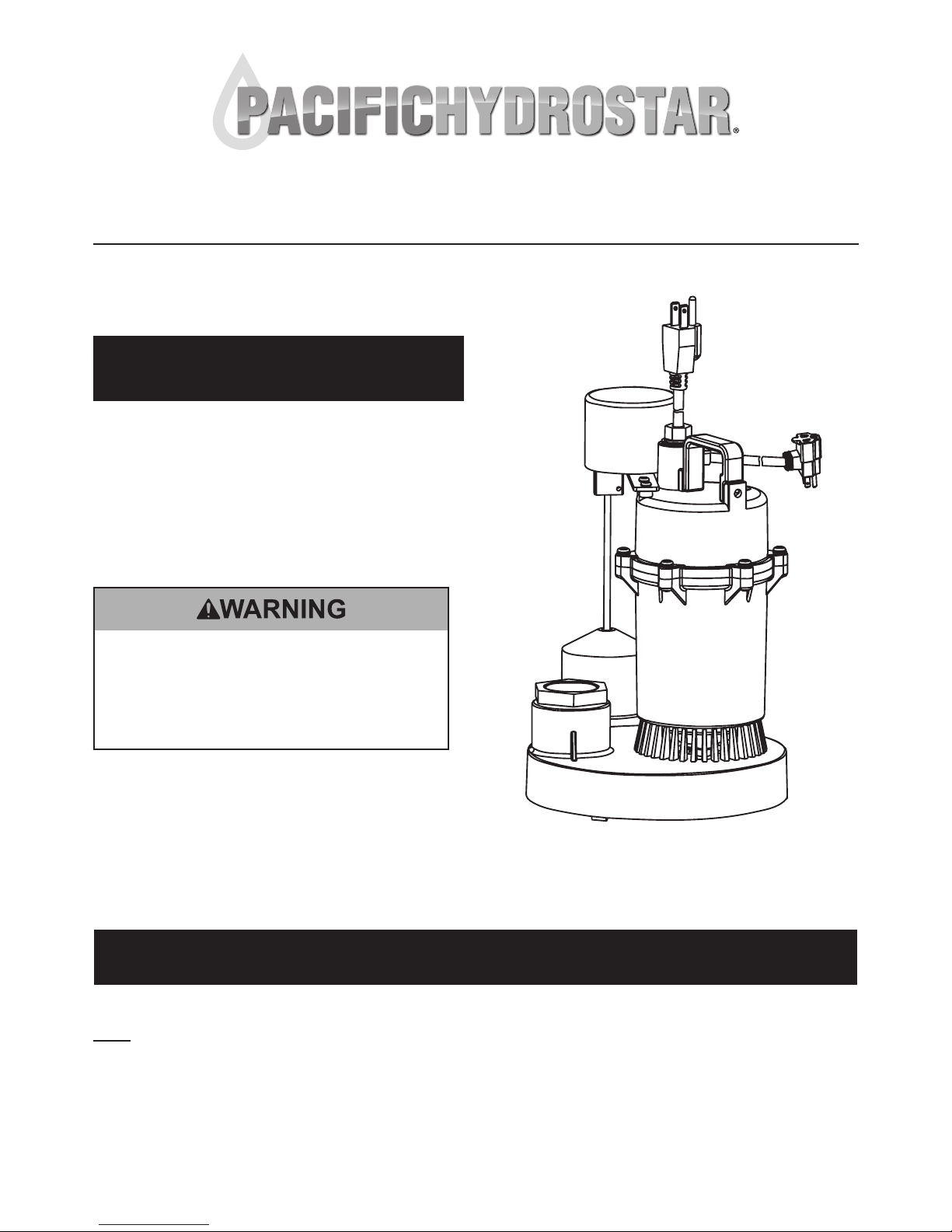

Sump Pump
Safety Warnings, Installation and
Operation Instructions
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS SUMP PUMP SAFETY WARNINGS,
INSTALLATION AND OPERATION
INSTRUCTIONS AND THE SPECIFICATION
SHEET FOR FUTURE REFERENCE.
When unpacking, make sure that the product is intact and undamaged.
If any parts are missing or broken, please call 1-800-444-3353 as soon as possible.
Note: There may be some slight differences in the appearance of the various sump pumps, however
the instructions in this manual apply to all of such pumps provided by Harbor Freight Tools.
Visit our website at: http://www.harborfreight.com
Copyright©2011 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork contained herein may be reproduced in any shape
or form without the express written consent of Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for assembly and service may not be included.

Page 2 For technical questions, please call 1-800-444-3353. Sump Pump manual
Before start-up, note the following:
The pump can be connected to any shock-proof plug
which has been installed according to regulations.
The plug must have a supply voltage of 120 V~ at 60 Hz.
CAUTION
This pump has been evaluated for use with water only.
WARNING
IMPORTANT! For your own safety –
before starting to run the pump, please have
the following items checked by an expert:
1. Risk of electric shock – This pump is supplied
with a grounding conductor and grounding-type
attachment plug. To reduce the risk of
electric shock, connect only to a properly
grounded, grounding-type receptacle.
2. Risk of electric shock – This pump has not been
investigated for use in swimming pool areas.
3. The electrical connections must be
protected from moisture.
4. If there is danger of ooding, the electrical
connections must be taken to higher ground.
5. Circulation of caustic uids, as well as the circulation
of abrasive materials, must be avoided at all costs.
6. The pump must be protected from frost.
7. The pump must be protected from running dry.
8. Access by children should also be
prevented with appropriate measures.
9. Position the Pump on a at, level, solid surface.
Also secure the discharge pipe (not included) to a
solid surface to ensure the stability of the Pump.
10. Do not use with an extension cord.
If a GFCI-protected outlet is not close enough
to the pump, contact a licensed electrician to
install a new one. All wiring must be performed
by a licensed electrician and comply with
the National Electric Code. Do not remove
the round grounding pin from the plug.
11. Turn off power to all circuits before walking on
a wet oor. If you cannot turn power off rst,
contact an electrician to turn off the power.
12. Install a backup pump and/or high water alarm
as an additional safeguard against ooding.
13. WARNING: Handling the Power Cord
on this product will expose you to lead,
a chemical known to the State of California
to cause cancer, and birth defects or other
reproductive harm. Wash hands after handling.
(California Health & Safety Code § 25249.5, et seq.)
14. The warnings, precautions, and instructions
discussed in this instruction manual cannot
cover all possible conditions and situations
that may occur. It must be understood by the
operator that common sense and caution are
factors which cannot be built into this product,
but must be supplied by the operator.
Fluid Type
The Pump is designed for use with water with
a maximum temperature of 77° F (25°C).
Do not use the pump for other uids, especially not
fuels, cleaning uids, or other chemical products.
Specications
See Specications for your model on included sheet.
Installation
The submersible motor pump must be installed
in a stationary position with either:
a. A xed pipeline or
b. A exible hose pipe.
Please note!
1. Do not install the pump by suspending it
unsupported from its delivery pipe or power cords.
The pump must be suspended from the
handle or be placed on the bottom of the shaft.
To ensure that the pump works properly,
keep the bottom of the shaft free from
sludge and dirt of all kinds.
2. If the water level sinks too low, any sludge in the
shaft will dry out and stop the pump from starting.
To help ensure the pump will start as required,
check the pump regularly with start-up tests.
Power Supply
1. The pump is equipped with a shock-
proof plug according to regulations.
The pump is designed to be connected to
120 V~, 60 Hz, Ground Fault Circuit Interrupter
(GFCI) protected safety socket.
2. Make sure that the socket is sufciently
secured and is in excellent condition.
3. When the plug is inserted into the socket
the pump will be on standby.
4. Connect the Pump Power Cord only through the
Float Switch Cord plug to prevent dry running.

Page 3For technical questions, please call 1-800-444-3353.Sump Pump manual
WARNING! If either power cord or plug is damaged,
do not use the pump. The power cord or plug
may only be repaired by a certied electrician.
Areas of use
1. This pump is designed to pump clear water only.
2. This pump is designed for use as a basement pump.
When installed in a shaft, this pump provides
some protection from basement ooding.
3. This pump can also be used to transfer water
(e.g. household, farming, plumbing).

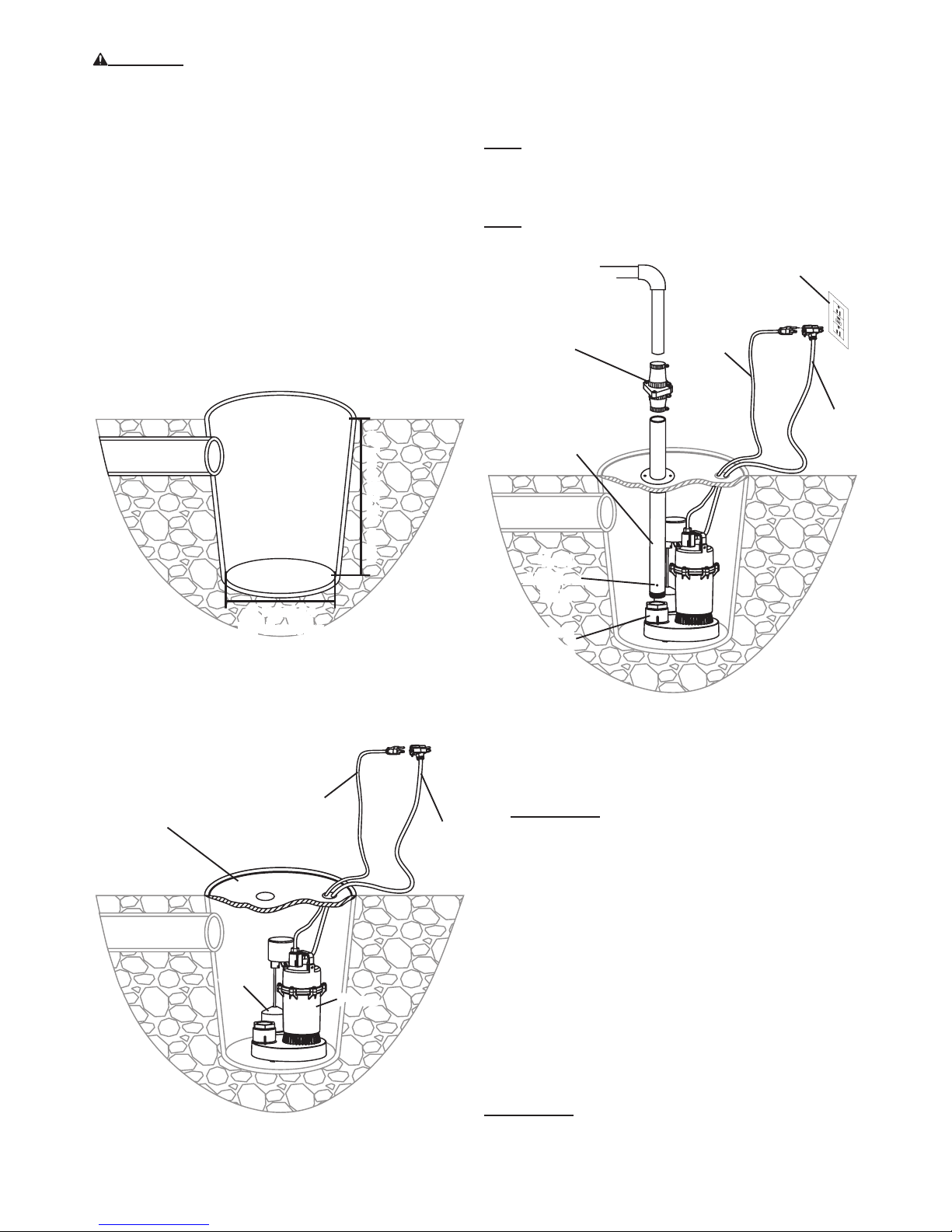

Installation Instructions
1. Construct a basin that is at least 22 IN. deep
and at least 14 IN. in diameter.
Figure A: Sump Basin
at least 14
IN. diameter
at least 22 IN. deep
Sump
Basin
Inlet Pipe
2. Position pump on solid surface so that the Float
Switch is away from the inlet pipe and at least 1 IN.
away from all obstructions throughout its movement.
Figure B: Pump Position
Float
Switch
Pump
Pump
Cord
Sump Cover Float
Switch
Cord
3. Fit a sump cover with a hole for the output pipe
and power cords. Thread the Power Cords
through their holes, but do not plug them in yet.
Set the sump cover aside for now.
Note: The sump cover can also be
tted with a vent pipe, if desired.
4. Attach a discharge pipe to the Pump Outlet.
Note: Wrap all threaded connections
with PTFE thread seal tape.
Figure C: Outlet Pipe and Plug
To discharge
(away from foundation)
GFCI-Protected
Receptacle
Pump
Cord
Float
Switch
Cord
Check
Valve
Pump
Outlet
1/8IN.
Air Bleed
Hole
Discharge
Pipe
5. To prevent needless cycling, install a check valve
onto the discharge pipe. This prevents water
from owing back after the pump shuts off.
6. IMPORTANT: Drill a 1/8IN. diameter air bleed hole
through the Discharge Pipe just above the lower Base
to prevent Pump “airlock”. A small spray of water
out of this hole is normal while the Pump is running.
7. Install a gate valve or ball valve if
required by building codes.
8. The ON/OFF height can be changed
by adjusting the Float Switch.
9. Connect additional Discharge Pipe as needed
to direct the water discharge at least 3 FT.
away from the foundation. Slope the discharge
pipe downward, away from the foundation.
The discharge should be kept as short as
possible with a minimum number of turns.
IMPORTANT: Do not exceed the
Maximum Delivery Height of the Pump.

Page 4 For technical questions, please call 1-800-444-3353. Sump Pump manual
Operation
After reading these instructions,
consider the following points before starting the pump:
1. Verify that the pump rests on the oor of the shaft,
if it is not suspended by the handle.
2. Verify that the delivery pipe is properly connected.
3. Verify that the electrical connection is
120 V~, 60 Hz, and GFCI-protected.
4. Verify that the electrical socket is in good condition.
5. Verify that water and moisture cannot
get near the power supply socket.
6. Verify that the pump is installed so
as to prevent running dry.
7. Verify that the power cords do not have
excess slack in the Sump Basin to prevent
it from interfering with the Float Switch.
Secure them to the Discharge Pipe if needed.
8. Dry the oor and your hands,
then plug the Float Switch Cord into
a grounded, GFCI-protected receptacle.
9. Plug the Pump Cord into the back of the Float Switch
Cord’s plug. The pump will then be on standby.
Figure D: Outlet Pipe and Plug
GFCI-Protected
Receptacle
Pump
Cord
Float
Switch
Cord
10. After connecting power to the pump and
periodically afterwards, test the pump:
a. Fill the basin to above the Float Switch Operation
ON Height. The pump should start pumping.
b. The pump should pump the water down
to below its Float Switch Operation OFF
Height and then stop pumping.
c. If the water drains back into the basin and
restarts the pump, make sure the check
valve is properly installed and working.
Also make sure that all pipe connections are tight.
Note: It is the owner’s responsibility to ensure the
oat switch is properly connected to the pump and can
operate properly and freely without obstructions.

Page 5For technical questions, please call 1-800-444-3353.Sump Pump manual
Maintenance
TO PREVENT SERIOUS INJURY FROM
ACCIDENTAL OPERATION:
Unplug the Pump from its electrical outlet and
ALLOW TO COOL FOR AT LEAST 2 HOURS
before performing any inspection,
maintenance, or cleaning procedures.
1. Before each use, inspect the general condition of the
Pump. Check for cracked or broken parts, damaged
electrical wiring, clogged Impeller Cover, Impeller,
Discharge Pipes, leaks and loose connections, and
any other condition that may affect safe operation. If
abnormal noise or vibration occurs, have the problem
corrected before further use.
Do not use damaged equipment.
2. Keep the Sump Basin clean. Clean out the
sump basin regularly and keep the cover in
place to keep it clean. Sand and other debris
can interfere with pump operation, can block the
air bleed hole, or can cause premature wear.
3. Clean out the air bleed hole periodically.
Quarterly Maintenance
The below maintenance must be performed at least
once every 3 months under optimal conditions.
For frequent use, or dirty areas,
more frequent maintenance is required.
1. Remove the Sump Basin Cover.
2. Clean sludge and debris from the bottom of the shaft.
3. Rinse the housing off with clean water.
4. Clean bers from inside the pump housing
with a pressure washer (not included).
5. If the pump housing cannot be cleaned from
the outside, it must be thoroughly cleaned.
Unplug the power cords before maintenance.
Dismantle the bottom part of the pump as follows:
a. Remove the Screws at the bottom of the Base.
b. Remove the Base to expose the
Impeller Cover and Impeller.
c. Clean the impeller with clean water.
d. To prevent damage, do not rest the pump on
the impeller or pry against the impeller.
e. Reassemble in reverse order.
6. Make sure the oat switch can operate
freely, without obstructions.
7. Replace the Sump Basin Cover.
Cold Weather Storage
In cold weather, when the Pump is not in use,
protect the interior of the Pump from freezing by
draining the water and pumping a permanent type
automobile anti-freeze containing a rust inhibitor
through the system. A 50% mixture with water is
recommended. Be sure to ush the system with a
neutralizing liquid prior to re-use of the Pump.
Parts List and Diagram
See Parts List and Assembly Diagram
for your model on included sheet.

Page 6 For technical questions, please call 1-800-444-3353. Sump Pump manual
Troubleshooting
Problem Possible Causes Possible Solutions
Pump runs, but
will not deliver
any water.
Disconnect power cords immediately
to prevent damage from running dry.
1. Pump “airlock”.
Impeller trapped in an air bubble.
2. Shut off valve closed (if installed).
3. Filter clogged.
4. Impeller clogged.
5. Discharge Pipe frozen or blocked.
6. Optional check valve stuck or
installed backwards.
Disconnect power cords immediately
to prevent damage from running dry.
1. Drill a 3/16 IN. diameter air bleed hole
through the Discharge Pipe just
above the Lower Base.
2. Open valve.
3. Clean out dirt and debris from lter.
4. Remove Volute. Clean out dirt and debris
from Impeller. Then replace Volute.
5. Thaw pipe and/or remove debris.
6. Examine and correct check valve.
Pump won’t
start or run.
1. Check power connections and circuits/fuses.
2. Water level too low.
3. Filter clogged.
4. Impeller clogged.
5. Motor damaged or worn out.
1. Consult with an electrician.
2. Allow water level to rise above the
Float Switch Operation ON Height
or move Pump to a lower location.
3. Clean out dirt and debris from lter.
4. Remove Volute. Clean out dirt and debris
from Impeller. Then replace Volute.
5. Pump must be replaced.
Excessive noise
or vibration.
1. Debris in impeller.
2. Discharge pipe restricted.
3. Worn bearings.
1. Remove lter, if equipped.
Clean impeller. Then replace lter.
2. Clean pump and discharge pipe.
Straighten exible hose.
3. Pump must be replaced.
Pump starts
and stops too
frequently.
1. Water temperature too high.
2. Back ow of water from discharge pipe.
3. Extension cord used.
1. Do not exceed 77° F (25°C).
2. Install or inspect optional check valve.
3. Eliminate use of extension cord.
Have licensed electrician install
GFCI-protected outlet near pump if needed.
Pump does
not shut off
automatically.
DISCONNECT POWER CORDS FIRST
TO PREVENT SERIOUS INJURY.
1. Pump Cord not connected through
Float Switch Cord plug.
2. Float Switch stuck.
3. Check valve not installed
properly or functioning.
4. Defective Float Switch.
DISCONNECT POWER CORDS FIRST
TO PREVENT SERIOUS INJURY.
1. Plug Pump Cord into back of
Float Switch Cord plug.
2. Check for free movement of Float Switch.
Clear debris away from beneath Float Switch.
3. Make sure check valve is properly
installed and in working order.
4. Unplug Pump from its electrical outlet.
Do not use until qualied technician
checks Pump for proper operation.
Follow all safety precautions whenever diagnosing or servicing the tool.
Disconnect power supply before service.

LIMITED 90 DAY WARRANTY
Harbor Freight Tools Co. makes every effort to assure
that its products meet high quality and durability
standards, and warrants to the original purchaser
that this product is free from defects in materials and
workmanship for the period of 90 days from the date
of purchase. This warranty does not apply to damage
due directly or indirectly, to misuse, abuse, negligence
or accidents, repairs or alterations outside our facilities,
criminal activity, improper installation, normal wear and
tear, or to lack of maintenance. We shall in no event
be liable for death, injuries to persons or property, or
for incidental, contingent, special or consequential
damages arising from the use of our product. Some
states do not allow the exclusion or limitation of incidental
or consequential damages, so the above limitation of
exclusion may not apply to you. THIS WARRANTY IS
EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part
must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation
of the complaint must accompany the merchandise. If
our inspection veries the defect, we will either repair
or replace the product at our election or we may elect
to refund the purchase price if we cannot readily and
quickly provide you with a replacement. We will return
repaired products at our expense, but if we determine
there is no defect, or that the defect resulted from
causes not within the scope of our warranty, then
you must bear the cost of returning the product.
This warranty gives you specic legal rights and you may
also have other rights which vary from state to state.
3491 Mission Oaks Blvd. • PO Box 6009
Camarillo, CA 93011 • [phone]
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 91302 • [phone]
www.harborfreight.com
