PTC-0509 Infrared Thermometer
User Manual - English V.1 - 200905
2

I. SAFETY PRECAUTIONS
- Follow the maintenance advice stipulated in this instruction
manual.
- This device may be used for professional purposes or for personal
home use.
- This device must only be used for the purposes described in this
instruction manual.
- This device must only be used in an ambient temperature range
of between 10 and 40 °C.
- This device must always be kept in a clean, dry area.
- Do not expose this thermometer to electric shocks.
- Do not expose this thermometer to extreme temperature
conditions of >50°C or < - 20°C.
- Do not use this device in relative humidity higher than 85%.
- The protective glass over the lens is the most fragile part of the
thermometer.
- Do not touch the glass of the infrared lens with your fingers.
- Clean the glass with a cotton bud lightly moistened with 70°
alcohol.
- Do not expose the thermometer to sunlight or to water.
- Never drop the device.
- Should a problem occur with your device, please contact your
retailer. Do not attempt to repair this device yourself.
PTC-0509 Infrared Thermometer
User Manual - English V.1 - 200905
3
THE MANUFACTURER RESERVES THE RIGHT TO ALTER THE SPECIFICATIONS
OF THE PRODUCT WITHOUT PRIOR NOTIFICATION

II. INTRODUCTION
The RapiTemp PTC-0509 thermometer without contact
has been developed using the latest infrared technology. This
technology allows temporal artery (TA) temperature to be taken at a
distance of about 5cm away from the forehead.
Precise, instantaneous and without contact, the RapiTemp PTC-0509
is today the most suitable thermometer for no risk
temperature measurement. It has been demonstrated that this
method of TA temperature measurement is more precise than
tympanic thermometry and better tolerated than rectal
thermometry (1).
However, as with other types of thermometer, it is essential to use
the RapiTemp PTC-0509 properly in order to obtain reliable
and stable results.
You are therefore advised to read this instruction manual and the
safety precautions carefully before use.
(1) Greenes D, Fleisher G. Accuracy of a Noninvasive Temporal Artery Thermometer for Use in
Infants. Arch Pediatr Adolesc Med 2001;155:376.
III. PRECAUTIONS BEFORE USE
In order to obtain reliable and stable results, you are advised each time
there is a significant change in the ambient temperature due to a change
in environment, to allow the RapiTemp PTC-0509 to acclimatise to the
ambient temperature for 15 to 20 minutes before using it.
In order to familiarise yourself with this new thermometer
technology, you are recommended for the first few uses, to take 2
measurements per patient and to use only the highest value. Allow a
one minute interval between two measurements.
PTC-0509 Infrared Thermometer
User Manual - English V.1 - 200905
4
The RapiTemp PTC-0509 is pre-set at the factory.
It is not necessary to calibrate the device when
starting it up.

IV. OPERATING PRINCIPLE
All objects, solid, liquid or gas, emit energy by radiation. The
intensity of this energy depends on the temperature of the object.
The RapiTemp PTC-0509 infrared thermometer is therefore able to
measure the temperature of a person by the energy the person
emits. This measurement can be taken thanks to an external
temperature probe on the device which permanently analyses and
registers the ambient temperature. Therefore, as soon as the
operator holds the thermometer near the body and activates the
radiation sensor, the measurement is taken instantly by detection of
the infrared heat generated by the arterial blood flow. Body heat
can therefore be measured without any interference from the heat
of the surrounding environment.
T HE DIFFERENT METHODS OF TEMPERATURE MEASUREMENT
Core temperature
Core temperature is the most precise measurement and involves
measuring the temperature in the pulmonary artery by means of a
catheter equipped with a thermal probe which can read the
temperature in situ. The same method is employed for probes
measuring the oesophageal temperature. However, such invasive
temperature measurement methods require specific equipment and
expertise.
Rectal thermometry
Rectal temperature adjusts slowly in comparison to the evolution of
the body’s internal temperature. It has been demonstrated that
rectal temperature remains raised long after the internal
temperature of the patient has started to drop and vice versa.
Furthermore, rectal perforations have been known to occur as a
result of this method and without appropriate sterilisation
techniques, rectal thermometry can spread germs often found in
faeces.
PTC-0509 Infrared Thermometer
User Manual - English V.1 - 200905
5

Oral thermometry
Oral temperature is easily influenced by recent ingestion of food or
drinks and by breathing through the mouth. To measure oral
temperature, the mouth must remain closed and the tongue
lowered for three to four minutes which is a difficult task for young
children to accomplish.
Axillary (armpit) temperature
Although it may be easy to measure axillary temperature, it has
been proven that it does not provide an accurate measurement of
the child’s internal temperature. To take this type of temperature,
the thermometer must be wedged tightly over the axillary artery.
Despite the low sensitivity and relative inaccuracy of axillary
temperature in detecting fever, this method is recommended by The
American Academy of Pediatrics as a screening test for fever in
newborns.
Tympanic thermometry
In order to obtain a precise temperature reading, good command of
the measurement technique is required. The thermometer probe
must be placed as close as possible to the warmest part of the
external ear canal. An incorrectly placed probe could lead to a false
temperature reading.
NORMAL TEMPERATURES ACCORDING TO MEASUREMENT METHOD
The temperature of the human body varies throughout the day. It
can also be influenced by numerous external factors: age, sex, type
and thickness of skin…
PTC-0509 Infrared Thermometer
User Manual - English V.1 - 200905
6
M EASUREMENT M ETHOD N ORMAL TEMP °
R ECTAL 36.6°C - 38°C
O RAL 35.5°C - 37.5°C
A XILLARY 34.7°C - 37.3°C
A URICULAR 35.8°C - 38°C
T EMPORAL (RapiTemp) 35.8°C - 37.8°C

A DVANTAGES OF TEMPORAL ARTERY (TA) TEMPERATURE
Infrared arterial temperature can be measured using a device
placed on the forehead, in the temporal artery region. It has been
demonstrated that this relatively new method of measuring
temperature is more precise than tympanic thermometry and better
tolerated than rectal thermometry.
The RapiTemp PTC-0509 has been designed to produce an instant
forehead temperature reading without any contact with the
temporal artery. As this artery is quite close to the surface of this skin
and therefore accessible and given the blood flow is permanent and
regular, it allows precise measurement of the temperature. This artery
is linked to the heart by the carotid artery which is directly linked to the
aorta. It forms part of the main trunk of the arterial system. The
efficiency, speed and comfort of taking a temperature from this area
make it ideal compared with other temperature measurements
methods.
NORMAL TEMPERATURES ACCORDING TO AGE
Age
o
C
o
F
0-2 years
36.4-38.0
97.5-100.4
3-10 years
36.1-37.8
97.0-100.0
11-65 years
35.9-37.6
96.6-99.7
> 65 years
35.8-37.5
96.4-99.5
P RACTICAL CONSIDERATIONS WHEN TAKING A TEMPERATURE
-In order to ensure that precise and accurate temperature
measurements are obtained, it is essential that each user has
received adequate information on and training in the temperature
measurement technique when using such a device.
-It is essential to remember that although procedures such as
taking a temperature may be simple, they must not be trivialised.
-Temperature should be taken in a neutral context. The patient
must not have undertaken vigorous physical activity prior to
PTC-0509 Infrared Thermometer
User Manual - English V.1 - 200905
7

taking his/her temperature and the room temperature must be
moderate.
-Be aware of physiological variations in temperature which must
be taken into consideration when evaluating the results:
temperature increases by 0.5°C between 6am and 3pm. Women
have a temperature that is higher, on average, by around 0.2°C. Their
temperature also varies in accordance with their ovarian cycle. It
rises by 0.5°C in the second half of the cycle and at the early stages
of pregnancy.
-When sitting, temperature is lower by about 0.3 to 0.4°C than
when standing.
H OW TO TAKE A TEMPERATURE
Aim at the FOREHEAD, over
the right temporal region,
from a distance of about
5cm, press the thermometer’s
measurement button and the
temperature is instantly
displayed.
The reliability of the
measurement cannot
be guaranteed if the
temperature is measured over
another part of the body (e.g.
arm, torso…)
C ONSTRAINTS
Please observe the following before any temperature measurement to
ensure a stable and reliable result:
-Push back hair from the forehead
-Wipe away any perspiration from the forehead
-Avoid any drafts (e.g. from nasal specs, air conditioning…)
-Allow a 1 minute interval between two measurements.
-Each time there is a significant change in the ambient
temperature due to a change in environment, to allow the
RapiTemp PTC-0509 to acclimatise to the ambient temperature
for at least 15 minutes before using it.
PTC-0509 Infrared Thermometer
User Manual - English V.1 - 200905
8

V. DESCRIPTION OF THE RapiTemp PTC-0509
PTC-0509 Infrared Thermometer
User Manual - English V.1 - 200905
9

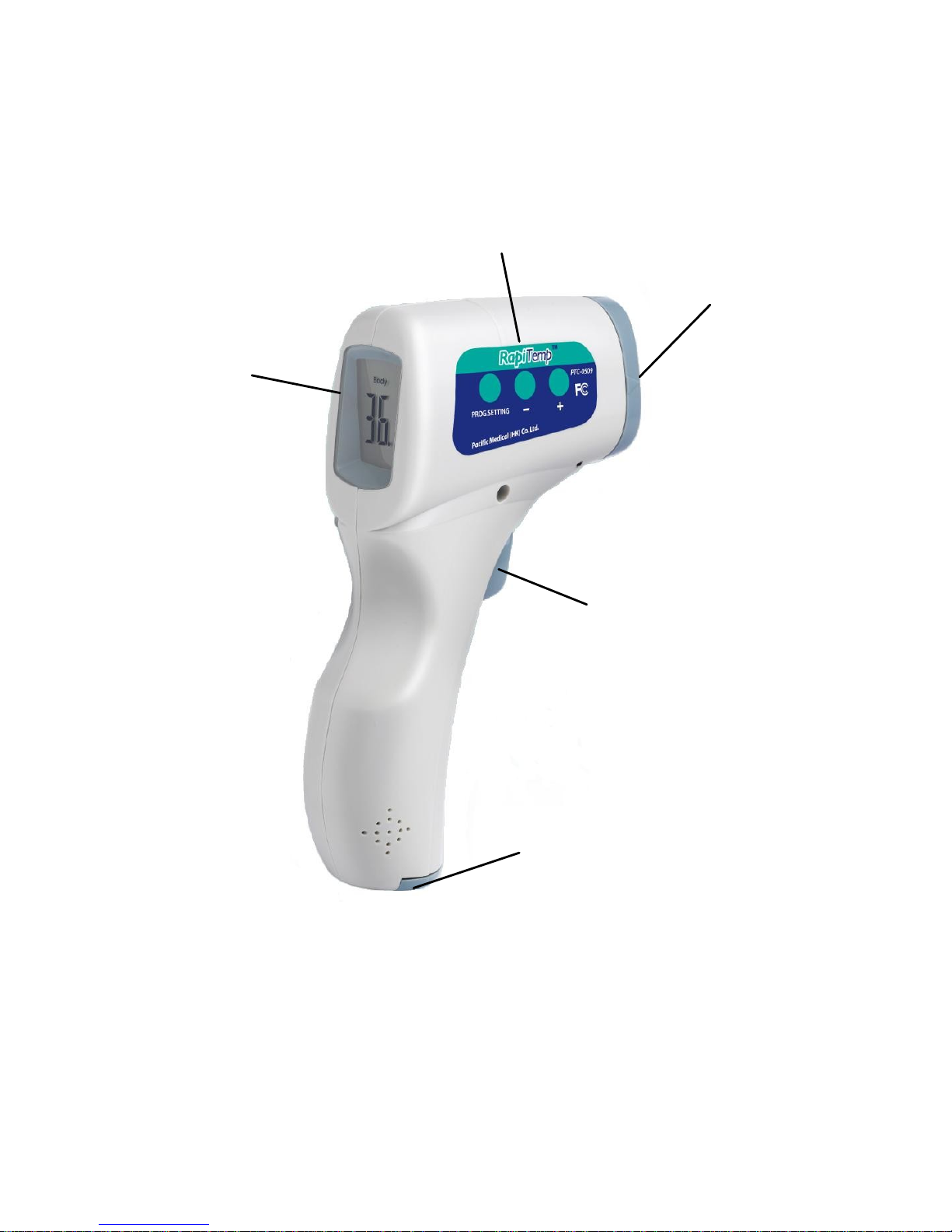

Setting keys: Menu; +; -
Infrared Lens
LCD panel
Mesuring key
Battery compartment

PTC-0509 Infrared Thermometer
User Manual - English V.1 - 200905
10

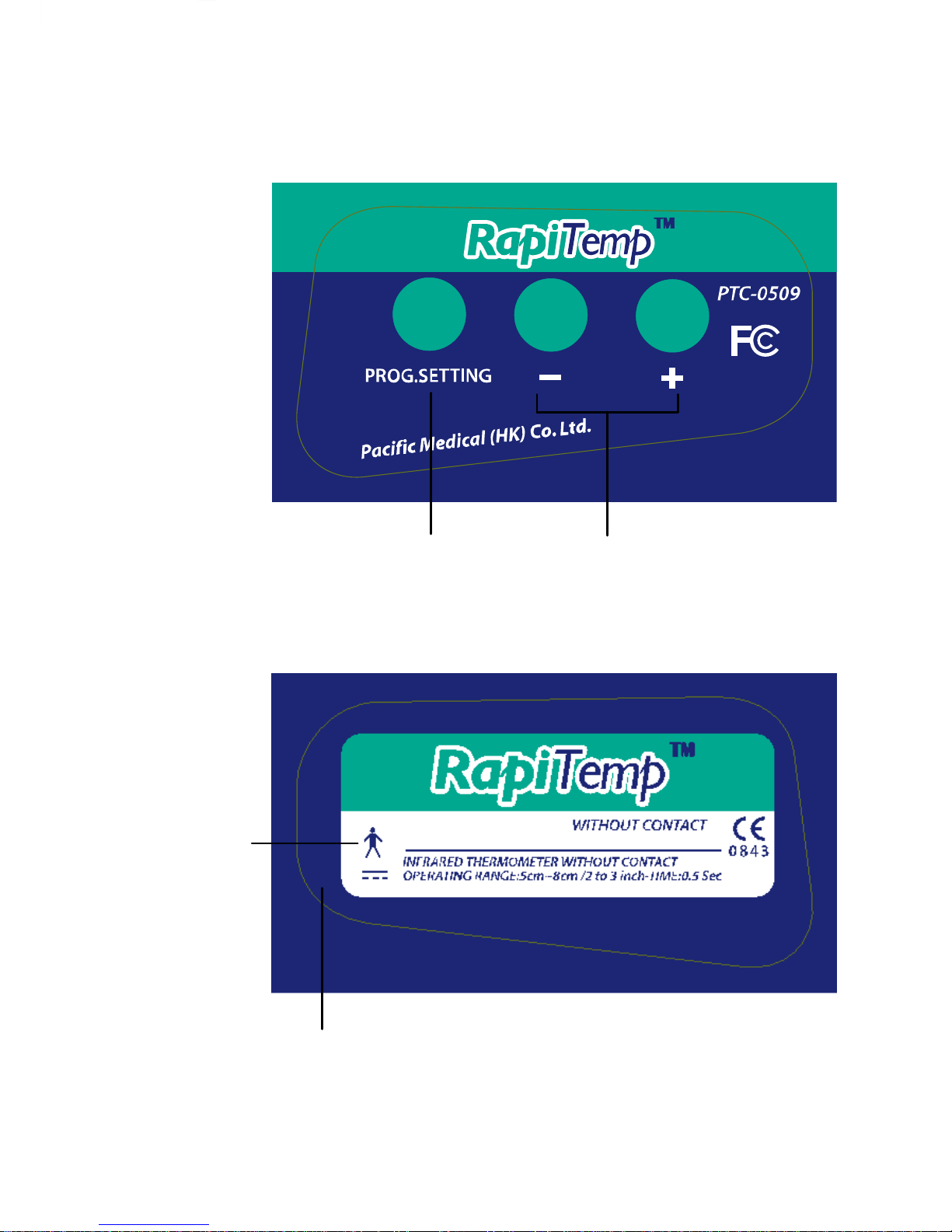

MENU BUTTON
SETTING KEYS
IEC60417-5031, DIRECT CURRENT
IEC60417-5840,
TYPE BAPPLIED PART
TRADEMARK

VI. FUNCTIONS
1. Specially designed to take the body temperature of a person
regardless of the room temperature.
2. Quick and reliable results as it use the HEIMMANN infrared
detection system.
3. Sound alarm if temperature is exceeded.
4. Memorization of the 32 last measures.
5. LCD back-lighted digital screen.
6. Data displayed in Celsius or Fahrenheit.
7. Automatic stop (energy saver).
8. Small, convenient, easy to use.
ADDITIONAL USES :
RapiTemp PTC-0509 can also be used to measure the temperature of
a baby-bottle or bath, or room temperature (by using the Surface Temp
function). This function is in accordance with the Directive 89/336/EEC
Electromagnetic Compatibility.
VII. USE
1. Install battery
2. For the first use or when inserting
new batteries wait between 10
minutes for the warm-up of the
apparatus and when inserting the
new batteries.
3. Aim towards the forehead (see the
diagram below for the RapiTemp
PTC-0509 positioning), from a distance
of 5 cm (2 in), press the measuring key,
the temperature is displayed in 1
second. The temperature can also be
taken behind the ear lobe.
4. Before taking the temperature,
make sure to remove hair and
perspiration from the forehead.
You can also take the temperature
behind the ear lobe.
PTC-0509 Infrared Thermometer
User Manual - English V.1 - 200905
11

VIII. CONFIGURATION AND FUNCTION OF MENU
1. C HOOSING THE TEMPERATURE UNIT - F1 F UNCTION
Press PROG SETTING button for 3 seconds, the screen displays: F1.
Select ‘-’ for degrees Celsius, ‘+’ for degrees Fahrenheit.
Confirm by pressing PROG SETTING button.
2. A LARM SETUP – F2 M ENU
Press PROG SETTING button for 3 seconds, the screen displays: F1.
Press PROG SETTING button again to get F2.
Select ‘+’ to increase the threshold by 0.1°C (0.1°F), ‘-’ to reduce it by
0.1°C (0.1°F).
Confirm by pressing PROG SETTING button.
PTC-0509 Infrared Thermometer
User Manual - English V.1 - 200905
12
Note: The alarm threshold default value is 38°C (100.4°F).
SETTING KEYS
MENU BUTTON

3. C HOICE OF DISPLAY MODE : B ODY OR S URFACE T EMP - F3 M ENU
The RapiTemp PTC-0509 is specially designed to take the body
temperature of a human being.
For this, use the BODY mode.
Measurement range for Body mode: 32°C - 42.9°C (90°F - 109°F)
You can also use the RapiTemp PTC-0509 to measure the
temperature of an area or an object, a food, a liquid or a room
temperature.
For this, use the SURFACE TEMP mode.
Measurement range for Surface TEMP mode: 0°C - 60°C (32°F -140°F)
Press PROG SETTING button for 3 seconds, the screen displays: F1.
Press PROG SETTING button twice to get F3.
Select 0 by pressing ‘-’button to get the BODY mode.
Select 1 by pressing ‘+’ button to get the SURFACE TEMP mode
Confirm by pressing PROG SETTING button.
PTC-0509 Infrared Thermometer
User Manual - English V.1 - 200905
13
Note: The RapiTemp PTC-0509 is automatically set to BODY
Important: The area temperature differs from the
internal body temperature. To obtain the internal
temperature always use the BODY mode.
Please make sure to select the BODY mode for an
internal temperature reading and the SURFACE TEMP
mode for an external area reading (bottle, bath,
room…).

4. T OTAL DIFFERENCE - F4 M ENU
To adjust the total variation of your RapiTemp PTC-0509
Press PROG SETTING button for 3 seconds, the screen displays: F1.
Press PROG SETTING button three times to get F4.
Select ‘+’ to increase the difference by 0.1°C (0.1°F), ‘-’ to reduce it by
0.1°C (0.1°F).
Confirm by pressing PROG SETTING button.
If in doubt, you are advised to leave the total variance at +0.8°C
(original setting).
Each time there is a significant change in the ambient temperature
due to a change in environment, to allow the RapiTemp PTC-0509 to
acclimatise to the ambient temperature for at least 15 minutes
before using it.
5. BUZZER ON/OFF -F5 MENU
Press PROG SETTING button for 3 seconds, the screen displays: F1.
Press PROG SETTING button four times to get F5.
Select ‘+’ to open the buzzer (a sound icon is displayed on the
LCD screen), press ‘-’ to stop it (the icon disappear). Confirm by pressing
PROG SETTING button.
6. E XITING THE SETTING MODE
Press PROG SETTING button until the screen turns off.
7. D ATA M EMORY
To display the last temperature measurement, press simultaneously the
‘-’ and ‘+’ button.
You will obtain the last temperature measurement. To switch on the last
measurement, press the '+' button.
The number indicated in interval of two measures corresponds to the
number of measurements.
Press on the button '-' for review
To exit data memory, press the measure key. The RapiTemp
PTC-0509 switches off in 5 seconds.
PTC-0509 Infrared Thermometer
User Manual - English V.1 - 200905
14

8. C HANGING THE BATTERIES
Display: when the LCD screen displays ‘Battery’, the battery is used.
Operation: Open the lid and change the batteries, taking great care
with the correct positioning. A mistake with this could cause damage
to the apparatus and compromise the guarantee of your
RapiTemp PTC-0509.
Never use rechargeable batteries. Use only batteries for single
usage.
IX. TECHNICAL CHARACTERISTICS
1. Normal conditions of use
Operating temperature: 10° C ῀40° C (50° ῀140° F)
Humidity rate: ≤ 85%
2. Power: DC3 V (2 batteries AA)
3. Size: 196 x 150 x 50 mm - 7.7 x 5.9 x 1.9 in (L x W x H)
4. Weight: 220g
5. Display Resolution: 0.1° C (0.1°F)
6. Measuring range:
In body mode: 32°C - 42.9°C (90°F - 109°F)
In Surface Temp mode: 0°C ῀60°C (32°F to 140°F)
7. Precision: From 36°C to 39°C (96.8°F to 102.2°F) = +/-0.2°C/F
8. Consumption: ≤ 50mW
9. Accuracy: ± 0.2° C (0.36° F)
10. Measuring distance: 5 cm - 8 cm (2 in - 3.14 in)
11. Automatic stop: 5 sec.
PTC-0509 Infrared Thermometer
User Manual - English V.1 - 200905
15

R APITEMP PTC-0509 PRECISION
From 34oC to 35.9oC = ± 0.3oC
From 93.2oF to 96.6oF = ± 0.3oF
From 36oC to 39oC = ± 0.2oC
From 96.8oF to 102.2oF = ± 0.2oF
According to ASTM Standard
E1965-1998 (2003)
From 39oC to 42.5oC = ± 0.3oC
From 102.2oF to 108.5oF = ± 0.3oF
The RapiTemp PTC-0509 can take temperature readings below 32°C
or
above 42.9°C (90 °F to 109°F ) but precision is not guaranteed outside
of this range.
L ONGEVITY USE
The RapiTemp PTC-0509 was conceived for an intense and
professional use, its longevity is guaranteed for 40.000 takings.
X. ADVICE
- The protective glass over the lens is the most important and
fragile part of the thermometer, please take great care of it.
- Clean the glass with cotton fabric, wet with water or
70° alcohol
- Do not use other batteries than mentioned batteries, do not
recharge non rechargeable batteries, do not throw in fire.
- Remove the batteries when thermometer is not used for an
extended period of time.
- Do not expose the thermometer to sunlight or water.
- An impact will damage the product.
XI. ACCESSORIES SUPPLIED
User Manual in English
Guarantee card
Carrying bag
Batteries supplied (AA)
PTC-0509 Infrared Thermometer
User Manual - English V.1 - 200905
16

XII. TROUBLESHOOTING
If you have one of the following problems while using your
RapiTemp PTC-0509, please refer to this breakdown service guide to
help resolve the problem. If the problem persists please contact our
customer service at [e-mail]
THE SCREEN DISPLAYS TEMPERATURE SUPERIOR TO 95°
The temperature is in Fahrenheit change the measurement to
Celsius (by pressing the Program Setting button to get the F1
function key)
THE SCREEN DISPLAYS THE BODY TEMPERATURE INFERIOR TO 32°C (89.6°F)
To take a body temperature the function key F3 must be on Body
mode. If you’re on Surface Temp mode the 32°C (89.6°F)
temperature displayed is showing the external temperature that your
body releases.
THE SCREEN DISPLAYS THE MESSAGE HI
When using the RapiTemp PTC-0509 the
message HI can show on the screen.
The analysis is above the measurement range
selected, either superior to 42.9°C (109°F)in
Body Mode or superior to 60°C (140°F) in
Surface Temp Mode.
PTC-0509 Infrared Thermometer
User Manual - English V.1 - 200905
17

THE SCREEN DISPLAYS THE MESSAGE LO
When using the RapiTemp PTC-0509 the
message Lo can show on the screen.
The temperature analyzed is under the
measuring range selected, either less than 32°C
(90°F) in Body Mode or less than 0°C (32°F) in
Surface Temp Mode.
This message displays in various cases - please find below a list of the
main cases:
Reasons for LO
message display
Advice
Temperature reading
hampered by hair,
perspiration…
Make sure that there is no
obstruction prior to taking a
temperature.
Temperature hampered by
an air flux.
Make sure there is no air flux
as this could interfere with
the infrared system.
Temperature readings too
close together, the
RapiTemp PTC-0509 did not
have the chance to boot itself.
Respect the pause of 15
seconds minimum between
two readings –1 minute
pause is advised.
The measuring distance is
too far.
Please respect the
measuring distance
(between 5 and 8 cm –2 in
and 3.14 in).
PTC-0509 Infrared Thermometer
User Manual - English V.1 - 200905
18

Distributed by :
Pacific Medical (HK) Co. Ltd.
Unit 1205, Manulife Provident Funds Place,
345 Nathan Road, Kowloon, Hong Kong
Tel : [phone]
Fax : [phone]
E-mail : [e-mail]
Made in China
Supplier : JXB Co.Ltd Guangzhou (China)
PTC-0509 Infrared Thermometer
User Manual - English V.1 - 200905
19
Service Hotline
(852) 2577 1512
