Pacific Steamex TRIUMPH 430 Installation and operation manual

OPERATING & MAINTENANCE
INTRODUCTION INSTRUCTIONS
READ THIS BOOK
This operator’s book has important information for the use
and safe operation of this machine. Read this book care-
fully before starting the machine. Keep this book and tell
all operators to read the book. If you do not follow the
instructions, you can cause an injury or damage equipment,
furniture or buildings.
For new books write to:
Pacific Steamex, Inc.
2259 S. Sheridan
Muskegon, MI 49442-6252
Carefully inspect all components to ensure that there is no
concealed freight damage. If such damage is discovered,
file a “CONCEALED DAMAGE REPORT” immediately
with the delivering carrier.
The contents of this manual are based on the latest product
information available at the time of publication. Pacific
Steamex reserves the right to make changes or improve-
ments to its machines without notice.
FORYOURCONVENIENCE,RECORDTHE
FOLLOWINGINFORMATION:
MODEL_______________________________
SERIALNUMBER________________________
PARTNUMBER _________________________
DATEPURCHASED______________________
TRIUMPH 430
SELF-CONTAINED CARPET EXTRACTOR

INTRODUCTION
The Pacific Steamex Triumph 430 is a fully self-contained, portable carpet extractor system.
The Triumph 430 has a 60 psi solution pump and a two (2) jet spraying system to apply solution to the carpet.
A rotating brush is driven by a cogged belt system at approximately 1000 RPM’s. This brush provides a very aggressive
agitation of the solution into the carpet fibers to loosen ground-in dirt. The chevron pattern of the brush bristles channels the
dirty water to the center of the 12” aluminum vacuum head for better extraction.
Thetwo-stage vacuum motor onthe Triumph 430 iscapable of 80 inchesof water lift. The Triumph430 extracts virtually allofthe
dirty solution from the carpet fibers, which dramatically reduces drying time.
The Triumph 430 is a very “user friendly” machine. All controls are located at the top of the handle grips, literally at your
fingertips. The 430 has a 4 gallon solution tank and a 3 gallon lift out recovery tank.
This machine must be grounded. If it should malfunction or break down,
groundingprovides apathof least resistanceforelectric current toreducethe
riskof electricshock. Thismachineis equippedwitha cord havinganequip-
ment-grounding conductor and grounding plug. The plug must be inserted
into an appropriate outlet that is properly installed and grounded in accor-
dancewith alllocal codesandordinances.
WARNING- Improper connection of the equipment-grounding conductor
can result in a risk of electric shock. Check with a qualified electrician or
servicepersonifyou are indoubtastowhethertheoutlet is properlygrounded.
Donot modify theplugprovided withthemachine- ifitwillnot fittheoutlet,
have a proper outlet installed by a qualified electrician.
This machine is for use on a nominal 120-volt circuit, and has a grounded
plugthat lookslikethe plugillustratedin figureA. Atemporary adapterthat
looks like the adapter illustrated in figures B and C may be used to connect
this plug to a 2-pole receptacle as shown in figure B if a properly grounded
outlet is not available. The temporary adapter should be used only until a
properly grounded outlet (figure A) can be installed by a qualified electri-
cian. Thegreen coloredrigid ear, lug, orthe likeextendingfrom theadapter
mustbe connectedtoa permanent groundsuch as aproperlygrounded outlet
box cover. Whenever the adapter is used, it must be held in place by a metal
screw.
NOTE: In Canada, the use of a temporary adapter is not permitted by the
Canadian Electrical Code
EXTENSIONCORDS
Useonly three-wire14/3or larger gaugeapprovedextension cordsthathave
three-prong grounding type plugs and three-pole receptacles that accept the
appliance’s plug. Replace or repair any damaged cords or plugs.
Whenservicing, refertoauthorized persononly. Use only identicalreplace-
mentparts.
Grounding Instructions
NOTE: Do not use adapters shown in figures B & C in Canada
2

When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE
WARNING: To reduce the risk of fire, electric shock, or injury:
1. You must have training in the operation of this machine before using it.
2. Machines can cause an explosion when near flammable materials and vapors. Do not use this machine with or near fuels,
grain dust, solvents, thinners, or other flammable materials.
3. Do not operate this machine unless it is completely assembled.
4. Do not use this unit for dry pick-up of dust or debris.
5. To prevent electric shock, always remove the electrical plug from the electrical outlet before doing any repairs or mainte-
nance to this machine.
6. To prevent injury, always remove the electrical plug from the electrical outlet before leaving the machine.
7. Maintenance and repairs must be done by authorized personnel only.
8. Do not immerse. To reduce the risk of electrical shock, use only on carpet moistened by the cleaning process. Protect the
machine from rain. Keep the machine in a dry building. Always clean the machine with a clean dry cloth.
9. Always use a three-wire electrical system connected to the electrical ground. For maximum protection against electrical
shock, use a circuit that is protected by a ground fault circuit interrupter. Consult your electrical contractor.
10. To prevent damage to the power cord, do not move this machine over the power cord. Always lift the power cord over the
machine. Do not pull or carry cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners.
Keep cord away from heated surfaces.
11. Make sure all switches are turned off before plugging or unplugging it power cord into/from a wall receptacle.
12. Do not use water that is hotter than 60°C (140°F).
13. To prevent damage to the solution system components do not store in freezing temperatures without proper maintenance.
14. Do not allow to be used as a toy. Close attention is necessary when used near children.
15. Do not use with damaged cord or plug. If the machine is not working as it should, has been dropped, damaged, left
outdoors, or dropped into water, return it to a service center.
16. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
17. Do not handle the plug or machine with wet hands.
18. Do not put any object into openings. Do not use with any opening blocked. Keep free of dust, lint, hair and anything that
may reduce the airflow.
19. Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts.
20. Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.
21. Use extra care when cleaning on stairs.
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS

OPERATING PROCEDURES
WARNING! For the safe operation of this machine
followtheinstructionsgiven in thisbookletand the train-
ing given by your supervisor. Failure to do so can result
in personal injury and/or damage to machine and prop-
erty!
DO NOT OPERATE MACHINE IN AN EXPLOSIVE
ENVIRONMENT!
NEVER USE THIS MACHINE TO PICK UP VOLA-
TILE OR EXPLOSIVE MATERIALS!
The model shown in this manual is intended for commer-
cial use.
PREPARATION
1. Check power cord, plug and strain relief for worn or
damaged insulation. Repair or replace if necessary.
2. Confirm the quick connects located at the back of the
machine are properly attached. This is the water supply
line and solution water will not be allowed to flow
through to the jets if this connection isn’t secure.
3. Lock the brushassemblyin the up position for storage
or transport. This is done by pulling up on the black
knob/lift mechanism at the front of the machine and
allowing the lift stop to rest on the bracket.
4. Inspect the vacuum head and brush by tilting the ma-
chine backwards.
a) Vacuum Head: Check for any damage. Burrs on
thecontactsurface may snag carpet fibers. Gouges,
scratches and chipped areas can reduce vacuum
performance.
b) Brush: Inspect for damaged or missing bristles,
replace if necessary.
Return the machine to the upright position.
OPERATION
The following procedures are intended to describe and de-
tail proper operation of your machine. Failure to follow
these recommended procedures can reduce the machine’s
performance and may result in damage to the machine.
1. Vacuum the area to be cleaned. Your machine will do
a more thorough job if the loose dirt and debris are
removed before the extraction process begins.
2. AddNON-FOAMINGcleaningconcentratetothefresh
water/solutiontank. Followmixinginstructionsfor3to
3-1/2 gallons of water. Then fill the tank with warm
waterusingthe faucet/power filladaptor. Do not use
waterhotter than 60°C(140°F).
Or, you may mix the concentrate with 3 to 3-1/2 gallons
ofcleanwaterinaCLEANbucket,thenpourthemixture
into the solution tank.
DONOTOVERFILL.
NEVERUSETHERECOVERYTANK’SDIRTY
WATERTOFILLTHESOLUTIONTANK!
3. Ensurethewatersupplyhoseconnectionattherearof
themachine is secure.
4. Connect the power cord plug to a 115 volt grounded
wall socket. See Grounding Instructions. Use of an
extension cord is not recommended. However, if one is
necessary, use only a 14 gauge or larger cord. Smaller
or inferior cords are dangerous and may cause damage
to your machine.
5. Lowerthebrush assembly by lifting theblack knob off
the storage/transport bracket.
6. Turn on the vacuumswitchatthecontrolpaneltostart
the vacuum motor.
Note: Theaccessorypump switch isfor use onlywith the
accessorytools. See“OPERATINGWITHACCESSORY
TOOLS”.
7. Pull backward during operation. DO NOT AT-
TEMPT TO OPERATE IN A FORWARD DIREC-
TION. Position yourself behind the machine, grasp
the handle and depress the red momentary “Pump/
Brush” switch on the top center of the handle. This
switch activates the brush drive motor and the pump to
spray cleaning solution. Walk slowly backward and
continue to depress the red switch to perform the clean-
ing process.
5. Check the inletscreenand filterbag in the opening of
thefreshwater/solutiontankfordamage or debris. Holes
in the screen can allow contaminants to enter the pump
resulting in costly repairs. A clogged screen will re-
ducepumpperformanceand may cause permanent dam-
age.
6. Remove the clear dome on top of the recovery tank.
a) Inspect for damage to the dome and gasket. Dirt
or debris on the gasket or sealing surface of the
tank can cause a vacuum leak and reduce vacuum
performance.
b) The intake filter screen should be clean of debris
and checked periodically for any damage, replace
if necessary.
Return the cover to its original position. 4

8. Releasetheredbuttonapproximately6inches before
completing each pass. The spray jets are located be-
hind the vacuum head making it necessary to pull the
machine a few inches further to pick up the last amount
of solution dispensed onto the carpet.
9. Tilt the machine back on the rear wheels and walk
forward to position the machine along side the previ-
ous pass (slightly overlapping).
10. As dirty solution is recovered, some foaming may be
noted. Excessive foaming can be counteracted with
liquiddefoamerappliedaccordingtothechemicalmanu-
facturing directions. Do not allow foam to rise intoor
nearthedome;thiswillharmthevacuum motor. Use
defoamer or empty and flush the recovery tank.
11. To empty the recovery tank, remove the dome assem-
bly and lift the tank out. Dispose of the recovered water
properly.
12. Ifstreakingoccursafter a periodof operating time, this
means the solution (fresh water) tank is near empty.
Streakingiseliminatedbyadding morewater and chemi-
calsolutiontothetank. Emptytherecoverytankevery
timeyoufill the solutiontank.
13. To emptythesolutiontankconnectthePowerFilladap-
tor to the vacuum inlet on the front of the dome. Turn
the vacuum switch on.
5. Make sure the brush assembly lift lever is locked in the
raised position.
6. Store your machine in a dry, protected area. Do not
exposethismachine torain, standing wateror freez-
ingtemperatures.
Periodically:
After continuous or repeated use the jets and check valves
will need cleaning: Unplug the cord and empty the recovery
and solution tanks. Tilt the machine backward. Remove the
jet caps, jets and check valves shown in the brush assembly
illustration and soak in white vinegar until visible deposits
are dissolved, then scrub with a soft bristle brush. Note:
jets and check valves should be replaced once a year, be-
cause they tend to erode under extended use. This may
cause overuse of solution and streaking.
After Each Use:
1. Clean the dome top, intake filter screen, gasket and re-
covery tank with fresh, clean water. Do not reinstall the
domeuntil the next use, this will allow the recovery tank
to dry out.
2. Flush the solution tank and inlet screen with clean wa-
ter. Vacuum all water out using the Power Fill adaptor.
3. Remove any debris on the scrub brush, vacuum head
and around the spray jets. 5
TheTRIUMPH 430 self-contained extractor is designed and
manufactured to provided years of trouble free service with
a minimum of maintenance and service. The following rec-
ommendations are intended to assist the operator and Ser-
vice Technician in performing routine maintenance.
WARNING: Always unplug your machine before per-
forming any service. Severe personal injury could re-
sult if the electrical power is not disconnected.
OPERATINGWITHACCESSORYTOOLS
1. To use an accessory tool disconnect the supply hose at
the rear of the machine and connect the accessory tool
hose .
2. Next, disconnect the machine’s vacuum hose from the
front of the dome assembly and connect the accessory
tool vacuum hose to the dome.
3. Turn the vacuum and accessory pump switches on.
Solutionwill be dispensed while the accessory tool trig-
ger is depressed.
Watch the dometo makesurethe recovery tankdoes not
overflow.
Note: The pump motor is equipped with an automatic ther-
mal protection device. If the motor overheats for any rea-
son, the thermal protector will activate and automatically
turn the motor off. If this occurs the operator should turn
the manual pump switch to the off position and allow ap-
proximately fifteen minutes for the motor to cool. When the
motor has cooled to a safe operating temperature, the ther-
mal protector will automatically close and allow power to be
supplied to the motor via the manual pump switch. The
operator will be able to resume normal operation. If the
pump motor shuts down repeatedly, it should be checked at
an Authorized Service Center.
SERVICING
OPERATINGPROCEDURES

AN AUTHORIZED SERVICE CENTER SHOULD PERFORM THE FOLLOWING PROCEDURES:
Drive Belt Adjustment and/or Replacement:
The cogged belt drive system rarely requires tightening. If the belt becomes loose from wear, it is time to replace it.
Follow this procedure: Remove acorn nut and thru-bolt from brush chassis lift handle. Gently tilt machine backwards. While
holding the base of the brush housing with one hand, release the lift handle from the up/locked position. The brush housing
pivots on a hinge that doesn’t need to be removed. Loosen the two motor bracket mounting bolts with a 7/16” wrench. DO
NOT REMOVE THE BOLTS UNLESS YOU ARE REPLACING THE MOTOR. Slide the motor away from the brush to
tighten the belt or toward the brush to remove. If you are replacing the belt it will be necessary to remove the brush assembly
to install a new one. Remove the two axle shaft retaining screws located on either side of the brush housing. Loop belt over
cog and reinstall brush.
Unlike a “V” type belt, the cogged belt is run with basically zero deflection. To test the belt tension, hold the belt between your
thumb and forefinger and twist to the side. It should turn approximately 90°with little effort. If it twists more than 90°,
retighten the belt.
Additional service information is available from your local Pacific Steamex Distributor or through our Technical Service Department.
6

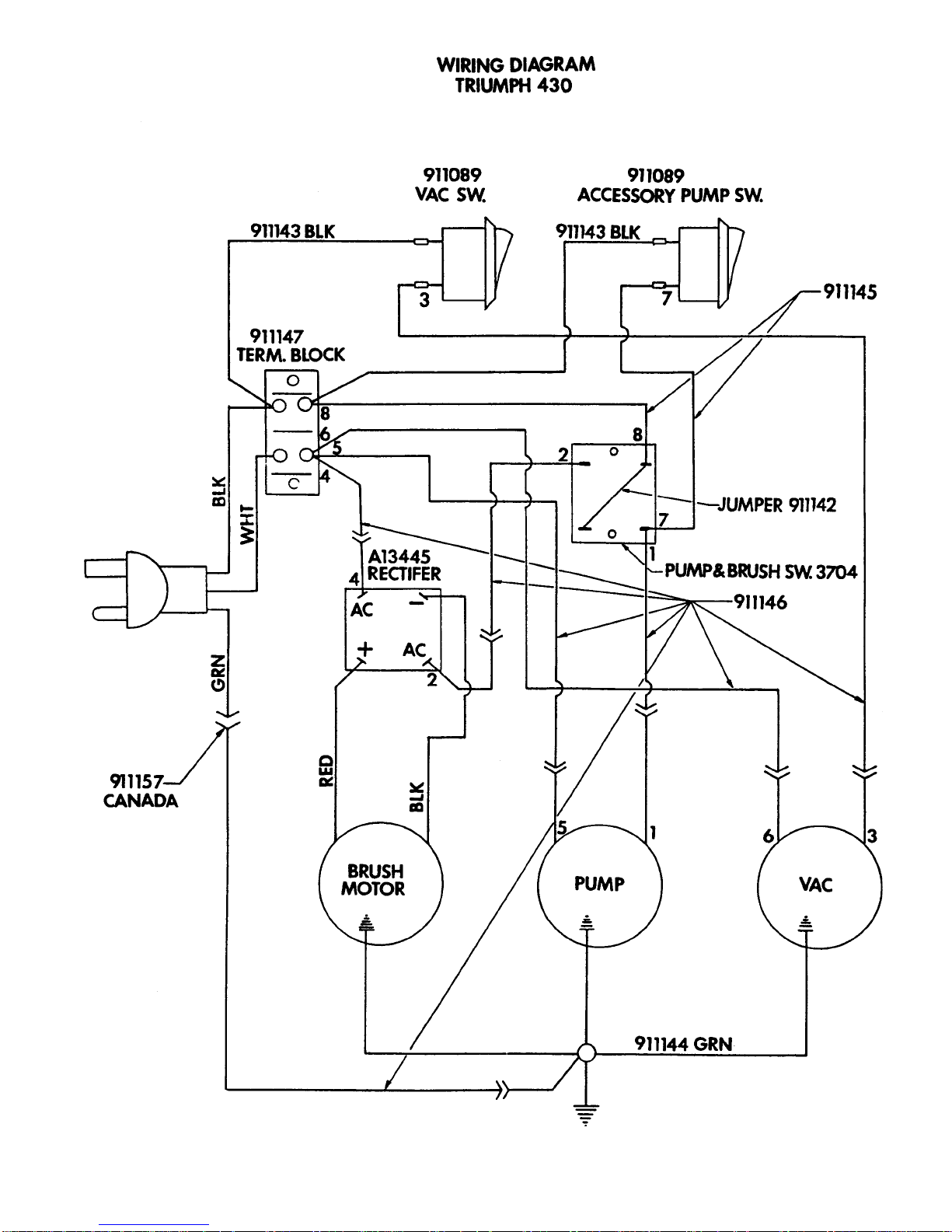

7

Triumph430
Drawing1
8
03/01

Triumph430
Drawing1
9
ITEM PT # DESCRIPTION Qty.
1 204170 Hose - Vac Head, 17″1
2 3698 Cuff 3
3 204171 Hose - Vac Short, 6″1
4 D161C Decal - Warning Add Defoamer 1
5 202770 Dome 1
6 203470 Gasket – Dome 1
7 202472 Recovery Container 1
8 208671 Liner 1
9 W172D Screw 10-24 x 3/8 PHP 10
10 920618 Nut 4
11 W167D Screw 10-24 x 3/8 FHP 2
12 W136D1 Screw #8 x 1/2 THP 4
13 243301 Filter 1
14 W162D Nut - Acorn 1/4-20 1
15 205070 Knob 1
16 962086 Bolt 1/4-20 x 1-1/4 1
17 203970 Handle Lift Bracket 1
18 W136D Screw #8 x 1/2 8
19 202470 Catch - Brush Lift 1
20 201374 Body - Machine 1
201372 Body - Machine CSA 1
21 S611A Clamp - Hose 1
22 980015 Washer #10 Ext. Tooth 7
23 204573 Vac Head 1
24 208570 Support - Vac Head 1
25 980002 Washer - Split 14
26 962006 Screw 1/4-20 x 1/2 PHP SS 2
27 920011 Nut 1/4-20 Elastic Stop 3
28 208451 Stud - Vac Motor Mount 3
29 603473 Gasket 1
30 245203 VAC. MOTOR - 115V 1
Vac Motor - 230V
31 200951 Carbon Brushes - 115V Vac Motor 2
Carbon Brushes - 230 V Vac Motor 2
32 W153D2 Screw 10-24 x 3/4 3
ITEM PT # DESCRIPTION Qty.
33 W106D Nut - 10-24 Hex 6
34 W124D Washer #10 Int. Tooth 7
35 962103 Bolt 3/8-16 x 2-1/4 HHCS 2
36 980007 Washer 5/16 Flat 2
37 208270 Spacer Wheel 2
38 209771 6" Wheel, Grey 2
39 201972 Chassis Wheel 1
40 962056 Screw 1/4-20 x 3/8 PHP 4
41 202370 Cover - Rear 1
42 A13059 Terminal 4
43 920004 1/4-20 Hex Nut 3
44 908059 Cord Assembly 25' 1
45 A13020 Strain Relief 1
46 206671 Plate - Switch Accessory 1
47 3704 Switch Momentary 1
48 206651 Plate - Switch 1
206672 Plate Switch CSA 1
49 911089 Switch Rocker 2
50 206670 Plate Switch 1
51 911147 Terminal Block 1
52 203977 Handle, Black 1
203972 Handle CSA 1
53 203474 Gasket Tacky Tape, Grey 4 ft
54 962068 Screw - 1/4-20 x 5/8 Hex HO 2
55 920619 Nut - 1/2 Pipe Lock 1
56 962079 Screw - 10 - 24 x 1/4 PHP 2
57 205186 Label, Operation 1
58 205171 Label, Push to Clean 1
59 200871 Bracket Filter 2
60 203473 Gasket 1
61 911104 Cable Tie 1
62 202771 Deflector 1
63 202772 Air Duct 1
64 W343D Screw, 10-24x1 PHP 4
65 920026 Jacknut 10-24 Zinc 4
202773 Dome Assembly Complete
Including Items 4,5,6 & 60
03/01

Triumph430
Drawing2
07/01

Triumph430
Drawing2
11
07/01
Item Part No. Description Qty. Item Part No. Description Qty.
1 204182 Hose – 12” Reinforced 1 32 W353D Screw 1/4-20 x 1/2" FHP 2
2 203359 Fitting – 3/8 Hose Barb 3 33 980032 Washer 2
3 203302 Quick Connect – ¼ Male 1 34 A13438 Guard - Belt 1
4 203308 Quick Connect – ¼ Female 1 35 203970 Bracket - Lift 1
5 203359 Fitting– 3/8 Hose Barb 1 36 204174 Hose 1
6 204176 Hose, Tank to Pump 1 37 D13175 Chassis - Brush 1
7 205752 Nipple – Close ¼ NPT 1 38 S999P Tee Fitting 1
8 S453P Clamp - Hose 10 39 204178 Hose 1
9 3765 Elbow - 90°3/8 to 3/8 2 40 S452P Elbow - D.T. Jet 1
10 217003 Pump 60 Psi 115V 1 41 920617 Nut - 8 - 32 Hex Nylon 2
217004 Pump 60 PSI - 230V 1 42 A13445 Rectifier 1
Diaphragm Kit 1 43 W205D Screw - 8 - 32 x 1" PHS Nylon 1
209406 Bypass Valve Kit 1 44 W166D Nut - Brass Jam 2
11 980004 Washer - 1/4" Flat 6 45 209472 Check Valve 2
12 980002 Washer - 1/4" Lock 4 46 S982P Jet 11004 Brass 2
13 W169D Screw - 1/4-20 x 1/2" HH CS SS 6 47 S973P Cap - Jet 2
14 204181 Hose 1 48 200970 Brush Assembly Complete 1
15 240202 Adaptor, Hose to Dome 1 49 962062 Screw #6 4
16 244107 Hose, Adaptor Fill 1 50 3743 Cog Brush 1
17 3771 Elbow - 1/4" to 3/8" 2 51 3677 Bearing - Rulon 2
19 T4027 Brass 90°St. Elbow ¼ 2 52 3731 Brush Only 1
20 A13017 Motor - Brush 115V 1 53 217701 Shaft Brush 1
3760 Motor - Brush 230V 1 54 213601 Guard Brush Thread 2
21 980612 Washer - Thrust 2 55 930005 Rivit Alum Pop 1
22 200870 Bracket - Motor 1 56 W107D Washer, 3/16 Flat S/S 1
23 W124D Washer - #10 Int. Tooth 7 57 D167C Label Warnings 1
24 W329D Nut #10 - 32 Hex SS 2 205175 Label Warnings CSA 1
25 3708 Cog Motor 1 58 204179 Tubing 2.25’
26 3740 Drive Belt 1 59 S535P Barb Fitting 1
27 203670 Guard Splash 1 60 S626P Filter 1
28 A129671 Hinge 1 61 612001 Clamp 1
29 W172D Screw 8 - 32 x 3/8 RHP MS S/S 5 62 221373 Plug Button 1
30 980033 Washer #6 Flat S/S 9 63 W153D2 Screw, Grounding 1
31 W363D Pop Rivet 5 64 T4056 Brass Coupling ¼ w/Nut & Washer 2

WARRANTYPOLICY
PACIFICSTEAMEXINC.LIMITED WARRANTY
The Pacific Steamex Inc. Triumph 430 Carpet Extractor has been manufactured, tested and inspected in accordance with
specific engineering requirements and is WARRANTED to be free from defects in workmanship and materials as follows:
Five (5) years parts, One (1) year labor – Polyethylene components.
One (1) year parts and labor – All other components unless excluded below.
This warranty extends to the original user/purchaser and only when used, operated and maintained in accordance with Pacific
Steamex Inc. Operating and Maintenance instructions.
This warranty does not apply to the following wear parts and accessories of the machine including:
Part Number Part Name
908059
209770
243301
209472
S982P
3740
3731
200951
Nor does it apply to damage or failure caused by improper use, abuse or neglect. Warranty credit or replacement of return parts
including motors, pumps, etc., is subject to incoming inspection of those items.
To secure repair under this warranty, the following procedure should be taken:
•The inoperative machine or warranted parts must be delivered to the authorized dealer with shipping and delivery charges
prepaid. If unable to locate the Dealer, you may contact Pacific Steamex Inc. at the address listed herein for the location
of the nearest Pacific Steamex Inc. repair center or agent or for other instructions pertaining to your warranty difficulty.
•Upon compliance with the above warranty procedure, all warranted repairs would be completed at no additional charge or
cost to the user.
•Only Pacific Steamex Inc. or its authorized dealers and agents may make no charge warranty repairs on this product. All
others do so at their own risk.
This warranty limits Pacific Steamex Inc. liability to the repair of the product and/or warranted parts replacement and does
not include incidental or consequential damages arising from the use of a Pacific Steamex Inc. machine whether defective or
not.
This warranty is in lieu of all other expressed or implied warranties and is extended to the original purchaser/user.
PACIFIC STEAMEX, INC.
2259 S. SHERIDAN
MUSKEGON, MICHIGAN 49442-6252
800-968-1332
FAX [phone]
07/01 205672
Cord Assembly
Wheel
Filter
Check Valves
Jet
Belt
Brush
Carbon Brush, 115V Motor
