Pacific Steamex TRIUMPH 870 Installation and operation manual

OPERATING & MAINTENANCE
INTRODUCTION INSTRUCTIONS
READ THIS BOOK
This operator’s book has important information for the use
and safe operation of this machine. Read this book care-
fully before starting the machine. Keep this book and tell
all operators to read the book. If you do not follow the
instructions, you can cause an injury or damage equipment,
furniture or buildings.
For new books write to:
Pacific Steamex, Inc.
2259 S. Sheridan
Muskegon, MI 49442-6252
Carefully inspect all components to ensure that there is no
concealed freight damage. If such damage is discovered,
file a “CONCEALED DAMAGE REPORT” immediately
with the delivering carrier.
The contents of this manual are based on the latest product
information available at the time of publication. Pacific
Steamex reserves the right to make changes or improve-
ments to its machines without notice.
FORYOURCONVENIENCE,RECORDTHE
FOLLOWINGIMPORTANTINFORMATION:
MODEL_______________________________
SERIALNUMBER_______________________
PART NUMBER ________________________
DATEPURCHASED_____________________
TRIUMPH
870, 1190 & MX-21
SELF-CONTAINED
CARPET EXTRACTORS

INTRODUCTION
ThePacificSteamexTRIUMPHMachine is a fullyself-contained,portablecarpetextractor systemand is intendedfor commercial
use. A wand with external vacuum and solution hoses are not necessary with your TRIUMPH machine, but available.
The TRIUMPH 870/1190/MX-21 has a 100 psisolution pump and a four (4) jet spraying system located on the bottomside of the
machine to apply solution to the carpet.
A rotating brush (16” on the 870/1190; 21” on the MX-21) is driven by a cogged belt system at approximately 1200 RPM’s. This
brush provides a very aggressive agitation of the solution into the carpet fibers to loosen ground-in dirt. The chevron pattern of
the brush bristles channels the dirty water to the center of the aluminum vacuum head for better extraction.
The heavy duty three-stage vacuum motor on the TRIUMPH 1190 & MX-21 is capable of 137 inches of water lift; while the
TRIUMPH 870’s two-stage vacuum motor creates 117 inches of water lift. Your TRIUMPH machine extracts virtually all of the
dirty solution from the carpet fibers, which dramatically reduces drying time.
The TRIUMPH 870/1190/MX-21 machines are very “user friendly” machines. All controls are located at the top of the handle
grips, literally at your fingertips. The recovery tank drain valve is located high enough for the recovered solution to be drained
into a five (5) gallon bucket or bathroom toilet.
TRIUMPH 870/1190/MX-21 machines are balanced on large 10 diameter wheels for ease of operation and transporting. The
machines can be rotated 360°with relative ease, even when filled with solution.
The location of the wheel axle and the large diameter wheels allows for easy transporting up and down steps when empty. It is not
recommended these machines be transported up or down steps while containing any liquid in either the solution or recovery
tanks.
This machine must be grounded. If it should malfunction or break down,
groundingprovides apath of leastresistance forelectric currentto reduce the
riskof electricshock. This machine isequipped witha cordhaving an equip-
ment-grounding conductor and grounding plug. The plug must be inserted
into an appropriate outlet that is properly installed and grounded in accor-
dancewith all local codes andordinances.
WARNING- Improper connection of the equipment-grounding conductor
can result in a risk of electric shock. Check with a qualified electrician or
servicepersonifyou are indoubtasto whether theoutletisproperly grounded.
Donot modify the plug providedwith the machine - ifit will not fit theoutlet,
have a proper outlet installed by a qualified electrician.
This machine is for use on a nominal 120-volt circuit, and has a grounded
plugthat lookslike theplug illustratedin figureA. A temporary adapter that
looks like the adapter illustrated in figures B and C may be used to connect
this plug to a 2-pole receptacle as shown in figure B if a properly grounded
outlet is not available. The temporary adapter should be used only until a
properly grounded outlet (figure A) can be installed by a qualified electri-
cian. Thegreen colored rigid ear,lug, or the likeextending fromthe adapter
mustbe connectedto a permanent ground such as aproperly groundedoutlet
box cover. Whenever the adapter is used, it must be held in place by a metal
screw.
NOTE: In Canada, the use of a temporary adapter is not permitted by the
Canadian Electrical Code
EXTENSIONCORDS
Useonly three-wire14/3 orlargergauge approvedextension cordsthat have
three-prong grounding type plugs and three-pole receptacles that accept the
appliance’s plug. Replace or repair any damaged cords or plugs.
Whenservicing, refer to authorized person only. Use onlyidentical replace-
mentparts.
Grounding Instructions
NOTE: Do not use adapters shown in figures B & C in Canada
2

When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE
WARNING: To reduce the risk of fire, electric shock, or injury:
1. You must have training in the operation of this machine before using it.
2. Machines can cause an explosion when near flammable materials and vapors. Do not use this machine with or near fuels,
grain dust, solvents, thinners, or other flammable materials.
3. Do not operate this machine unless it is completely assembled.
4. Do not use this unit for dry pick-up of dust or debris; Do not pick up anything that is burning or smoking, such as cigarettes,
matches or hot ashes.
5. To prevent electric shock, always remove the electrical plug from the electrical outlet before doing any repairs or mainte-
nance to this machine.
6. To prevent injury, always remove the electrical plug from the electrical outlet before leaving the machine.
7. Maintenance and repairs must be done by authorized personnel only.
8. Do not immerse. To reduce the risk of electrical shock, use only on carpet moistened by the cleaning process. Protect the
machine from rain. Keep the machine in a dry building. Always clean the machine with a clean dry cloth.
9. Always use a three-wire electrical system connected to the electrical ground. For maximum protection against electrical
shock, use a circuit that is protected by a ground fault circuit interrupter. Consult your electrical contractor.
10. To prevent damage to the power cord, do not move this machine over the power cord. Always lift the power cord over the
machine. Do not pull or carry cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners.
Keep cord away from heated surfaces.
11. Make sure all switches are turned off before plugging or unplugging it power cord into/from a wall receptacle.
12. Do not use water that is hotter than 60°C (140°F).
13. To prevent damage to the solution system components do not store in freezing temperatures without proper maintenance.
14. Do not allow to be used as a toy. Close attention is necessary when used near children.
15. Do not use with damaged cord or plug. If the machine is not working as it should, has been dropped, damaged, left
outdoors, or dropped into water, return it to a service center.
16. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
17. Do not handle the plug or machine with wet hands.
18. Do not put any object into openings. Do not use with any opening blocked. Keep free of dust, lint, hair and anything that
may reduce the airflow.
19. Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts.
20. Use extra care when cleaning on stairs.
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS

4
PREPARATIONANDTRANSPORTATION
PRESTART-UPCHECKS
TRIUMPHmodels870/1190/MX-21 areverysimple andeasy
to operate. Very little maintenance and service are required
to keep your machine in top operating condition.
The following procedures are recommended to maintain the
highlevel ofperformance expectedfrom your machine. They
are also intended to identify potential safety hazards and
problemswhich could reduce the service life of the machine.
READBEFORETRANSPORTINGOROPERATINGYOUR
MACHINE:
1. Check power cord, plug and strain relief for worn or
damaged insulation. Repair or replace if necessary.
2. Make sure the drain valve is closed (T-Handle pushed
down). If the valve is left open, the vacuum is dramati-
cally reduced and any recovered solution will drain out.
3. The knobfor thespoolvalveislocated onthe lowerback
panelof the machine. During normaloperation as a self-
contained extractor this knob is turned toward “ma-
chine”(horizontalposition). It should be turned to the
“tool” position (vertical) when a wand or other tool is
being used.1.
2. Lock the brushchassisin the up position for storage or
transport. This is done by pulling up on the lift-handle
at the front of the machine, then resting the round lift
stop behind the bracket.
3. Inspect the vacuum head and brush by tilting the ma-
chine backwards, allowing it to balance on the wheels
and drain valve spout.
a) VacuumHead:Checkforany damage. Burrson the
contact surface may snag carpet fibers. Gouges,
scratches and chipped areas can reduce vacuum
performance.
b) Brush: Inspect for damaged or missing bristles,
replace if necessary.
Return the machine to the upright position.
6. Check the inlet strainer for damage or debris. It is
located at the bottom of the fresh water tank. Holes in
the screen can allow contaminants to enter the pump
resulting in costly repairs. A clogged strainer will re-
ducepump performance andmay cause permanentdam-
age.
7. Remove the clear dome on top of the recovery tank.
a) Inspect for damage to the dome and gasket.
Dirt or debris on the gasket or sealing surface
of the tank can cause a vacuum leak and re-
duce vacuum performance.
b) The intake filter screen at the vacuum hose
connection should be clean of debris and
checked periodically for any damage, replace
if necessary.
c) Ensure that the deflector shield and intake
filter are in their proper positions to prevent
recovered water from entering the vacuum
motor(blower).
Return the cover to its original position with the front
lip seated under the retaining bracket.
YOURMACHINEISNOWREADYFOROPERATION.
TRANSPORTING
TheTRIUMPH is equippedwith large diameter(10″)wheels
for balance and ease of transporting. It is designed to be
tilted back on the wheels and pushed or pulled. The brush
chassis should be locked in the up position any time the
machineis in storageorbeing transported.
The large diameter of the wheels permits you to pull the
machine up stairs in the same manner you would use a hand
truck. Nevergoupor downstairswith recoveredwater or
solution in the tanks. Always empty the machine com-
pletely before transporting up or down stairs or in a vehicle.
When empty, the machine may be laid down on the side for
transporting without damaging any of its components.

OPERATINGPROCEDURES
TheTRIUMPH870/1190/MX-21machines arethemost“user
friendly” self-contained extractors available. The following
procedures are intended to describe and detail proper op-
erationofyourmachine. Failure tofollowthese recommended
procedures can reduce the machine’s performance and may
result in damage to the machine.
1. Vacuumtheareatobecleaned. Yourmachinewill doa
more thorough job if the loose dirt and debris are re-
moved before the extraction process begins.
2. Fill the fresh water tank (lower tank) with water and
Heavy Duty Carpet Extraction chemical. Hot water is
recommended, but not required. Do not use water hot-
ter than 60°C (140°F). Mix in chemicals according to
thechemical manufacturer’s recommendations. For best
results use Steamex Heavy Duty Carpet Cleaner.
3. Use of an extension cord is not recommended. How-
ever, if one is necessary, use only a 14 gauge or larger
cord. Smaller or inferior cords are dangerous and may
cause damage to your machine.
4. After the machine is filled with solution, connect the
powercordplugtoa115voltgroundedwallsocket.See
Grounding Instructions.
5. Lower the floating brush chassis using the lift handle
located in the front of the machine. Lift the handle off
the lift stop bracket and lower until the brush contacts
the floor. Remember to always raise and lock the brush
chassis for storage and transport.
6. Turn the spool valve knob (located on the back of the
machine)to the:
a) “Machine”(horizontal) position for routinecarpet
extraction as a self-contained unit, or
b) Turn it in the “Tool” (vertical) position when us-
ing a wand or tool.
7. The switch panel is located on top of the handle and
contains the following:
a) Turn the vacuum switch on to start the vacuum
motor.
b) Accessory only pump switch: Do not turn on the
accessorypump switch unless the spool valve knob
is turned to the tool position.
8. Pullbackwardduringoperation. DONOTATTEMPT
TOOPERATE IN A FORWARDDIRECTION. Posi-
tion yourself behind the machine, grasp the handle
and gently liftupontheactuatorbar. Liftingthe ac-
tuatorbar activatesthe brushdrive motorand thepump.
Walk slowly backward to perform the cleaning pro-
cess.
9. Releasethe actuatorbarapproximately6inchesbe-
forecompleting each pass. The spray jets arelocated
behind the vacuum head making it necessary to pull
the machine a few inches further to pick up the last
amount of solution dispensed onto the carpet.
10. Tilt the machine back on the rear wheels and walk
forwardto position the machine along side the previ-
ous pass (slightly overlapping).
11. As dirty solution is recovered, some foaming may be
noted. Excessive foaming can be counteracted with
liquid defoamer applied according to the chemical
manufacturing directions. Do not allow foam to rise
into or near the dome. Use defoamer or empty and
flush the recovery tank.
12. To drain the recovery tank, place an empty bucket
under the drain valve located on back of the machine.
To open the drain valve pull the T-Handle up. Close
the drain when the bucket is full or the recovery tank
is empty. Dispose of the recovered water properly.
13. If streaking occurs after a period of operating time,
thismeans thesolution (fresh water)tank isnear empty.
Streaking is eliminated by adding more water and
chemical solution to the tank.
14. To drain the solution tank, attach the small drain or
“pump out” hose to the accessory quick connect on
the back of the machine. Turn the spool valve knob to
the “tool” position. Place the open end of the hose
into a bucket and turn on the accessory pump switch.
When empty, turn off the pump switch and remove
thehose from the quick connect. Also return the spool
valve knob to the “machine” position.
15. Aftereach use cleanthedome, intake filterandgas-
ket. Do not reinstall the dome until the next use, this
will allow the recovery tank to dry out.
16. Raise the brush chassis for storage.
5

6
SERVICING
TRIUMPH self-contained extractors are designed and manufactured to provide years of trouble free service with a minimum of
maintenance and service. The following recommendations are intended to assist the operator and Service Technician in perform-
ing routine maintenance.
Failure to follow these recommendations can result in damage to your machine and diminished performance.
Warning: Always unplug yourmachinebeforeperforminganyservice. Severepersonalinjury couldresultifthe electrical
powerisnotdisconnected.
1. Alwaysfollow through with the recommended prestart-
up checks found in the Preparation and Transportation
section of this manual.
2. Store your machine in a dry, protected area with the
brush chassis raised and locked in place. Do not ex-
pose this machine to rain, standing water or freezing
temperatures.
3. We recommend a good, thorough cleaning after each
use. Clean the dome top, intake filter screen and recov-
ery tank with fresh, clean water. Flush the fresh water
tank and strainer periodically with clean water.
4. After continuous or repeated use, the jet tips and
strainer/check valves will need cleaning. Unplug the
cord and empty the recovery and solution tanks. Tilt
the machine backward allowing it to balance on the
wheels and drain valve. Remove the jet caps shown in
the brush chassis illustration and clean with white vin-
egar and a soft bristle brush. Remove the jet tip and
strainer/check valve and soak it in vinegar until visible
deposits are dissolved, then scrub with a soft bristle
brush.
Jet tips and strainer/check valves should be replaced
once a year because they tend to erode under
extended use. This can cause overuse of solution
and possible streaking.
ANAUTHORIZEDSERVICECENTERSHOULDPERFORMTHEFOLLOWINGPROCEDURES
1. Drive Belt Adjustment and/or Replacement: The
cogged drive belt system rarely needs tightening, so if
it becomes loose from wear, it is time to replace it. Fol-
low this procedure:
a) Remove the two screws that attach the hanger
bracket to the brush shroud. Then remove the
thru-bolt from the brush chassis and lift handle.
Remove the lift handle and lift stop.
b) Tilt the machine backward allowing it to balance
on the wheels and drain valve. The brush chassis
will remain on the floor exposing the brush drive
belt and motor.
c) Loosen the two motor bracket mounting bracket
mountingbolts with a7/16″wrench. DONOTRE-
MOVETHEBOLTSUNLESSYOUAREREPLAC-
INGTHE MOTOR. Slide the motor awayfrom the
brush to tighten the belt or toward the brush for
removal.
Unlike a “V” type belt, the cogged belt is run with basically
zero deflection. To test the belt tension, hold the belt be-
tween your thumb and forefinger and twist to the side. It
should turn approximately 90°with little effort. If it twists
more than 90°, retighten the belt.
2. PumpReplacement:
a) Remove the lift stop handle as described in the
“Belt Drive” procedure (#1a).
b) Tiltthe machine backward as describedin the “Belt
Drive” procedure (#1b)
c) Disconnectblackwire (#2) andthe white wire from
the bridge rectifier (part #A130172). Also discon-
nect the ground wire (this will need to be respliced
and reconnected to the ground wire on the brush
motor when reassembling). Reference the electri-
cal schematic.
d) Remove the two hoses from the pump. It is now
fully exposed for replacement.
e) When reassembling after any repairs, make certain
that all wire connections are properly plugged in
and secure.
f) Make all solution hose connections secure.

7
3. VacuumBlowerReplacement:
a) Remove the dome top and carefully turn the ma-
chine upside down.
b) Remove the two hex bolts at the base of the black
panel on the back of machine.
c) Remove the wheels in order to get at the hex bolts
in step (d). Shoulder bolts hold the wheels on.
d) Then remove the six hex head bolts on both sides
of blower chassis.
e) Disconnect the two power leads and the ground
wirecoming through the back of the machine to the
blower.
f) Tip the blower and brush chassis away from the
machine and carefully feed the vacuum hose down
through the back of the machine.
g) Then remove the three (3) bolts that hold the bracket for
the blower. Remove the bracket.
h) Release the blower from the bracket by removing the
three bolts which hold them together.
i) The blower can now be removed.
j) When reassembling after any repairs, make certain that
all wire connections are properly plugged in and se-
cure.
k) Avoid abrasive contact with sharp edges on the metal
parts as injury can result.
l) Make sure all vacuum hose connections are secure.
Additional service information is available from your
localPacific Steamex Distributoror through our Techni-
calService Department.
WIRINGDIAGRAM

TANK &BLOWER
8

9

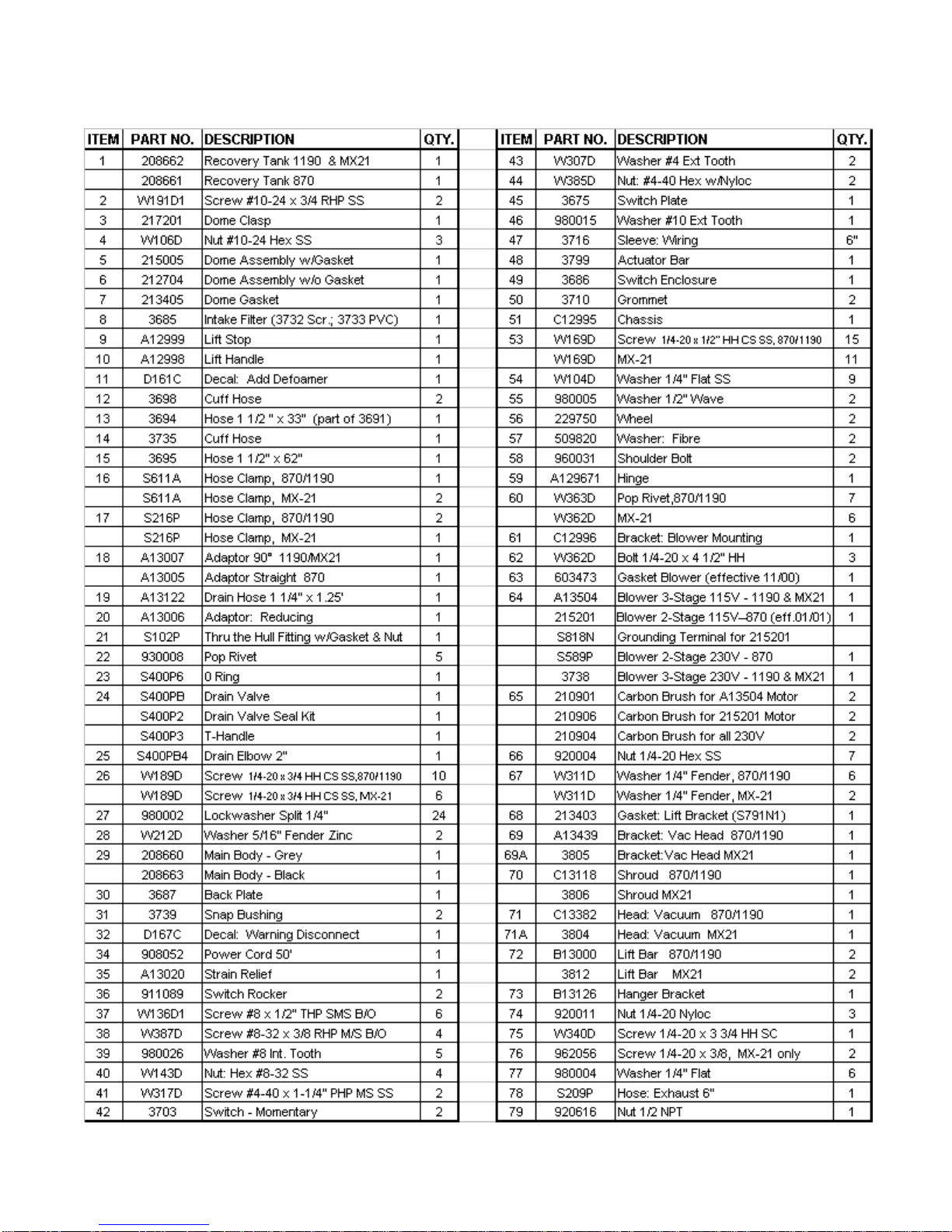

TANK&BLOWER
870, 1190 & MX-21

10
WATERCARRYINGANDBRUSHCHASSIS

11
WATERCARRYINGANDBRUSHCHASSIS
870, 1190 & MX-21

WARRANTYPOLICY
PACIFICSTEAMEXINC.LIMITEDWARRANTY
The Pacific Steamex Inc. Triumph Carpet Extractor has been manufactured, tested and inspected in accordance with specific engineering
requirements and is WARRANTED to be free from defects in workmanship and materials as follows:
Five (5) years parts, One (1) year labor – Polyethylene components.
One (1) year parts and labor – All other components unless excluded below.
This warranty extends to the original user/purchaser and only when used, operated and maintained in accordance with Pacific Steamex Inc.
Operating and Maintenance instructions.
This warranty does not apply to the following wear parts and accessories of the machine including:
Nor does it apply to damage or failure caused by improper use, abuse or neglect. Warranty credit or replacement of return parts including
motors, pumps, etc., is subject to incoming inspection of those items.
To secure repair under this warranty, the following procedure should be taken:
•The inoperative machine or warranted parts must be delivered to the authorized dealer with shipping and delivery charges prepaid. If
unable to locate the Dealer, you may contact Pacific Steamex Inc. at the address listed herein for the location of the nearest Pacific
Steamex Inc. repair center or agent or for other instructions pertaining to your warranty difficulty.
•Upon compliance with the above warranty procedure, all warranted repairs would be completed at no additional charge or cost to the user.
•Only Pacific Steamex Inc. or its authorized dealers and agents may make no charge warranty repairs on this product. All others do so
at their own risk.
This warranty limits Pacific Steamex Inc. liability to the repair of the product and/or warranted parts replacement and does not include
incidental or consequential damages arising from the use of a Pacific Steamex Inc. machine whether defective or not.
This warranty is in lieu of all other expressed or implied warranties and is extended to the original purchaser/user.
PACIFIC STEAMEX, INC.
2259 S. SHERIDAN
MUSKEGON, MICHIGAN 49442-6252
1-800-968-1332
FAX [phone]
06/01 215601
Part Number
908052
209750
S962P
A13013
3723
3689
3801
210901
210906
210904
3685
S626P
S280P
F920W
Part Name
Cord Assembly
Wheel
Jet Tip
Jet Tip
Belt
Brush
Brush
Carbon Brush
Carbon Brush
Carbon Brush
Intake Filter
Strainer
Strainer/CheckValve
Pump Out Hose
