Pacific Sun Alpha LED lamp 215W User manual

Lighting
LED, T5, Hybrid LED+T5
User Manual
ver. 2.0
PS Cloud Interface
www.Pacific-Sun.eu
IOcloud

Page 2
Lighting - LED, T5, Hybrid LED+T5
Table of Contents
1. Introduction ........................................................................................ 3
2. LED lighting ......................................................................................... 4
2.1. Alpha LED lamp 215W................................................................................................ 4
2.2. Metis Hyperion R2+ .....................................................................................................7
2.3. Metis Hyperion S/S2 ....................................................................................................9
3. T5 lighting .......................................................................................... 11
3.1. Althea T5 .................................................................................................................... 11
4. Hybrid LED+T5 lamps.........................................................................12
4.1. Althea T5 Hybrid LED + T5 lamp..............................................................................12
4.2. Pandora Hyperion R2+...............................................................................................14
4.3. Pandora Hyperion S ...................................................................................................16
5. Lamp Wi-Fi Pacific Sun Cloud setup .................................................19

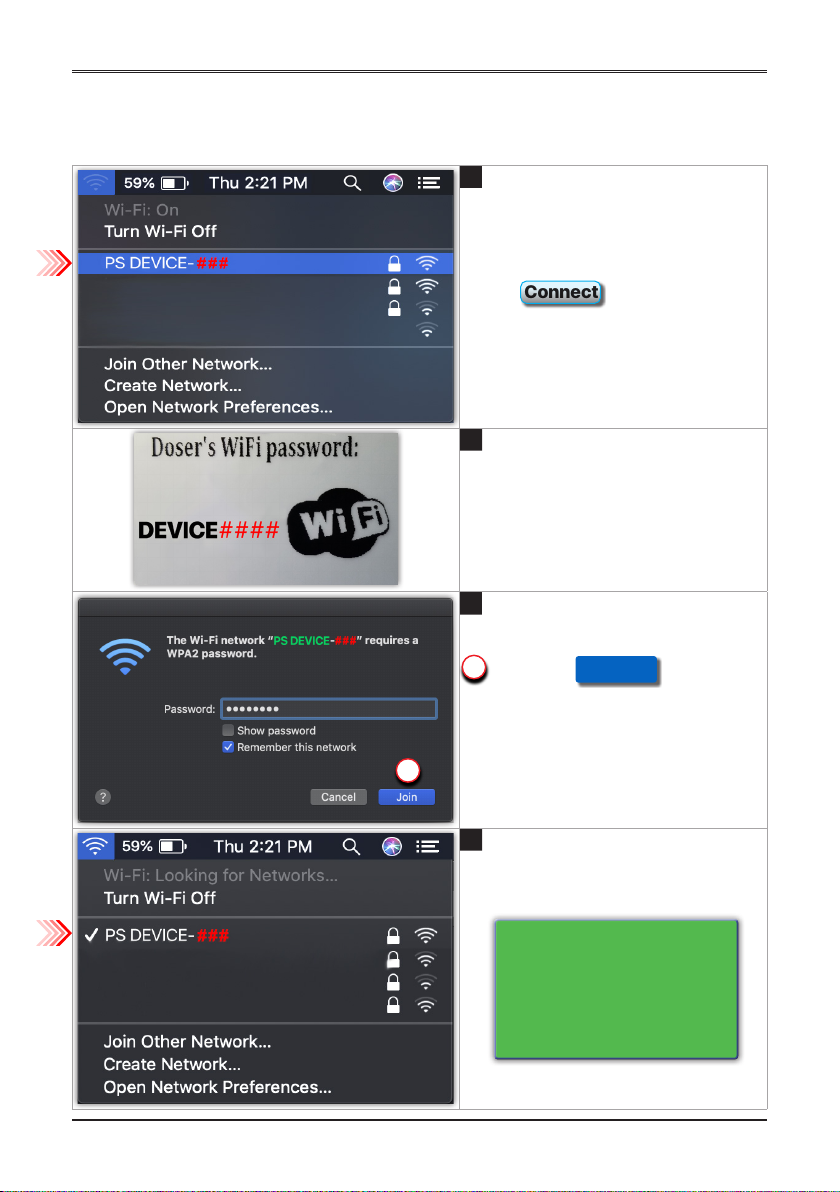

5.1. Connecting Lamp to your home Wi-Fi network.......................................................19
5.2. Adding Lamp to Pacific Sun Cloud ...........................................................................21
5.3. Setting Up Light Profile............................................................................................. 25
5.3.1. OPTION 1 - Add new Light Profile ................................................................................... 25
5.3.2. OPTION 2 - Import/modify profile from other users...................................................... 29
5.4. Linking Lamp with Kore 7th kHLab.......................................................................... 32
6. Lamp Firmware Upgrade ..................................................................33
7. Troubleshooting................................................................................39

Page 3
Lighting - LED, T5, Hybrid LED+T5
1. Introduction
Dear Customer,
Thank you for purchasing the Pacific Sun Lighting.
With the purchase of this unit, you have selected a top quality product. It has been
specifically designed for aquaristic purposes and has been tested by experts. With this
unit, you are able to adjust light source in your saltwater tank simply and efficiently in order
to achieve optimum light levels and coal health.
For best results, please read through this instruction manual before installing the lamp
on your system.
During or after installation, please do not hesitate to contact our technical support team
at [email protected] if you have any questions about your new lamp.

Page 4
Lighting - LED, T5, Hybrid LED+T5
2. LED lighting
With 11 years of experience in LED lamps research, development and production, we
have designed and created Alpha – the best available LED light source for your marine
aquarium.
2.1. Alpha LED lamp 215W

Page 5
Lighting - LED, T5, Hybrid LED+T5

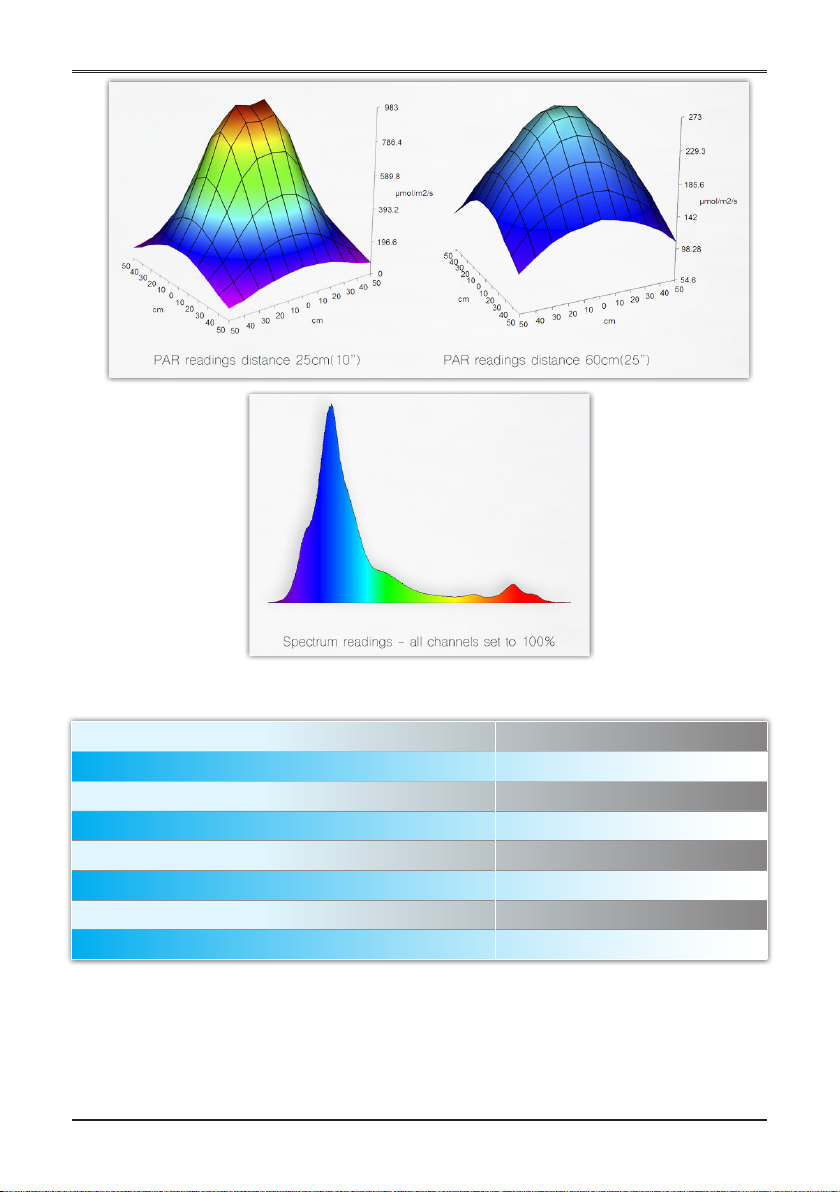

LED Configuration Details
Specification
• External lamp dimensions: (WxDxH): 356 x 285 x 43 mm, 14 x 11-1/4 x 1 11/16 inch
• Maximum lamp power: 215W
• Weight: 3.5kg
Violet Prolight 405nm 22.5W
Cool White Cree XB-D 30W
Royal Blue 450nm XB-D Cree 30W
Blue Cree 465nm XB-D 30W
Royal Blue Cree 450nm XB-D 30W
Cyan/Green – Prolight/Cree X-PE 25W
Amber/Red/Photo Red Cree XP-E 585/625/650nm 25W
Prolight UV 435nm 22.5W

Page 6
Lighting - LED, T5, Hybrid LED+T5
New design of LED panels with unique X shape LED patterns which allow mixing colors
of each LED channel into one perfect light spectrum with great coverage and beautiful
shimmering effects without ”disco ball effect”.
No secondary optics and additional diffusers – no limitation of light output because of
additional diffusers or narrowing the angle of light distribution because of additional
secondary optics.
8 individually controlled LED channels.
Completely silent passive cooling – no more fans maintenance or replacement.
Specially designed glass to reduce light emission limitations and spectrum changes.
Easy to use Cloud-based application on every available Pacific Sun device through any
web browser – no need to install any additional separate applications.
Available preset programs for mimicking real reef lighting conditions in Bali, Hawaii, and
Fiji. Designed during a 24h period of light conditions tests in the natural environment.
Easy light programs sharing system between users tanks through the Cloud-based
application.
All our products are tested in our own tanks with the most demanding corals – we always
confirm our design assumptions in the living conditions of our marine tanks.
Great coverage, up to 80x80cm from a single lamp (possible additional mounting
brackets for bigger tanks).
Only the best quality and performance parts are used (Cree and Prolight for LED panels),
Meanwell power supplies, and best quality aluminum housing.
Designed and produced 100% in Poland.
Clean design and matt finish of the housing made the lamp a perfect decorative element
for the tank setup – no need to hide the lamp inside the cabinet anymore.
Extra-long and flex power supply cable allows mounting the power supply wherever.
Ultra-long warranty – 5 years for the LED light source and 3 years for electronic parts.
What makes our lamp the best choice over other available products on the
market?

Page 7
Lighting - LED, T5, Hybrid LED+T5

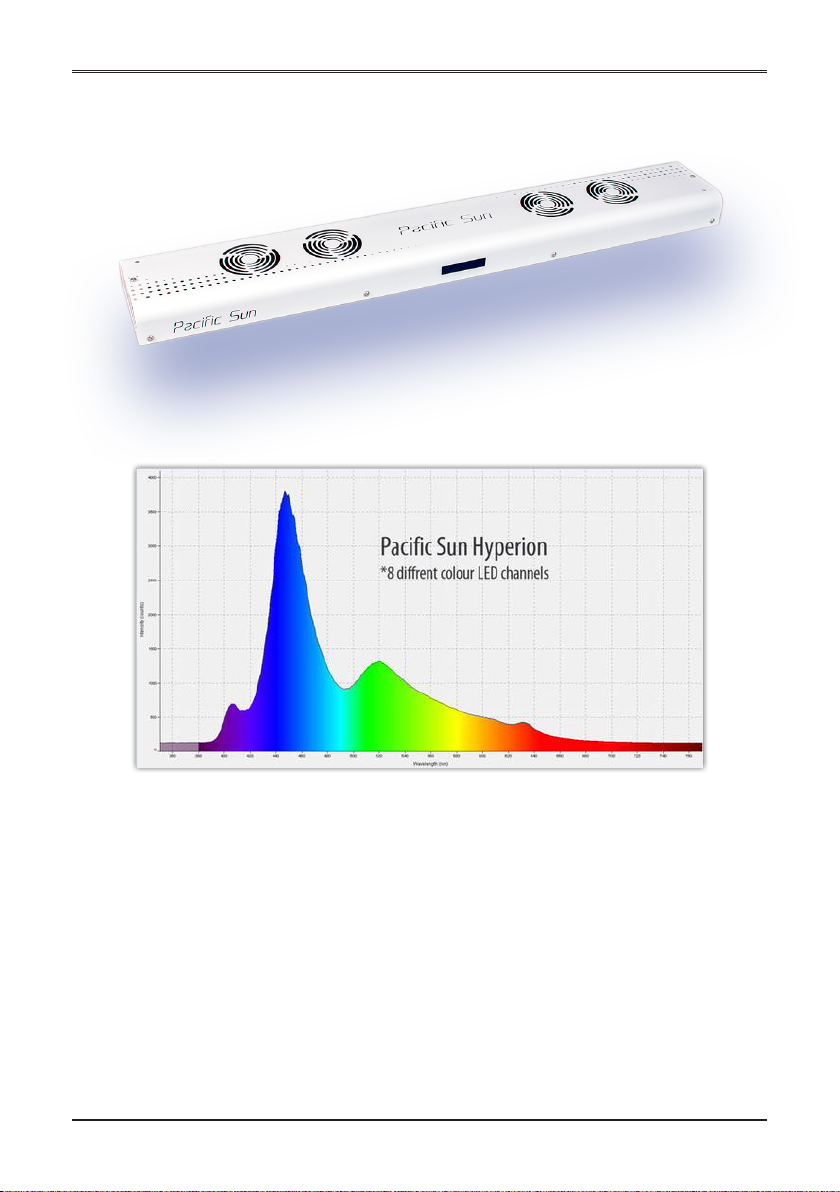

2.2. Metis Hyperion R2+
8 independent LED channels, wireless control LED lamp
Metis Hyperion R2+ is the latest generation of lamp based on proven and very popular
lamp – Metis Hyperion R2. It’s equipped with our newest Hyperion R2+ LED panel made
in SMT technology (Square Metrix Technology) and can easily penetrate water over 30″
deep.
Metis Hyperion R2+ is available in 3 sizes covering a wide range of tanks. The SMT
provides a perfect mix of colors all LED channels and an extraordinary visual experience
– very strong shimmer on the bottom of the aquarium comparable to metal halide. The
Pacific Sun lamp has been designed as a pendant lamp for open aquariums. It must not be
used in enclosed aquariums below the canopy.

Page 8
Lighting - LED, T5, Hybrid LED+T5
LED panels specification
• UV (400 and 420nm) – Made for Pacific Sun
• Royal Blue 450nm – Cree
• Royal Blue 465nm – Cree
• Blue – Cree
• Green – Cree
• Red
• Orange
• Warm White – Cree
LED Panels Lamp Size
[mm] Weight
[kg]
2 850 x 130 x 50 6
3 1250 x 130 x 50 8
4 1650 x 130 x 50 10
Model with 135W LED panels made
in SMT technology Cover Area UP to [cm]
2 x 145W 125 x 70 x 70
3 x 145W 165 x 70 x 70
4 x 145W 225 x 70 x 70

Page 9
Lighting - LED, T5, Hybrid LED+T5

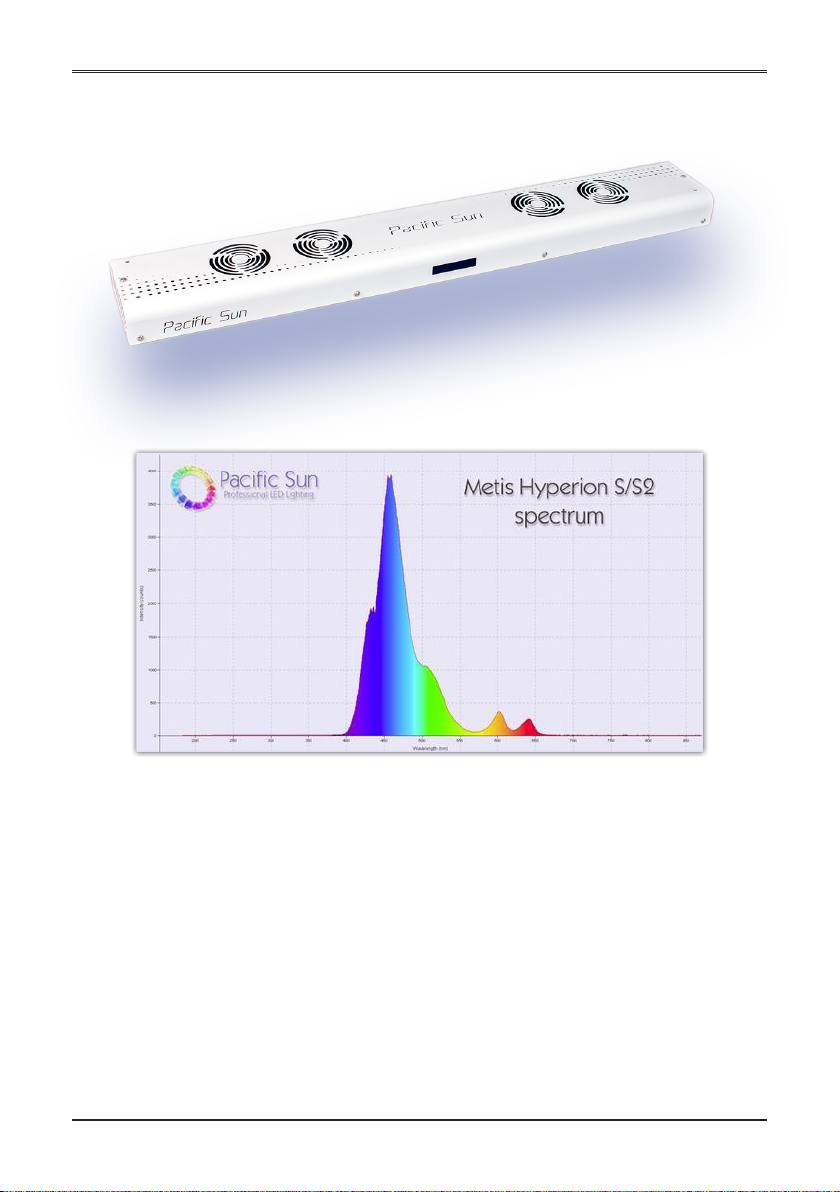

2.3. Metis Hyperion S/S2
9 channel, wireless control LED lamp
Metis Hyperion S is the latest generation of lamp based on proven and very popular
lamp – Metis Hyperion R2. It’s equipped with our newest Hyperion S LED panel made in
SMT technology (NO WHITE LEDs).
The “S” stands for shallow as the new LED panels gives off a remarkable turquoise
blue color replicating the tropical sun shimmering in the shallow reefs of Bali and can easily
penetrate water over 30″ deep.
Metis Hyperion S is available in 3 sizes covering a wide range of tanks. See specs and
coverage details below. The SMT provides the perfect mix of colors all LED channels and
an extraordinary visual experience – very strong shimmer at the bottom of the aquarium
comparable to metal halide. Pacific Sun lamp has been designed as a pendant lamp for
open aquariums. It must not be used in enclosed aquariums below the canopy.

Page 10
Lighting - LED, T5, Hybrid LED+T5
Metis Hyperion S
Metis Hyperion S2
General Specifications
• “Ultra Quiet” 80mm fans controlled by a temperature sensor.
• Mounting: Hanging kits
LED panels specification
• UV (400 and 420nm) – Made for Pacific Sun
• Royal Blue 450nm – Cree
• Royal Blue 465nm – Cree
• Blue – Cree
• Cyan – Made for Pacific Sun
• Green – Cree
• Amber – Made for Pacific Sun
• Deep Red – Made for Pacific Sun
Model with 145W LED panels made
in SMT technology Cover Area UP to [cm]
2 x 145W 125 x 70 x 70
3 x 145W 165 x 70 x 70
4 x 145W 225 x 70 x 70
Model with 75W LED panels made
in SMT technology Cover Area UP to [cm]
2 x 75W 115 x 60 x 60
3 x 75W 155 x 60 x 60
4 x 75W 210 x 60 x 60
LED Panels Lamp Size
[mm] Weight
[kg]
2 850 x 130 x 50 6
3 1250 x 130 x 50 8
4 1650 x 130 x 50 10

Page 11
Lighting - LED, T5, Hybrid LED+T5

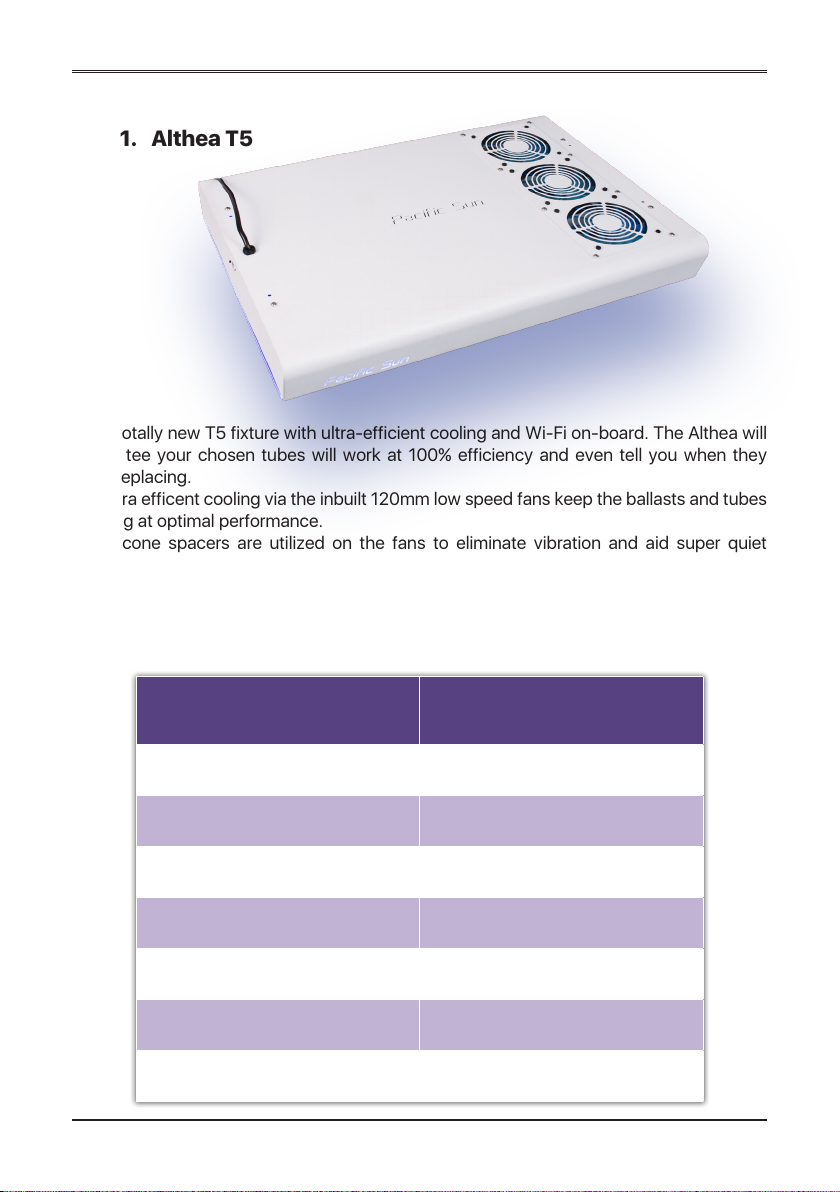

A totally new T5 fixture with ultra-efficient cooling and Wi-Fi on-board. The Althea will
guarantee your chosen tubes will work at 100% efficiency and even tell you when they
need replacing.
Ultra efficent cooling via the inbuilt 120mm low speed fans keep the ballasts and tubes
working at optimal performance.
Silicone spacers are utilized on the fans to eliminate vibration and aid super quiet
operation.
The Althea features high quality Alanod anodized (silver coated) aluminum reflectors
98% light reflection delivering maximum PAR output, satisfying the most demanding reef
keeper.
First wireless(Wi-Fi) T5 fixture on the market.
3. T5 lighting
3.1. Althea T5
Althea T5 Model Dimensions (W x D)mm
(W x D)inch
6 x 24W T5 360 x 600
14-11/64 x 23-5/8
6 x 39W T5 360 x 900
14-23/64 x 35-7/16
6 x 54W T5 360 x 1200
14-11/64 x 47-1/4
6 x 80W T5 360 x 1500
14-11/64 x 59-1/16
8 x 24W T5 460 x 600
18-7/64 x 23-5/8
8 x 39W T5 460 x 900
18-7/64 x 35-7/16
8 x 80W T5 460 x 1500
18-7/64 x 59-1/16

Page 12
Lighting - LED, T5, Hybrid LED+T5
4. Hybrid LED+T5 lamps

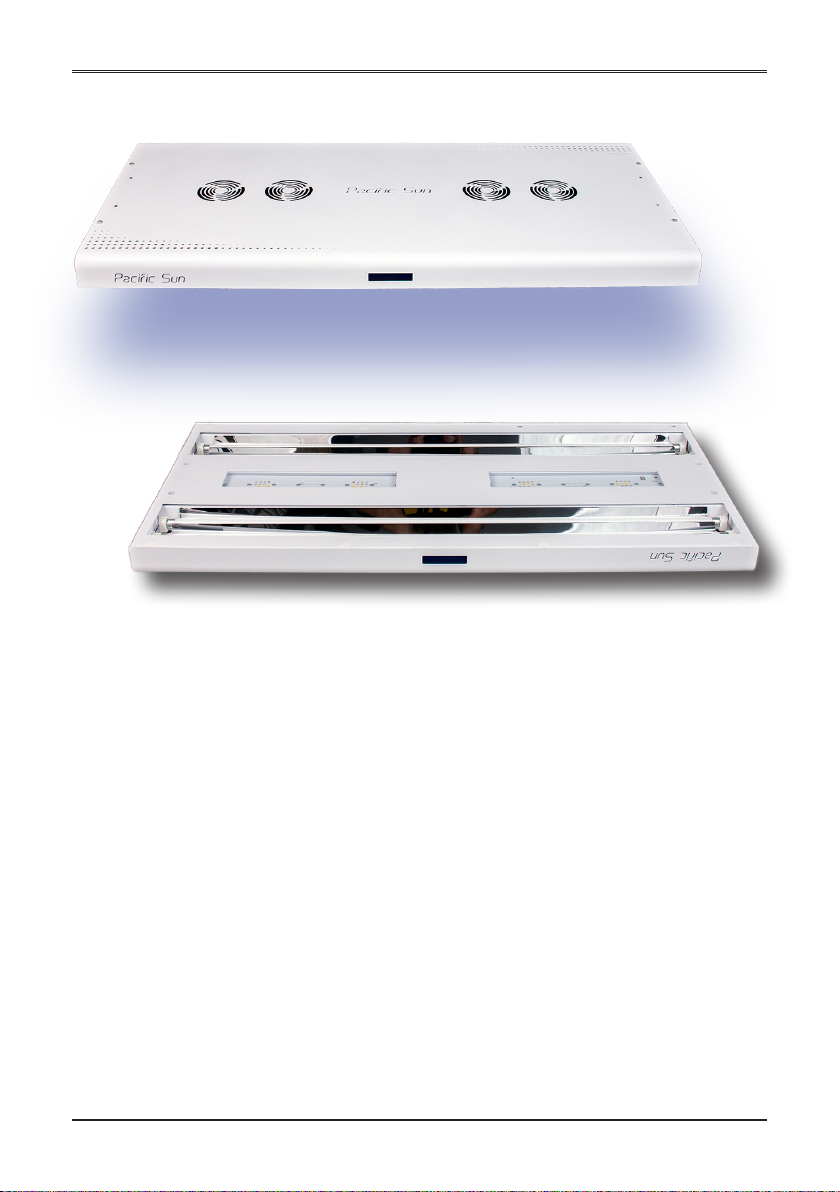

4.1. Althea T5 Hybrid LED + T5 lamp

Page 13
Lighting - LED, T5, Hybrid LED+T5
A modified version of original Althea T5 – with two pairs high efficiency LED strips for
additional corals fluorescence instead of pair of T5 bulbs.
Althea Hybrid T5 fixture have ultra-efficient cooling and Wi-Fi controller on-board. The
Althea will guarantee your chosen tubes will work at 100% efficiency and even tell you
when they need replacing!
Ultra efficient cooling via the inbuilt 120mm low speed fans keep the ballasts and tubes
working at optimal performance.
Silicone spacers are utilised on the fans to eliminate vibration and aid super quiet
operation.
The Althea features high quality Alanod anodized (silver coated) aluminum reflectors
98% light reflection
delivering maximum PAR output, satisfying the most demanding reef keeper!
First wireless(Wi-Fi) T5 fixture on the market.
Althea T5 Hybrid LED + T5 lamp
Model
Dimensions
(W x D)mm
(W x D)inch
4 x 24W T5 + 2 x LED strip 360 x 600
14-11/64 x 23-5/8
4 x 39W T5 + 2 x LED strip 360 x 900
14-23/64 x 35-7/16
4 x 54W T5 + 2 x LED strip 360 x 1200
14-11/64 x 47-1/4
4 x 80W T5 + 2 x LED strip 360 x 1500
14-11/64 x 59-1/16
6 x 24W T5 + 2 x LED strip 460 x 600
18-7/64 x 23-5/8
6 x 39W T5 + 2 x LED strip 460 x 900
18-7/64 x 35-7/16
6 x 80W T5 + 2 x LED strip 460 x 1500
18-7/64 x 59-1/16

Page 14
Lighting - LED, T5, Hybrid LED+T5
Pandora Hyperion R2+ is a combination LED + T5 hybrid lamp bringing the best of both
light sources together. It’s equipped with our newest Hyperion R2+ LED panel made in
SMT technology (Square Matrix Technology).
Pandora Hyperion R2+ lamps can easily penetrate water over 36″ deep and is available
in 4 sizes covering a wide range of tanks.
The SMT provides the perfect mix of colors all LED channels and an extraordinary visual
experience – very strong shimmer at the bottom of the aquarium comparable to metal
halide. Pacific Sun lamp has been designed as a pendant lamp for open aquariums. It must
not be used in enclosed aquariums below the canopy.
Hyperion R2+ panels include also warm white LEDs – so it’s a main difference between
Hyperion S (no white LEDs) and Hyperion R2+ series.
4.2. Pandora Hyperion R2+

Page 15
Lighting - LED, T5, Hybrid LED+T5
General Specifications
• 8 independent LED channels + independent T5 programming
• LED panels: 135W
• 2pcs / 4pcs T5 bulbs with high quality Alanod anodized (silver coated) aluminum
reflectors 98% light reflection – T5 bulbs not included
• “Shallow Water” LED panel technology without the use of any white diodes specially
designed for optimal coral growth according to Pacific Sun
• Built-in light controller that can be accessed wirelessly. The fixture also includes a
backlit blue LCD Display. Users can simulate sunrise/sunset, clouds, weather special
programs, etc.
• “Ultra Quiet” 80mm fans controlled by a temperature sensor.
• Mounting: Hanging kits or Pacific Sun “Spider” mount
• lamps have protection glass
LED panels specification
• UV (400 and 420nm) – Made for Pacific Sun
• Royal Blue 450nm – Cree
• Royal Blue 465nm – Cree
• Blue – Cree
• Green – Cree
• Red
• Orange
• Warm White – Cree
Model with 135W LED panels made
in SMT technology Cover Area UP to [cm]
1 x 135W + 2 x 24W T5 100x80x80
2 x 135W + 4 x 39W T5 125x80x80
3 x 135W + 4 x 54W T5 165x80x80
4 x 135W + 4 x 80W T5 225x80x80
LED Panels Lamp Size
[mm] Weight
[kg]
1 600 x 320 x 50 8
2 900 x 450 x 50 12
3 1250 x 450 x 50 15
4 1650 x 450 x 50 18

Page 16
Lighting - LED, T5, Hybrid LED+T5
Pandora Hyperion S is a combination LED + T5 hybrid lamp bringing the best of both
light sources together. It’s equipped with our newest Hyperion S LED panel made in SMT
technology (NO WHITE LEDs). More informations about SMT technology “S” stands for
shallow as the new LED panels gives off a remarkable turquoise blue color replicating the
tropical sun shimmering in the shallow reefs of Bali. Pandora Hyperion S lamps can easily
penetrate water over 36″ deep. It’s available in 4 sizes covering a wide range of tanks.
The SMT provides the perfect mix of colors all LED channels and an extraordinary visual
experience – very strong shimmer at the bottom of the aquarium comparable to metal
halide.
Pacific Sun lamp has been designed as a pendant lamp for open aquariums. It must not
be used in enclosed aquariums below the canopy.
4.3. Pandora Hyperion S

Page 17
Lighting - LED, T5, Hybrid LED+T5
Metis Hyperion S
Metis Hyperion S2
Model with 145W LED panels made
in SMT technology Cover Area UP to [cm]
1 x 145W + 2 x 24W T5 100 x 80 x 80
2 x 145W + 4 x 39W T5 125 x 80 x 80
3 x 145W + 4 x 54W T5 165 x 80 x 80
4 x 145W + 4 x 80W T5 225 x 80 x 80
Model with 75W LED panels made
in SMT technology Cover Area UP to [cm]
1 x 75W + 2 x 24W T5 100 x 80 x 80
2 x 75W + 4 x 39W T5 125 x 80 x 80
3 x 75W + 4 x 54W T5 165 x 80 x 80
4 x 75W + 4 x 80W T5 225 x 80 x 80
LED Panels + T5 Lamp Size
[mm] Weight
[kg]
1 + 2 x T5 600 x 320 x 50 8
2 + 4 x T5 900 x 450 x 50 12
3 + 4 x T5 1250 x 450 x 50 15
4 + 4 x T5 1650 x 450 x 50 18

Page 18
Lighting - LED, T5, Hybrid LED+T5
General Specifications
• 9 independent LED channels + independent T5 programming
• LED panels: 145W / 75W
• 2pcs / 4pcs T5 bulbs with high quality Alanod anodized (silver coated) aluminum
reflectors 98% light reflection – T5 bulbs not included
• “Shallow Water” LED panel technology without the use of any white diodes specially
designed for optimal coral growth according to Pacific Sun
• Built-in light controller that can be accessed wirelessly. The fixture also includes a
backlit blue LCD Display. Users can simulate sunrise/sunset, clouds, weather special
programs, etc.
• “Ultra Quiet” 80mm fans controlled by a temperature sensor.
• Mounting: Hanging kits or Pacific Sun “Spider” mount
LED panels specification
• UV (400 and 420nm) – Made for Pacific Sun
• Royal Blue 450nm – Cree
• Royal Blue 465nm – Cree
• Blue – Cree
• Cyan – Made for Pacific Sun
• Green – Cree
• Amber – Made for Pacific Sun
• Deep Red – Made for Pacific Sun
New series Pandora Hyperion S with 8pcs T5 tubes
Model with 75W LED panels made
in SMT technology Cover Area UP to [cm]
1 x 75W + 8 x 24W T5 100 x 80 x 80
2 x 75W + 8 x 39W T5 125 x 80 x 80
3 x 75W + 8 x 54W T5 165 x 80 x 80
LED Panels + T5 Lamp Size
[mm] Weight
[kg]
1 + 8 x T5 650 x 620 x 50 12
2 + 8 x T5 950 x 620 x 50 15
3 + 8 x T5 1250 x 620 x 50 18

Page 19
Lighting - LED, T5, Hybrid LED+T5
5. Lamp Wi-Fi Pacific Sun Cloud setup
5.1. Connecting Lamp to your home Wi-Fi network
1.Connect power to the PS device.
Find your PS DEVICE on you Wi-Fi
network list devices.
Click Connect directly to the
PS DEVICE Wi-Fi Network.
2.Find a sticker on the device with
a Wi-Fi network password:
DEVICE####
Note:
#### - it's your unique number
3.Enter your PS Device-### Wi-Fi
network password.
Next Click Join
4.Make sure you are connected to
PS Device-### Hotspot.
Connected
The DEVICE is ready for
the PS Cloud setup
1
1

Page 20
Lighting - LED, T5, Hybrid LED+T5
5.Open the Device WiFi
network setup.
Open your Internet Browser and
type the device WiFi network
IP address 192.168.4.1 into the
address field.
http://192.168.4.1
Switch to STA+AP mode
Under WiFi Association you
should see Scanning for available
home Wi-Fi networks.
6.Connect device to Home
WiFi network.
Select your Home WiFi
network under Network
SSID.
Type in your Home WiFi
network password, if
applicable.
Next Click: Connect!
After this step the device will be
available under your Home WiFi
network usually with IP address
format:
192.168.#.###
1
1
1
2
3
2
3
7.Optionally - restart the device.
Power OFF and ON the device.
Disconnect power and Connect
back.
On the LCD screen, see and take a
note of the IP Address in a similar
format.
4
4
1
