PageFlip Lite User manual

PageFlip Lite
Automatic Page Turner
User Guide

PageFlip Lite User Guide
Legal Notice
Copyright c 2009 PageFlip Inc. All rights reserved.
Information in this document is subject to change without notice.
All statements, information, and recommendations in this manual
are believed to be accurate but may include inadvertent technical
inaccuracies or typographical errors. PageFlip Inc. provides this
information “as is”, without warranty of any kind, either expressed
or implied, including any implied warranties of merchantability or
fitness for a particular purpose. No part of this manual may be re-
produced, stored in a retrieval system, or transmitted in any form or
any means electronic or mechanical, including photocopying and
recording for any purpose other than the purchaser’s personal use
without the consent of PageFlip Inc.
Contents c 2009 PageFlip Inc.
PageFlip Inc.
Woodmere, NY 11598
USA
www.pageflip.com
[email protected]
Version 1.3
March 1, 2011
PageFlip, Inc. 1www.pageflip.com

PageFlip Lite User Guide
FCC/CE Notice
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause unde-
sired operation.
PageFlip Lite
FCC ID: XKEPFLITE01
This product conforms to the EMC-Directive 89/336/EEC and to
the Low Voltage Regulation 73/23 EEC.
Safety Notice / Warning
Please read the following safety instructions carefully to safely and
correctly operate this device. PageFlip assumes no responsibility
for property damage or personal injury.
1. Do not place any container filled with liquid on the device.
2. Do not use a voltage other than the specified one.
3. Do not plug AC Adapter into socket with wet hands.
4. Always hold case before removing AC adapter plug.
5. Safely install and apply power before operating device.
6. Never insert your hand into device while operating it.
7. Do not disassemble or modify the device.
PageFlip, Inc. 2www.pageflip.com

PageFlip Lite User Guide CONTENTS
Contents
1 WELCOME 4
2 FEATURES 5
3 PACKAGE CONTENTS 8
4 BASIC OPERATION 10
4.1 Battery Installation: PageFlip Lite . . . . . . . . . . . . . . 10
4.2 Battery Installation: Wireless Pedal . . . . . . . . . . . . . 11
4.3 ACAdapter.......................... 12
4.4 Powering On the Unit and Pedal . . . . . . . . . . . . . . . 13
4.5 Triggering the Page Turner . . . . . . . . . . . . . . . . . 14
4.6 Setting Up the Book Clamp . . . . . . . . . . . . . . . . . 15
4.7 Setting Up the Support Stand . . . . . . . . . . . . . . . . 17
4.7.1 Table or Desk . . . . . . . . . . . . . . . . . . . . . 17
4.7.2 Music Stand or Piano . . . . . . . . . . . . . . . . 19
4.8 Loading Pages into Arms . . . . . . . . . . . . . . . . . . 20
4.8.1 Method1....................... 20
4.8.2 Method2....................... 20
5 PRODUCT SPECIFICATION 24
6 MAINTENANCE 25
7 WARRANTY 26
8 GUARANTEE 27
9 FREQUENTLY ASKED QUESTIONS 28
PageFlip, Inc. 3www.pageflip.com

PageFlip Lite User Guide 1. WELCOME
1 WELCOME
Congratulations on your purchase of the PageFlip Lite automatic
page turner! This product was designed to meet the needs of peo-
ple with disabilities, musicians, and avid readers who struggle with
the challenge and inconvenience of page turning. PageFlip Lite
features a patent pending solution to automate the process of turn-
ing pages. By simply tapping a switch, pages can now be flipped
in either the forward or reverse directions for uninterrupted hands-
free reading.
PageFlip Lite is compact, portable, reliable, and easy to use.
It features 100% reliability in turning one page at a time. Just pull
any book off the shelf, mount it on the PageFlip Lite book clamp,
and slide ten sheets through mechanical arms to begin hands-free
reading. Be prepared to enjoy the benefits of the PageFlip Lite
automatic page turner!
We include a wireless pedal to trigger a page-turn cycle in the
forward or reverse directions. An auxiliary outlet is available for
use with an external switch via a 1/8" (3.5mm) stereo plug. The
unit works with a wide range of switches, including sip-and-puff
and Jelly Bean switches (neither is included). PageFlip Lite can be
placed directly on a desk, table, bed, piano, music stand, kitchen
counter, or exercise equipment for convenient hands-free reading.
PageFlip, Inc. 4www.pageflip.com

PageFlip Lite User Guide 2. FEATURES
2 FEATURES
•Ease of Use
Simply attach a bound book to the PageFlip Lite book clamp,
snap the book clamp to the PageFlip Lite casing, turn the
power on, and begin reading. Just press either end of the
wireless pedal to turn a page forwards or backwards.
•Convenience
Set up 10 sheets of a book in under one minute for unin-
terrupted hands-free reading of 20 pages (2 pages / sheet).
There is no need to stop playing your musical instrument or
to wait for a care-giver to turn the next page.
•Reliability
Turns one page at a time with 100% accuracy. Manual setup
of 10 sheets eliminates risk of turning multiple pages at once.
•Robust Operation
The PageFlip Lite book clamp firmly attaches to the opened
book to restrain pages from inadvertently turning back. This
is particularly useful for new books with stiff spines that refuse
to stay open freely. Combines the virtues of a secure book
holder with the advanced features of an automatic page turner.
•Wireless Remote Control
The wireless foot pedal is used to turn the pages in either
direction. Tap one end of the pedal to turn pages forward;
tap the other end to turn pages backwards. The range of
the pedal is 50 feet, allowing a second person to operate the
device remotely.
PageFlip, Inc. 5www.pageflip.com

PageFlip Lite User Guide 2. FEATURES
•Advanced Wireless Feature
An advanced frequency pairing feature allows as many as
32 users to wirelessly trigger their own PageFlip Lite units in
the same room without interference.
•Collapsible Support Stand
A collapsible support stand allows the page turner to sit on a
table while supporting a large book at various tilt angles. The
support stand is not necessary for use on a music stand or
keyboard instrument where a book rest is already available.
•Compatibility
PageFlip Lite is compatible with a wide array of external
switches that can trigger the page turner. Commonly used
sip-and-puff and pushbutton switches may be plugged into
the auxiliary switch outlet via a 1/8" (3.5mm) stereo plug.
•Versatility
The PageFlip Lite book clamp permits the page turner to
handle a wide variety of book sizes and page counts.
•Auto Power Off Function
PageFlip Lite automatically turns itself off 30 minutes after
the last operation is performed or if an error occurs.
•Silent Operation
PageFlip Cicada uses anti-skid rubber pads to prevent it
from sliding or making noise upon contact. Pages are turned
silently for use in performances and recordings.
•Portability
The unit is small, light, battery-operated, and easy to carry.
PageFlip, Inc. 6www.pageflip.com

PageFlip Lite User Guide 2. FEATURES
•Technical Support
Additional information and video tutorials can be found at
www.pageflip.com
PageFlip, Inc. 7www.pageflip.com

PageFlip Lite User Guide 3. PACKAGE CONTENTS
3 PACKAGE CONTENTS
This package contains the following items. If any items are miss-
ing, please contact the dealer where you purchased the product.
1. PageFlip Lite Page Turner
2. Collapsible Support Stand
3. Book Clamp
4. Wireless Pedal
5. Universal AC Adapter
6. Three Adapter Plugs
7. Carrying Case
8. This User Guide
PageFlip, Inc. 8www.pageflip.com

PageFlip Lite User Guide 3. PACKAGE CONTENTS
Figure 1: Package contents shown from top to bottom: PageFlip Lite, col-
lapsible support stand, book clamp, wireless pedal, universal
adapter with three replaceable plugs (for US/China/Japan, Eu-
rope/Korea, and UK), and carrying case with shoulder strap.
PageFlip, Inc. 9www.pageflip.com

PageFlip Lite User Guide 4. BASIC OPERATION
4 BASIC OPERATION
Please read the operating instructions carefully before first use.
PageFlip Lite is designed to handle a wide variety of books. It is
important that the user closely follow the directions below in order
to maximize performance, reliability, and reading pleasure.
4.1 Battery Installation: PageFlip Lite
1. Turn off device before inserting the batteries.
2. Remove the two rear battery covers (Fig. 2).
3. Install four new AA batteries: two in each battery well.
4. Slide the battery covers back on.
Note: To conserve battery power, turn off device when not in use.
The unit automatically turns off after 30 minutes of inactivity.
Figure 2: Battery covers are located at the rear of the PageFlip Lite unit.
PageFlip, Inc. 10 www.pageflip.com

PageFlip Lite User Guide 4.2 Battery Installation: Wireless Pedal
4.2 Battery Installation: Wireless Pedal
1. Turn off wireless pedal before inserting the batteries.
2. Remove battery cover on the bottom of wireless pedal (Fig. 3).
3. Install three new AA batteries.
4. Slide the battery cover back on.
Note: To conserve battery power, turn off pedal when not in use.
The pedal automatically turns off after 30 minutes of inactivity.
Figure 3: Battery cover is located at the bottom of the wireless pedal.
PageFlip, Inc. 11 www.pageflip.com

PageFlip Lite User Guide 4.3 AC Adapter
4.3 AC Adapter
In addition to being battery-operated, PageFlip Lite may also be
plugged into the wall via the universal AC adapter. For conve-
nience, the adapter includes three plugs for the US/China/Japan,
Europe/Korea, and UK markets, respectively. By default, the US
plug is attached to the adapter. To replace the plug, press the re-
lease tab on top while pulling the plug outward. Attach the desired
plug by pushing it into the adapter and insert the adapter into the
top outlet on the side of the page turner (Fig. 4).
(a) (b)
Figure 4: (a) Side view of PageFlip Lite; (b) Insert universal AC adapter
in topmost outlet. The package includes three plugs (shown left
to right): US/China/Japan, Europe/Korea, and UK.
PageFlip, Inc. 12 www.pageflip.com

PageFlip Lite User Guide 4.4 Powering On the Unit and Pedal
4.4 Powering On the Unit and Pedal
1. Slide the front switch of PageFlip Lite to the On position.
The LED light will blink slowly to indicate that the unit is on.
2. Slide the side switch of the wireless pedal to the On position.
The LED lights on the pedal and the paired PageFlip Lite unit
will now flash quickly.
3. After three seconds, both sets of LEDs will stop flashing and
remain on continuously to indicate that the PageFlip Lite unit
is paired with the wireless pedal.
4. An advanced frequency selection feature performs the wire-
less pairing automatically, permitting the pedal to trigger the
page turner remotely, up to 50 feet away. As many as 32
users can uniquely pair their page turners and pedals within
the same 50-foot range.
(a) (b)
Figure 5: Power switches and LED lights on the (a) PageFlip Lite and (b)
wireless pedal.
PageFlip, Inc. 13 www.pageflip.com

PageFlip Lite User Guide 4.5 Triggering the Page Turner
4.5 Triggering the Page Turner
The PageFlip Lite automatic page turner can be triggered to turn
a page in the forward or reverse direction by:
1. pressing the left or right key on the front panel (Fig. 5(a))
2. tapping the left or right end of the wireless pedal (Fig. 5(b))
3. activating an auxiliary (external) switch
PageFlip Lite works with sip-and-puff switches, AbleNet Jelly
Bean pushbuttons, or any auxiliary switch that can be plugged into
the 1/8" (3.5mm) stereo outlet shown in Fig. 4(a). Use an adapter,
if necessary, to convert other plugs for use with the unit. Page-
Flip does not supply plug adapters or auxiliary switches. Consult
assistive technology vendors for more information about switches.
(a) (b) (c)

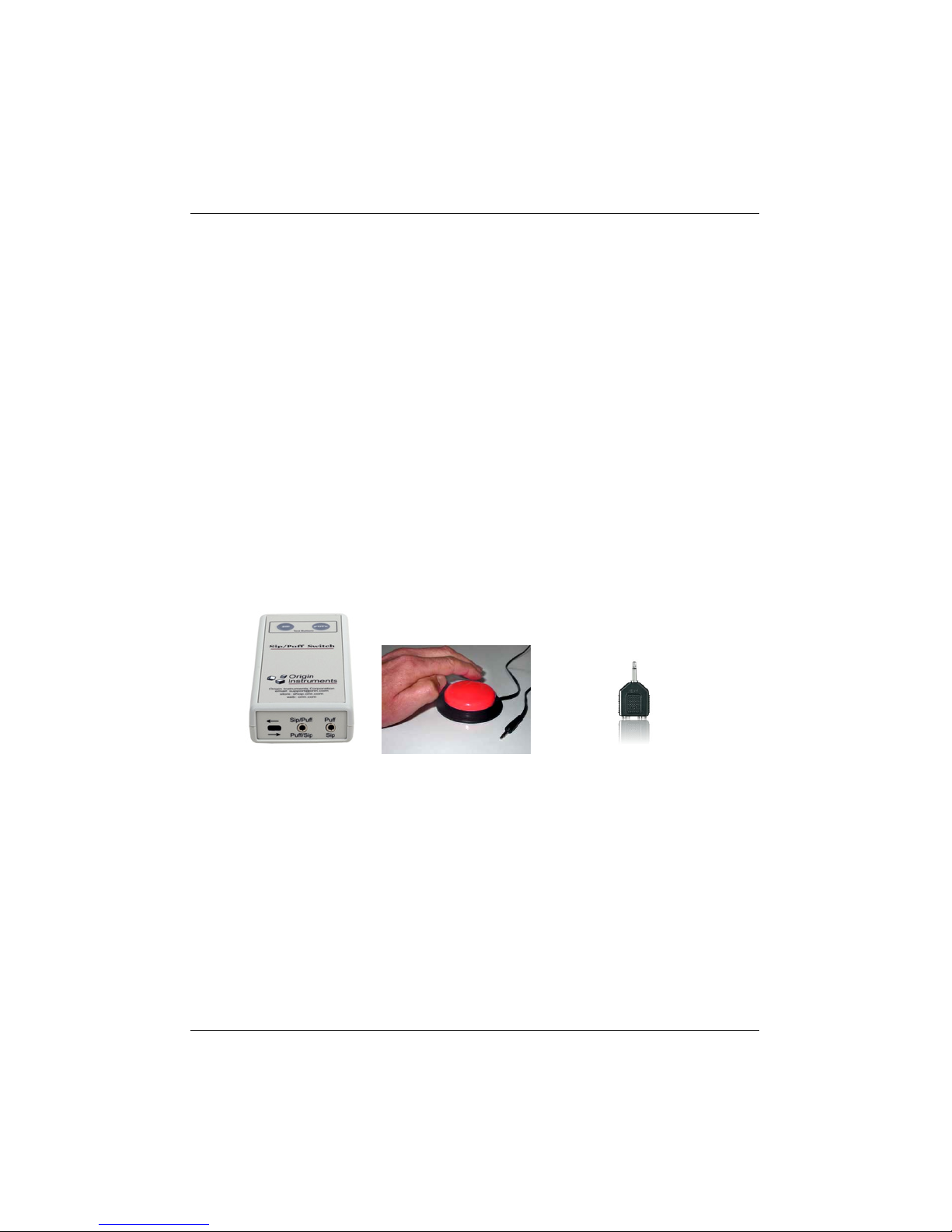

Figure 6: (a) A sip-and-puff switch can connect to the PageFlip Lite aux-
iliary outlet via a 1/8" (3.5mm) stereo plug. (b) A Jelly Bean is a
large pushbutton switch. Two such switches can be connected
to the PageFlip Lite to turn pages in either direction by using
(c) a 1/8" stereo male to a dual 1/8" mono female Y-adapter to
combine their two male mono plugs into a single 1/8" stereo
plug and inserting it into the auxiliary switch outlet.
PageFlip, Inc. 14 www.pageflip.com

PageFlip Lite User Guide 4.6 Setting Up the Book Clamp
4.6 Setting Up the Book Clamp
PageFlip Lite is designed to operate with books having a wide
range of sizes and thicknesses. This is made possible with the
use of our specially-designed clamp that can mount a book to the
unit while firmly restraining pages from inadvertently turning.
The clamp consists of a back support and two spring-loaded
arms, as shown in Fig. 7(a). Each arm has a tip that includes a
page restraint to block loose pages from turning freely. Each tip
also includes a peg that slides into a rear slot on the PageFlip Lite
to secure the book clamp into place. Before setting up the book
clamp, it must first be detached from PageFlip Lite by pulling it out
of the two rear slots.
A book is attached to PageFlip Lite by securing the book clamp
to the bottom edge of an open book. This is done by pulling the
page restraints away from the supporting plate (Fig. 7(b)). An open
book is slid into the space between the flexed arms and the sup-
porting plate. Release the arms, allowing the compressive force
of the springs to secure the book between the page restraints and
the supporting plate (Fig. 7(c)).
Pick up the clamped book and slide the clamp pegs into the
rear slots on PageFlip Lite, as shown in the bottom row of Fig. 7.
PageFlip, Inc. 15 www.pageflip.com

PageFlip Lite User Guide 4.6 Setting Up the Book Clamp
(a) (b)
(c) (d)
(e) (f)
Figure 7: (a) Book clamp; (b) Pull spring-loaded arms outward to slide
book between flexed arms and supporting plate. (c) Front and
(d) rear view of book clamp with mounted book; (e) Front and
(f) rear view of book/clamp assembly mounted on PageFlip Lite.
Notice that clamp snaps into rear slots of PageFlip Lite.
PageFlip, Inc. 16 www.pageflip.com

PageFlip Lite User Guide 4.7 Setting Up the Support Stand
4.7 Setting Up the Support Stand
Select a workspace that can securely hold the page turner:
1. a table or desk
2. the ledge of a music stand
3. the book rest of a keyboard instrument
4.7.1 Table or Desk
If the workspace is a table or desk, you will need to use the support
stand to prop up the PageFlip Lite and the attached book. Unfold
the collapsible support stand (Fig. 8) and rest the PageFlip Lite in
the bottom groove (Fig. 9). We recommend raising the horizontal
crossbar, as shown in Fig. 8(c), to alter the tilt angle of the book
for maximal stability and comfort.
(a) (b) (c)

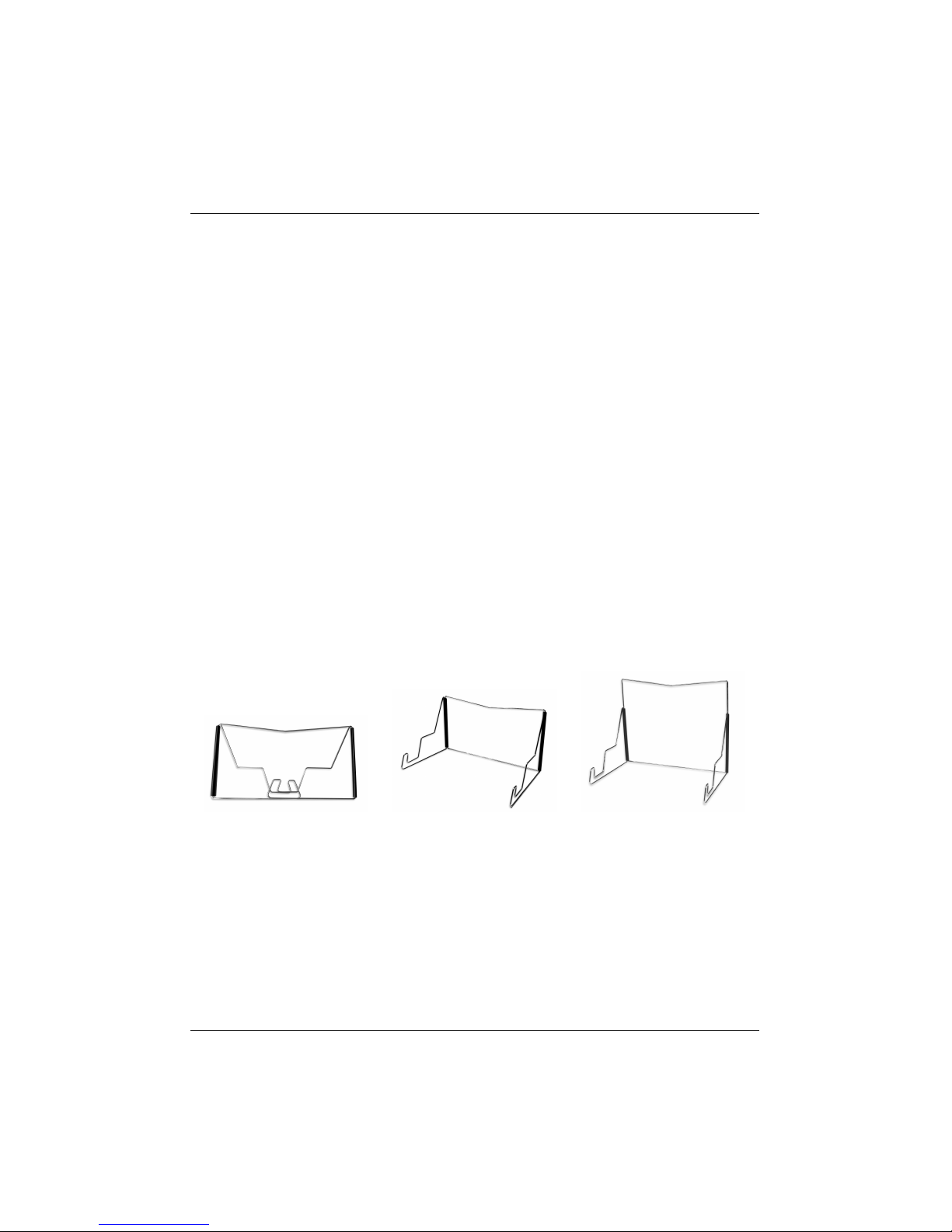

Figure 8: Collapsible support stand shown in the (a) closed and (b)
opened positions. (c) Lift the horizontal crossbar to alter the
tilt angle of the book.
PageFlip, Inc. 17 www.pageflip.com

PageFlip Lite User Guide 4.7 Setting Up the Support Stand
(a)
(b) (c)

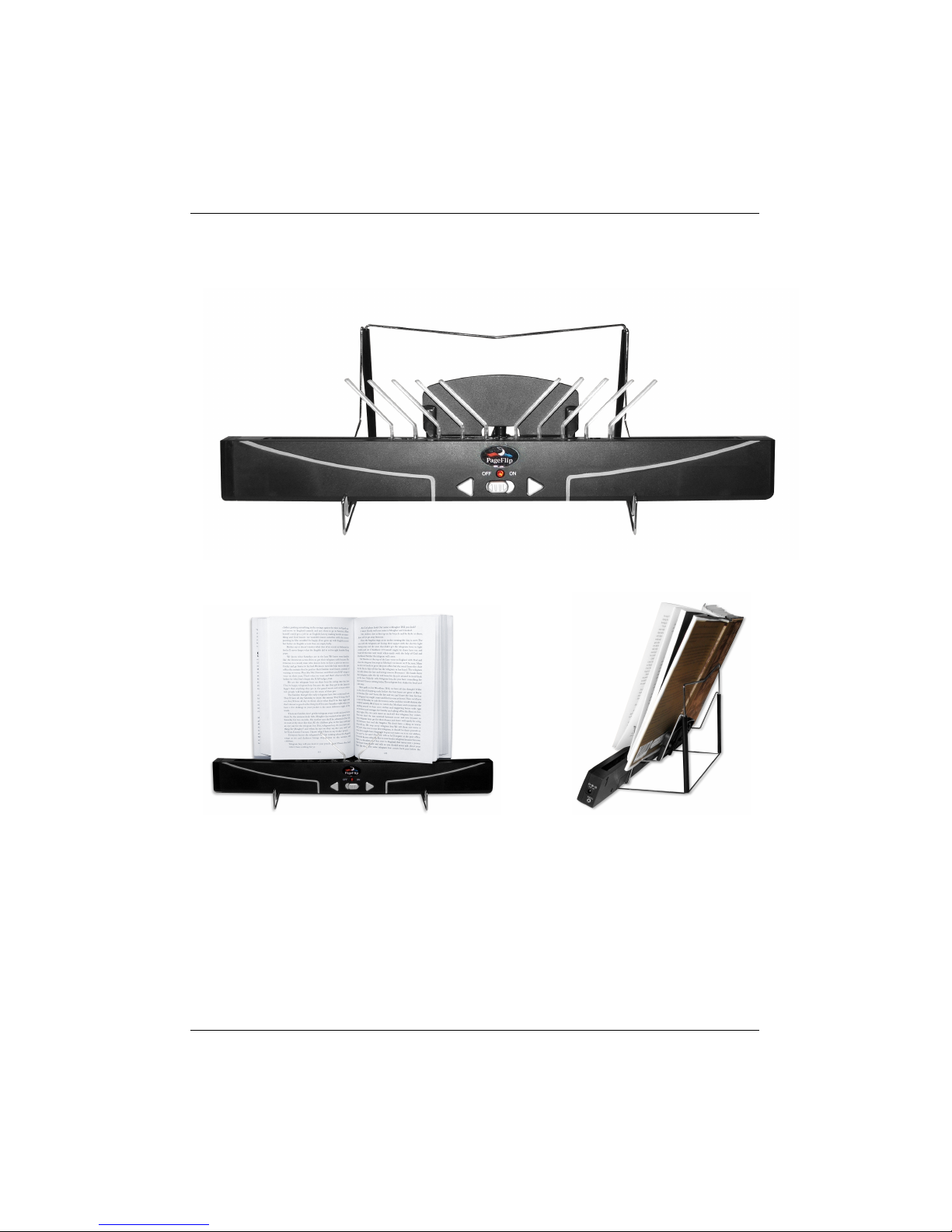

Figure 9: (a) PageFlip Lite and the attached book clamp mounted on
the support stand; (b) Front and (c) side view of PageFlip Lite
mounted on support stand.
PageFlip, Inc. 18 www.pageflip.com
