This guide contains installation information for the PairGain®HiGain® Line
Unit HLU-819 List 1. The HLU-819 installs in any 3192-compliant chassis
and interfaces with the PairGainHiGain ETSI™Universal Termination Unit
UTU-814 List 1B. The HLU-819 and the UTU-814 provide the Central
Office (CO) and remote terminal (RT) sides of a repeaterless, High bit-rate
Digital Subscriber Line (HDSL). The RT provides both DSX-1 (T1) and data
interface (V.35, V.36, RS-449, X.21, or RS 530) ports to the customer (see
Figure 1). The HLU-819 accepts the respective payloads through a DSX-1
port from a multiplexer or a DS1 cross-connect shelf and transports it to the
UTU-814 List 1B at a maximum data rate of up to 1.544 Mbps. An internal
time slot assignment function splits the DS1 bandwidth between these two
ports as two Nx64K tributaries.
Figure 1. Typical HLU-819 List 1 Application
(T1 to Dual-Port Operation)
In order for the HLU-819 List 1 to support T1 transmission
over HDSL lines at the customer remote, the ETSI Remote
Enclosure ERE-811 List 2 and the UTU-814 List 1B (ETSI card)
must be used at the remote location.
Remote unit
2-pair HDSL
DS1
RS-530
Video
Conference
PBX
nX64K
Wideband 3190

Overview 350-819-200-01, Revision 01
2 November 12, 1999 HLU-819 List 1
The HLU-819 List 1 is part of the Open Span Termination Shelf (OSTS)
family of products supported by the PairGain Wideband System 3190. With
this card, the entire PairGain ETSI family of remote Customer Premise
Equipment (CPE) can be subtended to the Wideband System 3190 to provide
standard Digital Service Unit (DSU) and Channel Service Unit (CSU) data
port interfaces.
The HLU-819 fits into a 3192 mechanics shelf and conforms to ANSI
T1.403-1989 and AT&T CB 119 standards. It has a transmission range of up
to 12,000 ft. (3.66 km) when using 24 American Wire Gauge (AWG) and
9,000 ft. (2.74 km) when using 26 AWG twisted pair copper wire, including
bridged taps. The HLU-819 requires -36 to -72 Vdc from the local power
supply and can source up to 50 milliamperes (mA) on each of the HDSL data
loops to line power the remote unit.
STANDARD FEATURES
•DSX-1 (T1) interface at the CO
•DS1 (T1) and data port interfaces at the remote
•Two pair High bit-rate Digital Subscriber Line (HDSL) interface to an
ETSI remote unit
•Terminal Access Option (TAO) and Transaction Language (TL1)
command interfaces
•Framing insertion for transmission of framed and unframed data into T1
network
•Detection of standard CSU loopup and loopdown codes
•Time slot prioritization
•Single pair operation
•Status LED
•Compatible with OSTS
•DSX-1 splitting and bridge craft access
•Line power to drive the remote unit
•Integrated dual port fractional T1 delivery system

350-819-200-01, Revision 01 Front Panel
HLU-819 List 1 November 12, 1999 3
FRONT PANEL
Figure 2 shows the HLU-819 front panel. Table 1 on page 4 describes the
front-panel components. A diagram of the line and bridging access jacks is
shown in Figure 3 on page 5.
Figure 2. HLU-819 Front Panel
HLU-819
HiGain HD
L
R
C
V
B
R
G
B
R
G
X
M
T
L
I
N
E
L
I
N
E
DSX-1 access jacks
Status LED
CLEI code label
(on outside of handle)
Configuration number label
(on inside of handle)
PairGain
1
STATUS

Front Panel 350-819-200-01, Revision 01
4 November 12, 1999 HLU-819 List 1
Table 1. HLU-819 List 1 Front-panel Status LED Description
Item Function
Status LED Displays synchronization state and alarm status for HDSL
Loop.
Steady Green HDSL Loop is ready to transmit and receive data across all
spans.
Slow Blinking Green HDSL Loop acquisition is in progress for local span.
Pulsing Red •Indicates Loss of Sync Word (LOSW), Margin (MAR)
below threshold, or Errored Second (ES) count above
threshold.
•Pulses for every ES on any span.
•Indicates Loss of Clock (LOC) or DSX-1 signal, Receive
Alarm Indication Signal (RAIS), or Loss of Frame
Alignment (LFA).
Steady Yellow Indicates Local (LOC) loopback.
DSX-1 access jacks
BRG Provides non-intrusive bridging jack access to XMT and RCV
at the DSX-1 interface. Allows the two T1 payloads to be
monitored.
LINE Provides splitting jack access to Transmit (XMT) and Receive
(RCV) at the DSX-1 interface. Breaks the XMT and RCV paths
to permit test signal insertion and retrieval.
CLEI and ECI bar code
label (located on the side
of the unit)
Provides the human-readable Common Language Equipment
Identifier (CLEI) code number and the Equipment Catalog
Item (ECI) bar code number.
Configuration Number
(located on the side of the
unit)
Contains either a five- or six-digit warranty configuration
number or a standalone two- or three-digit configuration
number as follows:
•Digit 1 = Last digit of shipment year
•Digits: 2 and 3 = Shipment month
•Digits: 4 and 5 = Configuration number
The configuration number can also be found on a small bar
label that contains the Julian date code and part number. This
gummed label may be attached to the PC board or to the front
panel.

350-819-200-01, Revision 01 Front Panel
HLU-819 List 1 November 12, 1999 5
Figure 3. DSX-1 Access Jacks

Installation 350-819-200-01, Revision 01
6 November 12, 1999 HLU-819 List 1
INSTALLATION
This section provides instructions for setting up the HLU-819 and installing
the UTU-814 List 1B into the ERE-811 remote unit. The remote unit can be
powered from either the HLU-819 (must be configured) or locally, either AC
or -48 Vdc. The remote unit must be set up independently from the CO
terminal
Shelf and remote enclosure chassis ground must be
connected to earth ground to protect the equipment and for
safety of personnel.
Additional protection is required when the network side of the
equipment is extended to an outside facility.
When installing an HLU in a chassis or a UTU in a remote
enclosure, be sure to wear an antistatic wrist strap. Avoid
touching components on the circuit board.

350-819-200-01, Revision 01 Installation
HLU-819 List 1 November 12, 1999 7
INSTALLING THE HLU-819 INTO A3192 SHELF
Figure 4. Installing the HLU-819 into a Shelf
1Slide the HLU-819 into the guide rails of any of the open 28 slots on the
shelf (Figure 4).
2Push the unit back until it touches the backplane card-edge connector and
is firmly seated. Once the HLU-819 is in place, it is automatically
configured as an LTU which displays on the maintenance terminal
console screens.

Installation 350-819-200-01, Revision 01
8 November 12, 1999 HLU-819 List 1
INSTALLING THE UTU-814 INTO THE ERE-811
REMOTE ENCLOSURE

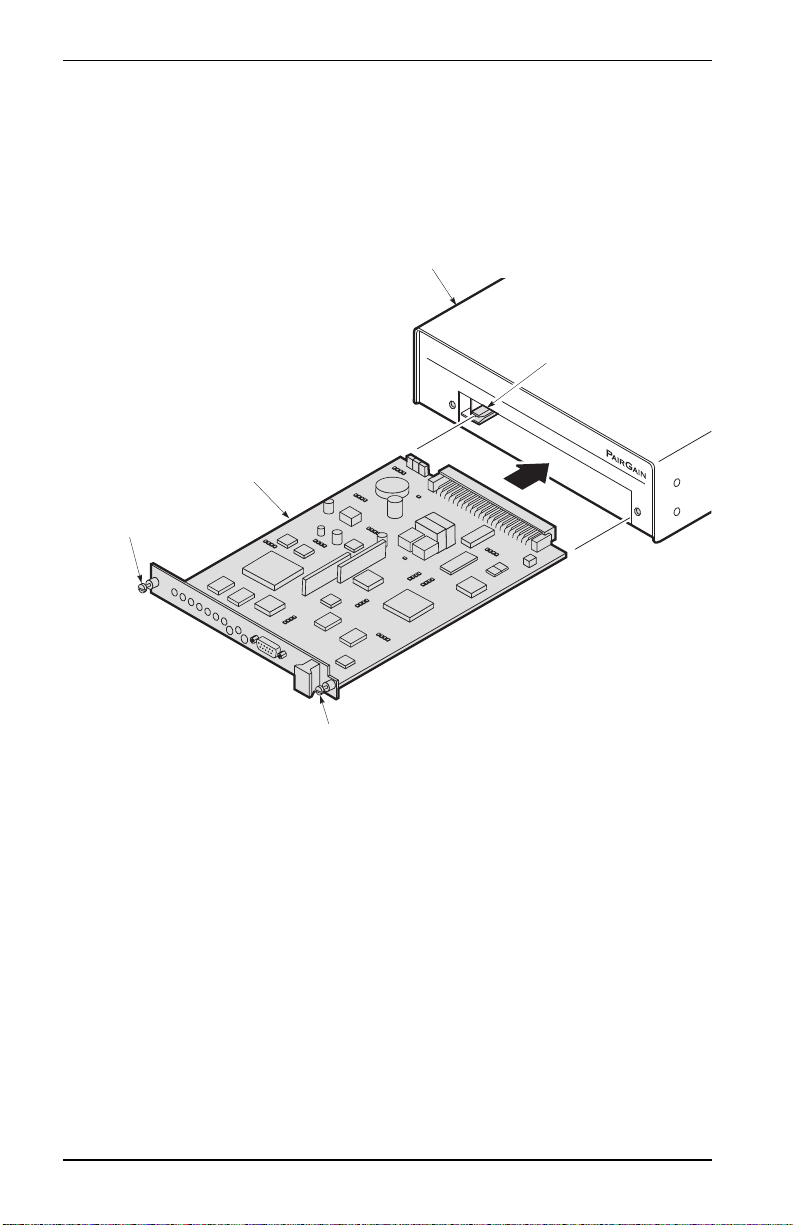

Figure 5. Installing the UTU-814 into the ERE-811 Remote Enclosure
1Align the card with the guide rails at the left and right sides of the
enclosure opening (Figure 5).
2Push the card into the enclosure until the front panel is flush with the
front of the enclosure.
3Tighten the captive screws.
4Connect the DS1 port cable DB-15F (Figure 6 on page 9), if applicable.
Captive screw
HG
I AIN -E
TSI
Guide rail
Line card
C
aptive screw
ERE Enclosure

350-819-200-01, Revision 01 Installation
HLU-819 List 1 November 12, 1999 9
5Connect the Nx64K data port cable DB-25F (Figure 6), if applicable.
The following adapters can be used when connecting the cable:
•ECA-800 List 1 (DB-25M to M-34F, V.35)
•ECA-801 List 1 (DB-25M to DB-15F, X.21)
•ECA-807, List 1 (DB-25M to DB-37F, RS-449, V.36)
6Connect the HDSL line port cable DB-9F (Figure 6). The following
adapter can be used when connecting the cable:
•ECA-806, List 1 (DB-15M to RJ-48C)
The UTU-814 is automatically configuredas an NTU, which displays on
the maintenance terminal console screens after HDSL startup and
synchronization.
Figure 6. ERE-811 List 2 Rear Panel
Jumpers and BNC are not applicable for UTU-814 List 1B. For
T1 applications, UTU-814 List 1B uses the standard 100 Ω
(DB-15), G.703 interface.
HDSL line (DB-9F)
Data port (DB-25F)
75 Ohm G.703
in (BNC) 75 Ohm G.703
out (BNC) 120 Ohm G.703 (DB-15F)
100-240v ~
50-60Hz 0.3A
Power cord
connector
DATA PORT
120 OHM / ALARM HDSL LINE
75 OHM
IN OUT
120 / 75 OHM JUMPER
SELECTION REQUIRED
ON LTU / NTU
-48VRTN
-36V...-72V

HDSL Startup and Synchronization 350-819-200-01, Revision 01
10 November 12, 1999 HLU-819 List 1
HDSL STARTUP AND
SYNCHRONIZATION
Power-up the shelf where the HLU-819 is installed and observe the
following:
1During the power-up self test, the HLU-819 List 1 LED is a steady
yellow.IftheLEDstaysyellowformorethan 30 secondsafterpower-up,
verify the unit is not in a loopback mode. If no loopback conditions are
present, the unit has failed the self test. (See “Appendix B - Product
Support”on page 30 if assistance is required).
2The Status LED flashes green once per second as the unit attempts to
establish synchronization.
3After approximately 30 seconds, confirm one of the following:
•The Status LED is steady green, indicating the unit is synchronized
and ready to transmit and receive data. The unit can now be
configured through the maintenance terminal console screen menus.
•The Status LED continues to flash. Ifthe LED does not stop flashing
after approximately one minute, it indicates that the HDSL pair
corresponding to the indicator is experiencing an excessive signal
loss or is inan open condition. Check the line and repair if necessary.

350-819-200-01, Revision 01 System Configuration
HLU-819 List 1 November 12, 1999 11
SYSTEM CONFIGURATION
A maintenance terminal is used to access the line unit console screens and
configuration menus. Through these screens and menus, the HDSL system is
configured, monitored, tested, and its circuit inventory can be displayed.
The console screens must be viewed through the HMU-319 or Operating
System (OS) port located at the back of the Wideband System 3190, or
through a Trivial File Transfer Protocol (TFTP) session over an Ethernet
Local Area Network (LAN) connected to the chassis. The console screens
cannot be accessed through the HLU-819 because this model does not
provide a craft port.
After HDSL establishes communication with the remote unit, the HDSL
system can be configured and performance monitored from the HMU-319
management unit. Both the HLU-819 and UTU-814 are configured at this
time from the same maintenance screens. If the HDSL link is down, the only
parameters that can be changed are those on the local unit.
The HLU-819 provides a special lockout feature that prevents users
connected to the remote maintenance terminal from changing the circuit
configuration. When blocked, the maintenance screens are not accessible
from the remote craft port.
MAINTENANCE TERMINAL CONNECTION
To connect a maintenance terminal:
1ConnectastandardserialcablefromthemaintenanceterminalCOMport
to the front-panel craft port of the HMU-319. The pinouts for the craft
port and maintenance terminal connectors are shown in Figure 7 on
page 12.
HMU-819 firmware must be version 3.0 and higher.
Refer to document 150-319-107-01 for more detailed
information on terminal connections.

System Configuration 350-819-200-01, Revision 01
12 November 12, 1999 HLU-819 List 1
2Configure the maintenance terminal for the following communication
settings:
•VT100 emulation or ANSI (if VT100 is not available)
•Clear the modem initialization string if supported by the terminal
•Bits per second: 9600 (recommended)
•Data bits: 8
•Parity: None
•Stop bits: 1
•Flow Control: None
Figure 7. HMU-319 Craft Port and Maintenance Terminal
Connector Pinouts
HMU-319 or UTU-814
craft port
DB-9 Connector
(DCE)
DTR (Data Terminal Ready)
TD (Transmit Data)
RD (Receive Data)
GND
4
3
2
5
DB-9 Connector
(DTE)
DB-25 Connector
(DTE)
Maintenance terminal
Maintenance terminal
4
3
2
5
20
3
2
7

350-819-200-01, Revision 01 System Configuration
HLU-819 List 1 November 12, 1999 13
LOGGING ON
You must log on to the WBS-3190 in order to access the HLU-819
maintenance terminal console screens. Perform the following steps in the
order indicated.
1Once the maintenance terminal is connected to the HMU and a banner
(headline) appears on the screen, press .
2The Enter TID field appears to the left of the cursor, then press
.
3Type superuser in the Enter Username field, then press .
(The Enter Username field may be changed by the user.)
4Type public#1 in the Enter Password field, then press .
(The Enter Password field may be changed by the user.)
5Type TAO at the prompt, then press . This opens the Terminal
Access Option (TAO).
6Select the shelf number ofthe HLU-819 to display the shelf status screen.
7Select the slot number of the HLU-819 to log onto the HLU and display
the console screen menus.
Logon procedure may vary depending on the software
revision level on the HMU-319. Consult the software manual
for your particular system (refer to “Appendix B - Product
Support”on page 30).
If the password or username is forgotten or lost, please
contact Customer Service for assistance.
RETURN
RETURN
RETURN
RETURN
RETURN

System Configuration 350-819-200-01, Revision 01
14 November 12, 1999 HLU-819 List 1
NAVIGATING MENUS
Use the keys described in Table 2 to navigate the console screens and menus.
Table 2. Console Screen Navigation Keys
These Keys Perform this Function
Alpha-numeric
keys Type the underlined or highlighted letter to select and execute a menu
item. For example, on the console screen menu bar, type to access
the Config drop-down menu.
Also use these keys to enter values in text fields. For example, on the
Config Date and Time menu, type the date in a DD/MM/YY format on
the LTU and NTU.
and keys Press the key to access a console screen drop-down menu. For
example, press the key on Config to access the Config drop-down
menu. Or press the and keys to highlight a sub-menu item, then
press to select the item.
key Provides same function as the key.
and keys Moves horizontally across the Menu bar, except when in a text entry
field.
+ and
+
+ moves up one line and + moves down one line
on the History screens.
+ and
+
+ performs page-down and + performs page-up
functions on the History screens.
Toggles among options displayed for current menu item. For example,
to select the Application mode from the Config System Settings menu,
press the key to highlight the Application mode option, then press
the until the desired option (UNSTRUCT, STRUCT, TSP,
SINGLE) is highlighted, then press to confirm the selection.
Exits the current screen and returns to the previous screen. Selections
made on the current screen are discarded. Press in a text field to
cancel the text entry and restore the old value.
C
↑ ↓ ↓ ↓
↑ ↓
ENTER
TAB ↓
← →
CTRL E
CTRL X
CTRL ECTRL X
CTRL C
CTRL R
CTRL CCTRL R
SPACEBAR
↓
SPACEBAR
ENTER
ESC
ESC
