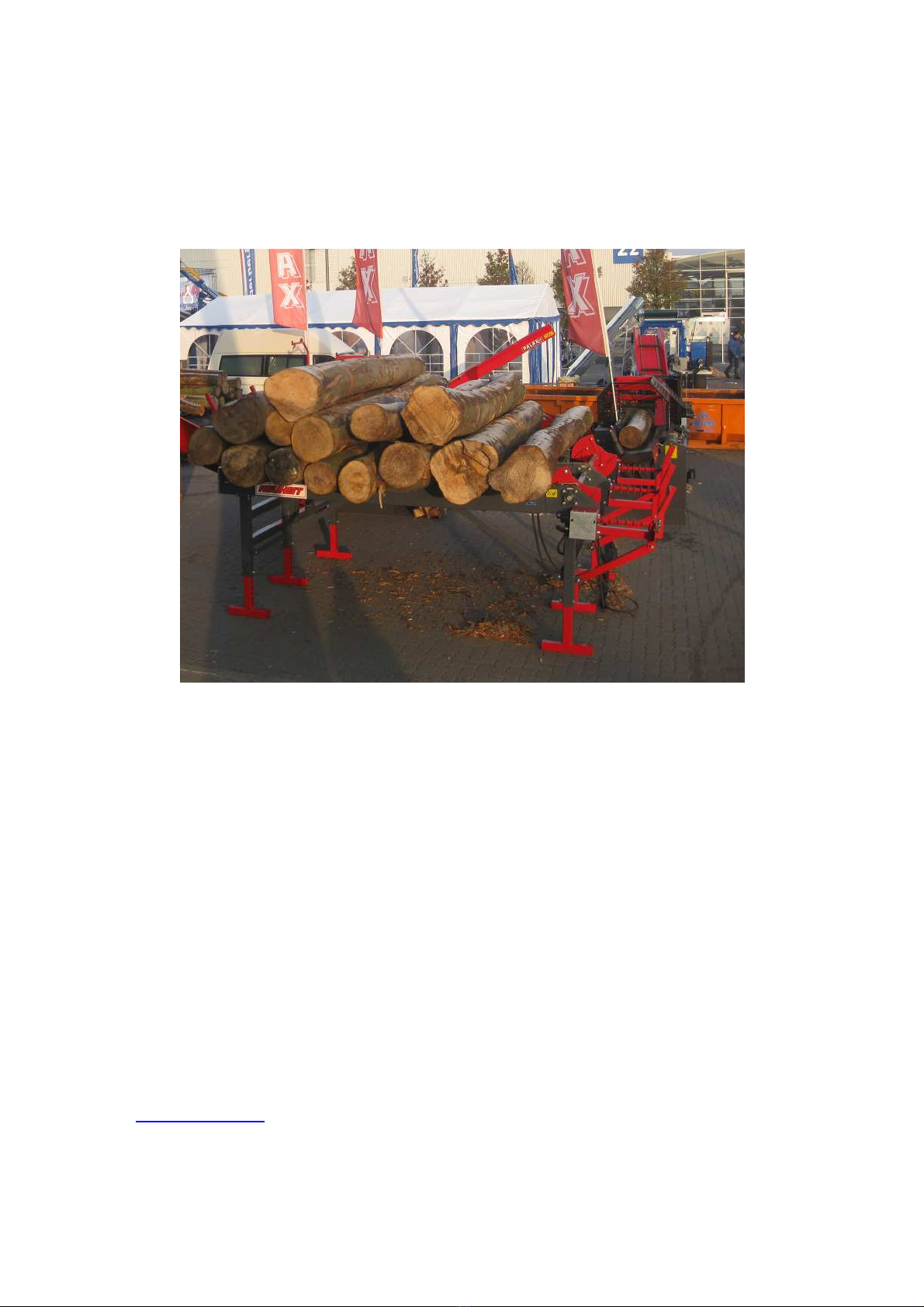

Palax Midi User manual

Palax Midi Translation 1-2012
Palax Midi manual
Always study this manual before operating the machine.
Serial number _______________________
Year of manufacture _______________________
PALAX
Lahdentie 9
FI-61400 Ylistaro, FINLAN
Tel. [phone]
Fax. [phone]
www.palax.fi

Palax Midi Translation 1-2012
TABLE OF CONTENTS
1 Declaration of incorporation for partly completed machinery............................. 2
Introduction............................................................................................................... 3
3 General safety instructions....................................................................................... 4
4 Assembly instructions for the Palax Midi log deck................................................. 5
4.1 Delivery package................................................................................................. 5
4.1.1 Required tools ............................................................................................. 5
4. Assembly ............................................................................................................. 6
4. .1 Feed bearer hydraulics ............................................................................. 13
4. . Feed roller hydraulics ............................................................................... 14
4. .3 Additional bearer ...................................................................................... 15
5 Type plates, main measurements and warning labels ......................................... 18
5.1 The machine’s type plate ................................................................................. 18
5. The machine’s main measurements................................................................ 18
5.3 Warning labels .................................................................................................. 19
6 Operation ................................................................................................................. 20
6.1 General............................................................................................................... 20
6. Connection to the firewood processor............................................................ 22
6.3 Operation description ...................................................................................... 22
7 Maintenance table ................................................................................................... 24
8 Failures and remedial measures............................................................................ 25

2
Palax Midi Translation 1-2012
1Declaration of incorporation for partly completed
machinery
Manufacturer: Ylistaron Terästakomo Oy
www.palax.fi
Lahdentie 9
FI-61400 Ylistaro
Finland
[phone]
Person responsible for the technical file: Kai Koskela, [email protected]i
Product: Palax Midi
Log-deck, firewood processor accessory
rive: Auxiliary hydraulics valve of the firewood processor
Serial number: __________________________
We hereby declare that this machine meets the requirements concerning the safety of machinery
specified in Government ecree 12 June 2008/400, which was instituted to bring into force Machinery
irective 2006/42/EC. We undertake to supply the necessary technical documents concerning partly
completed products to national authorities upon request with the proper grounds. This partly
completed machine may only be connected to a suitable Palax firewood processor that meets the
requirements of the effective legislation and the Machinery irective.
Ylistaron Terästakomo Oy
4.9.2017
Pekka Himanka
Managing irector

3
Palax Midi Translation 1-2012
2Introduction
This manual is intended for operators with the appropriate expertise. The operator is required to have
the general knowledge and skills needed in normal situations. For example, a person purchasing a
tractor-powered machine is expected to be able to operate the tractor’s cardan shaft drive.
Study the manual thoroughly before installing the machine and beginning operation. In addition,
familiarise yourself with the controls and the emergency stop mechanism before operating the machine.
Additional information on the products is available on our website at www.palax.fi.
Register yourself as the owner of the machine at https://info.palax.fi in order to ensure that you have
access to the latest information on the machine.
NOTE! Always keep this manual in the immediate vicinity of the machine.

4
Palax Midi Translation 1-2012
General safety instructions
Palax Midi is a log-feeding accessory for firewood processor models Palax KS35, KS43s,
Power70, Power90 and Power100.
This machine is intended to be used connected to a firewood processor. Therefore, the safety
provisions in the firewood processor’s manual also apply to this machine.
rive the device with the firewood processor’s hydraulics valve; do not connect it to the
tractor’s hydraulics, for example.
Before using the machine, familiarise yourself with the operation of both the log deck and the
firewood processor. You must also understand how the machine works and be aware of the
risks involved. All safety instructions concerning the firewood processor also apply to the Palax
Midi log deck.
Always use the feeding device with extreme care so as to avoid injuring yourself or other
people in the vicinity or damaging the machine.
Persons under 18 years of age are not allowed to operate the machine!
o not feed more than one log at a time.
uring operation, other people or items or equipment that may be damaged must not be in the
vicinity of the machine. The safety area around the deck is 10 metres.

5
Palax Midi Translation 1-2012
4Assembly instructions for the Palax Midi log deck

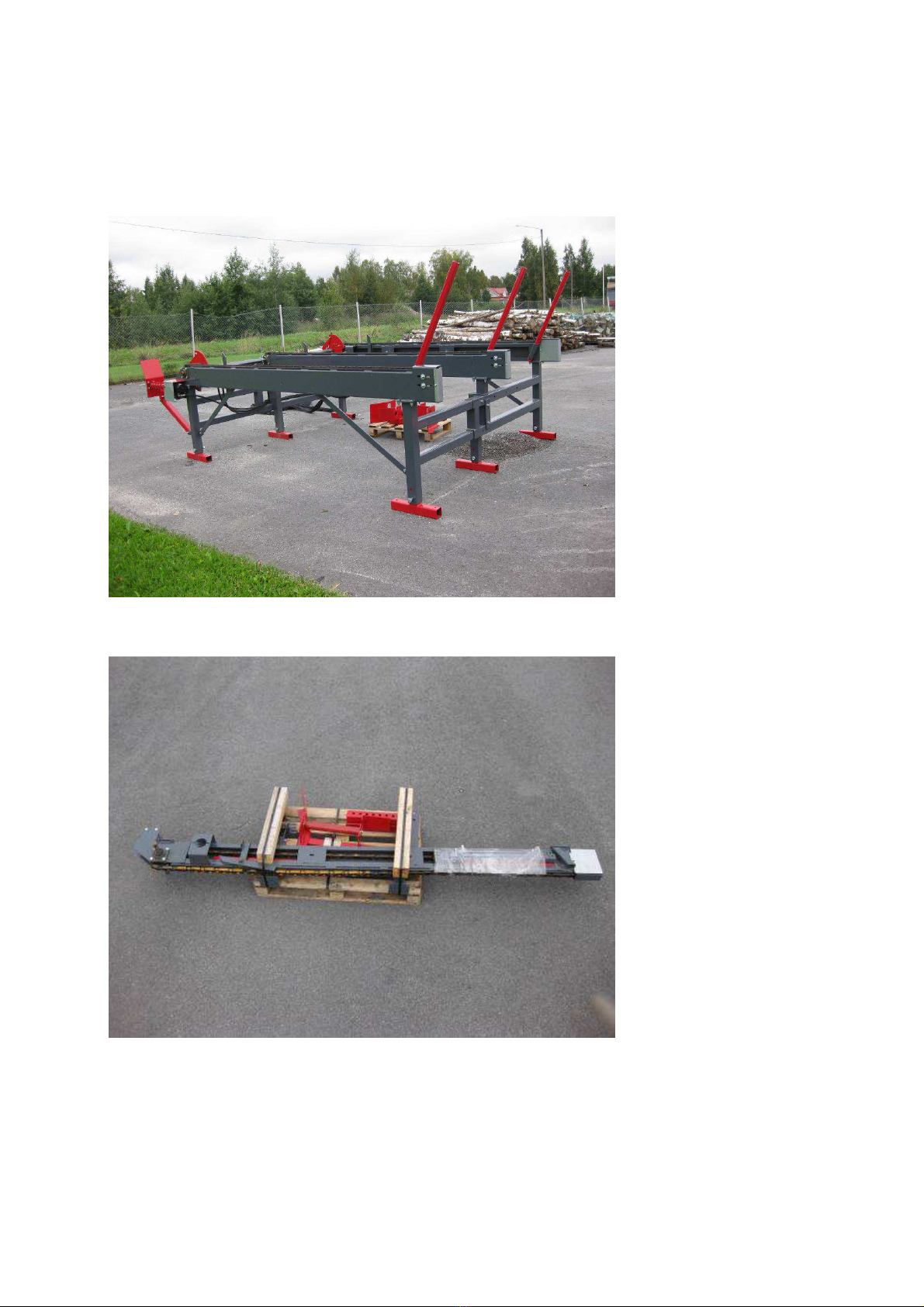

4.1 Delivery package
4.1.1 Required tools
-19 mm wrench, 2 pcs
-22 mm wrench
-24 mm wrench
-27 mm wrench
-30 mm wrench, 2 pcs
-5 mm Allen key

6
Palax Midi Translation 1-2012
4.2 Assembly
Place the frame parts in an upright position for installation of the legs.

7
Palax Midi Translation 1-2012

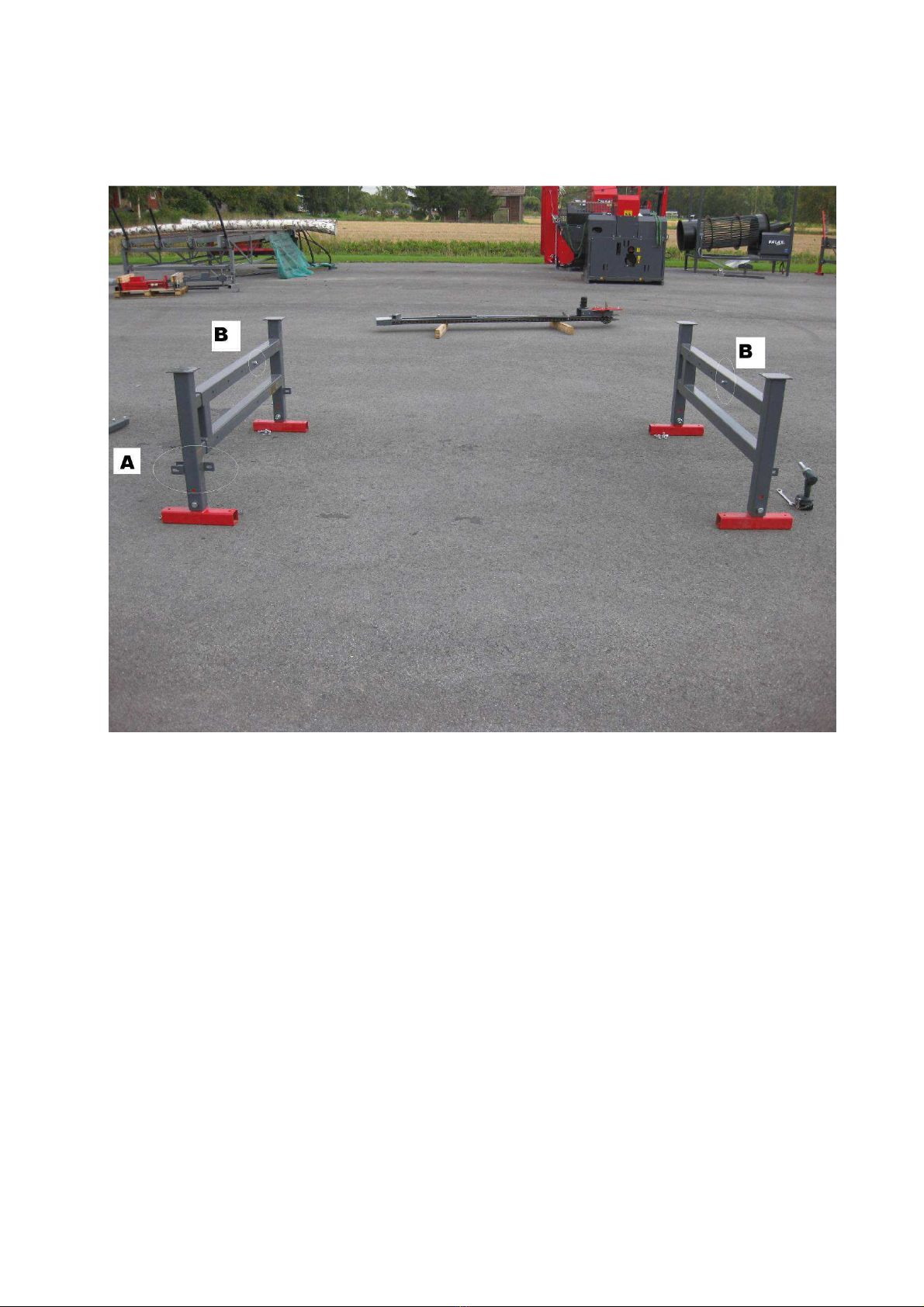

Turn the frame parts into a position where the legs point downwards and the one-part brackets
face inwards (A). The width of the deck can be adjusted from 1.7 m to 2.3 m (B).

8
Palax Midi Translation 1-2012
Raise the bearers on top of the frame parts, with the motor ends facing the two-part brackets.
Attach the drive shaft between the bearers to equalise the rotational speed. Observe that both
in-feed discs must be in the same position.

9
Palax Midi Translation 1-2012

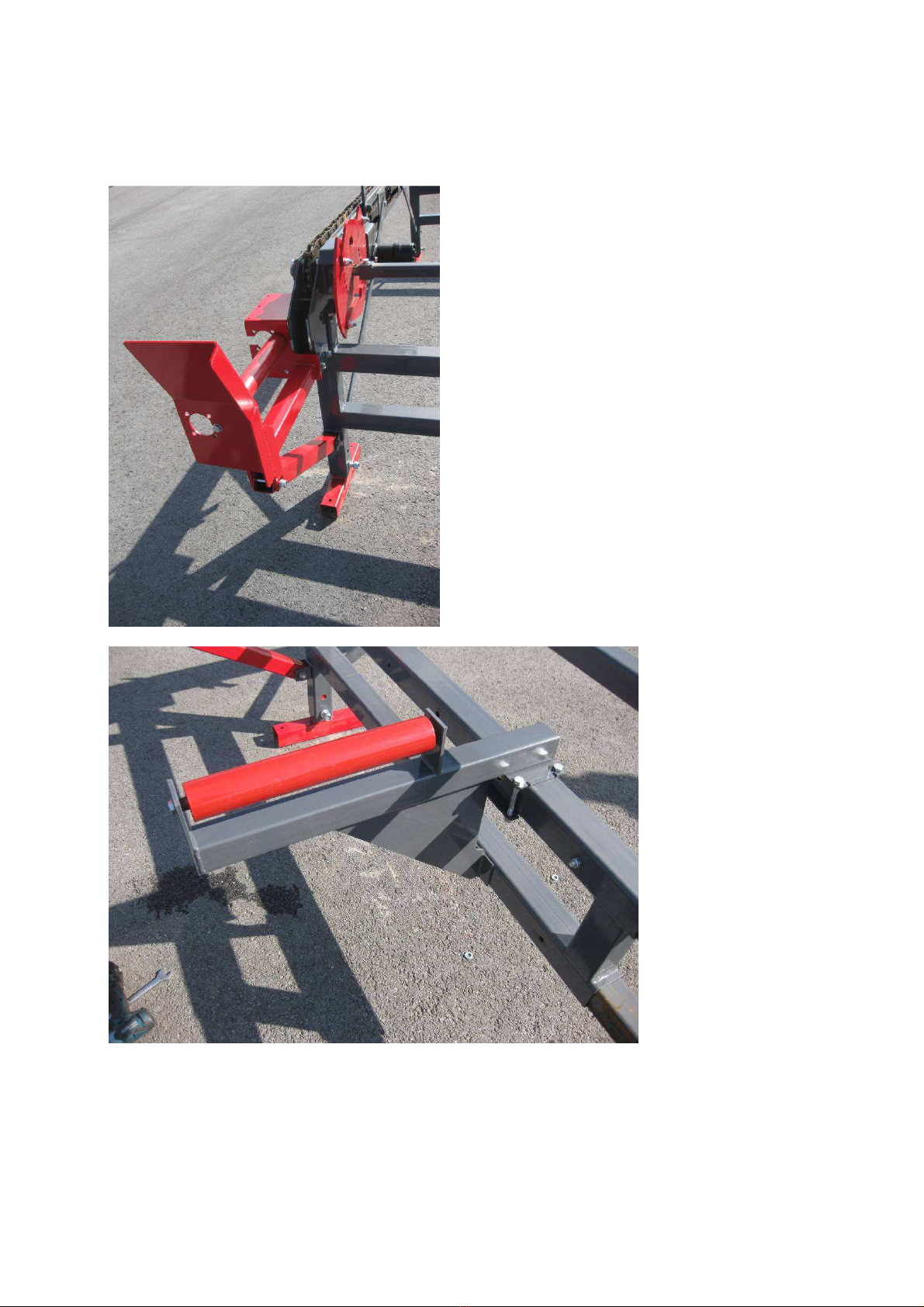

The motor beds and the rollers must be attached to the end and supported by the lower
brackets.

10
Palax Midi Translation 1-2012
The supplementary roller must be attached halfway between the roller/motor.

11
Palax Midi Translation 1-2012
Assembly order of the motor bed;
1. End bearing 2. Roller. 3. Bearing. 4. Intermediate sleeve. 5. Motor.

12
Palax Midi Translation 1-2012

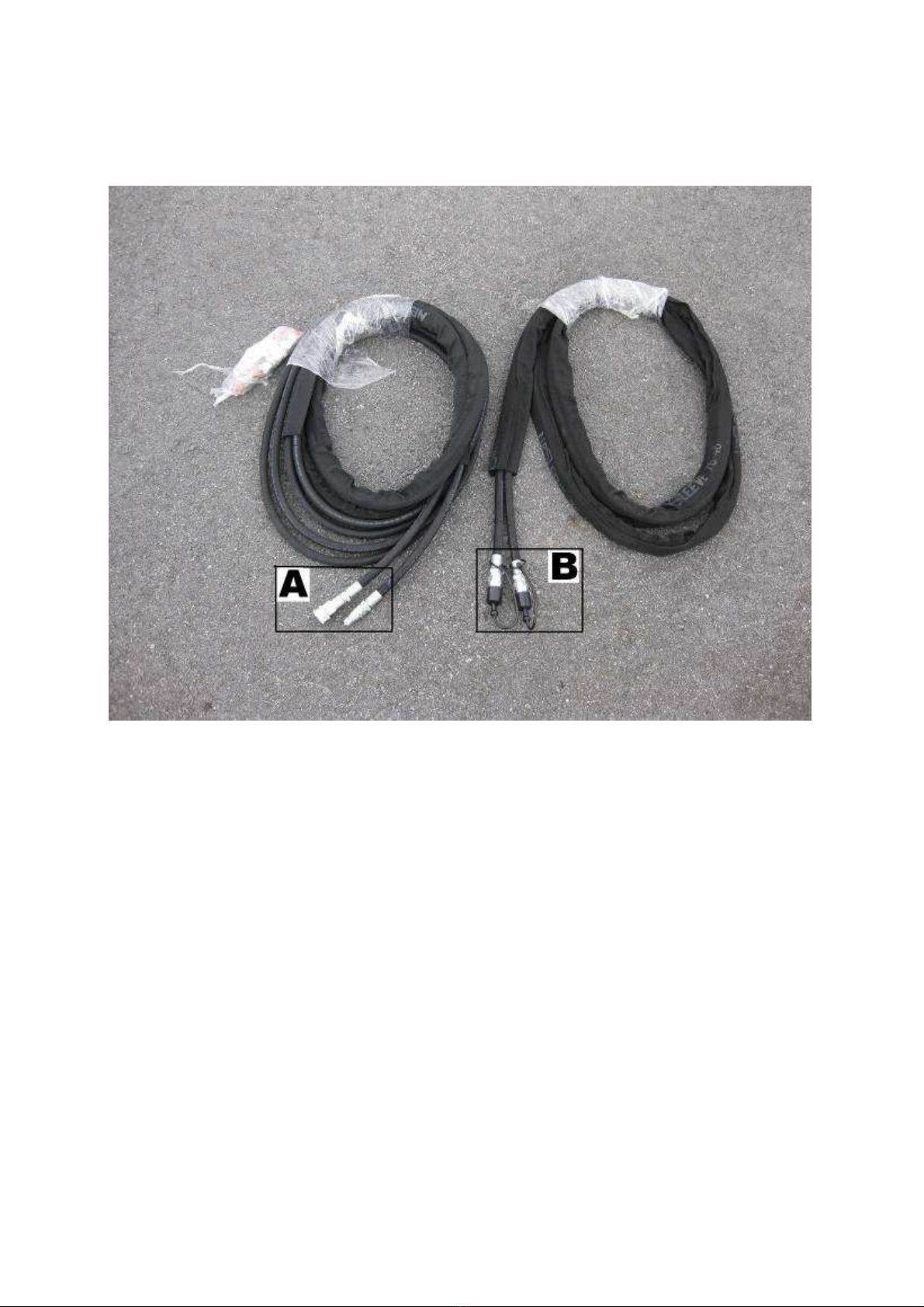

Hydraulic hose packages and connecting hoses for the motors.
3/8" quick-connectors, male + female (A), for the feed roller motor.
½" quick-connectors, male + male (B), for the bearer motors.

13
Palax Midi Translation 1-2012

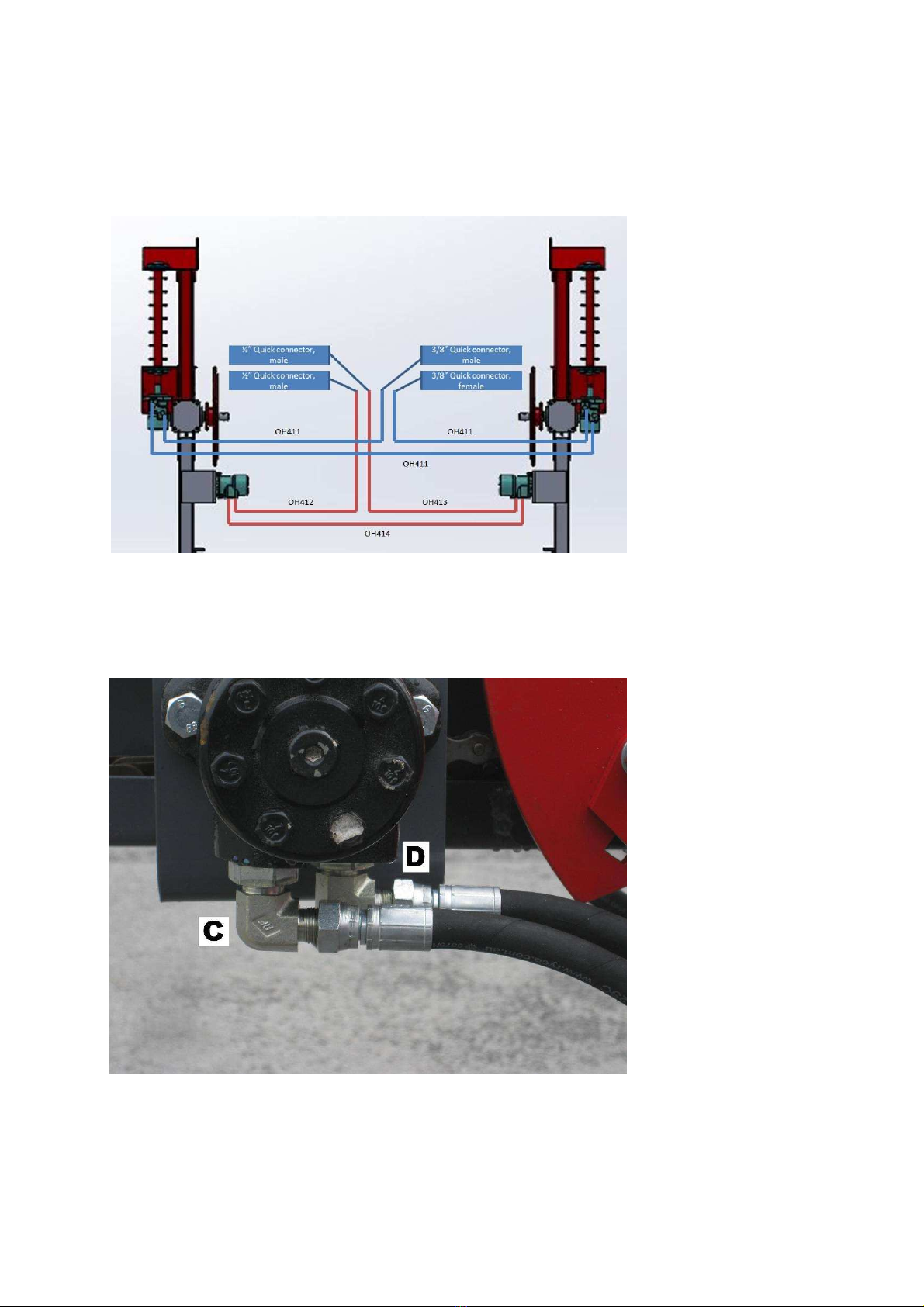

4.2.1 Feed bearer hydraulics
Feed bearer motors are connected in series.
The connecting hoses of the motors (C and ) point downwards, and the inlet/return hoses
point to the side (B)
Hoses C and must be installed as shown in the picture to enable the drive motors to rotate in
the same direction.

14
Palax Midi Translation 1-2012
4.2.2 Feed roller hydraulics
If the deck is fitted with just one feed roller, hoses A1 must be connected to the roller motor. If
you add feed rollers to the deck, transfer one of the hoses A1 to the motor that you added, and
connect hose E between the motors. If the feed roller rotates in the wrong direction after
installation, reverse the hoses in the motor.

15
Palax Midi Translation 1-2012
4.2. Additional bearer
elivery package of the additional bearer.

16
Palax Midi Translation 1-2012
Attach the additional bearer halfway between the main bearers. Replace the drive shafts with
the shorter ones that were delivered with the additional bearer.

17
Palax Midi Translation 1-2012
Remove the additional roller and attach instead the roller/motor that was included in the
additional bearer package.

18
Palax Midi Translation 1-2012
5Type plates, main measurements and warning labels
5.1 The machine’s type plate
 Name and address of manufacturer
 Machine type
 Production number and year
 Machine weight
 The plate is on the chain guard of the machine’s
in-feed disc.
 Indicate the production number and year when
ordering spare parts.
5.2 The machine’s main measurements
Weight 450 kg or 600 kg
Height/width/length 1,846 x 2,788 x 3,936 mm
Max log diameter 43 cm/see firewood processor limitations
Max log length 4 m/see firewood processor limitations
Max load on deck Approx. 7 m3, depending on the wood

19
Palax Midi Translation 1-2012
5.3 Warning labels
Only one person may operate the
machine.
Beware of the moving feeding device.
