Panasonic CS-A73KR User manual

Order No: MAC0001007C3
Room AirConditioner
CS-A73KR/CU-A73KR / CS-A93KR/CU-A93KR / CS-A123KR/
CU-A123KR
2000 Matsushita Air-Conditioning Corp. Sdn. Bhd. (183914D)All
rights reserved. Unauthorized copying and distribution isa
violation of law.
1. Features
-High Efficiency
-Compact Design
-Comfort Environment
1

-8hours of sleep mode operation
-Airpurifying filter with deodorizing function to reduce dust, smoke
and odours
-Random Auto Restart
-Auto restart at randomlyafter power failure
-Removableand WashableFront Panel
-QualityImprovement
-Gas leakage protection
-Prevent compressor reverse rotation
-2-stage OLP to protect compressor
-Service Improvement
-Easyfan motor replacement procedure
-Operation Improvement
-Economymode to reduce electrical power consumption
-Powerful mode to reach the desired room temperature quickly
-Anti colddraft control
-Long Installation Piping
-CS/CU-A73KR, CS/CU-A93KR, long piping up to 10 meter
-CS/CU-A123KR, long piping up to 15 meter
2. Functions
3. Product Specifications
2

Unit CS-A73KR CU-
A73KR
Cooling Capacity kW
Btu/h 2.11 - 2.06 7,200 - 7,020
Heating Capacity kW
Btu/h 2.30 - 2.25 7,840 - 7,670
Moisture Removal l/h
Pint/h 1.4 3.0
PowerSource Phase
V
Cycle
Single
240 - 220
50
AirflowMethod OUTLET
INTAKE
SIDE VIEW TOP
VIEW
3

AirVolume IndoorAir(Lo) m3/min
(cfm) Cooling; 5.9 (206) - 5.5
(194) —
Heating; 7.4 (261) - 6.4
(226)
IndoorAir(Me) m3/min
(cfm) Cooling; 6.9 (244) - 6.3
(222) —
Heating; 8.0 (282) - 7.4
(261)
IndoorAir(Hi) m3/min
(cfm) Cooling; 7.7 (272) - 7.2
(250) —
Heating; 8.6 (304) - 8.4
(300)
IndoorAir(SHi) m3/min
(cfm) Cooling; 8.7 (307) - 8.3
(293) —
Heating; 9.7 (342) - 9.6
(339)
OutdoorAir m3/min
(cfm) —28.8 (1,017) -
27.8
dB (A) Cooling; High 33-32, Low
26-24 Cooling;
High
Heating; High 36-35, Low
29-27 Heating;
High
Noise Level
Powerlevel
dB Cooling; High 45-43, Low 37-36 Cooling;
High
Heating; High 48-48, Low
41-39 Heating;
High
4

Electrical Data Input W Cooling; 660 - 610
Heating; 640 - 580
Running Current A Cooling; 3.2 - 3.0
Heating; 3.0 - 2.8
COP/EER W/W Cooling; 3.20 - 3.38
Heating; 3.59 - 3.88
Starting Current A 11.2
Piping Connection Port
(Flare piping) inch inch G ; Half Union 3/8” L; Half Union 1/4” G ; 3-way
valve
L; 2-way
valve
Pipe Size
(Flare piping) inch inch G ; (gas side) 3/8” L; (liquidside) 1/4” G ; (gas
side)
L; (liquid
side)
Drain
Hose Innerdiameter mm 12 — Length m 0.7 —
PowerCordLength
Numberof core-wire m2.0 3 (1.0 mm2)— —
Dimensions Height inch(mm) 10 - 31/32 (279) 18 - 29/
32
Width inch(mm) 31 - 15/32 (799) 30 - 23/
32
Depth inch(mm) 7 - 15/32 (190) 9 - 21/32
(
Net Weight lb(kg) 20 (9.0) 64 (
29.0)
Compressor Type — Rotary(1
cylinder)
rolling
piston
Motor Type — Induction (
2
Rated Output W — 550
AirCirculation Type Cross-flowFan
Propeller
Material AS + Glass Fiber30% AES + Glass
Fiber
Motor Type Induction (4-poles) Induction (
6
Input W 29.0 - 27.0 65.8 -
57.5
Rate Output W 10 20
FanSpeed Low rpm 810 - 770 —
Medium rpm 940 - 890 —
High rpm 1,050 - 1,010 755 -
730
SuperHigh rpm 1,190 - 1,160 —
Heat Exchanger Description Evaporator
Condenser
Tube material Copper
Copper
Finmaterial Aluminium(Pre Coat) Aluminium(
Pre
FinType Slit Fin
Louver
Row/ Stage (Plate finconfiguration, forced
draft)
2 × 14 1 ×
18
FPI 18 19
Size (W × H × L) mm 614 × 294 × 25.4 856 ×
457.2
Refrigerant Control Device —
Capillary
5

Refrigeration Oil (c.c) — SUNISO
4GDID
ATMOS
M60
Refrigerant (R-22) g(oz) — 860 (
30.4)
Thermostat Electronic Control —
Protection Device — Overload
Protector
CapillaryTube Length mm — Cooling;
920,
360
FlowRate l/min — Cooling; 4.0,
Heating
InnerDiameter mm — Cooling; 1.1,
Heating
AirFilter Material
Style (c.c) P.P. Honeycomb —
CapacityControl CapillaryTube
CompressorCapacitor F, VAC — 1.5 F,
440VAC
FanMotorCapacitor F, VAC 1.5 F, 400VAC 1.2 F,
400VAC
-Specifications are subject to change without notice for further
improvement.
Unit CS-A93KR CU-
A93KR
Cooling Capacity kW
Btu/h 2.65 - 2.60 9,040 - 8,870
Heating Capacity kW
Btu/h 3.20 - 3.10 10,900 - 10,600
Moisture Removal l/h
Pint/h 1.6 3.4
PowerSource Phase
V
Cycle
Single
240 - 220
50
AirflowMethod OUTLET
INTAKE
SIDE VIEW TOP
VIEW
6

AirVolume IndoorAir(Lo) m3/min
(cfm) Cooling; 6.5 (229) - 6.1
(215) —
Heating; 6.8 (240) - 6.7
(237)
IndoorAir(Me) m3/min
(cfm) Cooling; 7.8 (275) - 7.4
(261) —
Heating; 8.2 (289) - 8.1
(286)
IndoorAir(Hi) m3/min
(cfm) Cooling; 9.4 (330) - 8.9
(310) —
Heating; 9.9 (350) - 9.7
(340)
IndoorAir(SHi) m3/min
(cfm) Cooling; 9.9 (349) - 9.4
(332) —
Heating; 10.4 (367) - 10.2
(360)
OutdoorAir m3/min
(cfm) —28.8 (1,017) -
27.8
dB (A) Cooling; High 39-38, Low
29-26 Cooling;
High
Heating; High 39-39, Low
30-27 Heating;
High
Noise Level
Powerlevel
(dB) Cooling; High 52-50, Low 41-38 Cooling;
High
Heating; High 52-52, Low
43-39 Heating;
High
7

Electrical Data Input W Cooling; 970 - 920
Heating; 910 - 840
Running Current A Cooling; 4.3 - 4.3
Heating; 4.0 - 3.9
COP/EER W/W Cooling; 2.73 - 2.83
Heating; 3.52 - 3.69
Starting Current A 17.1
Piping Connection Port
(Flare piping) inch inch G ; Half Union 3/8” L; Half Union 1/4” G ; 3-way
valve
L; 2-way
valve
Pipe Size
(Flare piping) inch inch G ; (gas side) 3/8” L; (liquidside) 1/4” G ; (gas
side)
L; (liquid
side)
Drain
Hose Innerdiameter mm 12 — Length m 0.7 —
PowerCordLength
Numberof core-wire m2.0 3 (1.0 mm2)— —
Dimensions Height inch(mm) 10 - 31/32 (279) 18 - 29/
32
Width inch(mm) 31 - 15/32 (799) 30 - 23/
32
Depth inch(mm) 7 - 15/32 (190) 9 - 21/32
(
Net Weight lb(kg) 20 (9.0) 71 (
32.0)
Compressor Type — Rotary(1
cylinder)
rolling
piston
Motor Type — Induction (
2
Rated Output W — 750
AirCirculation Type Cross-flowFan
Propeller
Material AS + Glass Fiber30% AES + Glass
Fiber
Motor Type Induction (4-poles) Induction (
6
Input W 37.0 - 34.0 65.8 -
57.5
Rate Output W 14 20
FanSpeed Low rpm 880 - 770 —
Medium rpm 1,060 - 945 —
High rpm 1,275 - 1,215 755 -
730
SuperHigh rpm 1,340 - 1,315 —
Heat Exchanger Description Evaporator
Condenser
Tube material Copper
Copper
Finmaterial Aluminium(Pre Coat) Aluminium(
Pre
FinType Slit Fin
Louver
Row/ Stage (Plate finconfiguration, forced
draft)
2 × 14 1 ×
18
FPI 18 19
Size (W × H × L) mm 614 × 294 × 25.4 856 ×
457.2
Refrigerant Control Device —
Capillary
8

Refrigeration Oil (c.c) — SUNISO
4GDID
ATMOS
M60
Refrigerant (R-22) g(oz) — 850 (
30.0)
Thermostat Electronic Control —
Protection Device — Overload
Protector
CapillaryTube Length mm — Cooling;
1,075,
325
FlowRate l/min — Cooling;
5.0,
13.4
InnerDiameter mm — Cooling; 1.2,
Heating
AirFilter Material
Style (c.c) P.P. Honeycomb —
CapacityControl CapillaryTube
CompressorCapacitor F, VAC — 25 F,
370VAC
FanMotorCapacitor F, VAC 1.5 F, 400VAC 1.2 F,
400VAC
-Specifications are subject to change without notice for further
improvement.
Unit CS-A123KR CU-
A123KR
Cooling Capacity kW
Btu/h 3.40 - 3.40 11,600 - 11,600
Heating Capacity kW
Btu/h 4.15 - 4.05 14,200 - 13,800
Moisture Removal l/h
Pint/h 2.1 4.4
PowerSource Phase
V
Cycle
Single
240 - 220
50
AirflowMethod OUTLET
INTAKE
SIDE VIEW TOP
VIEW
9

AirVolume IndoorAir(Lo) m3/min
(cfm) Cooling; 7.6 (268) - 6.8
(240) —
Heating; 8.0 (281) - 7.4
(261)
IndoorAir(Me) m3/min
(cfm) Cooling; 8.2 (289) - 7.7
(272) —
Heating; 8.6 (303) - 8.2
(289)
IndoorAir(Hi) m3/min
(cfm) Cooling; 9.2 (320) - 8.8
(310) —
Heating; 9.7 (340) - 9.5
(340)
IndoorAir(SHi) m3/min
(cfm) Cooling; 9.6 (339) - 9.5
(335) —
Heating; 10.2 (360) - 10.3
(364)
OutdoorAir m3/min
(cfm) —35.0 (1,236) -
32.8
dB (A) Cooling; High 39-39, Low
35-33 Cooling;
High
Heating; High 39-39, Low
34-32 Heating;
High
Noise Level
Powerlevel
(dB) Cooling; High 52-52, Low 46-44 Cooling;
High
Heating; High 52-52, Low
45-43 Heating;
High
10

Electrical Data Input kW Cooling; 1.31 - 1.26
Heating; 1.24 - 1.19
Running Current A Cooling; 5.4 - 5.6
Heating; 5.0 - 5.2
COP/EER W/W Cooling; 2.60 - 2.70
Heating; 3.35 - 3.40
Starting Current A 26
Piping Connection Port
(Flare piping) inch inch G ; Half Union 1/2” L; Half Union 1/4” G ; 3-way
valve
L; 2-way
valve
Pipe Size
(Flare piping) inch inch G ; (gas side) 1/2” L; (liquidside) 1/4” G ; (gas
side)
L; (liquid
side)
Drain
Hose Innerdiameter mm 12 — Length m 0.7 —
PowerCordLength
Numberof core-wire m2.0 3 (1.0 mm2)— —
Dimensions Height inch(mm) 10 - 31/32 (279) 21 - 1/4
(
Width inch(mm) 31 - 15/32 (799) 27 - 17/
32
Depth inch(mm) 7 - 15/32 (190) 11 - 7/32
(
Net Weight lb(kg) 20 (9.0) 86 (
39.0)
Compressor Type — Rotary(1
cylinder)
rolling
piston
Motor Type — Induction (
2
Rated Output W —
1,100
AirCirculation Type Cross-flowFan
Propeller
Material AS + Glass Fiber30% AES + Glass
Fiber
Motor Type Induction (4-poles) Induction (
6
Input W 35.5 - 33.0 71.0 -
67.0
Rate Output W 15 25
FanSpeed Low rpm 1,060 - 965 —
Medium rpm 1,150 - 1,065 —
High rpm 1,290 - 1,240 805 -
780
SuperHigh rpm 1,360 - 1,340 —
Heat Exchanger Description Evaporator
Condenser
Tube material Copper
Copper
Finmaterial Aluminium(Pre Coat) Aluminium(
Pre
FinType Slit Fin
Louver
Row/ Stage (Plate finconfiguration, forced
draft)
2 × 14 1 ×
20
FPI 21 18
Size (W × H × L) mm 614 × 294 × 25.4 782.9 ×
508
Refrigerant Control Device —
Capillary
11

Refrigeration Oil (c.c) — SUNISO
4GDID
ATMOS
M60
Refrigerant (R-22) g(oz) — 990 (
34.9)
Thermostat Electronic Control —
Protection Device — Overload
Protector
CapillaryTube Length mm — Cooling;
1,100,
470
FlowRate l/min — Cooling;
6.0,
13.4
InnerDiameter mm — Cooling; 1.3,
Heating
AirFilter Material
Style (c.c) P.P. Honeycomb —
CapacityControl CapillaryTube
CompressorCapacitor F, VAC — 30 F,
370VAC
FanMotorCapacitor F, VAC 1.5 F, 400VAC 1.5 F,
400VAC
-Specifications are subject to change without notice for further
improvement.

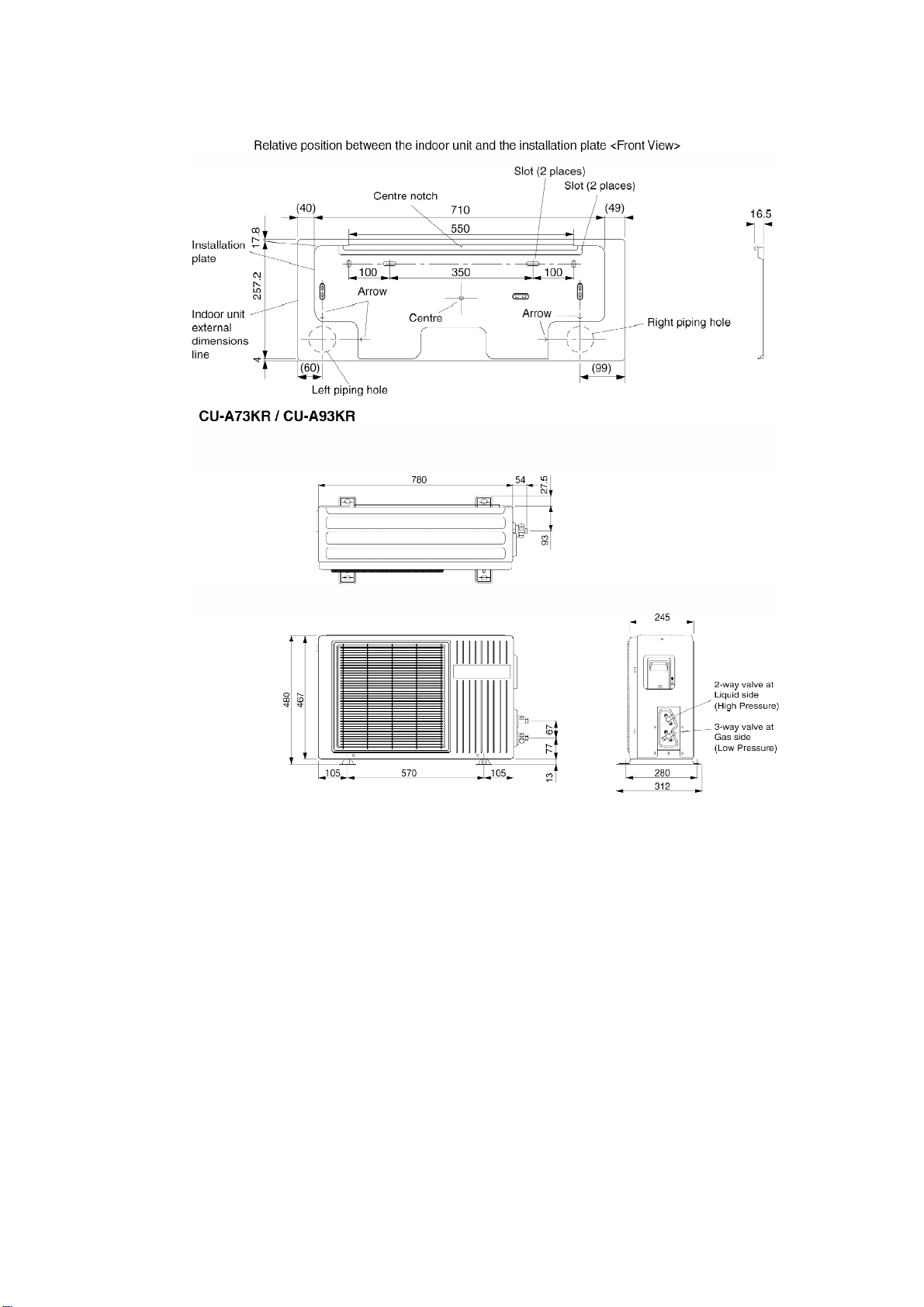

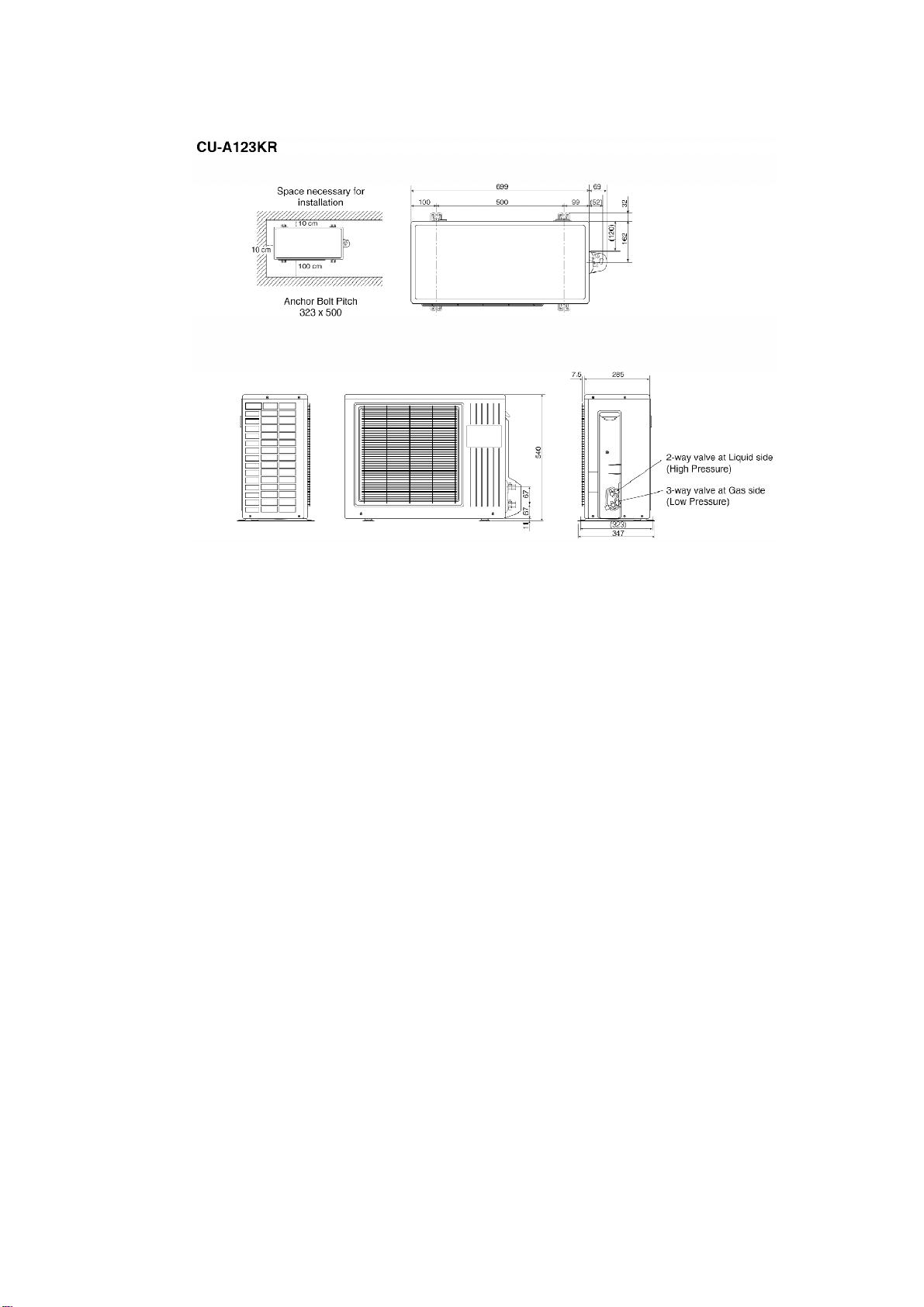

4. Dimensions
12

13

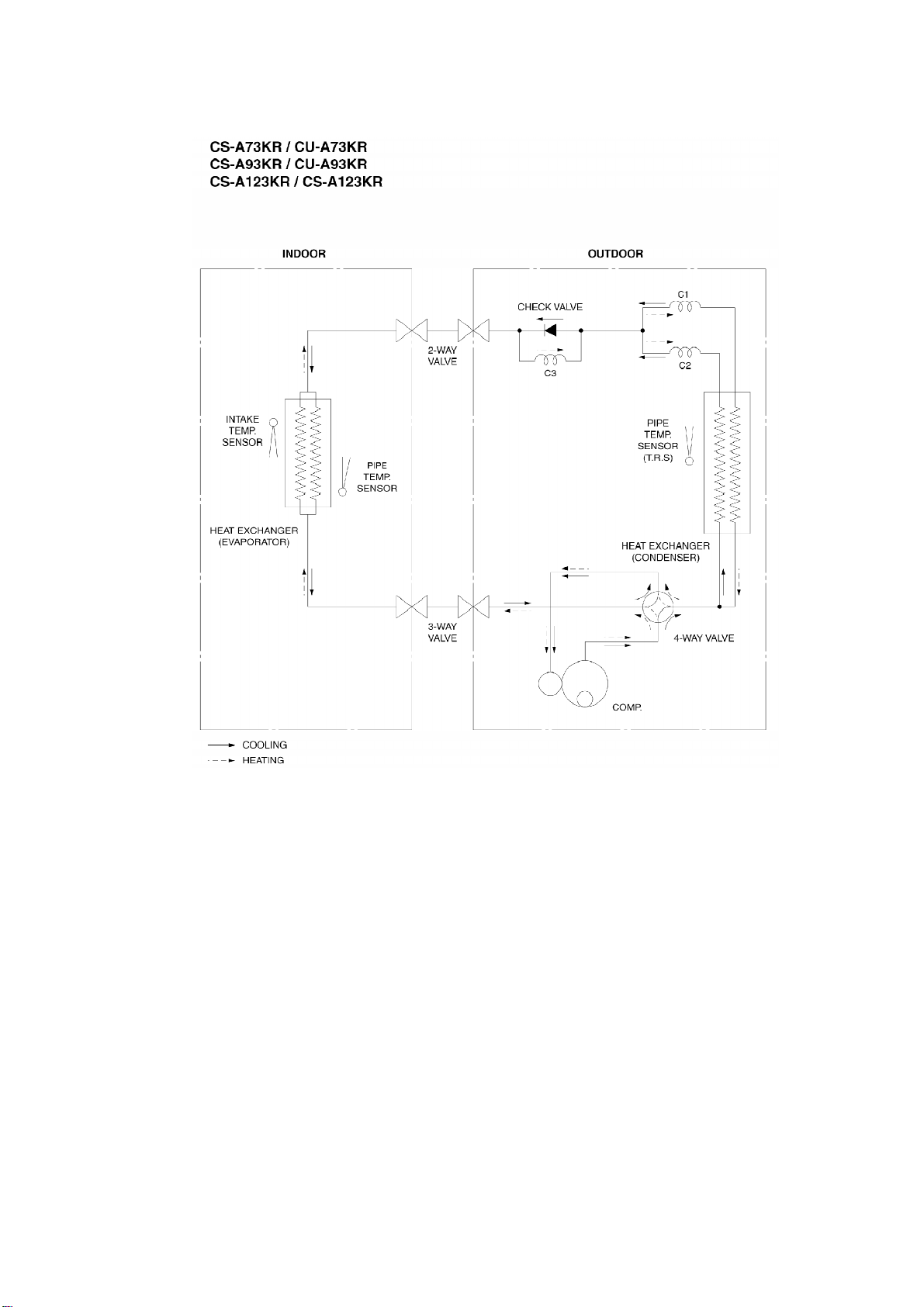

5. Refrigeration Cycle Diagram
14

6. Block Diagram
15

7. Wiring Diagram
16

REMARKS
B : BLUE
BR : BROWN
BL : BLACK
W : WHITE
R: RED
O : ORANGE
P : PINK
Y/G : YELLOW/GREEN
17

Resistance of IndoorFanMotorWindings
MODEL CS-A73KR CS-A93KR CS-
A123KR
CONNECTION CWA92288 CWA92296 CWA92290
YELLOW-BLUE 536.5 450.8 457.4
YELLOW-BROWN 77.1 56.9 56.1
BROWN-ORANGE 43.9 74.2 61.2
ORANGE-WHITE 42.7 37.3 25.3
WHITE-RED 111.4 122.6 142.5
Resistance of OutdoorFanMotorWindings
MODEL CU-A73KR CU-A93KR CU-
A123KR
CONNECTION CWA95245 CWA95381
BLUE-YELLOW 260.5 174.5
YELLOW-RED 446.0 331.0
Resistance of CompressorWindings
MODEL CU-A73KR CU-A93KR CU-A123KR
CONNECTION 2RS122D5AB02 2PS164D3AD02 2KS224D5CA02
C-R 5.627 3.429 2.211
C-S 12.19 4.763 2.924
8. Operation Details
8.1. Cooling Mode Operation
Cooling inoperation according toRemote Control setting.
Time DelaySafetyControl (3 minutes)
-When the compressor isstopped byPower Switch or Remote
Control, itrestarts after 3minutes when the Power Switch or
Remote Control isturned ON.
18

-When the setting temperature isreached during cooling operation,
the compressor stops and itwill not start for 3minutes.
7 minutes Time SavedControl
-The compressor will start automaticallyifithas stopped for 7
minutes even ifthe room temperature isbetween the compressor
ONtemperature and OFF temperature.
Starting Current Control
-When the compressor, outdoor fan motor &indoor fan motor are
simultaneouslystarted, the indoor fan motor will operate 1.6
second later.
Anti-Freezing Control
-Ifthe temperature of the indoor heat exchanger fallscontinuously
below 2°Cfor 4minutes or more, the compressor turns off to
protect the indoor heat exchanger from freezing. The fan speed
setting remains the same.
-Compressor will restart againwhen the indoor heat exchanger
temperature rises to 10°C(Recovery).
3minutes waiting of Time DelaySafetyControl is validfor
Cooling Operation.
CompressorReverse Rotation Protection Control
19

-Ifthe compressor isoperating continuouslyfor 5minutes or longer
and the temperature difference between intake airand indoor heat
exchanger is2.5°Cor less for 2minutes, compressor will stop and
restart automatically. / (Time DelaySafetyControl isvalid)
T= Intake airtemperature -Indoor heat exchanger temperature /
Thisisto protect reverse rotation of the compressor when there is
ainstantaneous power failure.
CompressorProtection Control
-After the compressor starts for 50 seconds but the outdoor fan
motor isstill OFF, the compressor will stop and restart
automatically. (Time DelaySafetyControl isvalid).
-Ifthe above phenomenon isrepeated for 3times, the compressor
will stops.
-The above phenomenon isreset when there isachange to heating
mode or stopped byRemote Control Switch.
Automatic FanSpeedMode
WhenAutomatic FanSpeedis selectedat Remote Control during cooling operation.
-Fan speed rotates inthe range of Hi to Me.
-Deodorizing Control.
20
