• High Efficiency
• • •
• Compact Design
• • •
• Comfort Environment
− − −
− Air filter with function to reduce dust and smoke
− − −
− Wider range of horizontal discharge air
• • •
• Auto Restart
− − −
− Random auto restart after power failure for safety restart
operation
• • •
• Removable and Washable Front Panel
19.2. PRINT PATTERN INDOOR UNIT PRINTED CIRCUIT
BOARD
TOP VIEW 71
19.3. PRINT PATTERN INDOOR UNIT PRINTED CIRCUIT
BOARD
BOTTOM VIEW 72
19.4. PRINT PATTERN OUTDOOR UNIT PRINTED CIRCUIT
BOARD
73
• • •
• Quality Improvement
− − −
− Gas leakage protection
− − −
− Prevent compressor reverse cycle
− − −
− Inner protector
− − −
− Noise prevention during soft dry operation.
− − −
− Anti-dew Formation Control (Cooling & Soft Dry)
− − −
− Overload Protection Control (Heating)
− − −
− Outdoor Fan Control
− − −
− Compressor High Pressure Control
• • •
• Long Installation Piping
− − −
− Long piping up to 25 meter
• • •
• 12-hour Timer Setting
• • •
• Environmental Friendly
− − −
− R410A, which does not contain chlorine, is used as its
refrigerant, so there is no danger of damage to the
ozone layer in stratosphere.
1 Features
2
CS-PW18CKE CU-PW18CKE

2 Functions
Remote Control
Operation OFF / ON
Room Temperature Setting
TEMP.
Operation Mode Selection
• AUTO Automatic Operation Mode
•
HEAT Heating Operation Mode
•
COOL Cooling Operation Mode
•
DRY Soft Dry Operation Mode
MODE
Indoor Fan Speed Selection
FAN SPEED
• Low Fan Speed
•Medium Fan Speed
•High Fan Speed
•
AUTO Automatic Fan Speed
Vertical Airflow Direction Control
AIR SWING
• AUTO Air Swing is in operation
•
OFF Stop the operation of the Air Swing
Heating, Cooling, Soft Dry Operation.
• Temperature Setting (16°C to 30°C)
Automatic Operation
•Operation with 2°C higher than
standard temperature.
•
Operation with standard temperature.
•Operation with 2°C lower than
standard temperature.
OFF / ON
TIMER
12-hour Timer Settin
g
• SELECT To select delay OFF Timer,
ON Timer, OFF/ON Timer
and ON/OFF Timer
•To set hours setting
•To set hours setting
•
SET/CANCEL To start delay OFF and ON
timer, cancellation
3
CS-PW18CKE CU-PW18CKE

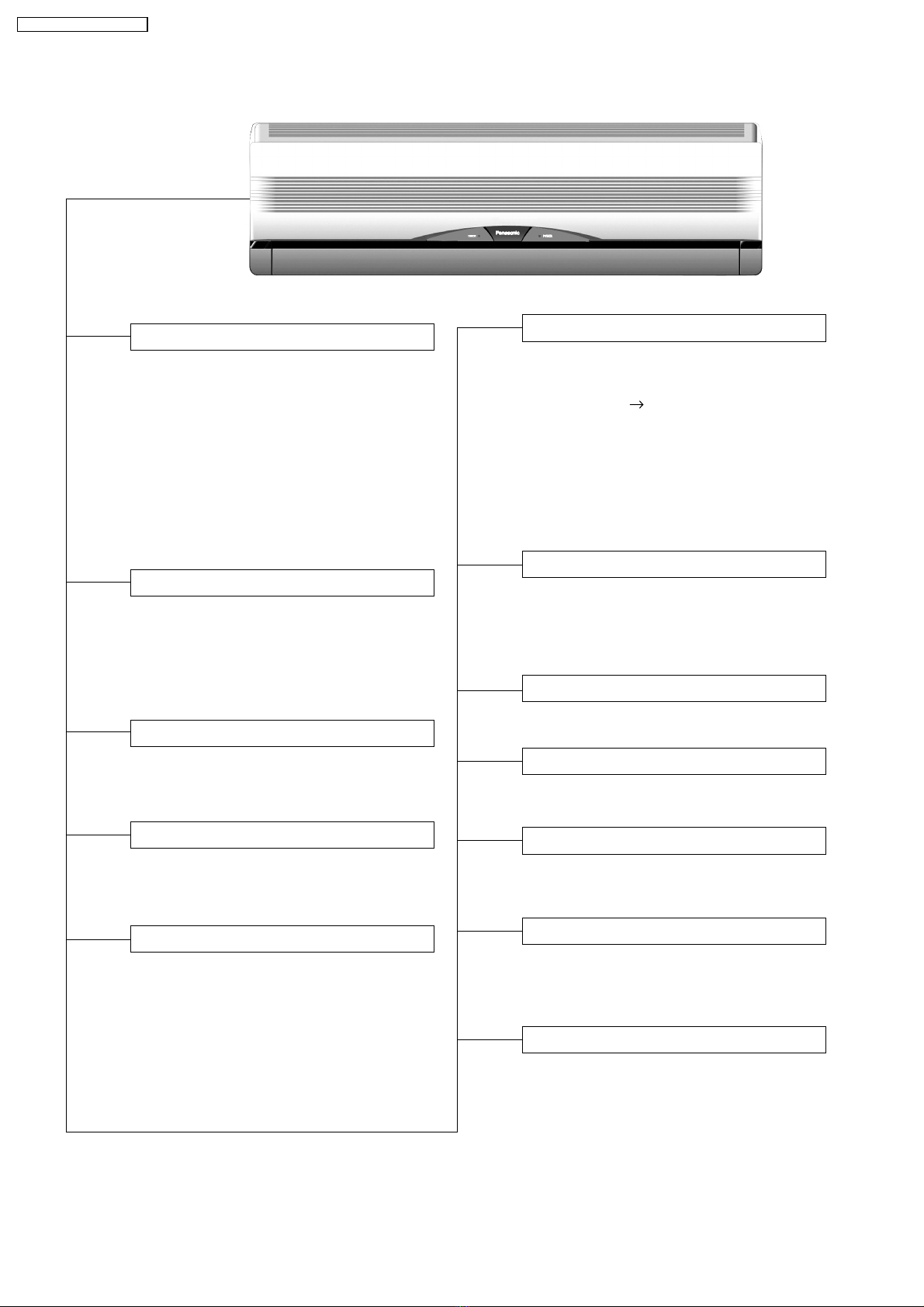

Indoor Unit
Indoor Fan Speed Control
• High, Medium and Low.
• Automatic Fan Speed Mode
– Heating : Fan speed varies from Me
SSLo in accordance with
indoor heat exchanger.
– Cooling : Fan rotates at Hi, Me and
Lo- speed. Deodorizing
control is available.
– Soft Dry : Fan rotates at Lo- speed.
Deodorizing control is
available.
• Automatic air swing selected by remote
• Manually adjusted by hand for horizontal
airflow.
control for vertical airflow.
Airflow Direction Control
Automatic Operation Button
• Press for < 5s to operate Automatic
operation mode.
(Used when the remote control cannot be used.)
• Press continuously for 5s or < 10s to
operate Test Run/Pump down. “Beep”
sound will be heard at the 5th second.
(Used when test running or servicing.)
• Press continuously for 10s and above to
omit or resume the remote control signal
receiving sound. “Beep, beep” sound will
be heard at the 10th second.
AUTO
OFF / ON
Operation Indication Lamps (LED)
•POWER (Green).......... Lights up in operation,
blinks in Automatic
Operation Mode judging
and Hot Start operation.
•TIMER (Orange) .........
Lights up in Timer Setting.
Operation Mode
• Heating, Cooling, Soft Dry and Automatic
Mode.
Time Delay Safety Control
• Restarting is inhibited for appro. 3 minutes.
7 Minutes Time Save Control
• Cooling Operation only.
Anti-Dew Formation Control
• Anti-Dew Formation Control for indoor unit
discharge area.
Random Auto Restart Control
• Operation is restarted randomly after
power failure at previous setting mode.
Anti-Freezing Control
• Anti-Freezing control for indoor heat
exchanger. (Cooling and Soft Dry)
Hot-Start Control
• At Heating Operation the indoor fan will
operate at SLo speed when indoor heat
exchanger temperature reaches 30°C.
Anti Cold Draft Control
• The indoor fan operates at Lo–(30 sec.)
after that SSLo when the indoor heat
exchanger temperature is low.
(During Heating mode thermal off)
4
CS-PW18CKE CU-PW18CKE

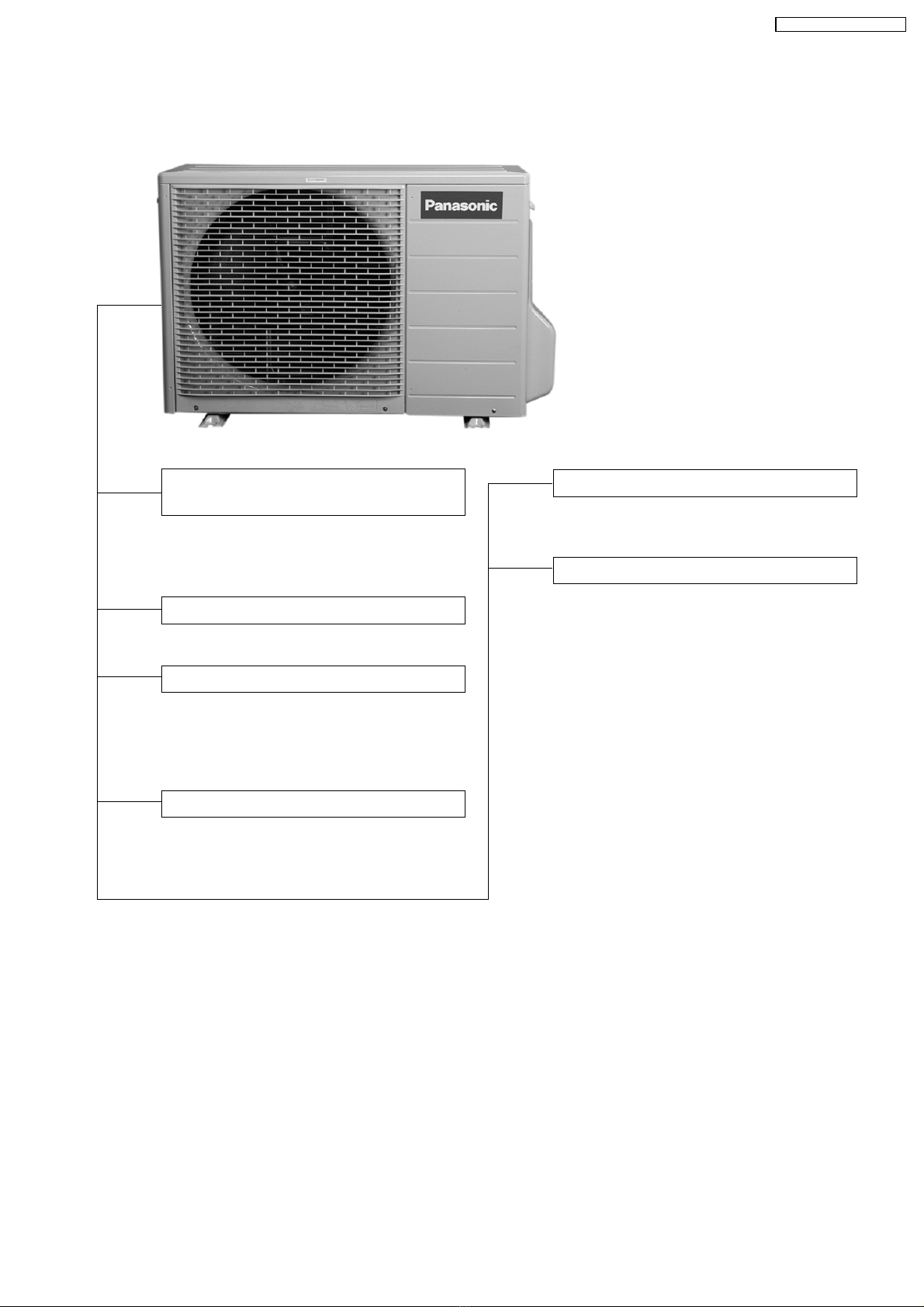

Outdoor Unit
• To protect compressor from reverse
rotation when there is an instantaneous
power failure.
60 Secs. Forced Operation Control
• Once the compressor is activated, it
does not stop within the first 60 secs.
However, it stops immediately with
remote control stop signal.
Overload Protector
• Inner protector.
Compressor Reverse Rotation
Protection Control
Outdoor Fan Operation Control
• Temperature Fuse.
Deice Control
• To prevent frosting at outdoor heat
exchanger during Heating Operation.
4-Way Valve Control
• When the unit is switched to “OFF”
during Heating Operation, 4-way valve
stays at Heating position for 5 minutes.
5
CS-PW18CKE CU-PW18CKE

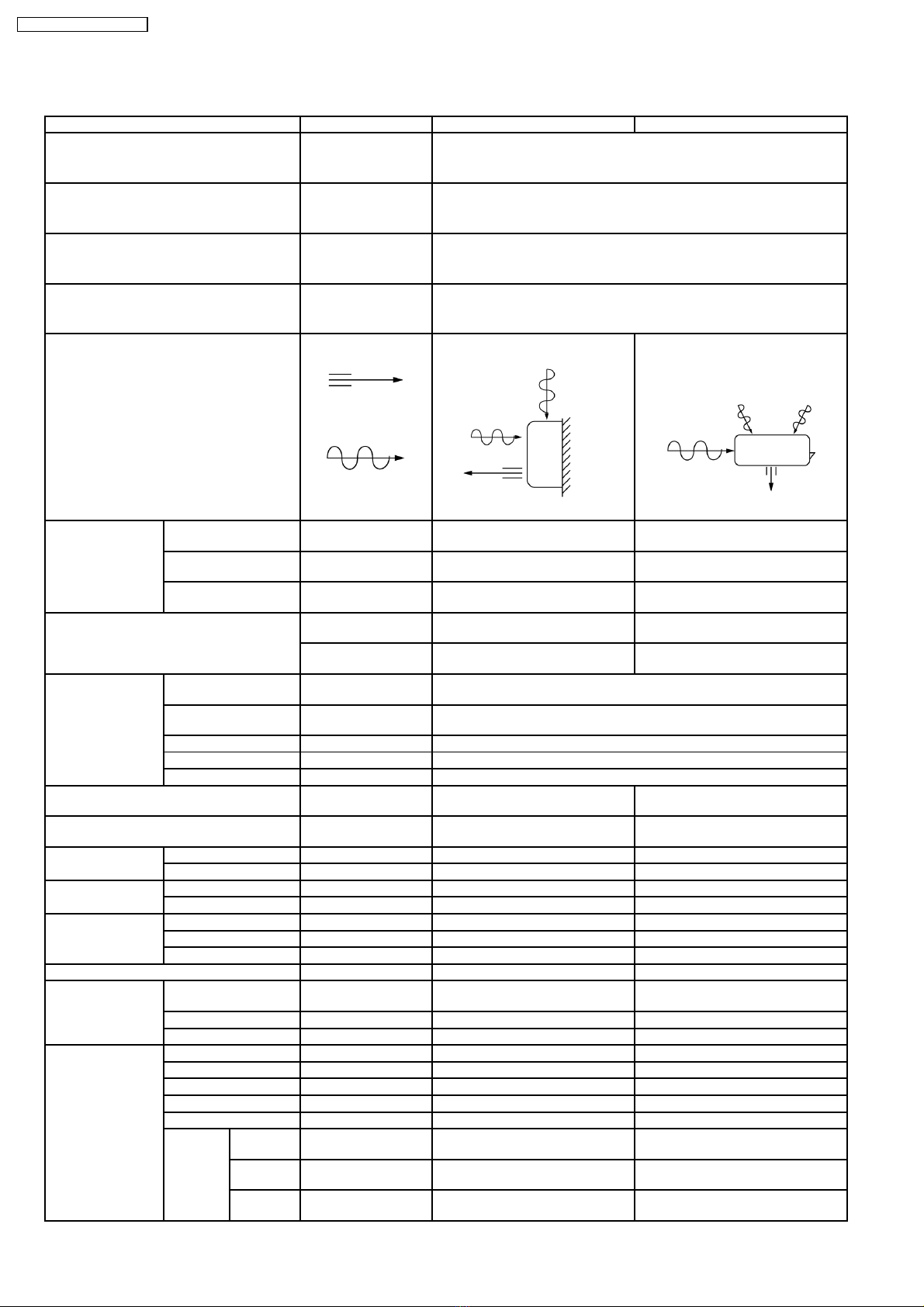

3 Product Specifications
Unit CS-PW18CKE CU-PW18CKE
Power Source Phase, Voltage, Cycle Single, 230, 50 Hz
Cooling Capacity kW (BTU/h) 5.10 (17,400)
Heating Capacity kW (BTU/h) 5.30 (18,100)
Moisture Removal l/h (Pint/h) 2.9 (6.1)
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Indoor Air (Lo) m3/min (cfm) Cooling; 13.3 (470)
Heating; 14.2 (500)
—
Indoor Air (Me) m3/min (cfm) Cooling; 14.8 (520)
Heating; 14.8 (520)
—
Indoor Air (Hi) m3/min (cfm) Cooling; 15.6 (550)
Heating; 16.4 (580)
29.0 (1,024)
Noise Level dB (A) Cooling; High 45, Low 38
Heating; High 43, Low 38
Cooling; High 55
Heating; High 55
Power level dB Cooling; 58
Heating; 56
Cooling; 70
Heating; 70
Electrical Data Input Power kW Cooling; 1.75
Heating; 1.58
Running Current ACooling; 7.7
Heating; 6.9
EER W/W Cooling; 2.91
COP W/W Heating; 3.35
Starting Current A 27.0
Piping Connection Port
(Flare piping)
inch
inch
G ; Half Union 1/2”
L ; Half Union 1/4”
G ; 3-way valve 1/2”
L ; 2-way valve 1/4”
Pipe Size
(Flare piping)
inch
inch
G ; (gas side) 1/2”
L ; (liquid side) 1/4”
G ; (gas side) 1/2”
L ; (liquid side) 1/4”
Drain
Hose
Inner diameter mm 12 —
Length mm 650 —
Power Cord Length m 1.9 —
Number of core-wire 3 (1.5 mm2) —
Dimensions Height inch (mm) 10 - 13/16 (275) 21 - 1/4 (540)
Width inch (mm) 39 - 9/32 (998) 30 - 23/32 (780)
Depth inch (mm) 8 - 9/32 (210) 11 - 3/8 (289)
Net Weight lb (kg) 24 (11.0) 99 (45.0)
Compressor Type —Rotary (1 cylinder)
rolling piston type
Motor Type —Induction (2-poles)
Rated Output kW — 1.4
Air Circulation Type Cross-flow Fan Propeller Fan
Material ASHT-18 PP
Motor Type Transistor (8-poles) Induction (6-poles)
Input W 53.5 73
Rated Output W 30 35
Fan Speed Low rpm Cooling; 1,160
Heating; 1,240
—
Medium rpm Cooling; 1,290
Heating; 1,290
—
High rpm Cooling; 1,380
Heating; 1,440
845
6
CS-PW18CKE CU-PW18CKE

Unit CS-PW18CKE CU-PW18CKE
Heat Exchanger Description Evaporator Condenser
Tube material Copper Copper
Fin material Aluminium (Pre Coat) Aluminium (Pre Coat)
Fin Type Slit Fin Corrugated Fin
Row / Stage (Plate fin configuration, forced draft)
2×15 2×20
FPI 21 17
Size (W × H × L) mm 810 × 315 × 25.4 692.3
728.7
× 508 × 44
Refrigerant Control Device — Capillary Tube
Refrigeration Oil (cm3) — RB68A OR FRE0L ALPHA 68M
(670)
Refrigerant (R410A) g (oz) — 1,330 (47.0)
Thermostat Electronic Control Electronic Control
Protection Device — Inner Protector
Capillary Tube Length mm —Cooling; 1,180, Heating; 1,048
Flow Rate l/min — Cooling; 8.7, Heating; 14.0
Inner Diameter mm —Cooling; 1.5, Heating; 1.8
Air Filter Material
Style
P.P.
Honeycomb
—
Capacity Control Capillary Tube
Compressor Capacitor µF, VAC —50 µF, 370VAC
Fan Motor Capacitor µF, VAC —2.0 µF, 440VAC
Note:
• • •
• Specifications are subject to change without notice for further improvement.
7
CS-PW18CKE CU-PW18CKE

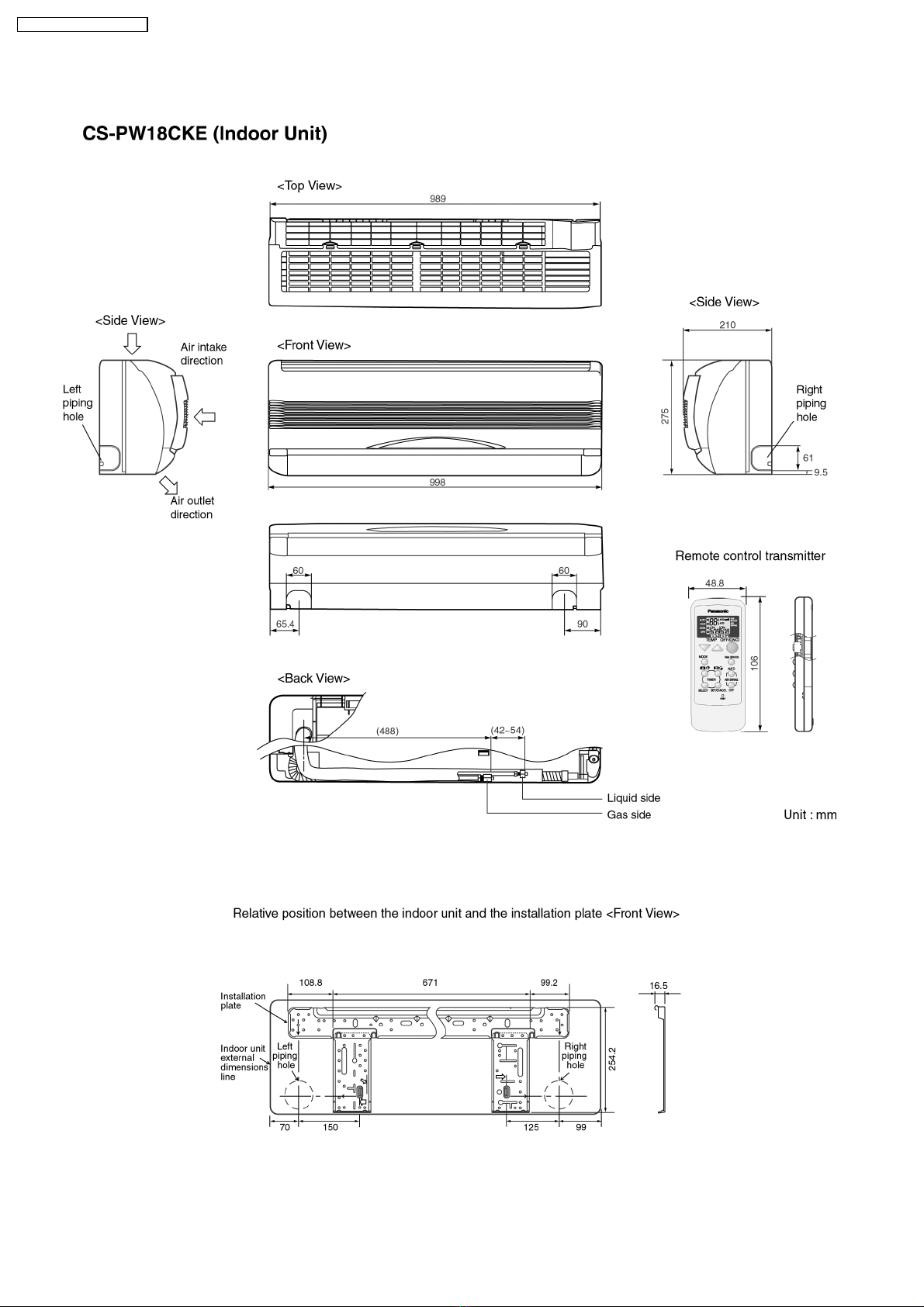

4 Dimensions
8
CS-PW18CKE CU-PW18CKE

9
CS-PW18CKE CU-PW18CKE

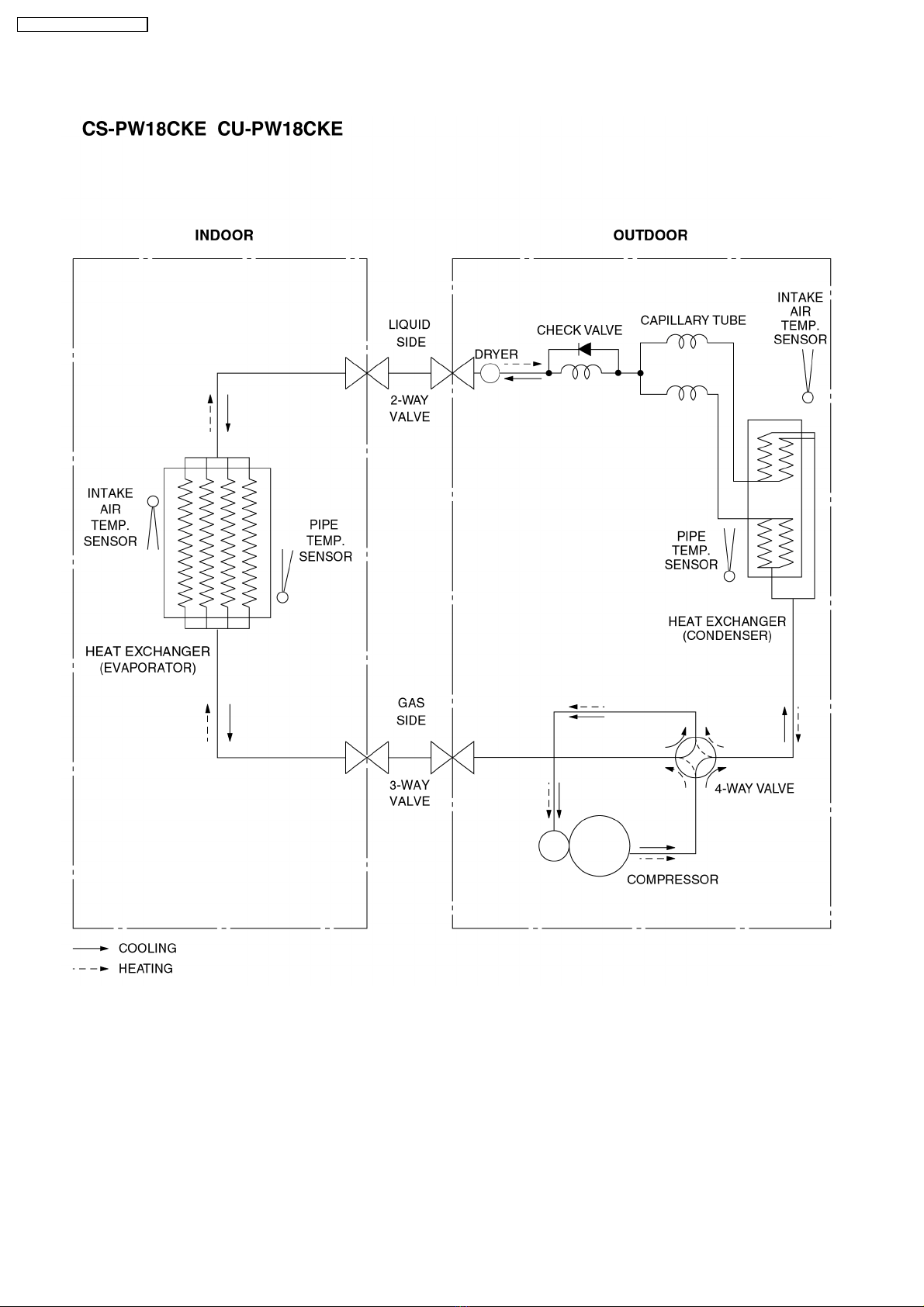

5 Refrigeration Cycle Diagram
10
CS-PW18CKE CU-PW18CKE

6 Block Diagram
11
CS-PW18CKE CU-PW18CKE

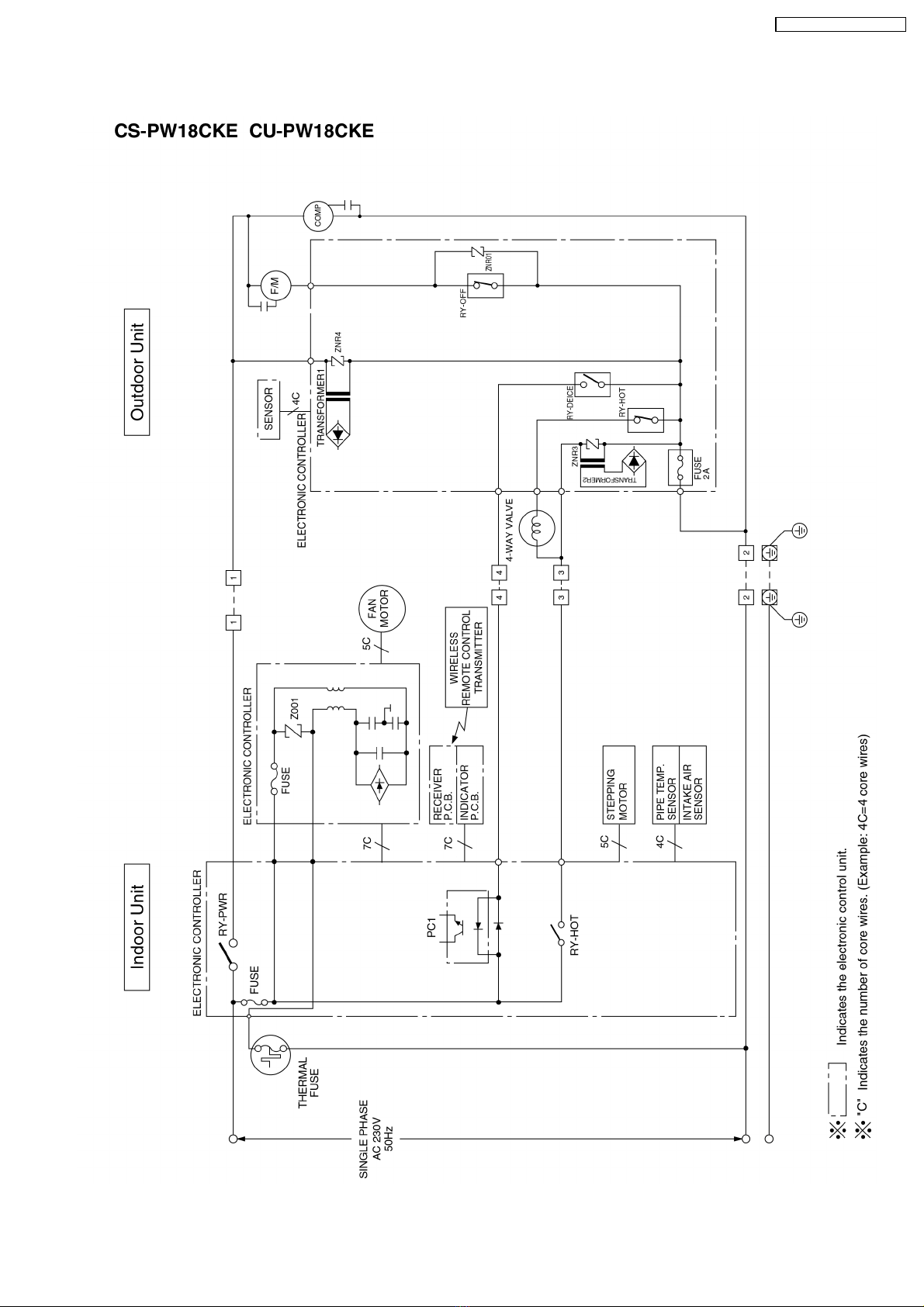

7 Wiring Diagram
CS-PW18CKE CU-PW18CKE
12

Cooling in operation according to Remote Control setting.
Time Delay Safety Control (3 minutes)
7 minutes Time Save Control
Anti-Freezing Control
• • •
• If the temperature of the indoor heat exchanger falls
continuously below 2°C for 4 minutes or more, the
compressor turns off to protect the indoor heat exchanger
from freezing. The fan speed setting remains the same.
• • •
• Compressor will restart again when the indoor heat
exchanger temperature rises to 10°C (Recovery).
3 minutes waiting of Time Delay Safety Control is valid for
Cooling Operation.
8 Operation Details
8.1. Indoor Fan Speed Control
• • •
• Auto Fan Speed Control
When set to Auto Fan Speed, the fan speed is adjusted between maximum and minimum setting as shown in the table.
• • •
• Manual Fan Speed Control
Basic fan speed adjustment (3 settings, from Lo to Hi) can be carried out by using the Fan Speed selection button at the remote
control.
8.2. Cooling Mode Operation
• • •
• If the operation is stopped by the remote control, the compressor will not turn on within 3 minutes from the moment operation
stop, although the unit is turn on again within the period.
• • •
• When the setting temperature is reached during cooling operation, the compressor stops and it will not start for 3 minutes.
• • •
• The compressor will start automatically if it has stopped for 7 minutes even if the room temperature is between the compressor
ON temperature and OFF temperature.
13
CS-PW18CKE CU-PW18CKE

Compressor Reverse Rotation Protection Control
Anti-Dew Formation Control
Automatic Fan Speed Mode
• • •
• If the compressor is operating continuously for 5 minutes or longer and the temperature difference between intake air and
indoor heat exchanger is 2.5°C or less for 2 minutes, compressor will stop and restart automatically.
(Time Delay Safety Control is valid)
▲T = Intake air temperature - Indoor heat exchanger temperature
This is to protect reverse rotation of the compressor when there is an instantaneous power failure.
• • •
• Purpose is to prevent dew formation on indoor unit air discharge area.
• • •
• When room temperature is constant (±1°C) the following conditions occur for 30 minutes continuously, anti-dew formation will
activate:
− − −
− Indoor intake air temperature is more than 24°C and less than 30°C.
− − −
− Remote Control setting temperature is less than 25°C.
− − −
− Compressor is on.
− − −
− Cooling operation mode.
− − −
− Indoor Fan motor operate at Low fan speed or QLo.
• • •
• This control is cancelled immediately when above condition is changed.
• • •
• Anti-Dew formation is control by:
1. Lo fan speed
Lo fan is changed to Lo+ fan
When Automatic Fan Speed is selected at Remote Control during cooling operation.
• • •
• Fan speed rotates in the range of Hi to Me.
• • •
• Deodorizing Control.
14
CS-PW18CKE CU-PW18CKE

Cooling Operation Time Diagram
15
CS-PW18CKE CU-PW18CKE

Time Delay Safety Control
Anti-Freezing Control
Compressor Reverse Rotation Protection Control
Anti-Dew Formation Control
Automatic Fan Speed Mode
8.3. Soft Dry Mode Operation
• • •
• The unit starts cooling operation until the room temperature reaches the setting temperature set on the Remote Control, and
then Soft Dry operation will start.
• • •
• During Soft Dry operation, the Indoor Fan will operate at Lo- speed.
• • •
• Once room temperature reaches below Soft Dry OFF temperature. Indoor Fan, Compressor and Outdoor Fan stop for 6
minutes.
• • •
• Once the compressor stops, it will not start for 3 minutes during Cooling operation.
• • •
• Same as Anti-Freezing Control for Cooling Mode operation. (For Soft Dry region, 6 minutes waiting is valid during compressor
stops.)
• • •
• Same as Compressor Reverse Rotation Protection Control for Cooling Mode Operation. (For Soft Dry region, 6 minutes waiting
is valid during compressor stops.)
• • •
• Same as Anti-Dew Formation Control for Cooling Mode operation.
When Automatic Fan Speed is selected at Remote Control during Soft Dry operation.
• • •
• Fan speed off and on at Lo- speed.
• • •
• Deodorizing Control.
16
CS-PW18CKE CU-PW18CKE

Soft Dry Operation Time Diagram
17
CS-PW18CKE CU-PW18CKE

Time Delay Safety Control
Overload Protection Control
4-way Valve Control
Hot Start Control
8.4. Heating Mode Operation
• • •
• Heating in operation according to Remote Control setting.
• • •
• When the compressor is stopped by Power Switch, Remote Control or there is a power failure, it restarts after 3 minutes when
the Power Switch, Remote Control is turned ON or the power supply is resumed.
• • •
• When the setting temperature is reached during heating operation, the compressor stops and it will not start for 4 minutes.

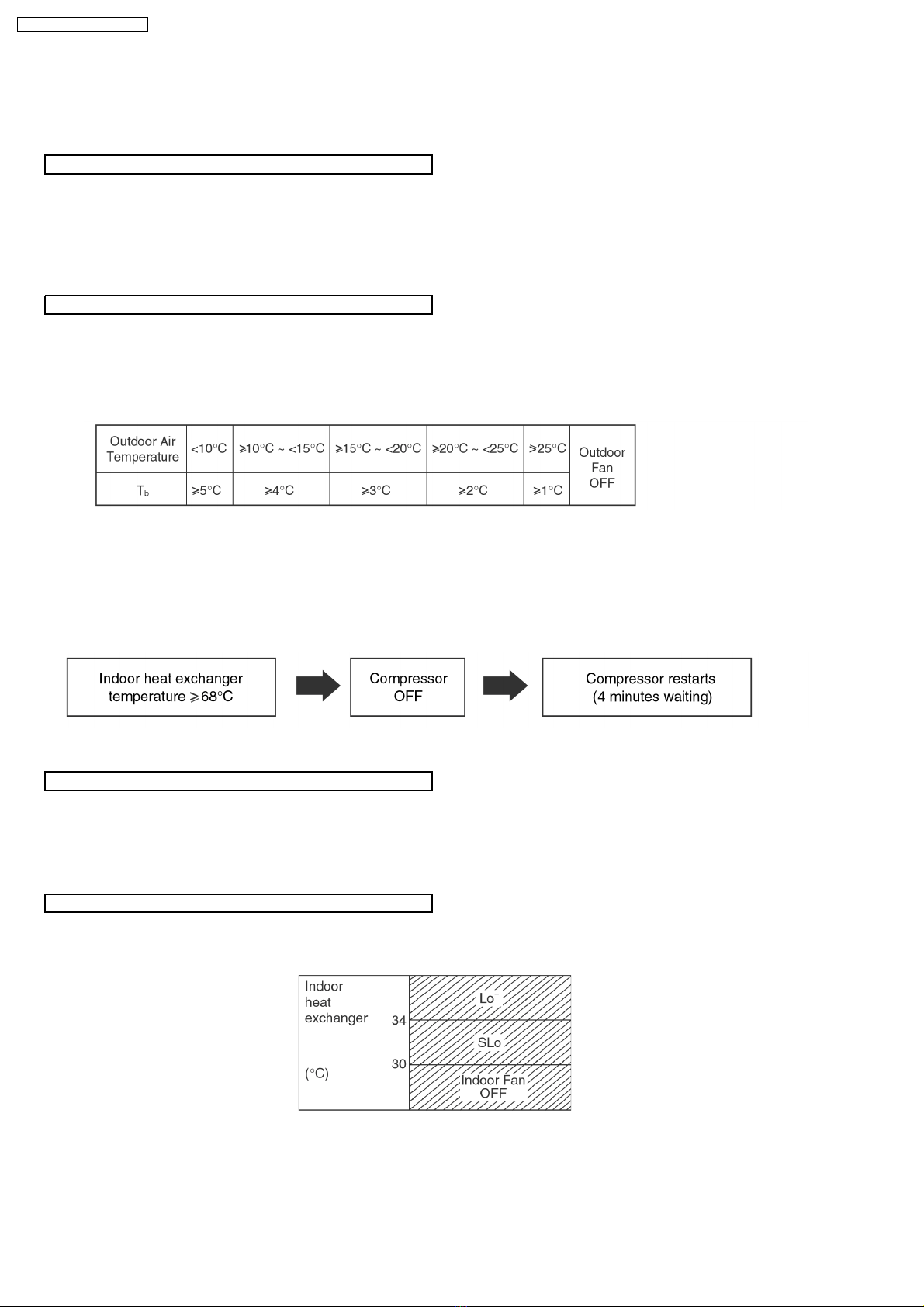

(a) Outdoor Fan Control
• • •
• If the temperature of the Outdoor Heat Exchanger less than -3°C, Outdoor Fan is ON. The Outdoor Fan stop, when Outdoor
Heat Exchanger temperature is Tbor more according to Outdoor Air Temperature region as table below:
The Outdoor Fan restarts when the indoor heat exchanger temperature falls to 49°C.
During starting of Heating mode and after deice, Outdoor Fan ON for 90 sec. (Hi).
(b) Compressor High Pressure Control
• • •
• If the indoor heat exchanger becomes 68°C or more, the compressor will stop and restart automatically.
(Time Delay Safety Control - 4 minutes waiting).
• • •
• 4-way valve ON during Heating operation, except deicing operation.
• • •
• When the unit is switched to “OFF” during Heating operation, 4-way valve stays at Heating position for 5 minutes.
When Heating operation starts, Indoor Fan will not start until the indoor heat exchanger reaches 30°C as diagram shown.
Hot Start is completed when indoor heat exchanger reaches 42°C.
Maximum Hot start duration = 4 minutes. After 4 minutes,
Hot start operation will be shifted to normal Heating operation.
18
CS-PW18CKE CU-PW18CKE

Automatic Fan Speed Mode
Anti Cold Draft Control
Compressor Reverse Rotation Protection Control
When Automatic Fan Speed is selected at Remote Control during heating operation.
• • •
• Fan speed rotates in the range of Me →SLo according to the heat exchanger temperature.
• • •
• If the compressor is operating continuously for 5 minutes or longer and the temperature difference between indoor heat
exchanger and intake air is 5°C or less for 2 minutes, compressor will stop and restart automatically.
(Time Delay Safety Control is valid)
▲T = Indoor heat exchanger temperature - Intake air temperature
This is to protect reverse rotation of the compressor when there is an instantaneous power failure.
19
CS-PW18CKE CU-PW18CKE

Heating Operation Time Diagram
Deicing Control
Deice starts to prevent frosting at outdoor heat exchanger.
• • •
• Normal Deicing
Deice operation detection commences in Heating operation starts or 60 minutes after previous deice operation. If the
outdoor piping temperature drops to -4°C for 50 sec. continuously during compressor is in operation, deice will start.
(There is no detection during Outdoor Fan stops.)
• • •
• Overload Deicing
During heating operation, if the outdoor Fan OFF duration (due to overload control) is accumulated up to 60 minutes and
after compressor starts for 1 minutes, deicing starts.
• • •
• Deicing ends when
(a) 12 minutes after deicing operation starts;
(b) The outdoor piping temperature rises to about 12°C.
• • •
• After deicing operation, compressor stops for 30 seconds and 4-way valve stays at cooling position for 10 seconds.
20
CS-PW18CKE CU-PW18CKE
