Panasonic CS-W28BKP5 User manual

Room Air Conditioner
Operating Instructions
Before using your air-conditioner, please
read this operating instructions carefully
and keep it for future reference.
ENGLISH ................ P.001 – P.022
FRANÇAIS .............. P.023 – P.044
ESPAÑOL................ P.045 – P.066
DEUTSCH ............... P.067 – P.088
ITALIANO ................ P.089 – P.110
NEDERLANDS........ P.111 – P.132
PORTUGUÊS.......... P.133 – P.154
ΕΛΛΗΝΙΚΑ .............. P.155 – P.176
êìëëäàâ .............. P.177 – P.200
C8037-130
Models
Outdoor
CU-W28BKP5
CU-A28BKP5
Models
Indoor
(Refrigerant: R407C) CS-W28BKP5
(Refrigerant: R22) CS-A28BKP5
MATSUSHITA ELECTRIC (TAIWAN) CO., LTD
579, Yuan Shan Road, Chung-Ho. Taipei Hsien, Taiwan.

▲
1
Before use
Contents
Safety Precautions ................................................ 2 – 4
– Installation precautions
– Operation precautions
Name of Each Part ................................................ 5 – 6
– Indoor unit
– Outdoor unit
– Accessories
– Remote control
Preparation Before Operation ............................... 7 – 8
– Before operating the unit
– How to insert batteries
– Operating the remote control
How to Operate ................................................... 9 – 10
Setting the Timer ............................................... 11 – 12
Convenient Operation ....................................... 13 – 14
– Sleep mode
– When remote control cannot be used
– OFF/ON remote control signal receiving
sound

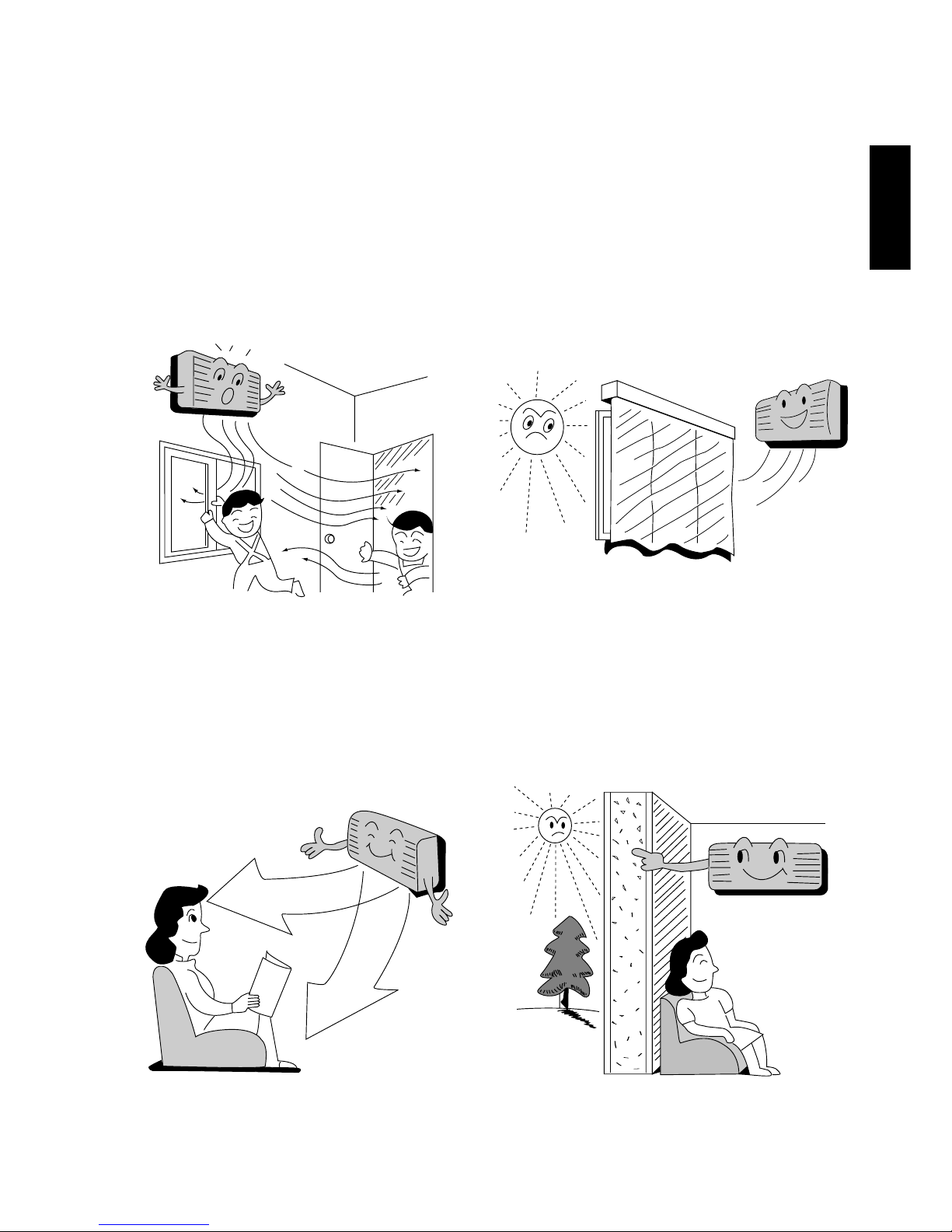

Operation Hints ................................................. 15 – 16
Better Care and Maintenance ........................... 17 – 18
– Cleaning the air conditioner and air filters
– Replacement of air purifying filters
– When not using the air conditioner for a
long period
– Pre-season inspection
Troubleshooting ........................................ 19 – 20
– Normal operation
– Abnormal operation
– Call the dealer immediately
Enviromental Friendly (For Refrigerant: R407C Model)
Zero ozone depleting potential and low global
warming potential by using R407C refrigerant.
●
●
●
●
●
●
●
●
●
●
How to use
If necessary
<NOTE>

▲
2
ENGLISH
Safety Precautions
■Do not install, remove and reinstall the unit yourself.
Improper installation will cause leakage, electric shock or fire. Please engage an authorized dealer or
specialist for the installation work.
Warning
To prevent personal injury, injury to others and property damage, the following instructions must be followed.
■Incorrect operation due to ignoring of instructions will cause harm or damage, the seriousness of which is
classified as follows :
Caution
■The instructions to be followed are classified by the following symbols :
!
!
!
Installation precautions
Before operating, please read the following “Safety Precautions” carefully.
■This room air conditioner must be earthed.
Improper grounding could cause
electric shock.
■Do not install the unit in a place where there
may be explosive gas leaks.
Gas leaks near the unit could cause
fires.
■Ensure that drainage piping is connected
properly.
Otherwise, water will leak out.
!
This symbol (with a white background) denotes an action that is
PROHIBITED.
These symbols (with a black background) denote an action that is
COMPULSORY.
OFF
Warning:This sign warns of death or serious injury.
Caution : This sign warns of injury or damage to property only.

▲
3
■Insert the power plug
properly.
Heat generated by a loose
power plug could cause electric
shock or fire.
Electrical outlet and power plug
shall be easily accessible.
■Do not modify the length of
the power cord or use an
extension cord.
It could cause electric shock or
fire.
■Do not be directly exposed
to the cold airstream for
too long.
It could lead to health problems.
■Do not operate or stop the
unit by inserting or pulling
out the power plug.
It could cause electric shock or
fire.
■Do not operate the unit with
wet hands.
It could cause an electric shock.
■ If there is a smell of burning,
stop the air conditioner and
disconnect the power supply.
The heat generated could cause
electric shock or fire. Please con-
sult an authorized dealer or serv-
ice centre.
■Do not damage or use an
unspecified power cord.
It will cause electrical shock or
fire.
■Do not insert finger, sticks
or other objects into the
units.
It could lead to physical injury
and cause damage to the units.
■Do not try to repair the unit
yourself.
It could lead to fire or cause an
electric shock. Please call an
authorized dealer or service
centre.
Switch off
the breaker. Disconnect
the power
plug.
Operation precautions
Warning
!
OFF

▲
4
ENGLISH
■ Switch off the power supply if
the unit is not going to be
used for a long period of time.
If dust accumulates on the plug, it
will generate heat and this could
cause a fire.
■Do not place combustor in
the path of the airflow from
the unit.
Incomplete combustion could
cause toxic gas (CO) poisoning.
■Inspect the unit for any
damage.
Ensure that the necessary repairs
are carried out.
■Do not remove the power
plug by pulling the cord.
Hold the plug when disconnect-
ing the plug from the wall outlet.
■Do not use for other pur-
poses.
Do not use for preservation pur-
poses. It will affect food quality,
animals or plants.
■Do not wash the unit with
water.
It could cause an electric shock.
■When cleaning the unit,
remove the plug.
This is to prevent injury due to
the rotating fan in the unit.
■ Ventilate the room
regularly.
If not ventilated regularly, the
lak of oxygen could cause
headaches.
■Do not sit or place
anything on the outdoor
unit.
You might fall off or the unit
might collapse.
Switch off
the breaker.
Disconnect
the power
plug. OFF
Caution
!
OFF

▲
5
Name of Each Part
(Rear)
(Side)
Air Intake Vents
Air Outlet Vents
Drain Hose
Piping
Ground Terminal
(Inside Cover)
Indoor unit
Outdoor unit
Operation Indication
Lamps (LED)
Front Panel
Air Intake Vent
Air Outlet Vent
Panel Opener
Horizontal
Airflow Direction Louver
(Manually adjusted)
Vertical Airflow
Direction Louver
Signal Receptor
Power Sleep Timer
Red Orange Orange

▲
6
ENGLISH

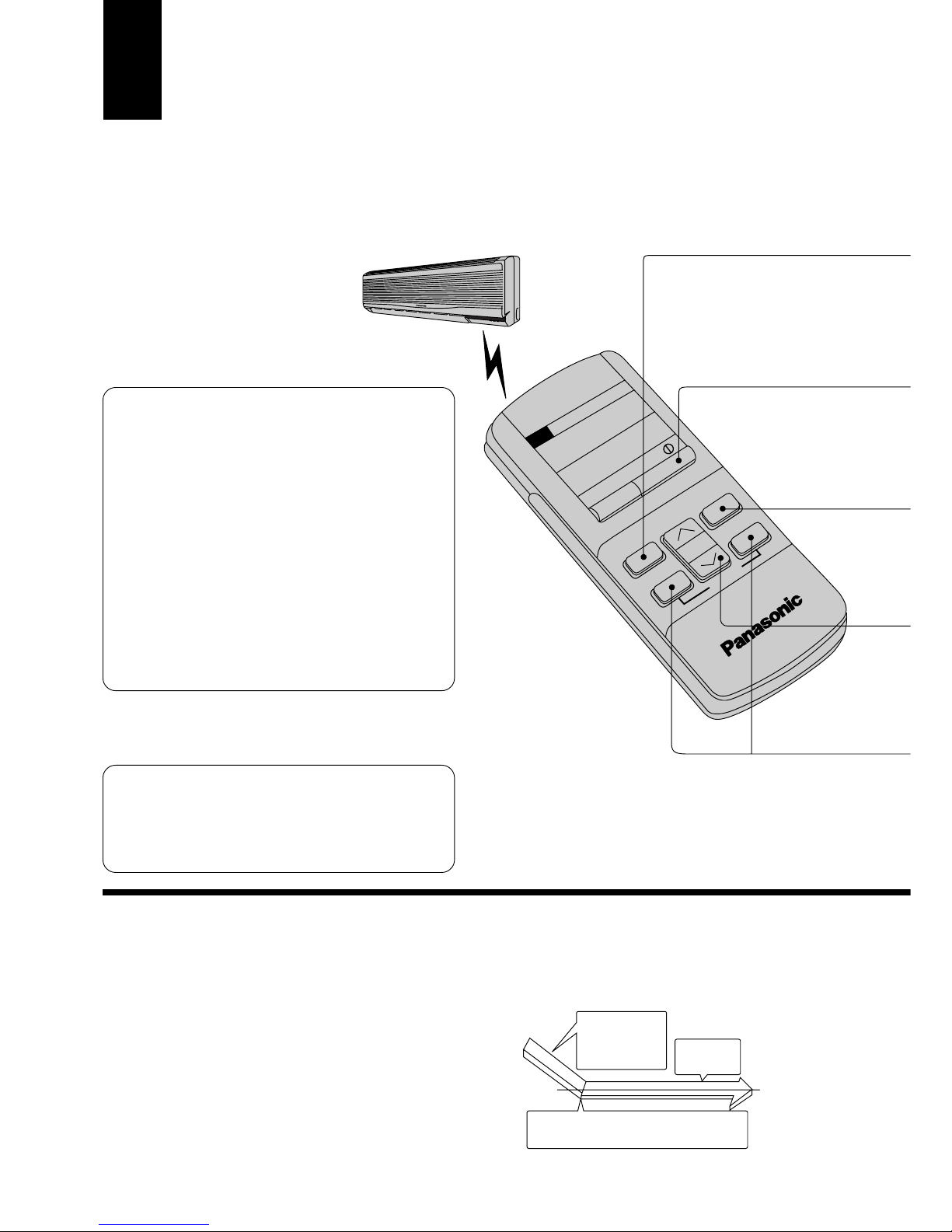

Remote control
OFF/ON
SLEEP
PM
MODE TEMP. FAN SPEED
MANUAL
SWING
AIR SWING
DRY
COOL
HEAT
AUTO
AM
ON-TIMER
OFF-TIMER
°C
AUTO FAN
c
h j k
m n o
Separate displays and functions are available when the door is opened.
Remote Control Two R03 dry-cell
batteries or equivalent
Air Purifying Filters
Room Temperature
Setting Button
Sleep Mode
Operation Button
Operation Display
Door
Airflow Direction Manual
Control Button
Signal Transmitter
Operation Mode
Selection Button
Airflow Direction Auto Control Button
OFF-Timer Button ON-Timer Button
Set Button
Cancellation Button
Time
Button
q
OFF-TIMER ON-TIMER
CANCEL SET
TIME
Door
OFF/ON Button
Airflow Volume
Selection Button
OFF/ON
SLEEP
PM
MODE TEMP. FAN SPEED
MANUAL
SWING
AIR SWING
DRY
COOLHEAT
AUTO
AM
ON-TIMER
OFF-TIMER
°C
AUTOFAN
c
h j k
m n o
Clock Button
Accessories

▲
7
Airflow Direction Adjustment

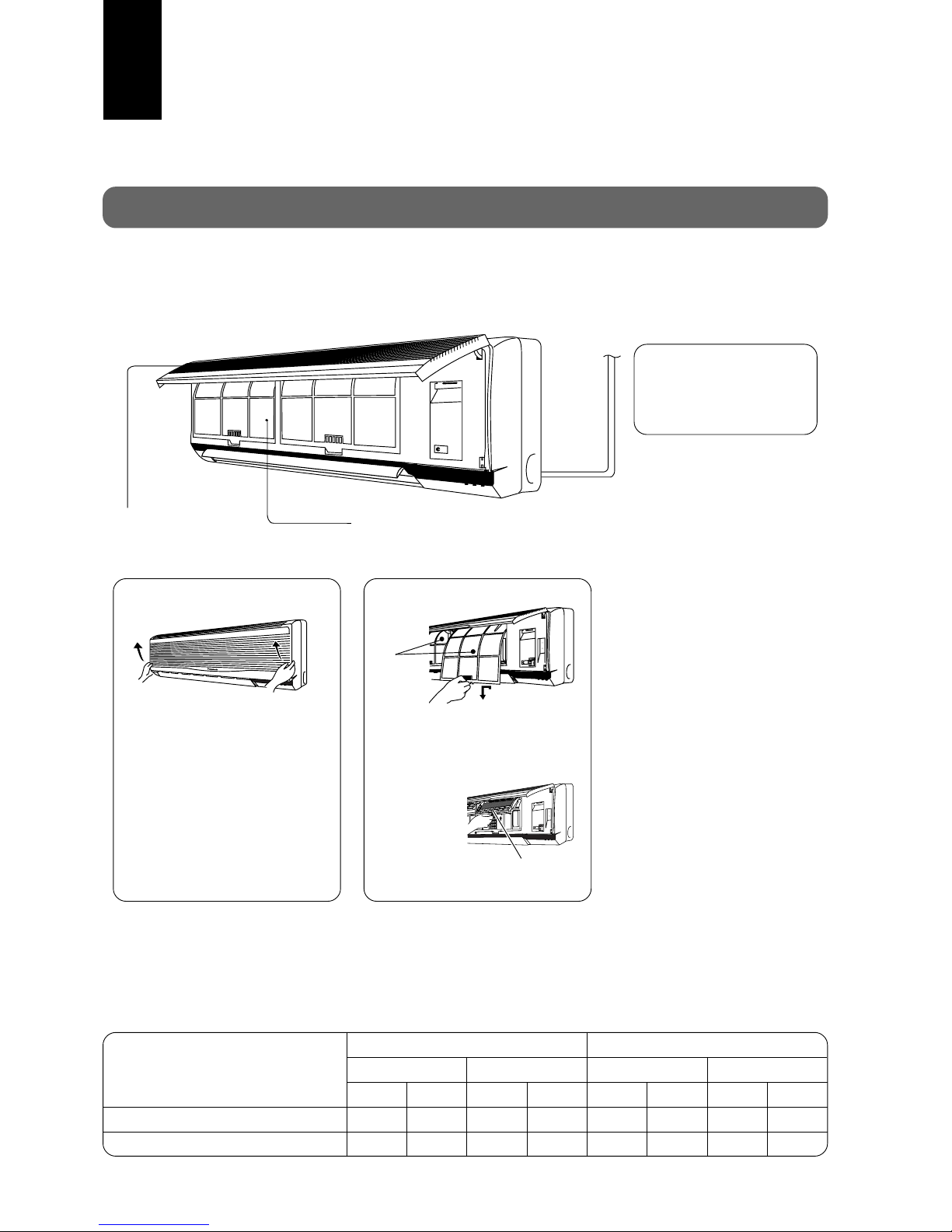

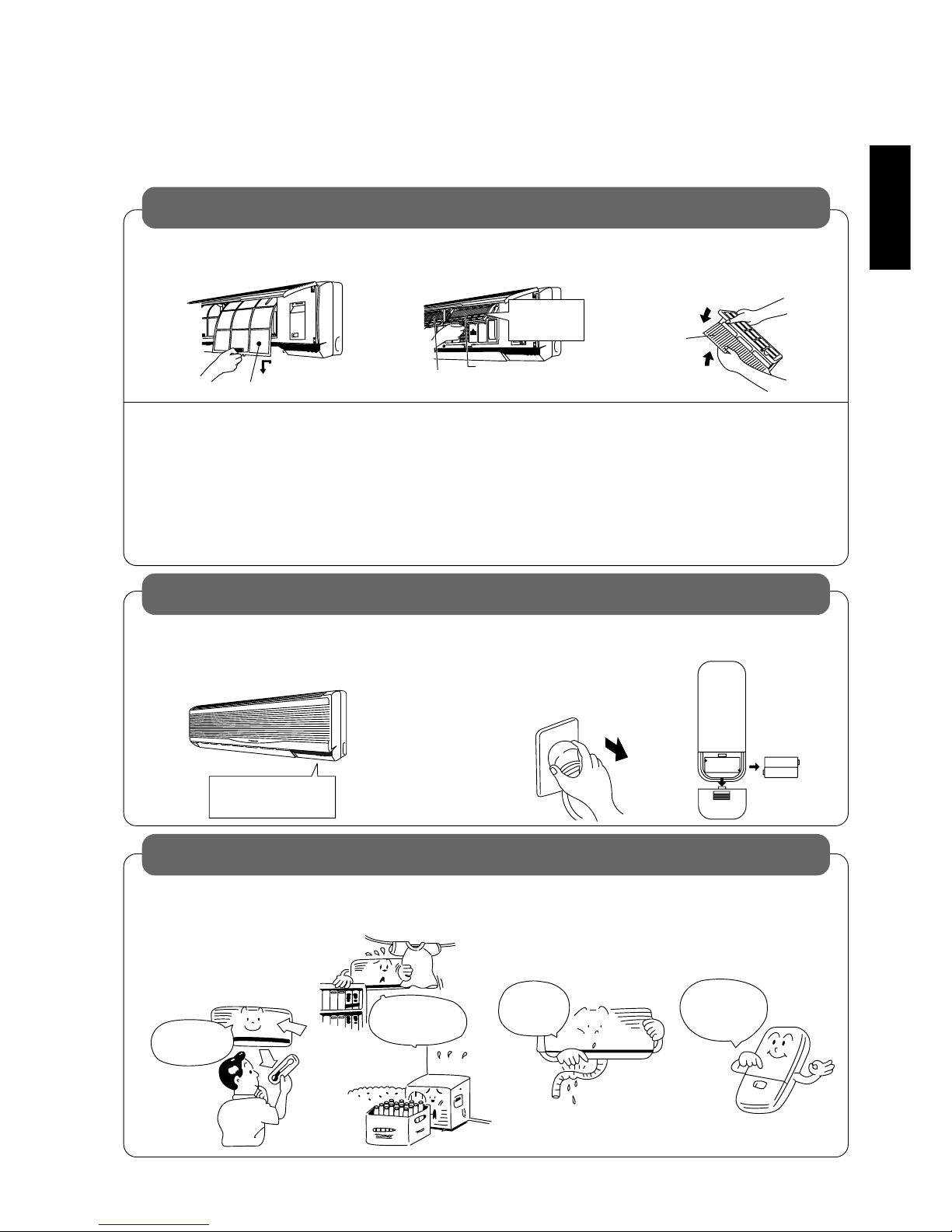

Preparation Before Operation
Before operating the unit
23
■Open the front panel. ■Remove air filter.
■Insert air purifying filter.
Insert the air filters.
Hold the tab to raise up
slightly and then pull down.
Hold the panel openers at both
sides and pull up the front panel.
Air
filter
■Connect the power
supply cord to an
independent power
supply.
1
Air purifying
filter
Be careful not to
hurt your hands by
metal parts.
<Note>
Use under the following conditions : (Unit in °C)
DBT : Dry BulbTemperature
WBT : Wet BulbTemperature
Maximum Temperature
Minimum Temperature
Cooling
Indoor Outdoor
DBT WBT DBT WBT
32 23 43 26
16 11 16 11
Heating
Indoor Outdoor
DBT WBT DBT WBT
30 –24 18
16 –-5 -6

▲
8
ENGLISH
OPEN
er
er
OPEN
Gently press the
place marked
[OPEN] and slide
the cover toward
you.
er Be sure
that the (+) and
(–) directions
are correct.
Pull out the power plug or turn off the
power breaker when:
■The air conditioner is not going to be used for
an extended period of time.
If the power supply cord connect, approximately
3.25 watts of electric power are used even if the main
unit is turned off by remote control.
■There is a danger of lightning.
The air conditioner is provided with a built-in protective
device, but the control equipment may be adversely
affected depending on the extent of lightning activity.
Regarding the batteries.
■The batteries can be used for approximately one year.
■Do not use rechargeable (Ni-Cd) batteries,
because such batteries differ from standard
dry-cell batteries in shape, dimensions and
performance.
■Be sure to replace the batteries with two new
batteries of the same type.
■Remove the batteries if the air conditioner is not going
to be used for an extended period of time.
■Do not dispose of empty batteries in household waste.
Take them to special local collection sites.
Make sure that the
signal path is not
obstructed.
The maximum dis-
tance at which signals
can be received is
about 10 m.
12 00
:
PM
■Aim at the signal receptor on the room air condi-
tioner when operating.
■Do not drop or throw the remote control.
■Do not place the remote control in a location that
is exposed to direct sunlight or next to a heating
unit or other heat source.
■Signal received sound:
One short beep or one long beep.
(Two R03 dry-cell
batteries or equivalent)
■Fix the cover to the back of the remote
control (“PM 12:00” will flash in the opera-
tion display.)
If the display does not appear when the batteries
are inserted, remove the batteries and
insert them once more.
How to insert batteries
Operating the remote control

▲
9

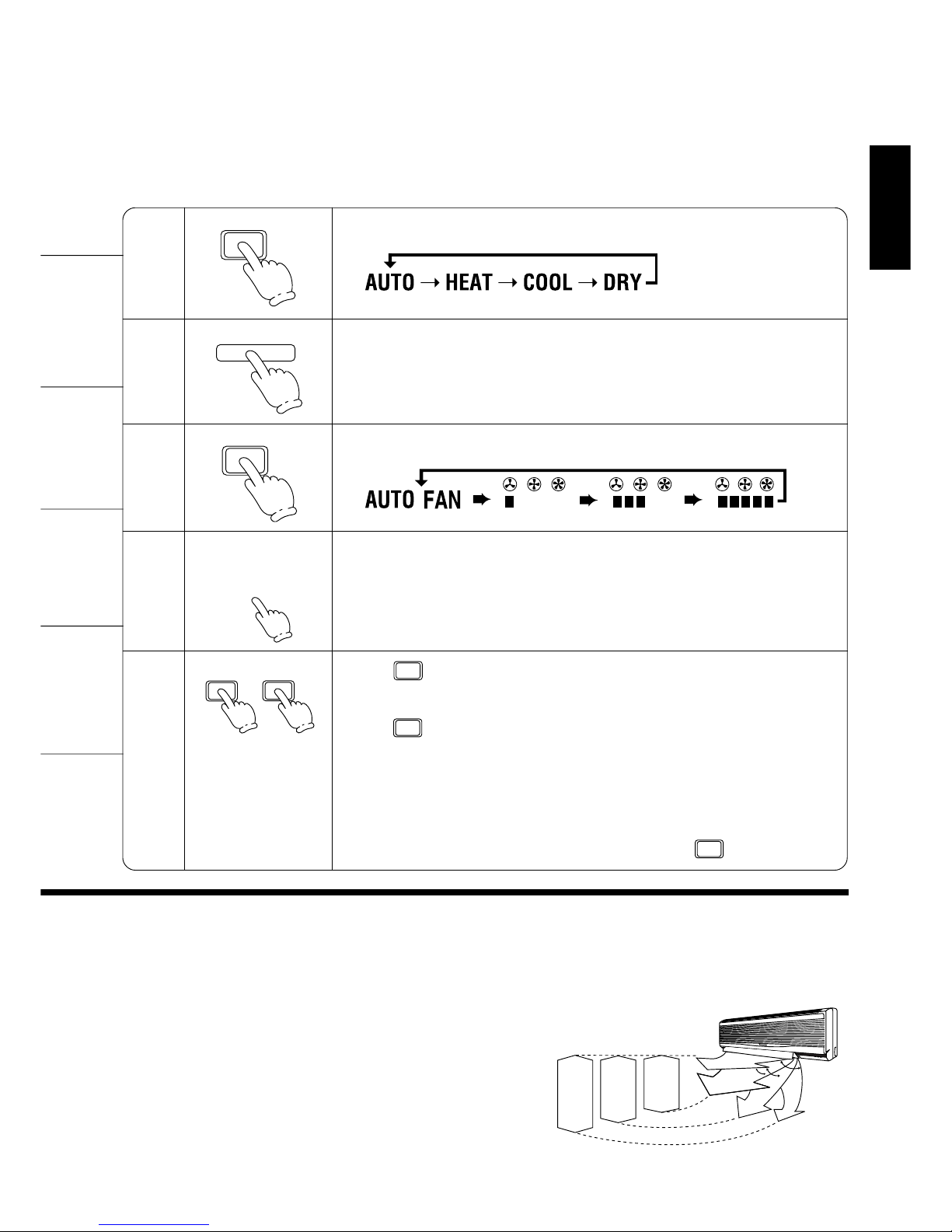

How to Operate
Recommended temperature for health
and comfort.
■If there is a power failure, operation will be
automatically restarted after 3 minutes when the
power is resumed with previous operation mode
and airflow direction.
(When the operation is not stopped by remote
control.)
■If you do not intend to continue the operation
when the power is resumed, pull out the power
plug at main unit or power supply.
When you insert the power plug the operation
will be automatically restarted with previous
operation mode and airflow direction.
Note: 1. If you do not require Auto Restart
Control, please consult your dealer.
2. Auto Restart Control is not available
when Timer or Sleep Mode is set.
Auto Restart Control.
For Heating : 20°C–24°C
For Cooling : 26°C–28°C
For Soft Dry : 1°C–02°C lower than
room temperature.
OFF/ON
AUTO FAN
SLEEP
MODE TEMP. FAN SPEED
MANUAL
SWING
AIR SWING
AUTO
m
<Operation Details>
AUTO – Automatic Operation.
■Once the Automatic Operation is selected, the in-
door temperature sensor operates automatically
to select the desired operation mode with Cooling,
Soft Dry or Heating.
■The operation mode changes every hour, when
necessary.
DRY – Soft Dry Operation.
■Soft Dry is a very gentle Cooling Operation
consisting primarily of dehumidifying. It does not
lower the room temperature very much.
Cooling Operation
until room tem-
perature reach
es
the setting tem
per-
ature
When room temperature reaches the setting tempera-
ture, operation will switch to Soft Dry.
Setting
Temperature
Super Low air-
flow amount

▲
10
ENGLISH
HEAT – Heating Operation
■Defrosting Operation
■Depend on the outdoor temperature, the opera-
tion occasionally stops to melt the frost on the
outdoor unit.
■Heat is obtained from outdoor air to warm up the
room.Whenthe outdoorambient airtemperature
falls, the heating capacity of the unit might be
reduced.
We recommend that you use an additional heat-
ing device when the outdoor ambient air tem-
perature is low.
Automatic Airflow Volume
■The speed of the indoor fan is adjusted automati-
cally according to the operation. The indoor fan
stops occasionally during cooling operation.
Automatic Airflow Volume
1
2
3
4
5
m n
2°C lower than
standard standard
nn o
2°C higher than
standard
▼
▼
MODE
Press to select operation mode.
■The display changes in the order
each time the button is pressed.
Press to start the operation.
■Operation indication lamp (RED) will light up.
■Press once more, to stop the operation.
Press to select airflow volume.
■The display changes in the order.
Automatic Low Medium High
Press to select room temperature.
■Heating, Cooling, Soft Dry –Select temperature as desired.
(16°C ~ 30°C)
■Automatic.
Press continuously.
■The vertical airflow direction louver will move up and down. Release the
button when the louver is at the desired position.
Press .
■Cooling & Soft Dry –The vertical airflow direction louver will swing up and
down automatically.
Heating –When the discharge air temperature is low such as at the start of
heating operation, the cold air blows at horizontal level.
As the temperature rises, the hot air blows in a downwards
direction.
To stop the automatic airflow direction operation, press button.
Heating
(Airflow
Direction Manual)
Heating
(Airflow
Direction Auto)
Cooling/Soft Dry
(Airflow Direction
Manual and Auto)
OFF/ON I
FAN SPEED
i
TEMP.
MANUAL
SWING
MANUAL
SWING
SWING
34°
57°
46°

▲
11
Setting theTimer
<Note>
Regarding remote control. ■If the current time is not set correctly, correct
Timer setting will not be possible.
■When the Timer is set, the current time display will
vanish.
■[RESET] points will clear the memory once they
are shorted.
■[B ↔A] switch is used when two air conditioners
units have been installed in one room. Please
consult your dealer.
[RESET] points
[B ↔A] switch
If there is a power failure.
To reset the Timer.
(Example) If the OFF Timer has been set.
■Even if there is a power failure, the setting time
is still stored in the memory because the re-
mote control is a battery operated type.
q
OFF/ON
SLEEP
PM
OFF-TIMER TIME ON-TIMER
SET
CANCEL
11:30
OFF-TIMER SET
➡
OPEN

▲
12
ENGLISH
■Setting the OFF Timer.
■Setting the ON Timer.
Timer
■The ON Timer and OFF Timer can only be set
once during a day.
■The operation will start before the actual setting
time with ON Timer setting.
This is to allow time to attain your desired set
temperature.
If the air conditioner is set before you go out,
the room temperature will be close to your
desired temperature when you return.
This is useful for saving electricity costs in-
curred by forgetting to turn off the air condi-
tioner.
Cooling and Soft Dry : 15 minutes before
Heating and Automatic: 30 minutes before
.... to increase 10 minutes
each step.
.
... to decrease 10 minutes
each step.
.... to increase 10 minutes
each step.
.
... to decrease 10 minutes
each step.
. ... to increase 10 minutes
each step.
. ... to decrease 10 minutes
each step.
.... to advance the time
.... to reverse the time
To set the current time.
■Set hours and minutes
To set the Timer.
■OFF Timer Set hours and minutes
The “ OFF-TIMER ”will blink.
■ON Timer Set hours and minutes
The “ ON-TIMER ”will blink.
To cancel the Timer.
■OFF Timer
To change the Timer setting time.
■(Example) To change the ON Timer setting time.
Change hours and minutes setting
The Timer indication lamp at main
unit will light up. LED colour: Orange.
●The Timer indication lamp at
main unit will go off.
●To cancel the ON Timer, follow
the same procedure.
The Timer indication lamp at main
unit will light up. LED colour: Orange.
q
OFF-TIMER
OFF-TIMER
0N-TIMER
0N-TIMER
TIME
TIME
TIME
TIME
CANCEL
SET
SET
SET
q

▲
13
Convenient Operation
Sleep Mode
This is to gain a comfortable room temperature while sleeping.
Sleep Mode Operation.
■When the room temperature reaches
the setting temperature or after 1
hour of operation, sleep shift
operation starts and the airflow
volume will automatically change to
low.
■Sleep Mode Operation time is 8
hours.
■When using together with the Timer,
the Timer has priority.
To set Sleep Mode.
■Press
(The sleep indication lamp on the
main unit will light up.)
To cancel Sleep Mode.
■Press once more
(The sleep indication lamp on the
main unit will switch off.)
OFF/ON
SLEEP
PM
MODE TEMP. FAN SPEED
MANUAL
SWING
AIR SWING
AUTO
11:30
c
h j k
m
0 – 1 hour
1 hour
TEMP.
SETTING
TEMPERATURE
TIME
Approx. 0.5°C increase
Approx. 0.5°C increase
SETTING
TEMPERATURE
TEMP.
0 – 1 hour
1 hour
TIME
Approx. 2°C decrease
Approx. 3°C decrease
Sleep shift operation
starts
Sleep Operation button is pressed
Approx. 8 hours after sleep
shift operation starts, stops
automatically
Sleep Operation button is pressed
Sleep shift operation starts
Approx. 8 hours
after sleep shift
operation starts,
stops
automatically
■Heating Operation for Sleep Mode move-
ment will start to avoid overheating.
<Information>
■Cooling or Soft Dry Operation for Sleep Mode
movement will start to avoid overcooling.
SLEEP
SLEEP

▲
14
ENGLISH
When the remote control cannot be used
Test Run Button.
(Use when installing and moving)
Auto Operation Button.
■When the remote control cannot be used,
press Auto Operation Button to run Auto-
matic Operation.
(Airflow direction setting will be automatic.)
■The Remote Control Signal receiving sound can be omitted as desired.
■To switch OFF the signal receiving sound, press Auto Operation Button for 10 seconds or more. At
the same time, Automatic Operation starts.
(To switch ON, press Auto Operation Button once more for 10 seconds or more.)
■Press Auto Operation Button.
(The operation indication lamp will blink for 20
seconds, and then light up)
●If the button is pressed once more, the
air conditioner will stop.
(The operation indication lamp will switch
off.)
AUTO
OFF/ON
OFF/ON remote control signal receiving sound

▲
15
Operation Hints
■Adjust room temperature properly. Set the
temperature 1°C higher (Cooling Operation) or
2°C lower (Heating Operation) than actually
desired. Approximately 10% of electricity costs
can be saved.
■Prevent wastage with the Timer. Use Timer
when sleeping or going out to save electricity
cost.
■Clean the air filter regularly. Blockage in the air
filter reduces the airflow and lowers the cooling
or heating. Clean at least once every 2 weeks.
Otherwise, about 6% of electricity cost will be
wasted.
■Do not block the air outlet vents at outdoor unit.
Otherwise, it will lower the cooling or heating
performance.
1°C higher
2°C lower

▲
16
ENGLISH
■Make sure that the doors and windows are shut.
Otherwise, cooling and heating performance will
be reduced and electricity cost is wasted.
■Proper airflow direction adjustment. Set the
airflow direction louvers horizontal for Cooling
Operation and downwards for Heating
Operation. Operation result will be better.
■Keep blinds or curtains closed. Do not let sun-
shine enter the room directly. About 5% of
electricity cost can be saved.
■Use insulating material for better performance.
Use insulating material during construction or
renovations. It will save electricity cost.
Cooling
Heating

▲
17
Better Care and Maintenance
Regular care and maintenance will extend the life of the air conditioner and prevent wastage of electricity. Before
performing any maintenance procedure, be sure to switch off the main power supply.
Once every 2 weeks is recommended.
■Clean the air filters.
■To remove the dust adhering to the filters,
either use a vacuum cleaner, or wash them in
water and dry in the shade.
■Re-insertthefilterscorrectlyattheleftandright,
with the side marked [FRONT] facing forward.
■Purchase replacement filters from your air con-
ditioner dealer if the air filters become damage.
Air Filter No. CWD4209540 (right)
CWD4209550 (left)

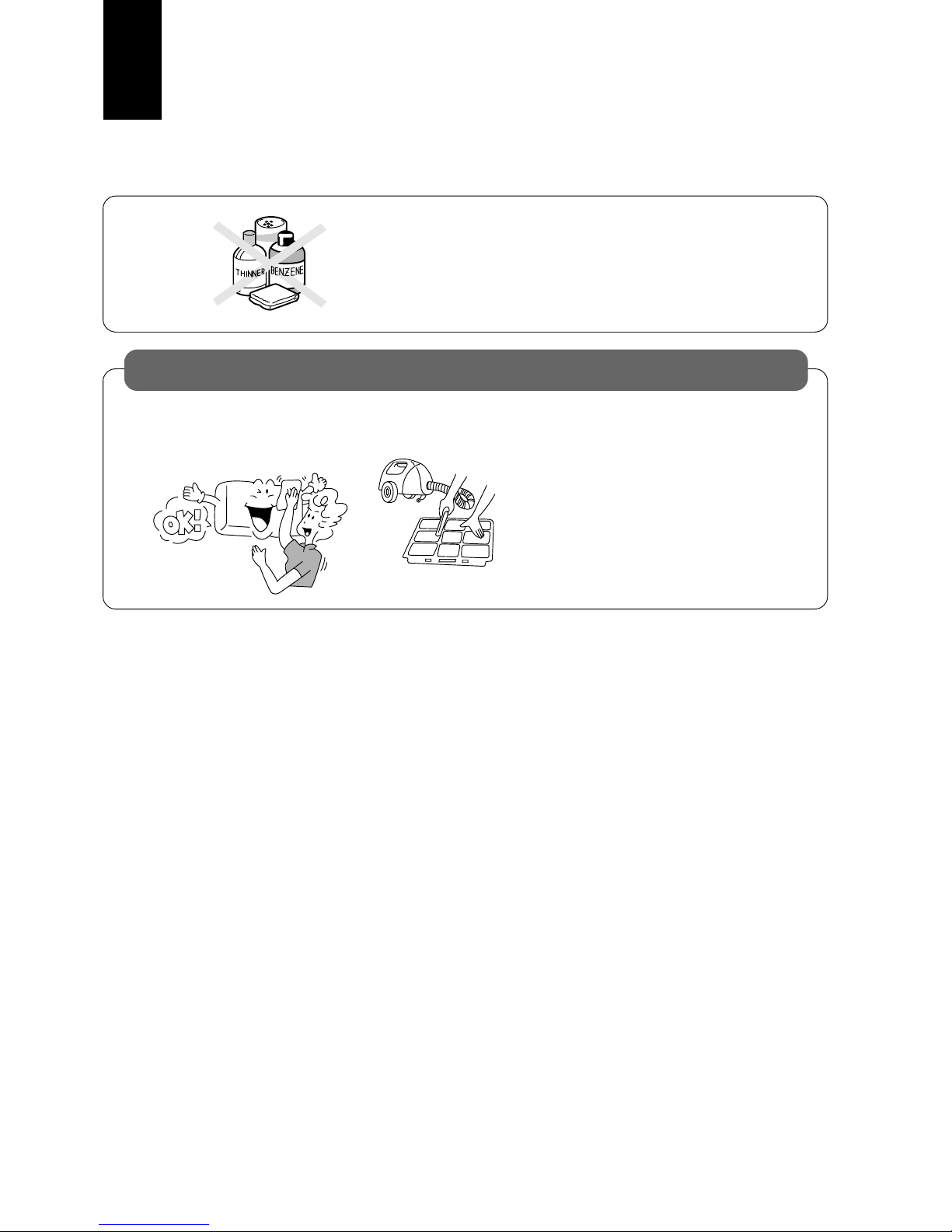

Do not use water or volatile liquids.
■Do not make air conditioner wet, as there is the danger that it could cause
electric shocks.
Be sure not to apply water when cleaning or at any other time.
■Using water above 40°C could cause deformation and/or discolouration.
■Volatile liquids such as thinner or benzene may damage the air condi-
tioner.
Caution
■Clean the air conditioner.
Wipe gently with a soft, dry cloth.
Cleaning the air conditioner and air filters

▲
18
ENGLISH
3
Filters
■Is the discharge air
cold (warm)?
Operation is normal if, 15 min-
utes after the start of operation,
the temperature difference be-
tween the air intake vent and
outlet vent is 8°C or above for
cooling and 14°C or above for
heating.
■Are the air outlet
vents and air intake
vents obstructed?
■Is the drain hose
cracked or crushed?
■Are the remote
control batteries in
good condition?
If they are, cooling
performance will drop and
cause problems.
If display is faint or
no display is visible,
the batteries should
be replaced.
If it is, leaks will
result.
Is cool (warm) air
coming out?
Remove the filters
from the filter frame.
Remove the air filters.
Remove the batteries
from the remote control.
1
31
For air conditioners with
a power plug, stop opera-
tion by remote control and
pull out the power plug.
Note: If the unit is not off by
remote control, the unit
will operate when you
plug in (because
of Auto-restart
Control is provided).
Air filter
In order to dry out the
internal mechanisms
Operate the air condi-
tioner for 2 to 3 hours.
■Type of operation: Cooling.
■Temperature setting: 30°C.
When not using the air conditioner for a long period
Pre-season inspection (The earlier the better)
Replacement of air purifying filters
<Note>
■Solar Refreshing Deodorizing Filter
• Used to remove unpleasant odour and deodorize the air in the room.
• Reusable.
• Vacuum, place under direct sunlight for 6 hours and fit it back in place.
(Recommended : every 6 months)
■Catechin Air Purifying Filter
• The filter is coated with catechin to prevent growth of bacteria and viruses.
• Reusable.
• Vacuum and fit it back in place
(Recommended : every 6 months)
■Recommended to change these filters every 3 years.
Do not reuse damaged filters.
Consult the nearest authorized dealer to purchase a new filter.
Catechin Air Purifying Filter No.: CZ-SF71P
Solar Refreshing Deodorizing Filter No.: CZ-SFD71P
If you operate the air conditioner with dirty filters:-
– Air is not purified
– Cooling capacity decreases
– Foul odour is emitted
!Caution
Be careful not to
hurt your hands on
metal parts.
2
Catechin Air
Purifying Filter
Solar Refreshing
Deodorizing Filter
Remove the air purify-
ing filters.
2

▲
19
?
z
z
z

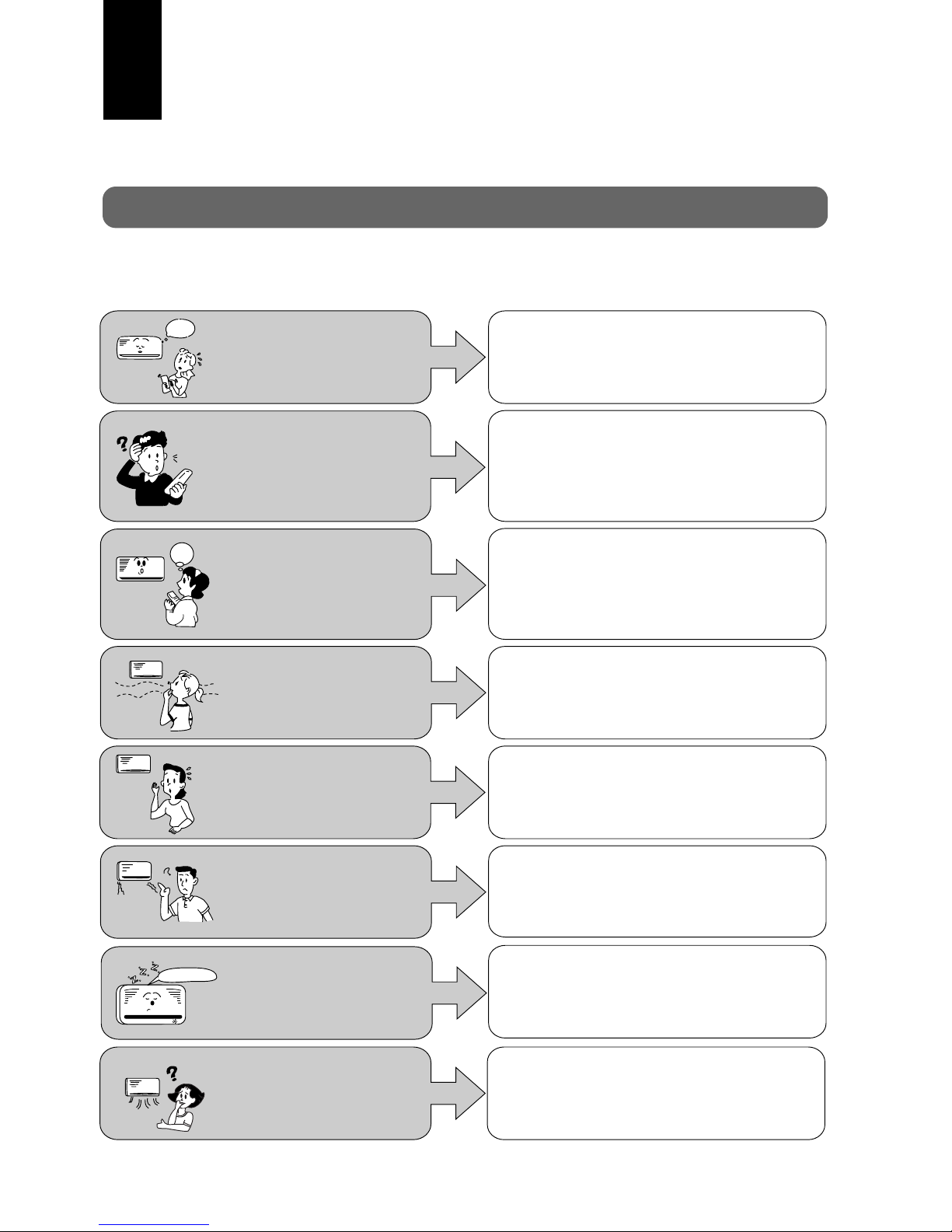

Troubleshooting
Normal operation
QIs it okay? AThis is the answer.
During Soft Dry Mode
Operation, the air condi-
tioner stops.
Air conditioner has been
restarted, but does not
operate for 3 minutes.
During Automatic Airflow
Volume setting, indoor fan
stops occasionally.
Operation stops for about
12 minutes during heating.
(The operation lamp
blinks.)
It seems that fog is coming
out from the air
conditioner.
Airflow does not begin
immediately during Heat-
ing Operation.
The room has a peculiar
odour.
This is to protect the air conditioner. Wait until
the air conditioner begins operating.
SoftDryMode Operationis avery gentleCooling
Operation consisting primarily of dehumidifying.
The air conditioner may stop for approximately 6
minutes in order to prevent overcooling.
If the room temperature rises again, the opera-
tion will recommence.
If the airflow begins before its temperature be-
come warm, it will cause an undesired cooling
effect. In order to prevent this, the airflow will not
begin until it is sufficiently warm.
(The operation lamp will blink until the airflow
begins.)
This may be a damp smell exuded by the walls,
carpet, furniture or clothing in the room.
Condensation occurs when the airflow from the
air conditioner cools the room air.
This is to remove the smell exuded by the
surroundings.
This is the sound of refrigerant flowing inside the
air conditioner unit.
This is the sound of reversing the freon flow in-
side the unit at the starting and finishing the de-
frosting during Heating operation.
This is to melt the frost which has accumulated on the out-
door unit (Defrosting Operation). This will take no longer than
about 12 minutes, so wait for operation. (Frost accumulates
on the outdoor unit when the outdoor temperature is low and
the humidity is high.) Water comes out from the outdoor unit.
Stop for 12 minutes.
Sight
Blinks
A sound like water flowing
can be heard. A noise that
sounds like the com-
pressed air releasing into
atmosphere.
