Panasonic ET-DLE170 User manual

ENGLISH
FRANÇAIS
Commercial Use
Model No. ET-DLE170
DPQX1113ZC
Zoom Lens
Operating Instructions
Thank you for purchasing this Panasonic product.
■To ensure correct use of this lens, please read the operating instructions supplied
with the lens and the projector carefully.
■Before using this product, be sure to read “Read this rst!” (Page 3).
■Please save this manual for future use.

2-ENGLISH
Read this rst! ......................................................................................3
Before Use.............................................................................................4
Attaching the Lens / Detaching the Lens...........................................4
Before replacing the projection lens........................................................ 4
Attaching the Lens................................................................................... 5
Detaching the Lens ................................................................................. 6
Projection relationships.......................................................................7
Adjustment range by the lens position shift (optical shift)..............9
Specications .....................................................................................11
Dimensions .........................................................................................11
Dimensional relationship...................................................... Appendix
█ Contents

ENGLISH-3
Read this rst! Always follow these precautions
WARNING:
Do not look at or place your skin into the light emitted from the lens while the
projector is being used.
Doing so can cause burns or loss of sight.
zStrong light is emitted from the projector’s lens. Do not look at or place your hands
directly into this light.
zIn addition, turn off the power and switch off the main power when you are away
from the projector.
Do not project an image with the lens cover attached.
zDoing so can cause re.
CAUTION:
Before replacing the projection lens, be sure to turn off the power and
disconnect the power plug from the wall outlet.
zUnexpected projection of light may cause injury to eyes.
zReplacing the projection lens without removing the power plug may result in electric
shock.
Do not stand in front of the lens while the projector is being used.
Doing so can cause damage and burns to clothing.
zStrong light is emitted from the projector’s lens.
Do not place objects in front of the lens while the projector is being used.
Doing so can cause re, damage to an object, or malfunction of the projector.
zStrong light is emitted from the projector’s lens.
Do not open the desiccant bag. Do not eat the contents.
Inadvertently ingesting desiccant could be harmful.
zIf the desiccant gets into your eyes or mouth, immediately rinse with plenty of water
and seek medical attention.
zKeep desiccant out of the reach of children.

4-ENGLISH
■Supported projectors
PT-RZ970 / PT-RW930 / PT-RX110 / PT-RZ770 / PT-RW730 / PT-RZ660 / PT-RW620 /
PT-RZ670 / PT-RW630 / PT-DZ870 / PT-DW830 / PT-DX100 / PT-DZ780 / PT-DW750 / PT-DX820
Note
zThis manual omits the alphabets at the end of projector model numbers.
zModels other than the above may also be supported. Refer to the operating instructions of
the projector you are using.
■Supplied Accessories
Make sure that the following has been provided.
Part name Appearance (quantity)
Lens cover
1 each
(The product is
delivered with a lens
cap attached.)
Before replacing the projection lens
Return the projection lens to the home position before replacing or removing it.
For details on how to return the lens to the home position, refer to the operating
instructions of the projector.
Attention
zMake sure that the projector power supply is switched off before attaching or detaching the
projection lens.
zAfter removing the projection lens, store it safely away from vibration or impacts.
zDo not touch the electric contact points of the projection lens with your ngers. Dust and
dirt on the contacts may cause contact malfunctions.
zDo not touch the surface of the lens with bare hands. Finger prints and dirt on the surface
of the lens will be magnied by the lens and lower the quality of the projected image. Place
the supplied lens cover on the zoom lens when the projector is not in use.
zThe lens is made of glass. The lens could be damaged if brought into contact with or
rubbed against hard objects. Handle the lens carefully.
zUse a clean, soft and dry cloth to wipe away dust and dirt from the lens.
Do not use uffy cloths containing oil, water or dust for cleaning. The material in the lens is
easily damaged, so do not apply excessive pressure when wiping it.
Attaching the Lens / Detaching the Lens
Before Use

ENGLISH-5
Attaching the Lens
Attention
zBefore attaching the Projection Lens, remove the lens hole cover (only lens options
models) and the two lens covers attached to the Projection Lens.
Attaching the Lens / Detaching the Lens (continued)
1) Remove the Lens Mount
Cover, and align the projection
lens guide to the guide groove
of the projector and insert to
the end.
2) Turn the projection lens
clockwise until it clicks.
zTurn the projection lens
counterclockwise to conrm that it
does not come out.
(ii)
(i)
Guide groove
Guide
Projection lens
Fig. 1 Fig. 2 Fig. 3
Lens Mount Cover
(ii)
(i)
Guide groove
Guide
Projection lens
Fig. 1 Fig. 2 Fig. 3
Lens Mount Cover
(ii)
(i)
(i)
(ii)
(iii)
Fig. 1
Lens Mount Cover
Projection lens
Lens release button
Fig. 2

6-ENGLISH

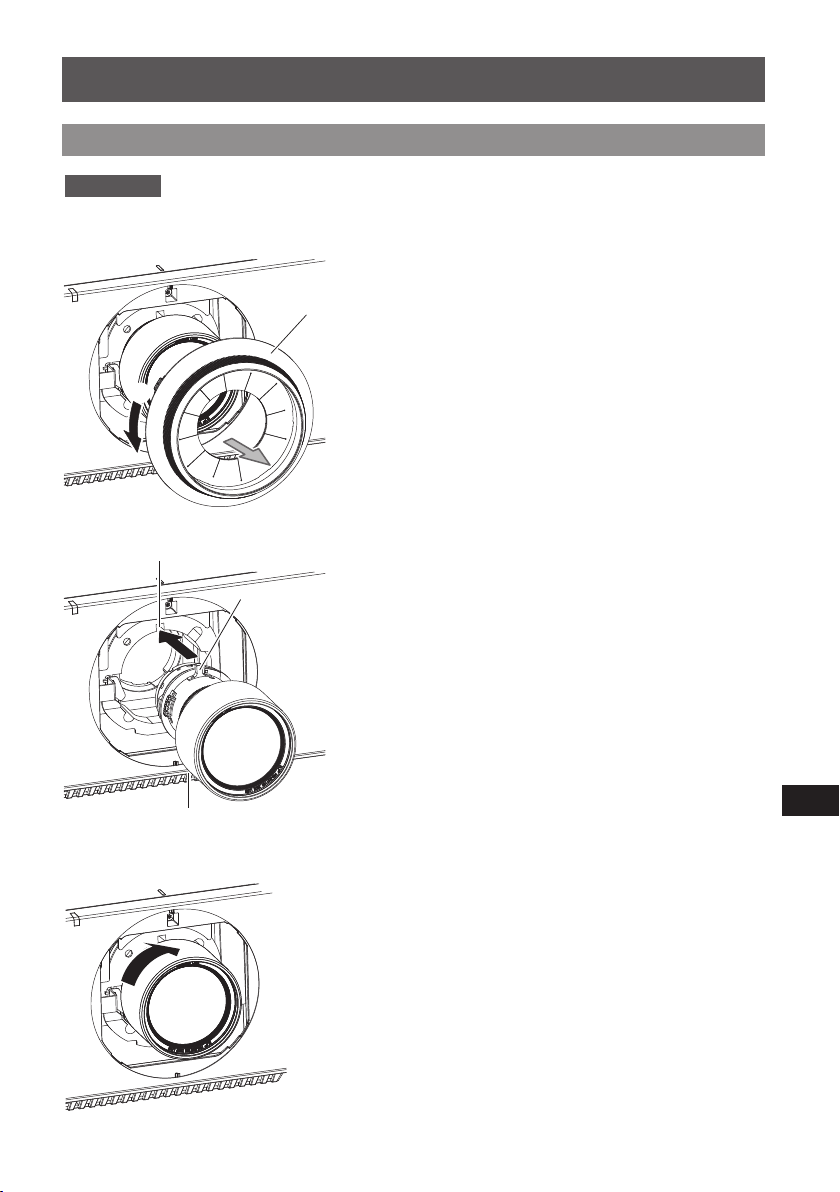

Detaching the Lens
Attaching the Lens / Detaching the Lens (continued)
1) Turn the Lens Mount Cover
counterclockwise and remove.
2) While pressing the
lens release button,
turn the projection lens
counterclockwise to the end
and remove.
Attention
zStore the removed projection lens where
it will be free from vibration and impact.
3) Attach the Lens Mount Cover.
zAlign the Lens Mount Cover and
the projector at the dashed line
positions in the gure to attach,
and turn the Lens Mount Cover
clockwise to x it to the projector.
(ii)
(i)
(i)
(ii)
(iii)
Fig. 1
Lens Mount Cover
Projection lens
Lens release button
Fig. 2
(ii)
(i)
(i)
(ii)
(iii)
Fig. 1
Lens Mount Cover
Projection lens
Lens release button
Fig. 2
(ii)
(i)
Guide groove
Guide
Projection lens
Fig. 1 Fig. 2 Fig. 3
Lens Mount Cover

ENGLISH-7

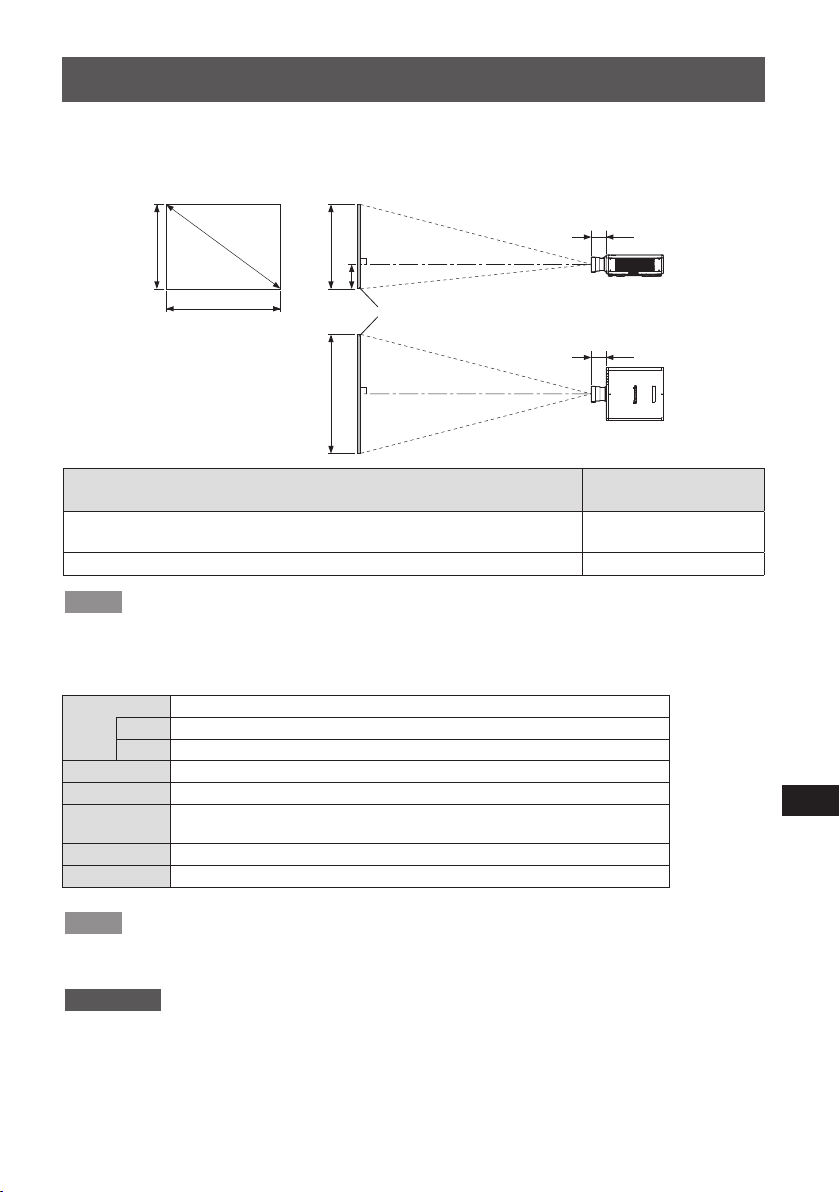

Projection relationships
The dimensional relationship between the screen and the projector is shown below.
■Dimensional relationship diagram
(Unit: m)
Projection lens Model No. Dimension for L1
(approximate value)
PT-RZ970 / PT-RW930 / PT-RX110 / PT-RZ770 / PT-RW730 / PT-RZ660 /
PT-RW620 / PT-RZ670 / PT-RW630 / PT-DZ870 / PT-DW830 / PT-DX100
0.043
PT-DZ780 / PT-DW750 / PT-DX820 0.023
Note
zThis diagram assumes that the size and position of the projected image will be adjusted so
that the image lls the entire screen.
zThis illustration is not drawn to scale.
L Projection distance
LW Minimum distance
LT Maximum distance
L1 Lens protrusion dimension
SH Image height
H Distance from the lens center to the lower edge of the projected
SW Image width
SD Projected image size
Note
zThe illustrations of projectors in this manual are for informational purposes only and do not
represent a specic projector model. Congurations may vary with the model.
Attention
zTo prevent blocking of the intake and exhaust vents, maintain clearances from walls and
objects of at least
1 000 mm (3'3") for the exhaust vent and at least 500 mm (1'8") for the intake vent.
zAvoid setting up in places which are subject to sudden temperature changes, such as near
an air conditioner or lighting equipment (studio lamps, etc.).
L1
L (LW/LT)
L (LW/LT)
SW SH
H
SH
SW
SD
L1
Projected image
Screen

8-ENGLISH
Projection relationships (continued)
■Dimensional relationship
For details on the projection distance (L), refer to “Projected image size and Projection
distance” and “Projection distance formulas” in the Appendix.
Note
zFor details on “Projected image size and Projection distance” for projector models other
than the following, refer to “Setting up” in the operating instructions of the projector.
PT-RZ970 / PT-RW930 / PT-RX110 / PT-RZ770 / PT-RW730 / PT-RZ660 / PT-RW620 /
PT-RZ670 / PT-RW630 / PT-DZ870 / PT-DW830 / PT-DX100 / PT-DZ780 / PT-DW750 / PT-DX820

ENGLISH-9

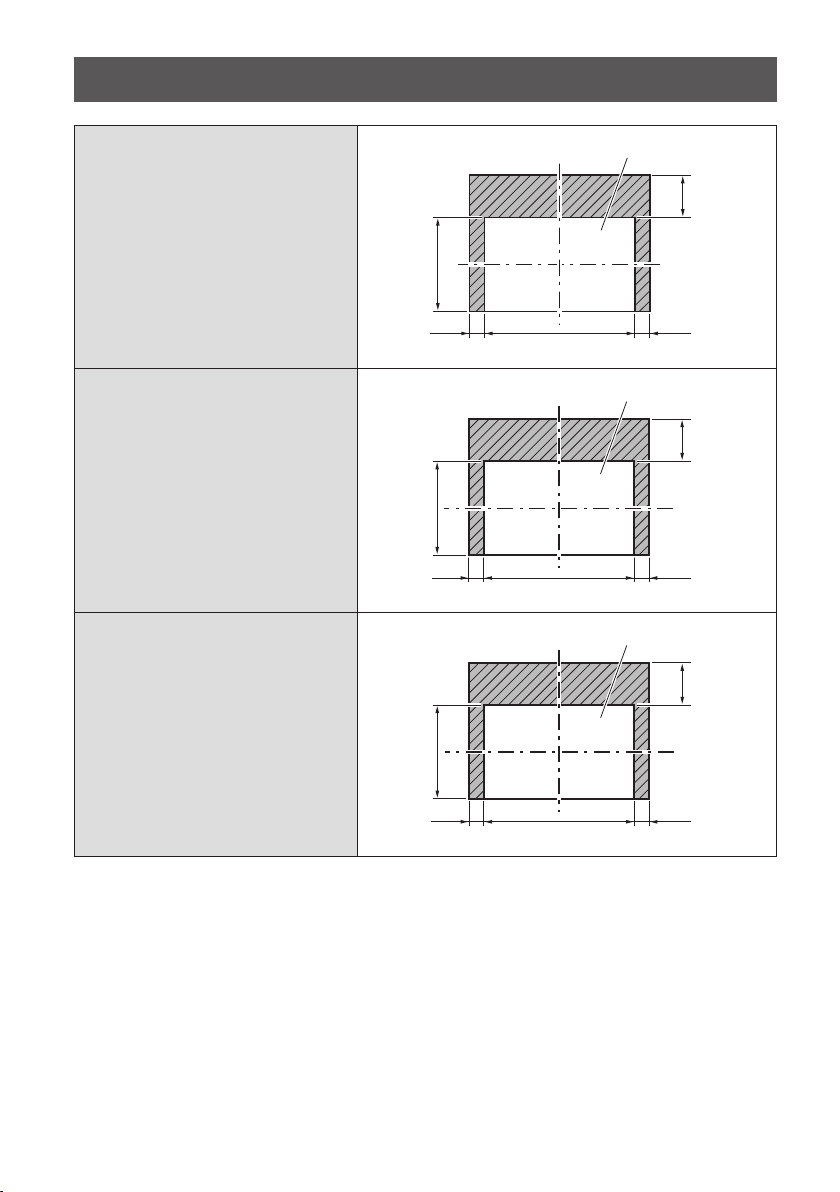

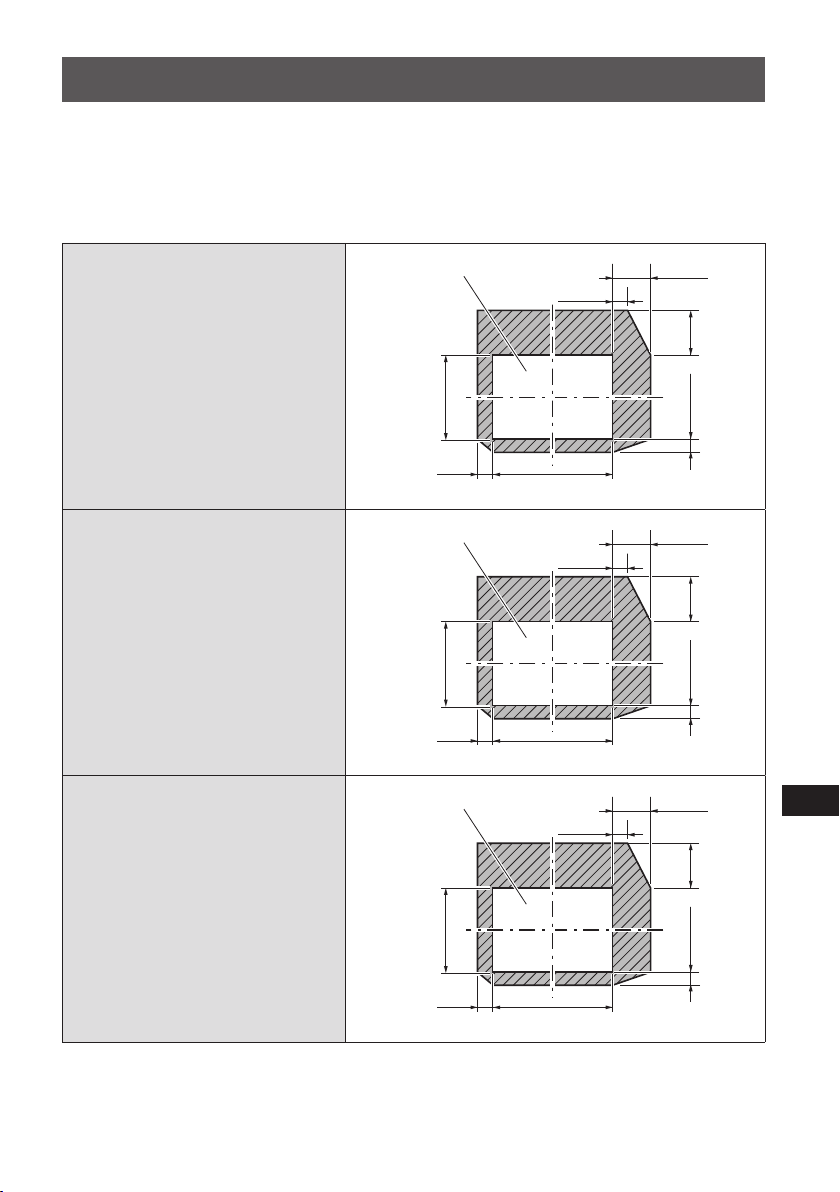

Perform the lens position shift within the adjustment range.
The focus may change when the lens position is shifted out of the adjustment range.
This is because the movement of the lens is restricted to protect the optical parts.
Projection position can be adjusted with the optical axis shift based on the home position
in the respective range.
PT-RZ970 / PT-RZ670 / PT-DZ780
Standard projection position
Projected image height V
Projected image width H
0.5 V0.16 V
0.1 H
0.3 H
0.1 H
PT-RW930 / PT-RW630 / PT-DW750
Standard projection position
Projected image height V
Projected image width H
0.6 V0.16 V
0.1 H
0.3 H
0.1 H
PT-RX110 / PT-DX820
Standard projection position
Projected image height V
Projected image width H
0.5 V0.13 V
0.1 H
0.3 H
0.1 H
Adjustment range by the lens position shift (optical shift)

10-ENGLISH
PT-DZ870
Standard projection position
Projection screen height V
Projection screen width H
0.5 V
0.1 H 0.1 H
PT-DW830
Standard projection position
Projection screen height V
Projection screen width H
0.1 H 0.1 H
0.6 V
PT-DX100
Standard projection position
Projection screen height V
Projection screen width H
0.1 H 0.1 H
0.5 V
Adjustment range by the lens position shift (optical shift) (continued)

ENGLISH-11
Dimensions
Specications
F value 1.7 - 1.9
Focal Length (f) 25.6 mm (1") - 35.7 mm (1-13/32")
Dimensions
Width 95 mm (3-3/4")
Height 95 mm (3-3/4")
Depth 166 mm (6-17/32")
Net Weight Approx. 0.9 kg (2 lb)
(Unit: mm)
φ95 (3-3/4")
166 (6-17/32")

12-ENGLISH
English
Manufactured by:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japan
Importer:
Panasonic Connect Europe GmbH
Authorized Representative in EU:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Germany
Importer for UK;
Panasonic Connect UK,
a branch of Panasonic Connect
Europe GmbH,
Maxis 2, Western Road, Bracknell,
Berkshire, RG12 1RT
Français
Fabriqué par:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japon
Importateur :
Panasonic Connect Europe GmbH
Représentant autorisé dans l’UE :
Panasonic Testing Centre
Winsbergring 15, 22525 Hambourg, Allemagne
Español
Fabricado por:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japón
Importador:
Panasonic Connect Europe GmbH
Representante Autorizado para la UE:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburgo, Alemania
Deutsch
Hergestellt von:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japan
Importeur:
Panasonic Connect Europe GmbH
Vertretungsberechtigter in der EU:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Deutschland
Italiano
Fabbricato da:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Giappone
Importatore:
Panasonic Connect Europe GmbH
Rappresentante autorizzato nell’UE:
Panasonic Testing Centre
Winsbergring 15, 22525 Amburgo, Germania
Български
Производител:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Япония
Вносител:
Panasonic Connect Europe GmbH
Упълномощен представител в ЕС:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Германия
Čeština
Vyrobil:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japonsko
Dovozce:
Panasonic Connect Europe GmbH
Oprávněný zástupce v EU:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburk, Německo
Dansk
Fremstillet af:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japan
Importør:
Panasonic Connect Europe GmbH
Autoriseret repræsentant i EU:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Tyskland

ENGLISH-13
Eesti
Tootja:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Jaapan
Maaletooja:
Panasonic Connect Europe GmbH
Volitatud esindaja ELis:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Saksamaa
Ελληνικά
Κατασκευάστηκε από:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Ιαπωνία
Εισαγωγέας:
Panasonic Connect Europe GmbH
Εξουσιοδοτημένος αντιπρόσωπος στην ΕΕ:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Γερμανία
Hrvatski
Proizvodi:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japan
Uvoznik:
Panasonic Connect Europe GmbH
Ovlašteni zastupnik u EU-u:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Njemačka
Latviešu
Ražotājs:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japāna
Importētājs:
Panasonic Connect Europe GmbH
Ociālais pārstāvis ES:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Vācija
Lietuvių
Gamintojas:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japonija
Importuotojas:
Panasonic Connect Europe GmbH
Įgaliotasis atstovas ES:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburgas, Vokietija
Magyar
Gyártotta:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japán
Importőr:
Panasonic Connect Europe GmbH
Hivatalos képviselő az EU-ban:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Németország
Nederlands
Geproduceerd door:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japan
Importeur:
Panasonic Connect Europe GmbH
Bevoegde vertegenwoordiger in de EU:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Duitsland
Norsk
Produsert av:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japan
Importør:
Panasonic Connect Europe GmbH
Autorisert representant i EU:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Tyskland

14-ENGLISH
Polski
Wyprodukowano przez:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japonia
Importer:
Panasonic Connect Europe GmbH
Upoważniony przedstawiciel w UE:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Niemcy
Português
Fabricado por:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japão
Importador:
Panasonic Connect Europe GmbH
Representante Autorizado na UE:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburgo, Alemanha
Română
Fabricat de:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japonia
Importator:
Panasonic Connect Europe GmbH
Reprezentant autorizat în UE:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Germania
Slovenčina
Výrobca:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japonsko
Dovozca:
Panasonic Connect Europe GmbH
Autorizovaný zástupca v EÚ:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Nemecko
Slovenščina
Proizvaja:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japonska
Uvoznik:
Panasonic Connect Europe GmbH
Pooblaščeni zastopnik v EU:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Nemčija
Türkçe
Tarafından Üretilmiştir:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japonya
İthalatçı:
Panasonic Connect Europe GmbH
AB Yetkili Temsilcisi:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Almanya
Suomi
Valmistaja:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japani
Maahantuoja:
Panasonic Connect Europe GmbH
Valtuutettu edustaja EU:ssa:
Panasonic Testing Centre
Winsbergring 15, 22525 Hampuri, Saksa
Svenska
Tillverkad av:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531,
Japan
Importör:
Panasonic Connect Europe GmbH
Auktoriserad representant i EU:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Tyskland

ENGLISH-15
MEMO

Panasonic Connect Co., Ltd.
Web Site : https://panasonic.net/cns/projector/
© Panasonic Connect Co., Ltd. 2022
HS0716AM2042 -PS
Printed in Japan
Disposal of Old Equipment
Only for European Union and countries with recycling systems
This symbol on the products, packaging, and/or accompanying documents means that
used electrical and electronic products must not be mixed with general household waste.
For proper treatment, recovery and recycling of old products, please take them to
applicable collection points in accordance with your national legislation.
By disposing of them correctly, you will help to save valuable resources and prevent any
potential negative effects on human health and the environment.
For more information about collection and recycling, please contact your local authority.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national
legislation.
Product Information (for Turkey only)
AEEE Yönetmeliğine Uygundur.
Eski Ekipman ve Bataryaların İşlenmesi.
Sadece geri dönüşüm sistemleri olan Avrupa Birliği ve ülkeleri için geçerlidir.
Ürünler, ambalaj ve/veya ekli belgeler üzerindeki bu semboller kullanılmış elektrik ve
elektronik ürünlerin genel ev atığı ile karıştırılmaması gerektiğini ifade eder.
Eski ürünlerin toplanması ve geri kazanılması için bu atıklar lütfen yasayla belirlenmiş olan
uygun toplama merkezlerine teslim ediniz.
Bu atıkların doğru işlenmesiyle, değerli kaynakların korunmasına ve insan sağlığı ve
çevreye olası negatif etkilerinin engellenmesine yardımcı olabilirsiniz.
Atıkların toplanması ve geri dönüşümü için detaylı bilgi için lütfen bağlı olduğunuz yerel
yönetimlerle iletişime geçiniz.
Atıkların atılmasıyla ilgili yanlış uygulamalar yasayla belirlenmiş olan cezalara sebebiyet
verebilir.
