Panasonic H-FS045200 - Lumix Telephoto Zoom Lens User manual

Operating Instructions
INTERCHANGEABLE LENS FOR DIGITAL CAMERA
Model No. H-FS045200
Before connecting, operating or adjusting this
product, please read the instructions completely.
For USA assistance, please call: 1-800-211-PANA(7262) or, contact us via the web at: http://www.panasonic.com/contactinfo
For Canadian assistance, please call: 1-800-99-LUMIX (1-800-995-8649) or
send e-mail to: [email protected]sonic.com

PP VQT1U88
until
2008/10/1
VQT1U88_ENG_Cover.fm 1 ページ ２００８年８月２９日 金曜日 午後１時３３分

2
VQT1U88
Contents
Information for Your Safety.....................................2
Precautions...........................................................5
Supplied Accessories .............................................6
Attaching/Detaching the Lens.................................6
Names and Functions of Components ...................8
Cautions for Use.....................................................9
Troubleshooting..................................................10
Specifications........................................................ 11
Limited Warranty................................................... 12
-If you see this symbol-
THE FOLLOWING APPLIES ONLY IN CANADA.
Information for Your Safety
Keep the unit as far away as possible from
electromagnetic equipment (such as microwave
ovens, TVs, video games, radio transmitters,
high-voltage lines etc.).
≥Do not use the camera near cell phones because
doing so may result in noise adversely affecting
the pictures and sound.
≥
If the camera is adversely affected by electromagnetic
equipment and stops functioning properly, turn the
camera off and remove the battery and/or the
connected AC adaptor. Then reinsert the battery and/
or reconnect the AC adaptor and turn the camera on.
The lens can be used with a digital camera
compatible with the lens mount standard for the
“Micro Four Thirds System”.
≥It cannot be mounted on the Four ThirdsTM mount
specification camera.
Information on Disposal in other Countries
outside the European Union
This symbol is only valid in the
European Union.
If you wish to discard this
product, please contact your
local authorities or dealer and
ask for the correct method of
disposal.
This Class B digital apparatus complies with
Canadian ICES-003.
VQT1U88_ENG_SPA.book 2 ページ ２００８年８月２７日 水曜日 午前１０時２０分

3
VQT1U88
≥The digital camera illustrations in these operating
instructions show DMC-G1 as an example.
≥The appearance and specifications of products
described in this manual may differ from the actual
products you have purchased due to later
enhancements.
≥Four ThirdsTM is a trademark.
≥Micro Four Thirds is a trademark.
≥Other names, company names, and product
names printed in these instructions are
trademarks or registered trademarks of the
companies concerned.
ENGLISH
VQT1U88_ENG_SPA.book 3 ページ ２００８年８月２７日 水曜日 午前１０時２０分

4
VQT1U88
THE FOLLOWING APPLIES ONLY IN THE U.S.A.
FCC Note:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
●Consult the dealer or an experienced radio/TV technician for help.
Any unauthorized changes or modifications to this equipment would void the user’s authority to operate this device.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Responsible Party:
Panasonic Corporation of North America
One Panasonic Way
Secaucus, NJ 07094
Support Contact:
Panasonic Consumer Electronics Company
Telephone No.: 1-800-211-PANA (7262)
VQT1U88_ENG_SPA.book 4 ページ ２００８年８月２７日 水曜日 午前１０時２０分

5
VQT1U88
∫Lens Care
≥Sand and dust can damage the lens. Make
sure that no sand or dust gets inside the lens
or the terminals when using the lens on a
beach, etc.
≥This lens is not waterproof. If drops of water
get onto the lens, wipe the lens with a dry
cloth.
≥Do not press the lens with excessive force.
≥When there is dirt (water, oil, and fingerprints, etc.)
on the surface of the lens, the picture may be
affected. Lightly wipe the surface of the lens with a
soft, dry cloth before and after taking pictures.
≥Do not place the lens mount facing downwards.
Do not allow the lens contact point 1to become
dirty.
∫About Condensation (Fogging of the
Lens)
≥Condensation occurs when there are differences
in temperature and humidity as described below.
Condensation can cause the lens to become dirty
and lead to mold and malfunctioning, so exercise
caution in the following situations:
–When the camera is brought indoors from outside
during cold weather
– When the camera is brought into an air-
conditioned car
–When cold air from an air conditioner is directly
blown onto the lens
– In humid places
≥Put the camera into a plastic bag to allow it to
acclimate to the surrounding temperature in order
to prevent condensation. If condensation occurs,
turn the power off andleave it for about two hours.
Once the camera acclimates to the surrounding
temperature the condensation will go away
naturally.
Precautions
VQT1U88_ENG_SPA.book 5 ページ ２００８年８月２７日 水曜日 午前１０時２０分

6
VQT1U88
Supplied Accessories
[Inspection to be performed when you unpack
the unit]
When removing the unit from its packing box, check
that the main unit and the supplied accessories are
there and also check their external appearance and
functions to verify that they have not sustained any
damage during distribution and transportation.
If you discover any trouble, contact your vendor
before using the product.

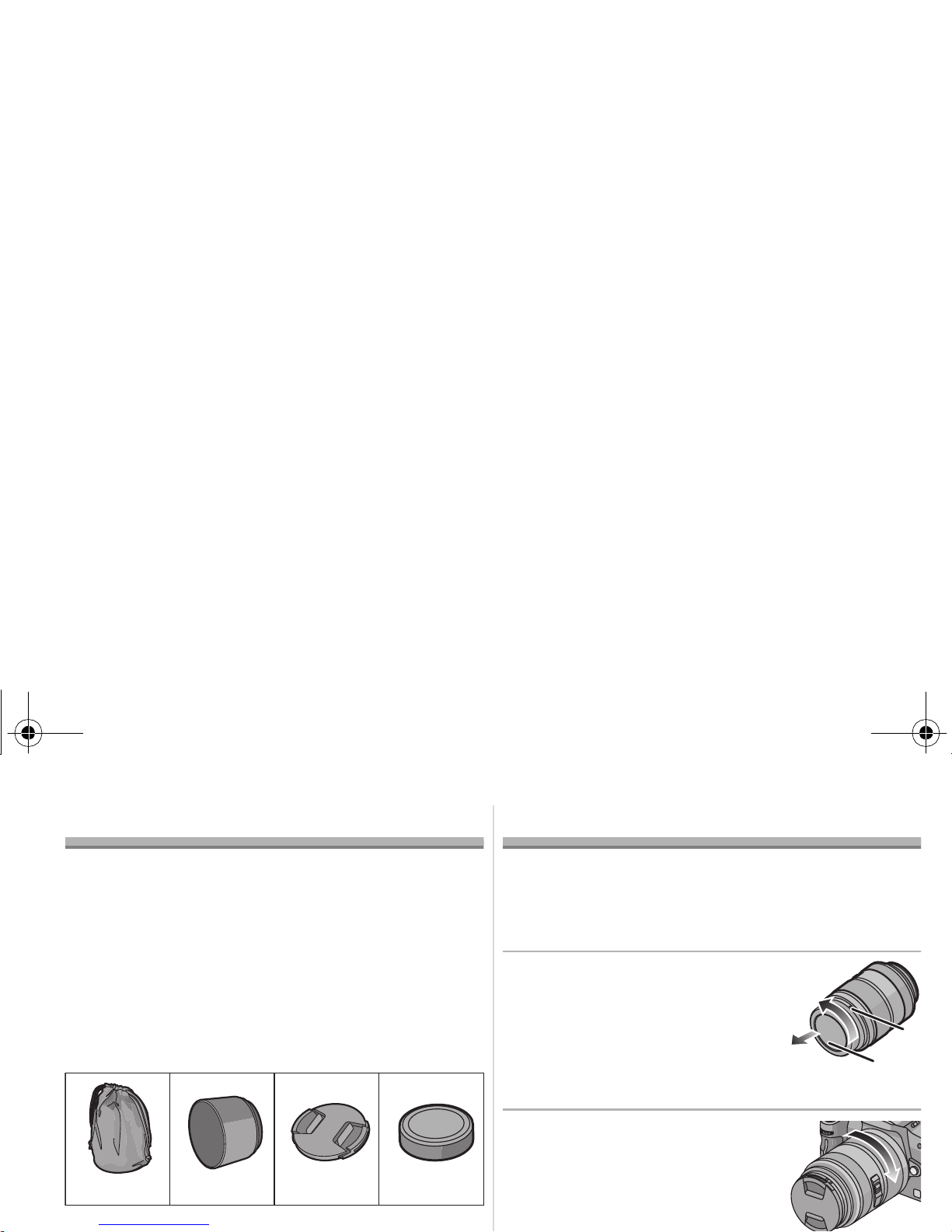

1Lens Storage Bag
2Lens Hood
3Lens Cap
4Lens Rear Cap
(The lens cap and lens rear cap are attached to
the interchangeable lens at the time of
purchase.)
Attaching/Detaching the Lens
≥Refer also to the camera’s operating instructions
for attaching and detaching the lens.
∫Attaching the Lens
≥Check that the camera is turned off.
1 Turn the lens rear
cap to detach it.
A: Lens Rear Cap
2 Align the lens fitting
marks B(red marks) on
the camera body and the
lens and then rotate the
lens in the direction of
the arrow until it clicks.
•Do not press the lens release
button when you attach a lens.
•Do not try to attach the lens when holding it atan
angle to the camera body as the lens mount may
get scratched.
•Check that the lens is attached correctly.
VFC4358 VYC0986 VYF3201 VFC4315
312 4





VQT1U88_ENG_Body.fm 6 ページ ２００８年８月２８日 木曜日 午前１０時４９分

7
VQT1U88
∫Detaching the Lens
≥Check that the camera is turned off.
Press the lens release
button Cwhile turning
the lens as far as
possible in the direction
of the arrow to detach it.
•Attach the lens rear cap so
that the lens contact point does not get
scratched.
•Attach the body cap to the camera so no dirt or
dust will get inside the main unit.

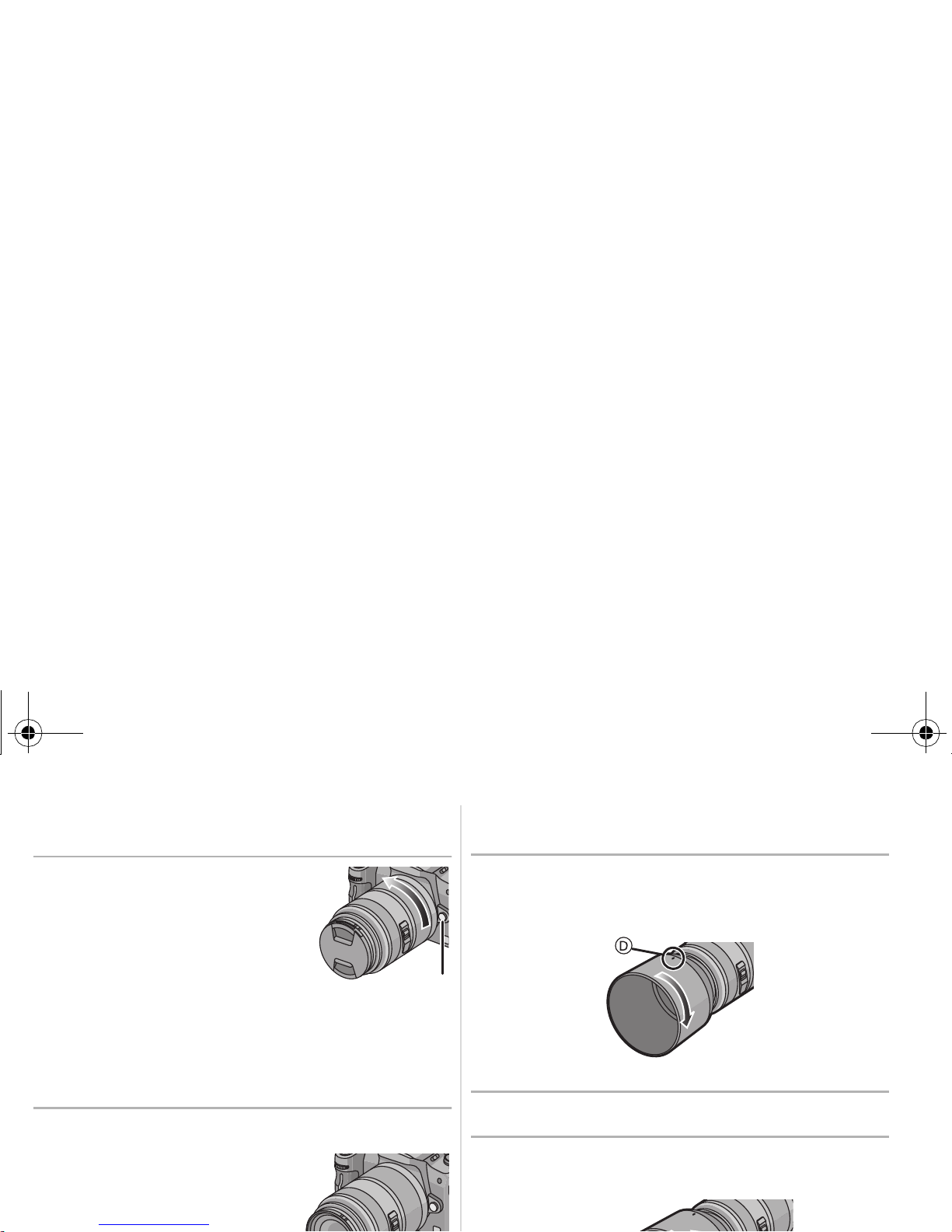

∫Attaching and Detaching the Lens Cap
≥Be careful not to lose
the lens cap.
∫Attaching the Lens Hood
(Supplied Accessory)
Insert the lens hood into the lens, and
turn in the direction of the arrow until it
stops.
D: Fit to the mark
∫Temporarily Storing the Lens Hood
1 Turn the lens hood in the direction of the
arrow to detach it.

VQT1U88_ENG_Body.fm 7 ページ ２００８年８月２８日 木曜日 午前１０時４９分

8
VQT1U88
2Reverse the lens hood and then attach it
in the same way as shown previously.
•When taking pictures with
the flash with the lens hood
attached, the lower portion
of the screen may turn dark
(vignetting effect) and the
control of the flash may be
disabled because the photo
flash may be obscured by the lens hood. We
recommend detaching the lens hood.
•When using the AF assist lamp in the dark,
detach the lens hood.
∫Attaching Filters
≥Edges of pictures may be cut off if more than one
PL filter (optional) or MC protector (optional) is
used or if thick filters and/or protectors are used.
Names and Functions of
Components
∫Lens
1Lens surface
2Focus ring
Rotate to focus when taking pictures with manual
focus.
234 56
1
VQT1U88_ENG_Body.fm 8 ページ ２００８年８月２８日 木曜日 午後６時１８分

9
VQT1U88
3[O.I.S.] switch
When the lens is attached to the camera the
stabilizer function is set to activate if the [O.I.S.]
switch is set to [ON].
≥We recommend setting the [O.I.S.] switch to [OFF]
when using a tripod.
≥The stabilizer function may not be effective in the
following cases.
–When there is a lot of jitter.
– When the zoom magnification is high.
– When using the digital zoom.
–When taking pictures while following a moving
subject.
–When the shutter speed becomes slower to take
pictures indoors or in dark places.
4Zoom ring
Rotate the zoom ring when you wish to take large
(tele) or wide (wide angle) pictures. (35 mm film
camera equivalent: 90 mm to 400 mm)
5Contact point
6Lens fitting mark
Cautions for Use
∫About the Lens
Take care not to drop or knock the lens. Also
take care not to put a lot of pressure on the lens.
≥
Take care not to drop the bag that you inserted the
lens in as it may damage the lens. The cameramay
stop operating normally and pictures may no longer
be recorded.
When using pesticides and other volatile
substances around the camera make sure that
they do not get onto the lens.
≥
If such substances get onto the lens they can
damage the exterior case or cause the paint to peel.
Do not carry the unit when it is still attached to
the camera body.
≥
Under no circumstances should the unit be stored
in any of the following locations since doing so may
cause problems in operation or malfunctioning.
–In direct sunlight or on a beach in summer
– In locations with high temperatures and humidity
levels or where the changes in temperature and
humidity are acute
– In locations with high concentrations of sand,
dust or dirt
– Where there is fire
VQT1U88_ENG_SPA.book 9 ページ ２００８年８月２７日 水曜日 午前１０時２０分

10
VQT1U88
– Near heaters, air conditioners or humidifiers
–Where water may make the unit wet
– Where there is vibration
– Inside a vehicle
≥Refer also to the operating instructions of the
digital camera.
≥When the unit is not going to be used for a
prolonged period, mold and other problems may
cause performance failure. It is recommended that
you check the unit’s operation prior to use.
≥Do not leave the lens in contact with rubber or
plastic products for extended periods of time.
≥Do not touch the lens contact point. Doing so can
cause failure of the unit.
≥Do not disassemble or alter the unit. If the internal
parts require inspection or repair, take the unit to
the vendor.
Do not use benzine, thinner, alcohol or other
similar cleaning agents to clean the lens glass or
exterior cabinet.
≥Using solvents can damage the lens or cause the
paint to peel.
≥Wipe off any dust or fingerprints with a soft, dry
cloth.
≥Use a dry, dust cloth to remove dirt and dust on
the zoom ring and the focus ring.
≥Do not use a household detergent or a chemically
treated cloth.
A sound is heard when the camera is turned on
or off.
≥This is the sound of lens or aperture movement
and is not a malfunction.
Troubleshooting
VQT1U88_ENG_Body.fm 10 ページ ２００８年８月２８日 木曜日 午前９時４９分

11
VQT1U88
Specifications
INTERCHANGEABLE LENS FOR DIGITAL CAMERA
“LUMIX G VARIO 45–200 mm/F4.0–5.6/MEGA O.I.S.”
Focal length f=45 mm to 200 mm
(35 mm film camera equivalent: 90 mm to 400 mm)
Aperture type 7 leaf shutters/iris diaphragm/circular diaphragm
Aperture range F4.0 (Wide) to F5.6 (Tele)
Minimum aperture value F22
Lens construction 16 elements in 13 groups (no aspherical lenses)
In focus distance 1.0 m (3.28 feet) to ¶ (from the focus distance reference line)
Maximum image magnification 0.19k(35 mm film camera equivalent: 0.38k)
Optical image stabilizer Available
Mount “Micro Four Thirds Mount”
Angle of view 27x(Wide) to 6.2x(Tele)
Filter diameter 52 mm (2.05 inch)
Max. diameter 70 mm (2.76 inch)
Overall length Approx. 100 mm (3.94 inch)
(from the tip of the lens to the base side of the lens mount)
Mass (Weight) Approx. 380 g (13.4 oz)
VQT1U88_ENG_SPA.book 11 ページ ２００８年８月２７日 水曜日 午前１０時２０分

12
VQT1U88
Limited Warranty
Limited Warranty Coverage
If your product does not work properly because of a defect in materials or workmanship, Panasonic
Consumer Electronics Company or Panasonic Puerto Rico, Inc. (collectively referred to as “the warrantor”)
will, for the length of the period indicated on the chart below, which starts with the date of original purchase
(“warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace it
with a new or a refurbished product. The decision to repair or replace will be made by the warrantor.
You must Mail-In your product during the warranty period. This warranty only applies to products purchased
and serviced in the United States or Puerto Rico. This warranty is extended only to the original purchaser of
a new product which was not sold “as is”.
Mail-In Service
For assistance in obtaining service in the United States please contact:
Panasonic Camera and Digital Service Center
1590 Touhy Ave.
Elk Grove Village, IL 60007
FOR U.S.A.
PANASONIC CONSUMER ELECTRONICS
COMPANY, DIVISION OF PANASONIC
CORPORATION OF NORTH AMERICA
One Panasonic Way, Secaucus, New Jersey 07094
PANASONIC PUERTO RICO, INC.
Ave. 65 de infantería, Km. 9.5,
San Gabriel Industrial Park,
Carolina, Puerto Rico 00985
Digital Still Camera ACCESSORIES LIMITED WARRANTY
PRODUCT OR PART NAME PARTS LABOR
Interchangeable Lens for Digital Camera 1 (ONE) YEAR 1 (ONE) YEAR
VQT1U88_ENG_Body.fm 12 ページ ２００８年８月２８日 木曜日 午前９時５１分

13
VQT1U88
If repair is needed during the warranty period the purchaser will be required to furnish a sales receipt/proof
of purchase indicating date of purchase.
Also, purchaser will be responsible for shipping the unit to the above address.
For assistance in Puerto Rico call Panasonic Puerto Rico, Inc. (787)-750-4300 or fax [phone].
Limited Warranty Limits And Exclusions
This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER
normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which
occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures
which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty
installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line
surge, lightning damage, modification, or commercial use (such as in a hotel, office, restaurant, or other
business), rental use of the product, service by anyone other than a Factory Service Center or other
Authorized Servicer, or damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY
COVERAGE”. THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF
THIS WARRANTY.
(As examples, this excludes damages for lost time, travel to and from the servicer, or loss of, or fail-
ure to obtain, images, data or other camera memory content. The items listed are not exclusive, but
are for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY
OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations
on how long an implied warranty lasts, so the exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have others rights which vary from state to
state. If a problem with this product develops during or after the warranty period, you may contact your
dealer or Service Center. If the problem is not handled to your satisfaction, then write to the warrantor’s
Consumer Affairs Department at the addresses listed for the warrantor.
PARTS AND SERVICE WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY ARE YOUR
RESPONSIBILITY.
VQT1U88_ENG_SPA.book 13 ページ ２００８年８月２７日 水曜日 午前１０時２０分

14
VQT1U88
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
PANASONIC PRODUCT – LIMITED WARRANTY
Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship and
agrees to remedy any such defect for a period as stated below from the date of original purchase.
LIMITATIONS AND EXCLUSIONS
This warranty does not apply to products purchased outside Canada or to any product which has been
improperly installed, subjected to usage for which the product was not designed, misused or abused,
damaged during shipping, or which has been altered or repaired in any way that affects the reliability or
detracts from the performance, nor does it cover any product which is used commercially. Dry cell batteries,
printer ink cartridge and paper are also excluded from coverage under this warranty.
This warranty is extended to the original end user purchaser only. A purchase receipt or other proof of date
of original purchase is required before warranty service is performed.
THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE.
FOR CANADA
Digital Camera One (1) year, parts and labour
Digital Photo Peripherals One (1) year, parts and labour
Digital Camera Accessories Ninety (90) days, parts and labour
VQT1U88_ENG_SPA.book 14 ページ ２００８年８月２７日 水曜日 午前１０時２０分

15
VQT1U88
IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR
CONSEQUENTIAL DAMAGES.
In certain instances, some jurisdictionsdonot allow the exclusion or limitation of incidentalor consequential
damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be
applicable.
WARRANTY SERVICE/PRODUCT REPAIRS
For product operation repairs and information assistance, please contact:
Our Customer Care Centre:1-800 #: 1-800-99-LUMIX (1-800-995-8649)
Fax #: [phone]
Lumix Email link: [e-mail]
Email link: “Customer support” on www.panasonic.ca
VQT1U88_ENG_SPA.book 15 ページ ２００８年８月２７日 水曜日 午前１０時２０分

16
VQT1U88
Indice
Información para su seguridad ............................. 17
Prevención contra las averías ............................ 19
Accesorios suministrados..................................... 20
Unir y quitar el objetivo ......................................... 20
Nombres y funciones de los componentes........... 22
Precauciones para el uso ..................................... 23
Búsqueda de averías.......................................... 24
Especificaciones................................................... 25
-Si ve este símbolo-
Información sobre la eliminación en otros
países no pertenecientes a la Unión Europea
Este símbolo sólo es válido en
la Unión Europea.
Si desea desechar este
producto, póngase en
contacto con las autoridades
locales o con su distribuidor
para que le informen sobre el
método correcto de
eliminación.
VQT1U88_ENG_SPA.book 16 ページ ２００８年８月２７日 水曜日 午前１０時２０分

17
VQT1U88
LO SIGUIENTE SÓLO INTERESA A CANADÁ.
Información para su
seguridad
Mantenga la unidad lo más lejos que sea posible
de equipos electromagnéticos (como hornos de
microondas, televisores, vídeo juegos,
trasmisores radio, líneas de alto voltaje, etc.).
≥No utilice la cámara cerca de teléfonos móviles,
ya que lo de hacerlo puede producir ruido que
afectará negativamente a las imágenes y el
sonido.
≥Si la cámara queda afectada negativamente por
un equipo electromagnético y deja de funcionar
correctamente, apague la cámara y quite la
batería y/o el adaptador de CA conectado. Luego
vuelva a insertar la batería y/o vuelva a conectar
el adaptador de CA y encienda la cámara.
El objetivo puede usarse con una cámara digital
compatible con el estándar de montaje de objetivos
del “Micro Four Thirds System”.
≥No se puede montar en una cámara con estándar
de soporte Four ThirdsTM.
≥Las figuras de la cámara digital en estas
instrucciones de funcionamiento muestran la
DMC-G1 en concepto de ejemplo.
≥E aspecto y las especificaciones de los productos
descritos en este manual pueden diferir de los
productos reales que usted ha comprado debido a
aumentos sucesivos.
≥Four ThirdsTM es una marca de fábrica.
≥Micro Four Thirds es una marca de fábrica.
≥Los demás nombres, nombres de sociedades y
nombres de productos citados en estas
instrucciones son marcas de fábrica o marcas
registradas.
Este aparato digital de la clase B cumple con
ICES-003 canadiense.
ESPAÑOL
VQT1U88_ENG_SPA.book 17 ページ ２００８年８月２７日 水曜日 午前１０時２０分

18
VQT1U88
LO SIGUIENTE SÓLO SE APLICA EN LOS EE. UU.
Notas FCC:
Se ensayó este equipo y se comprobó que está de conformidad con los límites de un dispositivo digital de la clase B,
de acuerdo con la Parte 15 de las Reglas FCC.
Estos límites se han ideado para proporcionar una razonable protección contra las interferencias dañinas en una
instalación residencial. Este equipo genera, utiliza y puede radiar energía de frecuencia radio y, por si no se instala y
se utiliza de acuerdo con las instrucciones, puede ocasionar interferencia dañina a las comunicaciones radio. Aunque
no hay garantía de que no pueda tener lugar interferencia en especiales instalaciones. Si este equipo causa
interferencia a la recepción de radio o televisión que pueden determinarse apagando y encendiendo el equipo, se
anima al usuario intentar corregir la interferencia tomando una de las medidas a continuación:
●Vuelva a orientar o a colocar la antena receptora.
●Aumente la separación entre el equipo y el receptor.
●Conecte el equipo a una toma de un circuito diferente del que está conectado el receptor.
●Llame al concesionario o un técnico experto de radio y televisión para ayuda.
Todo cambio o modificación a este equipo sin autorizar invalidará el título del usuario para hacer funcionar este
dispositivo.
Este dispositivo cumple con la Parte 15 de las Reglas FCC. El funcionamiento está sujeto a las dos condiciones a
continuación: (1) Este dispositivo podría no causar interferencia dañina y (2) este dispositivo tiene que aceptar toda la
interferencia recibida, incluyendo la que puede causar un funcionamiento no deseado.
Parte responsable:
Panasonic Corporation of North America
One Panasonic Way
Secaucus, NJ 07094
Contacto de asistencia:
Panasonic Consumer Electronics Company
Teléfono: 1-800-211-PANA (7262)
VQT1U88_SPA_Body.fm 18 ページ ２００８年８月２８日 木曜日 午前９時５２分

19
VQT1U88
∫Atención del objetivo
≥La arena y el polvo pueden dañar el objetivo.
Cuando usa el objetivo en una playa, tenga
cuidado de que ni arena ni polvo entren en el
interior del objetivo o los terminales, etc.
≥Este objetivo no es impermeable. Si caen
gotas de agua en el objetivo, límpielo con un
paño seco.
≥No ejerce demasiada presión en el objetivo.
≥Cuando hay suciedad (agua, aceite, huellas
dactilares, etc.) en la superficie del objetivo, la
imagen puede salir afectada. Limpie ligeramente
con un paño blando y seco antes y después de
tomar las imágenes.
≥No meta el soporte del objetivo mirando hacia
abajo. No deje que se ensucien los punto de
contacto 1.
∫Acerca de la condensación
(Empañamiento del objetivo)
≥La condensación ocurre cuando se encuentra una
diferencia en la temperatura y humedad como se
describe abajo. La condensación puede hacer
ensuciar el objetivo y producir hongos y un
funcionamiento defectuoso, por lo tanto ponga
cuidado en las situaciones a continuación:
– Cuando lleva la cámara en casa desde el aire
libre durante un tiempo frío
– Cuando lleva la cámara dentro de un coche con
aire acondicionado
– Cuando sopla en el objetivo aire frío desde un
acondicionador de aire
–En lugares húmedos
≥Para impedir la condensación, meta la cámara en
una bolsa de plástico para que se aclimate a la
temperatura ambiente. Si ocurre condensación,
apague la alimentación y la deje así durante dos
horas. Una vez de que la cámara se haya
aclimatado a la temperatura ambiente en
empañamiento desaparece naturalmente.
Prevención contra las averías
VQT1U88_ENG_SPA.book 19 ページ ２００８年８月２７日 水曜日 午前１０時２０分

20
VQT1U88
Accesorios suministrados
[Controles a realizar cuando va a desembalar la
unidad]
Al quitar la unidad de su embalaje, compruebe que
se encuentren la unidad principal y los accesorios
suministrados. Además compruebe el aspecto
externo y las funciones para verificar que no hayan
padecidos daños durante la distribución y el
transporte.
Por si encuentra un cualquier problema, antes de
usar el producto llame a su comerciante.
1Bolsa de almacenamiento del objetivo
2Visera del objetivo
3Tapa del objetivo
4Tapa trasera del objetivo
(Al momento de la compra la tapa del objetivo y
la tapa trasera del mismo están unidas al
objetivo intercambiable.)
Unir y quitar el objetivo
≥Se refiera también a las instrucciones de
funcionamiento de la cámara para unir y separar
el objetivo.
∫Unión del objetivo
≥Compruebe que la cámara esté apagada.
1 Gire la tapa trasera del
objetivo para separarla
.
A: Tapa trasera del objetivo
2 Alinee las marcas para
ajustar el objetivo
B
(marcas rojas) ubicadas en
el cuerpo de la cámara y el
mismo objetivo, luego gire
éste en la dirección de la
flecha hasta que dispare.
•No pulse el botón de desenganche del objetivo
cuando va a unir un objetivo.
•Como el soporte del objetivo podría salir rayado,
no trate de unir el objetivo a la cámara
manteniéndolo de ángulo.
•Compruebe que el objetivo esté unido
correctamente.
VFC4358VYC0986 VYF3201 VFC4315
312 4





VQT1U88_SPA_Body.fm 20 ページ ２００８年８月２９日 金曜日 午後６時１２分
