Information for Your Safety
Keep the unit as far away as possible from
electromagnetic equipment (such as microwave
ovens, TVs, video games, radio transmitters,
high-voltage lines etc.).
≥Do not use the camera near cell phones because
doing so may result in noise adversely affecting
the pictures and sound.
≥If the camera is adversely affected by
electromagnetic equipment and stops functioning
properly, turn the camera off and remove the
battery and/or the connected AC adaptor. Then
reinsert the battery and/or reconnect the AC
adaptor and turn the camera on.
The lens can be used with a digital camera
compatible with the lens mount standard for the
“Micro Four Thirds System”.
≥It cannot be mounted on the Four ThirdsTM mount
specification camera.
≥The digital camera illustrations in these operating
instructions show DMC-G1 as an example.
≥The appearance and specifications of products
described in this manual may differ from the actual
products you have purchased due to later
enhancements.
≥Four ThirdsTM is a trademark.
≥Micro Four Thirds is a trademark.
≥Other names, company names, and product
names printed in these instructions are
trademarks or registered trademarks of the
companies concerned.
VQT2B42_E.book 2 ページ ２００９年３月２４日 火曜日 午前１０時５１分

3
VQT2B42
-If you see this symbol-
Information on Disposal for Users of Waste Electrical & Electronic Equipment (private
households)
This symbol on the products and/or accompanying documents means that used
electrical and electronic products should not be mixed with general household waste.
For proper treatment, recovery and recycling, please take these products to
designated collection points, where they will be accepted on a free of charge basis.
Alternatively, in some countries you may be able to return your products to your local
retailer upon the purchase of an equivalent new product.
Disposing of this product correctly will help to save valuable resources and prevent
any potential negative effects on human health and the environment which could
otherwise arise from inappropriate waste handling. Please contact your local authority
for further details of your nearest designated collection point.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for
further information.
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask for the correct
method of disposal.
ENGLISH
VQT2B42_E.book 3 ページ ２００９年３月２４日 火曜日 午前１０時５１分

4
VQT2B42
∫Lens Care
≥Sand and dust can damage the lens. Make
sure that no sand or dust gets inside the lens
or the terminals when using the lens on a
beach, etc.
≥This lens is not waterproof. If drops of water
get onto the lens, wipe the lens with a dry
cloth.
≥Do not press the lens with excessive force.
≥When there is dirt (water, oil, and fingerprints, etc.)
on the surface of the lens, the picture may be
affected. Lightly wipe the surface of the lens with a
soft, dry cloth before and after taking pictures.
≥Do not place the lens mount facing downwards.
Do not allow the lens contact point 1to become
dirty.
∫About Condensation (Fogging of the
Lens)
≥Condensation occurs when there are differences
in temperature and humidity as described below.
Condensation can cause the lens to become dirty
and lead to mold and malfunctioning, so exercise
caution in the following situations:
– When the camera is brought indoors from outside
during cold weather
– When the camera is brought into an air-
conditioned car
– When cold air from an air conditioner is directly
blown onto the lens
– In humid places
≥Put the camera into a plastic bag to allow it to
acclimatise to the surrounding temperature in
order to prevent condensation. If condensation
occurs, turn the power off and leave it for about
two hours. Once the camera acclimatises to the
surrounding temperature the condensation will go
away naturally.
Precautions
VQT2B42_E.book 4 ページ ２００９年３月２４日 火曜日 午前１０時５１分

5
VQT2B42

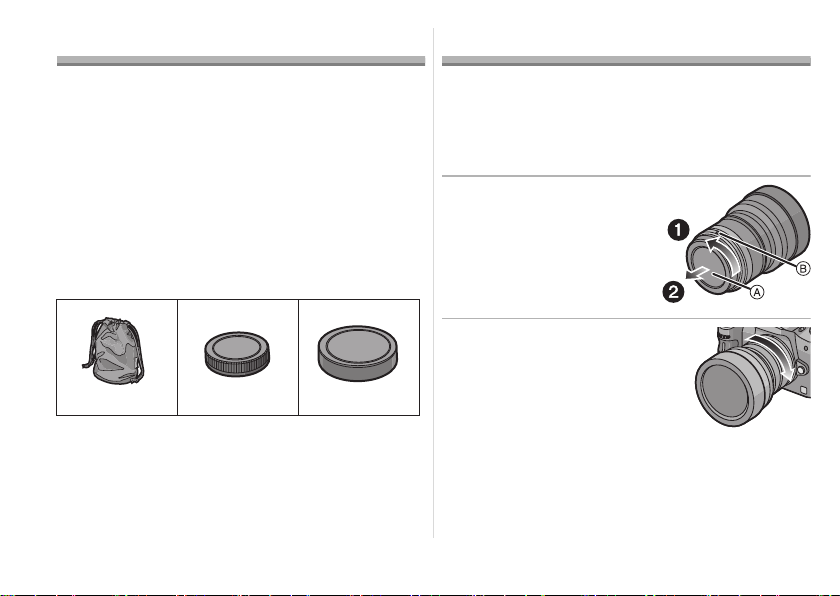

Supplied Accessories
[Inspection to be performed when you unpack
the unit]
When removing the unit from its packing box, check
that the main unit and the supplied accessories are
there and also check their external appearance and
functions to verify that they have not sustained any
damage during distribution and transportation.
If you discover any trouble, contact your vendor
before using the product.
1Lens Storage Bag
2Lens Rear Cap
(The lens rear cap and lens hood cover are
attached to the interchangeable lens at the time
of purchase.)
3Lens Hood Cover
Attaching/Detaching the Lens
≥Refer also to the camera’s operating instructions
for attaching and detaching the lens.
∫Attaching the Lens
≥Check that the camera is turned off.
1 Turn the lens rear cap
to detach it.
A: Lens Rear Cap
2Align the lens fitting
marks B(red marks) on
the camera body and the
lens and then rotate the
lens in the direction of
the arrow until it clicks.
• Do not press the lens release
button when you attach a lens.
• Do not try to attach the lens when holding it at an
angle to the camera body as the lens mount may
get scratched.
• Check that the lens is attached correctly.
VFC4430 VFC4315 VFC4412
312
VQT2B42_E.book 5 ページ ２００９年３月２４日 火曜日 午前１０時５１分

6
VQT2B42
∫Detaching the Lens
≥Check that the camera is turned off.
Press the lens release button Cwhile
turning the lens as far as possible in the
direction of the arrow to detach it.
• Attach the lens rear cap so
that the lens contact point
does not get scratched.
• Attach the body cap to the
camera so no dirt or dust will
get inside the main unit.
∫Attaching and Detaching the Lens Hood
Cover
≥Be careful not to lose
the lens hood cover.
VQT2B42_E.book 6 ページ ２００９年３月２４日 火曜日 午前１０時５１分

7
VQT2B42
Names and Functions of
Components
∫Lens
1Lens surface
2Lens hood
3Focus ring
Rotate to focus when taking pictures with
manual focus.
4Zoom ring
Rotate the zoom ring when you wish to take
large (tele) or wide (wide angle) pictures.
(35 mm film camera equivalent: 14 mm to
28 mm)
5Contact point
6Lens fitting mark
Note
• This lens’s is capable of a very wide field of view.
When using this lens with flash photography
peripheral areas of the photo may be slightly
darker if the flash is unable to illuminate the entire
area being photographed. This is normal; this is not
a malfunction.
14
3
5
2
6
VQT2B42_E.book 7 ページ ２００９年９月１０日 木曜日 午前１１時４７分

8
VQT2B42
Cautions for Use
∫About the Lens
Take care not to drop or knock the lens. Also
take care not to put a lot of pressure on the lens.
≥Take care not to drop the bag that you inserted the
lens in as it may strongly shock the lens. The
camera may stop operating normally and pictures
may no longer be recorded. Also, the lens may be
damaged.
When using pesticides and other volatile
substances around the camera make sure that
they do not get onto the lens.
≥If such substances get onto the lens they can
damage the exterior case or cause the paint to
peel.
Do not carry the unit when it is still attached to
the camera body.
≥Under no circumstances should the unit be stored
in any of the following locations since doing so
may cause problems in operation or
malfunctioning.
– In direct sunlight or on a beach in summer
– In locations with high temperatures and humidity
levels or where the changes in temperature and
humidity are acute
– In locations with high concentrations of sand,
dust or dirt
– Where there is fire
– Near heaters, air conditioners or humidifiers
– Where water may make the unit wet
– Where there is vibration
– Inside a vehicle
≥Refer also to the operating instructions of the
digital camera.
≥When the unit is not going to be used for a
prolonged period, we recommend storing with a
desiccant (silica gel). Failure to do so may result in
performance failure caused by mold, etc. It is
recommended that you check the unit’s operation
prior to use.
≥
Do not leave the lens in contact with rubber or
plastic products for extended periods of time.
≥Do not touch the lens contact point. Doing so can
cause failure of the unit.
≥Do not disassemble or alter the unit. If the internal
parts require inspection or repair, take the unit to
the vendor.
VQT2B42_E.book 8 ページ ２００９年３月２４日 火曜日 午前１０時５１分

9
VQT2B42
Do not use benzine, thinner, alcohol or other
similar cleaning agents to clean the lens glass or
exterior cabinet.
≥Using solvents can damage the lens or cause the
paint to peel.
≥Wipe off any dust or fingerprints with a soft, dry
cloth.
≥Use a dry, dust cloth to remove dirt and dust on
the zoom ring and focus ring.
≥Do not use a household detergent or a chemically
treated cloth.
A sound is heard when the camera is turned on
or off.
≥This is the sound of lens or aperture movement
and is not a malfunction.
Troubleshooting
VQT2B42_E.book 9 ページ ２００９年３月２４日 火曜日 午前１０時５１分

10
VQT2B42
Specifications
INTERCHANGEABLE LENS FOR DIGITAL CAMERA
“LUMIX G VARIO 7–14 mm/F4.0 ASPH.”
Focal length f=7 mm to 14 mm
(35 mm film camera equivalent: 14 mm to 28 mm)
Aperture type 7 leaf shutters/iris diaphragm/circular diaphragm
Aperture range F4.0
Minimum aperture value F22
Lens construction 16 elements in 12 groups (2 aspherical lenses, 4 ED lenses)
In focus distance 0.25 m to ¶ (from the focus distance reference line)
Maximum image magnification 0.08k(35 mm film camera equivalent: 0.15k)
Optical image stabilizer Not available
Mount “Micro Four Thirds Mount”
Angle of view 114x(Wide) to 75x(Tele)
Filter diameter Filter non-compatible
Max. diameter 70 mm (lens hood section)
Overall length Approx. 83.1 mm
(from the tip of the lens hood to the base side of the lens mount)
Mass Approx. 300 g
