Panasonic CQ-VX220W User manual

Installation Instructions
PRE OUT REAR
PRE OUT FRONT
AV2 IN
CAMERA IN
VIDEO OUT

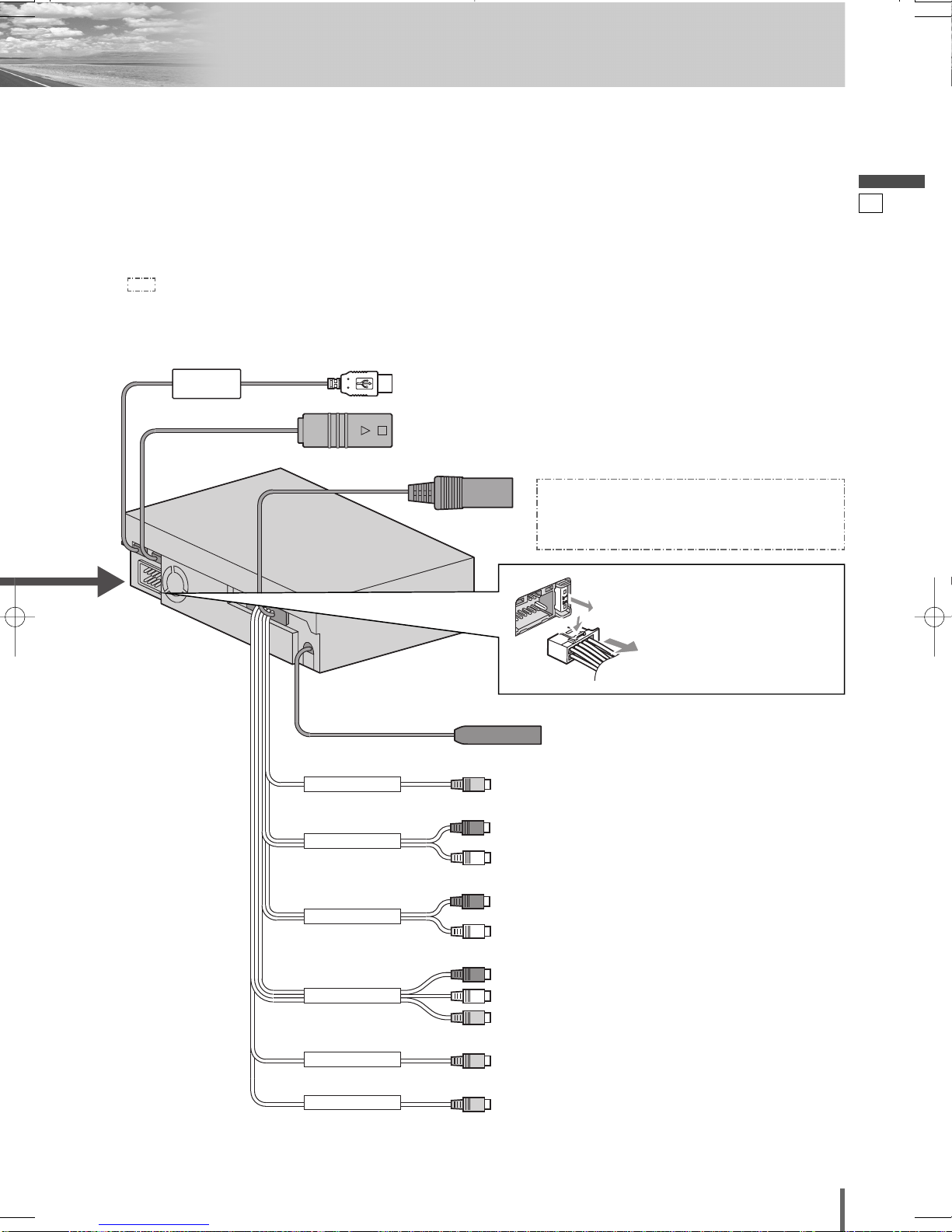

Electrical Connections / 전기 접속
Power Connector/전원 커넥터
Video Output Terminal (VIDEO OUT)/
비디오 출력 단자 (VIDEO OUT)
Radio Antenna Connector (RADIO ANT IN)/
무선 안테나 커넥터 (RADIO ANT IN)
CQ-VX220W
Pre-Out Connector (front)/
프리아웃 커넥터 (프런트)
Pre-Out Connector (rear)/
프리아웃 커넥터 (리어)
Camera Input Terminal (CAMERA IN)/
카메라 입력 단자 (CAMERA IN)
SIDE BRAKE
ACC
BATTERY 15 A
Reverse Lead/리버스 리드선
(Violet/white stripe) (자색/백색 줄무늬)
Navi Mute Lead/
내비 뮤트 리드선
(Orange)
(오렌지색)
Motor Antenna Relay Control Lead/
모터 안테나 중계 컨트롤 리드선
(Blue)(청색)
Side Brake (Parking Brake) Connection Lead/
사이드 브레이크 (주차 브레이크) 접속 리드선
(Bright green)(밝은 녹색)
External Amplifier Control Power Lead
외부 앰프 컨트롤 전원 리드선
(Blue/white stripe)(청색/백색 줄무늬)
Power Lead/전원 리드선
(Red)(적색)
(Yellow)(황색)
Battery Lead/배터리 리드선
Ground Lead/접지 리드선
(Black)(검정)
Audio/Video Input Terminal (AV2 IN)/
오디오/비디오 입력 단자 (AV2 IN)
(R)(우)
(Red)(적색)
(L)(좌)
(White)(백색)
(R)(우)
(Red)(적색)
(L)(좌)
(White)(백색)
(Yellow) (황색)
(R)(우)
(Red)(적색)
(L)(좌)
(White)(백색)
(Yellow) (황색)
(Yellow) (황색)
*Fuse (15 A) Refer fuse replacement to your nearest
authorized Panasonic Service Center. Do not try fuse
replacement by yourself.
*퓨즈(15 A) 퓨즈 교환은 가까운 파나소닉 서비스
센터에 의뢰해 주십시오. 절대로 고객 자신이 퓨즈를
교환하지 마십시오.
System-up Connector/
시스템 업 커넥터
USB Connector/
USB 커넥터
RGB Connector/
RGB 커넥터
Front Right + (Gray)
Front Right – (Gray/black stripe)
우측 전면 + (회색)
우측 전면 – (회색/검정 줄무늬)
Front Left + (White)
Front Left – (White/black stripe)
좌측 전면 + (백색)
좌측 전면 – (백색/검정 줄무늬)
Rear Right + (Violet)
Rear Right – (Violet/black stripe)
우측 후부 + (자색)
우측 후부 – (자색/검정 줄무늬)
Rear Left + (Green)
Rear Left – (Green/black stripe)
좌측 후부 + (녹색)
좌측 후부 – (녹색/검정 줄무늬)
EXT VIDEO IN Video Input Terminal (EXT VIDEO IN)/
비디오 입력 단자 (EXT VIDEO IN)
(Yellow) (황색)
Model: CQ-VX220W
TEXT
VX220WII001cov.qxd09.2.247:20PMページ2

1
2CQ-VX220W
English
Safety Information
Caution
• PLEASE FOLLOW THE LAWS AND REGULATIONS
OF YOUR STATE, PROVINCE OR COUNTRY FOR
INSTALLATION OF THE UNIT.
• TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE
THIS APPLIANCE TO RAIN, SPLASHING, DRIP-
PING OR MOISTURE.
VX220WII01eng.qxd09.2.247:21PMページ2

2
3
CQ-VX220W
English
Upgrade Options
Safety Information................................................2
Upgrade Options ..................................................3
Installation ............................................................4
Electrical Connections ......................................10
Contents
Main Unit
CQ-VX220W
Hands Free Kit with Audio
Streaming featuring Bluetooth®
technology
(Bluetooth unit: CY-BT200N,
option)
Rear Monitor
(From car accessories stores)
TV Tuner
(CY-TUP133W/CY-TUN133W, option)
VX220WII01eng.qxd09.2.247:21PMページ3

3
4CQ-VX220W
English
Installation
Preparation Dashboard Installation
¡Before installation, check the radio operation with
antenna and speakers.
¡Disconnect the cable from the negative (–) battery ter-
minal (see caution below).
¡The unit should be installed in a horizontal position
with the front end up at a convenient angle, but not
more than 30°.
Installation Opening
The unit can be installed in any dashboard having an
opening as shown below. The dashboard should be 4.5
mm – 6 mm thick in order to be able to support the unit.
Installation Precautions
This product should be installed by a professional
installer, if possible.
In case of difficulty, please consult your nearest author-
ized Panasonic Service Center.
1. This system is to be used only in a 12 V DC battery
system (car) with negative ground.
2. Follow the electrical connections carefully (a page
10-17). Failure to do so may result in damage to the
unit.
3. Connect the power lead after all other connections are
made.
4. Be sure to connect the battery lead (yellow) to the pos-
itive terminal (+) of the battery or fuse block (BAT) ter-
minal.
5. Insulate all exposed wires to prevent short circuiting.
6. Secure all loose wires after installing the unit.
7. Please carefully read the operating and installation
instructions of the respective equipment before con-
necting it to this unit.
0 – 30°
182 mm
53 mm
Caution
¡Do not disconnect the battery terminals of a car with
trip or navigational computer since all user settings
stored in memory will be lost. Instead take extra
care with installing the unit to prevent shorts.
Caution
¡Please follow the laws and regulations of your
province or country for installation of the unit.
¡When bending the mounting tab of the mounting
collar with a screwdriver, be careful not to injure
your hands and fingers.
¡We strongly recommend you to wear gloves for
installation work to protect yourself from injuries.
VX220WII01eng.qxd09.2.247:21PMページ4

4
5
CQ-VX220W
English
❏Transportation Bracket Removal
Be sure to remove the transportation brackets before use (installation).
Use round head screws (5 mmøx 6 mm) for installation. (apage 8)
Be careful not to lose these screws.
Round Head Screw
(5 mmøx 6 mm)
Round Head Screw
(5 mmøx 6 mm)
Transportation
Bracket
Transportation
Bracket
❏Installation Hardware
(For Installation)
Note:
¡The number in parenthesis underneath each accessory
part name is the part number for maintenance and serv-
ice.
¡Accessories and their parts numbers are subject to
modification without prior notice due to improvements.
¡Use the supplied screws for installation exclusively. In
case of losing any of them, please order the specific
screw.
Qty.DiagramItemNo.
Trim Plate
<YFC054C087CA>
q1
Mounting Collar
<YFX214C433CA>
w1
Mounting Spring
<YFX054C077CA>
e2
Mounting Bolt (5 mmø)
<YEJV014C002N>
r1
<ZZBISVD7005E>
Spacer
i2
Double-Faced Adhesive Tape
o1
set
❏Installation Hardware
(For Wiring)
Qty.DiagramItemNo.

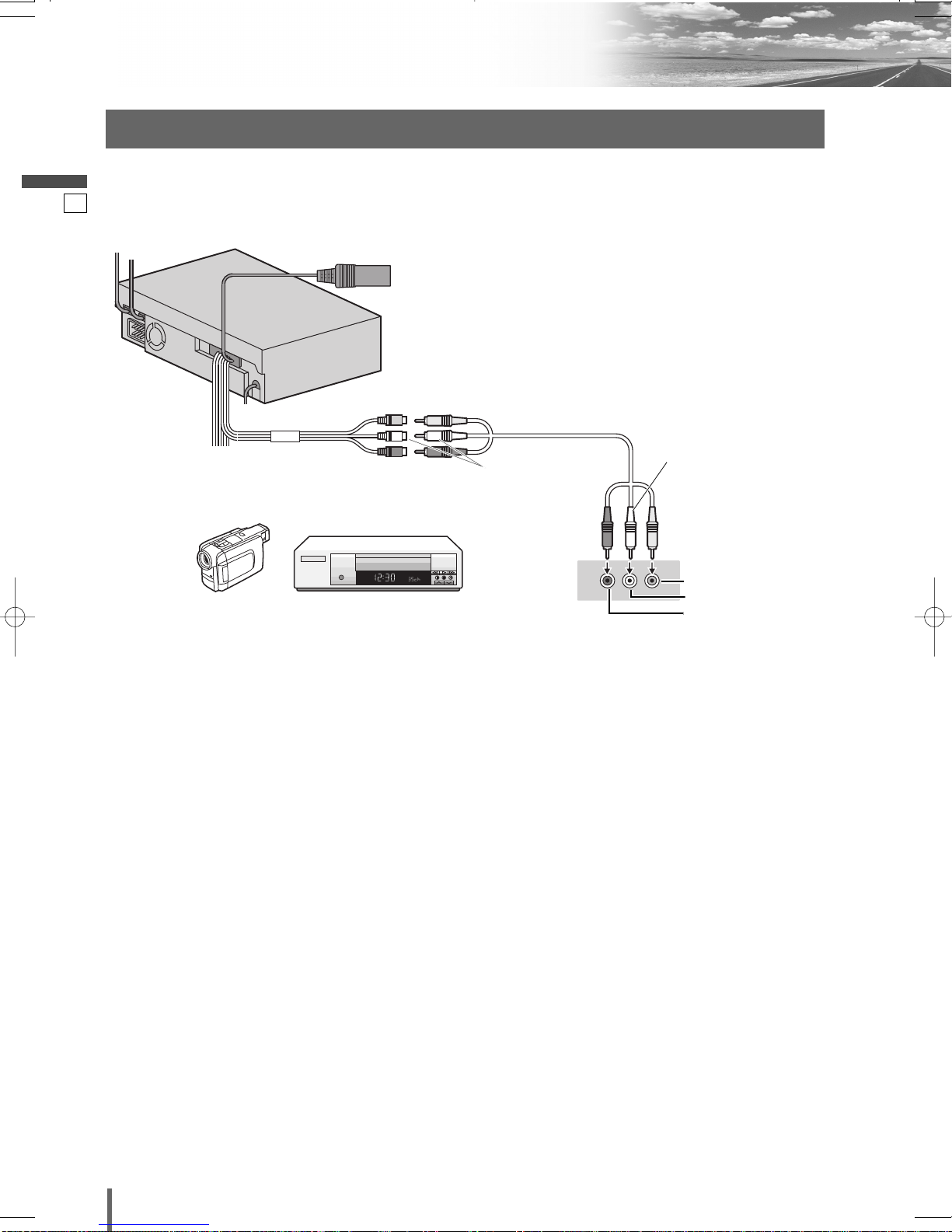

Conversion Cable for AV1 IN
<YEAERA33000K>
!1 1
<YAJ024C125CA>
Power Connector
!0 1
<ZZBISVD7005B>
Round Head Screw
(5 mmø x 6 mm)
t2
Flat-Head Screw
(5 mmø x 6 mm)
y4
Round Head Screw
(4 mmø x 3 mm)
u4
VX220WII01eng.qxd09.2.247:21PMページ5

5
6CQ-VX220W
English
Installation (continued)
1
3
5
6
2
4
❏Installation Procedures (When using Mounting Collar w)
Mounting the Main Unit
Insert the Mounting Collar winto the dashboard, and
bend the mounting tabs out with a screwdriver.
Establish the rear connection of the unit.
After fixing Power Connector !0, fix the rear of the unit to
the car body by either method (a) or (b) shown at right.
Insert Trim Plate q.
After installation
reconnect the negative
(–) battery terminal.
Attach the Mounting Springs eto the unit.
!0 Power Connector
rMounting Bolt
(5 mmø)
eMounting Spring
yFlat-Head Screw
(5 mmø x 6 mm)
Note:
¡The car model, installation condi-
tions and combination of the units
used may impose some restric-
tions on opening and closing the
monitor as well as on the angle
and position to which the monitor
can be adjusted.
Fastening the Mounting Collar
How much to bend the tabs will vary depending on the
car. Bend them with a screwdriver to fasten the
Mounting Collar
w securely in the dashboard.
wMounting Collar
Dashboard
Tab
Insert the unit into Mounting Collar w.
Secure the clamp plate of Mounting Collar
wto the hook of Mounting Spring e.
Clamp plate
IMPORTANT
When this unit is installed in dash-
board, ensure that there is sufficient
air flow around the unit to prevent
damage from overheating. Do not
block any ventilation holes on the
unit.
VX220WII01eng.qxd09.2.247:21PMページ6

6
7
CQ-VX220W
English
Two holes of the mounting spring allow you to select between two mounting types as shown below.
A few millimeters of
console projecting Less projecting
Method for Fixing the Rear of the Unit
Method for Fixing the Mounting Spring
(A) Regular installation method (B) Deeper installation method
yFlat-Head Screw
yFlat-Head Screw yFlat-Head Screw
yFlat-Head Screw
(a) Using the Rear Support Strap (option) (b) Using the Rubber Cushion (option)
Fire wall of car
3 mmø
Tapping Screw
(5 mmø x 16 mm)
(option, XTT5+16AFN)
Rear Support Strap
(option, YEFG044C002)
rMounting Bolt
(5 mmø)
rMounting Bolt
(5 mmø)
Rear Support Bracket
(Provided on the Car)
Rubber Bushing
(option)
Hex. Nut
(5 mmø)
(option, YEJN99023)
Caution
¡Method (B) is not available in some types of cars.
VX220WII01eng.qxd09.2.247:21PMページ7

7
8CQ-VX220W
English
Installation (continued)
iSpacer
oDouble-Faced Adhesive Tape
tRound Head Screw
(5 mmø x 6 mm)
Bracket
Mounting Hole
of a Bracket
(in section)
Existing Bracket (L) (Bracket originally attached to the car)
oDouble-Faced
Adhesive Tape
Existing Bracket (R)
tRound Head Screw
(5 mmø x 6 mm)
iSpacer
❏Installation Procedures (When not using Mounting Collar w)
Use the brackets supplied with your car when mounting this unit. The bracket shape and mounting method vary with car
manufacturers, car types and manufacturing year. Please consult your nearest dealer or installer.
Select mounting screws according to the hole positions and hole shape of the bracket.
yFlat-Head Screw (5 mmø x 6 mm) 4 pieces
uRound Head Screw (4 mmø x 3 mm)
4 pieces
tRound Head Screw (5 mmø x 6 mm) 2 pieces
Reuse the two round head screws removed from the transportation brackets.
When using these
mounting holes
qPush the right and left clamp plates outward, one at a time, and pull the unit toward yourself.
wAfter removing the right and left clamp plates, pull the unit with both hands till it comes out.
Push here to
remove the
clamp plates.
qw
To Remove the Unit
Use the supplied Spacer iif mounting hole of your
car is shaped like below.
VX220WII01eng.qxd09.2.247:21PMページ8

8
9
CQ-VX220W
English
—
+
SIDE BRAKE
The side brake (parking brake) switch position varies with car model.
For details on the exact location of the side brake (parking brake) switch
in your car, contact your dealer.
qAttach a Clip Connector to the end of the side brake
(parking brake) connection lead.
wThe Clip Connector is connected to the power
source side lead of the side brake (parking brake)
lever.

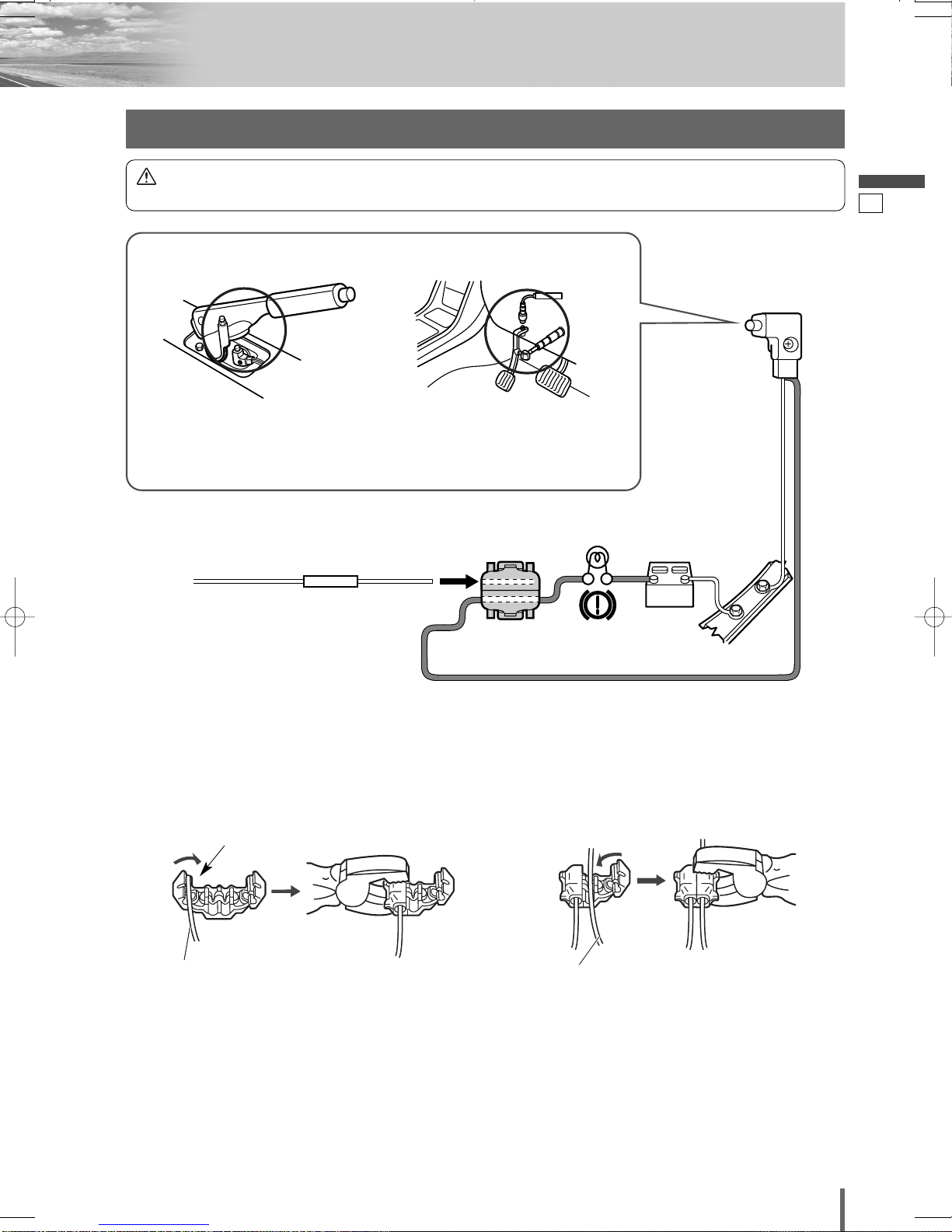

Connecting the Side Brake (Parking Brake) Connection Lead
Hand brake Foot brake
Side Brake (Parking Brake) Connection
Lead (Bright green)
When the side brake (parking brake) lever is
engaged, the unit is grounded by the chassis.
Side brake (parking brake) switch
Car chassis
Battery
Brake light
Clip Connector
(From car accessories stores)
Side Brake (Parking Brake) Connection Lead
(Bright green)
Comes up to this point.
Power source side lead
Caution
¡For safety, be sure to ask your nearest professional installer to do this connection.
VX220WII01eng.qxd09.2.247:21PMページ9

9
10 CQ-VX220W
English
Electrical Connections
Navi Mute Lead (Orange)
Connect to the Navi Mute Lead of the Panasonic car
navigation system. (available in future)
Caution
¡This unit is designed for use in a car having a 12 V negative ground battery system.
¡Be sure to insulate any exposed wires from the car chassis. Bundle all cables and keep cable terminals free from
any metal parts.
¡Note that if your car has a driving computer or a navigation computer, disconnecting the cable from the battery
may clear the memory.
¡Run the cords avoiding the spots where the temperature can be extremely high.
SIDE BRAKE
BATTERY 15 A
ACC
Motor Antenna Relay Control Lead (Blue)
(To motor antenna) (Max. 100 mA)
This lead is not intended for use with a switch actuated
power antenna.
Front Right + (Gray)
Front Right – (Gray/black stripe)
Front Left + (White)
Front Left – (White/black stripe)
Rear Right + (Violet)
Rear Right – (Violet/black stripe)
Rear Left + (Green)
Rear Left – (Green/black stripe)
External Amplifier Control Power Lead (Blue/white stripe)
To an external amplifier.
Note:
¡Use the power control lead of the TV tuner for TV
tuner connection.
¡Connect both the power control lead of the TV
tuner and the amplifier control connector of the
external amplifier when the TV tuner and external
amplifier are connected at the same time.
Battery Lead (Yellow)
To the car battery, continuous +12 V DC.
Power Lead (Red)
To ACC power, +12 V DC.
Ground Lead (Black)
To a clean, bare metallic part of the car chassis
Speaker connections
¡Do not connect more than one speaker to one set of
speaker leads (except for connecting to a tweeter).
Use of speakers which do not match the specifica-
tions can cause burning, smoking or damage of the
speakers.
¡Do not use a 3-wire type speaker system having a
common earth lead.
Side Brake (Parking Brake) Connection Lead (Bright
green)
Be sure to wire the side brake (parking brake) for safety and
preventing accidents. (apage 9)
!0 Power Connector
Reverse Lead (Violet/white stripe)
When connecting the rear view camera, use the reverse
lead. (apage 12)
VX220WII01eng.qxd09.2.247:21PMページ10

VIDEO OUT
PRE OUT REAR
PRE OUT FRONT
EXT VIDEO IN
CAMERA IN
AV2 IN
10
11
CQ-VX220W
English
Note:
¡To prevent from damage to the unit, be sure to follow the wiring diagrams below.
¡Be sure to fully plug in the connectors. Secure them with clamps and tapes.
¡All other installation methods require the use of dedicated metal fittings. Consult with a qualified servicing engineer or
your dealer if other methods are required.
¡Installation of this product may interfere with the grounding properly. In such a case, connect the ground lead of the
external equipment to be connected to the mounting bolt rthat secures this product.
¡The pre-out connector is used exclusively with an external amplifier. Accordingly, do not connect the audio input ter-
minal or any other external devices to this connector.
System-up Connector
To external devices equipped with system-up connector.
(CY-BT200N/CY-TUP133W/CY-TUN133W, option)
Please do not connect other device to this connector.
CQ-VX220W
(Rear)
: This book refers to connections to the Panasonic car navigation system that will come onto the market in the
future. Descriptions regarding the car navigation system are boxed with a dotted line.
Video Output Terminal (VIDEO OUT)
Connect the rear monitor. (apage 13)
Radio Antenna Connector (RADIO ANT IN)
Pre-Out Connector (front)
To an external amplifier.
Pre-Out Connector (rear)
To an external amplifier.
Audio/Video Input Terminal (AV2 IN)
Connect a VCR, camcorder, other brand’s car
navigation system, etc. (apage 16)
Camera Input Terminal (CAMERA IN)
Connect a rear view camera. (apage 12)
(Yellow)
(R)(Red)
(L)(White)
(R)(Red)
(L)(White)
(R)(Red)
(L)(White)
(Yellow)
(Yellow)
USB Connector
To a USB audio device or an iPod/iPhone.
RGB Connector
To the Panasonic Car Navigation System
(available in future).
13
2
*Fuse (15 A) Refer fuse
replacement to your nearest
authorized Panasonic Service
Center. Do not try fuse
replacement by yourself.
Video Input Terminal (EXT VIDEO IN)
Connect the video output terminal of TV tuner
(CY-TUP133W/CY-TUN133W, option)
(Yellow)
VX220WII01eng.qxd09.2.247:21PMページ11

11
12 CQ-VX220W
English
Electrical Connections (continued)
Connection with Rear View Camera
Note:
¡Refer to the operating instructions for the connected devices, in addition.
CAMERA IN
P
N
D
2
L
R
P
a
n
a
s
o
n
i
c
Connecting the Reverse
Lead
If using an optional rear view camera, the
reverse lead must be connected.
Connect the reverse lead (violet/white stripe) to
the positive (+) lead of the reverse lamp (the
lamp with a clear lens that lights when the trans-
mission gear is shifted into the reverse posi-
tion).
Note:
¡Connect the reverse lead after cutting the ter-
minal at the end.
¡Use a Reverse Extension Cord (option) if
needed.
Rear View Camera
(CY-RC50KW) (option) (Video)
(Yellow)
RCA Cord (option)
Rear View Camera
Control Unit (option)
CQ-VX220W
(Rear)
(Video)
(Yellow)
Reverse lamp Clip connector
(From car accessories stores) Battery
Car chassis
Transmission gear
Reverse Lead
(Violet/white stripe)
Camera Input
Camera Input Terminal
(Yellow)
Check the reverse lamp.
Take it out of the back of
the tail lamp mount.
!0 Power
Connector
VX220WII01eng.qxd09.2.247:21PMページ12

12
13
CQ-VX220W
English
Connection with Rear Monitor
Note:
¡Refer to the operating instructions for the connected devices, in addition.
¡Please observe what shapes the connectors of the connecting devices are and where each of them is connected to in
order to establish a proper connection.
VIDEO OUT
COLOR LCD MONITOR
VM1500
Panasonic
STAND BY (R)
ON (G)
RCA Cord (option)
(Video) (Yellow)
(Video) (Yellow)
Example:
Rear Monitor
Video Input
Audio Right
Audio Left
Caution
¡For people sitting in the front seats, please
enjoy only audio during driving.
CQ-VX220W
(Rear)
VX220WII01eng.qxd09.2.247:21PMページ13

13
14 CQ-VX220W
English
Electrical Connections (continued)

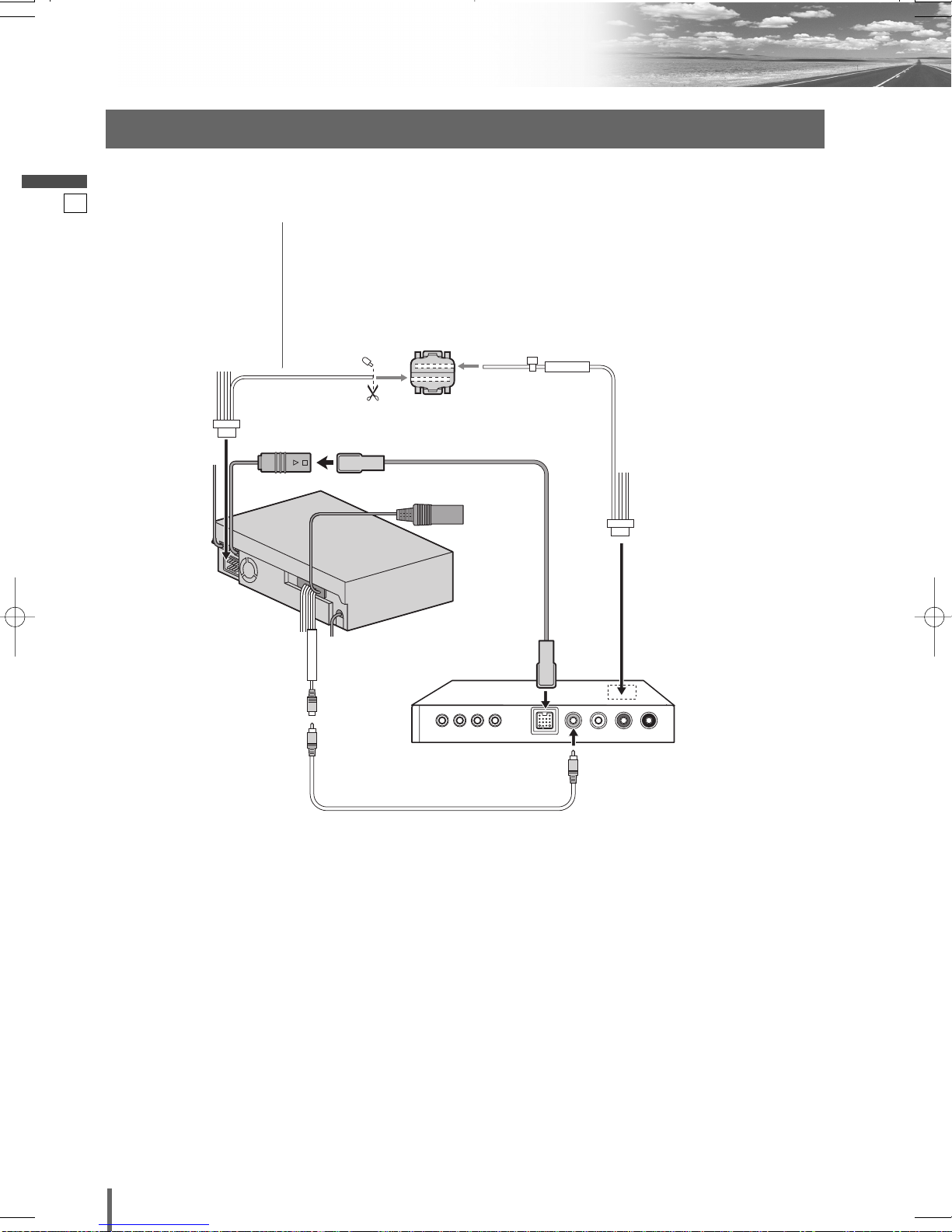

Connection with TV Tuner
Note:
¡Refer to the operating instructions for the connected devices, in addition.
EXT VIDEO IN
PWR-CONT
TV Tuner
CY-TUP133W/
CY-TUN133W (option)
CQ-VX220W
(Rear)
(Video)
(Yellow)
(Video)
(Yellow)
(Video)
(Yellow)
RCA Cord
(supplied with CY-TUP133W/
CY-TUN133W)
System-up Connector
(supplied with CY-TUP133W/
CY-TUN133W)
!0 Power
Connector
Power Connector
(supplied with CY-TUP133W/
CY-TUN133W)
External Amplifier Control Power Lead
Note:
¡Connect both the power control lead of the TV tuner and the amplifier control
connector of the external amplifier when the TV tuner and external amplifier are
connected at the same time.
Power Control Lead
Clip connector
(From car accessories stores)
Video Input Terminal
(EXT VIDEO IN)
VX220WII01eng.qxd09.2.247:21PMページ14

14
15
CQ-VX220W
English
INTELLIGENT SYSTEM
BS G-CODE
POWER
Example:
Connection with VCR or Camcorder (AV1 IN)
CQ-VX220W
(Front)
(R)
(Red)
(L)
(White)
(Video)
(Yellow)
VCR
Camcorder
(R) (Red) (L) (White)
(Video) (Yellow) RCA Cord (option)
Video Output
Audio Left
Audio Right
Note:
¡Refer to the operating instructions for the connected devices, in addition.
¡Please observe what shapes the connectors of the connecting devices are and where each of them is connected to in
order to establish a proper connection.
Note:
¡Be sure to use the Conversion Cable for AV1 IN that is supplied with
this product when an external device is connected to the AV1 IN termi-
nal. Failure to observe this results in an audio or video output error.
¡Only the pin jack of the supplied Conversion Cable for AV 1 IN or a pin
jack that has the same electrode arrangement can be connected to the
AV 1 IN terminal. (See Fig. 1.)
¡Use of the supplied Conversion Cable for AV 1 IN or an audio pin jack
that has the same electrode arrangement also allows users to enjoy only
music. In this case, the screen background becomes black.
Conversion Cable
for AV1 IN
AV1 IN
Audio (L)
<Fig. 1>
Video
Ground
Audio (R)
Connection with USB Device or iPod/iPhone
Note:
¡Refer to the operating instructions for the connected devices, in addition.
¡Please observe what shapes the connectors of the connecting devices are and where each of them is connected to in
order to establish a proper connection.
¡For video browsing of the iPod/iPhone, please use the optional Direct Cable for iPod with Video (CA-LDC100X) for
connection with AV1 IN connector of this unit. (Do not connect with AV2 IN connector)
Direct Cable for iPod with Video (Cable 1)
(CA-LDC100X, option)
USB connection cable
(supplied with USB device or iPod/iPhone)
USB device or iPod/iPhone CQ-VX220W
(Front)
Dock connector
USB connector
AV1 IN
VX220WII01eng.qxd09.2.247:21PMページ15

15
16 CQ-VX220W
English
Electrical Connections (continued)
Connection with VCR or Camcorder (AV2 IN)
Note:
¡Refer to the operating instructions for the connected devices, in addition.
¡Please observe what shapes the connectors of the connecting devices are and where each of them is connected to in
order to establish a proper connection.
INTELLIGENT SYSTEM
BS G-CODE
POWER
AV2 IN
Example:
CQ-VX220W
(Rear)
(R)
(Red)
(L)
(White)
(Video)
(Yellow)
VCR
Camcorder
(R) (Red) (L) (White)
(Video) (Yellow)
RCA Cord (option)
Video Output
Audio Left
Audio Right
VX220WII01eng.qxd09.2.247:21PMページ16

16
17
CQ-VX220W
English
CQ-VX220W
(Rear)
CY-BT200N
CY-BT200N
Connection with CY-BT200N (Bluetooth Unit)
Note:
¡Refer to the operating instructions for the connected devices, in addition.
¡Please observe what shapes the connectors of the connecting devices are and where each of them is connected to in
order to establish a proper connection.
System-up Connector
(supplied with CY-BT200N)
Microphone with Bracket
(supplied with CY-BT200N)
Switch Unit
(supplied with CY-BT200N)
Hands Free Kit with Audio Streaming featuring
Bluetooth®technology
CY-BT200N (option)
VX220WII01eng.qxd09.2.247:21PMページ17

34 CQ-VX220W
Memorandum
VX220WII03memo09.2.247:21PMページ34

35
CQ-VX220W
VX220WII03memo09.2.247:21PMページ35

YFM294C151CA PTW1208-1029 Printed in China
Installation Instructions
Web Site : http://panasonic.net
VX220WII001cov.qxd09.2.247:20PMページ1
