Panasonic WV-CP500 series User manual

Before attempting to connect or operate this product, please read these
instructions carefully and save this manual for future use.
The model number is abbreviated in some descriptions in this manual.
This illustration represents WV-CP500/G.
Lens: Option
Installation Guide
Color CCTV Camera
Model No. WV-CP500/G
WV-CP504E

2
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC
SHOCK DO NOT OPEN
The lightning flash with arrow-
head symbol, within an equilat-
eral triangle, is intended to alert
the user to the presence of
uninsulated "dangerous volt-
age" within the product's enclo-
sure that may be of sufficient
magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing) instruc-
tions in the literature accompa-
nying the appliance.
WARNING:
• This apparatus must be earthed.
• Apparatus shall be connected to a mains
socket outlet with a protective earthing con-
nection.
• The mains plug or an appliance coupler shall
remain readily operable.
• To prevent fire or electric shock hazard, do not
expose this apparatus to rain or moisture.
• The apparatus should not be exposed to drip-
ping or splashing and that no objects filled
with liquids, such as vases, should be placed
on the apparatus.
• All work related to the installation of this prod-
uct should be made by qualified service per-
sonnel or system installers.
• The connections should comply with local
electrical code.
CAUTION:
An ALL-POLE MAINS SWITCH with a contact
separation of at least 3 mm in each pole shall be
incorporated in the electrical installation of the
building.
FOR YOUR SAFETY PLEASE READ THE
FOLLOWING TEXT CAREFULLY.
WARNING: This apparatus must be earthed.
IMPORTANT
The wires in this mains lead are coloured in accor-
dance with the following code.
Green-and-yellow: Earth
Blue: Neutral
Brown: Live
As the colours of the wire in the mains lead of this
appliance may not correspond with the coloured
markings identifying the terminals in your plug, pro-
ceed as follows.
The wire which is coloured green-and-yellow
must be connected to the terminal in the plug which
is marked with the letter Eor by the earth symbol I
or coloured green or green-and-yellow.
The wire which is coloured blue must be con-
nected to the terminal in the plug which is marked
with the letter Nor coloured black.
The wire which is coloured brown must be con-
nected to the terminal in the plug which is marked
with the letter Lor coloured red.
Turn the power off at the mains to disconnect the
main power for all unit.

3
Important safety instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instruc-
tions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other appara-
tus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use caution when moving the cart/apparatus combi-
nation to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
S3125A

4
Limitation of liability
THIS PUBLICATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR ANY PARTICULAR PURPOSE, OR NON-INFRINGEMENT OF
THE THIRD PARTY'S RIGHT.
THIS PUBLICATION COULD INCLUDE TECHNICAL INACCURACIES OR TYPOGRAPHICAL
ERRORS. CHANGES ARE ADDED TO THE INFORMATION HEREIN, AT ANY TIME, FOR THE
IMPROVEMENTS OF THIS PUBLICATION AND/OR THE CORRESPONDING PRODUCT (S).
Disclaimer of warranty
IN NO EVENT SHALL Panasonic Corporation BE LIABLE TO ANY PARTY OR ANY PERSON,
EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE
CASES, INCLUDING BUT NOT LIMITED TO BELOW:
(1) ANY DAMAGE AND LOSS, INCLUDING WITHOUT LIMITATION, DIRECT OR INDIRECT, SPE-
CIAL, CONSEQUENTIAL OR EXEMPLARY, ARISING OUT OF OR RELATING TO THE PROD-
UCT;
(2) PERSONAL INJURY OR ANY DAMAGE CAUSED BY INAPPROPRIATE USE OR NEGLIGENT
OPERATION OF THE USER;
(3) UNAUTHORIZED DISASSEMBLE, REPAIR OR MODIFICATION OF THE PRODUCT BY THE
USER;
(4) INCONVENIENCE OR ANY LOSS ARISING WHEN IMAGES ARE NOT DISPLAYED, DUE TO
ANY REASON OR CAUSE INCLUDING ANY FAILURE OR PROBLEM OF THE PRODUCT;
(5) ANY PROBLEM, CONSEQUENTIAL INCONVENIENCE, OR LOSS OR DAMAGE, ARISING
OUT OF THE SYSTEM COMBINED BY THE DEVICES OF THIRD PARTY.

5
Preface
This product is a 1/3-inch type {1/3"} CCD color CCTV camera. Connection of this product to a
video monitor allows users to use this product as a monitoring camera.
 • WV-CP500:220to240VACpowersupply
 • WV-CP504:24VAC,12VDCpowersupply
Introduction of SUPER-D5 (super dynamic function)
Integration of SUPER-D5 into the CCD and signal processing circuit has achieved approximately
160 times higher dynamic range as compared with conventional camera. Thanks to the integra-
tion of the darkness compensation function, a subject on which much illuminance difference exists
resulting from bright and dark areas can be naturally displayed in an image.
Introduction of newly developed high-resolution CCD
The introduction of the newly developed CCD with 976 of horizontal pixels has led to the horizontal
resolution of as high as 650 TV lines (typ.).
Auto back focus function (ABF) equipped
Moving the CCD inside the camera to an optimal position with the operation button of this unit or
the setup menu allows users to automatically adjust the back focus.
The back focus is adjustable with the setup menu through the system controller (option) even after
installation of this unit.
The auto back focus function also allows users to correct out of focus when changing between
color and black-and-white images.
High sensitivity achieved thanks to noise reduction function
Minimum illumination 0.1 lx (F1.4) has been accomplished for color images thanks to the introduc-
tion of low noise circuit design.
Night monochrome image activation function equipped
No operation is required at night because the image automatically changes from the color mode to
the black-and-white mode at low illuminance.
Intelligent VMD (i-VMD) functions of motion detection and object abandonment/removal
detection equipped
The motion and abandonment/removal of an object are detectable.
The states of covering the camera with a cloth, a cap or others and changing the camera direction
notably can be detected (scene change detection).
The detection resolution has been significantly improved as compared with a conventional type,
and the introduction of the newly developed detection method has improved detection accuracy
under the condition that the motion detection is prone to malfunction due to leaves swaying.
Note:
 • The i-VMD function is not the dedicated function to prevent thefts, fires, etc. We are not
responsible for any accidents or damages occurring in case.

6
About the user manuals
Trademarks and registered trademarks
The operating instructions of the camera consist of 2 sets: this book and operating instructions
(PDF).
This book explains how to install the camera.
Refer to the "Operating Instructions (PDF)" on the provided CD-ROM for descriptions of how to per-
form the unit settings. Adobe®Reader®is required to read PDF. When the Adobe®Reader®is not
installed on the PC, download the latest Adobe®Reader®from the Adobe web site and install it.
Adobe and Reader are either registered trademarks or trademarks of Adobe Systems Incorporated
in the United States and/or other countries.

7
Contents
Important safety instructions...................................................................................................... 3
Limitation of liability.................................................................................................................... 4
Disclaimer of warranty................................................................................................................ 4
Preface ....................................................................................................................................... 5
About the user manuals ............................................................................................................. 6
Trademarks and registered trademarks...................................................................................... 6
Precautions ................................................................................................................................ 8

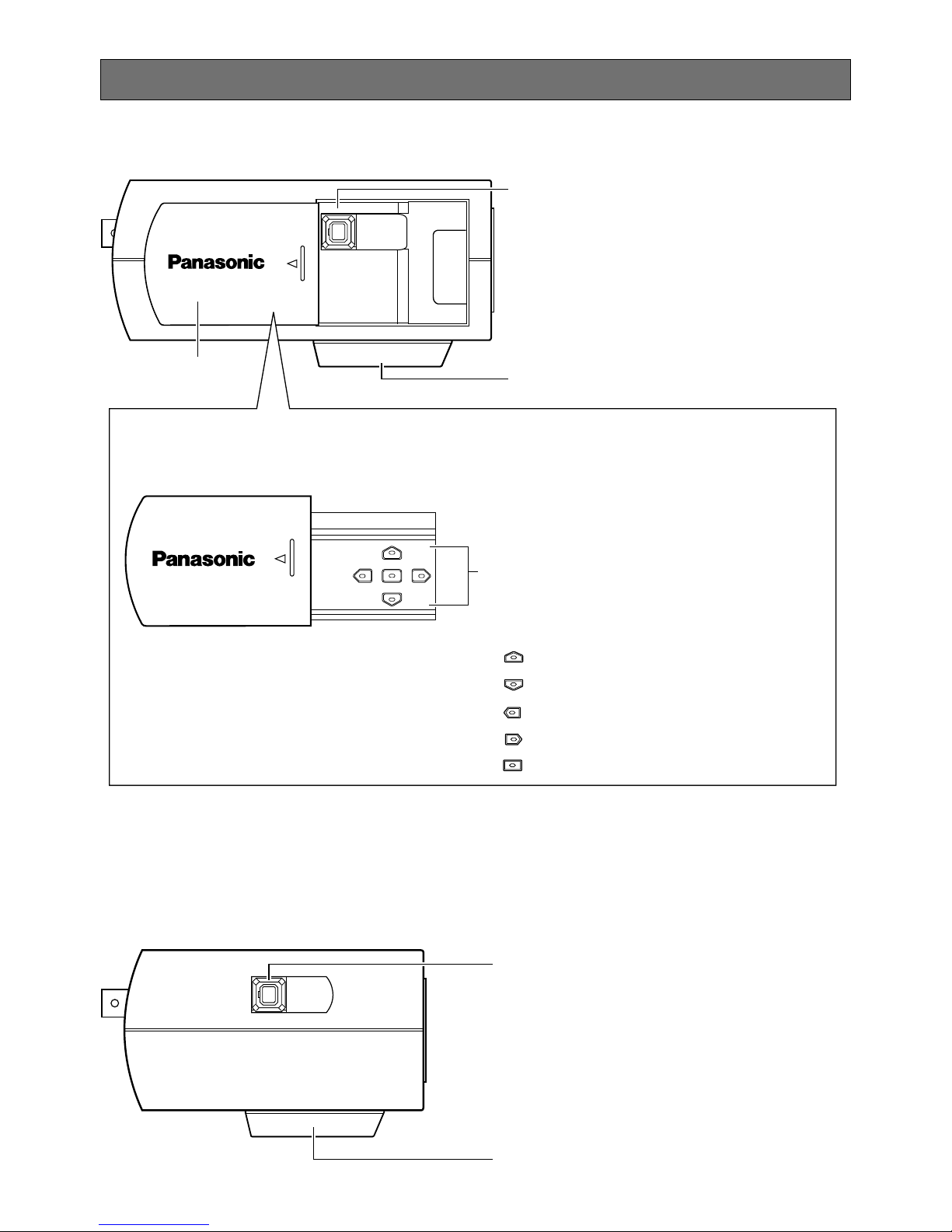

Major operating controls and their functions ............................................................................. 9
Precautions for installation......................................................................................................... 12
Installation and connection ........................................................................................................ 14
Optional dedicated lens........................................................................................................... 14
External synchronization switch .............................................................................................. 18
Setup menu ................................................................................................................................ 22
List of setup menu ................................................................................................................... 22
Basic operation........................................................................................................................ 24
Screen transition diagram........................................................................................................ 26
Troubleshooting.......................................................................................................................... 27
Specifications............................................................................................................................. 29
Standard accessories................................................................................................................. 30
We declare under our sole responsibility that the prod-
uct to which this declaration relates is in conformity
with the standards or other normative documents fol-
lowing the provisions of Directives 2006/ 95/EC and
2004/108/EC.
Wij verklaren als enige aansprakelijke, dat het product
waarop deze verklaring betrekking heeft, voldoet aan
de volgende normen of andere normatieve
documenten, overeenkomstig de bepalingen van
Richtlijnen 2006/95/EC en 2004/ 108/EC.
Vi erklærer os eneansvarlige for, at dette produkt, som
denne deklaration omhandler, er i overensstemmelse
med standarder eller andre normative dokumenter i
følge bestemmelserne i direktivene 2006/95/EC og
2004/108/EC.
Vi deklarerar härmed vårt fulla ansvar för att den
produkt till vilken denna deklaration hänvisar är i
överensstämmelse med de standarder eller andra
normativa dokument som framställs i direktiv nr
2006/95/EC och 2004/108/EC.
Ilmoitamme yksinomaisella vastuullamme, että tuote,
jota tämä ilmoitus koskee, noudattaa seuraavia
standardeja tai muita ohjeellisia asiakirjoja, jotka
noudattavat direktiivien 2006/95/EC ja 2004/108/EC
säädöksiä.
Vi erklærer oss alene ansvarlige for at produktet som
denne erklæringen gjelder for, er i overensstemmelse
med følgende normer eller andre normgivende
dokumenter som følger bestemmelsene i direktivene
2006/95/EC og 2004/108/EC.

8
Precautions
This product has no power switch.
Power is supplied from an external 12 V DC/
24 V AC (WV-CP504) or 220 to 240 V AC (WV-
CP500) power-supply device. Refer to service
personnel for how to turn on/off the power.
Use this product for indoor use only.
Do not expose this product to direct sunlight
for hours and do not install the product near a
heater or an air conditioner. Otherwise, it may
cause deformation, discoloration and malfunc-
tion. Keep this product away from water.
To keep on using with stable performance
 • Partsofthisproductmaydeteriorateandit
may shorten lifetime of this product when
using in locations subject to high tempera-
tures and high humidity. Do not expose
this product to direct heat sources such as
a heater.
 • Use this product at temperatures within
–10 °C to +50 °C, and humidity below 90
% (when using this product without turning
the power off).
Do not rub the edges of metal parts with
your hand.
Failure to observe this may cause injury.
Do not attempt to disassemble this prod-
uct.
To prevent electric shock, do not remove
screws or covers.
There are no user-serviceable parts inside. Ask
qualified service personnel for servicing.
Handle this product with care.
Do not abuse this product. Avoid striking,
shaking, etc. The product could be damaged
by improper handling or storage.
Cleaning this product body
Turn the power off when cleaning the product.
Use a dry cloth to clean this product. Do not
use strong abrasive detergent when cleaning
this product. When the dirt is hard to remove,
use a mild detergent and wipe gently. Then,
wipe off the remaining detergent with a dry
cloth.
Otherwise, it may cause discoloration. When
using a chemical cloth for cleaning, read the
caution provided with the chemical cloth prod-
uct.
Noise on monitor
This product is equipped with a super sensitive
CCD. Therefore, white dot noise may appear
on the monitor. This phenomenon is not trou-
ble.
Discoloration on the CCD color filter
When continuously shooting a bright light
source such as a spotlight, the color filter of the
CCD may have deteriorated and it may cause
discoloration. Even when changing the fixed
shooting direction after continuously shooting a
spotlight for a certain period, the discoloration
may remain.
Do not aim this product at strong light
sources.
A light source such as a spot light causes a
blooming (light bleeding) or a smear (vertical
lines).
Turn the circuit breaker off which supplies
this product with the power when abnor-
mal conditions are encountered.
Smear Bright subject
Blooming

9
Major operating controls and their functions
(UP)
(LEFT) (RIGHT)
(DOWN)
(SET)
NEAR FAR BF/MENU
Side view (WV-CP500)
Side view (WV-CP504)
ALC lens connector
Inside the side cover
(Slide the cover leftward to the lock position.)
Operation buttons*
: Up button (UP)
: Down button (DOWN)
: Left button (LEFT), NEAR
: Right button (RIGHT), FAR
: Setting button (SET), BF/MENU
Tripod mount base
Side cover
ALC lens connector
Tripod mount base
* The following names are assigned to
each button in this book:

10
POWER
ALARM OUT
ALARM IN
GND
VIDEO OUT
220 - 240V ~ 50Hz
Operation buttons*
: Up button (UP)
: Down button (DOWN)
: Left button (LEFT), NEAR
: Right button (RIGHT), FAR
: Setting button (SET), BF/MENU
* The following names are assigned to
each button in this book:
ALARM OUT
ALARM IN
POWER
VIDEO OUT
24V IN~
1-L
12V IN NC
2-N
GND
(UP)
(LEFT) (RIGHT)
(DOWN)
(SET)
NEAR FAR BF/MENU
GND
Rear view (WV-CP500)
Rear view (WV-CP504)
External terminal
Power indicator
Power connector
External terminal
Power indicator
AC/DC power terminal
Video output connector
Video output connector

11
Side cover (only for WV-CP500)
When the operation buttons are used, the side
cover is slide leftward to the lock position.
ALC lens connector
The ALC connector is connected to this ALC
lens connector.
Tripod mount base
This socket is used to mount the camera
mount bracket (option). The tripod socket can
be mounted on either top or bottom of the
camera head.
(Tripod socket hole: 1/4-20 UNC for tripod)
Operation buttons
This buttons are used to perform various set-
tings in the setup menu.
Video output connector
The Coaxial cable (locally procured) is connect-
ed to this video output connector.
Power indicator
This indicator lights up when the power is on.
External terminal (☞page 18)
Power connector (only for WV-CP500)
The included power cord is connected to this
power connector.
AC/DC power terminal
(only for WV-CP504)
The power supply of 24 V AC or 12 V DC is
connected to this terminal.

12
Precautions for installation
This camera is designed to be used
indoors. This camera is not operable out-
doors.
Do not operate this product beyond the
specified temperature, humidity or power
source ratings.
Use this product at temperatures within –10 °C
to +50 °C, and humidity below 90 %.The input
power source is 12 V DC/24 V AC (WV-CP504)
or 220 to 240 V AC (WV-CP500).
Installing place
Contact your dealer for assistance if you are
unsure of an appropriate place in your particu-
lar environment.
 • Make sure that the installation area is
strong enough to hold the camera, such
as a concrete ceiling.
 • If aceiling boardsuchasplaster boardis
too weak to support the total weight, the
area shall be sufficiently reinforced.
 • Do not install this product in a humid or
dust-laden environment.
Otherwise, lifetime of the internal parts may
be shortened.
Avoid installing in the following locations.
 • Locations where it may get wet from rain
or water splash
 • Locationswhereachemicalagentisused
such as a swimming pool
 • Locations subjecttosteamandoil smoke
such as a kitchen, Locations near flamma-
ble gas or vapor
 • Locations where radiation or X-ray emis-
sions are produced
 • Locations subject to strongmagneticfield
or radio waves
 • Locationswherecorrosivegasisproduced
 • Locations where it may be damaged by
briny air such as seashores
 • Locations where the temperature is not
within –10 °C to +50 °C.
 • Locations subjectto vibrations(Thisprod-
uct is not designed for on-vehicle use.)
 • Locations subject to condensation as the
result of severe changes in temperature
Avoid installing the camera in a place with
a high level of noise.
Installation near an air conditioner, an air clean-
er, a vending machine, or the like causes noise.
Avoid connections during a lightning
storm.
Otherwise, an electric shock may be caused.
Be sure to remove this product if it is not
in use.
Keep the camera cable away from the
lighting cable.
Failure to observe this may cause noise.
Radio interference
When the camera is used near TV/radio anten-
na, strong electric field or magnetic field (near
a motor or a transformer), images may be dis-
torted and noise sound may be produced.
Mounting screws
 • Screwsarenotsuppliedwiththisproduct.
 • Prepare them according to the material
and strength of the area where the product
is to be installed.
 • Do not use an impact driver. Use of an
impact driver may damage the screws.
 • The screws and bolts must be tightened
with an appropriate tightening torque
according to the material and strength of
the installation area.

13
Power cord (only for WV-CP500)
Connect the power cord securely. Run the
power cord so that no load is applied to the
cord when panning or tilting the camera.
(Failure to observe this may disconnect the
power cord, and accordingly no image is dis-
played.)

14

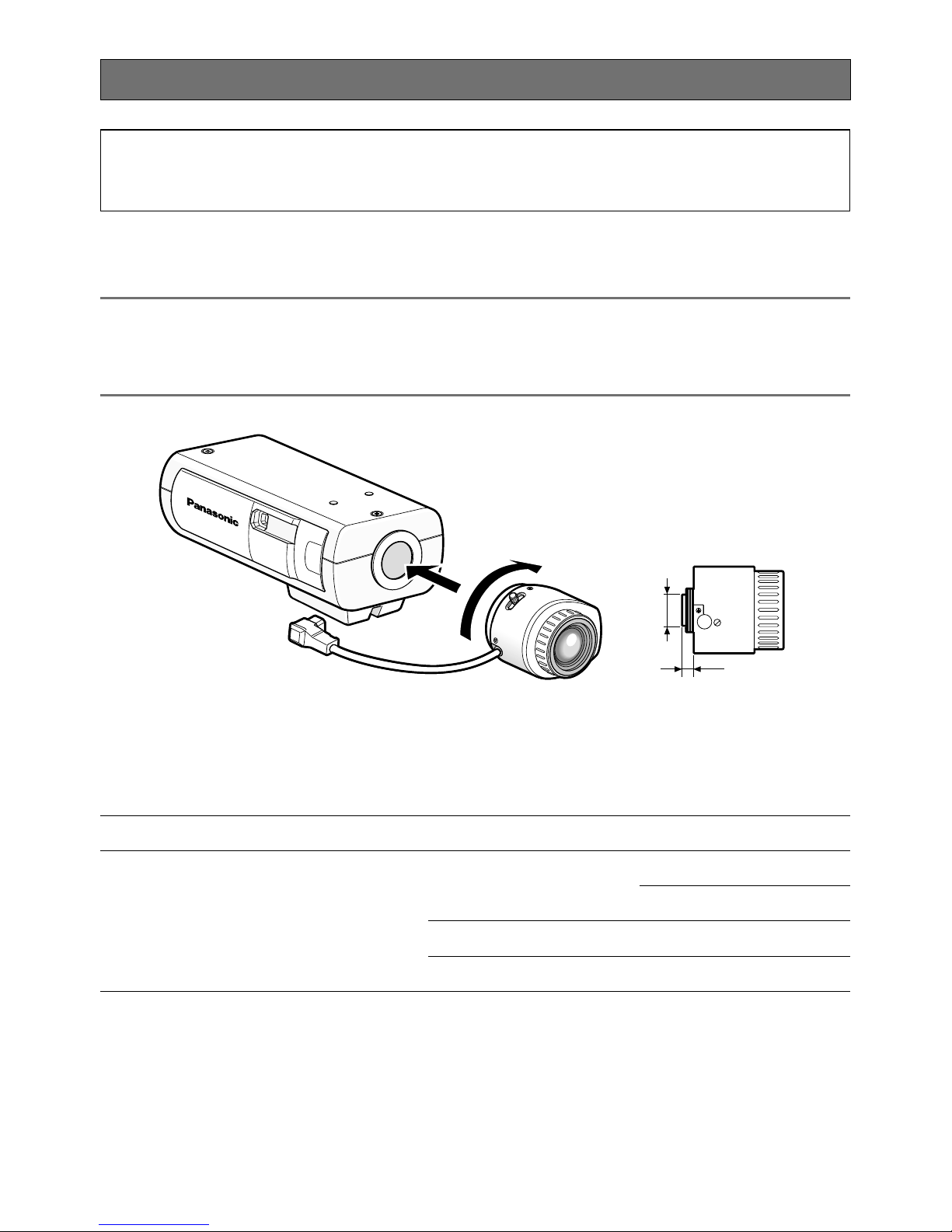

Installation and connection
zRotate the lens (option) clockwise slowly to mount the lens.
Important:
 • ForuseofC-mountlens,usetheC-mountadaptor(option).
 • For preventionofdamage to the camerabody,usealenswithprotrusionof5.5mm or less
from the flange surface.
Optional dedicated lens
Protrusion from flange:
5.5 mm or less
Protrusion from mount: ø20 mm or less
Cautions:
 • ONLYCONNECTWV-CP504TO24VACOR12VDCCLASS2POWERSUPPLY.
 • BesuretoconnectthegroundingleadtotheGNDterminal.
Lens type Model No.
ALC lens for 1/3 inch CCD cameras 2x vari-focal
8x vari-focal
15x motorized zoom
WV-LZA61/2S
WV-LZA62/2
WV-LZ62/8S
WV-LZ61/15

15
ALC lens connector
1 3
2 4
Screws (locally
procured)
Screws (locally
procured)
<Installation sample on a ceiling>
Camera mount
bracket (option)
xConnect the lens cable to the ALC lens connector of the camera.
Pin No.
1 Dump @
2 Dump !
3 Drive !
4 Drive @
cSecure the camera mount bracket
(option) to an installation position, and
mount the camera on the camera mount
bracket.
Important:
 • If the total weight of the camera and lens
exceeds1kg,useahousingtotakemeasures
againstcameradrop.
 • Prepare mounting screws according to the
material of the area where the camera mount
bracket (option) is to be installed. The installa-
tionmethodmaybedifferentdependingonthe
materialoftheareawherethebracketistobe
installed.
 • Wheninstallingonsteel:
  Fixwithboltsandnuts(M6orM8).
 • Wheninstallingonconcrete:
  Fixwith anchorboltsorAYplug bolts(M6
orM8).
  Recommendedtighteningtorque(M6):
5.0 N·m
  Recommendedtighteningtorque(M8):
  6.2N·m

16
 • Themountingconditionsofthecameramountbracketaredescribedasfollows:
For some applicable mount brackets, "A" is attached to the model number. The mounting condi-
tions are the same even for the A-attached models.
Installation
place
On ceiling
On wall
Applicable mount
bracket
WV-7011
WV-7010
Recommended
screw
M6
M8
Number of
screw
4 pcs.
3 pcs.
Minimum pull-out
strength (per 1 pc.)
196 N
196 N
WV-7012 M6 3 pcs. 196 N
WV-831 M8 4 pcs. 921 N
WV-7013 M6 3 pcs. 2.25 kN

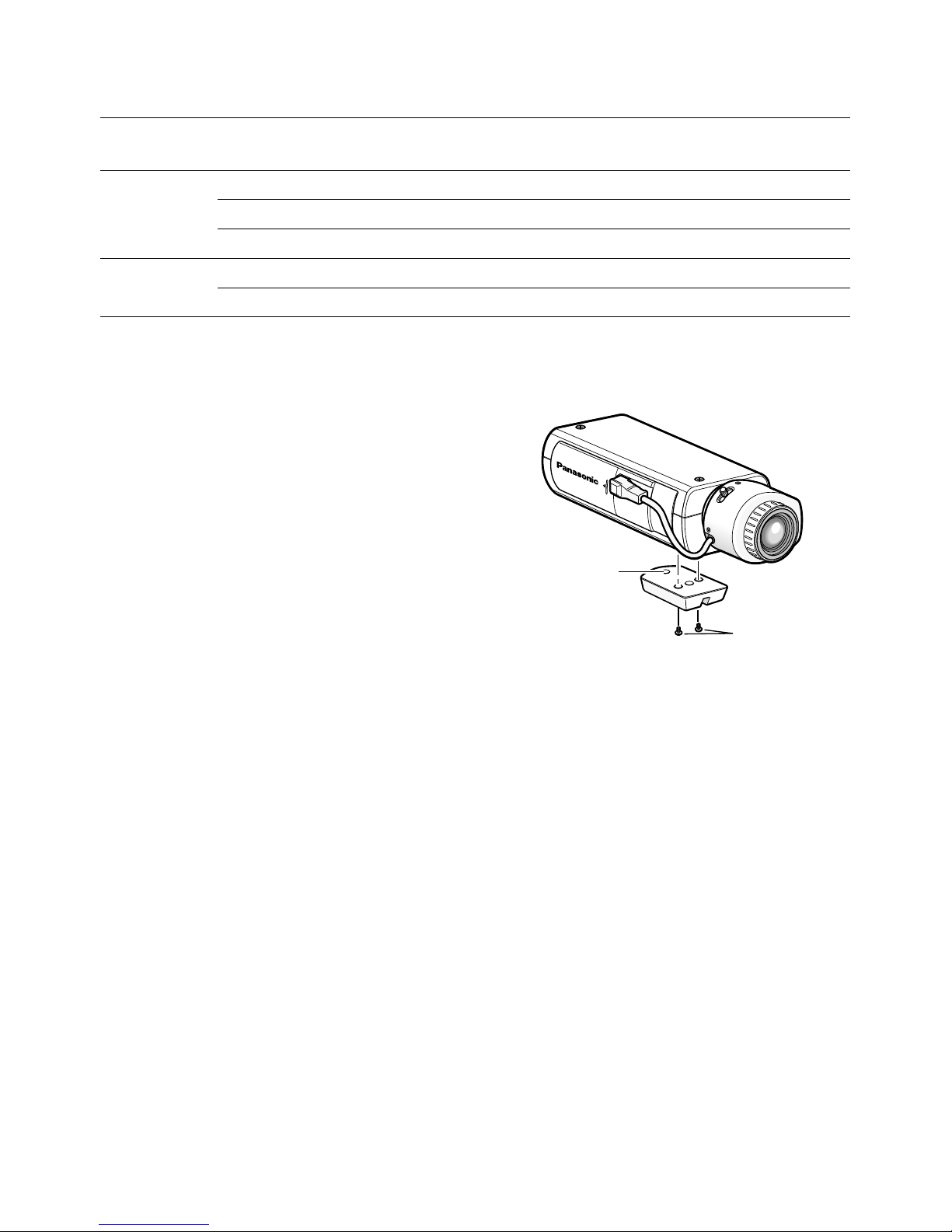

Tripod socket
hole: 1/4-20
UNC for tripod
Tripod mount
base
Mounting
screws
 • When attaching an optional tripod mount
base on the bottom of the camera, use the
removed screws to attach the tripod mount
base. Use of longer or shorter screws may
cause drop or damage.
Recommended tightening torque:
0.39 N·m

17

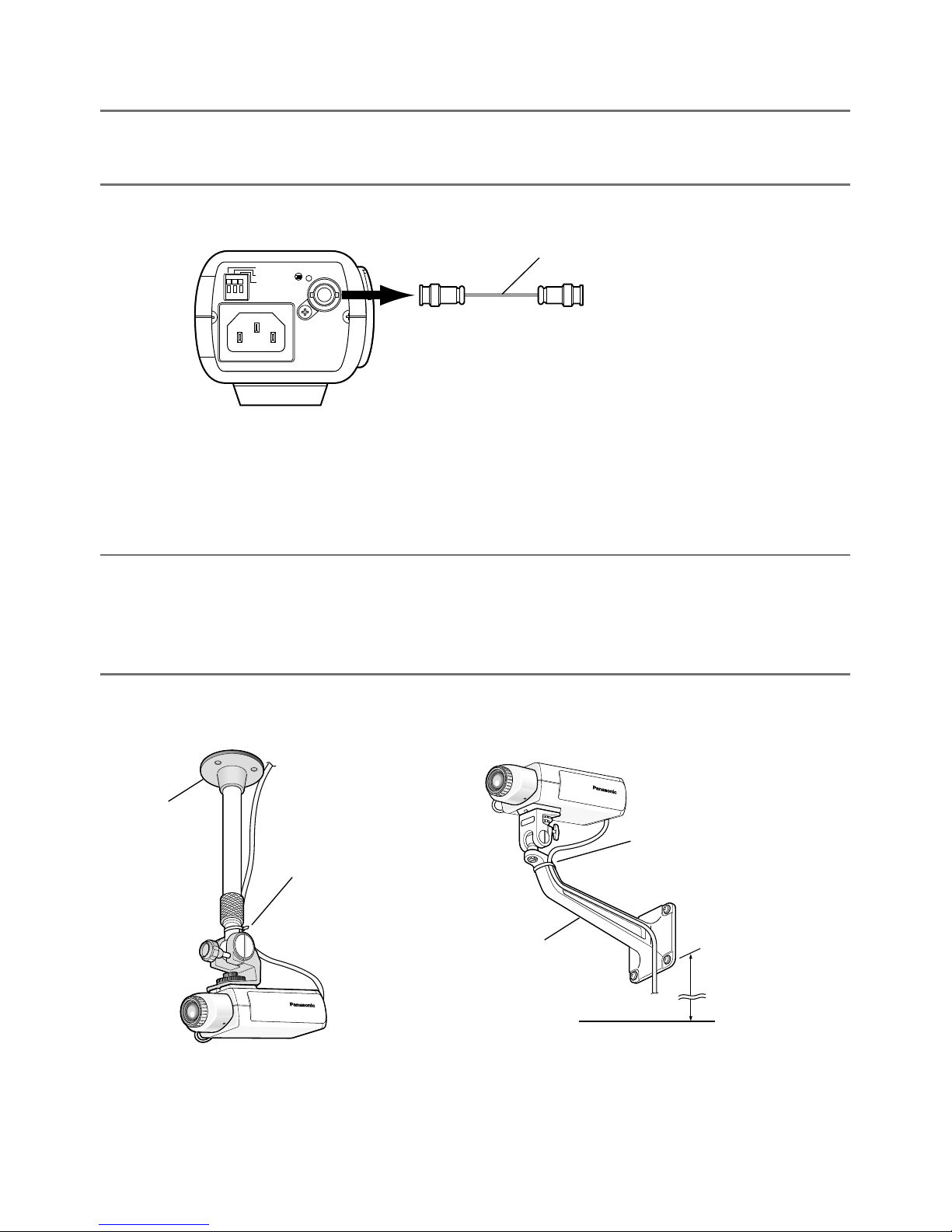

vThe video output cable is connected to this video output connector.
Important:
 • Besuretoturnoffthepowerofeachdevicebeforeconnection.
 • Besuretosecurethecoaxialcableconnectors.
Connect a coaxial cable to the video output connector.
bUse a cable tie (locally procured) to attach the coaxial cable to the camera
mount bracket.
Important:
 • Thecabletieshallbemadeofmetallicordurablematerialtobestrongenoughbecausethetie
plays the role of camera drop prevention measures in case.
 • Whenthecameramountbracketismountedonawall,besuretoobservethemountingheight
described on the illustration above.
POWER
ALARM OUT
ALARM IN
GND
VIDEO OUT
220 - 240V ~ 50Hz
To video input
Coaxial cables
WV-CP500
Camera mount
bracket (option)
The cable shall be
tied to the camera
mount bracket to
avoid slack.
The cable shall be
tied to the camera
mount bracket to
avoid slack.
Camera mount
bracket (option) More than
270 cm
<Installation sample on a ceiling> <Installation sample on a wall>
Floor

18
External synchronization switch
The settings of the alarm input/output are configured on the SETUP menu.
Refer to the operating instructions (PDF) for further information.
Important:
 • Besuretoturnoffthepowerofeachdevicebeforeconnection.
Alarm output
Input specification: Open collector out-
put (max. voltage: 16 V DC)
Off: Internally pulled up
2 V to 4 V DC
On: Output voltage 1 V DC or less (max.
drive current: 100 mA)
Functions: Alarm output
Color/BW switching output
Alarm input
Input specification: No-voltage make
contact input (3 to 5 V DC, internally
pulled up)
Off: Open or 3 to 5 V DC
On: Make contact with GND (required
drive current: 0.2 mA or more)
Functions: Alarm input
VMD enabling input
Color/BW switching input
Scene file switching input
* When an external device is connected, exercise care to avoid exceeding the rating.
* Applicable wire: AWG #22 - #28 Single core, twisted
Before connection, remove 9 mm to 10 mm of the wire sheath and
twist the wire enough to prevent the short circuit.
* Check whether the stripped part of the wire is not exposed from
the external terminal and is securely connected.
POWER
ALARM OUT
ALARM IN
GND
VIDEO OUT
220 - 240V ~ 50Hz
WV-CP500
9 mm - 10 mm
ALARM OUT (Alarm output)
ALARM IN (Alarm input)
GND
The external terminal is the same between
WV-CP500 and WV-CP504.
Stripped
POWER
ALARM OUT
ALARM IN
GND
VIDEO OUT
220 - 240V ~ 50Hz
WV-CP500
9 mm - 10 mm
ALARM OUT (Alarm output)
ALARM IN (Alarm input)
GND
The external terminal is the same between
WV-CP500 and WV-CP504.
Stripped

19
POWER
ALARM OUT
ALARM IN
GND
VIDEO OUT
220 - 240 V ~ 50Hz
Power cord (accessory)
220 to 240 V AC,
50 Hz
WV-CP504
Important:
 • Thepowersupplyof24VAC/12VDCshallbe
insulated against 220 to 240 V AC.
 • The power supply is automatically select-
ed either 24 V AC or 12 V DC. No setting is
required with this camera.
qLoosen the screw of the power cord plug
(accessory).
wConnect the power supply (option) of 24 V AC
or 12 V DC to the power cord plug.
Strip the end of the wire by 3 mm to 7 mm, and
twist the stripped part of the wire sufficiently to
avoid short circuit.
 • Specificationofcable(wire)
AWG #16 - #28, Single core, twisted
* Check whether the stripped part of the wire
is not exposed and is securely connected.
<Ratings>
24 V AC 12 V DC
A 2-N @(GND)
B GND NC
C 1-L !
eTighten the screw of the power cord plug.
rConnect the power cord plug to the AC/DC
power terminal on the rear side of the camera.
* Make sure that the power cord plug is inserted fully into the AC/DC power supply terminal.
ALARM OUT
ALARM IN
POWER
VIDEO OUT
24V IN~
1-L
12V IN NC
2-N
GND
(UP)
(LEFT) (RIGHT)
(DOWN)
(SET)
NEAR FAR BF/MENU
GND
To 24 V AC/12 V DC
power supply
C B A
Power cord plug
(accessory)
Stripped
3 mm - 7 mm
Caution:
 • Thecamerashallbeconnectedwithcordsetwithplug.
Plug for respective country shall be mounted on the Power
cord by a qualified electrical.
nTurn on the power.
WV-CP500
The included power cord is connected to this power connector.
Connect between the power connector on the rear side of the camera and a plug socket with
the supplied power cord.

20
mAdjust the camera angle by loosening the screw of the camera mount bracket
while viewing the video monitor.
Be sure to loosen the screw of the camera mount bracket when the camera angle is adjusted.
If the camera angle is changed when the screw is tight, excessive force is applied to the cam-
era mount bracket and camera, and accordingly they may be damaged. Be sure to tighten the
screw securely after camera angle adjustment.
,Adjust the focus.
To use the varifocal lens/zoom lens
 • ResetthebackfocuspositiontotheCSmountdefaultpositionbeforethebackfocusadjust-
ment (Press the right and left buttons simultaneously for more than 2 seconds, or move the
cursor to "MANUAL-ADJ" of "BACK-FOCUS" in the setup menu and press the right and left
buttons simultaneously for more than 2 seconds after pressing the setting button.).
 • Beawarethattheadjustmentmethodvarieswithvarifocallensorzoomlensmodels.Forfur-
ther information, refer to the operating instructions for the lens.
 • Theadjustmentprocedureforgeneralvarifocallensesisdescribedasfollows:Forfurtherinfor-
mation, refer to the operating instructions for the lens to be used.
qDisplay a subject that exists as far as possible to adjust the back focus (10 m or more rec-
ommended).
wFor 8-, or 10-fold magnification lenses, adjust the back focus (☞see below) after setting
the zoom to the WIDE end and setting the focus to the FAR end.
For 2-, or 3-fold magnification lenses, adjust the back focus (☞see below) after setting the
zoom to the TELE end and setting the focus to the FAR end.
eAdjust the view angle and focus coarsely by adjusting the zoom and focus of the lens to
center a subject in the screen, and then perform the main adjustment of the back focus (☞
see below).
To use a fixed-focal lens
 • Forafixedfocuslenswithfocusadjustment,adjustthebackfocus(☞see below) after setting
the focus of the lens to the FAR end.
How to adjust the back focus
Use the operation buttons (☞pages 9 and 10) for this adjustment.
The back focus is also adjustable in the setup menu. Refer to the operating instructions (PDF)
for further information.
qPress the setting button after adjusting the view angle while viewing the video monitor.
wThe focus position indicator is displayed in the lower part of the screen, and the back focus
is automatically adjusted.
NEAR FAR
.........|..........
INDICATOR XXXX FOCUSING
