Panasonic Matsushita SD48C90JBU6 User manual

Rated Performance Data
Capacity . . . . . . . . . . . . . . 546 Btu/h ±7% *
E.E.R. . . . . . . . . . . . . . . . . . 4.67 Btu/Wh ±10% *
Current . . . . . . . . . . . . . . . 1.07 Amps *
Nominal Motor Data Motor Input . . . . . 117 Watts*
Rated Current . . . 1.16 Amps
Type . . . . . . . . . . RSCR, PTC relay
Locked Rotor . . . . . . . . . . 8.97 Amps
Start Current . . . . . . . . . . 15.73 Amps
Coil Resistances Run . . . . 3.82 Ohms
@ 68°F (20°C) Start . . . 6.66 Ohms
*Test Conditions for Performance Specifications
Test Oil . . . . . . . . . . . . . . . . Freol α 10
Shell Temp . . . . . . . . . . . . . . 150.0°F / 65.0°C
Condensing Temp . . . . . . . . . 130.0°F / 54.4°C
Evaporating Temp . . . . . . . . .-10.0°F / -23.3°C
Ambient Temp . . . . . . . . . . . . 90.0°F / 32.2°C
Gas Superheat . . . . . . . . . . . 90.0°F / 32.2°C
Liquid Sub-Cooling . . . . . . . . 90.0°F / 32.2°C
Electrical Accessories
Overload Protector
Nominal Operating Characteristics
Model Name T135AH6.1
Manufacturer Matsushita
Temperature To . . . . . . . . . . . Open: 275°F ± 9°F / 135°C ± 5°C
Close: 176°F ± 27°F / 80°C ± 15°C
Trip Current . . . . . . . . . . . . . . @212°F (100°C) 4.1 to 5.1 Amps
@77°F (25°C) 16.5 Amps @ 13 sec. max.
P.T.C. Starting Device†
Nominal Operating Characteristics
Model Name MM8-5DCP4M7 PTH7M4R7MD2
Manufacturer Matsushita Murata Mfg.
Base resistance
@ 77°F(25°C) ±20% 4.7 4.7 Ohms
Power Consumption (max) 3.3 3.0 Watts
Operation time 1.3 to 3.0 0.7 to 2.2 seconds
Recovery time (max) 65 70 seconds
Run Capacitor 12 µF 180 V (min.)
†Although these accessories are listed by UL/CSA for use with this compressor,
Matsushita assumes no responsibility whatsoever for these or any other components
sourced by the refrigeration system manufacturer from third parties.
Panasonic Industrial Company
Refrigeration Products Department
Tel: 201 - 392 - 4249
Fax: 201 - 392 - 4315 Rev#1-5/9
Evaporating Temp.
Condensing Temp. Rating -30°F -10°F +10°F
130°F Btu/h 239 546 983
Watts 77 117 160
Amps 0.75 1.07 1.46
E.E.R. 3.10 4.67 6.14
120°F Btu/h 280 577 1,011
Watts 80 116 155
Amps 0.78 1.07 1.42
E.E.R. 3.50 4.97 6.52
110°F Btu/h 311 604 1,038
Watts 82 113 149
Amps 0.79 1.06 1.37
E.E.R. 3.79 5.35 6.97
MATSUSHITA Compressor Single Phase 115V
MODEL# SD48C90JBU6 (VG10) R-134a 60
Hz

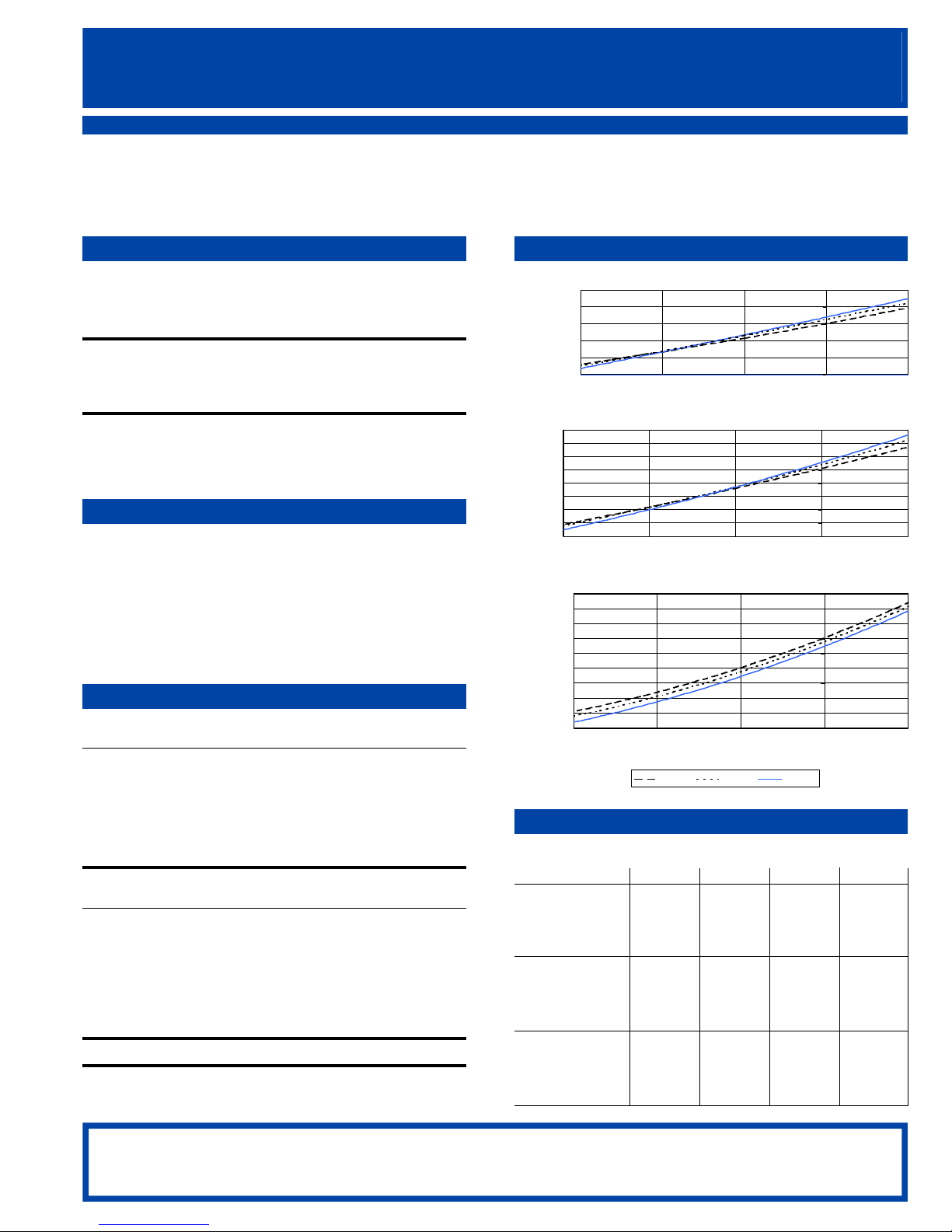

Performance Curves
Voltage Range . . . . . . . . . 103 Volts to 127 Volts @ 60 Hz
Application . . . . . . . . . . . . Low Back Pressure
Compressor Cooling . . . . Static Cooling
Refrigerant Control . . Capillary Tube
Evaporator
Temp. Range . . . . . . . -31°F to 23°F / -35°C to -5°C
9 – Point Data
P
a
na
s
o
n
ic
®
200
300
400
500
600
700
800
900
1,000
1,100
-30 -20 -10 010
Evaporating Temperature (°F)
Capacity (BTU/H)
110°F 120°F 130°F
70
90
110
130
150
170
-30 -20 -10 010
Input Power (W)
0.7
0.8
0.9
1.0
1.1
1.2
1.3
1.4
1.5
-30 -20 -10 010
Current (A)

Dimensions*
mm inches
A . . . . . . . . . . . . . . . . . . . . . 172.1 . . . . . . . . . . . . . . . . . . . 6.78
B . . . . . . . . . . . . . . . . . . . . . 60.9 . . . . . . . . . . . . . . . . . . . . 2.40
C . . . . . . . . . . . . . . . . . . . . . 111.2 . . . . . . . . . . . . . . . . . . . 4.38
D . . . . . . . . . . . . . . . . . . . . . 102.0 . . . . . . . . . . . . . . . . . . . 4.02
E . . . . . . . . . . . . . . . . . . . . . 85.0 . . . . . . . . . . . . . . . . . . . . 3.35
* All dimensions are for reference only
Tubes Tube O.D. Wall Material
Suction . . . . . . . 0.33 in. / 8.3 mm 0.035 in. / 0.9 mm Copper
Process . . . . . . 0.3125 in / 7.94 mm 0.028 in. / 0.7 mm Copper
Discharge . . . . . 0.28 in. / 7.0 mm 0.041 in. / 1.05 mm Copper
U.L. File # . . . . . . . . . SA 4615
C.S.A. File #’s . . . . . . LR - 36593
General Data Oil Charge . . 195 cc ± 5 cc / 11.9 cu.in.± 0.3 cu.in.
Net Weight With Oil . . . . . . . . . . . . 16.3 lbs, 7.4 kg
Approved Oils . . . . . . FREOL α10, FREOL α10E
. . . . . .FREOL α22, FREOL α22E
Residual Moisture . . . . . . . . . . . . . . . 120 mg max.
Impurities . . . . . . . . . . . . . . . . . . . . . . . 7 mg max.
Displacement . . . . . . . . . . . 4.85 cc. / 0.296 cu. in.
Panasonic Industrial Company
Refrigeration Products Department
Tel: 201 - 392 - 4249
Fax: 201 - 392 - 4315 Rev#1-5/9
This document sets forth certain operational parameters and conditions for
operation of this product. If this product is operated outside of the parameters
and conditions stated herein, buyer assumes sole and full responsibility and
shall indemnify seller with respect to all product failures and all consequences
thereof. Operation of the product outside of the parameters and conditions
specified herein shall serve to invalidate all seller warranties, if any, with respect
to the product. This document is for reference only. For specifications, please
contact Panasonic’s engineering department.
MATSUSHITA Compressor Single Phase 115V
MODEL# SD48C90JBU6 (VG10) R-134a 60Hz
P
a
na
s
o
n
ic
®
Running Capacitor
M
C
S
~
2
8
7
56
3
Compressor
Motor
R.S.C.R.
Internal Motor Protector
PTC Relay
Suction
Tube Tube
Process
Discharge
Tube
19mm (.75") DIA
4 Holes
16mm (.63") DIA
4 Holes
207.1mm (8.15")
170mm (6.69")
165.1mm (6.50")
70mm
(2.76")
101.6mm
(4.00")
130.6mm
(5.14")
150.4mm
(5.92")
82mm
(2.44")
87mm (3.43") 78mm (3.07")
104mm (4.09")
76mm
(2.99")
41mm
(1.61")
164.4mm (6.47") DIA
C
D
B
A
2.5mm (.10")
E
D
