Panasonic F-YAV28H User manual

F-YAV28H
Brightness
ϮŝŶϭŝƌWƵƌŝĨLJŝŶŐĞŚƵŵŝĚŝĮĞƌ

2

3
YAV28H

4

F-ZPKX32EH
F-ZPJ32EH
Take out the sticker from the HEPAfilter.
Write down the beginning date of service
on the sticker and attach it to the unit.
Before using, please remove the cushioning pad under the louvers (otherwose,
the airflow will be reduced, resulting in decreased.) Cushioning pad
Louver
5
YAV28H

Casters without brakes
(2 at the bottom/front of the main body)
Casters with brakes
(2 at the bottom/rear of the main body)
(Please peel off the protective)
Front Display
(P.20)
Brake wheel
(P.18)
(P.20)
The water tank may contain
water residue at time of
purchase. This is from final
product testing at the factory
and is not due to a defect.
6

Timer button
(P.16)
Humidity
button
(P.11)
Clean,deodorization
button
(P.14)
Auto
button
(P.13)
Function
selection
button
(P.10)
Air volume
button (P.12)
Display screen
Auto indicator
(P.13)
Auto indicator
(P.10) ECONAVI
indicator (P.10)
(P.10~p.13)
(P.16)
Front display (P.12)
(P.16)
(P.15)
(P.17)
(P.10)
(P.10)
Unpowered
Powered on
Full
(water display flash)
Factory setting
HEPA filter cleaning
and reset
HEPA filter replacement
and reset +
+
LED light brightness
setting
+
+
Filter life query
Security lock setting
Activated carbon filter
replacement and reset
Sound setting
Security lock setting
Press the button for about 3 seconds.
Press the buttons for about 3 seconds.
Press the button for about 3 seconds.
Press the button for about 3 seconds.
Press the button for about 3 seconds.
Press the button for about 3 seconds.
Press the button for about 3 seconds.
Press the button for about 3 seconds.
Press the buttons for about 7 seconds.
How to use combination key
In standby
Running
7
YAV28H

8

(Displayed on the "Front Display")
If the deodorant filter and HEPA dust filter are not installed on the body, the value detected
by the PM2.5 sensor may be inaccurate.
The color of PM1.0 changes according to the color currently displayed by the PM2.5 sensor.
The concentration detected by the PM2.5 sensor may be different from the data detected by other devices.
Front Display
9
PM2.5/PM1.0
YAV28H

When the clothes drying is started, the air volume
display is forced to be in the Auto mode. At this time,
system sound three 3 beeps if you try to press
button.
The ECONAVI Indicator, Auto stop Indicator,
Intelligent dryness monitoring system will turn off in
this mode.
P. 1 2
P. 1 5
To keep humidity at a comfortable level
Maintain the humidity level (approximately at 65%)
To force Continuous Dehumidifying (when humidity level
cannot be controlled)
To clean and restrain becteria (dehumidifying is stopped at this
time)
Humidity sensor detects the ambient level and keeps
indoor humidity at the most suitable level for human body.
However, the feeling of humidity varies from person to
person; the “humidity setting” is available for adjusting the
humidity if needed.
The dehumidiffer operates during high ambient humidity,
and stops at low ambient humidity.
Humidity level will be adjusted automatically according to
the indoor temperature.
The unit adopts HEPA and deodorant filters to provide the
effects of bacterial resistance, dust removal and
deodorization.
When the filter is detected by the filter detector, the will light up as you
press down the Function selection. If no filter is installed, the will not
light up when the Function selection button is pressed. The will light up
when only the air purifying function is in operation. The air velocity may vary
depending on the use of the HEPA filter.
Intelligent dryness monitoring system
indicator
16
16
17
10
If user is not satisfied with the dry condition
After completion of laundry drying. [Keep Dry]+ [Normal]
indicators OFF, Intelligent dryness monitoring
system will come on, and continues automatic operation.
The ECONAVI Indicator and Auto stop Indicator lights off and
Intelligent dryness monitoring system lights up in this mode.
About Laundry mode
It can detect the changes of temperature and humidity, so
the unit will operate in accordance with the quantity of
laundry and the prediction of dry condition.
For more informationĺrefer to “About Laundry mode” (P.21)

P. 1 2
P. 1 5
17
16
16
11
YAV28H

61
Now Now
Odor Odor Odor
Filter Life
Deodorant
Now Odor Filter Life
Deodorant
Full Tank
HEPA Filter Clean HEPA Filter Clean
HEPA Filter Replace HEPA Filter Replace
Deodorant
Deodorant
Purifying
Press 3 sec.
Press 3 sec.
Airflow Timer
+
Screen
Off
Front display switching
Air volume selection (Operation mode / Humidity settings)
To change air volume
The air volume can only be selected in the “Operation mode” and “Humidity setting” modes.
(Select the operation mode according to P.10-P.11 before setting)
Press to
select
Press to
select
(Factory default)
The airflow can adjust when in Fan mode. Only Airflow in Auto mode, the air flow will be
changed by the volume of PM2.5 and maloder.
Yoru product may enter protection mode with air volume and direction
in case room temperature goes above Û&. (System sounds three
beeps if you try to press air volume and direction key)
Current
Humidity
Odor
Filter
Life
Cycle
Mode
Full
Tank
Filter
Alarm
12

To use Auto during operation
To use Auto during standby
Auto mode
About Auto mode
Intelligently determine the best mode through a variety of smart sensing devices.
In Auto mode, when the humidity reaches the set value, and the PM2.5/PM1.0 and odor reach the green level (indicator level 1), after the
machine runs for a period of time, Auto mode will Automatically enter standby mode. The Auto indicator will keep flashing to remind the
consumer that the Auto mode has not yet been exited, and will start again when the humidity is higher than the set level or the PM2.5/PM
1.0 and the odor reach the orange light level. (During standby mode, in order to obtain the latest air quality conditions, the fan will run
for 3 minutes for every 20 minutes.)
In the Auto mode, the air direction is Auto; if it is in the standby mode, the air direction panel will be turned off.
In Auto mode, the front display will be in the cycle mode; the front display will be turned off if it is in standby mode.
In the Auto mode, is forced to start; if it is in standby mode, will be turned off.
In the Auto mode, full water reminder ON/OFF can be set.
In the Auto mode, press the "Power Off/On" button to end theAuto mode or switch to other functions.
(Humidity
setting)
(Press to
select) (Skip this step)
(End Auto)
Press the button in the standby mode (the Auto indicator
flashes).
The humidity setting lights up; press the button to set
the humidity.
If the humidity is set, wait for about 3 seconds and
automatically enter the Auto mode.
If no humidity is set, it will be automatically set with the
factory humidity setting (or the previous humidity setting).
After entering the Auto mode, the Auto indicator will be on,
and other buttons (except the humidity setting) cannot be
operated.
To leave the Auto mode, press to leave Auto mode.
Ř
Ř
Press the button in the standby mode (the Auto indicator
flashes).
The humidity setting lights up; press the button to set
the humidity.
If the humidity is set, wait for about 3 seconds and
automatically enter the Auto mode.
If no humidity is set, it will be automatically set with the
factory humidity setting (or the previous humidity setting).
After entering the Auto mode, the Auto indicator will be on,
and other buttons (except the humidity setting) cannot be
operated.
To leave the Auto mode, press to leave Auto mode.
Ř
Ř
(Press to
select) (Skip this step)
(End Auto)
(Humidity
setting)
Auto indicator
13
YAV28H

14

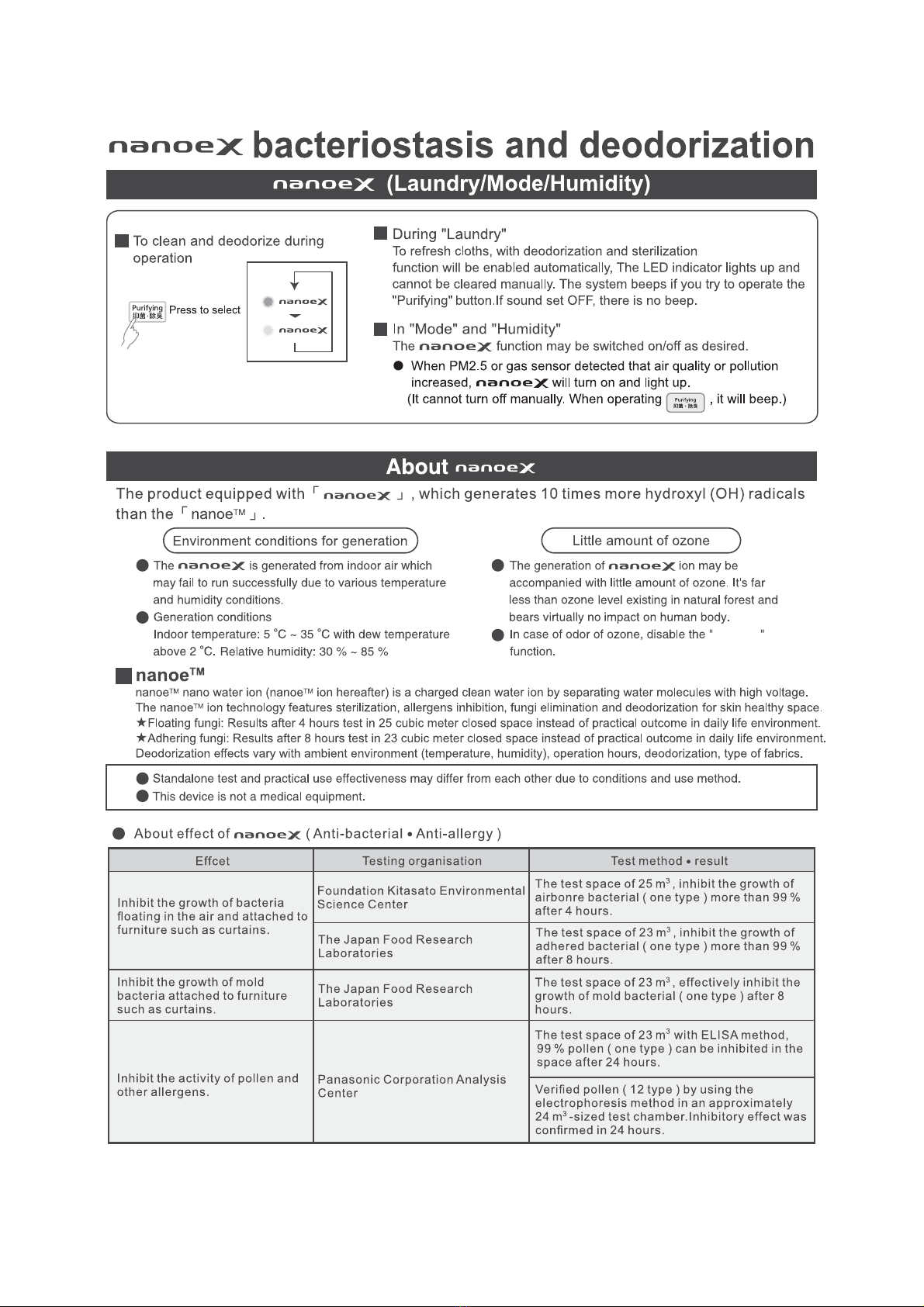

Purifying

Up
Auto
Below Down
2
2
Down
Up
Auto
Auto
Below
Up
Auto
15
2
Carpetăfloor and
shoes, etc.
According to the actual needs, adjust the machine to an
appropriate position
so that the air can blow to the place that needs to be
dehumidified.
YAV28H

Ř
Ř
Timer / Sound / Key lock / Brightness setting
When the button is pressed in the standby mode (the
"timed power on" cannot be set during operation), the
LCD display will go on Note 1. After settings is completed,
press the button to finish the “timed power on”
settings. If you want to cancel the timed settings, press the
button again.
MFE!mjhiu!csjhiuoftt!tfuujoh
16
Activate sound settings
When running, press the louver button for about 3 seconds, and the text in the LCD sound area begins to flash; press
the louver button again during the flashing to select the setting.
Exit sound settings
The setting will be exited if there is no operation after the text in the LCD sound area flashes for about 5 seconds, or
another function button is pressed.
Brightness setting (factory default is full brightness)
When the humidity button is pressed for about 3 seconds when running, the LED light of the operation panel can be
adjusted, but the brightness of the LED and the front display cannot be adjusted.
Press and hold the humidity button for 3 seconds to enter the brightness control, and changes can be made only when running.
The brightness control is to control the brightness of the ECONAVI, nanoe X, water full, and Auto indicator.
Full Bright Half Slightly

17
Hold down the machine body with your
thumb and then take out the water tank.
water display
flash
and
front display panel
shows water full.
YAV28H

18



19
Folding on
both sides

Turn the tank
handle up and
fold both sides of
the tank cover.
When installing
the folding on
both sides of the
water tank cover,
it may sink if the
force is too great.
7
YAV28H

20
24
5
5
After cleaning the HEPA filter, press the button for about 3 seconds according to the instructions on the front display, and the warning screen on the front display will be cleared.
After replacing the HEPA filter, press the + button for about 3 seconds according to the instructions on the front display, and the warning screen on the front display will
be cleared.
After replacing the activated carbon filter, press the + button for about 3 seconds according to the instructions on the front display, and the warning screen on the front
display will be cleared.
When the filter cleaning or replacement is not exited, the filter cleaning or replacement reminder will be displayed for 10 seconds each time the machine is turned on.If the HEPA filter
has reached its service life, after another 500 hours of running, the filter warning screen will continue to display, and the "Front Display" button cannot be operated; please replace the
filter as soon as possible and clear the warning screen.
is the cleaning position
PM2.5(PM1.0)
