Panasonic F-YWP33N User manual

Operaon mode / Air volume selecon
To set humidity
Laundry mode
Air Direcon Selecon
Air direcon seng example
nanoeTM bacteriostasis and deodorizaon
Timer / Handling of louver falling off /
Handling of full water tank
How to drain connuously
Maintenance
About Laundry mode
Effecveness of Filter
Sound sengs
Key lock seng
W-HEXS, the more energy saving dual
dehumidificaon system
Operation
Operang Instrucons
Dehumidifier
This product is for indoor use only
Model No.
Thank you for purchasing this Panasonic product.
Please read these operang instrucons carefully,
in order to use the product correctly and in a safe
manner.
Please read the "Safety precauons"
secon (page2~4)caerfully before use.
Make sure that the correct informaon is wrien
on the warranty card, including the date of
purchase and the name of the distributor.
Keep the warranty documentaon in a safe place
along with the operang instrucons for future
reference.
Correct use will help you save electricity
Warranty card included Separately
F-YWP33N
Page
Fault
Emergency measures
Specificaons
20
21
24
Safety Precauons
Parts Name
Control panel
Note
2~4
5
6
7
Contents
Trouble
shooting
Preparing
for use
8
9
10
11
12
13
14
15
16~17
18
18
18
19
19
The appliance is not intended for use by persons (including children) with reduced physical ,
sensory or mental capabilities , or lack of experience and knowledge , unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety .
Children should be supervised to ensure that they do not play with the appliance .
If the supply cord is damaged , it must be replaced by the manufacturer , its service agent or
similarly qualified persons in order to avoid a hazard .
Please disconnect the power plug and empty the tank before doing any maintenance work .

Electric shocks may
occur.
2

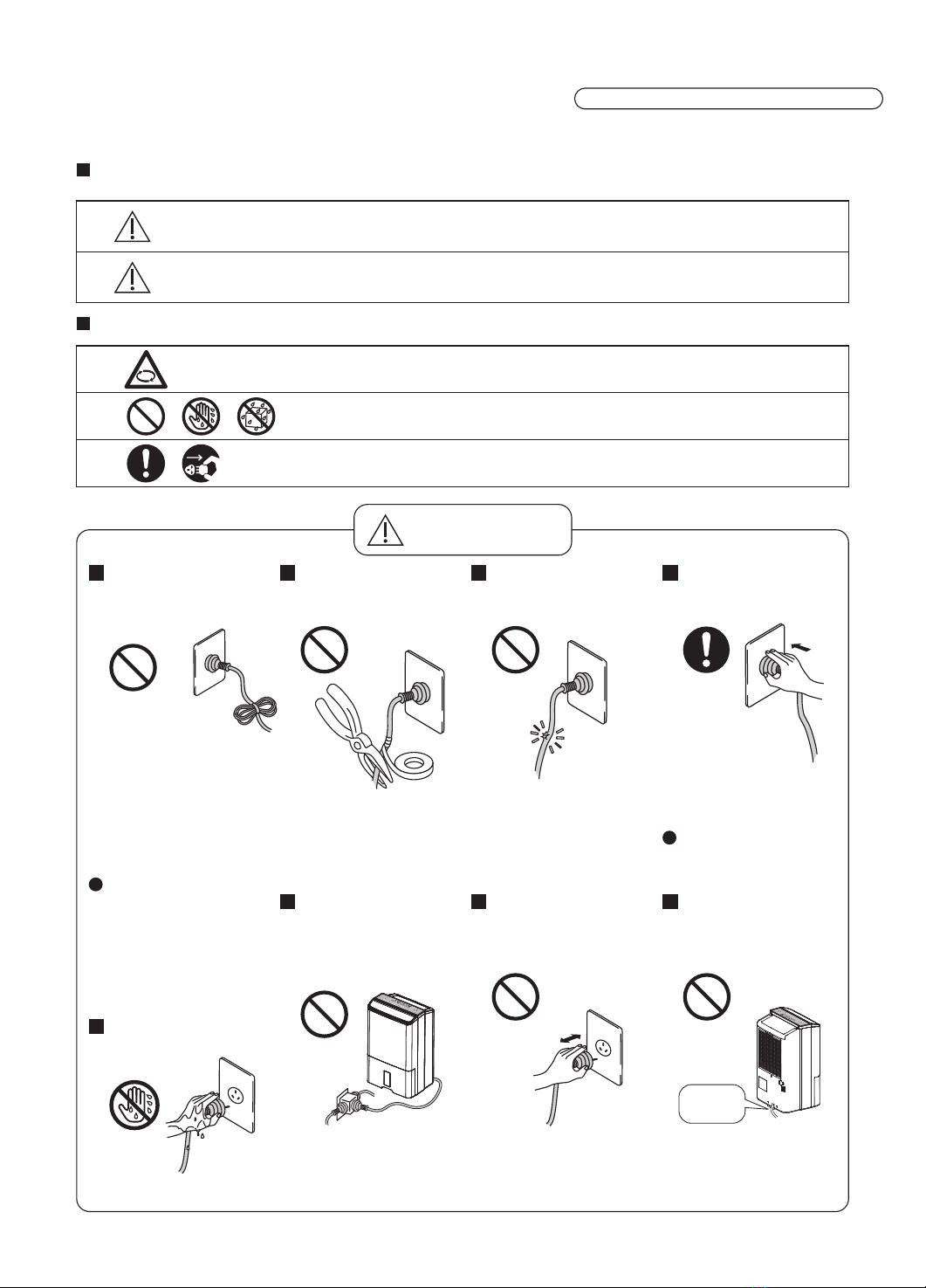

Safely precautions Always pay attention to these precautions
To prevent users and others bodily harm or property losses, we are explaining the precautions must be observed.
Ignoring the symbols incorrect operation, can result in harm or level of damage, described in the following
two categories.
This symbol indicates the “Possibility of death or serious injury”.
This symbol indicates the “Possibility of injury or damage to property”.
Meanings of symbols that always observed are as shown below.
This symbol indicates an action that ’’requires caution”.
This symbol indicates a “never do this” action.
This symbol indicates an “always do this” action.
Do not do anything
that may damage
the power cord or
power plug.
Avoid the power
cord if it is damaged
or modified
Do not use a
damaged power
cord
Insert the power
plug completely
Do not start or stop
the unit by plugging
or unplugging the
power plug.
Do not use the
voltage other than
as specified for
unit.
Do not use
overloaded the
rated current of the
power outlet and
wiring equipment.
Do not unplug the
power plug with wet
hands.
Damage from heavy
objects placed on top,
heating, or pulling could
cause fire or electric
shock.
Using damaged power
cord, electric shocks or
fire may occur. Please
consult with the
dealership or service
station.
Use too many branch
lines will exceed the
rated current, it may
cause a fire by
overheating.
It may cause fire or
electric shocks by
overheating.
It may cause fire or
electric shocks by
overheating.
Do not damage, modify,
bend strongly, pull, place
heavy objects on top or
binding with nylon yam
or wire on power plug.
If using damaged power
cord, may result in
electric shock, short
circuit, causing fire.
If the supply cord is
damaged, it must be
replaced by the
manufacturer, its
service agent or
similarly qualified
persons in order to
avoid a hazard.
WARNING
CAUTION
If the power plug is not
inserted securely, fire
due to overheating may
occur.
Do not use damaged
power plugs or loose
wall sockets.
230-240 V ~
50Hz
WARNING

3
If dust accumulates on
the power plug, humidity
may cause damage to
insulation and may result
in fire.
Unplug the power plug
and wipe it with dry
cloth.
If not using the unit,
unplug the power plug.
Do not stretch the
power cord.
It may damage the wires
inside the cord, and fire
or electric shock may
occur.
Do not insert fingers
or other objects into
the air inlet or outlet.
Do not place the
unit near a heater.
Never try to repair
the unit by yourself.
Switch off and then
unplug out the power
plug when error
occurs (smoke etc.)
Fire or electric shock may
occur.
Please consult the
purchasing dealership
or service station for
repairs.
It may cause fire or electric
shock by overheating.
Please consult the
purchasing dealership
or service station.
Plastic parts may melt
and cause fire.
The rotating fan inside
the unit could cause
injury.
Do not unplug
roughly.
Periodically clean
the dust and dirt on
the power plug. Do not pull on the
power cord when
carrying or storing
the unit.
Unplug roughly may
damage the power cord,
cause electric shock,
short circuit fire.
Place the unit on level and
sturdy floor.
Do not operate in areas where
water may be easily splashed
onto the unit.
During operation, heat from the unit
may cause indoor temperature to rise,
operating in closed room may cause
discomfort.
Pay particular attention if infants or
the elderly are present.
Monitor indoor temperature
during prolonged operation.
Fire or electric shock may occur.
Do not use unit near
flammable gas.
If flammable gases permeate
the surrounding space, it may
cause fire.
If there is insufficient ventilation,
overheating and fire may occur.
Do not use in confined
spaces such as closets.
Do not use in places
exposed to direct sunlight,
wind or rain.
Resulting heat may cause fire
or electric shock.
YWP33N
• Incorrect On/Off
operations.
• Switch electric leakage or
fuse burned frequently.
• Power cord or power plug
heats up abnormally.
• Burning smell or abnormal
noise during operation.
• Water leakage from the
unit.
• Other abnormal faulty
condition.
It may cause short circuit
or broken wires (which
may cause fire or electric
shock.)
If the unit tilts, water will
overflow, and wet the property
potentially causing fire or
electric shock.

Fire, Electric shock,
damage to household
items caused by water
leakage may occur.
Safety

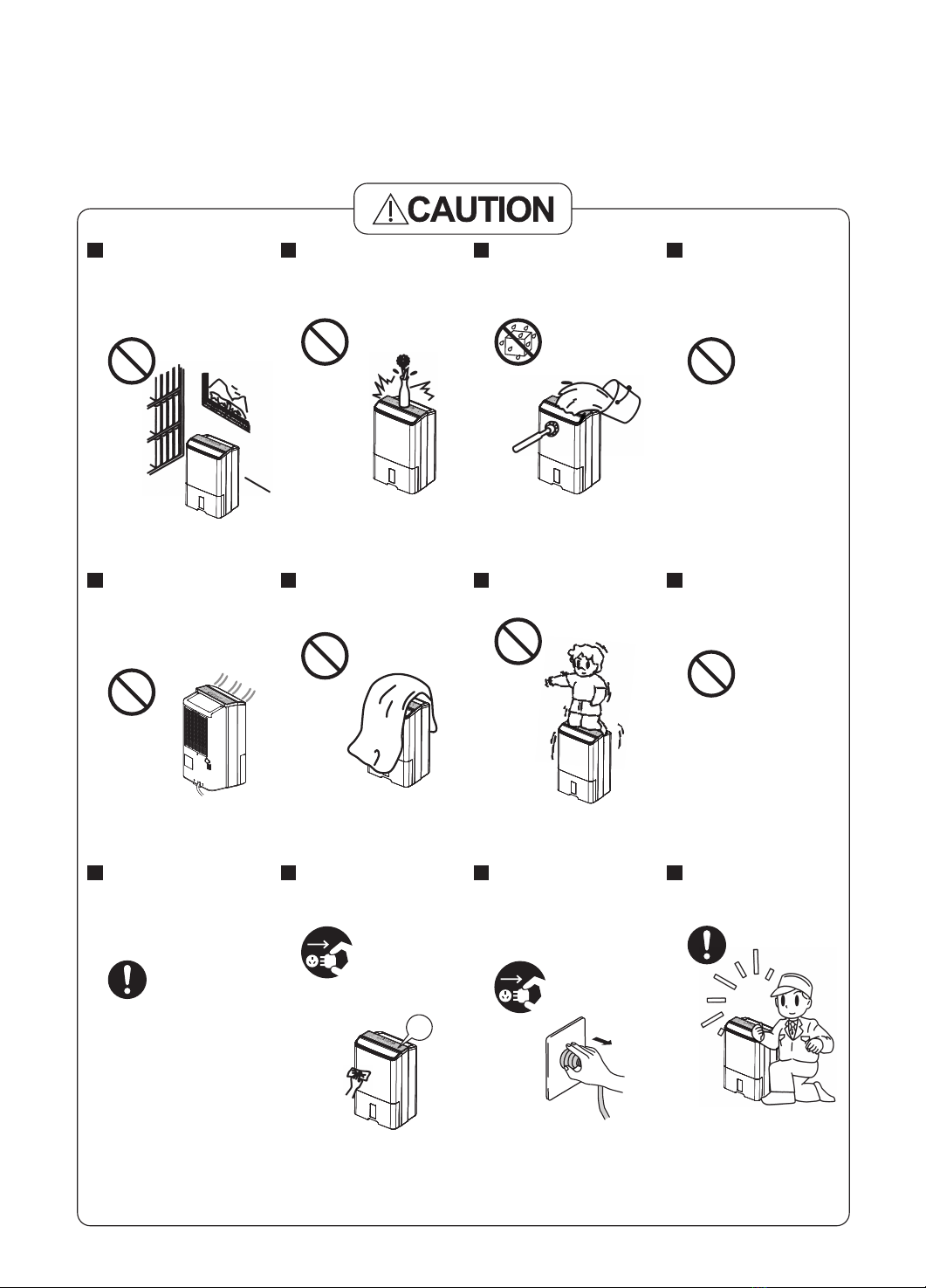

Precautions
Do not use in place
where there are
artworks or
academic
documents.
Do not place flower
vases or other water
container on top of
the unit.
Do not wash the
Dehumidifier directly
with water.
Do not move or
transport the unit
by holding the
louvers.
Do not clean your
product by spraying
insecticides to it or
wiping it with
benzene or thinner.
Do not place any
heat or flame
producing
instrument in air
outlet of the unit.
Do not cover the air
inlet or air outlet with
cloths or towels.
Do not sit or climb
on the unit.
Deterioration of stored
articles may occur.
Water may spill into the
unit and fire or electric
shock may occur.
Water leakage may
cause electric shock.
Incomplete combustion
may cause carbon
monoxide poisoning.
Air circulation will
decrease and overheating
or fire may occur.
You may fall over, and
injury may occur.
The unit may fall down
and injury may occur.
Fire, Electric shock,
damage to household
items caused by water
leakage may occur.
The high-speed rotation
of the fan inside may
cause injury.
Accumulation of dust and
foreign objects may lead
to heat and fire may
occur.
Particularly the air filter
and drains should be
checked routinely to
avoid overheating and
leakage, resulting in
house fires and items
wetted.
When moving the
Dehumidifier, turn
off the unit and
empty the water in
the water tank.
When the unit is to
be cleaned, switch
off and unplug.
If unit will remain
unused for a long
period, unplug the
power plug, for
safety.
After prolonged
use, perform
periodic inspection.
4
off

5

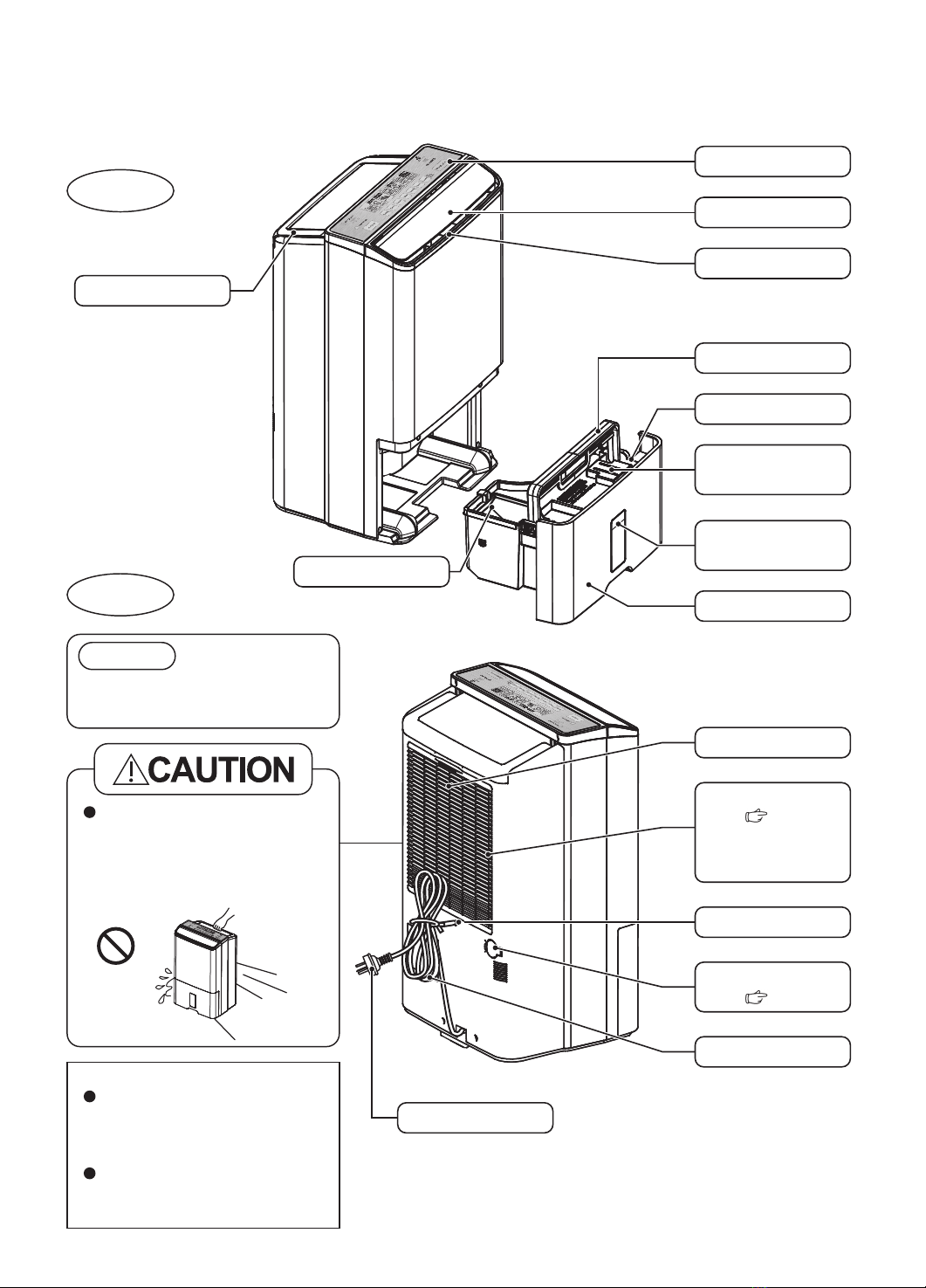

Parts Name
Front
※Remove bandage before use.
Tank cover
Tank handle
Louver
Air outlet
Air inlet
Cord holder
Power cord
Water outlet
YWP33N
Air Filter
( P.17)
Please do not block
air inlet to avoid
poor ventilation.
Drain pipe interface
( P.15)
Float (Inside the
water tank)
Water full mark
(Reference)
Water tank
Handle
Where to use
At least 20 cm distance from the
wall. (Walls and furniture near
unit, may be stained by
electrostatic.)
At least 1 m distance from any
TV, radio (To prevent screen
interference, noise)
Do not move roughly on the
carpet, or when tank is filled with
water. (May cause the unit to fall
or spill water thus dampen the
house and property.)
Back
Caster
(On the bottom of unit/4 pieces)
Note
Power plug
Control panel

Laundry key (P.10) /
display area /
key lock (P.19)
Laundry
display area
(P.10)
Function selection key
and display area
(P.8)
Control panel
ECONAVI Indicator
(P.10)
Water full display area
(P.14)
Power off/on button
(P.8~P.10)
LCD indicator
Unpowered
Press any button when the power is on, selected
function will be displayed.
The LCD backlight lights up, and the backlight will
automatically go off after 10 seconds.
The LCD indicator turns orange for 10 seconds then
goes off. The water display and indicator
keeps on flashing. If the water full alert is ON, the
buzzer beeps for 6 seconds together with the
orange indicator.
6
Full Tank
indicator
(P.14)
Air volume key /
display area
(P.8)
Air flow scope key
and display area
(P.11)
Auto stop
Indicator
(P.10)
Cloth
moisture
indicator
(P.10)
Clean, deodorization key /
nanoe indicator
(P.13)
Timer button
and indicator
(P.14)
Louver button
and indicator
(P.11)
Humidity button
and indicator
(P.9)

7
YWP33N
[ ] When indicator flashes and error code "11"
prompts, check the following:
When unit is tipped over.
1 Unplug the power plug.
2 Set the unit back upright
(wipe away any spilled water).
3 Let the unit stand for half a day or more without
using it. (to dry the unit inside completely in
case any water has spilled inside)
4 Insert the power plug again and restart the unit.
Does the unit tilt?
→ Unplug the power plug and then reconnect it.
Is magnet or metal placed atop the machine?
→ Remove magnet or metal object,
Unplug the power and then reconnect it.
Check
It displays “Hi” if the humidity is higher than 85 %
and display “Lo” if the humidity is less than 24 %
Display of
humidity
It indicates unit failure when the [ ]
indicator do not flashing
(For example)
There are eleven
fault codes
Case
Please unplug the power plug
immediately, and consult service
station to repair the unit.
Full
Defrost [ ] When Defrost indicator is flashing, the unit is defrosting.
→Only the Power off/ on button works. Other buttons will be disabled.
When the [ ] indicator and the water full display area flash, it indicates that the tank
is full of water. All functions won’t be able to work if the tank remains full.
In case there is foreign matter, water, or dust entered your product or you press and hold on or
more of its keys for 17 seconds the safety protection mode begins. Its original use status
retains. No other key, except the " " key, functions in this mode.
The safety protection mode may run up to 10 hours and then auto power off (or by pressing
" " key).
Once " " and " " indicator light up, remove any foreign matter, water, and dirt or
your hand from the product to exit this mode.
To prevent you from forgetting to swtich off the unit, operation will stop automatically if no
button is pressed for 24 hours.
If room temperature is higher than 32 °C, the air volume will increase automatically in order to
protect the unit.
The unit should be operated within an indoor temperature range of 5~35 °C. Operation out of
this range may cause some undesired problem.
The unit will stop operation when power failure occurs, and return to standby mode after power
recovery. To ensure compressor life, do not operate within 3 minutes after switching off the unit.
Protection
Power off mildew prevention:
The product may run 3 minutes in fan mode after operation stopped (by manual or timer
settings) to dry its internal side for mildew prevention. Press Power off/on key when in this
mode to cancel this function.(P.S.1)
This function may not get enabled due to compressor operation time.
P.S.1 When compressor operates more than 10 minutes.
Mildew
prevention
Comfort The dehumidifier is used for daily life, such as the removal of unplesant humidity and laundry
drying. However, if ambient humidity is under 50 %, unit cannot help maintain a comfortable
humidity environment.
Avoid leaving any operating dehumidifier unattended.
Recommend to have a regular inspection on the dehumidifier by a Qualified Person.
Safety
protection
Lights up (safety protection mode)
Attention
Memory
function
Factory
default
Standby
Press and simultaneously for about 7 seconds to activate.
If "00" is displayed, the unit is reset to the factory default.
＊After resetting to the factory default, all operating modes will be restored to their default settings.
When you stop and start the unit, it will return to the previous mode.
If you disconnect and connect the plug again, the unit will return to the previous mode.
(Except timed settings)
Note

To force Continuous Dehumidifying
(when humidity level cannot be controlled)
To clean and restrain bacteria
(Refer to: Effectiveness of Filter P.18)
(Dehumidifying operation is stopped at this time)
Maintain humidity level (approximately 65%)

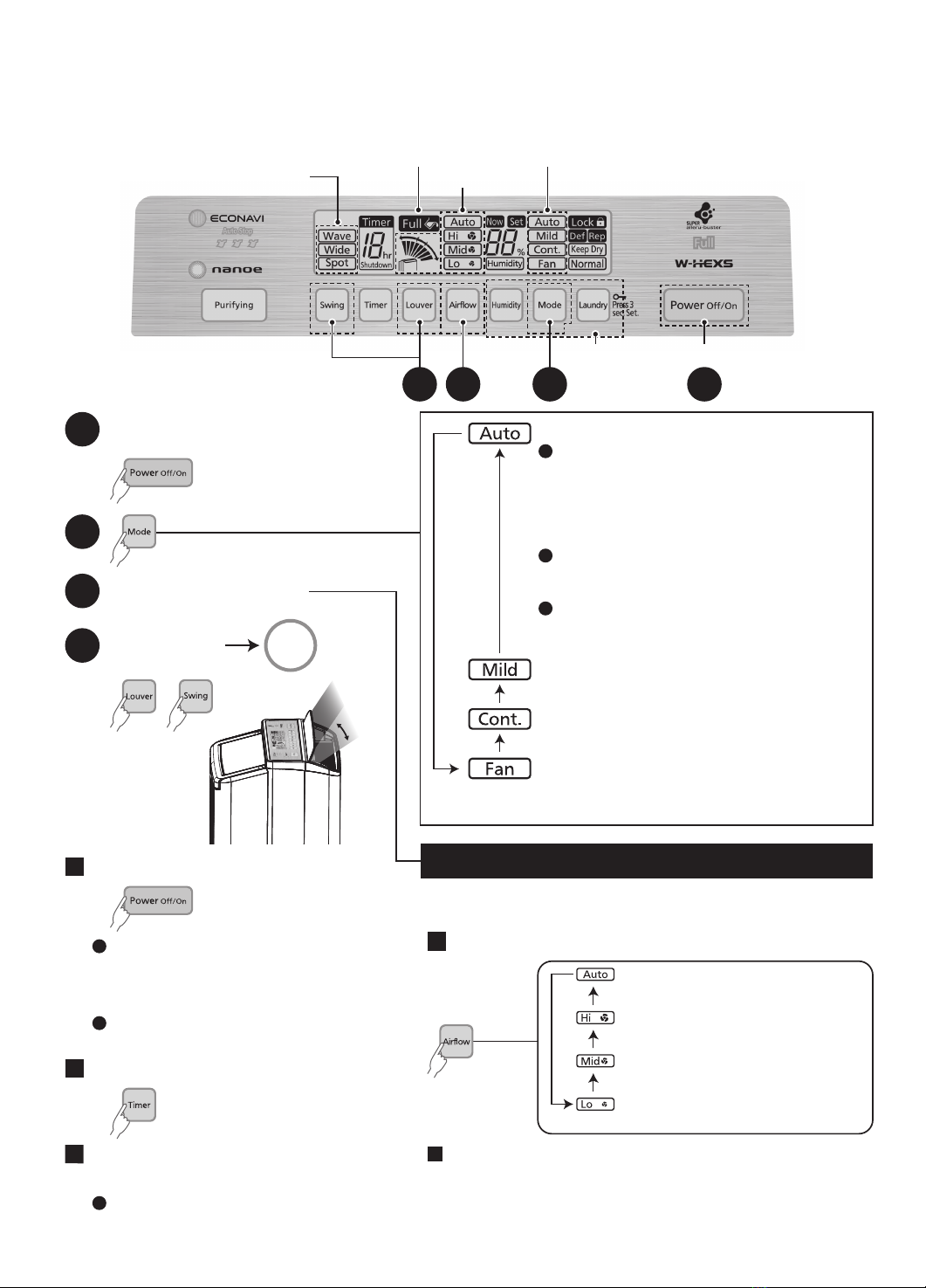

Operation mode / Air volume selection
8
Air volume selection (Laundry/Mode/Humidity)
2
1Insert the power plug
Turn on the unit
Press to select
3
P. 11
Select the
Air direction
4
To stop operation
When Full Tank Indicator is
flashing (P.14)
Air volume selection
The product may run 3 minutes in fan
mode after operation stopped to dry its
internal side.
(power off mildew prevention p.7)
Please unplug the power plug at least 3
minutes after stopping the operation.
To use timed power off (P.14)
Operation will stop → Please empty the
tank
3214
Mode indicators
Air volume display
Power off/on button
Air flow scope display
To keep humidity at a comfortable level
Humidity sensor detects the ambient level
and keeps indoor humidity at the most
suitable level for human body. However, the
feeling of humidity varies from person to
person; the dehumidifying mode is available
for adjusting the humidity if needed.
The Dehumidifier operates during high
ambient humidity, and stops at low ambient
humidity.
Humidity level will be adjusted automatically
according to the indoor temperature.
Operation
mode
Louver indicator
Your product may enter protection mode with air
volume and direction in case room temperature
goes above 32ºC. (system sounds three beeps if
you try to press air volume and direction key)
Press to
select
The best operation air volume in
factory default settings
For economy drying,
dehumidification, and fan operation
For quiet drying, dehumidification,
and fan operation
To change air volume
(select operation mode P8~P10 before selecting
settings)
For fast drying, dehumidification,
and fan operation

9

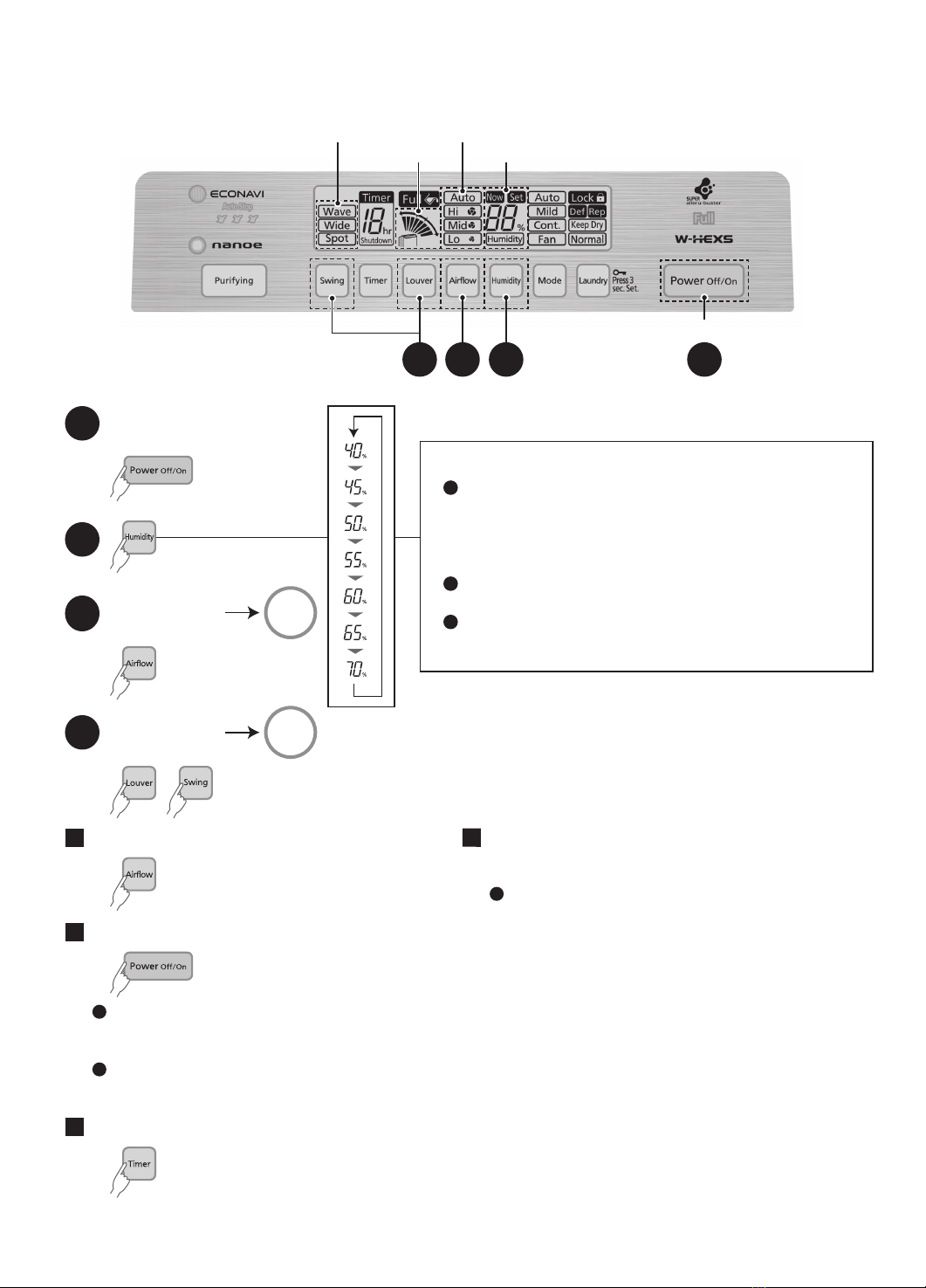

To set humidity
1
2
4
3
YWP33N
Press to select
P. 8
Air volume
selection
Humidity Setting indicatorLouver indicator
Volume displayAir flow scope display
1
23
4
Power off/on button
P. 11
Select the
Air direction
When Full Tank indicator is flashing
(P.14)
Operation will stop → Please empty the tank
Insert the power plug
Turn on the unit
To change air volume (P.8)
To stop operation
The product may run 3 minutes in fan mode
after operation stopped to dry its internal side.
(power off mildew prevention p.7)
Please unplug the power plug at least 3
minutes after stopping the operation.
To use timed power off (P.14)
Want to set your desired humidity.
The word “Set” will display for around 5 seconds when
yor set your desired humidity by pressing the “Humidity”
button, then it shows the current humidity and the word
“Now”.
to display the current humidity and the tem “Now”
Humidity sensor detects the ambient level and keeps
indoor humidity at the set humidity.
The unit operates during high ambient humidity, and stop
at low ambient humidity.

To refresh cloths with deodorization and sterilization nanoeTM function
will be enabled automatically by system in cloth drying mode. The LED
indicator lights up and cannot be cleared manually. The system beeps
two times if you try to operate the "Purifying" button.
Air volume
selection
Intelligent dryness monitoring system
( )
ECONAVI
10

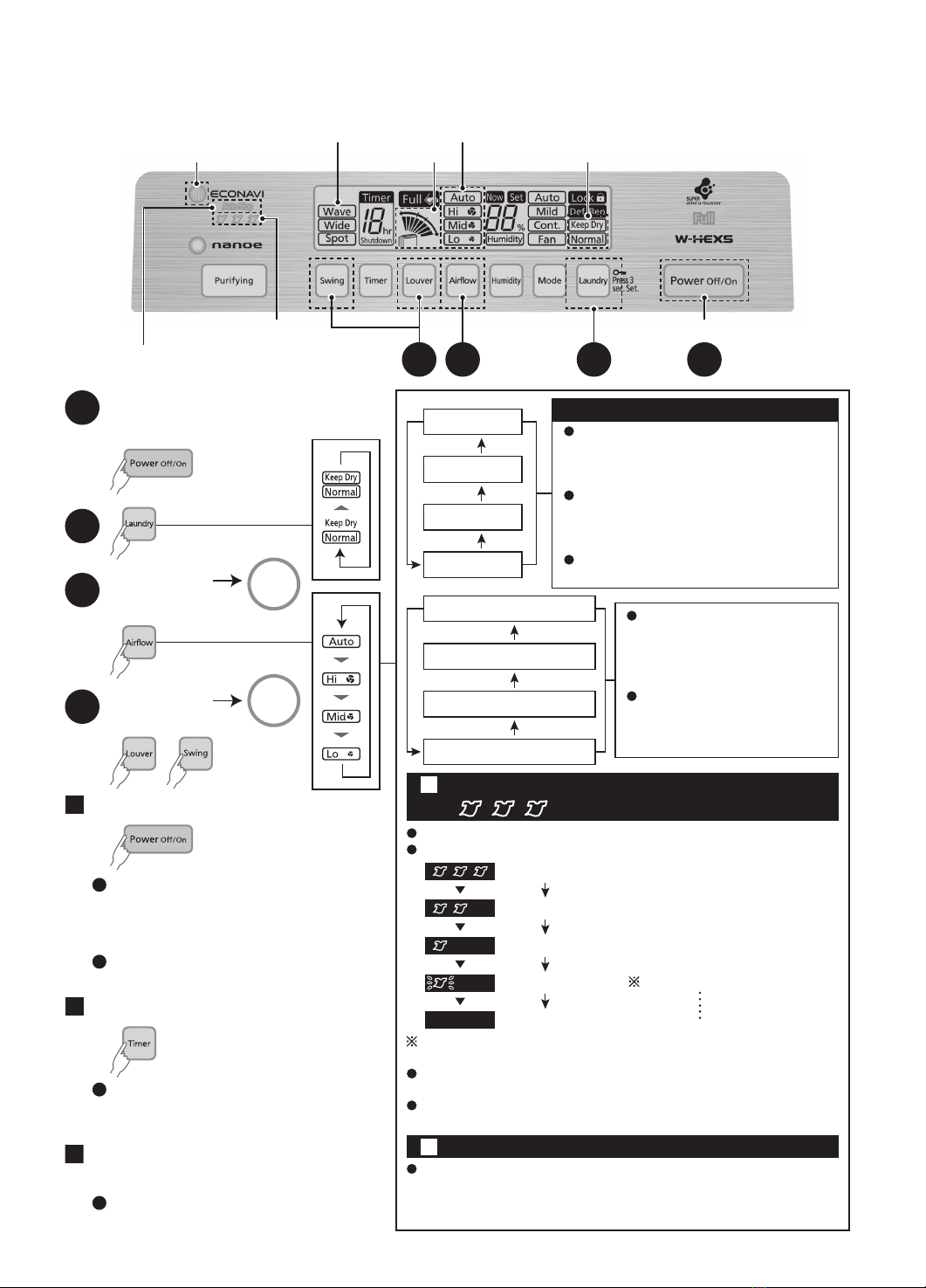

Laundry mode
3
2
1
Press to select
P. 8
Cloth humidity indicator
ECONAVI Indicator
Auto stop Indicator
Air volume display
Laundry indicatorLouver indicator
Power off/on button
Air flow scope display
3 2
Auto + Normal + Keep Dry
Lo + Normal + Keep Dry
Mid + Normal + Keep Dry
Auto + Normal
Hi + Normal
Mid + Normal
Lo + Normal
Hi + Normal + Keep Dry
1
4
4
Press to select
P. 11
Select the
Air direction
To stop operation
The product may run 3 minutes in fan
mode after operation stopped to dry
its internal side.
(power off mildew prevention p.7)
Please unplug the power plug at least
3 minutes after stopping the operation.
When using timer (P.14)
When Full Tank Indicator is
flashing (P.14)
Operation will stop → Please empty
the tank
The ECONAVI Indicator, Auto Stop
Indicator, Laundry Humidity Indicator
will turn off in this mode.
During operation, the ECONAVI Indicator,
Auto Stop Indicator, Laundry Humidity
Indicator will be ON simultaneously and
OFF after the drying process is completed.
It can detect the changes of temperature
and humidity, so the unit will operate in
accordance with the quantity of laundry
and the prediction of dry condition.
For more information → refer to "About
Laundry Drying" (P.18)
After completion of laundry
drying, [Keep Dry] + [Normal]
indicators OFF, Humidity
Indicator will come on, and
continues automatic operation.
The ECONAVI Indicator and
Auto Stop Indicator lights off
and Laundry Humidity Indicator
lights up in this mode.
This function is valid for cloth drying.
It tells drying status of cloths.
After laundry completed, in order to prevent humidity returns to the
laundry, please maintain laundry condition.
Based on type of laundry, quantity, and method of hanging, and room
condition, etc, there may be variation of dry conditions.
If user is not satisfied with the dry condition, [Keep Drying] Function may
be chosen as an option.
(flash)
Laundry starts
Laundry completed ( Keep Drying Operation)
Approximately 1/3 dryness
Approximately 2/3 dryness
Operation completed
nanoeTM indicator
Insert the power plug
Turn on the unit

11

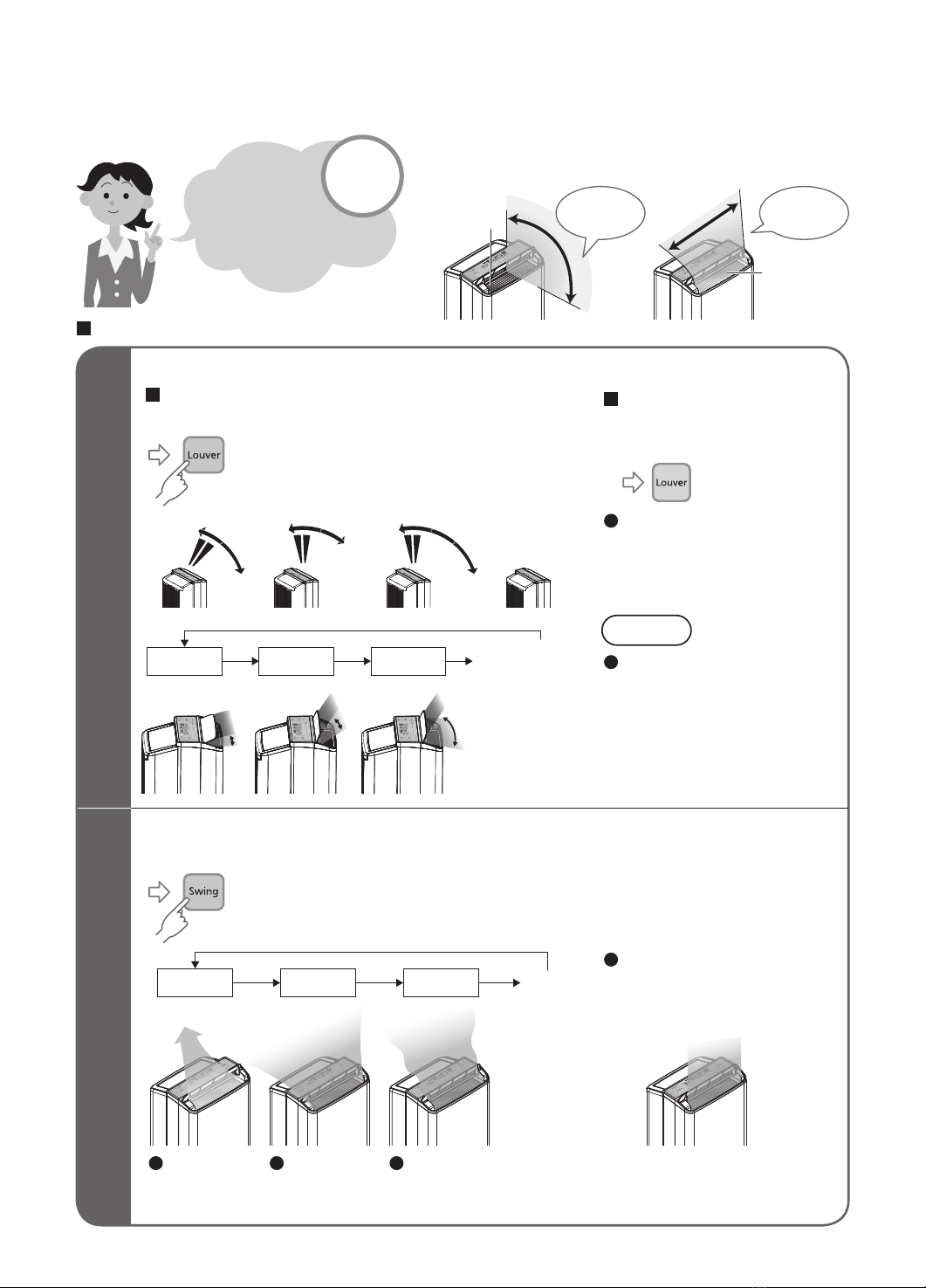

Air Direction Selection
YWP33N
Down Up Auto
WaveWideSpot
To swing louver
Running
(normal)
Please refer
to pages below
for air direction
selection!
P.12
Louver
Vertical
swing
Horizontal
swing
outlet
Operation
(Press to select)
Running
(Press to select)
The louver direction indicator
lights off and the louver stops
swinging and starts blowing
in one direction.
Note
(stop swinging)
Vertical swing Horizontal swing
Send air in
center as well
as left hand and
right hand side
Send air in
wide range
from left to
right
Focus air
in one
direction
Select operation mode P8~P10 before selecting air direction.
To fix the louver
The swing can be set to match the width of the place where you would like the air to reach.
The swing can be set to match the height of the place where you would like the air to reach.
Select Auto to enable louver
swing. When it reaches the
desired location, press the
again.
Do not move the louver while
swinging operation is in
progress.
(The swing range will change.)
If you do not select a
horizontal swing setting, the
dry air outlet will expel air
along its entire width.

Leather items such as shoes
can not be dried with a
dehumidifier.
(They will become warped or
damaged.)
1: If there are items which are difficult to be dried, placing in between other items, use the “Wave” setting to
make drying more effective.
2: Choose either “Up” or “Down” depending on how high the clothes are hanging and how high the closet is.
Tips for drying
effectively
Place the dehumidifier at a place that all clothes can be reached evenly.
Leave space between each item of clothing so that air can circulate freely.
Leave a distance of 40 cm or more between the dehumidifier and the clothes,
depending on the amount of clothes.
12
Air direction setting example
Swing direction
Air range
Swing direction
Air range
Up
Wide
*2
Auto
Wide
Dehumidification
Wardrobe
and shoe
cabin, etc.
Ceilings and
walls, etc.
Swing direction
Air range
Swing direction
Air range
Swing direction
Air range
Swing direction
Air range
*1
Down
Wide
*1
Up
Wide
*2
Auto
Spot
*1
Auto
Wide
Laundry
Dry cloths at
lower part
Dry cloths at
upper part
Dry cloths at
both upper
and lower
part
Dry cloths of
small quantity

13
YWP33N
nanoeTM bacteriostasis and deodorization
The nanoeTM is generated from indoor air which
may fail to run successfully due to various
temperature and humidity conditions.
Generation conditions
Indoor temperature: 5°C~35°C with dew
temperature above 2°C.
Relative humidity: 30%~85%
Environment conditions for generation Little amount of ozone
Press to
select
nanoeTM (Laundry/Mode/Humidity)
To clean and deodorize during
operation
During "Laundry"
To refresh cloths, with deodorization and sterilization nanoeTM
function will be enabled automatically, The LED indicator lights
up and cannot be cleared manually. The system beeps if you
try to operate the "Purifying" button.
If sound set OFF, there is no beep.
In "Mode" and "Humidity"
The nanoeTM function may be switched on/off as desired.
About nanoeTM
The generation of nanoeTM ion may be
accompanied with little amount of ozone. It's far
less than ozone level existing in natural forest
and bears virtually no impact on human body.
In case of odor of ozone, disable the "cleaning
and deodorization" function.
nanoeTM
nanoeTM nano water ion (nanoeTM ion hereafter) is a charged clean water ion by separating water
molecules with high voltage. The nanoeTM ion technology features sterilization★※1, allergens inhibition※2,
fungi elimination※3and deodorization※4for skin healthy space.
Floating fungi: Results after 4 hours test in 25 cubic meter closed space instead of practical outcome in
daily life environment.
Adhering fungi: Results after 8 hours test in 23 cubic meter closed space instead of practical outcome
in daily life environment.
Deodorization effects vary with ambient environment (temperature, humidity), operation hours,
deodorization, type of fabrics.
Standalone test and practical use effectiveness may differ from each other due to conditions and use
method.
This device is not a medical equipment.
※1〈Floating fungi〉
Experimental organization: Foundation
Kitasato Environmental Science Center
Experimental methods: Placed in test room of
25 cubic meter and count bacteria collected
Sterilization method: Releasing nano water ion
Subjects: Floating fungi
Results: More than 99% floating fungi killed
after 4 hours "BSHF 24_0301_1"
〈Adhering fungi〉
Experimental organization: The Japan Food
Research Laboratories
Experimental methods: Count bacteria adhere
to standard cloths in 23 cubic meter room
Sterilization method: Releasing nano water ion
Subjects: Bacteria adhere to standard cloths
Results: More than 99.9% bacteria adhere to
standard cloths killed after 8 hours
"No. 13044083003-01"
※2 Experimental organization: Panasonic
Corporation Analysis Center
Experimental methods: Placed in test room of
23 cubic meter and test by ELISA method
Removal method: Releasing nano water ion
Subjects: Pollen (cedar)
Results: More than 88% allergic substance
inhibited in 8 hours "BAA33-130402-F01"
※3 Experimental organization: The Japan Food
Research Laboratories
Experimental methods: Measuring changes in
fungi in test room of 23 cubic meter
Sterilization method: Releasing nano water ion
Subjects: Planktonic fungi
Results: Positive effects in 8 hours
"No. 13044083002-01"
※4 Experimental organization: Panasonic
Corporation Analysis Center
Experimental methods: Verify with 6-grade odor
intensity table in test room of 23 cubic meter
Deodorization method: Releasing nano water
ion
Subjects: Adhering cigarette odor
Results: Odor intensity dropped to grade 1.2 in
2 hours "BAA33-130125-D01".
Note: nanoeTM and the nanoeTM mark are trademarks of Panasonic Corporation

The product stops operation automatically when water in tanks reaches the full level (about 5.2 liter).
The LCD indicator turns orange for 10 seconds then goes off. The water display and indicator
keeps on flashing. (If the water full sound is ON (P18), the buzzer beeps for 6 seconds together with the
orange indicator.)
Please empty water tank as described below
Water tank installation
Close the drainage opening, insert water tank
into place
Close both water tank cover and drainage
opening for installation (or the water tank may
fail to install into place and may lead to water
leak)
Push water tank into place. In case of damaged
poorly installed water tank the water full
indicator may fail to flash and system operation
may fail to start. Please remove the water tank
and install again.
14
Louver fall off
Tank cover
Thud to the
left
Hole to the left
1
Hold the machine body
steady with one hand
and gently remove
water tank out of it with
another hand
Without hitting each
other (cause to failure)

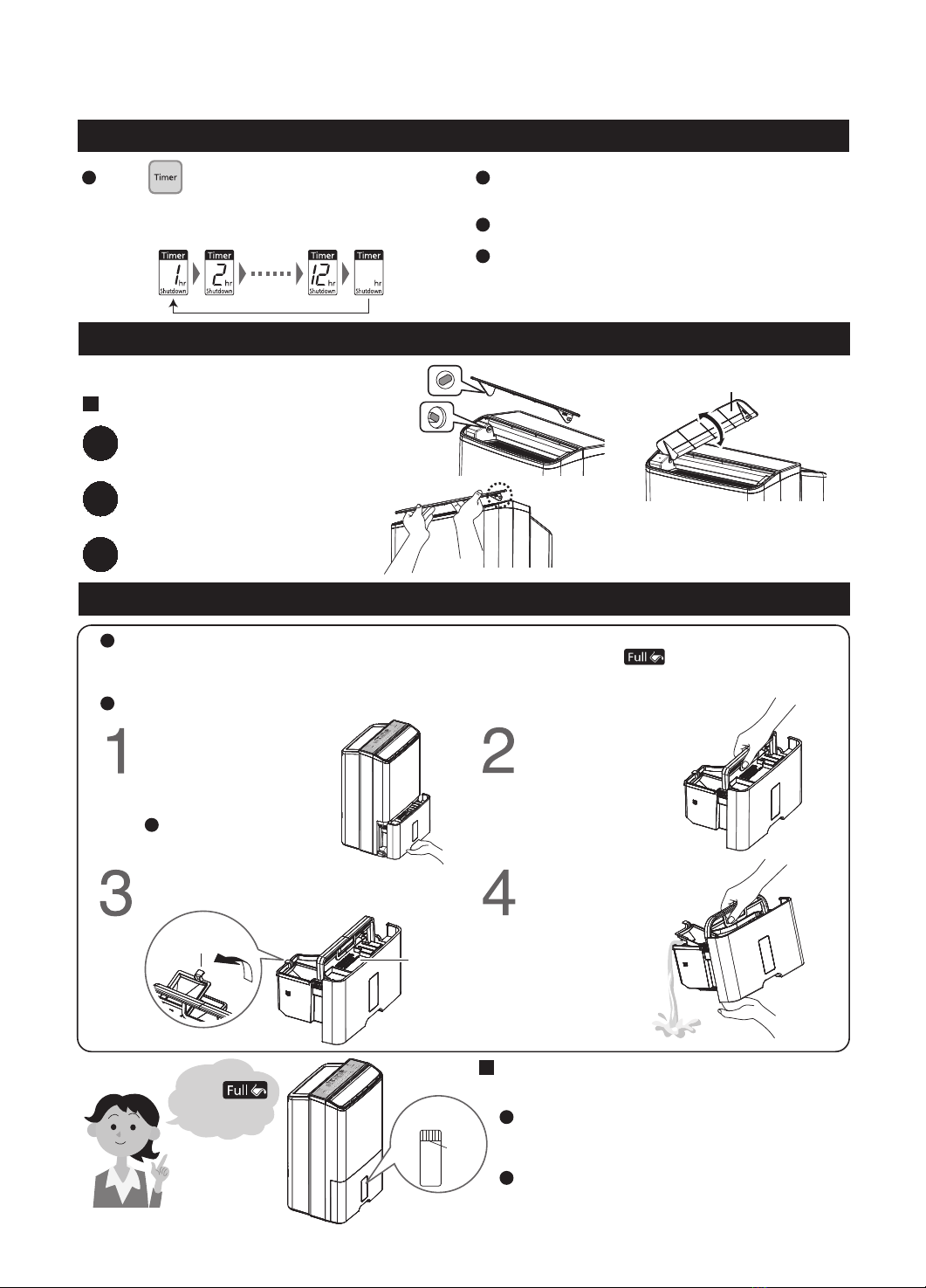

Timer / Handling of louver falling off / Handling of full water tank
Open the
drainage opening
When
is flashing… Water level
display window
Water
full
mark
Hold water tank
handle and its
bottom to drain it.
Move water tank
handle to drainage
position
Point and insert holes to the
left to thud at left side of your
product
2The louver is flat and slightly
bent at its center part.
3Insert right hand side of it to
machine body.
Handling of louver falling off
Handling of full water tank
To use timer for power off
Installation of louver
Turn the louver upward and
downward for easy inserting
The timer displays remaining time once it is set.
Take example. For timer set to 9 hours and with 8
hours to go, it displays 8 hours.
The timer keeps count down once it is set even
after the water tank is full and operation aborted.
Set timer in cloth drying mode will prevent
ECONAVI indicator, auto stop indicator, and cloth
humidity indicator from lighting up.
Press button during operation to set up
desired auto power off time. Press this key to
cycle through from 1 to 12 hours (press and hold
it to cycle automatically).
Pull up the water tank cover to
open the drainage opening.

Temperature difference in
between water in drainage
hose and environment may
lead to water condensed on
surface of drainage hose.
Take insulation measures if
necessary.
15
Note
You may connect a hose to this product for continuous drainage if applicable
(call your service center or dealer for continuous drainage installation or removal)
Install water tankInstall drainage hoseRemove water blocker
Drainage elbow
2
543
1
1
2
1
YWP33N
How to drain continuously
Invalid installation
Valid installation
Drainage hose installation
Secure drainage hose
firmly.
Keep temperature
around drainage hose
above zero Celsius
Keep drainage hose from
bending and elevation
difference for good drainage.
Poor drainage may lead to
water leak and wet floor.
Or water in drainage hose
may get frozen. This may
block the hose from drainage
and lead to water leak and
wet floor.
Required accessories
Commercially available
plastic water hose
Length: 30cm longer than
distance from
dehumidifier to
drainage opening
Inner diameter: 15mm
Note: Please call your service center or dealer to un-install it as invalid installation may lead to water leak out
of water tank.
Remove power plug
and water tank
Open up drainage hose
holder
(turn it 90 degree outward
instead of removing it)
Drainage
hose holder
Water blocker
Hold in arrow indicated
direction, then remove
along the same direction
1
2
Invalid installation may lead
to operation failure
Push it
downward
into place
Insert one end of drainage
hose in drainage elbow.
Drain water from
high to low elevation
Bent hose
midway
Hose immersed
in water

16
Float
Clean dirt around shaft
with water (to prevent
float from malfunctions)
Do not remove float
(invalid installation of it
may lead to operation
failure and water leak)
→ Insert both axis in
hole as illustrated in
figure to the left when
float falls off.
To remove the tank cover
Turn water tank handle up
Open the water outlet
Pull water tank cover
upward
Do not strongly pull on
the water outlet.
Maintenance
Polish
Thinner
Alcohol
and benzine
Air conditioner
cleaner
Alkaline
detergent
Bleach
Empty the water
tank before doing
any maintenance
work!
Please disconnect the power plug and empty the
tank. (see P.14 for how to empty the tank)
Cleaning agents such as those shown at under should
not be used.
If using a chemically-treated cloth, be sure to read
the instructions of the cloth.
Water tank: Once per month
Tank removal bar
Water tank
Water outlet
Tank handle
Tank cover
(turn tank handle
upward before removing
or replacing it)
Wash water tank and tank cover with clean water 2-3 times.
You don't need to remove the float, just clean it with water.
Float
Pore
Shaft
Tank handle Water outlet
Tank
cover
Remove sticky dirt with thinned
neutral detergent
Inner wall of tank may get black
(due to dirt in air which dissolved
in water)

運轉 關/開
清淨 脫臭
、
Cord holder
Insert
power
cord tie
strip
17
For machine not to use for long time
YWP33N
1
2
3
4
5
Wipe machine body with wrung out wet cloth before wiping with dry cloth again.
Do not leave the body widthwise (this may lead to water leak)
Remove sticky dirt with thinned neutral detergent
Pore
Pore
Latch
Handle
Hook
Point to the
hole and slide
in it.
運轉 關/開
清淨 脫臭
、
運轉 關/開
清淨 脫臭
、

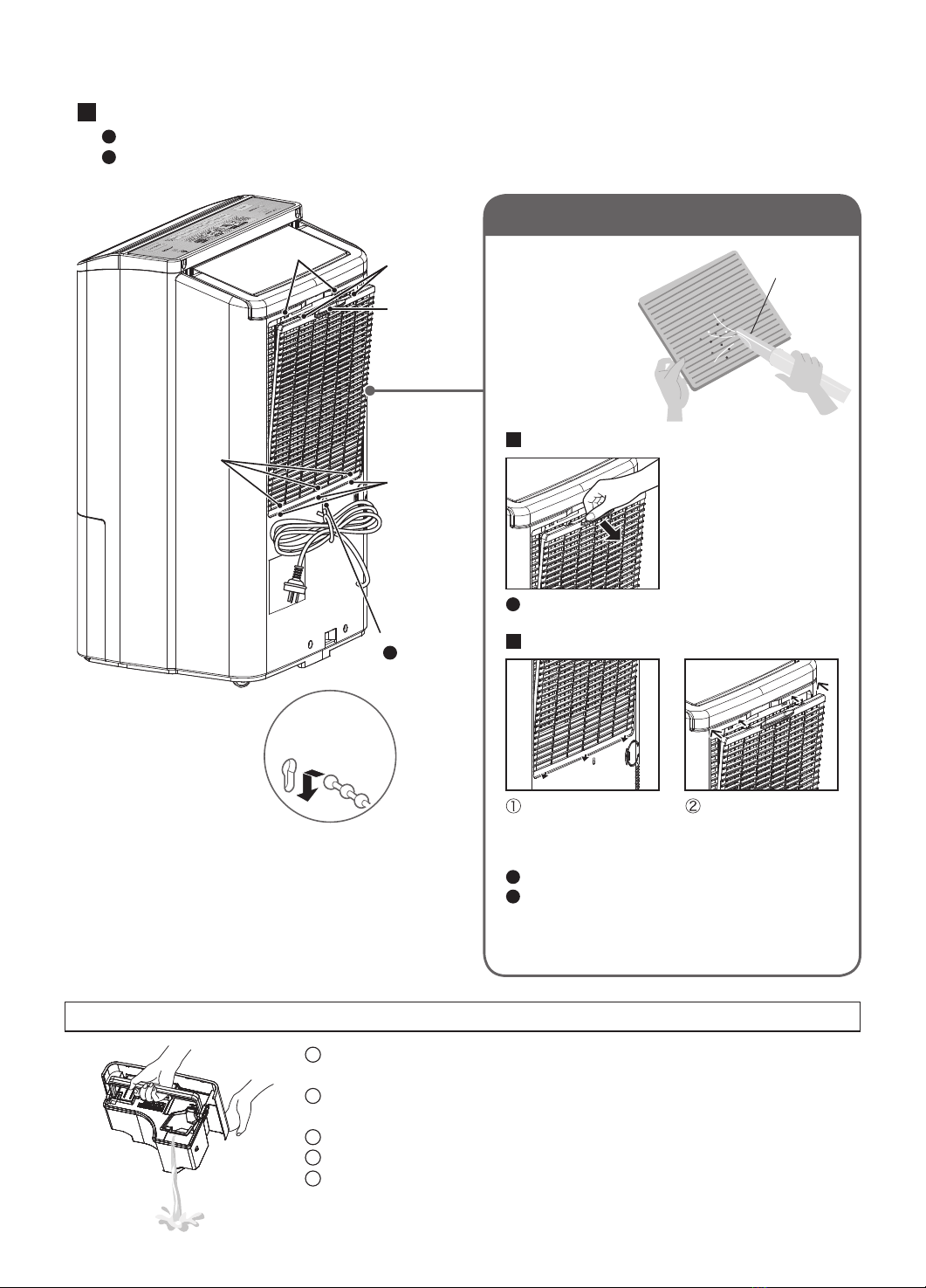

Filter (clean it biweekly)
How to remove it
How to install
Nozzle
Remove dirt with
vacuum cleaner
Pull the handle forward
Insert the three
lower latches in
pores in the body
Press two hooks
at upper part into
body
Replace in case of any damage.
Regular maintenance
(dehumidification capacity may drop, power
bill may rise, and more failures may follow
due to dirt and clogged filter)
Select function Fan and set it to run for 4 hours and power off automatically
afterwards.
Remove power plug, leave it for one day, empty the water tank afterwards
(p.14).
Clean body, water tank, and filter.
Cover body with plastic bag.
Store dehumidifier in place of low humidity, good ventilation, and flat
surface. (leave it tilted may lead to failure and water leak)

About ECONAVI
Select Normal along with Air (Auto, Hi, Mid, or Lo) to start the drying operation. The ECONAVI indicator,
auto stop indicator, and cloth humidity indicator light up during drying and off afterwards. (p.10)
Detect changes in temperature, humidity; run and auto stop operation according to amount of cloths and
estimated drying status.
18
About Laundry mode
2-4 kgroughly
Model No.
4-6 kgroughly
Drying operation hours
3.7~5.2
5.4~7.4
3.4~5.0
5.2~7.2
4.2~6.1
Auto /Mid Hi Lo
6.1~8.0
F-YWP33N
Reference operation hours before auto stop.(Unit:Hour)
Volume of
cloths
Test conditions: Temperature at 20°C;
humidity at 80%,
room size at 20 squre
meters (results as tested
by this company)
Actual operation time, power consumption, dehumidification
level may vary with conditions of environment, type, amount,
hanging pattern of cloths, room size.
To dry cloths with dehumidifier it's better to do it in space
small and well closed for less energy waste.
Operation stops after about 10 hours.
The filter contains super alleru-buster and antimicrobial agents to help inhibit allergens,
bacteria and fungi activity.
Antibacterial
May inhibit bacteria＊3 and fungi＊4 caught in filter.
＊3 Test Institution: (fiscal) Japan Food Analysis Center.
Test Method: Use standard agar and agar plate culture method.
Test Results: Inhibit more than 99% bacteria.
＊4 Test Institution: (fiscal) Japan Food Analysis Center.
Test Method: The anti-fungal test method (halo test method).
Test Results: Effective fungi resistance under the halo test method.
Filter may end up with peculiar odor of "Family health green tea extract". This is normal and bears no
harm to human body.
The filter changes light brown afterwards. Frequently used filter may end up with brown spots. This is
normal and does not hamper its performance.
Effectiveness of Filter
Super alleru-buster
Inhibit growth of allergens (e.g. pollen and dust) trapped in filter
Test Institution: Osaka Municipal Technical Research Institute
Test Method: Using enzyme immunoassays measurement methods for reduction of fine allergens material
Test Results: Allergen activity inhibited
You can change sound settings only in standby mode
Factory default: Key sound ON, water full sound OFF
With memory
Key sound setting:
Standby
+ Press and hold both buttons for 3 seconds.
The 1 and 0 indicator alternate flash in 2 seconds interval. Remove your hand when the one you need
is flashing to finish the setup operation.
Water full sound setting:
Standby
+ Press and hold both buttons for 3 seconds.
The 1 and 0 indicator alternate flash in 2 seconds interval. Remove your hand when the one you need
is flashing to finish the setup operation.
Sound settings
Sound
function OFF
Sound
function ON

Key Lock on
During standby or operation, please press button for 3 seconds to activate the Key Lock.
When the LCD lights up, all functions are not available.
(The backlight will light up by pressing any button when locked)
Key Lock off
During standby or operation, please press button for 3 seconds to unlock.
When the LCD goes off. All functions are available.
Key Lock will be automatically released when power failure occurs. The Key Lock must be re-set.
When the tank is full, Key Lock cannot be canceled by pressing the button if the tank is not emptied.

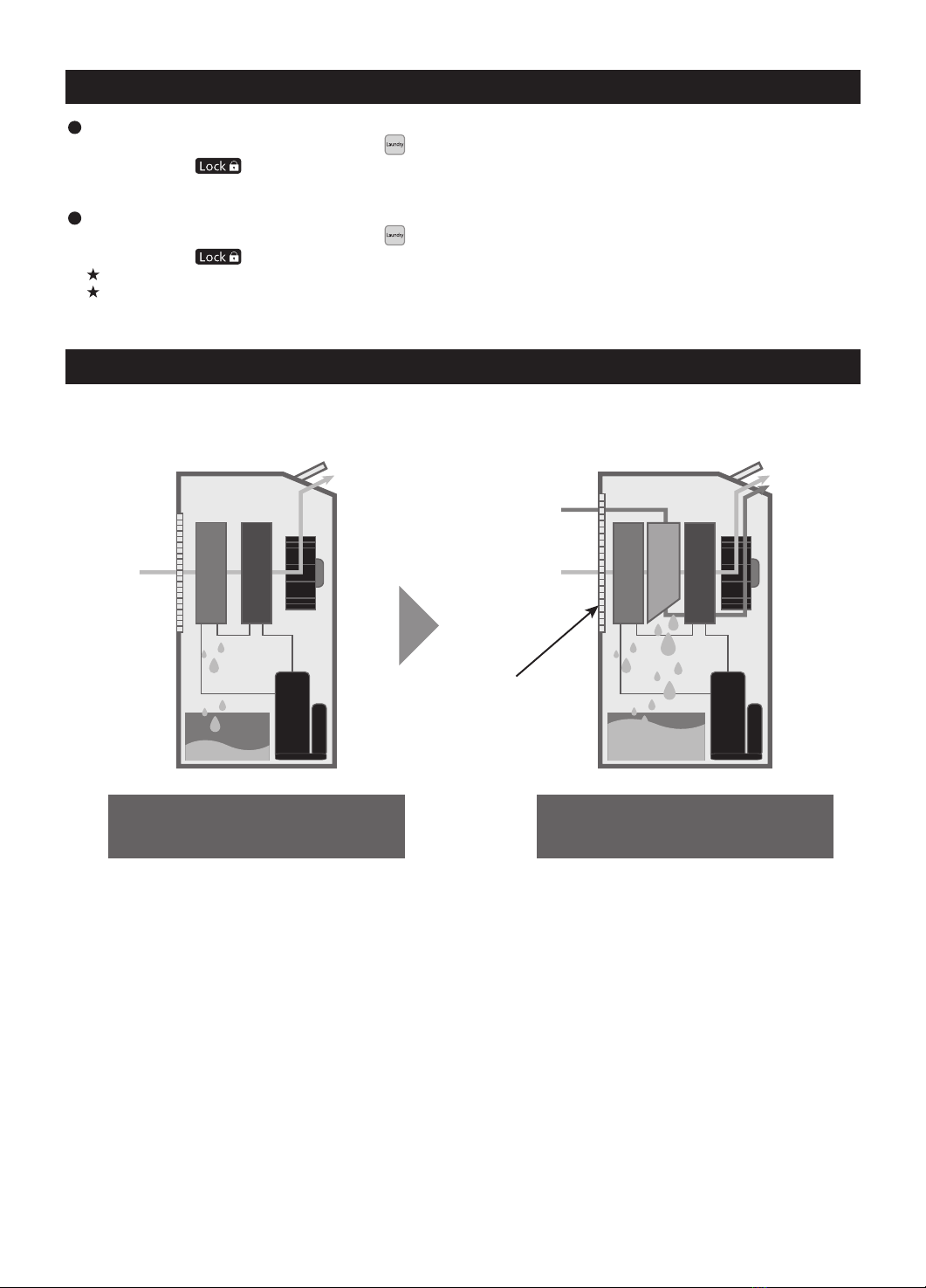

Differing from conventional dehumidification system's single air flow direction the W-HEXS comes with multi-layer
dehumidification membranes. This not only expands air inlet direction but also improves power efficiency of
dehumidification.
19
YWP33N
Key Lock setting
W-HEXS, the more energy saving dual dehumidification system
Conventional
dehumidification system
Dehumidification by condenser and
evaporator along with compressor
W-HEXS dual
dehumidification system
Multi-layer dehumidification membrane
plus conventional dehumidification system
Dry air
Indoor
humid air
Indoor
humid air
Added air
inflow range
Multi-layer
dehumidification
membrane
Evaporator Condenser
Compressor
Dry air
Indoor
humid air
Evaporator Condenser
Compressor

20
Fault
Is the control panel contaminated with foreign matter, droplet, or dust? (P.7)
Please check the following first.
If the problem persists after taken all these steps, disconnect power plug and call your dealer or
service center.
3Water is leaking.
Error Please ensure its contents
1Buttons do not operate.
7Clothes do not dry
completely.
2The Full Tank indicator is
flashing even though the
tank is not full.
4The tank does not fill up
with water.
(The unit is not
dehumidifying very well.)
5No water remains inside
the unit.
6It takes a long time to dry
clothes.
8The humidity does not
go down.
9Condensation forms all
the time, even during
dehumidifying.
10
The Check indicator
flashes with error code
[11] displays.
11
Mal-action
12
There is hiss, squeak, or
water flow sound heard
This is the sound of refrigerant flowing within dehumidifier or nano-ion
generation and is not a failure.
Are the tank and float correctly installed inside the unit? (P.14, P.16)
Was the tank banged against the unit during insertion? (P.14)
→ Remove the tank and then reinstall it gently.
Has the unit been tilted or knocked over?
Was the unit moved while there was still water in the tank? (P.4)
Has the float come off? (P.16)
Is wet, cold air entering the room?
→ Keep doors and windows closed as much as possible while drying clothes.
Did prior clothes drying cycle complete?
Is wet, cold air entering the room?
→ Avoid open doors and windows as much as possible while drying clothes.
Is there a heater in use near the unit?
(If the surrounding temperature is too high, the sensor will be unable to
accurately judge the drying time.)
Is the air blowing onto the all clothes?
Are the clothes hung too closely together or in layers?
Is wet, cold air entering the room?
→ Avoid opening doors and windows while lanundry.
Is there other steam release equipment exists indoor?
Is machine body tilting?
→1. Disconnect the plug, lift machine body up straight and wipe waters
leaked
2. leave the machine idle for more than half a day (to dry the unit inside
completely in case any water has spilled inside)
3. connect the plug, run dehumidification again
Is machine body tilted too much?
→ Unplug the power plug and then reconnect it.
Is magnet or metal placed atop the machine? (P.7)
Is the Fan mode set?
→ Fan mode will not retain water.
It may not be possible for dehumidifying to be fully effective if you place the
dehumidifier in some places such as near windows, or behind furniture
where air circulation is poor.
Is the Full tank indicator is flashing (P.14), or is Repair indicator flashing?
(P.7), Key lock Set? (P.19)
Is the filter clogged (P.17), or is something blocking the air inlet or air outlet?
(P.4)
Are the room temperature and humidity low? (The unit dehumidifies less as
the room temperature and humidity become lower.)
Is the unit set to operate in “Auto” or “Mild” mode? (P.8)
If the temperature is outside the range of 5 ˚C ~ 35 ˚C , dehumidifier
operation will stop and become blower operation. (P.7)
In case of the following, disconnect the power plug and call service center or dealer
Error Please ensure its contents
13
The "Check" indicator
lights (without flashing)
and prompts error code
(P.7 check)
Machine failure, please note down the error code and call service center or
dealer.
