Your computer is equipped with the camera enabling you to record still pictures and mo-
tion pictures.
This manual contains supplementary instructions regarding the use of the computer. It
explains the cases where the operation of the computer differs from that in the Operating
Instructions.
Contents
Description of Parts..................................................... 2
Installing the Software................................................. 4
Starting up AMCap for TOUGHBOOK......................... 7
Taking Still Pictures..................................................... 8
Taking Motion Pictures.............................................. 12
Settings....................................................................... 13
Specifications............................................................. 15
: This mark indicates Microsoft
®
Windows
®
XP Professional or
Microsoft
®
Windows
®
Tablet PC Edition 2005 Operating System.
: This mark indicates Windows Vista
®
Business Operating System.
NOTE:Useful and helpful information.
CAUTION:Condition that may result in minor or moderate injury.
Enter
:Press [Enter] key.
[start] - [Run]: Click [start], and then click [Run].
(Start) - [All Programs]: Click (Start), and then click [All Programs].
:Page in these Supplementary Instructions or in the Refer-
ence Manual for the computer.
: Reference to the on-screen manuals.
Some of the illustrations in this manual may differ slightly in shape from the actual
items in order to make the explanation easier to understand.
The “CD/DVD drive” is a description about drives, such as CD-ROM, DVD-ROM
& CD-R/RW and DVD MULTI drives.
Terms and illustrations in this Manual
Supplementary Instructions for Camera
Personal Computer
Model No. CF-19 Series
DFQX5678ZACF-19mk2-CameraXVM.indd1DFQX5678ZACF-19mk2-CameraXVM.indd1 2008/02/2213:43:082008/02/2213:43:08

2
Camera
Protection Seal
Camera Light
Tablet Button
Description of Parts
Except the followings, refer to the Operating Instructions for the computer.
<Bottom>
Remove the protection seal before using the camera.
The RAM module cannot be upgraded.
NOTE
The “Shoulder strap” described in the Operating Instructions is not supplied with
this computer.
NOTE
Supplied Accessories
Camera Software CD-ROM .................................. 1
CAUTION
Do not look directly at the camera light since it is too bright.
DFQX5678ZACF-19mk2-CameraXVM.indd2DFQX5678ZACF-19mk2-CameraXVM.indd2 2008/02/2213:43:122008/02/2213:43:12

3
(A)
(A)
(
B
)
(C)
1Hold the side of the computer to aim
the camera.
Make sure to close the latch (C) in Tablet mode since
the camera image is displayed inverted.
NOTE
Using the Hand Strap
The hand straps are attached on both sides of the computer
respectively. To remove the hand strap, use a driver to
remove the screws on each corner (A).
CAUTION
Do not use the strap to carry a heavier weight than the
computer. Otherwise the strap may become loose by itself.
Do not use the strap if it becomes worn or damaged.
Remove the hand strap latch (B) to open each connector on
the side of the computer.
<Tablet mode>
<Laptop mode>
Using the Camera
DFQX5678ZACF-19mk2-CameraXVM.indd3DFQX5678ZACF-19mk2-CameraXVM.indd3 2008/02/2213:43:122008/02/2213:43:12

4
Installing the Software
Install the Software
Perform the following steps before using the camera.
1Uninstall the following programs.
Hotkey Plus Manager (Windows XP Professional)
1Click [start] - [Control Panel] - [Add or Remove Programs].
2Select [Hotckey Plus Manager] and click [Change/Remove] - [OK].
3Add a check mark in “Don’t display this message again” and click [Reboot].
4Select “No, I will restart my computer later” and click [Finish].
Table Button Manager (Windows XP Tablet PC Edition/Windows Vista)
<Only for model with Windows XP Tablet PC Edition>
1Click [start] - [Control Panel] - [Add or Remove Programs].
2Select [Tablet Button Manager] and click [Remove] - [OK].
3Select “No, I will restart my computer later” and click [Finish].
1Click (Start) - [Control Panel] - [Uninstall a program].
2Select [Tablet Button Manager] and click [Uninstall] - [Continue] - [OK].
3Select “No, I will restart my computer later” and click [Finish].
Display Rotation Tool
1Click [start] - [Control Panel] - [Add or Remove Programs].
2Select [Display Rotation Tool] and click [Remove] - [OK] - [Finish].
3The computer restarts.
1Click (Start) - [Control Panel] - [Uninstall a program].
2
Select [Display Rotation Tool] and click [Uninstall] - [Continue] - [OK] - [Finish].
3The computer restarts.
DFQX5678ZACF-19mk2-CameraXVM.indd4DFQX5678ZACF-19mk2-CameraXVM.indd4 2008/02/2213:43:122008/02/2213:43:12

5
2Install the following programs.
Set the Camera Software CD-ROM into the CD/DVD drive.
Camera driver
1
Input [x:*1\camera\setup.exe] in [start] - [Run] and click [OK].
Input [x:*1\camera\setup.exe] in (Start) - [Start Search] and press
Enter
.
2Follow the on-screen instructions and install the software.
Camera Light Switch Utility
1
Input [x:*1\lightsw\setup.exe] in [start] - [Run] and click [OK].
Input [x:*1\lightsw\setup.exe] in (Start) - [Start Search] and press
Enter
.
2Follow the on-screen instructions and install the software.
If Camera Light Switch Utility is not installed, Camera Light’s On/Off func-
tion cannot be used.
NOTE
AMCap for TOUGHBOOK
This software is a sample. You can install your preferred software for camera.
NOTE
1
Input [x:*1\amcapt\setup.exe] in [start] - [Run] and click [OK].
Input [x:*1\amcapt\setup.exe] in (Start) - [Start Search] and press
Enter
.
2Follow the on-screen instructions and install the software.
DFQX5678ZACF-19mk2-CameraXVM.indd5DFQX5678ZACF-19mk2-CameraXVM.indd5 2008/02/2213:43:132008/02/2213:43:13

6
Hotkey Plus Manager (Windows XP Professional)
1Input [x:*1\hplsman\setup.exe] in [start] - [Run] and click [OK].
2
Click [Next] and select “No, I will restart my computer later”, and then click [Finish].
Table Button Manager (Windows XP Tablet PC Edition/Windows Vista)
<Only for model with Windows XP Tablet PC Edition>
1Input [x:*1\meitbman\setup.exe] in [start] - [Run] and click [OK].
2
Click [Next] and select “No, I will restart my computer later”, and then click [Finish].
1
Input [x:*1\meitbman\setup.exe] in (Start) - [Start Search] and press
Enter
.
2Click [Continue] - [Next] and select “No, I will restart my computer later”,
and then click [Finish].
Display Rotation Tool
1Input [x:*1\disprot\setup.exe] in [start] - [Run] and click [OK].
2
Click [Next] - [Finish].
3
The computer restarts.
1Input [x:*1\disprot\setup.exe] in (Start) - [Start Search] and press
Enter
.
2
Click [Continue] - [Next] - [Finish].
3
The computer restarts.
*1
“x:” is the drive letter of the CD/DVD drive. Change this to match the drive letter
on your own computer.
Installing the Software
DFQX5678ZACF-19mk2-CameraXVM.indd6DFQX5678ZACF-19mk2-CameraXVM.indd6 2008/02/2213:43:132008/02/2213:43:13

7
Start up AMCap for TOUGHBOOK to take still pictures or motion pictures.
1
Click [start] - [All Programs] - [Panasonic] - [AMCap for
TOUGHBOOK].
Click (Start) - [All Programs] - [Panasonic] - [AMCap for
TOUGHBOOK].
If you use this software and another multi-media software at the same time, error
may occur. Close all multi-media software including this software and restart this
software.
If an error message appears and nothing is displayed, restart this software.
Two or more users cannot use this software with Fast User Switching function.
When the computer has resumed from sleep or hibernation, an error may appear
and connection with the camera device may be cut off. If this occurs, restart this
software.
NOTE
Starting up AMCap for TOUGHBOOK
DFQX5678ZACF-19mk2-CameraXVM.indd7DFQX5678ZACF-19mk2-CameraXVM.indd7 2008/02/2213:43:132008/02/2213:43:13

8
Taking Still Pictures
Taking Still Pictures
One Shot Snap
( below)
Camera Light On
( page 9)
Camera Light Off
( page 9)
Zoom In
( page 9)
Scroll Mode Zoom
( page 10)
Scroll Mode Pan
( page 10)
Take and Edit Mode
( page 10)
You can record the camera image as a still picture.
1Adjust the direction of camera, zoom ( page 9), picture
quality ( page 11), etc.
2Click or click [TakeSnap] - [One Shot Snap].
You can assign the Snap function to the Tablet Button.
( page 13 “Assigning the Snap/Zoom In/Light Functions to the Tablet Button” )
When you specify the destination to save and the file name for recording, click
[TakeSnap] - [One Shot Snap Save as]. If they are not specified, pictures are
saved in the folder set in “Changing the Settings for Taking Still Pictures”
( page 11).
One Shot Snap
You can see snapped still pictures when opening this folder using Explorer.
When the distance between the camera and subject is less than 60 cm {23.62″}, the
focus may not be aligned due to the capability of camera.
NOTE
DFQX5678ZACF-19mk2-CameraXVM.indd8DFQX5678ZACF-19mk2-CameraXVM.indd8 2008/02/2213:43:142008/02/2213:43:14

9
Camera Light On
To turn on the light of the camera.
1Click or click [Control] - [Camera Light] - [ON].
You can assign the Light function to the Tablet Button.
( page 13 “Assigning the Snap/Zoom In/Light Functions to the Tablet Button”)
The light goes off automatically after a certain period of time. Click [Control] -
[Camera Light] - [Settings] to set your preferred lighting time.
To turn off the light of the camera.
1Click or click [Control] - [Camera Light] - [OFF].
To enlarge or reduce the camera image.
1Click or click [Control] - [Zoom] and select [x 1.0], [x 1.5],
[x 2.0], [x 2.5], or [x 3.0].
You can assign the Zoom In function to the Tablet Button.
( page 13 “Assigning the Snap/Zoom In/Light Functions to the Tablet Button”)
Each time you click the magnification ratio goes up in the order of [x 1.0],
[x1.5], [x 2.0], [x 2.5], [x 3.0]. To return to [x 1.0], click when the ratio is
[x 3.0].
Camera Light Off
Zoom In
DFQX5678ZACF-19mk2-CameraXVM.indd9DFQX5678ZACF-19mk2-CameraXVM.indd9 2008/02/2213:43:142008/02/2213:43:14

10
To enlarge or reduce the image by scrolling.
1Click or click [Control] - [Scroll Mode] - [Zoom].
2
Scroll upward to enlarge the image and downward to reduce.
Trace the camera image up and down or put the mouse pointer over the image to
drag up and down.
You can change the magnification ratio between [x 1.0] and [x 3.0].
Scroll the enlarged camera image from side to side and up and down.
1Click or click [Control] - [Scroll Mode] - [Pan].
2Trace the camera image from side to side and up and down
or put the mouse pointer over the image to drag from side to
side and up and down to scroll.
To fix the camera image.
1Click or click [Control] - [Take and Edit Mode].
Click or click [Take and Edit Mode] again to return to the actual camera image.
When you take a picture with the camera image fixed, the fixed image is record-
ed even if you change the direction of camera.
You can adjust the camera image using Zoom In or Pan.
Scroll Mode Zoom
Scroll Mode Pan
Take and Edit Mode
Taking Still Pictures
You cannot use this function although you can select when the magnification ratio
is [x 1.0].
NOTE
DFQX5678ZACF-19mk2-CameraXVM.indd10DFQX5678ZACF-19mk2-CameraXVM.indd10 2008/02/2213:43:152008/02/2213:43:15

11
Pictures can be recorded until you click [Continuous Shutter] again.
NOTE

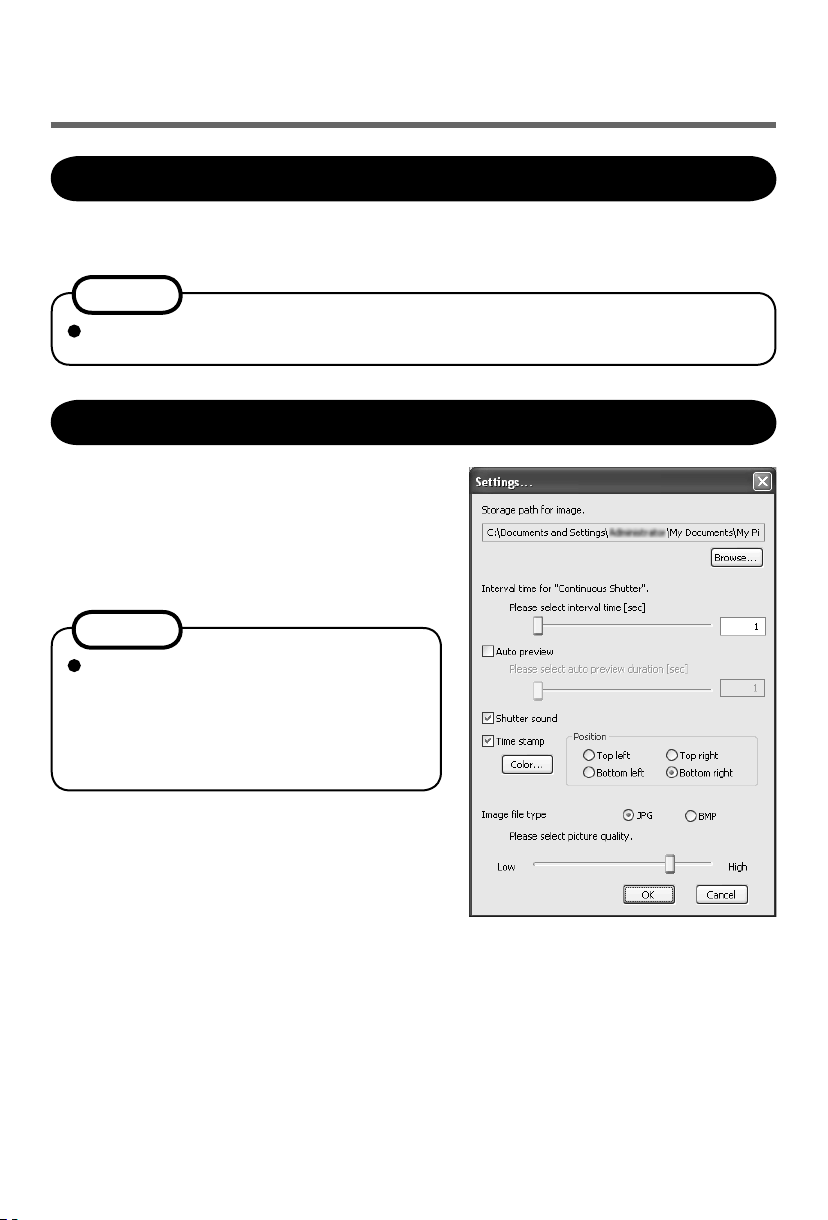

Changing the Settings for Taking Still Pictures
Taking Still Pictures at Fixed Intervals
1Click [TakeSnap] - [Continuous Shutter].
1Click [TakeSnap] - [Settings].
2Change to arbitrary settings
and click [OK].
At [Storage path for image], if you specify
the externally-connected recording device
as a destination to save, software operation
may become slow. In this case, specify the
internal disk as the destination to save.
NOTE
DFQX5678ZACF-19mk2-CameraXVM.indd11DFQX5678ZACF-19mk2-CameraXVM.indd11 2008/02/2213:43:152008/02/2213:43:15

12
Taking Motion Pictures
Taking Motion Pictures
1Start recording into the buffer.
Click [Capture] - [Start Capture].
2Finish recording into the buffer.
Click [Capture] - [Stop Capture].
3Save the buffer as a motion picture.
1Click [Capture] - [Save Captured Video].
2Specify the destination to save and file name, and then click [Open].
“Save File Progress: XX%” is displayed on the status bar. You cannot capture a new
motion picture until saving is complete. Do not close this software while saving.
You cannot use Zoom In, Pan and Time stamp functions.
If you rotate the display, pictures are not correctly displayed. Do not rotate the dis-
play for use.( Reference Manual “Display Rotation”)
When the distance between the camera and subject is less than 60 cm {23.62″}, the
focus may not be aligned due to the capability of camera.
If you specify the externally-connected recording device as a destination to save, software
operation may become slow. In this case, specify the internal disk as the destination to save.
NOTE
Specifying the Destination to Save the Buffer and File Size
You can specify the destination to save the buffer and file size before recording.
1Click [Capture] - [Set Capture File].
2
Specify the destination to save and file name, and then click [Open].
3Specify the file size in [Set File Size] to secure in the hard
disk beforehand, and then click [OK].
You can record over the file size specified, but jumpiness may occur for the excess
of the file size during playback.
NOTE
DFQX5678ZACF-19mk2-CameraXVM.indd12DFQX5678ZACF-19mk2-CameraXVM.indd12 2008/02/2213:43:152008/02/2213:43:15

13
Setting Audio
Settings
Set your preferred sound on [Audio Capture Filter] screen.
1Click [DeviceOptions] - [Audio Capture Filter].
Setting Image Quality
Set your preferred image quality on [Video Capture Filter] screen.
1Click [DeviceOptions] - [Video Capture Filter].
Setting the Compressed Data Format/Resolution for the Image
1Click [DeviceOptions] - [Video
Capture Pin].
[Color Space / Compression]
Set the compressed data format for the image.
Setting [YUY2] is recommended for
smoother display.
[Output Size]
Set the image resolution.
Assigning the Snap/Zoom In/Light Functions to the Tablet Button
You can assign the Snap/Zoom In/Light functions to the Input Panel , Enter and
Rotation buttons.
1
<Only for model with Windows XP Professional>
Click [start] - [All Programs] - [Panasonic] - [Tablet Buttons
Settings].
<Only for model with Windows XP Tablet PC Edition>
Click [start] - [Control Panel] - [Printers and Other Hardware]
- [Tablet and Pen Settings] - [Tablet Buttons].
[Frame Rate] is automatically adjusted according to settings.
NOTE
DFQX5678ZACF-19mk2-CameraXVM.indd13DFQX5678ZACF-19mk2-CameraXVM.indd13 2008/02/2213:43:162008/02/2213:43:16

14
Click (Start) - [Control Panel] - [Hardware and Sound] - [Set
tablet buttons to perform certain tasks].
2Click the name of the tablet button and click [Change].
3
Select [Launch an application] in [Action].
Select [Start a program] in [Press].
4Input the following in [Action Detail] (Windows XP)/[Program
location] (Windows Vista).
<When assigning the Snap function> ( page 8)
“c:\program files\panasonic\amcapt\amcapt.exe” /shutter
<When assigning the Zoom In function> ( page 9)
“c:\program files\panasonic\amcapt\amcapt.exe” /zoom_in
<When assigning the Light function> ( page 9)
“c:\program files\panasonic\lightsw\lightsw.exe”
5Click [OK] - [OK].
When AMCap for TOUGHBOOK is not running, the Tablet Button to which these
functions are assigned does not work.
When you select a program by clicking [Browse], the error message, “The file path
you specified does not exist. Enter a different file path.” may be displayed. If this
occurs, select a program again by clicking [Browse].
NOTE
Settings
DFQX5678ZACF-19mk2-CameraXVM.indd14DFQX5678ZACF-19mk2-CameraXVM.indd14 2008/02/2213:43:162008/02/2213:43:16

15
Specifications
Camera Effective pixels 2.0Mpixels
Recording pixels Up to 1600 X 1200 pixels
LED function Mounted
Utility Programs Camera Light Switch Utility, AMCap for
TOUGHBOOK (Sample software), Camera
driver, Hotkey Plus Manager, Tablet Button
Manager, Display Rotation Tool
DFQX5678ZACF-19mk2-CameraXVM.indd15DFQX5678ZACF-19mk2-CameraXVM.indd15 2008/02/2213:43:162008/02/2213:43:16

Panasonic Computer Solutions Company
3 Panasonic Way, Panazip 2F-5,
Secaucus, NJ 07094
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga,
Ontario L4W 2T3
Printed in Japan
HS0208-0
DFQX5678ZA
DFQX5678ZACF-19mk2-CameraXVM.indd16DFQX5678ZACF-19mk2-CameraXVM.indd16 2008/02/2510:41:382008/02/2510:41:38
