Panasonic DMR-EH75VP User manual

ORDERNO.VR0603007CE
B24
DVDRecorder
DMR-EH75VP
Vol. 1
Colour
(S).......................Silver Type
SPECIFICATIONS
1

2006 Matsushita ElectricIndustrial Co., Ltd. All rights reserved.
Unauthorized copying and distribution isaviolation of law.
1. Safety Precaution
1.1. General guidelines
1. When servicing, observe the original lead dress. Ifashort circuit
isfound, replace all parts which have been overheated or
damaged bythe short circuit.
2. After servicing, see to itthat all the protective devices such as
insulation barriers, insulation papers shields are properly
installed.
3. After servicing, make the following leakage current checks to
prevent the customer from being exposed to shock hazards.
1.1.1. Leakage current coldcheck
1. Unplug the AC cord and connect ajumper between the two
prongs on the plug.
2. Measure the resistance value, with an ohmmeter, between the
jumpered AC plug and each exposed metalliccabinet part on the
equipment such as screwheads, connectors, control shafts, etc.
When the exposed metallicpart has areturn path to the chassis,
the reading shouldbe between 1M and 5.2M .
When the exposed metal does not have areturn path to the
chassis, the reading must be .
Figure 1
2

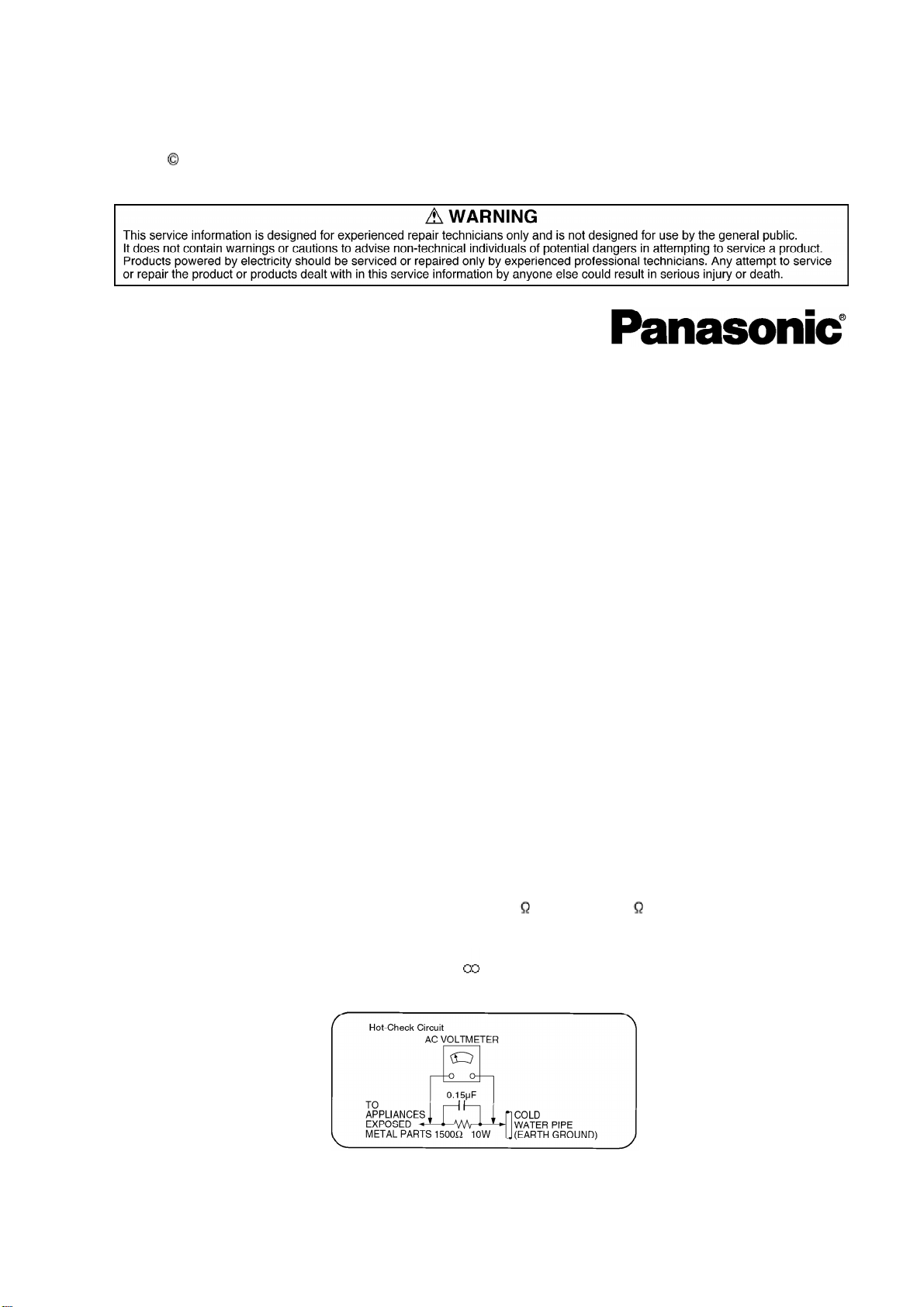

1.1.2. Leakage current hot check / (See Figure 1 .)
1. Plug the AC cord directlyinto the AC outlet. Donot use an
isolation transformer for thischeck.
2. Connect a1.5k , 10 watts resistor, inparallel with a0.15 F
capacitors, between each exposed metallicpart on the set and a
good earth ground such as awater pipe, as shownin Figure 1.
3. Use an AC voltmeter, with 1000 ohms/voltor more sensitivity, to
measure the potential across the resistor.
4. Check each exposed metallicpart, and measure the voltage at
each point.
5. Reverse the AC plug inthe AC outlet and repeat each of the above
measurements.
6. The potential at anypoint shouldnot exceed 0.75 volts RMS. A
leakage current tester (Simpson Model 229 or equivalent) maybe
used to make the hot checks, leakage current must not exceed 1/2
milliampere. Incase ameasurement isoutside of the limits
specified, there isapossibilityof ashock hazard, and the
equipment shouldbe repaired and rechecked before itisreturned
to the customer.
1.2. Caution for fuse replacement
2. Warning
2.1. Prevention of ElectrostaticDischarge (ESD)to Electrostatic
Sensitive (ES) Devices
Some semiconductor(solidstate) devices canbe damagedeasilybystatic electricity. Such
components commonlyare calledElectrostatic Sensitive (ES) Devices. Examples of typical ES
devices are integratedcircuits and some field-effect transistor-sand semiconductor"chip"
components. The following techniques shouldbe usedtohelpreduce the incidence of
component damage causedbyelectrostatic discharge (ESD).
1. Immediatelybefore handling anysemiconductor component or
3

semiconductor-equipped assembly, drainoff anyESDon your
bodybytouching aknownearth ground. Alternatively, obtainand
wear acommerciallyavailabledischarging ESDwrist strap, which
shouldbe removed for potential shock reasons prior to applying
power to the unitunder test.
2. After removing an electrical assemblyequipped with ES devices,
place the assemblyon aconductive surface such as aluminum
foil, to prevent electrostaticcharge buildup or exposure of the
assembly.
3. Use onlyagrounded-tipsoldering iron to solder or unsolder ES
devices.
4. Use onlyan anti-staticsolder removal device. Some solder
removal devices not classified as "anti-static(ESDprotected)"
can generate electrical charge sufficient to damage ES devices.
5. Donot use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ES devices.
6. Donot remove areplacement ES device from its protective
package until immediatelybefore you are readyto install it. (Most
replacement ES devices are packaged with leads electrically
shorted together byconductive foam, aluminum foil or
comparableconductive material).
7. Immediatelybefore removing the protective material from the
leads of areplacement ES device, touch the protective material to
the chassisor circuitassemblyinto which the device will be
installed.
Caution
Besure no power isapplied to the chassisor circuit, and observe
all other safetyprecautions.
8. Minimize bodilymotions when handling unpackaged replacement
ES devices. (Otherwise hamless motion such as the brushing
together of your clothes fabricor the lifting of your foot from a
carpeted floor can generate staticelectricitysufficient to damage
an ES device).
4

2.2. Precaution of Laser Diode
2.3. Service caution based on legal restrictions
2.3.1. General description about Lead Free Solder(PbF)
The leadfree solderhas beenusedinthe mounting process of all electrical components on the
printedcircuit boards usedforthis equipment inconsidering the globallyenvironmental
conservation.
The normal solderis the alloyof tin(Sn) and lead(Pb). Onthe otherhand, the leadfree solderis
the alloymainlyconsists of tin(Sn), silver(Ag) and Copper(Cu), and the melting point of the
leadfree solderis higherapprox.30 degrees C (86°F) more thanthat of the normal solder.
Definition of PCB LeadFree Solderbeing used
The letterof “PbF” is printedeitherfoil side orcomponents side on the PCB
using the leadfree solder.
(See right figure)
Service caution forrepairwork using LeadFree Solder(PbF)
5

-The lead free solder has to be used when repairing the equipment
for which the lead free solder isused.
(Definition: The letter of “PbF” isprinted on the PCB using the
lead free solder.)
-To put lead free solder, itshouldbe well molten and mixed with the
original lead free solder.
-Remove the remaining lead free solder on the PCB cleanlyfor
soldering of the new IC.
-Since the melting point of the lead free solder ishigher than that of
the normal lead solder, ittakes the longer time to meltthe lead
free solder.
-Use the soldering iron (more than 70W) equipped with the
temperature control after setting the temperature at 350±30
degrees C(662±86°F).
RecommendedLeadFree Solder(Service Parts Route.)
-The following 3types of lead free solder are availablethrough the
service parts route.
RFKZ03D01K-----------(0.3mm 100g Reel)
RFKZ06D01K-----------(0.6mm 100g Reel)
RFKZ10D01K-----------(1.0mm 100g Reel)
Note
*Ingredient: tin(Sn), 96.5%, silver(Ag) 3.0%, Copper(Cu) 0.5%, Cobalt (Co) / Germanium(Ge)
0.1 to0.3%

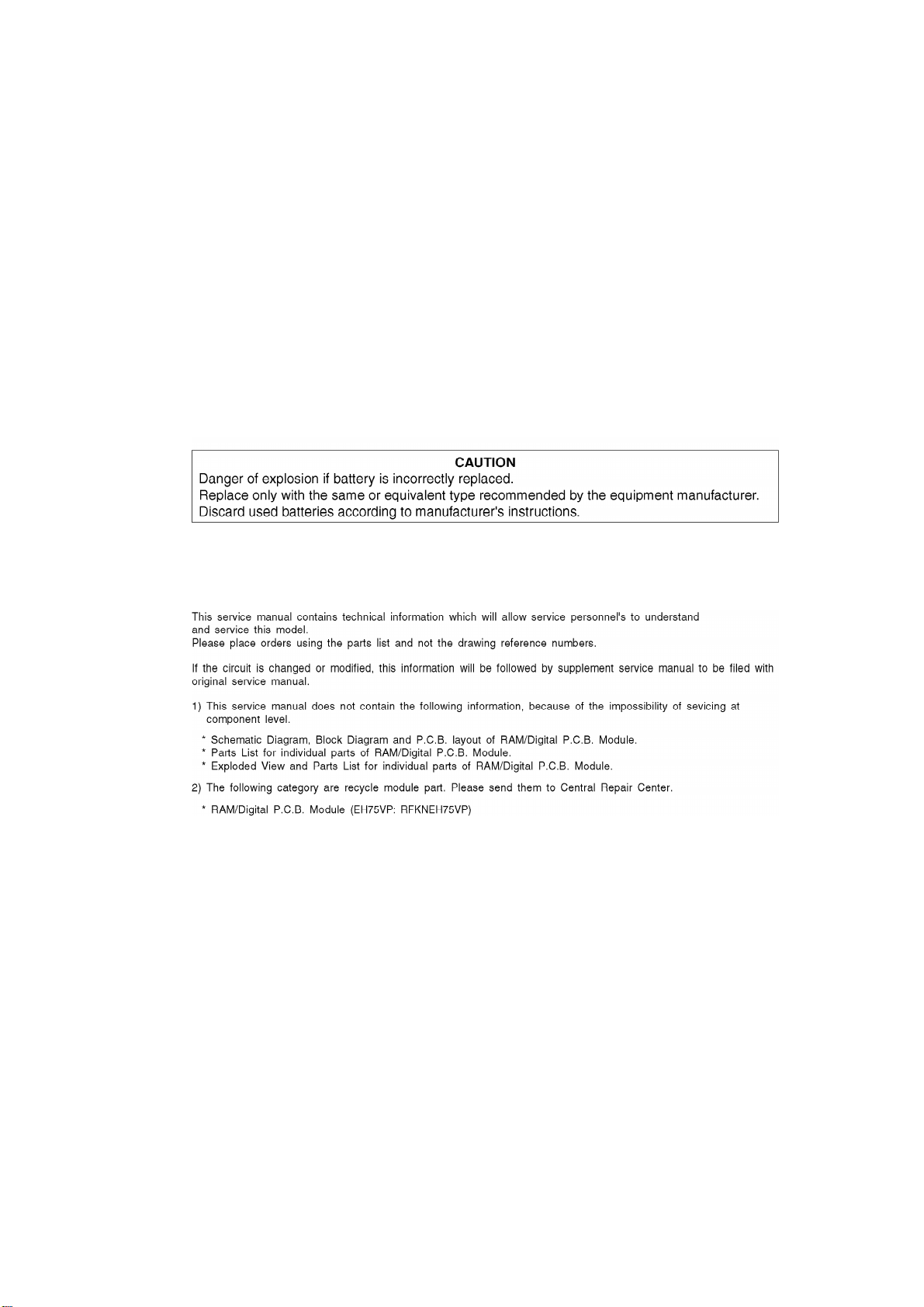

2.4. How to replace the Lithium Battery
REPLACEMENTPROCEDURE
1. Remove the Top case, VHSMechanism, HDD Angle, MainP.C.B.
and BatteryCover byreferring the Disassembling Procedure.
2. Unsolder the Lithium Batteries: B7501 and then replace itinto
new one.
(Asshownin14.2.1. The MainP.C.B. )
6

NOTE:
The lithiumbatteryis a critical component. ( Type No.: CR2354-1GUFManufacturedby
Panasonic. )
It must neverbe subjectedtoexcessive heat ordischarge.
It must therefore onlybe fittedinequipment designedspecificallyforits use.
Replacement batteries must be of the same type and manufacture.
Theymust be fittedinthe same mannerand location as the original battery, withthe correct
polaritycontacts observed.
Donot attempt tore-charge the oldbatteryorre-use it foranyotherpurpose.
It shouldbe disposedof inwaste products destinedforburial ratherthanincineration.
3. Service Navigation
3.1. Service Information

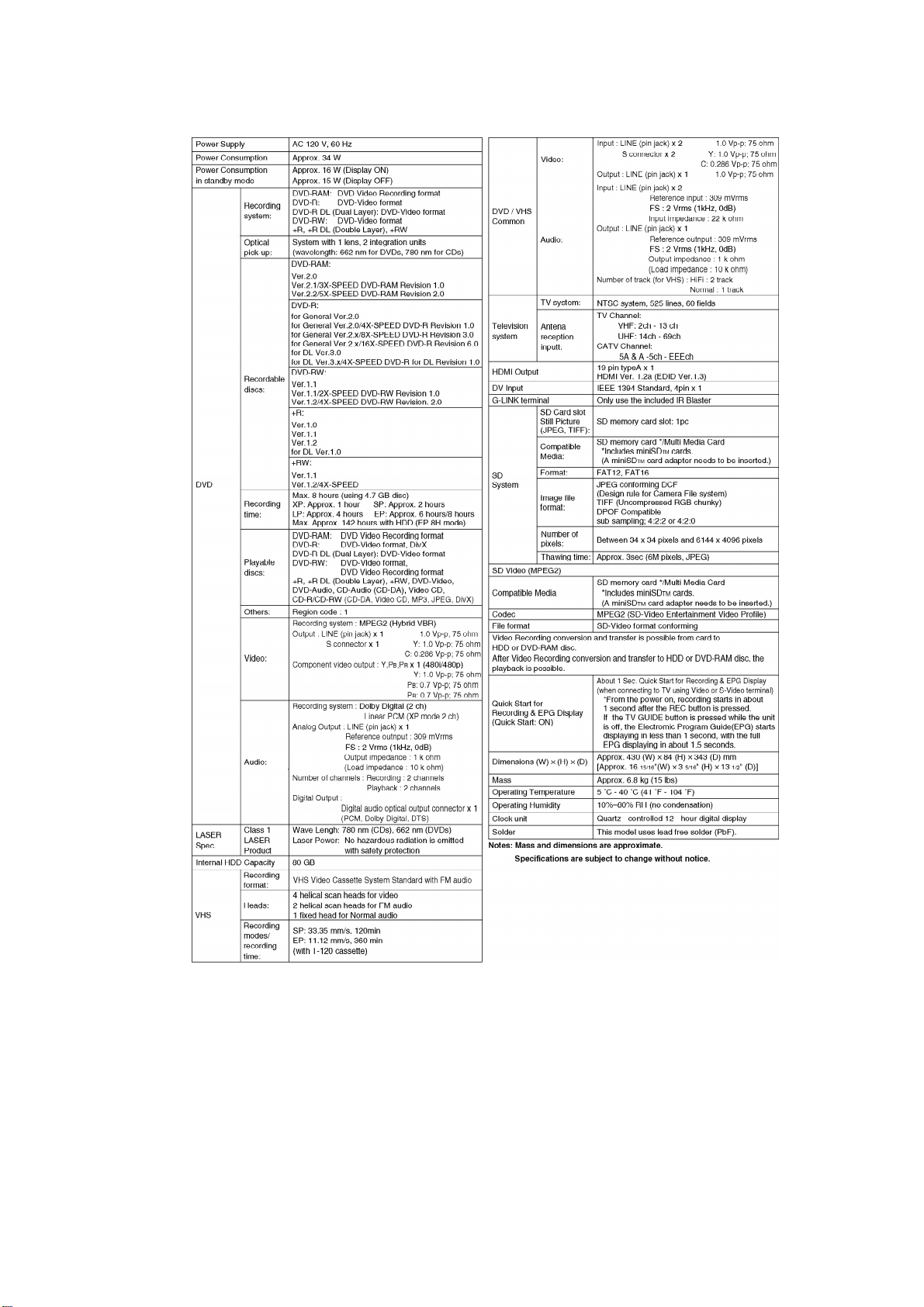

4. Specifications
7

5. Features
5.1. About DivX
5.1.1. General
DivX is a newvideocompressing format that is appliedMPEG4 technologytoimprove image
qualityand the compressibility, and it is developedbythe DivXNetworks, Inc., Videofile of high
resolution and the high picture qualitycanbe made though it is a high compressibility.
DivX codec is necessaryforconverting videotoDivX file and .playback files made.
8

5.1.2. Operating Instructions about DivX Video-on-Demand Content
DivX Video-on-Demand (VOD) content is encryptedforcopyright protection. Inordertoplay
DivX VOD content on this unit, you first needtoregisterthe unit.
Followthe on line instructions forpurchasing DivX VOD content toenterunit's registration code
and registerunit. Visit www.divx.com/vod formore information.
Displayunit's registration code.
9

10

11

12

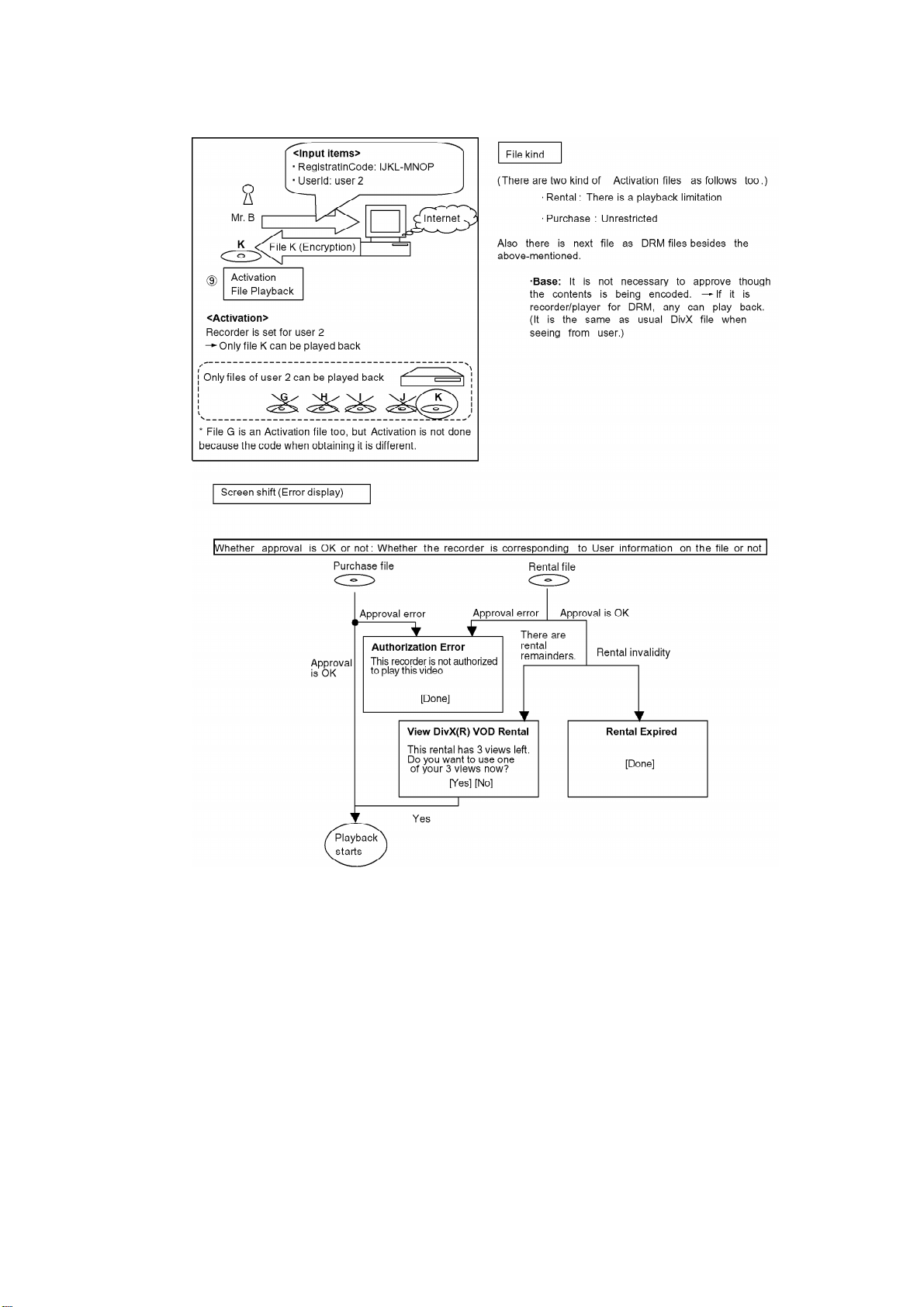

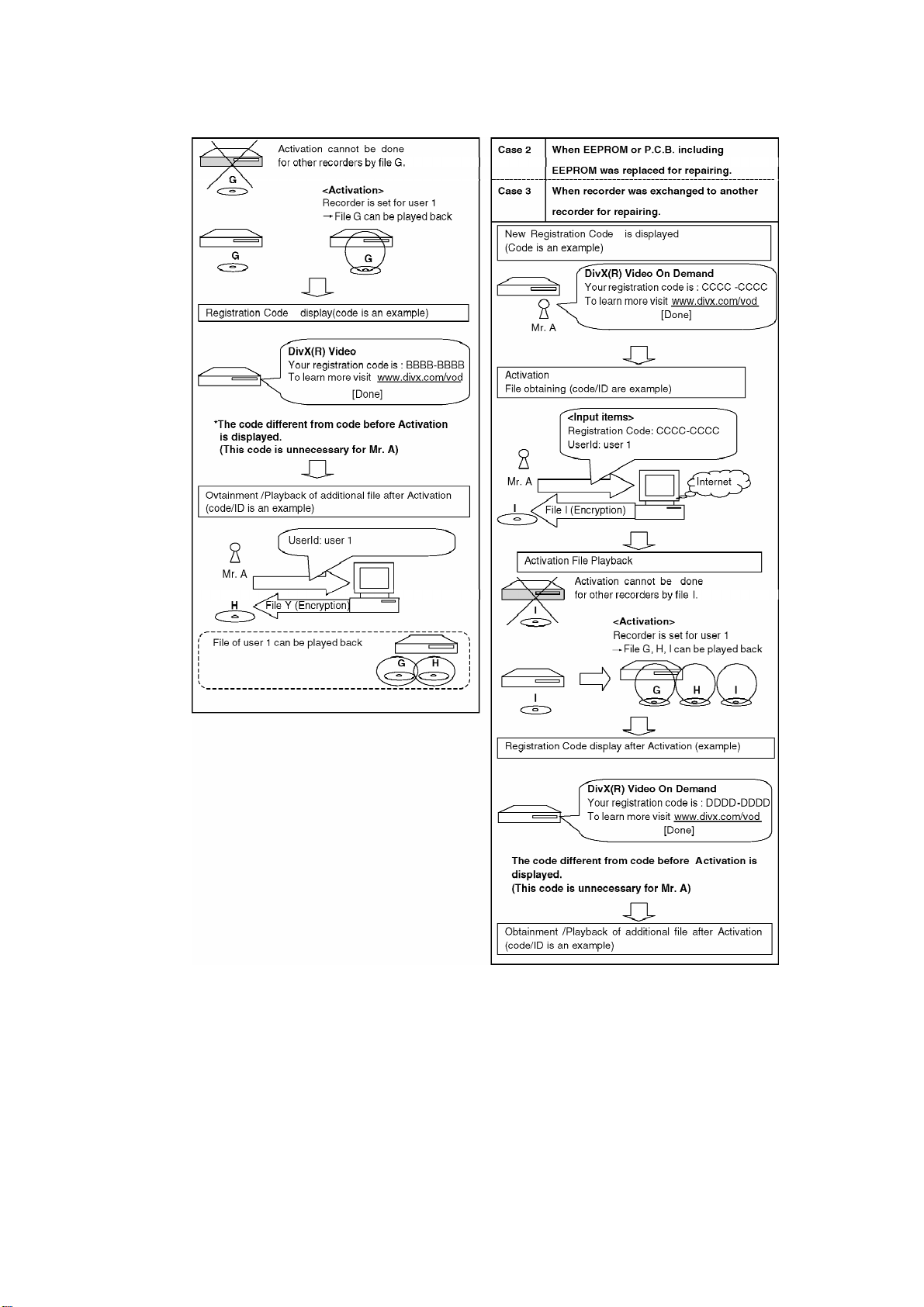

5.1.3. About DivX DRM
Divx file includes file towhichDRM(Digital Right Management) is appliedand file not applied.
This itemis a content that relates onlyintreating file towhichDRM is applied.
1. Registration Code displayfunction
2. User's registration and approval function
3. Rental management function
1) Registration Code displayfunction
Registration Code is alphanumeric charactersequence 8bytes inputtedas recorderinformation,
incase a use purchases orrent a DivX DRM file ina network.
Registration code is a charactersequence generatedat random, and differs ineachrecorder.
13

Moreover, Registration code is updatedbynewuserauthentication everif same recorder.
2) User's registration and approval function
-Onlyone user can register for one recorder. Ifuser's registration is
not done with the recorder, DivX filecannot be played back.
-User's registration isperformed onlywhen aDivX DRMfileisfirst
chosen byrecorder
-DivX DRMfilethat can perform user's registration isonlyafilethat
isregistered Registration Code and purchased or rented.
-User authentication isperformed whenever DivX DRMfileisplayed
back.
Error message isdisplayed when failing inuser's registration and
approval.
3) Rental management function
There are purchase file without registration of numberof playback and rental files with
registration of numberof playback as Divx file. Numberof playback of rental file is countedby
the recorder.
Whenrental file is played, remaining numberof times that canbe playedback will be shownto
users, recorderrequests users toinput yes orno.
Following specifications have beeninstalledforthe rental files inthe purpose toclarifythe
count condition of numberof times of playback.
-Conditions on counting number of times of play.
1. When afilewas opened successfully. (Atthe time of playback
start)
2. When you have done review operation from the start. (Skipto file
head)
-Atthistime, remaining number of times that can be played
back and confirmation message [Doyou playreally?] are
displayed.
-When the playback point has been skipped to the top of title,
number of playback isnot counted ifthe top of titlewas not
recognized.
-Even ifthe power failure occurs after start of playback of
rental file, number of times of playback counted at start of the
playback isheldas itis. (Though playback stops bypower
failure, the number of times of playback isnot counted.)
14

When ithas reached head of title, the playback isended, and
screen becomes DivX menu (There isno resume) and then cursor
islocated on titlethat has been played back.
Then ifthe same filewas continuouslyplayed back, itbegins to
playback from the filehead.
Note:
Above mentionedstoreduserinformation and numberof times of playback are not erasedby
update of firmware orbyinitialization bytest mode.

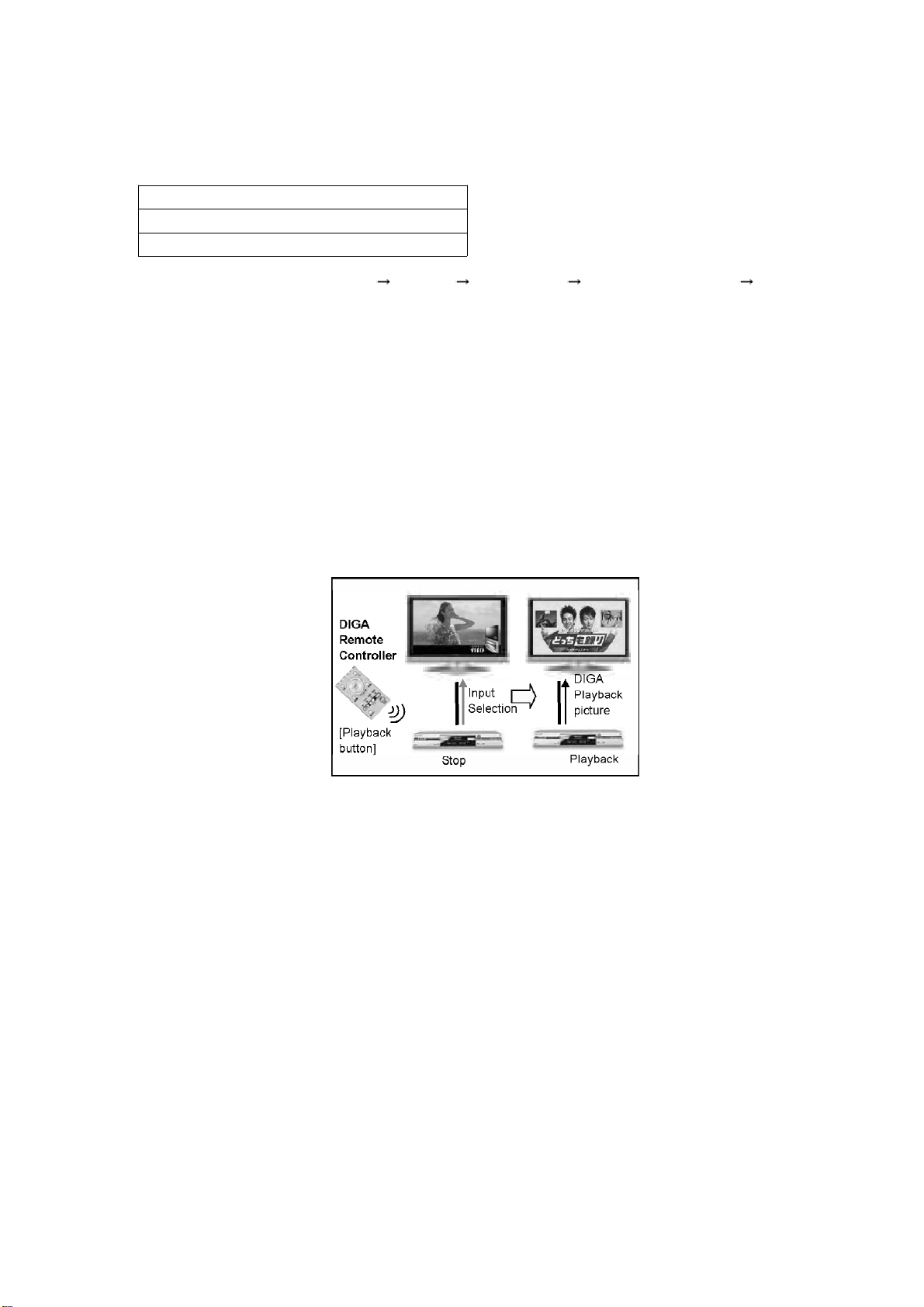

5.2. HDAVI Control (HDMI Link)
Linkedoperations byHDAVI Control (HDMI Link)
5.2.1. What isHDMI
HDMI is abbreviation of [High-Definition Multimedia Interface], and is digital interface standard
fornext generation TV corresponding tofollows.
1. Non-compressing high qualitydigital image
2. Digital transmission of multi channel digital audio.
3. Twowaycommunication of control signal of control
straightening between equipments
15

PinName
Pinlayout of plug of HDMI cable seenfromoutside.
16

5.2.2. Link functions withEquipmentsCorresponding Table
Functions
(1) Automatic Input switch
(2) Link of Power
Incase setting of [FUNCTIONS] [Setup] [TV Screen] [Functions of HDMI] [Control
withHDMI] are on, all above equipments Link functions are effective.
5.2.3. Outline of EquipmentsLinked functions
(1) Automatic Input switch
At starting of playback/ GUI displaybyDIGA, it turns on powerof VIErA, and it displays picture
of DIGA ontoscreenof VIErA.
Starting of playback:
It includes automatic playback of DVD-Videoand soon. And it includes picture of screensaver
too.
GUI display:
FUNCTIONS, DIRECTNAVIGATOR, TV PROGRAM, PROG/CHECK, TimerRecording, G-code,
Initial setting, Playback setting, Playlist, SD/DVD guide, Warning messages that usercanselect
and soon.
(2) Seamless GUI
1. Automaticswitching to DIGAfunctions from VIErAfunctions
When [operate DIGA]of VIErAfunctions isselected, input of
VIErAisswitched to DIGAinput automaticallyand itdisplays
DIGAfunctions.
2. Automaticswitching to VIErAoperation menu from DIGA
operation menu
Itisfunction that DIGAoperation menu isswitched off and VIErA
operation menu isswitched on when [RETURN]button of VIErA
remote controller ispressed whilefirst stage of DIGAoperation
menu isbeing displayed,
17

3. Automaticswitch off of GUI displayof DIGAwhen VIErAinput
selection/ VIErAoperation menu isdisplayed
GUI of DIGAisturned off when VIErAinput selection isperformed
whileGUI of DIGAisbeing displayed.And GUI of DIGAisturned
off and VIErAoperation menu isdisplayed when VIErAoperation
menu isdisplayed whileGUI of DIGAisbeing displayed.
GUI Display:
ErasableGUI displaysabove are limited to screen that are
erasablebyRETURN button inDIRECTNAVIGATOR/ TV GUIDE/
FUNCTIONS/ PROGRAMCHECK/ INITIALSETTING.
However GUI displaysthat are not erasablebyRETURN button in
FORMATprocess/ ERASE process/ DUBBING process/ FINALIZE
process/ CUTIONdisplayed are kept displaying.
(3) Remote Control Operation
Function that operate DIGA byVIErA remote controllerwhenDIGA screenis displayedon
VIErA,
-Buttons of Remote Controller that can be operate byVIErAremote
controller:
, , , , ENTER, RETURN, SUB MENU
18

(4) PowerLink
Powerof DIGA is turnedoff linking toPOWER OFF of VIErA.
-Power of DIGAisnot turned on linking to POWERONof VIErA.
-Itislimited infollowing cases that DIGAlinks to POWEROFF of
VIErA.
1. During EE display(WhileTimer recording isbeing executed/
Functions isbeing displayed are included.)
2. Case that DIGAisplaying back (onlyNorth America/ Japan)
Howeverexcept cases below.
-During EE display, but manual recording isbeing executing/ during
EXT_Link recording.
-During Trayisbeing opened.
-Case that DIGAisinstatus that power cannot turn off (during
dubbing, during finalize).
(5) TimerRecording (Reservation Recording)
Whenselect [Reserve] of TV GUIDE of VIErA, Reservation information is transmittedbywayof
HDMI (HDAVI Control), and reservation registration of DIGA is done.
-InDIGA, ittreats as well as ausual program reservation and Timer
19

Recording reservation.
-Linking reservation from VIErAisnot done.
-Recordablemediaisfixed to HDD
-Recording mode of digital program isfixed to DR and recording
mode of analog program isfixed to SP mode.
(6) Recording right now
When[REC RIGHTNOW] is selectedon GUI of VIErA, CH that is being seenis recordedby
DIGA.And when[STOP RIGHTNOW] is selectedon GUI of VIErA, recording of DIGA is stopped.
-Function of [recording right now]isbased on manual recording of
DIGA. But recordablemediaisfixed to HDD.
Recording mode issame as latest mode, similarlyto manual
recording.
(7) Link withAmp
Insystemincluding DIGA, VIErA, AmplifierorTheater, when[ONE TOUCH THEATER
PLAYBACK] button was pressed, VIErA POWER ON/ Input switch/ audiomute is set
automatically, and audiosound is output fromspeakerconnectedamp.
20
