Panasonic DMR-E85HEB User manual

ORDERNO.DSD0403005C2
DVDVideoRecorder
DMR-E85HEB/ DMR-E85HEG
Colour
(K).......................Black Type
(S).......................SilverType

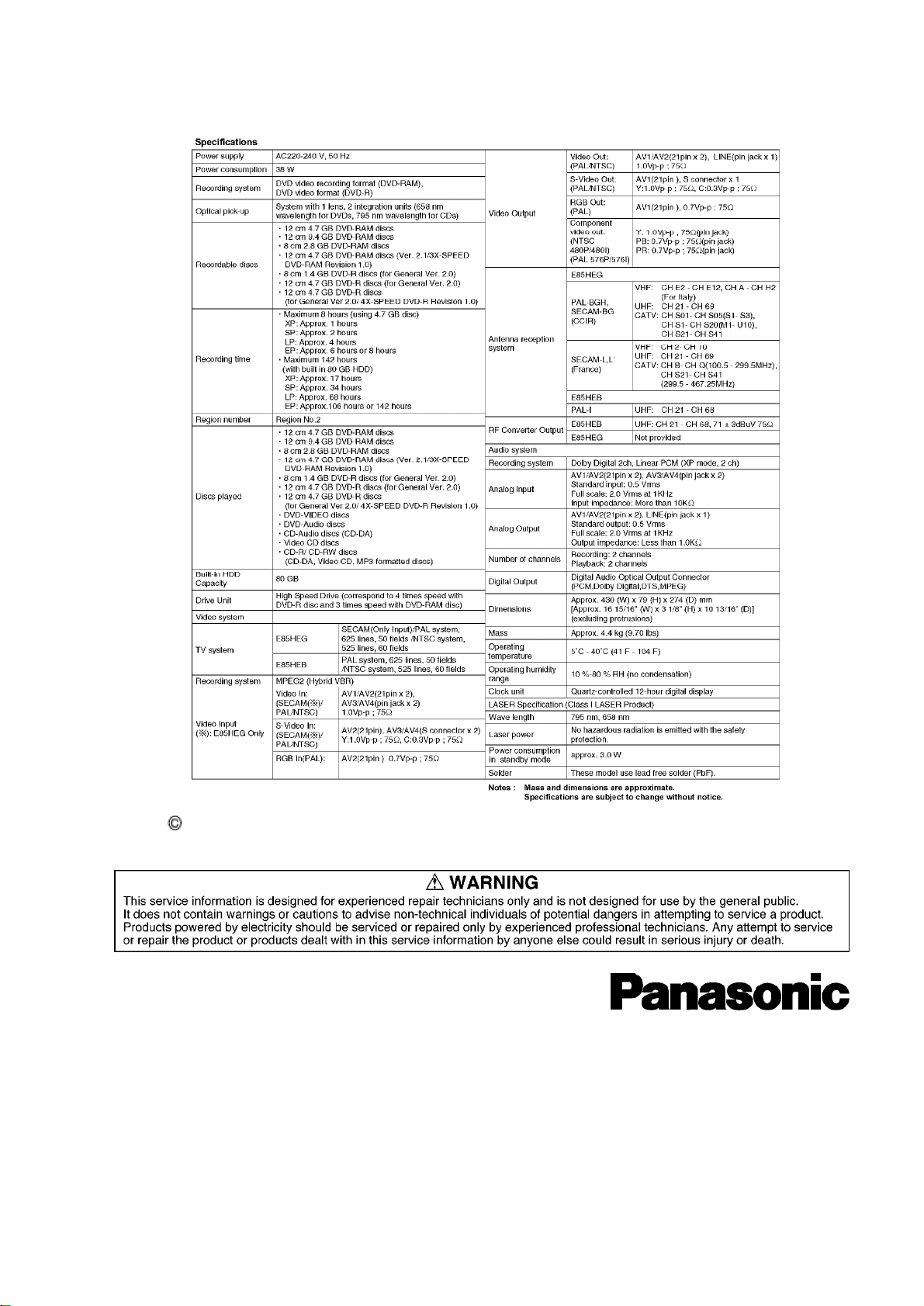

SPECIFICATIONS
1

2004 Matsushita ElectricIndustrial CO., Ltd. All rights reserved.
Unauthorizedcopying and distribution isaviolation oflaw.
1. Safetyprecautions
1.1. General guidelines
1. Whenservicing, observetheoriginal leaddress. Ifashortcircuit
isfound, replace all parts whichhavebeenoverheatedor
2

damagedbytheshortcircuit.
2. Afterservicing, see toitthat all theprotectivedevices suchas
insulation barriers, insulation papersshieldsareproperlyinstalled.
3. Afterservicing, make thefollowing leakagecurrentchecks to
preventthecustomerfrombeing exposedtoshock hazards.
1.1.1. Leakagecurrentcoldcheck
1. Unplug theACcordand connect ajumperbetweenthetwoprongs
on theplug.
2. Measuretheresistance value, withanohmmeter, betweenthe
jumperedACplug and eachexposedmetalliccabinet parton the
equipmentsuchas screwheads, connectors, control shafts, etc.
Whentheexposedmetallicparthas areturnpathtothechassis,
thereading shouldbebetween1M and 5.2M . / Whenthe
exposedmetal does nothaveareturnpathtothechassis, the
reading must be . Figure1
1.1.2. Leakagecurrenthotcheck / (See Figure 1 .)
1. Plug theACcorddirectlyintotheACoutlet. Donotuse an
isolation transformerforthischeck.
2. Connect a1.5k , 10 watts resistor, inparallel witha0.15 F
capacitors, betweeneachexposedmetallicparton theset and a
good earthground suchas awaterpipe, as shownin Figure1.
3. Use anACvoltmeter, with1000 ohms/voltormoresensitivity, to
measurethepotential across theresistor.
4. Check eachexposedmetallicpart, and measurethevoltageat
eachpoint.
5. Reverse theACplug intheACoutlet and repeat eachoftheabove
measurements.
3

6. Thepotential at anypointshouldnotexceed0.75 volts RMS. A
leakagecurrenttester(Simpson Model 229 orequivalent) maybe
usedtomake thehotchecks, leakagecurrentmust notexceed1/2
milliampere. Incase ameasurementisoutsideofthelimits
specified, thereisapossibilityofashock hazard, and the
equipmentshouldberepairedand recheckedbeforeitisreturned
tothecustomer.
2. Prevention of ElectrostaticDischarge (ESD) to
ElectrostaticSensitive(ES) Devices
Somesemiconductor (solidstate)devices canbedamagedeasilybystaticelectricity. Such
componentscommonlyarecalledElectrostaticSensitive (ES)Devices. Examples oftypical ES
devices areintegratedcircuitsand somefield-effecttransistor-sandsemiconductor "chip"
components. Thefollowing techniques shouldbeusedtohelpreduce theincidence of
componentdamagecausedbyelectrostaticdischarge(ESD).
1. Immediatelybeforehandling anysemiconductorcomponentor
semiconductor-equippedassembly, drainoff anyESDon your
bodybytouching aknownearthground. Alternatively, obtainand
wearacommerciallyavailabledischarging ESDwrist strap,
whichshouldberemovedforpotential shock reasonspriorto
applying powertotheunitundertest.
2. Afterremoving anelectrical assemblyequippedwithES devices,
place theassemblyon aconductivesurface suchas aluminum
foil, topreventelectrostaticchargebuildup orexposureofthe
assembly.
3. Use onlyagrounded-tipsoldering iron tosolderorunsolderES
devices.
4. Use onlyananti-staticsolderremoval device. Somesolder
removal devices notclassifiedas "anti-static(ESDprotected)"can
generate electrical chargesufficienttodamageES devices.
5. Donotuse freon-propelledchemicals. These cangenerate
electrical charges sufficienttodamageES devices.
6. DonotremoveareplacementES device fromits protective
packageuntil immediatelybeforeyou arereadytoinstall it. (Most
replacementES devices arepackagedwithleadselectrically
shortedtogetherbyconductivefoam, aluminumfoil or
4

comparableconductivematerial).
7. Immediatelybeforeremoving theprotectivematerial fromthe
leadsofareplacementES device, touchtheprotectivematerial to
thechassisorcircuitassemblyintowhichthedevice will be
installed.
Caution
Besureno powerisappliedtothechassisorcircuit, and observe
all othersafetyprecautions.
8. Minimizebodilymotionswhenhandling unpackagedreplacement
ES devices. (Otherwise hamless motion suchas thebrushing
togetherofyourclothes fabricorthelifting ofyourfootfroma
carpetedfloorcangenerate staticelectricitysufficienttodamage
anES device).
3. Precaution of LaserDiode
4. Handling the Lead-free Solder
5

4.1. Aboutleadfree solder(PbF)
Distinction ofPbF P.C.B.:
P.C.B.s(manufactured)using leadfree solderwill have aPbF stampon theP.C.B.
Caution:
-Pbfree solderhas ahighermelting pointthanstandardsolder;
Typicallythemelting pointis50 -70°F(30 -40°C)higher. Please
use ahigh temperaturesoldering iron. Incase ofthesoldering iron
withtemperaturecontrol,please set itto700 ±20°F(370 ±10°C).
-Pbfree solderwill tend tosplashwhenheatedtoo high (about
1100°F/600°C).
-Whensoldering orunsoldering, please completelyremoveall ofthe
solderon thepinsorsolderarea, and besuretoheat thesoldering
points withthePbfree solderuntil itmelts enough.
5. Each Buttons
6. Taking out the Disc fromRAM-DriveUnit when the
Disc cannot be ejected byOPEN/CLOSE button
6.1. ForcibleDisc Eject
6.1.1. Whenthepowercanbeturnedoff.
1. Turnoff thepowerand press [STOP][CH UP]keyson thefront
panel simultaneouslyfor5seconds.
6.1.2. Whenthepowercannotbeturnedoff.
1. Press [POWER]keyon thefrontpanel forover10 secondstoturn
off thepowerforcibly, and press [STOP][CH UP]keyson thefront
panel simultaneouslyfor5seconds.
6.2. WhentheForcibleDisc Eject cannotbedone.
1. Turnoff thepowerand pull outACcord.
2. RemovetheTop Case.
3. RemovetheFrontPanel.
4. Remove4screwsand UpperBase UnitfromDVD-RAMDrive.
5. Take outthedisc and puttheOpenerRolleron fullyposition for
6

direction ofArrow.
6. PuttheUpperBase Unitsothat theOpenerRollerisinsertedinto
thegroove.
7. Check centerofOpenerRollerisseenthrough theOpener
position Checking Hole, and tighten4screws.
7. Service Explorer
Confirm “RAM-Drive LastError”inService Mode
ExecuteService Mode
1. Press [STOP], [TIMESLIP]and [OPEN/CLOSE]simultaneouslyfor
5secondswhenP-off.
FL Display:
7

*Afterfinishing display“(7). FactorofDriveErroroccurring”,
press [0] [2] ~[9] [9] keysoftheRemote Controllersothat 99
memories canbedisplayedas maximum.
2. Press [4] [2] keysofremote controller.

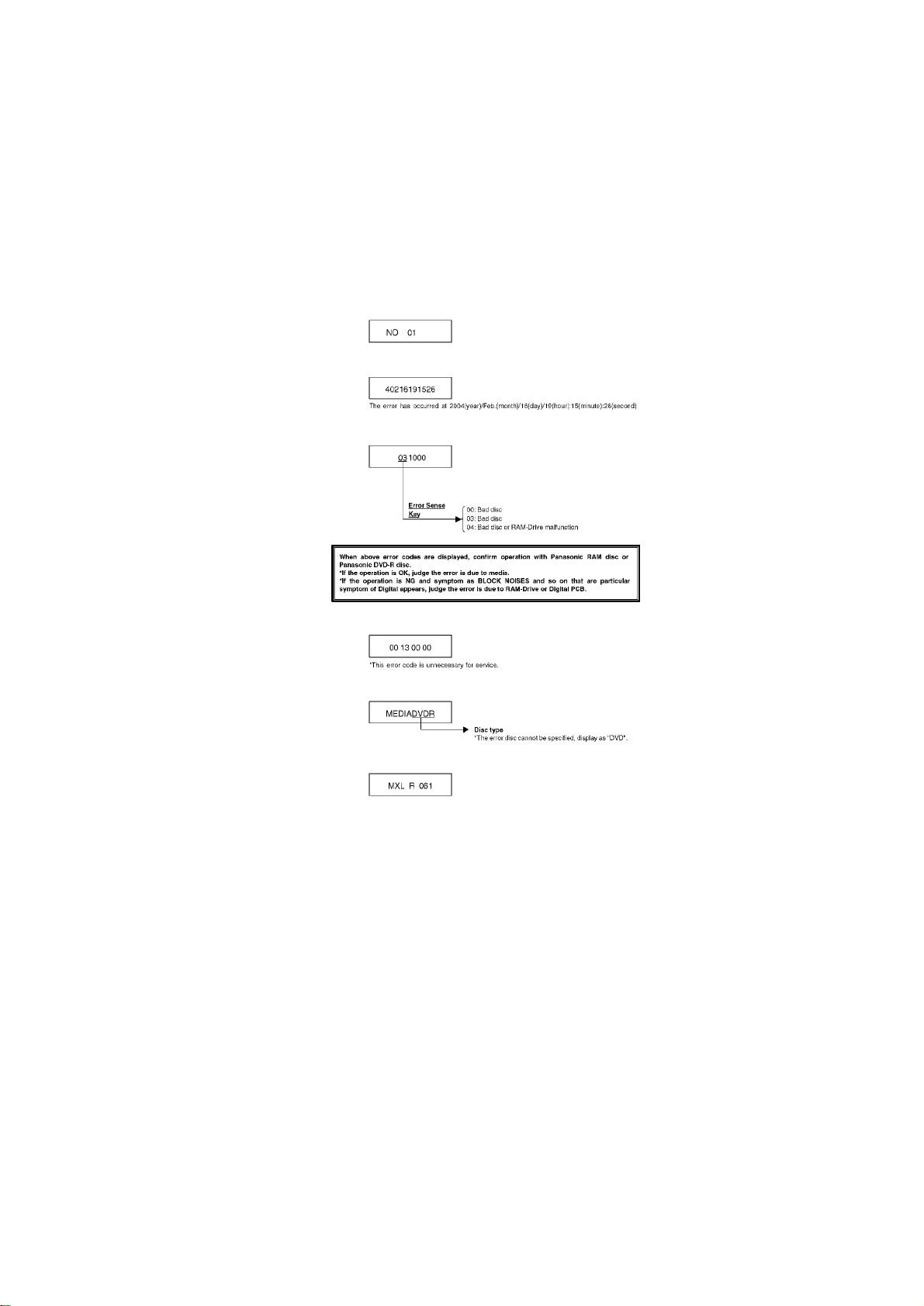

ExampleofFL Display:
(1)Error Numberisdisplayedfor 5seconds.
(2)Timewhentheerror has occurredisdisplayedfor 5seconds.
(3)LastDrive Error (1/2)isdisplayedfor 5seconds.
(4)LastDrive Error (2/2)isdisplayedfor 5seconds.
(5)Error occurring Disc typeisdisplayedfor 5seconds.
(6)Disc Maker's IDisdisplayedfor 5seconds.
ExampleofDisc Maker's ID:
DVD-R Disc
8

No. FL Display (Disc
Maker's ID) Disc Maker Country
1MEI Panasonic Japan
2PVC Pioneer Japan
3MCC Mitsubishi Chemical
Corporation Japan
4TDK TDK Japan
5MXL Maxell Japan
6MCI MITUICHEMICALS Japan
7 JVC Victor JVC Japan
8TAIYOYUDEN Taiyoyuden Japan
TYG
9GSC GigaStorage Taiwan
10 PRODISC Prodisc Taiwan
11 PRINCO PRINCO Taiwan
12 RITEK RITEK Taiwan
13 OPTDISC OPTDISC Taiwan
14 LEADDATA LEADDATA Taiwan
15 CMC CMC Taiwan
16 AUVISTAR AUVISTAR Taiwan
17 ACER Acer Taiwan
18 VIVASTAR VIVASTAR Switzerland
19 LGE LGElectronics Korea
DVD-RAMDisc
No. FL Display (Disc
Maker's ID) Disc Maker Country
1MEI Panasonic
2MATSUSHITA Panasonic Japan
3MXL Maxell Japan
4PRODISC Prodisc Taiwan
5OPTDISC OPTDISC Taiwan
6CMC CMC Taiwan
*Since andisplay isarbitrarilysetup bythedisk producerside, theabove-mentioneddisplay
may bechanged.
Please make itreference as anexampleofadisplay.
(7)Factor ofDrive Error occurring isleft displayed
Error Occurring Disc Type
9

FL Display Disc Type
00 DVD-ROM/Video
01 Audio-CD
02 2.6GBDVD-RAM
03 4.7GBDVD-RAM
04 DVD-R
Error Occurring Disc State
8. Self-Diagnosisand Special Mode Setting
8.1. Self-DiagnosisFunctions
Self-DiagnosisFunction provides information for errorstoservice personnel by“Self-Diagnosis
Display”whenanyerror has occurred.
U14, H** and F** arestoredinmemoryand held.
Display on FL will becancelledwhenthepoweristurnedoff or ACinputisturnedoff during self-
diagnosisdisplay isON.
10

Error
Code Diagnosiscontents Description Monitor
Display FL
display
U12 Remotecontrol code
error Display appearswhenmainunit and remotecontrollercodes are
notmatched.
Nodisplay
“*”isremote
controller
codeofthe
main
Display for 5
seconds.
U14 Abnormal inner
temperaturedetected Display appearswhenthedrive temperatureexceeds70°C.
Thepoweristurnedoff forcibly.
For 30 minutes afterthis, all key
entries aredisabled. (Fanmotor
operates atthehighestspeedfor
thefirst5minutes. For the
remaining 25 minutes, fanmotor
isalsostopped.)Theeventis
savedinmemoryas well.
Nodisplay
“U14”is
displayed
minutes.
U99 Hang-up Displayedwhencommunication
error has occurredbetweenMain
microprocessor and Timer
microprocessor.
Nodisplay
Displayedis
left
[POWER] key
is
H01 Inoperative fanmotor Display appearswhen
inoperative fanmotor isdetected
afterpoweredon.
Thepoweristurnedoff when
detecting.
Nodisplay
Displayedis
left.
F00 Noerror information Initial setting for error codein
memory
(Error codeInitialization is
possiblewitherror code
initialization and mainunit
initialization.)
Nodisplay
Displayedis
left.
F01 Drive hardwareerror Display appearswhendrive unit
error isdetected. Theeventis
savedinmemory.
Nodisplay
Displayedis
left.
F12 Initialization error
whenmain
microprocessor is
startedup for program
recording
Display appearswhen
initialization error isdetected
afterstarting up main
microprocessor for program
recording. Theeventissavedin
memory.
Thepoweristurnedoff when
detecting.
Nodisplay
Displayedis
left.
11

Error
Code Diagnosiscontents Description Monitor
Display FL
display
UNSUPPORT
Unsupporteddisc error *Anunsupportedformatdisc was
played, although thedrive starts
normally.
*Thedataformatisnot
supported, although themedia
typeissupported.
*Exceptionallyincase ofthedisc
isdirty.
“Thisdisc is
incompatible.”
Display for 5
seconds.
NO
READ Disc readerror *Adisc isflawedor dirty.
*Apoor qualityfailedtostart.
*Thetrack information couldnot
beread.
“Cannotread.
Please check
thedisc.”
HARD
ERR Drive error Thedrive detectedahard error. “DVDdrive error.” Display for 5
seconds.
SELF
CHECK Restoration operation Since thepowercord fell out during apowerfailureor
operation, itisunderrestoration
operation.
*Itwill OK, ifadisplay disappears
automatically. Ifadisplay does
notdisappear, thereisthe
possibilitythatdefective Digital
P.C.B. / RAMdrive.
Nodisplay
Full
Program32 programsare alreadyset. 32 programsarealreadyset. Nodisplay
HDD
SLEEP Inordertoextend HDD life, theHDD isin
SLEEP (notactivated)
mode.
Ifthereisno disc intheunit, the
HDD will go intoSLEEP mode
aftertherehas beenno operation
for 30 minutes or longer.
*WhileinSLEEP modeplay or
recording may notbegin
rightaway because theHDD takes
timetobere-activated.
“HDD SLEEP“
isdisplayed
for 3seconds.
8.2. Special Modes Setting
12

Item FL display Key
operation
Modename Description Front
Key
TESTMode *All themainunit's parameters
(includetuner)areinitialized. Press [SKIP (
REV)],
SLIP]and [
OPEN
keys
simultaneously
five seconds
when
isoff.
Service Mode Setting everykind ofmodes for
servicing.
*Detailsaredescribedin“8. 3.
Service Mode”.
Whenthe
power
press [STOP], [
TIME
and [OPEN/
CLOSE]
simultaneously
for
seconds.
Rating password Theaudiovisual level setting
password isinitializedto“Level
8”.
Openthetray,
and
[SKIP (REV)]
and
(FWD)]
simultaneously
five seconds.
Forceddisc eject Removing adisc thatcannotbe
ejected.
Thetray will openand unitwill
shift toP-off mode.
*WhenTimerRECisONor EXT-
LINK isON, execute" Forceddisc
eject" afterreleasing TimerREC
or EXT-LINK.
*Thiscommand isnoteffective
during "Childlock" isON.
Thedisplay before
execution leaves. Whenthe
power
press [STOP]
and
keys
simultaneously
five seconds.
Childlock/unlock Setor release “ChildLock”. Press [ENTER]
and
[RETURN] by
remote
controller
simultaneously
until [X-HOLD]
is
displayed.
NTSC/PALsystem
select ToswitchPAL/ NTSCalternately. Thedisplay before execution leaves. Whenthe
power
mode), press [
STOP]
[OPEN/CLOSE]
simultaneously
for
seconds.
Forcedpower-off Whenthepowerbutton isnot
effective whilepowerisON, turn
off thepowerforcibly.*When
TimerRECisONor EXT-LINK is
ON, execute“ForcedPower-off”
afterreleasing TimerRECor EXT-
LINK.
Action:
Thetray will open, and thepower
will turn off.
Display inP-off mode. Press [Power]
key
than10
seconds.
13

Item FL display Key
operation
Modename Description Front
Key
Aging Perform sequence ofmodes as *
Aging Description shownbelow
continually.
Display following thethen
mode. Whenthe
power
press [CH
DOWN],
SLIP]and [
OPEN
simultaneously
for
five seconds
and
than10
seconds.
*The[REC
MODE]
besettoEP or
LP.
*Whentheunit
has
up because of
pressing
keys for over
10
once turn off
the
and re-execute
this
command.
“When
releasing
mode, press [
POWER]
Demonstration
lock/unlock Ejection ofthedisc isprohibited.
Thelock setting iseffective until
unlocking thetray and not
releasedby“Mainunit
initialization”ofservice mode.
*Whenlock thetray.
“LOCK”isdisplayedfor 3
seconds.
Whenthe
power
press [STOP]
and
[POWER] keys
simultaneously
for
seconds.
*Whenunlock thetray.
“UNLOCK”isdisplayed
for 3seconds.
Whenthe
power
press [STOP]
and
[POWER] keys
simultaneously
for
seconds.
*Whenpress OPEN/
CLOSE key whilethetray
being locked.
Display “LOCK”for 3
seconds.
Press [OPEN/
CLOSE]
whilethetray
being
locked.
ATP re-execution Re-executeATP. Display atATP executing. Whenthe
power
mode), press [
CH
[CH DOWN]
simultaneously
for
seconds.
14

Item FL display Key
operation
Modename Description Front
Key
Progressive
initialization Theprogressive setting is initializedtoInterlace. Thedisplay before execution leaves. Whenthe
power
mode), press [
STOP]
[TIME SLIP]
simultaneously
for
seconds.
Aging Contents(Example):
8.3. Service Modes
Service modesetting:Whilethepowerisoff, press TIME SLIP, STOP and OPEN/ CLOSE
simultaneouslyfor five seconds.
Item FL display Key
operation
Modename Description (Remote
controller
Release Items Item ofService Modeexecuting is
cancelled. Press [0][0]or
[
service mode.
Error CodeDisplay LastError CodeofU14/H/Fheld
byTimerisdisplayedon FL.
*Detailsaredescribedin“8. 1.
Self-DiagnosisFunctions”.
Press [0][1]in
service
mode
15

Item FL display Key
operation
Modename Description (Remote
controller
ROMVersion
Display Region code, MAINfirm version, TIMERfirm version and DRIVE
firmwareversionsaredisplayed
on FL for five secondspereach
version inorder, butROMversion
will beleft displayed.
“ ”areversion
displays.
Press [0][2]in
service
mode
16

Item FL display Key
operation
Modename Description (Remote
controller
WhitePicture
Output Whitepictureisoutputas componentOutputfrom AV
Decoder.
*Whitepicture
(Saturation rate:100%)
*ItisenabletoswitchInterlace/
Progressive by“I/Pswitch:[1][4]”
*Initial modeis“Interlace”. Press [1][1]in
service
mode.
SwitchInterlace/
Progressive Press [1][4]in
White
PictureOutput
mode.
*I/P are
switched
alternately.
MagentaPicture
Output Magentapictureisoutputwith ComponentOutputfrom AV
Decoder.
*Magentapicture
(Saturation rate:100%)
*ItisenabletoswitchInterlace/
Progressive by“I/Pswitch:[1][4]”
*Initial modeis“Interlace”. Press [1][2]in
service
mode.
SwitchInterlace/
Progressive Press [1][4]in
Magenta
PictureOutput
mode.
*I/P are
switched
alternately.
17

Item FL display Key
operation
Modename Description (Remote
controller
RTSCReturn inXP
(A&V)
AV1inputsignal isencoded(XP),
decoded(XP)and output
decodedsignal toexternal
withoutDISCrecording and DISC
playback.
Initial mode:EE2/ Interlace/
XP/ Audio48kHz Press [1][3]in
service
mode.
SwitchInterlace/
Progressive Press [1][4]in
RTSC
Return XP
mode.
*I/P are
switched
alternately.
Audio44.1kHz/ 48 kHz
Switch Press [2][4]in
RTSC
Return XP
mode.
*48 kHz/ 44.1
kHz
switched
alternately.
I/P Switch SwitchInterlace and Progressive
inEE mode.
*Initial setting is“Interlace”.
*Thiscommand iseffective
during executing “WhitePicture
Output”, “MagentaPicture
Output”and “RTSCReturn inXP
(A&V)”modes.
Initial modeisInterlace
SwitchInterlace/
Progressive
Press [1][4]inI
/
mode.
*I/P are
switched
alternately.
AudioMute
(XTMUTE) Check whethermuteisapplied normallybythetimer
microprocessor.
Press [2][1]in
service
mode.
AudioMute
(XDMUTE) Check whethermuteisapplied normallybytheDigital P.C.B.
(GLUE IC).
Press [2][2]in
service
mode.
AudioPattern
Output Theaudiopattern storedinthe internal memoryisoutput
(Lch:1kHz/-18dB)
(Rch:400Hz/-18dB)
*Audiosound clock switching
operation ofDACcan
beconfirmedbysub command [2]
[4].
Initial mode(Audio48kHz) Press [2][3]in
service
mode.
Audio44.1kHz/48kHz
switching Press [2][4]in
Audio
Pattern Output
mode.
*48 kHz/ 44.1
kHz
switched
alternately.
18

Item FL display Key
operation
Modename Description (Remote
controller
HDD READ
inspection Perform acompleteread inspection oftheHDD. WhentheHDD isOK
IftheHDD isdefective
Press [3][1]in
the
mode.
*When
canceling
checking mode
while
executing, do
"forced
power-off".
Method:
Press the
"POWER"
button on the
Front
morethan10
seconds.
LaserUsedTime
Indiction Check laserusedtime(hours)of drive.
(*****)istheusedtime
display inhour.
LaserusedtimeofDVD/
CD inPlayback/Recording
modeiscounted.
Press [4][1]in
service
mode.
DeletetheLaser
UsedTime Laserusedtimestoredinthe memoryoftheunitisdeleted. Press [9][5]in
service
mode.
19

Item FL display Key
operation
Modename Description (Remote
controller
RAMDrive Last
Error RAMDrive error codedisplay.
*For detailsaboutthedrive error
code, refertotheService Manual
for thespecificRAMDrive.
*Detailsaredescribedin“7.
Service Explorer”.
1. Error Numberis
displayedfor 5seconds.
2. Timewhentheerror has
occurredisdisplayedfor 5
seconds.
Y:Year
MM:Month
DD: Day
hh:Hour
mm:Minute
ss:Second
3. LastDrive Error (1/2)is
displayedfor 5seconds.
4. LastDrive Error (2/2)is
displayedfor 5seconds.
5. Error occurring Disc
typeisdisplayedfor 5
seconds.
6. Disc MakerIDis
displayedfor 5seconds.
7. Factor ofDrive
Erroroccurring isleft
displayed
Press [4][2]in
service
mode.
Thenpress [0][
1]
thepast99
errors
displayed.
Incase thatthe
supplier
cannotbe
identified,
display is
black
20
