Panasonic DMR-ES45VP User manual

ORDERNO.VR0603003CE
B24
DVDRecorder
DMR-ES45VP / DMR-ES46VP
Vol. 1
Colour
(S).......................Silver Type
SPECIFICATIONS
1

2006 Matsushita ElectricIndustrial Co., Ltd. All rights reserved.
Unauthorized copying and distribution isaviolation of law.
1. Safety Precaution
1.1. General guidelines
1. When servicing, observe the original lead dress. Ifashort circuit
isfound, replace all parts which have been overheated or
damaged bythe short circuit.
2. After servicing, see to itthat all the protective devices such as
insulation barriers, insulation papers shields are properly
installed.
3. After servicing, make the following leakage current checks to
prevent the customer from being exposed to shock hazards.
1.1.1. Leakage current coldcheck
1. Unplug the AC cord and connect ajumper between the two
prongs on the plug.
2

2. Measure the resistance value, with an ohmmeter, between the
jumpered AC plug and each exposed metalliccabinet part on the
equipment such as screwheads, connectors, control shafts, etc.
When the exposed metallicpart has areturn path to the chassis,
the reading shouldbe between 1M and 5.2M .
When the exposed metal does not have areturn path to the
chassis, the reading must be .
Figure 1
1.1.2. Leakage current hot check / (See Figure 1 .)
1. Plug the AC cord directlyinto the AC outlet. Donot use an
isolation transformer for thischeck.
2. Connect a1.5k , 10 watts resistor, inparallel with a0.15 F
capacitors, between each exposed metallicpart on the set and a
good earth ground such as awater pipe, as shownin Figure 1.
3. Use an AC voltmeter, with 1000 ohms/voltor more sensitivity, to
measure the potential across the resistor.
4. Check each exposed metallicpart, and measure the voltage at
each point.
5. Reverse the AC plug inthe AC outlet and repeat each of the above
measurements.
6. The potential at anypoint shouldnot exceed 0.75 volts RMS. A
leakage current tester (Simpson Model 229 or equivalent) maybe
used to make the hot checks, leakage current must not exceed 1/2
milliampere. Incase ameasurement isoutside of the limits
specified, there isapossibilityof ashock hazard, and the
equipment shouldbe repaired and rechecked before itisreturned
to the customer.

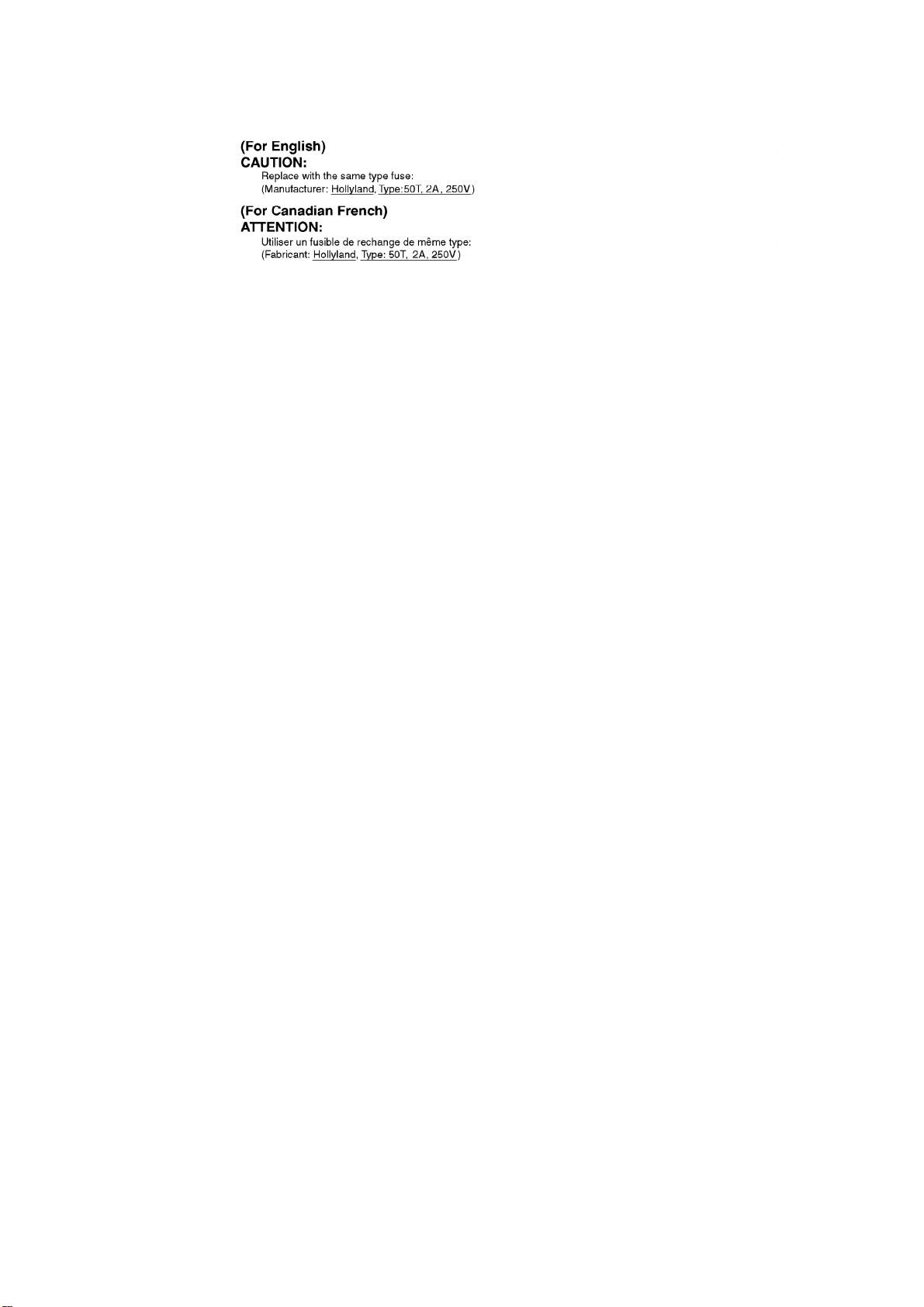

1.2. Caution for fuse replacement
3

2. Warning
2.1. Prevention of ElectrostaticDischarge (ESD)to Electrostatic
Sensitive (ES) Devices
Some semiconductor(solidstate) devices canbe damagedeasilybystatic electricity. Such
components commonlyare calledElectrostatic Sensitive (ES) Devices. Examples of typical ES
devices are integratedcircuits and some field-effect transistor-sand semiconductor"chip"
components. The following techniques shouldbe usedtohelpreduce the incidence of
component damage causedbyelectrostatic discharge (ESD).
1. Immediatelybefore handling anysemiconductor component or
semiconductor-equipped assembly, drainoff anyESDon your
bodybytouching aknownearth ground. Alternatively, obtainand
wear acommerciallyavailabledischarging ESDwrist strap, which
shouldbe removed for potential shock reasons prior to applying
power to the unitunder test.
2. After removing an electrical assemblyequipped with ES devices,
place the assemblyon aconductive surface such as aluminum
foil, to prevent electrostaticcharge buildup or exposure of the
assembly.
3. Use onlyagrounded-tipsoldering iron to solder or unsolder ES
devices.
4. Use onlyan anti-staticsolder removal device. Some solder
removal devices not classified as "anti-static(ESDprotected)"
can generate electrical charge sufficient to damage ES devices.
5. Donot use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ES devices.
6. Donot remove areplacement ES device from its protective
package until immediatelybefore you are readyto install it. (Most
replacement ES devices are packaged with leads electrically
shorted together byconductive foam, aluminum foil or
comparableconductive material).
7. Immediatelybefore removing the protective material from the
4

leads of areplacement ES device, touch the protective material to
the chassisor circuitassemblyinto which the device will be
installed.
Caution
Besure no power isapplied to the chassisor circuit, and observe
all other safetyprecautions.
8. Minimize bodilymotions when handling unpackaged replacement
ES devices. (Otherwise hamless motion such as the brushing
together of your clothes fabricor the lifting of your foot from a
carpeted floor can generate staticelectricitysufficient to damage
an ES device).
2.2. Precaution of Laser Diode
2.3. Service caution based on legal restrictions
2.3.1. General description about Lead Free Solder(PbF)
The leadfree solderhas beenusedinthe mounting process of all electrical components on the
5

printedcircuit boards usedforthis equipment inconsidering the globallyenvironmental
conservation.
The normal solderis the alloyof tin(Sn) and lead(Pb). Onthe otherhand, the leadfree solderis
the alloymainlyconsists of tin(Sn), silver(Ag) and Copper(Cu), and the melting point of the
leadfree solderis higherapprox.30 degrees C (86°F) more thanthat of the normal solder.
Definition of PCB LeadFree Solderbeing used
The letterof “PbF” is printedeitherfoil side orcomponents side on the PCB
using the leadfree solder.
(See right figure)
Service caution forrepairwork using LeadFree Solder(PbF)
-The lead free solder has to be used when repairing the equipment
for which the lead free solder isused.
(Definition: The letter of “PbF” isprinted on the PCB using the
lead free solder.)
-To put lead free solder, itshouldbe well molten and mixed with the
original lead free solder.
-Remove the remaining lead free solder on the PCB cleanlyfor
soldering of the new IC.
-Since the melting point of the lead free solder ishigher than that of
the normal lead solder, ittakes the longer time to meltthe lead
free solder.
-Use the soldering iron (more than 70W) equipped with the
temperature control after setting the temperature at 350±30
degrees C(662±86°F).
RecommendedLeadFree Solder(Service Parts Route.)
-The following 3types of lead free solder are availablethrough the
service parts route.
RFKZ03D01K-----------(0.3mm 100g Reel)
RFKZ06D01K-----------(0.6mm 100g Reel)
RFKZ10D01K-----------(1.0mm 100g Reel)
Note
*Ingredient: tin(Sn), 96.5%, silver(Ag) 3.0%, Copper(Cu) 0.5%, Cobalt (Co) / Germanium(Ge)
0.1 to0.3%
6

3. Service Navigation
3.1. Service Information

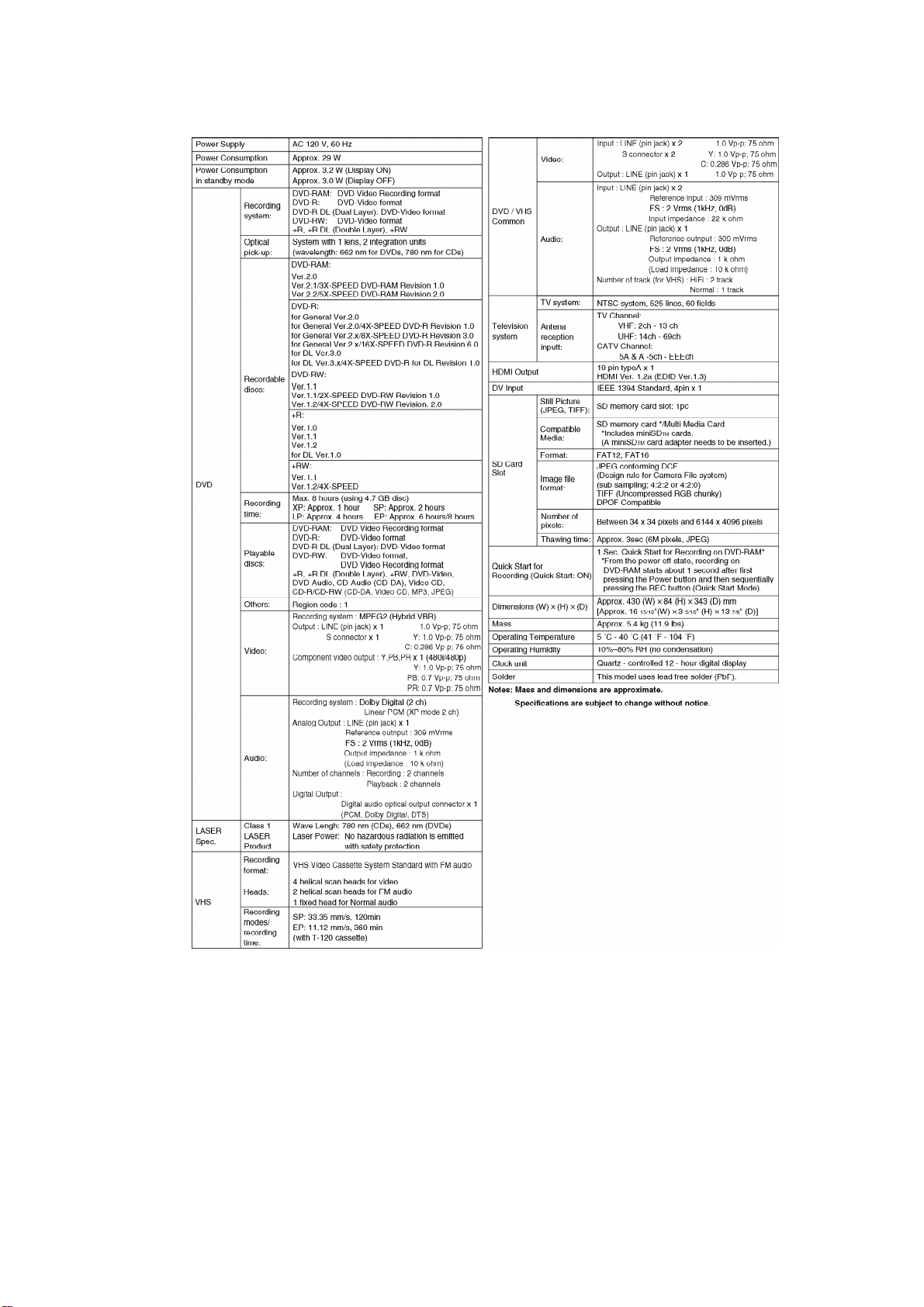

4. Specifications
7

5. Features
5.1. HDAVI Control (HDMI Link)
Linkedoperations byHDAVI Control (HDMI Link)
5.1.1. What isHDMI
HDMI is abbreviation of [High-Definition Multimedia Interface], and is digital interface standard
fornext generation TV corresponding tofollows.
1. Non-compressing high qualitydigital image
8

2. Digital transmission of multi channel digital audio.
3. Twowaycommunication of control signal of control
straightening between equipments

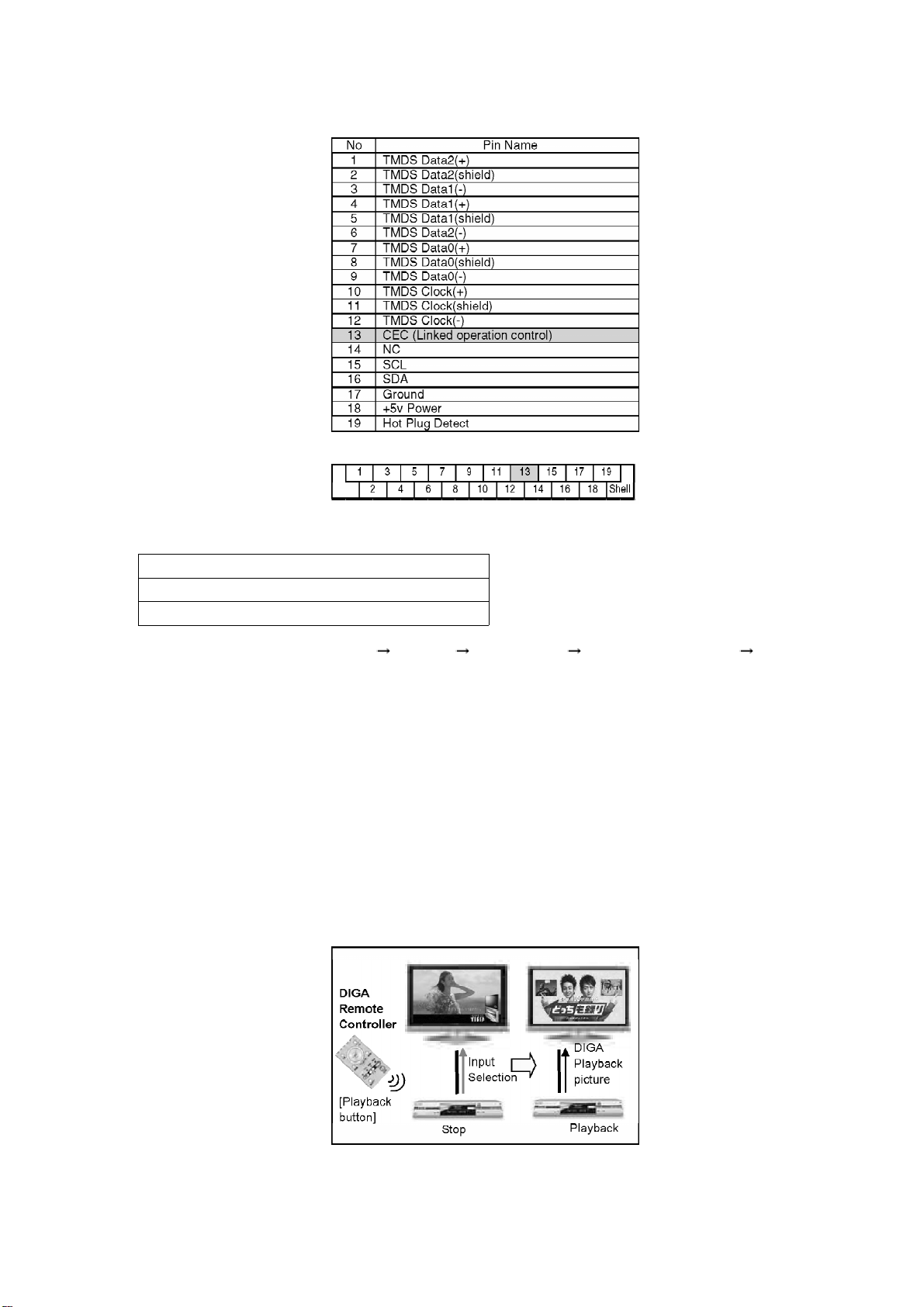

PinName
9

Pinlayout of plug of HDMI cable seenfromoutside.
5.1.2. Link functions withEquipmentsCorresponding Table
Functions
(1) Automatic Input switch
(2) Link of Power
Incase setting of [FUNCTIONS] [Setup] [TV Screen] [Functions of HDMI] [Control
withHDMI] are on, all above equipments Link functions are effective.
5.1.3. Outline of EquipmentsLinked functions
(1) Automatic Input switch
At starting of playback/ GUI displaybyDIGA, it turns on powerof VIErA, and it displays picture
of DIGA ontoscreenof VIErA.
Starting of playback:
It includes automatic playback of DVD-Videoand soon. And it includes picture of screensaver
too.
GUI display:
FUNCTIONS, DIRECTNAVIGATOR, TV PROGRAM, PROG/CHECK, TimerRecording, G-code,
Initial setting, Playback setting, Playlist, SD/DVD guide, Warning messages that usercanselect
and soon.
10

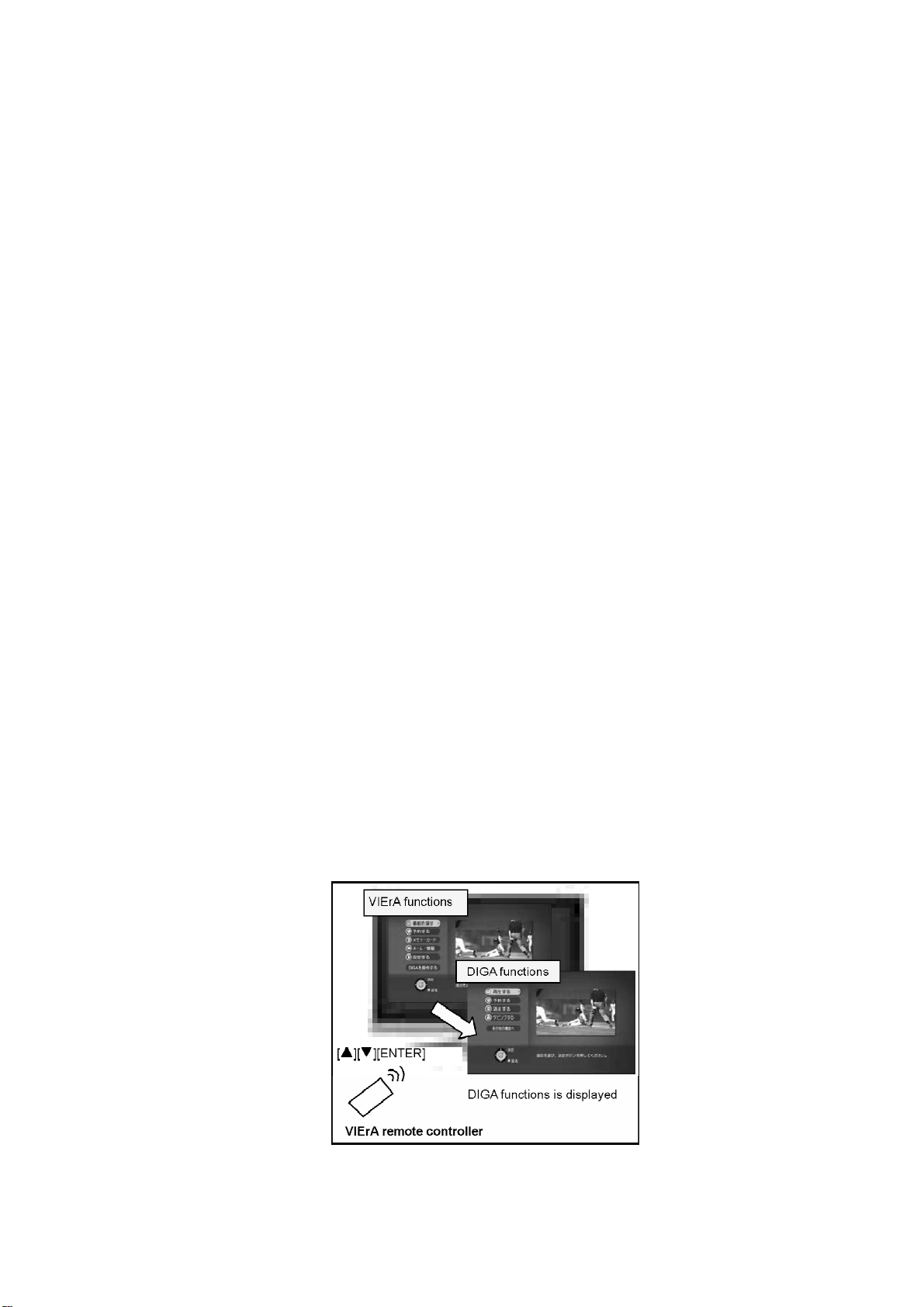

(2) Seamless GUI
1. Automaticswitching to DIGAfunctions from VIErAfunctions
When [operate DIGA]of VIErAfunctions isselected, input of
VIErAisswitched to DIGAinput automaticallyand itdisplays
DIGAfunctions.
2. Automaticswitching to VIErAoperation menu from DIGA
operation menu
Itisfunction that DIGAoperation menu isswitched off and VIErA
operation menu isswitched on when [RETURN]button of VIErA
remote controller ispressed whilefirst stage of DIGAoperation
menu isbeing displayed,
3. Automaticswitch off of GUI displayof DIGAwhen VIErAinput
selection/ VIErAoperation menu isdisplayed
GUI of DIGAisturned off when VIErAinput selection isperformed
whileGUI of DIGAisbeing displayed.And GUI of DIGAisturned
off and VIErAoperation menu isdisplayed when VIErAoperation
menu isdisplayed whileGUI of DIGAisbeing displayed.
GUI Display:
ErasableGUI displaysabove are limited to screen that are
erasablebyRETURN button inDIRECTNAVIGATOR/ TV GUIDE/
FUNCTIONS/ PROGRAMCHECK/ INITIALSETTING.
However GUI displaysthat are not erasablebyRETURN button in
FORMATprocess/ ERASE process/ DUBBING process/ FINALIZE
process/ CUTIONdisplayed are kept displaying.
11

(3) Remote Control Operation
Function that operate DIGA byVIErA remote controllerwhenDIGA screenis displayedon
VIErA,
-Buttons of Remote Controller that can be operate byVIErAremote
controller:
, , , , ENTER, RETURN, SUB MENU
(4) PowerLink
Powerof DIGA is turnedoff linking toPOWER OFF of VIErA.
-Power of DIGAisnot turned on linking to POWERONof VIErA.
-Itislimited infollowing cases that DIGAlinks to POWEROFF of
VIErA.
1. During EE display(WhileTimer recording isbeing executed/
Functions isbeing displayed are included.)
2. Case that DIGAisplaying back (onlyNorth America/ Japan)
Howeverexcept cases below.
-During EE display, but manual recording isbeing executing/ during
EXT_Link recording.
-During Trayisbeing opened.
-Case that DIGAisinstatus that power cannot turn off (during
dubbing, during finalize).
12

(5) TimerRecording (Reservation Recording)
Whenselect [Reserve] of TV GUIDE of VIErA, Reservation information is transmittedbywayof
HDMI (HDAVI Control), and reservation registration of DIGA is done.
-InDIGA, ittreats as well as ausual program reservation and Timer
Recording reservation.
-Linking reservation from VIErAisnot done.
-Recordablemediaisfixed to HDD
-Recording mode of digital program isfixed to DR and recording
mode of analog program isfixed to SP mode.

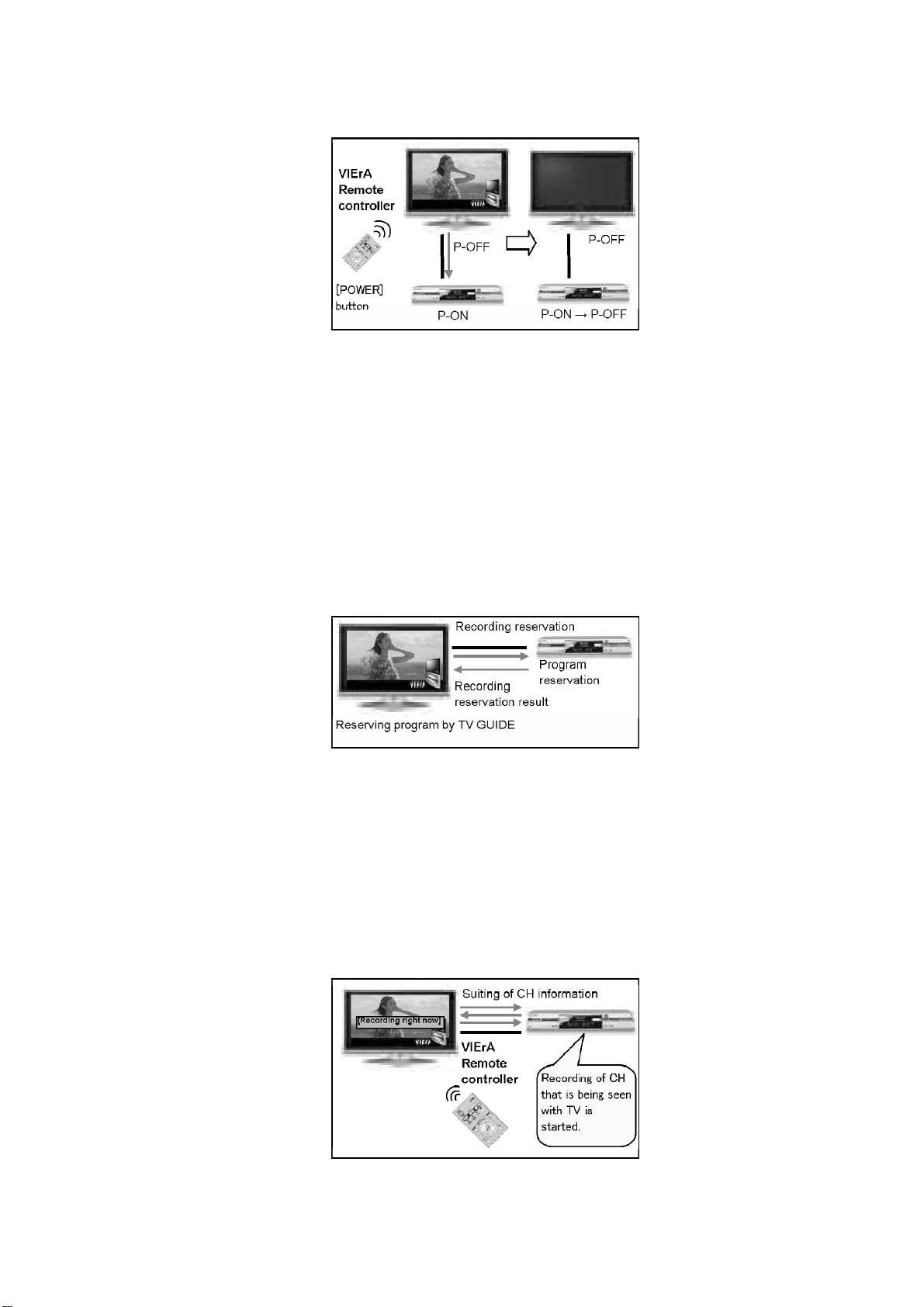

(6) Recording right now
When[REC RIGHTNOW] is selectedon GUI of VIErA, CH that is being seenis recordedby
DIGA.And when[STOP RIGHTNOW] is selectedon GUI of VIErA, recording of DIGA is stopped.
-Function of [recording right now]isbased on manual recording of
DIGA. But recordablemediaisfixed to HDD.
Recording mode issame as latest mode, similarlyto manual
recording.
13

(7) Link withAmp
Insystemincluding DIGA, VIErA, AmplifierorTheater, when[ONE TOUCH THEATER
PLAYBACK] button was pressed, VIErA POWER ON/ Input switch/ audiomute is set
automatically, and audiosound is output fromspeakerconnectedamp.
6. Location of Controls and Components
6.1. Each Buttons
7. Operation Instructions
7.1. (DVD)Taking out the Disc from RAM-Drive Unitwhen the Disc
cannot be ejected byOPEN/CLOSE button
7.1.1. (DVD) ForcibleDisc Eject
7.1.1.1. (DVD) Whenthe powercanbe turnedoff.
1. Turn off the power and press [STOP], [CH UP] keyson the front
panel simultaneouslyfor 5seconds.
7.1.1.2. (DVD) Whenthe powercannot be turnedoff.
1. Press [POWER]keyon the front panel for over 10 seconds to turn
off the power forcibly, and press [STOP] [CH UP] keyson the front
panel simultaneouslyfor 5seconds.
7.1.2. (DVD) When the ForcibleDisc Eject can not be done.
1. Turn off the power and pull out AC cord.
14

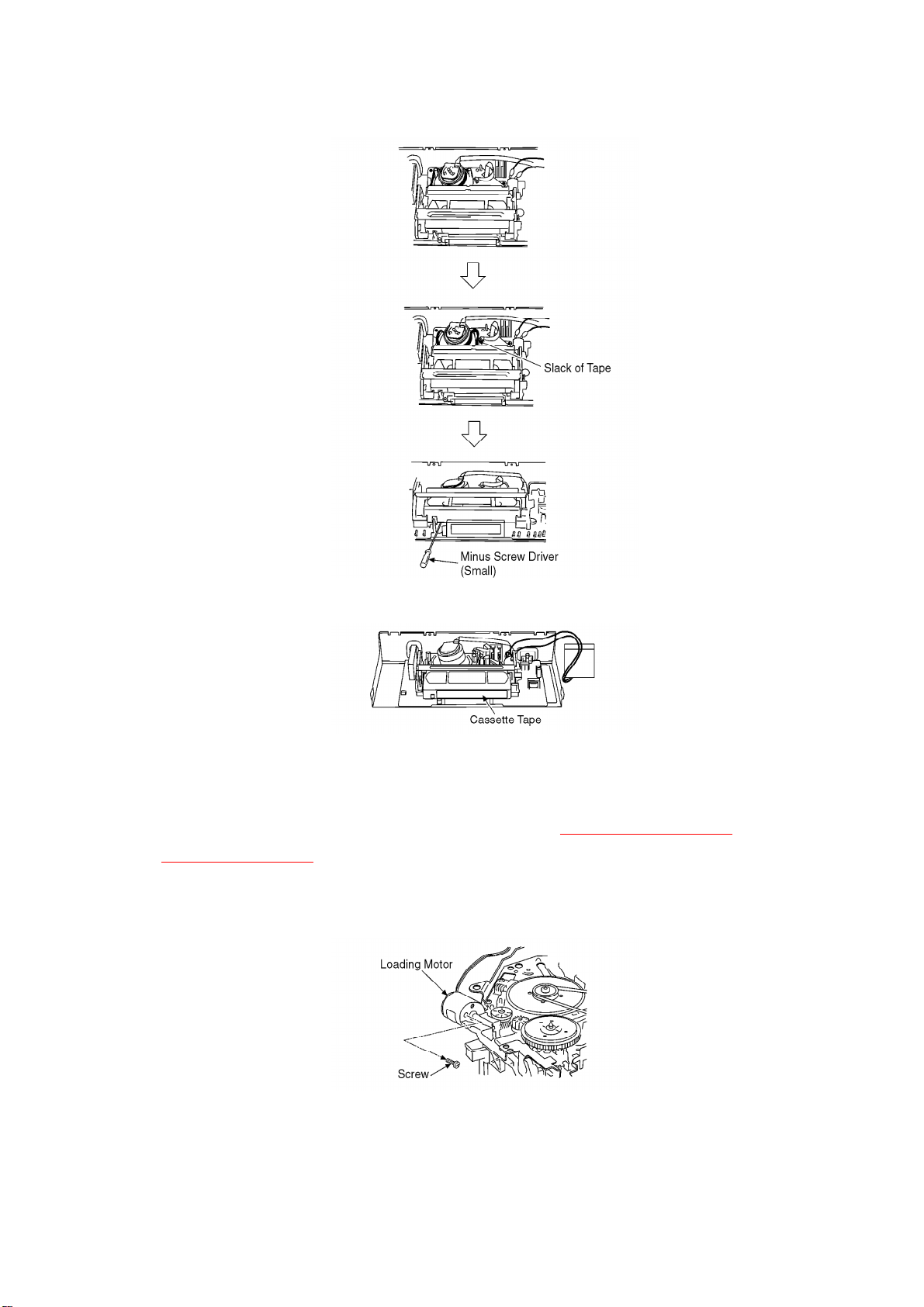

2. Remove the Top Case.
3. Push inSLIDECAMbyEject Pin(JSJ0484) or minus screw driver
(small)to eject trayslightly.
4. Push out TraybyEject Pin(JZS0484) or minus screw driver
(small).
7.2. (VHS) Removing Cassette Tape manually
Whenthe cassette tape couldnot be uninstalledfromanelectrical malfunction, there are 2 ways
toremove a cassette tape.
7.2.1. (VHS) Removal bycompulsoryunloading.
If Service Mode canbe activatedwhenthe powercannot be turnedon, this operation is able.
1. Press [STOP] and [EJECT] button simultaneouslyfor more than 3
seconds and set the Service Mode to 7.
2. Press [STOP] button inorder to unload the mechanism. (Pay
attention to tape slack)
Service Mode Display:
7** ** (STOP) 70L ** (EJECT)
7.2.2. (VHS) Removal bymanual operation byrotating the Loading Motorwith
15

the batteries.
1. Disconnect the AC plug, and remove the Top Panel and the Front
Panel byreferring to the DisassemblyProcedures.
2. Connect three batteries (1.5V spec.)to the Loading Motor in
series for supplying 4.5V to rotate the Loading Motor as shown
below.
3. Stop unloading just before unloading will be completed as shown
below, and then the tape becomes slack as shownbelow.
4. Rotate the S-Reel byasmall minus screwdriver to remove the
slack tape as shownbelow.
16

5. Then unload againto remove the cassette tape as shownbelow.
7.2.3. (VHS) Take out CassetteTapemanuallyafterremoving the mechanism
1. Disconnect the AC plug, and remove the Top Case, Front Panel
and the Mechanism byreferring to "10 Assembling and
Disassembling"
2. Remove the Screw and remove the Loading Motor as shown
below.

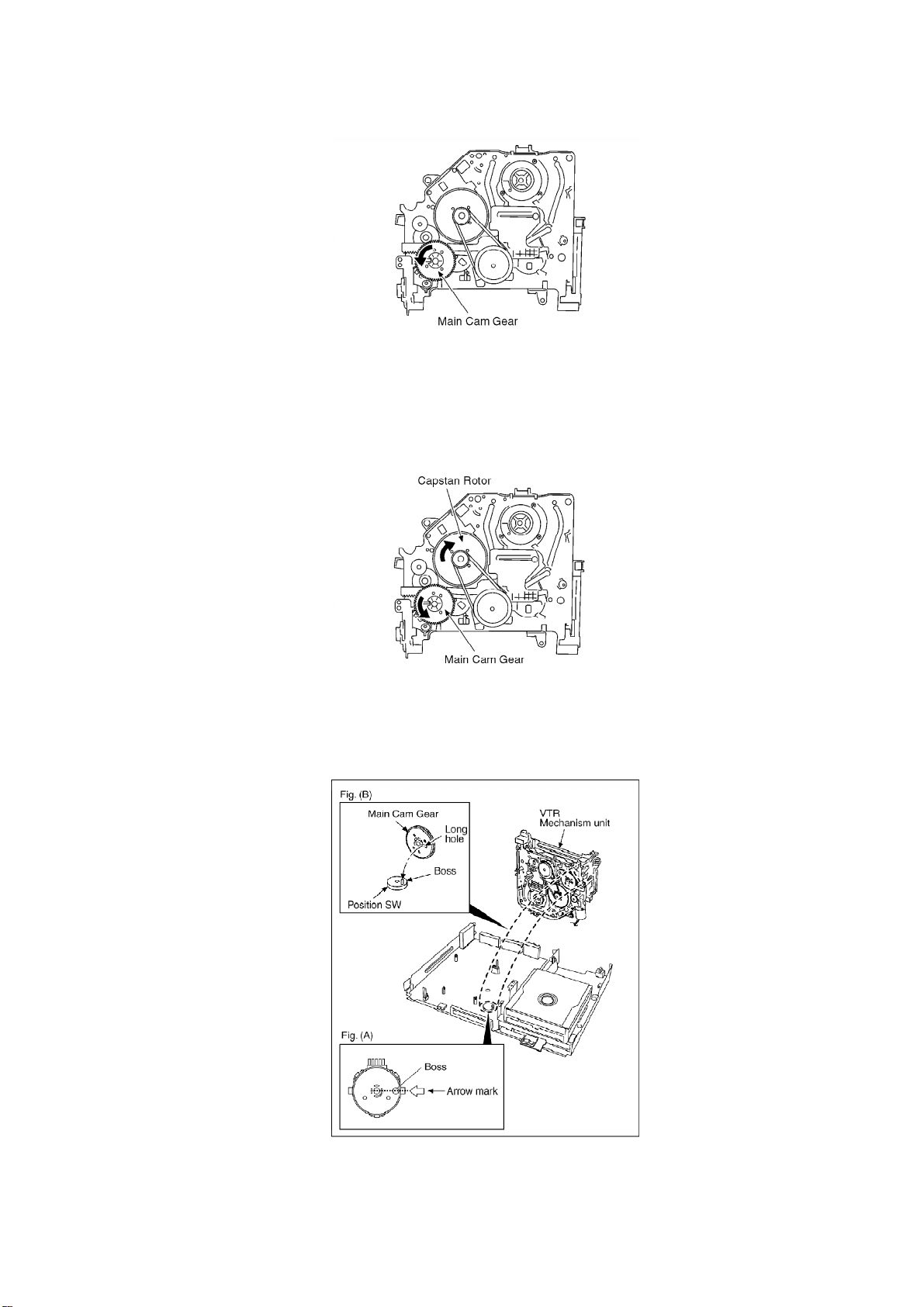

3. Rotate the MainCam Gear counter-clockwise until just before the
unloading will be completed as shownbelow. .
17

4. Rotate the Capstan Motor clockwise to remove the slack tape as
shownbelow.
5. Rotate the MainCam Gear counter-clockwise againto remove the
cassette-tape as shownbelow.
6. Attach Loading Motor and tighten the screw.
7. Set the Position Switch to EJECTPOSITIONcertainlyand attach
the mechanism to chassisas shownbelow.
18

8. Service Mode
8.1. (DVD)Self-Diagnosisand Special Mode Setting
8.1.1. (DVD) Self-DiagnosisFunctions
Self-Diagnosis Function provides information forerrors toservice personnel by“Self-Diagnosis Display” whenanyerrorhas occurred.
U**, H** and F** are storedinmemoryand held.
You cancheck latest errorcode bytransmitting [0] [1] of Remote ControllerinService Mode.
Automatic Displayon FL will be cancelledwhenthe poweris turnedoff orAC input is turnedoff during self-diagnosis displayis ON.
Error
Code Diagnosis contents Description Monitor Display Automatic FL display
U30 Remote control code
error Displayappears whenmainunit and remote controllercodes are
not matched.
Nodisplay
“*” is remote controller
code of the mainunit.
Displayfor5 seconds.
U59 Abnormal inner
temperature detected Displayappears whenthe drive temperature exceeds 70°C.
The poweris turnedoff forcibly.
For30 minutes afterthis, all key
entries are disabled. (Fanmotor
operates at the highest speedfor
the first 5 minutes. Forthe
remaining 25 minutes, fanmotor
is alsostopped.) The event is
savedinmemoryas well.
Nodisplay
“U59 is displayedfor30
minutes.
40

Error
Code Diagnosis contents Description Monitor Display Automatic FL display
U61 The unit is carrying
out its recovery
process.
Nodisplay
U88 The unit is carrying
out its recovery
process.
Nodisplay
U99 Hang-up Displayedwhencommunication
errorhas occurredbetweenMain
microprocessorand Timer
microprocessor.
Nodisplay
Displayedis left until the
[POWER] keyis pressed.
H19 Inoperative fanmotor Wheninoperative fanmotoris
detectedafterpoweredon, the
poweris turnedoff automatically.
The event is savedinmemory.
Nodisplay Nodisplay
F00 Noerrorinformation Initial setting forerrorcode in
memory
(Errorcode Initialization is
possible witherrorcode
initialization and mainunit
initialization.)
Nodisplay Nodisplay
41
