© 2005 Matsushita Electric Industrial Co., Ltd. All
rights reserved. Unauthorized copying and distribu-
tion is a violation of law.
ORDER NO.VR0508007CE
B24

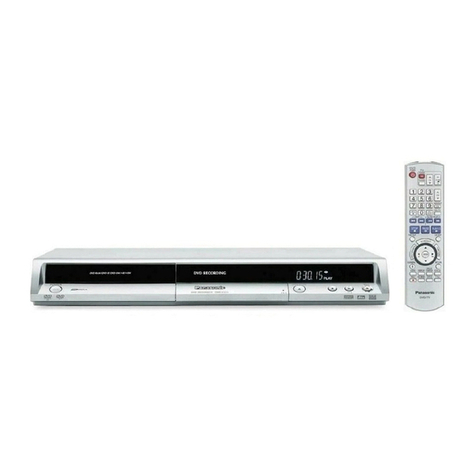

DVD Video Recorder
DMR-ES40VP
DMR-ES40VPC
Vol.1
Colour
(S).......................Silver Type

2
TABLE OF CONTENTS PAGE PAGE
1 Safety Precaution-------------------------------------------------3
1.1. General guidelines-----------------------------------------3
1.2. Caution for fuse replacement ---------------------------3
2Warning--------------------------------------------------------------4
2.1. Prevention of Electrostatic Discharge (ESD)
to Electrostatic Sensitive (ES) Devices---------------4
2.2. Precaution of Laser Diode -------------------------------5
2.3. Handling the Lead-free Solder--------------------------5
3 Service Navigation------------------------------------------------6
3.1. Service Information----------------------------------------6
3.2. (DVD) Service Navigation--------------------------------6
4 Specifications------------------------------------------------------9
5Features------------------------------------------------------------10
5.1. Quick start function (REC)-----------------------------10
6 Location of Controls and Components------------------ 11
6.1. Each Buttons---------------------------------------------- 11
7 Operation Instructions ----------------------------------------13
7.1. (DVD) Taking out the Disc from RAM-Drive
Unit when the Disc cannot be ejected by
OPEN/CLOSE button -----------------------------------13
7.2. (VHS) Removing Cassette Tape manually --------14
8 Service Mode-----------------------------------------------------16
8.1. (DVD) Self-Diagnosis and Special Mode
Setting-------------------------------------------------------16
8.2. (VHS) Self-Diagnosis and Special Mode
Setting-------------------------------------------------------23
9 Service Fixture & Tools ---------------------------------------29
10 Disassembly and Assembly Instructions---------------30
10.1. Disassembly Flow Chart--------------------------------30
10.2. P.C.B. Positions-------------------------------------------31
10.3. Caution with inserting cassette tape when
disassembling the unit ----------------------------------31
10.4. Top Case ---------------------------------------------------32
10.5. Front Panel ------------------------------------------------32
10.6. Front Jack P.C.B. & Front P.C.B.---------------------33
10.7. Rear Panel with Fan Motor ----------------------------33
10.8. VTR Mechanism Unit------------------------------------34
10.9. Main P.C.B. ------------------------------------------------35
10.10. DVD-RAM Drive------------------------------------------35
10.11. Digital P.C.B. ----------------------------------------------36
10.12. DV Jack P.C.B.--------------------------------------------37
10.13. Power & Digital I/F P.C.B.------------------------------37
11 Measurements and Adjustments --------------------------38
11.1. Service Positions-----------------------------------------38
11.2. (DVD) Caution after parts replacing parts----------42
11.3. (VHS) Caution after replacing parts -----------------43
11.4. (DVD) Standard Inspection Specifications
after Making Repairs ------------------------------------45
12 Miscellaneous----------------------------------------------------46
12.1. Abbreviations----------------------------------------------46

3
1 Safety Precaution
1.1. General guidelines
1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or
damaged by the short circuit.
2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly
installed.
3. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.
1.1.1. Leakage current cold check
1. Unplug the AC cord and connect a jumper between the
two prongs on the plug.
2. Measure the resistance value, with an ohmmeter,
between the jumpered AC plug and each exposed metal-
lic cabinet part on the equipment such as screwheads,
connectors, control shafts, etc. When the exposed metal-
lic part has a return path to the chassis, the reading
should be between 1MΩand 5.2MΩ.
When the exposed metal does not have a return path to
the chassis, the reading must be .
Figure 1
1.1.2. Leakage current hot check
(See Figure 1.)
1. Plug the AC cord directly into the AC outlet. Do not use
an isolation transformer for this check.
2. Connect a 1.5kΩ, 10 watts resistor, in parallel with a
0.15μF capacitors, between each exposed metallic part
on the set and a good earth ground such as a water pipe,
as shown in Figure 1.
3. Use an AC voltmeter, with 1000 ohms/volt or more sensi-
tivity, to measure the potential across the resistor.
4. Check each exposed metallic part, and measure the volt-
age at each point.
5. Reverse the AC plug in the AC outlet and repeat each of
the above measurements.
6. The potential at any point should not exceed 0.75 volts
RMS. A leakage current tester (Simpson Model 229 or
equivalent) may be used to make the hot checks, leakage
current must not exceed 1/2 milliampere. In case a mea-
surement is outside of the limits specified, there is a pos-
sibility of a shock hazard, and the equipment should be
repaired and rechecked before it is returned to the cus-
tomer.
1.2. Caution for fuse replacement

4
2Warning
2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatic Sensitive
(ES) Devices
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec-
trostatic Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistor-sand semi-
conductor "chip" components. The following techniques should be used to help reduce the incidence of component damage
caused by electrostatic discharge (ESD).
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your
body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,
which should be removed for potential shock reasons prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as alumi-
num foil, to prevent electrostatic charge buildup or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static (ESD protected)"
can generate electrical charge sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most
replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or compara-
ble conductive material).
7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be installed.
Caution
Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise hamless motion such as the brush-
ing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to
damage an ES device).

5
2.2. Precaution of Laser Diode
2.3. Handling the Lead-free Solder
2.3.1. About lead free solder (PbF)
Distinction of PbF P.C.B.:
P.C.B.s (manufactured) using lead free solder will have a PbF stamp on the P.C.B.
Caution:
• Pb free solder has a higher melting point than standard solder; Typically the melting point is 50 - 70°F (30 - 40°C) higher. Please
use a high temperature soldering iron. In case of the soldering iron with temperature control, please set it to 700 ± 20°F (370 ±
10°C).
• Pb free solder will tend to splash when heated too high (about 1100°F/600°C).
• When soldering or unsoldering, please completely remove all of the solder on the pins or solder area, and be sure to heat the
soldering points with the Pb free solder until it melts enough.

6
3 Service Navigation
3.1. Service Information
3.2. (DVD) Service Navigation
3.2.1. Flow chart for contirmation

7
3.2.2. Confirm “RAM-Drive Last Error” in Service Mode
Execute Service Mode
1. Press [VHS to DVD DUBBING], [OPEN/CLOSE] and [STOP] keys simultaneously for 5 seconds when P-off.
FL Display:
*After finishing display “(9). Factor of Drive Error occurring”, press [0] [2] ~[9] [9] keys of the Remote Controller so that 99
memories can be displayed as maximum.
2. Press [4] [2] keys of remote controller.
Example of FL Display:
(1) Error Number is displayed for 5 seconds.
(2) Time when the error has occurred (1/2) is displayed for 5 seconds.
(3) Time when the error has occurred (2/2) is displayed for 5 seconds.
(4) Last Drive Error code No.1 is displayed for 5 seconds.

8
(5) Last Drive Error code No2. (1/2) is displayed for 5 seconds.
(6) Last Drive Error code No2. (2/2) is displayed for 5 seconds.
(7) Error occurring Disc type is displayed for 5 seconds.
(8) Unused (No display).
(9) Factor of Drive Error occurring is left displayed
Error Occurring Disc State

9
4 Specifications

10
5Features
5.1. Quick start function (REC)
1. General
A few seconds after tuning on the unit,you can start recording to DVD-RAM.
You can switch the operation of this function (ON/OFF) on the menu screen.
2. Quick start(REC) principle
In the power-off at Quick start, only power supplies for video IC,tuner and storage media are cut off.
When the REC button is pushed a few second after the power button is pushed, Audio and Video data are stored in
DDR SDRAM before a storage media (DVD-RAM) preparation.
*Preparation time →DVD-RAM: About 8seconds
After a storage media (DVD-RAM) preparation,Audio and Video data are transfer from DDR SDRAM to the
storage media.

11
6 Location of Controls and Components
6.1. Each Buttons

12

13
7 Operation Instructions
7.1. (DVD) Taking out the Disc from RAM-Drive Unit when the Disc cannot be
ejected by OPEN/CLOSE button
7.1.1. (DVD) Forcible Disc Eject
7.1.1.1. (DVD) When the power can be turned off.
1. Turn off the power and press [STOP], [CH UP] keys on the front panel simultaneously for 5 seconds.
7.1.1.2. (DVD) When the power can not be turned off.
1. Press [POWER] key on the front panel for over 10 seconds to turn off the power forcibly, and press [STOP] [CH UP] keys on
the front panel simultaneously for 5 seconds.
7.1.2. (DVD) When the Forcible Disc Eject can not be done.
1. Turn off the power and pull out AC cord.
2. Remove the Top Case.
3. Remove the Front Panel.
4. Remove screw (A) and Earth Angle.
5. Remove 4 screws (B) and Upper Base Unit from DVD-RAM Drive.
6. Take out the disc and put the Opener Roller on fully position for direction of Arrow.
7. Put the Upper Base Unit so that the Opener Roller is inserted into the groove.
8. Check center of Opener Roller is seen through the Opener position Checking Hole, and tighten 4 screws (B).

14
7.2. (VHS) Removing Cassette Tape
manually
When the cassette tape could not be uninstalled from an elec-
trical malfunction, there are 2 ways to remove a cassette tape.
7.2.1. (VHS) Removal by compulsory
unloading.
If Service Mode can be activated when the power can not be
turned on, this operation is able.
1. Press [FF] and [EJECT] button simultaneously for more
than 3 seconds and set the Service Mode to 7.
2. Press [STOP] button in order to unload the mechanism.
(Pay attention to tape slack)
Service Mode Display:
7 ** ** (STOP) →7 0L ** (EJECT)
7.2.2. (VHS) Removal by manual opera-
tion by rotating the Loading Motor
with the batteries.
1. Disconnect the AC plug, and remove the Top Panel and
the Front Panel by referring to the Disassembly Proce-
dures.
2. Connect three batteries (1.5V spec.) to the Loading Motor
in series for supplying 4.5V to rotate the Loading Motor as
shown below.
3. Stop unloading just before unloading will be completed as
shown below, and then the tape becomes slack as shown
below.
4. Rotate the S-Reel by a small minus screwdriver to
remove the slack tape as shown below.
5. Then unload again to remove the cassette tape as shown
below.

15
7.2.3. (VHS) Take out Cassette Tapeman-
ually after removing the mecha-
nism
1. Disconnect the AC plug, and remove the Top Panel, Front
Panel and the Mechanism by referring to "14 Assem-
bling and Disassembling"
2. Remove the Screw and remove the Loading Motor as
shown below.
3. Rotate the Main Cam Gear counter-clockwise until just
before the unloading will be completed as shown below. .
4. Rotate the Capstan Motor clockwise to remove the slack
tape as shown below.
5. Rotate the Main Cam Gear counter-clockwise again to
remove the cassette-tape as shown below.
6. Attach Loading Motor and tighten the screw.
7. Set the Position Switch to EJECT POSITION certainly
and attach the mechanism to chassis as shown below.

16
8 Service Mode
8.1. (DVD) Self-Diagnosis and Special Mode Setting
8.1.1. (DVD) Self-Diagnosis Functions
Self-Diagnosis Function provides information for errors to service personnel by “Self-Diagnosis Display” when any error has
occurred.
U**, H** and F** are stored in memory and held.
Display on FL will be cancelled when the power is turned off or AC input is turned off during self-diagnosis display is ON.
You can check latest error code by transmitting [0] [1] of Remote Controller in Service Mode.
Automatic Display on FL will be cancelled when the power is turned off or AC input is turned off during serf-diagnosis display is ON.
Error Code Diagnosis contents Description Monitor Display Automatic FL display
U30 Remote control code error Display appears when main unit and remote
controller codes are not matched. No display
“*” is remote controller code of the
main unit.
Display for 5 seconds.
U59 Abnormal inner temperature
detected Display appears when the drive temperature exceeds 70°C.
The power is turned off forcibly.
For 30 minutes after this, all key entries are
disabled. (Fan motor operates at the highest
speed for the first 5 minutes. For the remain-
ing 25 minutes, fan motor is also stopped.)
The event is saved in memory as well.
No display
“U59 is displayed for 30 minutes.
U99 Hang-up Displayed when communication error has
occurred between Main microprocessor and
Timer microprocessor.
No display
Displayed is left until the [POWER]
key is pressed.
F00 No error information Initial setting for error code in memory
(Error code Initialization is possible with error
code initialization and main unit initialization.)
No display No display
F58 Drive hardware error When drive unit error is detected, the event is
saved in memory. No display No display
F34 Initialization error when main
microprocessor is started up
for program recording
When initialization error is detected after start-
ing up main microprocessor for program
recording, the power is turned off automati-
cally.
The event is saved in memory.
No display No display
UNSUP-
PORT Unsupported disc error *An unsupported format disc was played, although the drive starts normally.
*The data format is not supported, although
the media type is supported.
*Exceptionally in case of the disc is dirty.
“This disc is
incompatible.”
Display for 5 seconds.
NO READ Disc read error *A disc is flawed or dirty.
*A poor quality failed to start.
*The track information could not be read.
HARD
ERR Drive error The drive detected a hard error. No display Display for 5 seconds.
SELF
CHECK Restoration operation Since the power cord fell out during a power failure or operation, it is under restoration
operation.
*It will OK, if a display disappears automati-
cally. If a display does not disappear, there is
the possibility that defective Digital P.C.B. /
RAM drive.
No display
UNFOR-
MAT Unformatted disc error You have inserted an unformatted DVD-RAM or DVD-RW that is unformatted or recorded
on other equipment.
This disc is not for-
matted propfrly.
Do you want to for-
mat the disc in Disc
Management?

17
8.1.2. (DVD) Special Modes Setting
PLEASE
WAIT Unit is in termination process Unit is in termination process now. “BYE” is displayed and power will be turned
off.
In case “Quick Start” of setup menu is ON, it
is displayed in restoration operation for AC
off.
No display
F60 DVD module has not been
started. Defect of Digital P.C.B. Mode: No change No display
F09 Serial Communication Error
between VHS Microprocessor
and Timer Microprocessor.
Please confirm Serial Communication termi-
nal of Microprocessor.
NOTE:
If F09 appears just after updating Firmware,
pull off and insert AC plug, then it will disap-
pear.
No display
Item FL display Key operation
Mode name Description Front Key
TEST Mode *All the main unit's parameters (include tuner)
are initialized. Press [VHS to DVD DUBBING], [REC] and [OPEN/CLOSE] keys
simultaneously for five seconds
when power is off.
Service Mode Setting every kind of modes for servicing.
*Details are described in “8.1.3. Service
Mode at a glance”.
When the power is off, press [VHS
to DVD DUBBING], [OPEN/CLOSE]
and [STOP] keys simultaneously for
5 seconds.
Forced disc eject Removing a disc that cannot be ejected.
The tray will open and unit will shift to P-off
mode.
*When Timer REC is ON, execute " Forced
disc eject " after releasing Timer REC.
While Demonstration Lock is being set, this
Forced disc eject function is not accepted.
The display before execution
leaves. When the power is off, press [STOP] and [CH UP] keys simulta-
neously for 5 seconds.
Forced power-off When the power button is not effective while
power is ON, turn off the power forcibly.
*When Timer REC is ON, execute “Forced
Power-off” after releasing Timer REC.
Display in P-off mode. Press [Power] key over than 10 sec-
onds.
Aging Perform sequence of modes as * Aging
Description shown below continually. Display following the then mode. When the power is ON, press [CH DOWN], [VHS to DVD DUBBING]
and [OPEN/CLOSE] simulta-
neously for over 5 seconds and less
than 10 seconds.
NOTE1:
If Unit has not turned into Aging
mode by operations shown above,
execute TEST MODE once and re-
execute operation shown above.
(*All the main unit’s parameters
include tuner are initialized by TEST
mode.)
NOTE2:
If the unit has hung-up because of
pressing keys for over 10 seconds,
once turn off the power, and re-exe-
cute this command.
*When releasing Aging mode, press
[POWER] key.
Error Code Diagnosis contents Description Monitor Display Automatic FL display

18
Aging Contents (Example):
Demonstration lock/
unlock Ejection of the disc is prohibited. The lock setting is effective until unlocking the
tray and not released by “Main unit initializa-
tion” of service mode.
*When lock the tray.
“LOCK” is displayed for 3 seconds.
When the power is on, press
[STOP] and [POWER] keys simulta-
neously for 5 seconds.
*When unlock the tray.
“UNLOCK” is displayed for 3 sec-
onds.
When the power is on, press
[STOP] and [POWER] keys simulta-
neously for 5 seconds.
*When press OPEN/CLOSE key
while the tray being locked.
Display “LOCK” for 3 seconds.
Press [OPEN/CLOSE] key while the
tray being locked.
ATP Initialization ATP setting is initialized, and the unit turns off
automatically. It is same with display in stop mode. When the power is on (E-E mode), press [CH UP] and [CH DOWN]
simultaneously for 5 seconds.
Progressive initialization The progressive setting is initialized to Inter-
lace. The display before execution leaves. When the power is on (E-E mode), press [STOP] and [VHS to DVD
DUBBING] simultaneously for 5
seconds.
Item FL display Key operation
Mode name Description Front Key

19
8.1.3. (DVD) Service Modes at a glance
Service mode setting: While the power is off, press [STOP], [VHS to DVD DUBBING] and [OPEN / CLOSE] simultaneously for five
seconds (OPERATION SELECT should be set to DVD).
Item FL display Key operation
Mode name Description (Remote controller key)
Release Items Item of Service Mode executing is cancelled. Press [0] [0] or [Return] in service
mode.
Error Code Display Last Error Code of U/H/F held by Timer is dis-
played on FL.
*Details are described in “8.1.1. Self-Diagno-
sis Functions”.
Press [0] [1] in service mode
ROM Version Display Region code, MAIN firm version, TIMER firm
version, DRIVE firmware versions and VHS
Microprocessor version are displayed on FL
for five seconds per each version in order, but
VHS ROM correction version will be left dis-
played.
Region code
MAIN firm version
TIMER firm version
DRIVE firm version
ROM version
VHS Microprocessor version
VHS ROM correction version
‘’ ＊’’ are version displays.
Press [0] [2] in service mode
White Picture Output White picture is output as component Output
from AV Decoder.
*White picture
(Saturation rate : 100%)
*It is enable to switch Interlace/Progressive
by “I/P switch: [1] [4]”
*Initial mode is “Interlace”. Press [1] [1] in service mode.
Switch Interlace/Progressive Press [1] [4] in White Picture Output
mode.
*I/P are switched alternately.
Magenta Picture Output Magenta picture is output with Component
Output from AV Decoder.
*Magenta picture
(Saturation rate: 100%)
*It is enable to switch Interlace/Progressive
by “I/P switch: [1] [4]”
*Initial mode is “Interlace”. Press [1] [2] in service mode.
Switch Interlace/Progressive Press [1] [4] in Magenta Picture
Output mode.
*I/P are switched alternately.

20
RTSC Return in XP
(A & V) L1 input signal is encoded (XP), decoded (XP) and output decoded signal to external
without DISC recording and DISC playback.
Initial mode: EE2/ Interlace/ XP/
Audio 48kHz Press [1] [3] in service mode.
Switch Interlace/Progressive Press [1] [4] in RTSC Return XP
mode.
*I/P are switched alternately.
I/P Switch Switch Interlace and Progressive in EE mode.
*Initial setting is “Interlace”.
*This command is effective during executing
“White Picture Output”, “Magenta Picture Out-
put” and “RTSC Return in XP (A & V)” modes.
Initial mode is Interlace
Switch Interlace/Progressive
Press [1] [4] in I/P Switch mode.
*I/P are switched alternately.
Audio Mute (XTMUTE) Check whether mute is applied normally by
the timer microprocessor. Press [2] [1] in service mode.
Audio Mute (XDMUTE) Check whether mute is applied normally by
the Digital P.C.B.. Press [2] [2] in service mode.
Audio Pattern Output The audio pattern stored in the internal mem-
ory is output
(Lch: 1kHz/-18dB)
(Rch: 400Hz/-18dB)
*Audio sound clock switching operation of
DAC can be confirmed by sub command [2]
[4].
Initial mode (Audio 48kHz) Press [2] [3] in service mode.
Audio 44.1kHz/48kHz switching Press [2] [4] in Audio Pattern Output
mode.
*48 kHz / 44.1 kHz are switched
alternately.
Laser Used Time Indic-
tion Check laser used time (hours) of drive.
l(*****) is the used time display in
hour.
lLaser used time of DVD/ CD in
Playback/Recording mode is
counted.
Press [4] [1] in service mode.
Delete the Laser Used
Time Laser used time stored in the memory of the unit is deleted. Press [9] [5] in service mode.
Item FL display Key operation
Mode name Description (Remote controller key)
