Panasonic WJHDE300 - DIGITAL DISK RECORDER User manual

Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
Extension Unit
Instructions
Model No. WJ-HDE300
WJ-HDE
300
Extension Unit

2
The serial number of this product may be found on the rear
of the unit.
You should note the serial number of this unit in the space
provided and retain this book as a permanent record of your
purchase to aid identification in the event of theft.
Model No. WJ-HDE300
Serial No.
The lightning flash with arrowhead sym-
bol, within an equilateral triangle, is
intended to alert the user to the pres-
ence of uninsulated "dangerous voltage"
within the product's enclosure that may
be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilat-
eral triangle is intended to alert the user
to the presence of important operating
and maintenance (servicing) instructions
in the literature accompanying the appli-
ance.
Power disconnection. Unit with or without
ON-OFF switches have power supplied to
the unit whenever the power cord is insert-
ed into the power source; however, the unit
is operational only when the ON-OFF
switch is in the ON position. The power
cord is the main power disconnect for all
units.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
SA 1965
SA 1966
NOTE: This equipment has been tested and found to com-
ply with the limits for a Class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to pro-
vide reasonable protection against harmful interference
when the equipment is operated in a commercial environ-
ment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be
required to correct the interference at his own expense.
FCC Caution: To assure continued compliance, (example -
use only shielded interface cables when connecting to com-
puter or peripheral devices). Any changes or modifications
not expressly approved by the party responsible for compli-
ance could void the user’s authority to operate this equip-
ment.
For U.S.A.
WARNING:
• To prevent fire or electric shock hazard, do not expose this appliance to
rain or moisture. The apparatus shall not be exposed to dripping or
splashing and that no objects filled with liquids, such as vases, shall be
placed on the apparatus.
• All work related to the installation of this product should be made by
qualified service personnel or system installers.
CAUTION:
•Read the label on the rear of the unit for identification of this product,
and the power ratings.
This Class A digital apparatus complies with canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme
NMB-003 du Canada.
For Canada

3
■Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not use near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider
than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are
provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles and the points
where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a
cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-overs.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been spilled or objects fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.
S3125A

4
Contents
■Important Safety Instructions .................................................................................................................. 3
■General ................................................................................................................................................... 5
■Precautions ............................................................................................................................................. 5
■Appearance ............................................................................................................................................ 6
■Replacing/Mounting HDDs ..................................................................................................................... 9
■Connections ............................................................................................................................................ 14
■Rack Mounting ........................................................................................................................................ 16
■Troubleshooting ...................................................................................................................................... 18
■Specifications ......................................................................................................................................... 19
■Accessories ............................................................................................................................................ 19

5
■Precautions
•Do not operate the appliance beyond its specified tem-
perature, humidity or power source ratings.
Do not use the appliance in an extreme environment
where high temperature or high humidity exists. Use the
appliance at temperatures within +5 °C to +45 °C (41 °F
to 113 °F) and humidity below 85 %.
The input power source for this appliance is 120 V AC
60 Hz.
•Avoid shock and vibration
Shock or vibration may damage the HDD.
The HDDs are fragile especially when the HDD motors
are revolving and the HDD POWER indicator lights. Be
sure to turn off either switch: the POWER switch on the
rear panel, or the HDD POWER switch inside the front
lid: before you mount the unit into a rack or dismount it.
Do not move the HDD for 30 seconds after turning off
the power.
•Pay attention to static electricity
Put your hand on a metallic surface to discharge static
electricity before installation.
Do not touch components mounted on the HDD directly
with your hand.
Hold only the two sides of the HDD when installing.
■General
The extension unit WJ-HDE300 can contain up to four hard disk drives per unit to add available disk space to the digital disk
recorder WJ-HD316/WJ-HD309. Up to seven extension units can be connected to a digital disk recorder. The units can be
operated in RAID level 5* mode for high tolerance to disk error.
*RAID level 5 (Redundant Arrays for Independent Disks, independent data disks with distributed parity blocks)
RAID level 5 regards 3 or more drives as one drive, and it is possible to read data by automatically attaching error correc-
tion data even though one of the drives is broken. (It is impossible to read data if 2 or more drives are broken.)
RAID level 5 requires a minimum of 3 drives to implement.
When using the RAID function, logical disk size of the extension unit will be as below.
Logical disk size = Smallest size of the disk among the disks in the extension unit x (Number of the disks in the extension
unit - 1) The actual space may be several percent lower than the logical space.
*Important
When set to RAID level 5, the digital disk recorder will not access the HDD preinstalled in it, but will access only the HDDs
in the extension unit.
•Avoid condensation on the surface of the HDD.
If this happened, do not turn on the power of the appli-
ance and leave the appliance for around 2 hours.
Wait until the dew evaporates in any of the following
cases.
• The appliance is moved to a place significantly dif-
ferent in temperature or humidity.
• The appliance is moved out from an air-conditioned
room.
• The appliance is placed in an extremely humid
place.
• The appliance is placed in a room where a heater
has just been turned on.
•Consumable parts
Contact your dealer about replacement when the time
comes.
A hard disk drive needs replacing after a certain length
(depends on the model) of operation.
Cooling fans also need replacing after around
20 000 - 30 000 hours of operation.
•Do not block the ventilation opening or slots on the
cover.
To prevent the appliance from overheating, place it at
least 5 cm (2 inches) away from the wall.
•Avoid placing the unit on an inclined surface.
Otherwise, malfunction or damage to the disk may
occur. Place the unit horizontally.

6
■Appearance
●Front View
qError indicator [ERROR]
Lights when an error occurs. Refer to TROU-
BLESHOOTING for details.
Red: System error
Orange: Thermal error or malfunction of the cooling fan.
wHDD power indicator [HDD POWER]
ON: Indicates that HDDs are powered.
OFF: Indicates that the HDDs are not powered.
Note: Do not move the unit until the motors of the HDDs
stop completely. To stop the motors, turn off the
HDD POWER switch behind the front cover. Move
the unit after confirming that the indicator has gone
out.
eOperate indicator [OPERATE]
Lights green when turning on the power switch on the
rear panel.
rHDD access indicators [HDD 1] [HDD 2] [HDD 3]
[HDD 4]
Each indicator lights to indicate the status of the
respective HDD.
Green: Indicates that the respective HDD is running
normally.
Red: Indicates that the respective HDD is the first faulty
drive among the HDDs in the unit.
Red blink: Indicates that the respective HDD is the
second or subsequent faulty drive among the HDDs
in the unit.
Orange-red alternate blink/Orange: Indicates that the
respective drive is currently being recovered in
RAID level 5 mode.
These indicators normally indicate the status of the
respective drive, but they work as a set when a system
error occurs. Refer to Troubleshooting for further infor-
mation.
Important
When one of the indicators lights red, replace the
respective HDD immediately. If two or more indicators
light/blink red, it will be impossible to recover data.
There may be cases where it is eventually impossible to
recover data if two drives are coincidentally damaged
or the second drive fails during the data recovery
process.
tFront cover
Detach the front cover when it is necessary to install
HDDs or to operate the switches inside the unit.
ERROR
HDD 1 HDD 2 HDD 3 HDD 4
HDD
POWER
OPERATE
Extension Unit
WJ-HDE
qwe r t

7
POWER
AC IN
SIGNAL GND
12
IN OUT
EXT
yu i io
!0
!1
!2
●Rear View
ySerial in connector [IN]
Connect the WJ-HD300 series digital disk recorder or
other extension unit with the supplied serial cable.
uSerial out connector [OUT1] [OUT2]
Connect another extension unit with the supplied serial
cable.
iCooling fan
oSignal GND terminal [SIGNAL GND]
Connect this terminal to the SIGNAL GND terminal of
other equipment to avoid possible grounding loop and
noise if required.
!0 Power switch [POWER]
Turn on the power of the unit with this switch before
turning on the power of the digital disk recorder, or turn
them on simultaneously. Otherwise, the HDDs will not
be mounted.
When turning off the power of the unit with this switch,
turn off the power of the digital disk recorder first, and
then turn off the power of this unit after confirming that
all HDD access indicators are not lit or blinking.
!1 AC inlet [AC IN]
Connect the supplied power cord.
!2 Cable clamp fixing hole

8
!3
!4
!5
!6
SINGLE RAID5
MODE
RESET
HDD POWER
RECOVER
OFF ON
w’
e’
q’
● Inside the Front Lid
q'Error indicators
Functions as same as that on the front panel.
Red: System error
Orange: Thermal error or malfunction of the cooling fan.
w'HDD power indicator
Functions as same as that on the front panel.
ON: Indicates that HDDs are powered.
OFF: Indicates that the HDDs are not powered.
e'Operate indicator
Functions as same as that on the front panel.
Lights green when turning on the power switch on the
rear panel.
!3 Reset button [RESET]
This button is located inside the unit. To access this
button, it is necessary to detach the front cover. Press
this button using a small screw driver (not supplied).
•When SINGLE is selected
After adding or replacing any of the HDDs, press this
button only. Refer to page 11 and 12 for details.
•When RAID 5 is selected
This button is used in combination with the RECOVER
button and MODE switch after adding or replacing any
of the HDDs. Refer to page 11 and 12 for details.
Important
Do not press the RESET button and the RECOVER
button simultaneously when SINGLE is selected.
Otherwise, the setting of the digital disk recorder
may be initialized and it may cause a malfunction.
!4 Mode switch [MODE]
RAID 5: Applies RAID level 5 mode (striping at the byte
level also stripe error correction information).
SINGLE: Applies SINGLE mode (no striping across dri-
ves for data or error correction information). Default
position
Important
•Changing the MODE switch will not be accepted when
the ERROR indicator lights red and/or when HDD 1-4
indicate a system error status by lighting red and
orange. When this happens, ask your dealer to solve
the error.
•When set to RAID5, the HDD preinstalled in the digital
disk recorder will not work. Instead, it is applied only to
the HDDs installed in the extension unit and the digital
disk recorder will perform storage and readout of the
image data by accessing the extension unit.
•The position of the MODE switch of all units in a system
must be the same.
•The available disk space of the unit can be logically
calculated as follows. The actual space may be several
percent lower than you calculated depending on the
HDD type used and their combination. The most effi-
cient way is to use the same type drives.
When SINGLE is selected, it will be the sum of all
the HDD sizes.
When RAID 5 is selected, it will be as follows.
When 3 HDDs are in the unit: It will be double the
size of the smallest HDD size.
When 4 HDDs are in the unit: It will be triple the size
of the smallest HDD size.
For example, if 4 HDDs of 80 GB, 120 GB, and two
160 GB are mounted, the available disk space will
be 80 G x 3 = 240 GB.
!5 HDD power switch [HDD POWER]
Use this switch in the ON position for normal operation.
ON: Supplies the power to the HDDs and the HDD
power indicators will light. Default position
OFF: Does not supply the power and the HDD power
indicators will go off.
!6 Recover button [RECOVER]
Use this button with the RESET button after replacing
HDDs used in the RAID 5 mode to start data recovery.
Refer to page 12 for details.

9
■Replacing/Mounting HDDs
Up to four HDDs (locally procured) can be installed in an
extension unit.
The HDDs should be installed in the proper positions in
order as shown above. Do not skip or reverse the order of
the HDD positions.
Important
•The position of the MODE switch of all units in a system
must be the same.
•When set to RAID5, the digital disk recorder will not
access the HDD preinstalled in it, but will access only
the HDDs in the extension unit.
•Refer to the dealer for the compatible HDDs with this
unit.
•The replaced/added HDDs will be formatted.
SINGLE mode: Only the replaced/added HDD will be
formatted. For example, when the HDD
4 of the extension unit 2 is replaced,
only the HDD4 of the extension unit 2
will be formatted.
RAID 5 mode: All HDDs of the extension units will be
formatted when a new HDD is added or
a preinstalled HDD is removed. For
example, when the HDD 4 of the exten-
sion unit 2 is added, all HDDs of the
extension unit 2 will be formatted.
•Data readout will not be performed when the HDD posi-
tions are changed after once the system has been
operated.
●Procedures
1. HDD power-off procedures
Perform either of the following procedures depending
on the installation situations to stop the HDD motors.
Important
If turning off the POWER switch of a unit, the latter units
may not work because of interrupted data transmission.
Case 1: When the rear of the units is accessible, turn off
the power switches of the digital disk recorder
and extension units, then detach all the power
plugs from the outlets.
Case 2: When the rear of the units is inaccessible, for
example mounted in a rack, open the setup
menu of the digital disk recorder and set the
HDD safety mode to ON (default position). The
extension units will turn to the HDD power-off
mode.
Refer to the Operating Instructions included with
the digital disk recorder for details on it.

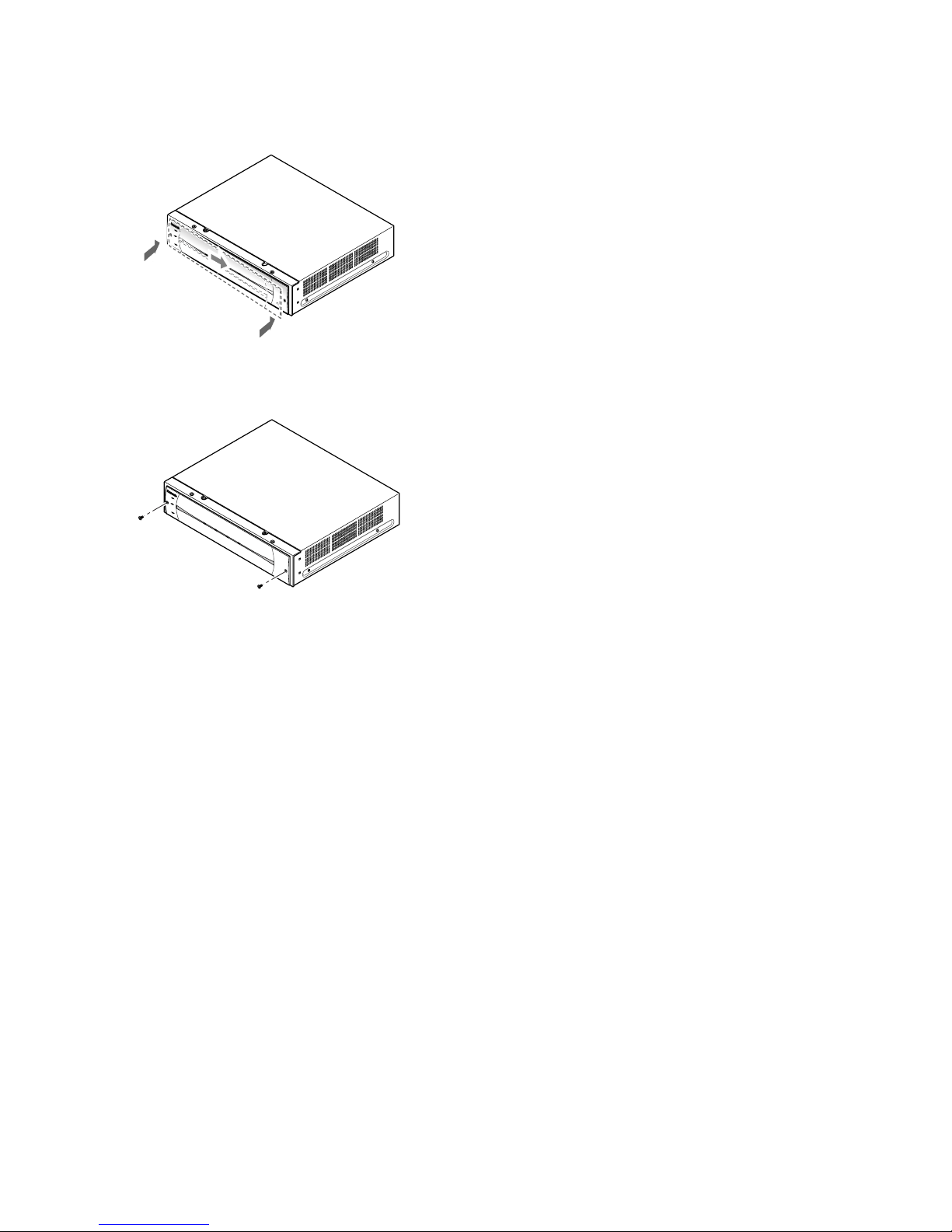

2. Detach the front cover and the front panel.
2-1 Remove the two screws.
HDD 2
HDD 1
HDD 4
HDD 3
POWER
2 - 1

10
2-2 Slide the front cover to the left.
2-3 Pull the front cover toward you.
2-4 Disconnect the harness.
2-5 Remove the six screws (marked with ∆) and detach
the thin metal plate covering the front side.
2-6 Disconnect the cables when adding or replacing
the HDD.
3. Remove two of the HDD mounting brackets.
•Remove the four screws and pull the brackets toward
you.
•When replacing an HDD, remove it from the bracket.
4. Prepare the HDDs to be fixed on the brackets.
•Release the static electricity from your body before
touching the HDDs.
•Put the conductive bag (in which the HDD was packed)
on a soft surface and place the HDD on it with the cir-
cuit board side down.
5. Fix the HDDs on the brackets.
5-1 Slide the HDD onto the bracket.
5-2 Tighten the four screws (supplied) to fix the HDD on
the bracket.
5-3 Repeat above steps to fix all the HDDs on the
bracket.
Do not use an electric screwdriver to fix them.
Recommended tightening torque = 0.49 N · m
{5 kgf·cm}
6. Set all the HDDs as master using the jumper connector.
Note: This setting is subject to change without notice.
Refer to the diagram attached on the HDD or the
operating instructions of the HDD for the jumper
connector assignment.
2 - 4
2 -5
2 - 6
2 - 2
2 - 3
2 - 3

11
7. Place the brackets with the fixed HDDs into the unit and
fix them using the four screws removed in step 3.
•Do not use an electric screwdriver to fix them.
Recommended tightening torque = 0.784 N · m
{8 kgf·cm}
8. Connect the cables.
9. Attach the metal plate removed in step 2 with the six
screws (marked with ∆) previously removed.
10 .Connect the detached harness as it was.
11 .Attach the front cover as it was.
11-1 Align both the left edges of the front cover and the
unit, and then push the front cover onto the unit.
11-2 Slide the front cover to the right.
Note: The front cover may be attached and detached
as necessary in the next step 12. Be careful not to
damage the harness.
12 .Turn on the power of the system to reconstruct the sys-
tem.
See the table on the next page to perform start-up pro-
cedures. Note that step 1 in the next page depends on
how you have cut the motor power in case 1 or 2 men-
tioned in page 9.
Take the steps in order depending on the cases A, B,
C, and D.
Case A: Extension units not configured yet and newly
installed or added to be run in SINGLE or RAID5
mode.
Case B: Extension units already configured in SINGLE
mode and having HDD added, removed, or
replaced.
Case C: Extension units already configured in RAID5
mode having HDD added or removed.
Case D: Extension units already configured in RAID5
mode having replaced HDD.
Important: Turn the units on in the following order.
The extension units need to be turned on first and
the digital disk recorder is the last.
Note: The digital disk recorder will need about three to
five minutes to complete the system check that is
started as it is turned on. The time length depends
on the connections and number of the extension
units.

12
•For Case 1, turn on the power switches of the extension units .
→The unit will be restarted.
•For Case 2, jump to step 2.
• Press the RESET button.
Initializing Procedures
1. Set the MODE switch to SINGLE.
2. Hold down the RECOVER button. (Do not release it
yet.)
3. Press the RESET button while holding down the
RECOVER button.
→The HDD POWER indicator will go off.
4. Release the RESET button first.
(Do not release the RECOVER button yet.)
5. Confirm that the HDD POWER indicator turns on,
then release the RECOVER button. It may take
around 5 seconds until the indicator turns on.
6. Set the MODE switch back to RAID5.
Data Recovery Procedures
1. Confirm that the MODE switch is set to RAID5.
2. Hold down the RECOVER button. (Do not release it
yet.)
3. Press the RESET button while holding down the
RECOVER button.
→The HDD POWER indicator will go off.
4. Release the RESET button first. (Do not release the
RECOVER button yet.)
5. Confirm that the HDD POWER indicator turns on,
then release the RECOVER button.
→Data recovery will start automatically.
6. Repeat the above steps until all the extension units
start data recovery.
* It will take around 12 hours to complete data recovery if the HDD size is 160 GB.
* It is possible to start operation of the digital disk recorder even while the extension unit
is recovering data although it may take a longer time to complete the data recovery.
Important
Do not touch any button or switch during data recovery. Otherwise, data recovery will be
canceled and will be incomplete. During data recovery, the HDD access indicator alter-
nately blinks orange and red or steady orange. When data recovery is complete it turns
off or blinks green.
• When the POWER switch is off, turn it on after completing the installation.
• When HDD SAFETY MODE is set to ON in the menu setup, set it to OFF
and press the SET button.
→The digital disk recorder will start up.
In the case of A, B, or C, "HDD DISK MENU" will be displayed auto-
matically. Then, format and configure the target hard disk.
In the case of D, the "REMOVE" status will be displayed on the task bar
of the WJ-HD316/309. To cancel it, manually open "HDD DISK MENU"
once, and click the "EXIT" button.
Refer to the operating instructions of the digital disk recorder for details.
POWER
SINGLE RAID5
MODE
RESET
HDD POWER
RECOVER
OFF ON
Press Release
Press Release
3
5
4
2
HDD
POWER
ERROR
OPERATE
SINGLE RAID5
MODE
RESET
HDD POWER
RECOVER
OFF ON
Press Release
Press Release
3
5
4
2
HDD
POWER
ERROR
OPERATE
SINGLE RAID5
SINGLE RAID5
O
SINGLE RAID5
POWER
SET
RESET
Device Case & Step Start-up Procedures
A B C D
1
2
3
1
2
3
1
2
3
1
2
3
Digital Disk Recorder Extension Unit WJ-HDE300
HDD
POWER
HDD
POWER
Case C: RAID unit with added/removed HDD
Case B: SINGLE unit with added/replaced HDD
Case D: RAID unit with replaced HDD
Case A: SINGLE/RAID unit added or new
HDD
POWER
HDD
POWER

13
13 .Attach the front cover as it was.
13-1 Align both the left edges of the front cover and the
unit, and then push the front cover onto the unit.
13-2 Slide the front cover to the right.
13-3 Tighten the two screws.

14
■Connections
You can connect up to seven extension units with the digital
disk recorder (the WJ-HD300 series) as shown below using
the supplied serial cables.
Important
•If turning off the power of a unit, none of the con-
nected following units will work because of inter-
rupted data transmission.
•Never use extension cables (locally procured). Be
sure to use the supplied serial cables for connec-
tion. Do not lay cables in a redundant route.
Otherwise, it may cause data transmission error.
•Make a space of 1 U (44 mm) between the units in
a rack for ventilation.
•Follow the recommended connection form.
Otherwise, it may cause malfunction of the system.
•Physical connections determine the unit number in
a system for each unit. Connect units with the
recorder in numeric order as shown in the figure.
For example, connect the sixth and seventh units to
the third unit when five units have been already
installed.
•Do not change connections after the system has
run. Otherwise, the recorder will no longer recog-
nize the extension units as before. You can change
connections only when you can discard all existing
data stored in the units.
● Recommended Connection Form
WJ-HD300 Series
WJ-HDE300 #1
WJ-HDE300 #2
WJ-HDE300 #4
WJ-HDE300 #3
WJ-HDE300 #5 WJ-HDE300 #7
WJ-HDE300 #6
Layer1
Layer2
Layer3
Layer4
EXT STORAGE
IN
IN
IN IN
IN
IN IN
OUT1
OUT2
OUT1
OUT2 OUT1
OUT2

15
IN
OUT
CASCAKE
OUT
16
16
4
15
15
14
14
13
2
1
13
12
12
11
11
10
10
9
9
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
CAMERA
AUDIO IN AUDIOOUT
MONITOR OUT CASCADE IN MONITOR (VGA) ALARM/CONTOROL
SERIAL ALARM
POWER
COPY
MODE
EXIT STORAGE10/100BASE-TRS-485(CAMERA) PSÆDATA
AC IN
SIGNALGND
1
3 2
POWER
AC IN
SIGNALGND
12
IN OUT
EXT
POWER
AC IN
SIGNALGND
12
IN OUT
EXT
POWER
AC IN
SIGNALGND
12
IN OUT
EXT
POWER
AC IN
SIGNALGND
12
IN OUT
EXT
IN
POWER
AC IN
SIGNALGND
12
OUT
EXT
WJ-HD300 Series
WJ-HDE300 #1
WJ-HDE300 #2
WJ-HDE300 #5
WJ-HDE300 #4
WJ-HDE300 #3
WJ-HDE300 #6 WJ-HDE300 #7
EXT STORAGE
IN
IN IN
IN IN IN IN
OUT1
OUT2
POWER
AC IN
SIGNALGND
12
IN OUT
EXT
POWER
AC IN
SIGNALGND
12
IN OUT
EXT
OUT1
OUT2 OUT1
OUT2
Cable clamp
Screw for the
cable clamp
How to fix the cables
12
IN OUT
EXT
●Cable Connections
The figure below shows cable connections.
1. Connect the EXT STORAGE port of the recorder and
the IN port of extension unit #1 using the supplied serial
cable.
2. Connect the OUT port of unit #1 and the IN port of unit
#2 using the supplied serial cable.
3. Repeat connections in the same way for the remaining
units.
4. Confirm the cable layout after connections.
5. Secure the cables using the clamp (supplied) and fix it
to the rear of the units.

16
■Rack Mounting
●Unit Layout
You need to make a plan on the unit layout in a rack con-
sidering the connection form (page 14), cable connections
(page 15), and ventilation.
Note: Be sure to make a space of 1 U (44 mm) between the
units for ventilation in a rack.
12
12
12
12
12
12
12
IN OUT
IN OUT
IN OUT
IN OUT
IN OUT
IN OUT
IN OUT
WJ-HDE300
Unit #1
WJ-HDE300
Unit #2
WJ-HDE300
Unit #3
WJ-HDE300
Unit #4
WJ-HDE300
Unit #5
WJ-HDE300
Unit #6
WJ-HDE300
Unit #7
WJ-HD316
2U
1U Space
2U
1U Space
2U
1U Space
2U
1U Space
2U
1U Space
2U
1U Space
2U
1U Space
2U
<Unit Layout & Wiring in a Rack>
Serialcable(1m,supplied)
COPY1
EXTSTORAGE

17
●How to Mount
1. Turn off the power of the unit and detach the plug from
the outlet.
When not turning off the power, open the front cover
and turn off the HDD POWER switch.
2. Remove the six rubber feet by removing the six screws
from the bottom of the unit
3. Fix the Rack Mounting Brackets (supplied) on both
sides of the unit with the four screws (M4X10, supplied).
4. Install the unit in the rack securing it with four screws
(M5x12, not supplied).
5. Turn on the power of the unit.
When the HDD POWER switch is turned off, turn it on
and attach the front cover as it was.
Cautions:
•Make a space of 1U (44 mm) between the units for ven-
tilation, and install them in the rack as low as possible.
•Keep the temperature in a rack below 45 °C (113 °F).
•Install a fan in the rack when the ambient temperature is
above 30 °C (86 °F).
•Do not block the ventilation openings or slots on the
cover to prevent the unit from overheating.
Remove 6 screws
M4X10 (Supplied)
Rack Mounting Bracket (Supplied)
M5X12 (Not supplied)

Symptom
18
■Troubleshooting
Cause
No power is supplied. Insufficient power cord connection
POWER switch or HDD POWER switch is
turned off.
ERROR indicator lights orange.
Thermal error stops the unit.
Cooling fan(s) may be faulty.
Ambient temperature exceeds the operable
range.
Ventilation may be blocked.
ERROR indicator lights red. System fault
Extension unit or added HDD is
not recognized.
Connection cables other than supplied may be
used.
Insufficient connector junction
Powering up the recorder and units in opposite
order
The recorder and units are connected to differ-
ent AC mains
HDD installation position is wrong.
MODE switch setting
HDD access indicator alternately
blinks orange and red or blinks
green though no recording/play-
back.
Data recovery fails after replac-
ing the HDDs in the RAID 5
mode.
In recovery process of RAID5
Automatic periodic (every 5 seconds) data
check in RAID5
The HDD to be recovered may be faulty.
Size of the new HDD may be smaller than
before although nominally same.
The HDDs have not been replaced correctly.
The cables are not connected correctly to the
HDDs.
HDD access indicator light/blink
red.
Disk drive is faulty in RAID5 mode.
The steady light means it is the first faulty drive,
the blinking light means it is one of the later
ones.
HDD access indicator light red
and orange.
System fault
Red and orange lighting of these four bits dis-
plays error status as shown below.
8
: Red
9
: Orange
9888
: Hardware error
8988
: Hardware error
9988
: Hardware error
8898
: Hardware error
9898
: Hardware error
8998
: Hardware error
9998
: Hardware error
8889
: Hardware error
8989
: Hardware error
9989
: Hardware error
8899
: Hardware error
8999
: Disk CRC error
What to do
Securely connect the power cord.
Turn on the POWER switch and HDD
POWER switch.
Repair cooling fan(s).
Arrange the ambient temperature so that
it lies within the acceptable range.
Remove obstacles blocking the open-
ings or slots. See below for cleaning.
Repair is required.
Use the supplied cable.
Firmly join the cables and connectors.
The order should be "the extension units
first, then the recorder" or at the same
time.
Keep the above order for powering up,
or rearrange AC mains connection to the
same source.
Install HDDs in order from the position
#1, #2, #3, and #4. Never skip or
reverse.
Set the MODE switch appropriately.
Not a problem
Repair the faulty HDD.
Install an HDD larger than before or the
same size.
Never skip or reverse the position.
Check that the cables are connected to
the HDDs correctly and firmly.
Repair the faulty HDD and implement
the recovery process.
Repair is required.

19
■Specifications
Required power: 120 V AC 60 Hz
Power consumption: 85 W (including 4 HDDs when installed)
Interface: 2-wire serial, 480 Mbps logical speed
Operating temperature: +5 °C to +45 °C (41 °F to 113 °F)
Operating humidity: Less than 85 %
Dimensions: 420 mm (W) x 88 mm (H) x 350 mm (D), rubber feet exclusive
19-9/16" (W) x 3-7/16" (H) x 13-13/16" (D)
Weight: 7.2 kg(16 lbs) (not including hard disk drives)
Weight and dimensions indicated are approximate.
Specifications are subject to change without notice.
■Accessories
Operating instructions (this document)....................... 1 pc.
The following are for installation.
Power cord ................................................................. 1 pc.
Serial cable ................................................................. 1 pc.
Rack mounting bracket .............................................. 2 pcs.
Bracket fixing screw ................................................... 4 pcs.
HDD fixing screw ...................................................... 16 pcs.
Cable clamp ............................................................. 1 pc.
Clamp fixing screw ................................................... 1 pc.

PANASONIC CANADA INC.
5770 Ambler Drive, Mississauga,
Ontario, L4W 2T3 Canada [phone]
PANASONIC SALES COMPANY
DIVISION OF MATSUSHITA ELECTRIC OF PUERTO RICO INC.
San Gabriel Industrial Park 65th Infantry Ave. KM. 9.5 Carolina,
P.R. 00985 [phone]
Panasonic Digital Communications & Security Company
Unit of Matsushita Electric Corporation of America
Security Systems Group
www.panasonic.com/cctv
Executive Office: One Panasonic Way 3E-7, Secaucus, New Jersey 07094
Zone Office
Eastern: One Panasonic Way, Secaucus, NJ 07094 [phone]
Central: 1707 N.Randal Road, Elgin, IL 60123 [phone]
Western: 6550 Katella Ave., Cypress, CA 90630 [phone]
2004 © Matsushita Electric Industrial Co., Ltd. All rights reserved. NM0104-1034 3TR001883BAA Printed in Japan
