Panasonic KX-FHD332C User manual

ORDERNO. KMF0206584C1
F7
Compact PlainPaper FAXand Copier
KX-FHD332C
(for Canada)
2002 Kyushu Matsushita ElectricCo., Ltd. All rights reserved.
Unauthorized copying and distribution isaviolation of law.
1. INTRODUCTION
1.1. SAFETY PRECAUTIONS
1. Before servicing, unplug the AC power cord to prevent an electric
shock.
2. When replacing parts, use onlythe manufacturer's recommended
1

components.
3. Check the condition of the power cord. Replace ifwear or damage
isevident.
4. After servicing, be sure to restore the lead dress, insulation
barriers, insulation papers, shields, etc.
5. Before returning the serviced equipment to the customer, be sure
to perform the following insulation resistance test to prevent the
customer from being exposed to shock hazards.

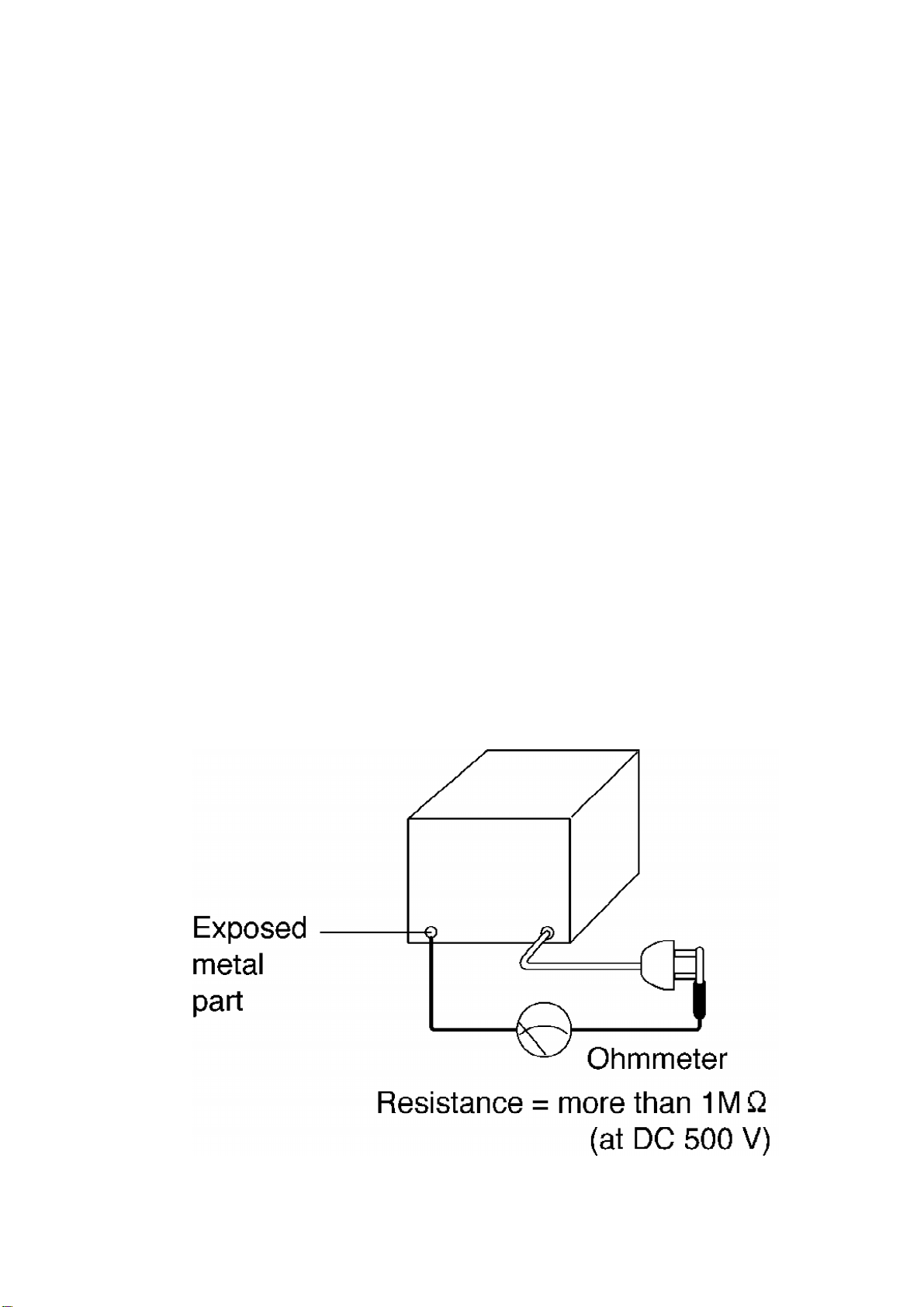

1.2. INSULATIONRESISTANCETEST
1. Unplug the power cord and short the twoprongs of the plug with
ajumper wire.
2. Turn on the power switch.
3. Measure the resistance value with an ohmmeter between the
jumpered AC plug and each exposed metal cabinet part
(screw heads, control shafts, bottom frame, etc.).
Note: Some exposed parts maybe isolated from the chassisby
design. These will read infinity.
4. Ifthe measurement isoutside the specified limits, there isa
possibilityof ashock hazard.
2

1.3. FORSERVICETECHNICIANS
ICs and LSIs are vulnerable tostatic electricity.
Whenrepairing, the following precautions will helpprevent recurring malfunctions.
1. Cover the plasticpart's boxes with aluminum foil.
2. Ground the soldering irons.
3. Use aconductive mat on the worktable.
4. Donot touch the ICor LSI pins with bare fingers.
1.4. BATTERYCAUTION
CAUTION
Danger of explosion ifthe batteryisreplaced incorrectly. Replace
onlywith the same or equivalent type recommended bythe
manufacturer. Discard used batteries according to following caution
:
Disposal of lithium batteries shouldbe performed bypermitted,
professional disposal firms knowledgeableinstate government
federal and local hazardous materialsand hazardous waste
transportation and disposal requirements.
Abatterycontinues to have no transportation limitations as long as
itisseparated to prevent short circuits and packed instrong
packaging.
Commercial firms that dispose of anyquantityof lithium cells
shouldhave amechanism inplace to account for theirultimate
disposition. Thisisagood practice for all types of commercial or
industrial waste.
Recommend Type Number:
CR2032 (BAT501) Manufactured byMATSUSHITA/SONY/TOSHIBA/
HITACHI

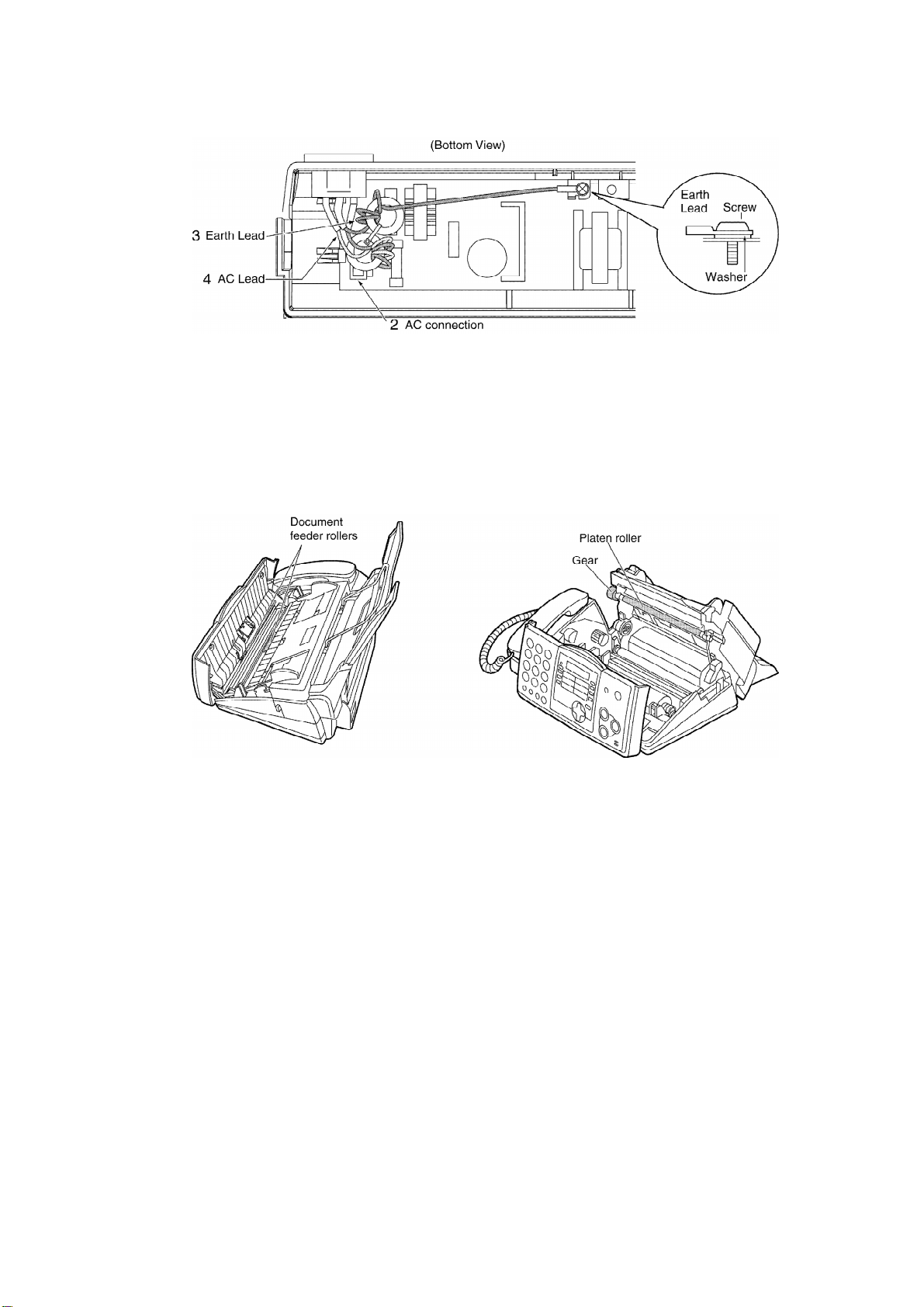

1.5. AC CAUTION
Forsafety, before closing the lowercabinet, please make sure of the following precautions.
1. The earth lead isfixed with the screw.
2. The AC connector isconnected properly.
3. Wrap the earth lead around the core 3times.
4. Wrap the AC lead around the core 2times.
3

1.6. PERSONALSAFETY PRECAUTIONS
1.6.1. MOVING SECTIONS OFTHE UNIT
Be careful not tolet yourhair, clothes, fingers, accessories, etc., become caught inanymoving
sections of the unit.
The moving sections of the unit are the rollers and a gear. There is a separation rollerand a
document feedrollerwhichare rotatedbythe document feedmotor. A gearrotates the two
rollers. Be careful not totouchthemwithyourhands, especiallywhenthe unit is operating.
1.6.2. LIVE ELECTRICALSECTIONS
All the electrical sections of the unit suppliedwithAC powerbythe AC powercordare live.
Neverdisassemble the unit forservice withthe AC powersupplypluggedin.
CAUTION:
AC voltage issupplied to the primaryside of the power supplyunit.
Therefore, alwaysunplug the AC power cord before disassembling
for service.
4

1.7. SERVICEPRECAUTIONS
1.7.1. PRECAUTIONS TO PREVENTDAMAGE FROM STATIC ELECTRICITY
Electrical charges accumulate on a person. Forinstance, clothes rubbing togethercandamage
electric elements orchange theirelectrical characteristics. Inordertoprevent static electricity,
toucha metallic part that is groundedtorelease the static electricity. Nevertouchthe electrical
sections suchas the powersupplyunit, etc.
2. FEATURES AND SPECIFICATIONS
2.1. FEATURES
5

General
-Helpfunction
Display:
-QUICK SET UP
-FEATURELIST
-DIRECTORY
-FAXSND/RCV
-COPIER
-REPORTS
-CALL DISPLAY
-LCD (LiquidCrystal Display)readout
-TAM(Telephone answering machine) interface
PlainPaperFacsimile Machine
-15 second transmission speed *
-Letter / Legal, G3compatible
-Automaticdocument feeder (10 sheets)
-Quick scan
-Resolution: Standard / Fine / Super fine / Photo (64 level)
-Broad cast with Navigator
-50-sheet paper capacity(20 lb.)
-Automaticfax/phone switching
-Distinctive ring detection **
*The 15 second speedis basedupon the ITU-TNo. 1 Test Chart on the condition that memory
transmission is performed.
** Subscription todistinctive ring services is required.
Large Memory(28 pages)... PerformedbyDRAM
Approx. 25 pages of memorytransmission
Approx. 28 pages of memoryreception
IntegratedTelephone System
-On-hook dialing
-Monitor speaker
-Voice muting
-Redialing function
-100-Station telephone directorywith Navigator/one-touch key
-Caller IDcompatible***
***Feature requires asubscription to caller identification services
offered bycertainlocal telephone companies for atee. You and
6

your caller(s) must be inareas that provide caller identification
services, and compatibleequipment must be used byboth
telephone companies. Feature not availablewhen the unitis
connected to aPBXsystem.
EnhancedCopierFunction
-Multi-copyfunction (up to 50 copies)
-Enlargement and reduction
-Collate
-64-Level halftone
2.2. OPTIONALACCESSORIES
-The included filmroll is10 meters (32 1/2’)long. We recommend
that you buyafull-size replacement film70 meters (229’)for
continuous use of your unit. For best results, use genuine
Panasonicreplacement filmas follows:
Model No. Description Specifications
KX-FA57A Replacement Film 216 mm × 70 m(8 1/2”×229’)
Note:
The ink filmis not reusable. Donot rewind and use the ink filmagain.
2.3. SPECIFICATIONS
ApplicableLines:
PublicSwitched Telephone Network
Document Size:
Max. 216 mm (8 1/2") inwidth
Max. 600 mm (23 5/8") inlength
Effective Scanning Width:
208 mm (8 3/16")
Recording Paper Size:
Letter: 216×279 mm (8 1/2"×11")
Legal:216×356 mm (8 1/2"×14")
Effective Printing Width:
7

208 mm (8 3/16")
Transmission Time*1:
Approx. 15 s/page (Original mode)*2
Scanning Density:
Horizontal:
8pels/mm (203 pels/inch)
Vertical:
3.85 lines/mm (98 lines/inch)—STANDARD mode
7.7lines/mm (196 lines/inch)—FINE/ PHOTO mode
15.4lines/mm (392 lines/inch)—SUPERFINEMode
Halftone Level:
64-level
Scanner Type:
Contact Image Sensor (CIS)
Printer Type:
Thermal Transfer on PlainPaper
Data Compression System:
Modified Huffman (MH), Modified READ (MR)
Modem Speed:
9,600/7,200/4,800/2,400 bps; AutomaticFallback
Operating Environment:
5—35°C(41—95°F), 20—80 %RH (Relative Humidity)
Dimensions:
Approx. height 185 mm × width 355 mm × depth 275 mm (7 9/32"×13
31/32"×10 27/32")
Mass (Weight):
Approx. 3.4kg (7.5lb.)
Power Consumption:
Standby:Approx. 3.6W
Transmission: Approx. 12 W
Reception: Approx. 40 W(When receiving a20%black document)
Copy:Approx. 55 W(When copying a20%black document)
Maximum: Approx. 135 W(When copying a100%black document)
8

Power Supply:
120 VAC, 60 Hz
MemoryCapacity:
Approx. 25 pages memorytransmission
Approx. 28 pages memoryreception
(Based on ITU-T No. 1Test Chart instandard resolution.)
*1Transmission speeddepends upon the contents of the pages, resolution, telephone line
conditions and capabilityof the otherparty’s machine.
*2Transmission speedis basedupon the ITU-TNo. 1 Test Chart and original mode. (Referto ITU
-T No.1 TEST CHART ().) If the capabilityof the otherparty's machine is inferiortoyourunit, the
transmission time maybe longer.
Note:
-Anydetailsgiven inthese instructions are subject to change
without notice.
-The pictures and illustrations inthese instructions mayvary
slightlyfrom the actual product.
3. INSTALLATION
3.1. LOCATIONOFCONTROLS
3.1.1. FRONTVIEW
(1) Handset
(2) Document guides
(3) Papertray
(4) Recording papersupport
9

(5) Recording paperentrance
(6) Recording paperexit
(7) Tension plate
(8) Front cover
(9) Document exit
(10) Document entrance
(11) Back coveropenbutton
(12) Back cover
3.1.2. REAR VIEW
(1) Powerinlet
(2) Telephone line jack
(3) External telephone jack
(4) Speaker

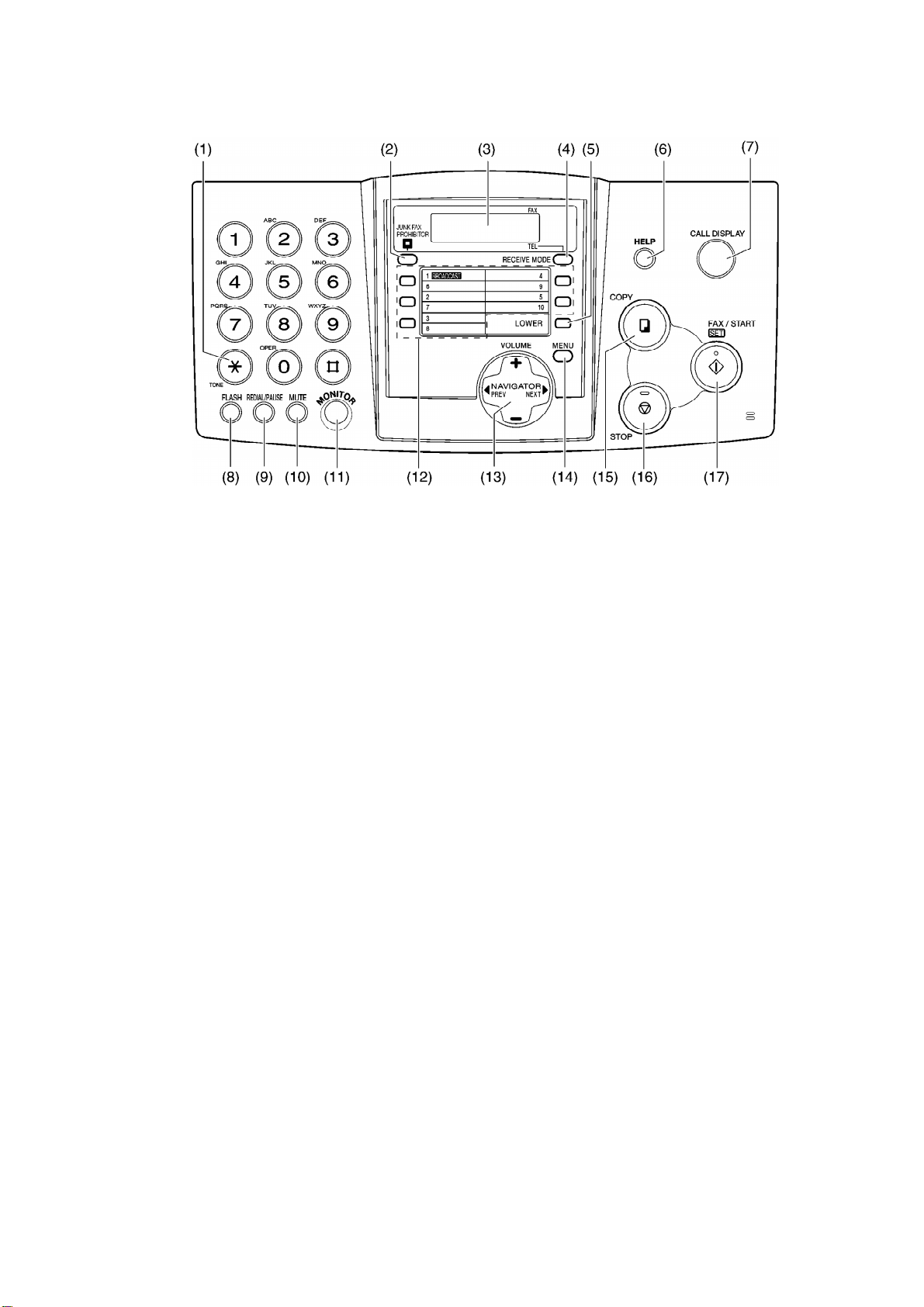

3.1.3. CONTROLPANEL
10

(1) [TONE]
-To change from pulse to tone temporarilyduring dialing when your
line has rotarypulse services.
(2) [JUNK FAX PROHIBITOR]
-To use the Junk Fax Prohibitor.
(3) Display
(4) [RECEIVE MODE]
-To change the receiving mode.
(5) [LOWER]
-To select stations 6-10 for one-touch dial.
(6) [HELP]
-To print aquick reference.
(7) [CALL DISPLAY]
-To use Call Display.
11

(8) [FLASH]
-To access special telephone services such as call waiting or for
transferring extension calls.
(9) [REDIAL/PAUSE]
-To redial the last number dialed.
-To insert apause during dialing.
(10) [MUTE]
-To mute your vice to the other partyduring aconversation. Press
thisbutton againto resume the conversation.
(11) [MONITOR]
-To initiate dialing without lifting the handset.
(12) One-touchkeys
-To use one-touch dial.
-To transmitto multipleentries.
(13) [NAVIGATOR, VOLUME]
-To adjust volume.
-To search for astored name.
-To select the features or feature settings during programming.
-To navigate to the next operation.
(14) [MENU]
-To initiate or exitprogramming.
(15) [COPY]
-To initiate copying.
(16) [STOP]
12

-To stop an operation or cancel programming.
(17) [FAX/START, SET]
-To initiate fax transmission or reception.
-To store asetting during programming.
3.2. CONNECTIONS
(1) Connect the handset cord.
(2) Connect the telephone line cord.
(3) Connect the powercord.
13

Note:
-Ifanyother device isconnected on the same line, thisunitmay
disturb the network condition of the device.
-To avoidmalfunction, do not position fax machine near appliances
such as TVs or speakers which generate an intense magneticfield.
Caution:
-When you operate thisproduct, the power outlet shouldbe near
the product and easilyaccessible.
Using surge protectors:
-The warrantydoes not cover damage due to power line surges or
lightning. For additional equipment protection, werecommend the
use of asurge protector.
3.3. INSTALLATION
3.3.1. INSTALLATION SPACE
The space requiredtoinstall the unit is shownbelow.
The dimensions givenare necessaryforthe unit tooperate efficiently.
Note:
-Avoidexcessive heat or humidity.
-Use the unitwithinthe following ranges of temperature and
14

humidity.
-Ambient temperature: 5°Cto 35°C
-Relative humidity:20%to 80%(without condensation)
-Power cord length shouldbe less than 5meters (16.4feet). Using a
longer cord mayreduce the voltage or cause malfunctions.
-Avoiddirect sunlight.
-Donot install near devices which containmagnets or generate
magneticfields.
-Donot subject the unitto strong physical shock or vibration.
-Keep the unitclean. Dust accumulation can prevent the unitfrom
functioning properly.
-To protect the unitfrom damage, holdboth sides when you move it.

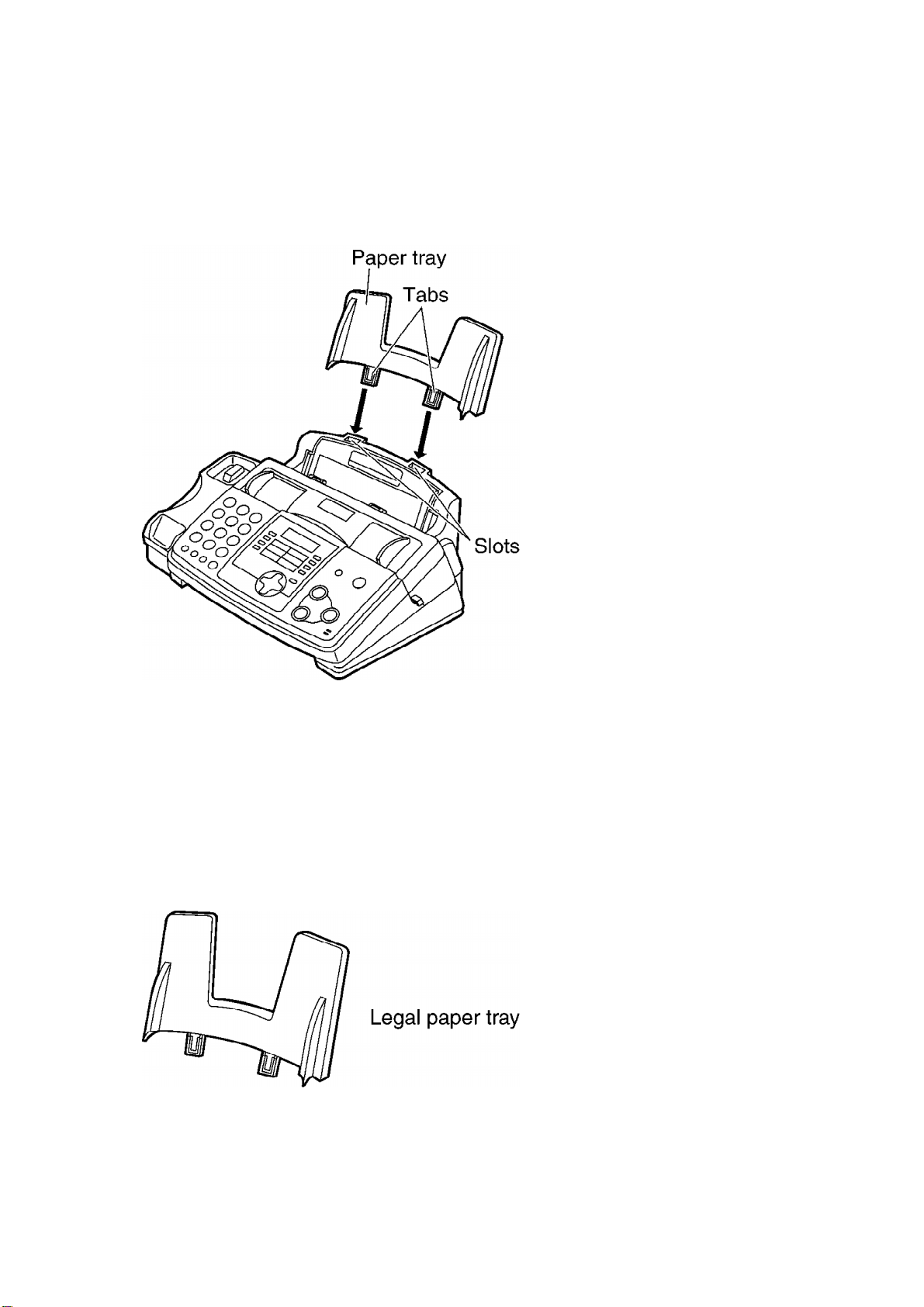

3.3.2. INSTALLING THE PAPER TRAY
15

The includedpapertrayis forlettersize recording
paper.
Insert tabs on the papertrayintoslits on the back
of the unit.
Note:
- Donot place the unit inareas where the paper
traymaybe obstructed(i.e. bya wall, etc.).
To use legal size paper
Please purchase a legal papertrayPart No.
PFKS1081Z1 and install it.

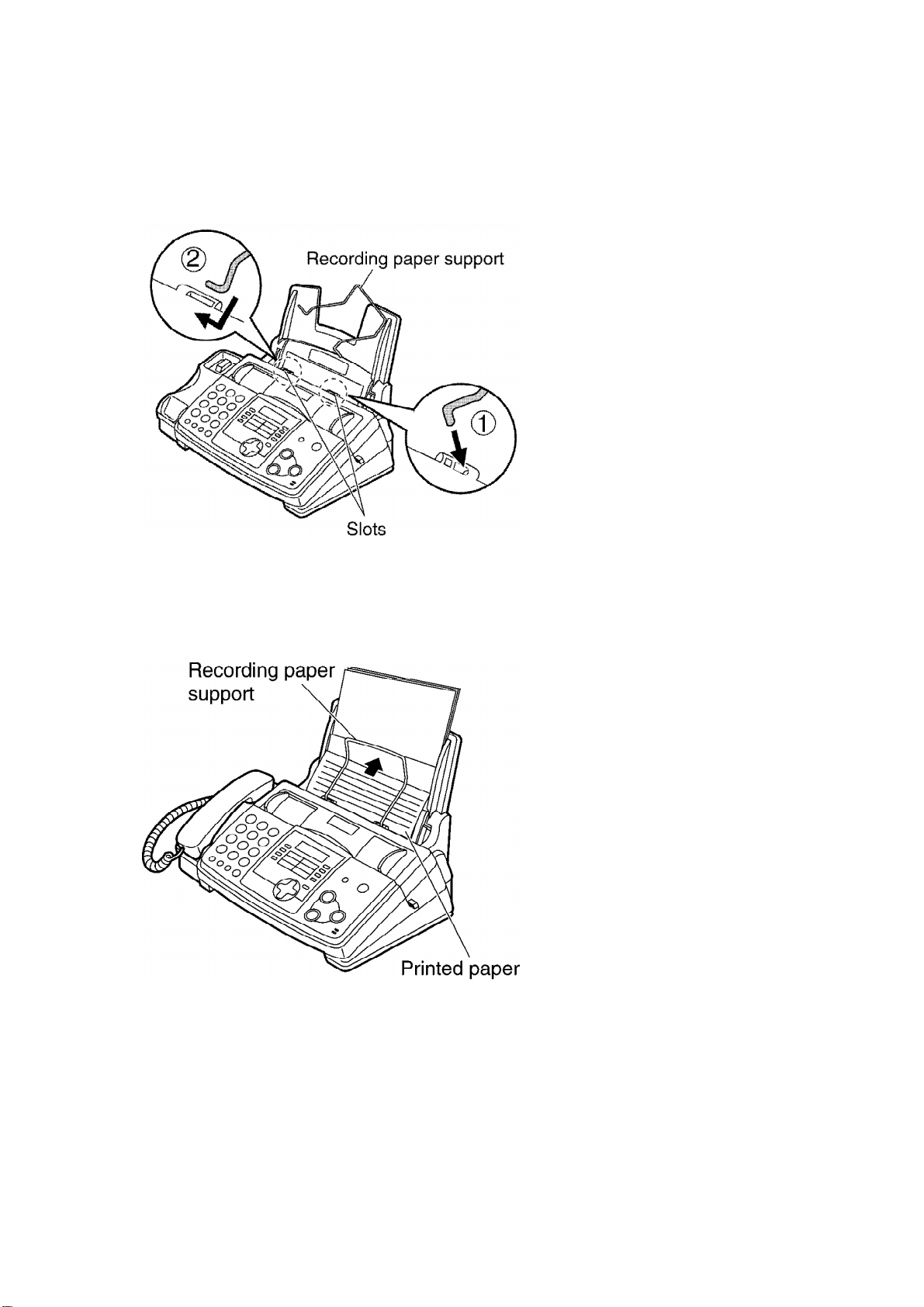

3.3.3. INSTALLING THE RECORDING PAPER SUPPORT
16

Attachthe recording papersupport intothe slots
on the recording paperexit.
The recording paperwill be ejectedfromthe top of
the unit afterprinting. The recording papersupport
prevents the printedpaperfromcurling.
3.3.4. HANDSET
Connect the handset cord.
17

3.3.5. INSTALLING THE INK FILM
1Openthe front coverbypulling up the centre
part.
2Pushthe back coveropenbutton (green) on the
right side of the unit.
OR
Pushthe back coveropenlever(green) inside of
the unit.
18

3Openthe back cover.
4Insert the gearof blue core of the front ink film
roll intothe left slot of the unit ( ). Insert the
rearink filmroll ( ).
19

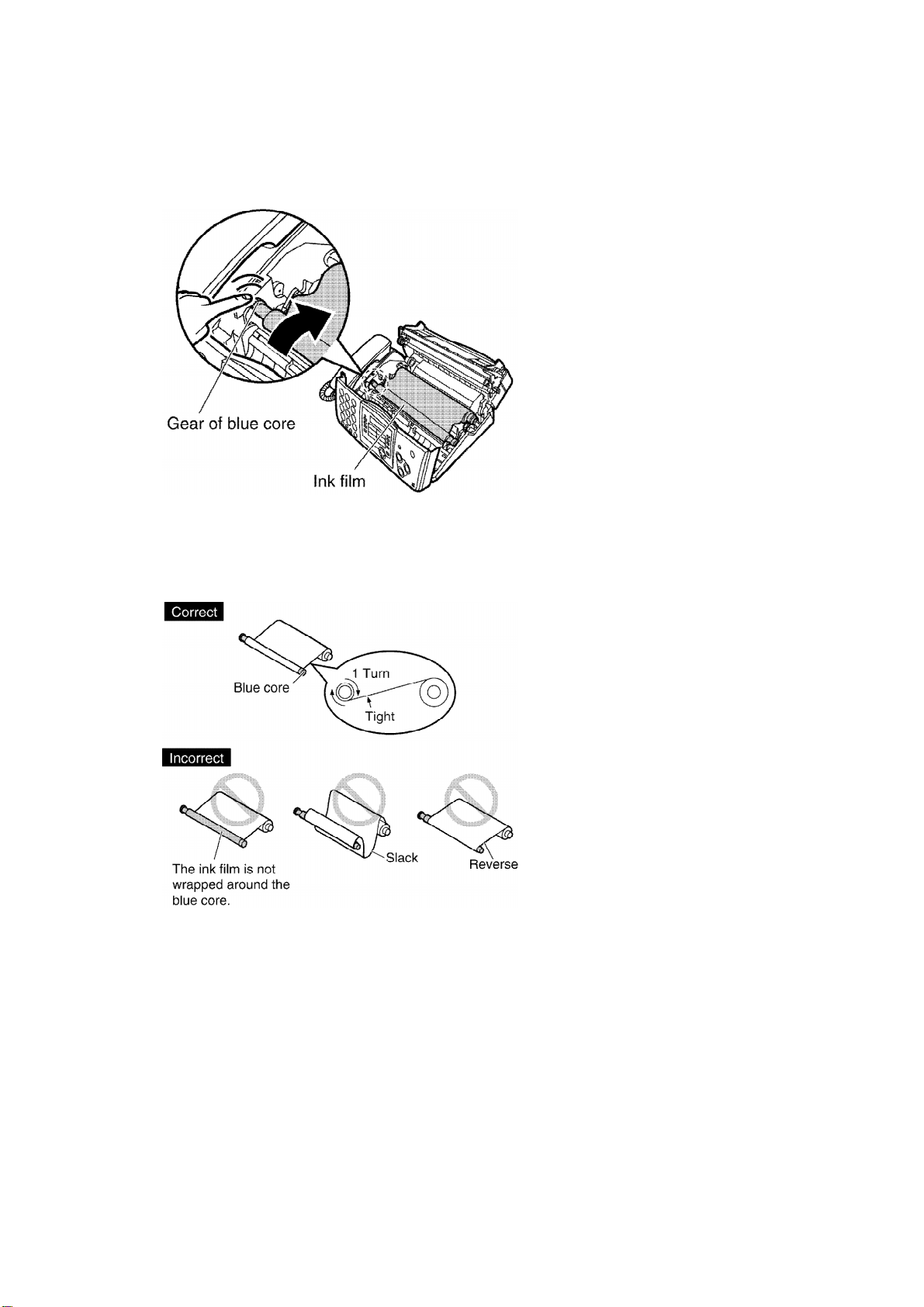

5Turnthe gearof blue core inthe direction of the
arrow.
-Make surethat theinkfilm iswrapped around thebluecoreat least
once.
20
