Panasonic KX-FM89BX User manual

ORDERNO. KMF0109511C3
Multi-Function PlainPaper Fax
KX-FM89BX / KX-FM89CX
(for Asia, MiddleNear East and Africa)
2001 Kyushu Matsushita ElectricCo., Ltd. All rights reserved.
Unauthorized copying and distribution isaviolation of law.
1. INTRODUCTION
1.1. SAFETY PRECAUTIONS
1. Before servicing, unplug the AC power cord to prevent an electric
shock.
2. When replacing parts, use onlythe manufacturer's recommended
components.
1

3. Check the condition of the power cord. Replace ifwear or damage
isevident.
4. After servicing, be sure to restore the lead dress, insulation
barriers, insulation papers, shields, etc.
5. Before returning the serviced equipment to the customer, be sure
to perform the following insulation resistance test to prevent the
customer from being exposed to shock hazards.
1.2. INSULATIONRESISTANCETEST
1. Unplug the power cord and short the twoprongs of the plug with
ajumper wire.
2. Turn on the power switch.
3. Measure the resistance value with an ohmmeter between the
jumpered AC plug and each exposed metal cabinet part
(screw heads, control shafts, bottom frame, etc.).
Note: Some exposed parts maybe isolated from the chassisby
design. These will read infinity.
4. Ifthe measurement isoutside the specified limits, there isa
possibilityof ashock hazard.
2

1.3. FORSERVICETECHNICIANS
ICs and LSIs are vulnerable tostatic electricity.
Whenrepairing, the following precautions will helpprevent recurring malfunctions.
1. Cover the plasticpart's boxes with aluminum foil.
2. Ground the soldering irons.
3. Use aconductive mat on the worktable.
4. Donot touch the ICor LSI pins with bare fingers.
1.4. BATTERYCAUTION
CAUTION
Danger of explosion ifthe batteryisreplaced incorrectly. Replace
onlywith the same or equivalent type recommended bythe
manufacturer. Discard used batteries according to following caution
:
Disposal of lithium batteries shouldbe performed bypermitted,
professional disposal firms knowledgeableinstate government
federal and local hazardous materialsand hazardous waste
transportation and disposal requirements.
Abatterycontinues to have no transportation limitations as long as
itisseparated to prevent short circuits and packed instrong
packaging.
Commercial firms that dispose of anyquantityof lithium cells
shouldhave amechanism inplace to account for theirultimate
disposition. Thisisagood practice for all types of commercial or
industrial waste.
Recommend Type Number:
CR2032 (BAT501) Manufactured byMATSUSHITA
CR2032 (BAT501) Manufactured bySONY
1.5. AC CAUTION

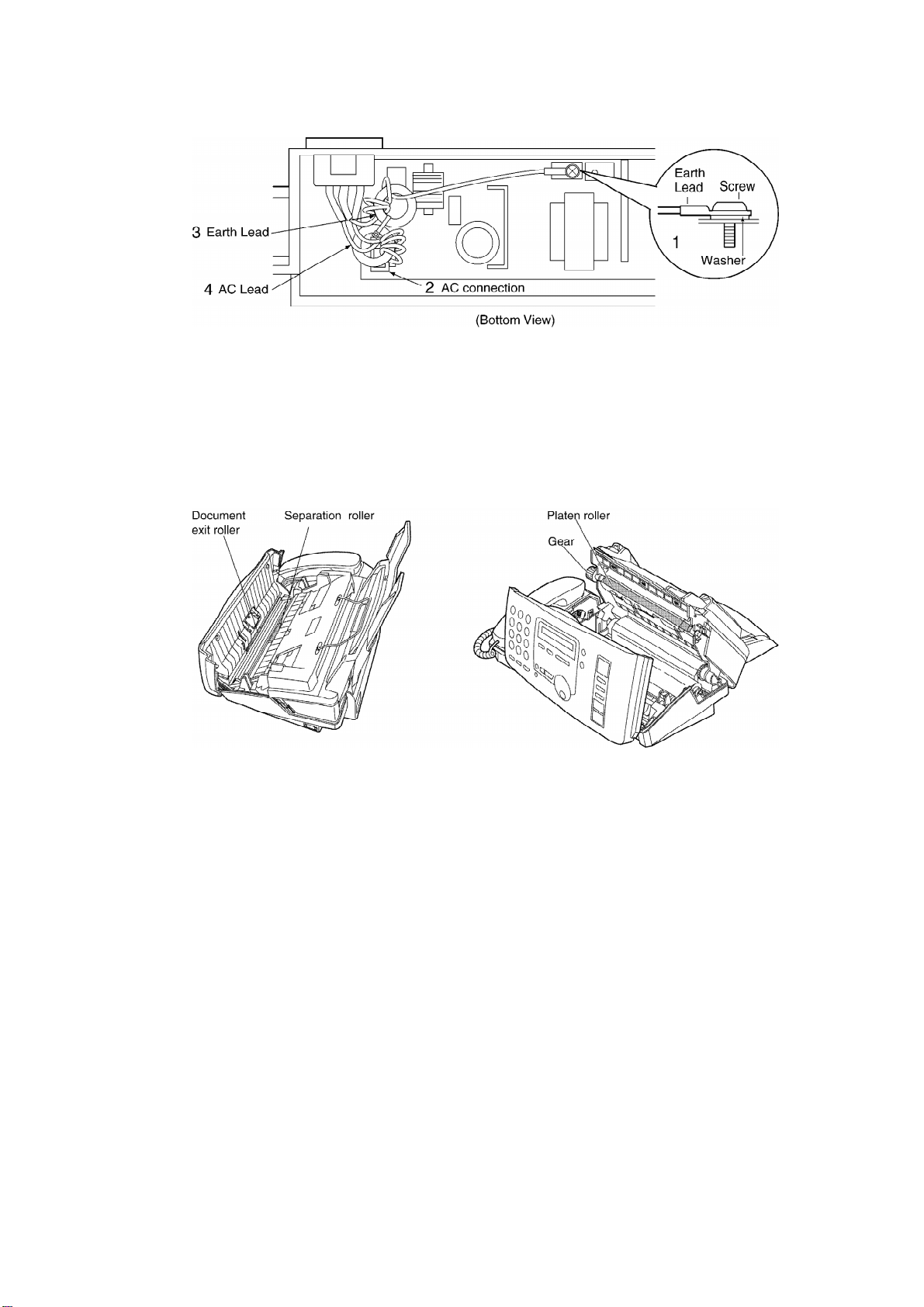

Forsafety, before closing the lowercabinet, please make sure of the following precautions.
1. The earth lead isfixed with the screw.
2. The AC connector isconnected properly.
3. Wrap the earth lead around the core 3times.
4. Wrap the AC lead around the core 2times (for KX-FM89BX).
Wrap the AC lead around the core 3times (for KX-FM89CX).
3

1.6. PERSONALSAFETY PRECAUTIONS
1.6.1. MOVING SECTIONS OFTHE UNIT
Be careful not tolet yourhair, clothes, fingers, accessories, etc., become caught inanymoving
sections of the unit.
The moving sections of the unit are the rollers and a gear. There is a separation rollerand a
document feedrollerwhichare rotatedbythe document feedmotor. A gearrotates the two
rollers. Be careful not totouchthemwithyourhands, especiallywhenthe unit is operating.
1.6.2. LIVE ELECTRICALSECTIONS
All the electrical sections of the unit suppliedwithAC powerbythe AC powercordare live.
Neverdisassemble the unit forservice withthe AC powersupplypluggedin.
CAUTION:
AC voltage issupplied to the primaryside of the power supplyunit.
Therefore, alwaysunplug the AC power cord before disassembling
for service.
4

1.7. SERVICEPRECAUTIONS

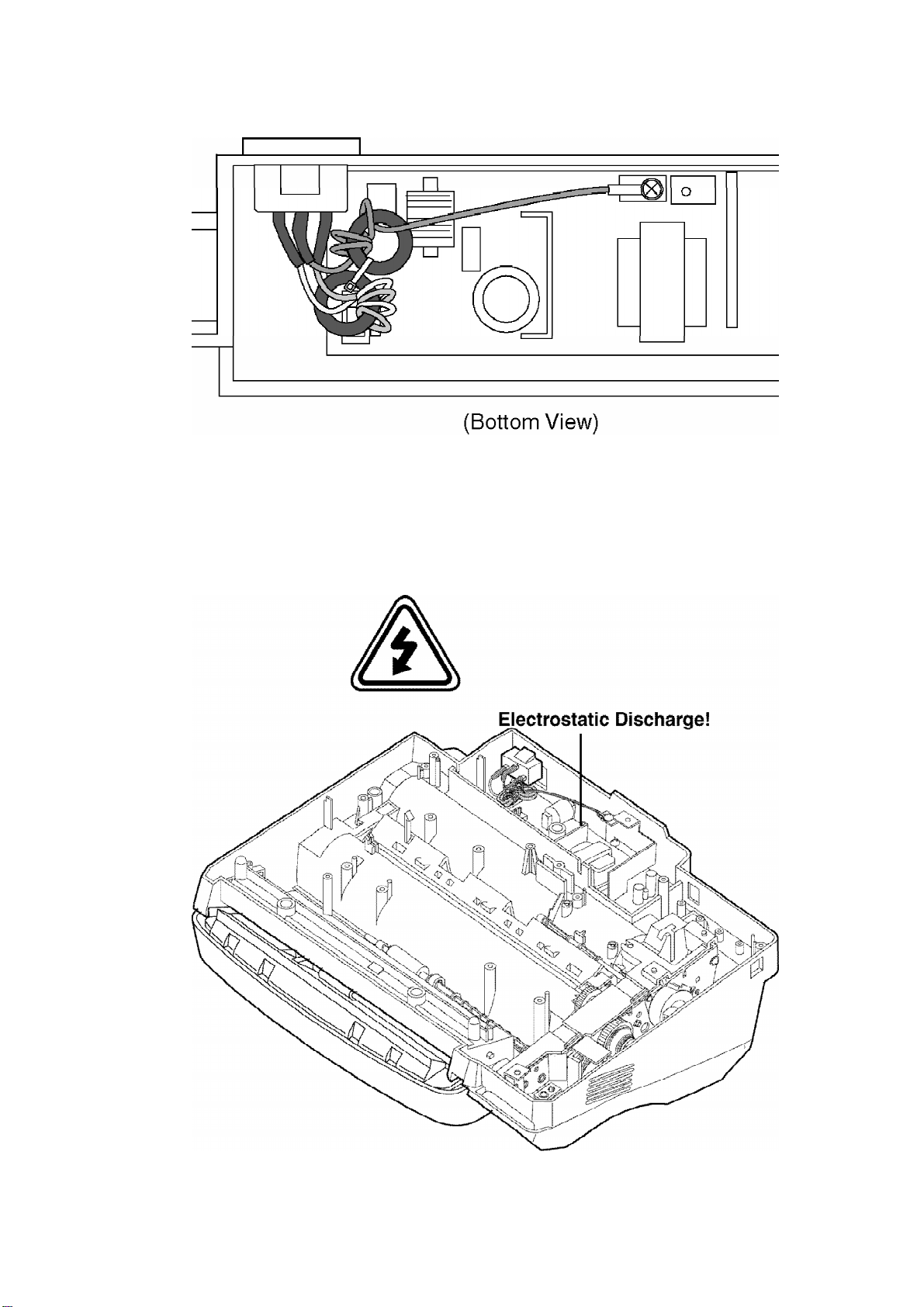

1.7.1. PRECAUTIONS TO PREVENTDAMAGE FROM STATIC ELECTRICITY
Electrical charges accumulate on a person. Forinstance, clothes rubbing togethercandamage
electric elements orchange theirelectrical characteristics. Inordertoprevent static electricity,
toucha metallic part that is groundedtorelease the static electricity. Nevertouchthe electrical
sections suchas the powersupplyunit, etc.
5

1.8. FEATURES
General
-Helpfunction
Please refer to WHEN YOU DON'T KNOW HOW TO OPERATE THE
UNIT, USE THE HELP FUNCTION.() to print below features.
Display:
1. SEND GUIDE
2. QUICK SET UP
3. FEATURELIST
4. EASY DIAL
5. TAD OPERATION
6. FAXRECEIVING
7. COPIER
8. ERRORS
9. REPORTS
-LCD (LiquidCrystal Display)readout
PlainPaperFacsimile Machine
-8second transmission speed *
-A4/Letter, G3compatible
-Automaticdocument feeder (10 sheets)
-Fax pager call
-Quick scan
-Resolution: Standard/Fine/Super fine/Halftone (64 level)
-Broad cast with EasyDial
-50-sheet paper capacity(20 lb.)
-Automaticfax/phone switching
-Distinctive ring detection **
*The 8 second speedis basedupon the ITU-TNo. 1 Test Chart on the condition that memory
transmission is performed.
** Subscription todistinctive ring services is required.
Large Memory(28 pages)... PerformedbyDRAM
Approx. 28 pages of memoryreception
Approx. 25 pages of memorytransmission
IntegratedTelephone System
-On-hook dialing
-Digital duplex speakerphone
-Voice muting
6

-Redialing function
-100-Station telephone directorywith EasyDial
EnhancedCopierFunction
-Multi-copyfunction (up to 50 copies)
-Enlargement and reduction
-Collate
-64-Level halftone
Digital Answering System
-Voice Time/DayStamp
-18-Minutes recording time
-Voice and fax paper call
Printerfunction
-200x400dpi printer capability
-Windows 95/98/ME-readyprinter driver
PC fax
-Send and Receive Faxes from your PC.
-500-name address book
Scanner
-200x400dpi scanning capability
-Easyto use document viewer
Note:
Windows is a registeredtrademark of Microsoft Corpporation inthe UnitedStates and other
countries.
1.9. SPECIFICATIONS
ApplicableLines:
PublicSwitched Telephone Network
Document Size:
Max. 216 mm (8 1/2") inwidth
Max. 600 mm (23 5/8") inlength
7

Effective Scanning Width:
208 mm (8 3/16")
Recording Paper Size:
Letter: 216×279 mm (8 1/2"×11")
A4: 210×297 mm (8 1/4"×11 11/16")
[Refer to INSTALLING THE RECORDING PAPER ()]
Effective Printing Width:
208 mm (8 3/16")
Transmission Time*:
Approx. 8s/page (Original mode)**
Scanning Density:
Horizontal:
8pels/mm (203 pels/inch)
Vertical:
3.85 lines/mm (98 lines/inch)—STANDARD mode
7.7lines/mm (196 lines/inch)—FINE/HALF TONEmode
15.4lines/mm (392 lines/inch)—SUPERFINEMode
Halftone Level:
64-level
Scanner Type:
Contact Image Sensor (CIS)
Printer Type:
Thermal Transfer on PlainPaper
Data Compression System:
Modified Huffman (MH), Modified READ (MR), Modified Modified
READ (MMR)
Modem Speed:
14,400/12,000/9,600/7,200/4,800/2,400 bps; AutomaticFallback
Operating Environment:
5—35°C(41—95°F), 20—80 %RH (Relative Humidity)
Dimensions (H×W×D):
185×345×276 mm (7 9/32"×13 19/32"×10 7/8")
Mass (Weight):
8

Approx. 3.2kg (8.5lb.)
Power Consumption:
Standby:Approx. 4W(for KX-FM89BX) / 4.5W (for KX-FM89CX)
Transmission: Approx. 15 W
Reception: Approx. 40 W(When receiving a20%black document)
Copy:Approx. 40 W(When copying a20%black document)
Maximum: Approx. 125 W(When copying a100%black document)
Power Supply:
220-240 VAC, 50/60 Hz
MemoryCapacity:
Voice memory****:
Approx. 18 minutes of recording time including greeting
messages
Fax memory:
Approx. 28 pages memoryreception
Approx. 25 pages memorytransmission
(Based on ITU-T No. 1Test Chart instandard resolution.)
*Transmission speeddepends upon the contents of the pages, resolution, telephone line
conditions and capabilityof the otherparty’s machine.
** The 8 second speedis basedupon the ITU-TNo. 1 Test Chart and original mode. (Referto
"1.11. ITU-TNo. 1 Test Chart".) If the capabilityof the otherparty's machine is inferiortoyour
unit, the transmission time maybe longer.
*** Recording time maybe reducedbythe calling party´s background noise.
Note:
-Anydetailsgiven inthese instructions are subject to change
without notice.
-The pictures and illustrations inthese instructions mayvary
slightlyfrom the actual product.
Design and specifications are subject tochange without notice.
1.10. OPTIONALACCESSORIES
-For best results, use genuine Panasonicreplacement filmModel
No. KX-FA53Aor KX-FA55A.
Model No. Description Specifications
KX-FA53A Replacement Film 1 roll-216 mm × 50 m(8 1/2”×164’)
KX-FA55A Replacement Film 2 rolls-216 mm × 50 m(8 1/2”×164’)
9

Note:
The ink filmis not reusable. Donot rewind and use the ink filmagain.
1.11. TEST CHART

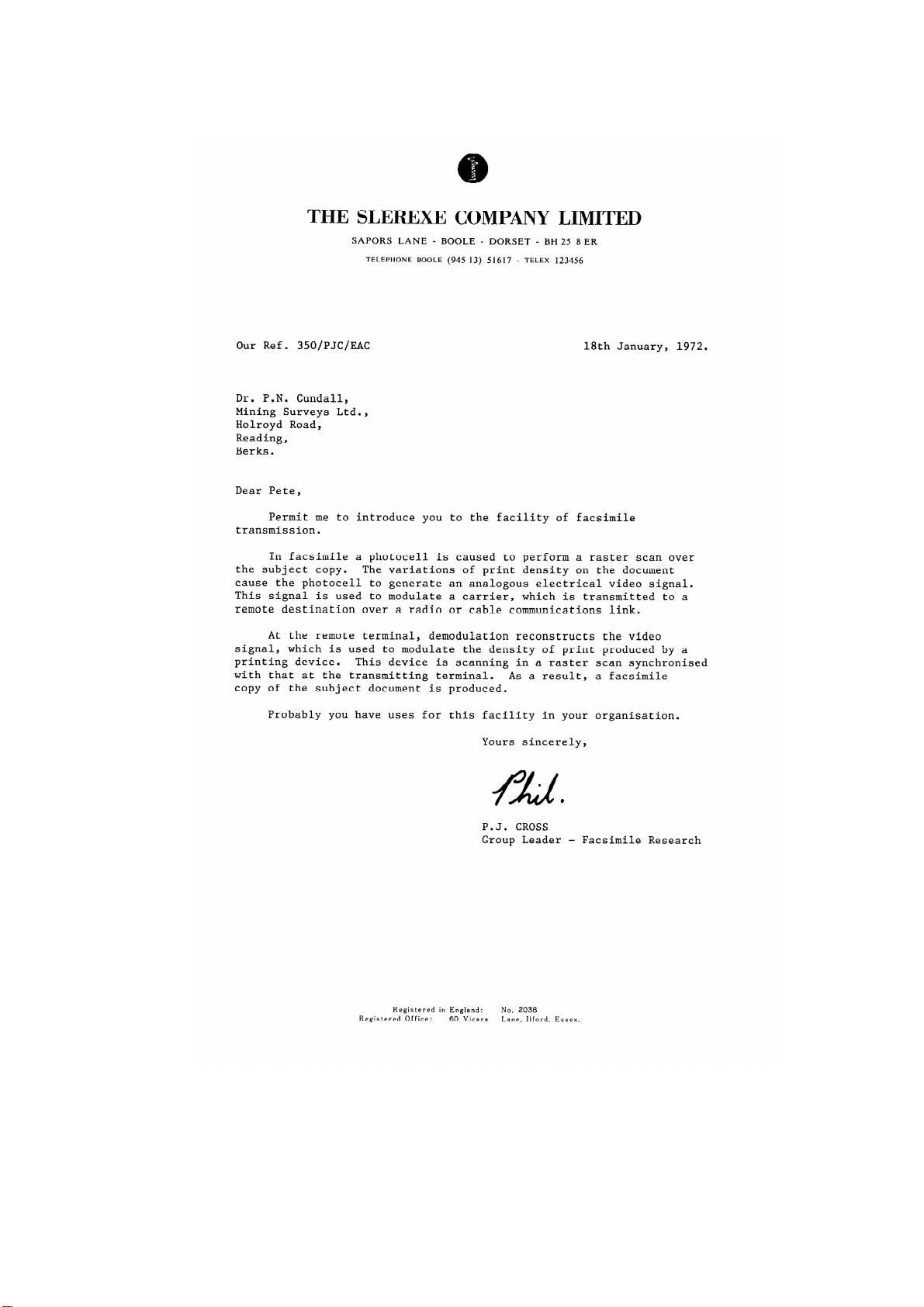

1.11.1. ITU-TNo.1TESTCHART
10

1.11.2. ITU-TNo.2TESTCHART
11

1.12. LOCATIONOFCONTROLS
1.12.1. OVERVIEW
12

Note:
-The document will be ejected from the front of the unit. Install the
uniton adesk or floor with asmooth surface and do not place
anything infront of the unit.
1.12.2. CONTROLPANEL
13

1.13. CONNECTIONS

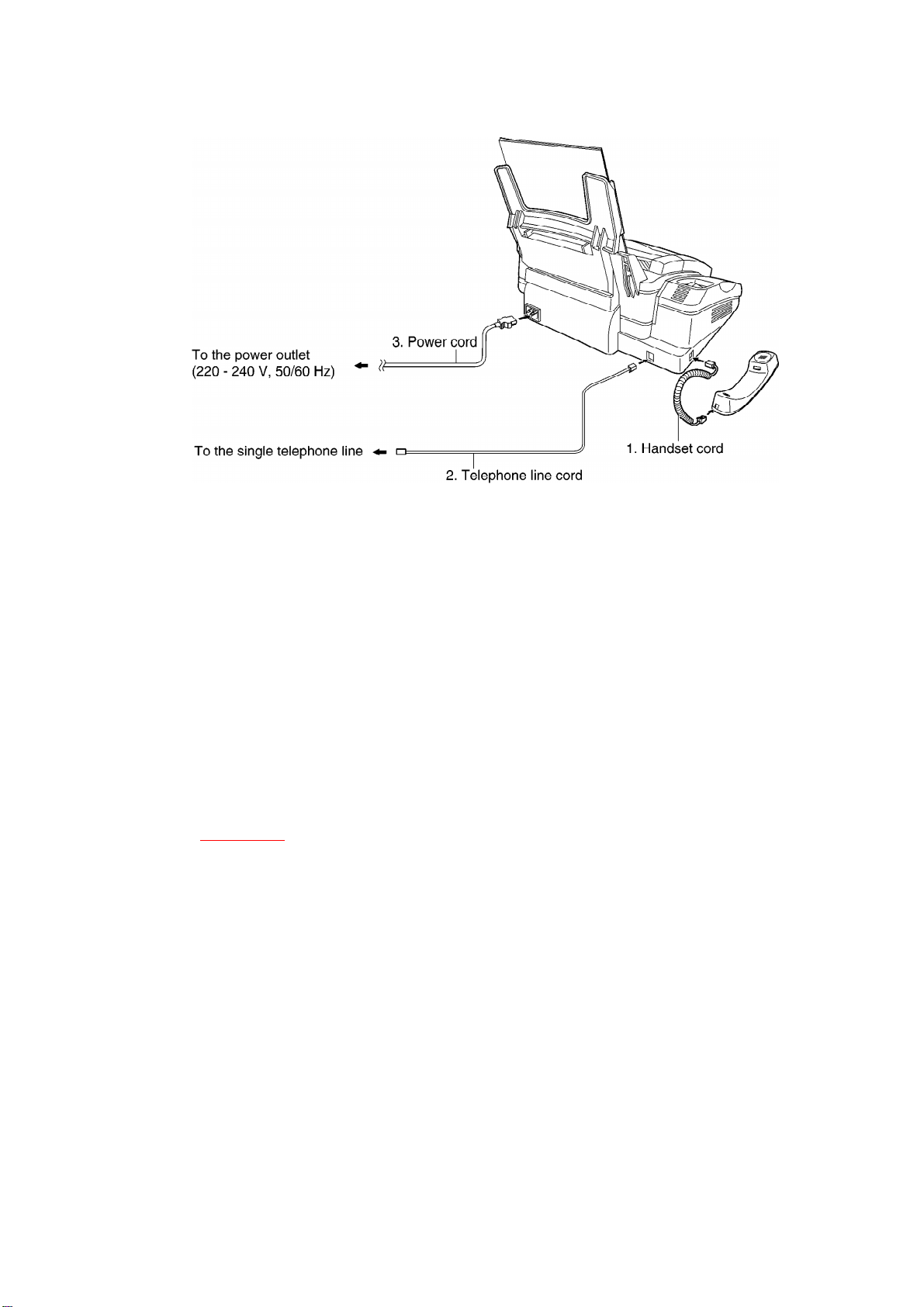

1.13.1. CONNECTCORDS
(1) Connect the handset cord.
(2) Connect the telephone line cord.
(3) Connect the powercord.
-When the power isturned on for the first time, the unitwill print
some basicinformation.
14

Note:
-When you operate thisproduct, the power outlet shouldbe near
the product and easilyaccessible.
To use the fax machine witha computeron the same line
-We recommend you use separate wall jacks for the fax machine
and the computer.
-Set the fax machine to TEL mode.
-The device which has the shortest ring setting will answer the call
first.
-Ifthe computer provides aport for telephone line, connect the fax
machine to thisport on the computer.
1.13.2. CONNECTTO A COMPUTER
Referto PANA LINK ().
Panasonic PANA LINK software enables yourfax machine tocarryout the following functions:
-Sending fax documents created on your PC
-Receiving faxes on your PC
-Storing fax and phone unmbers into the directory
-Using the fax machine as aprinter and ascanner
To run PANA LINK software, you needthe following:
15

Compatible OS: Microsoft Windows 95 / 98 / Me
CPU: Windows 95 / 98: AnIBM compatible personal computereitha 486 or
higher
processor(Pentium is recommended.)
Windows Me: Pentium150MHz orhigherprocessor
Memoryminimum: Windows 95 / 98: 16 MB (32 MB ormore is recommended.)
Windows Me: 32 MB (64 MB ormore is recommended.)
Harddisk: More than40 MB available space
Other: RS232C Serial Port and CD-ROM drive
1.13.2.1. IFYOUR PC HAS A 9 PIN COM PORT:
1.13.2.2. IFYOUR PC HAS A 25 PIN COM PORT:
Note:
A RS232C cable less than3 meters long (DB9 Female/DB25 Male) is requiredtoconnect toa
personal computer.
1.14. INSTALLATION
1.14.1. INSTALLATION SPACE
The space requiredtoinstall the unit is shownbelow.
The dimensions givenare necessaryforthe unit tooperate efficiently.
16

Note:
-Avoidexcessive heat or humidity.
-Use the unitwithinthe following ranges of temperature and
humidity.
-Ambient temperature: 5°Cto 35°C
-Relative humidity:20%to 80%(without condensation)
-Power cord length shouldbe less than 5meters (16.4feet). Using a
longer cord mayreduce the voltage or cause malfunctions.
-Avoiddirect sunlight.
-Donot install near devices which containmagnets or generate
magneticfields.
-Donot subject the unitto strong physical shock or vibration.
-Keep the unitclean. Dust accumulation can prevent the unitfrom
functioning properly.
-To protect the unitfrom damage, holdboth sides when you move it.
1.14.2. REMOVING THE INFORMATION LEAFLET
17

Openthe front coverbypulling up the centerpart.
Remove and readthe information leaflet, thenclose
the front coversecurely.
1.14.3. INSTALLING THE SPRING / METALBAR
The recording paperwill be ejectedfromthe top of the unit afterprinting. The metal bar
prevents the printedpaperfromcurling. Donot remove the spring / metal bar.
If the barcomes off, attachit intothe slots on the recording paperexit.
1.14.4. INSTALLING THE PAPER TRAY
18

Insert the tabs on the papertrayintothe slots on the
back of the unit.
Note:
- Donot place the unit inareas where the papertray
maybe obstructedbya wall, etc.
To use A4 size paper
You needtoinstall the A4 paperguide tothe right
side of the papertray.
1. Insertthebottom tab on theA4paper guideinto thelower slot.
2. Press theguideinto theupper slot.
-Changetherecording paper size. [Refer to feature#16 on PROGRAM
MODE TABLE ()]
1.14.5. INSTALLING THE RECORDING PAPER
Letter* orA4** size recording papercanbe loaded. The unit canholdup to50 sheets of 60 g/m2
to75 g/m2(16 lb. to20lb.) paperor30 sheets of 90 g/m2(24 lb.) paper.
*Letter=216 mm × 279 mm (8 1/2” × 11”)
**A4=210 mm × 297 mm (8 1/4" × 11 11/16")
To use A4 size paper, install the A4 paperguide tothe papertray. (Referto INSTALLING THE
PAPER TRAY().)

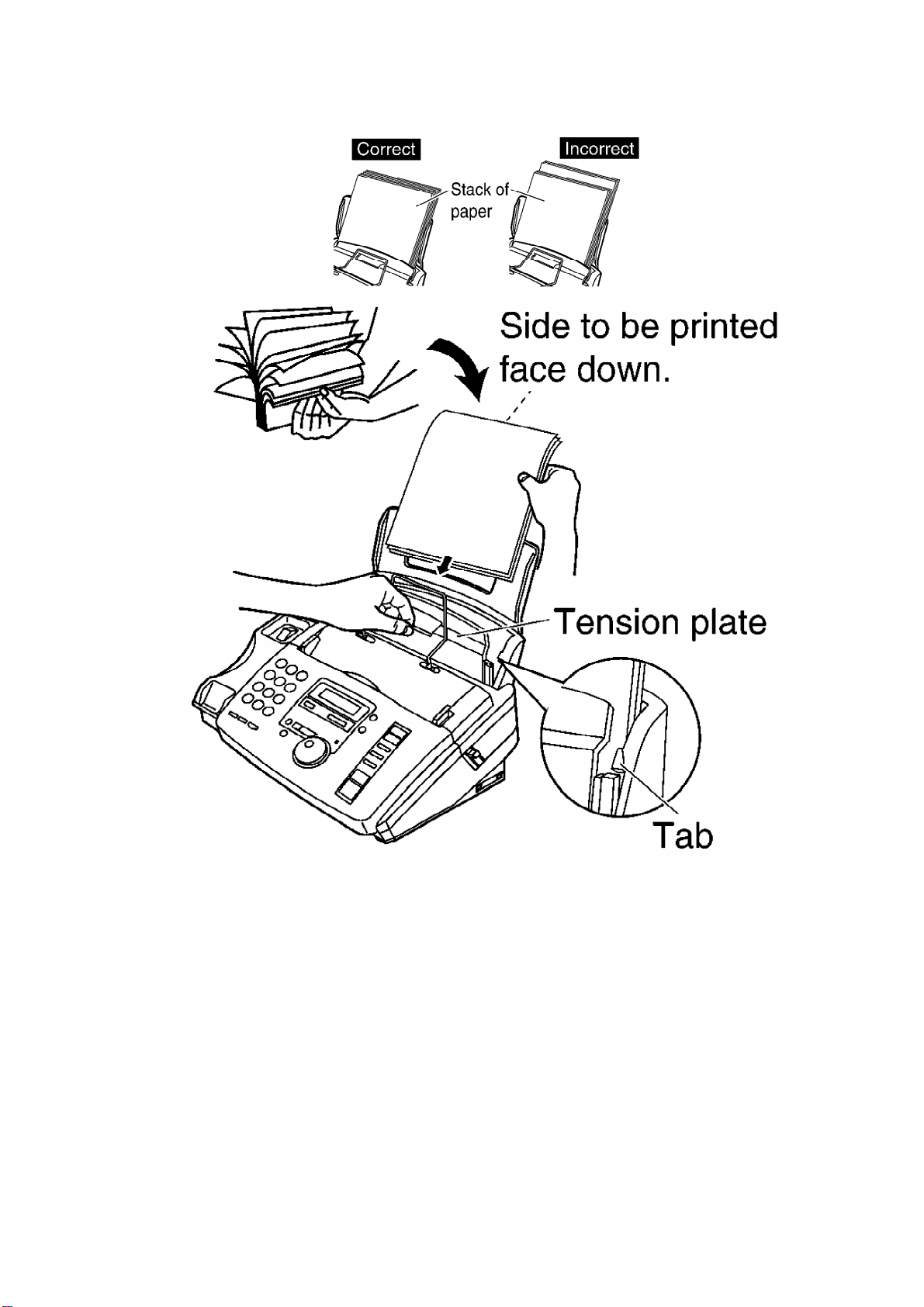

1. Fan the stack of paper to prevent apaper jam.
2. Pull the tension plate forward and holdopen whileinserting the
paper.
-The paper shouldnot be over the tab.
-Ifthe paper isnot inserted correctly, readjust the paper or the
paper mayjam.
19

Note:
-Donot use the following types of paper:
-Paper with acotton and / or fiber content that isover 20%, such as
letterhead paper or paper used for resumes.
-Extremelysmooth or shinypaper, or paper that ishighlytextured.
-Coated, damaged or wrinkled paper.
-Paper with irregularities, such as tabs or staples.
-Paper which has dust, lint, or oil stains.
-Paper that will melt, vaporize, discolor, scorch or emitdangerous
fumes, near 200°C, such as vellum paper.
-Moist paper
20
