Panasonic SA-HT800VP User manual

ORDERNO. MD0306227C1
A6
DVD/VCR HomeTheaterSound System
SA-HT800VP
Color
(S)... SilverType
SPECIFICATIONS
Specifications
1

AMPLIFIERSECTION
RMSoutputpower, 10 %total harmonicdistortion
1kHzFL/FR 45 W perchannel 6
1kHzCenter 60 W perchannel 6
1kHzSL/SR 45 W perchannel 6
100 HzSubwoofer 160 W perchannel 4
Total RMSDolbyDigital mode
power 400 W
FTCoutputpower, 1%total harmonicdistortion
120 Hz-20 kHzFL/FR 25 W perchannel 6
120 Hz-20 kHzCenter 30 W perchannel 6
120 Hz-20 kHzSL/SR 25 W perchannel 6
45 Hz-120 kHzSubwoofer 90 W perchannel 4
Total FTCpowerin Dolby
Digital mode(Band 1%THD) 220 W
Inputsensitivity
AUX 250 mV
Inputimpedance 47 k
FMTUNERSECTION
Frequencyrange 87.9-107.9MHz(200-kHzstep)
87.5-108.0MHz(100-kHzstep)
Sensitivity 2.5 V(IHF)
S/N26 dB 2.2V
Antennaterminals 75 (unbalanced)
Presetstation 15
AMTUNERSECTION
Frequencyrange 520 -1710 kHz(10-kHzstep)
AMSensitivityS/N20 dBat
1000 kHz 560 V/m
Presetstation 15
DISCSECTION
Disc played (onelayerperside)
DVD-VIDEO/AUDIO 8cm/12 cm, single/double-
sided, single/doublelayer
CD/VCD/MP3/WMA 8cm/12 cm, CD-R/RW
DVD-RAM/R(DVD-VIDEOformatted discs)
HighMAT Level 2(Audio and Image)
Video
Signal system NTSC
Outputlevel Compositevideo;1Vp-p (75 )
S-video;1Vp-p (Y), 0.286 Vp-p (C)(75 )
Componenetvideo;1Vp-p (Y)(75 )
0.7Vp-p (PB/CB, PR/CR)(75 )
Audio
Sampling frequency
CD 44.1kHz
2

CD
44.1
kHz
3

MP3 32 kHz, 44.1kHz, 48 kHz
DVD 48 kHz, 96 kHz(video), 192 kHz
(audio)
Bitrate
MP3 32-320 kbps
Decoding 16/20/24 bitlinear
Pick up
Beam Source SemiconductorLaser
Wavelength
CD/VCD 780 nm
DVD 658 nm
Numberofchannels 5.1ch (FL, FR, SL, SR, C, SW)
Frequencyresponse 20 Hz-20 kHz(+1, -2dB)
Wowand flutter Less than possible
measurementdata
Digital filter 8fs
D/Aconverter Deltasignal DAC
VCR SECTION
Video recording system 2rotaryheads, helical scanning
system
Video heads 4heads
Audio heads 2heads
Tapespeed SP;33.35 mm/s, EP;11.12 mm/s
Tapeformat VHStape
Recording/playback time SP;120 min. with NV-T120
EP;360 min. with NV-T120
FF/REW time Approx. 54 s. with NV-T120 (FF/
REW)
Approx. 36 s. with NV-T120 (JET
REW)
VIDEO
Television system EIA;Standard (525 lines, 60
fields), NTSCcolorsignal
Modulation system Luminance;FMazimuth
recording
Colorsignal;converted subcarrierphase shift recording
Inputlevel VIDEOIN(PHONE); 1Vp-p, 75
Outputlevel VIDEOOUT(PHONE); 1Vp-p, 75
Antennareceiveinput VHF 2-13 CH, 75
UHF 14-69 CH, 75
CATV5Aand A-5-EEE CH, 75
AUDIO
Inputlevel AUDIOIN(PHONO); -10 dBV, 47
k
Outputlevel AUDIOOUT(PHONO); -8dBV, 1
k
Audio track 1 track (normal-mono only),
2channels(Hi-Fi sound stereo)
4

Video horizontal resolution Color;morethan 200 lines
Signal-to-Noise ratio Video;morethan 40 dB/SP
Audio;morethan 60 dB/Hi-Fi
Audio frequencyresponse 20 Hz-20 kHz/Hi-Fi
Wowand flutter 0.005 %Wrms/Hi-Fi
GENERAL
Powersupply AC120 V, 60Hz
Powerconsumption
Main unit 38 W
Activesubwoofer(SB-WA310) 160 W
Dimensions(W xHxD) 430 x93 x356 mm
(16-15/16”x3-21/32”x14-1/32”)
Mass 4.6kg (10.1lb.)
Powerconsumption in standbymode
BRIGHTmode Approx. 3.7W
DIMmode Approx. 3.5W
OFF mode Approx. 2.4W
SYSTEM
SC-HT800V(P) Main unit: SA-HT800V(P)
Satelliespeaker:SB-HT800V(P)
Activesubwoofer:SB-WA310 (P)
SB-HT800V(P)consistsof SB-FS803 (P)x4and SB-PC803
(P)x1
Notes:
1. Specificationsaresubjectto changewithout notice. / Mass and
dimensionsareaproximate.
2. Total harmonicdistortion ismeasuredbythedigital spectrum
analyzer.
1. Powering Upof the MainUnit
1.1. Checking PlayerwithActiveSubwoofer
1. Thisunituses theactivesubwoofertosupplythepowerofthe
component, and theactivesubwoofershouldbeconnectedtothe
componenttocheck operational conditionsofthecomponent.
5

2. Connect bothACpowersupplycordstoenjoyall thefeatures of
thissystem. / Thisspeakersand tunerwill notworkunless you
connect thesubwoofertoahouseholdACoutlet.

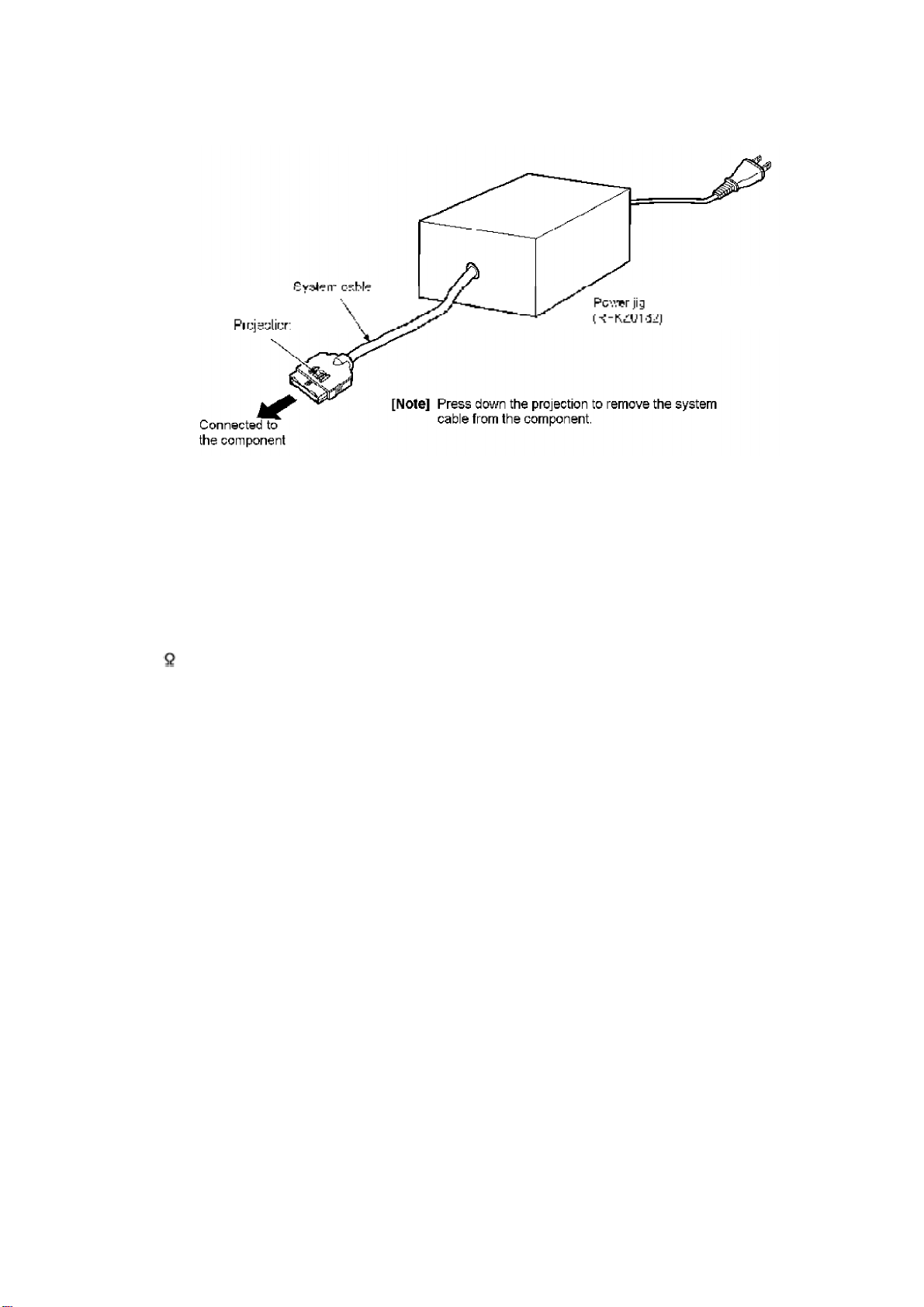

1.2. Using ofPowerJig
1. Iftheactivesubwooferisnotavailableduetorepairoftheunit,
use thefollowing equipment.
6

Jigproductnumber
RFKZ0182 (110V , 127V, 220V, 230V -240V for for overseas domesticuse)
2. BeforeRepairand Adjustment (Using Active
SubwooferUnit)
DisconnectACpower, dischargePowerSupplyCapacitorsC546 , C547, C548 &C549 through a
10 , 1Wresistor toground.
DONOTSHORT-CIRCUITDIRECTLY(withascrewdriverblade, for instance), as thismay destroy
solidstatedevices.
Afterrepairsarecompleted, restorepowergraduallyusing avariac, toavoidovercurrent.
Currentconsumption atAC120V, 60HzinNOSIGNALmodeshouldbe~1000 mA.
3. Protection Circuitry
Theprotection circuitrymay have operatedifeitherofthefollowing conditionsisnoticed:
-Nosound isheardwhenthepowerisswitchedON.
-Sound stopsduring aperformance.
Thefunction ofthiscircuitryistopreventcircuitrydamageif, for example, thepositive and
negative speakerconnection wires are
shorted, or ifspeakersystemswithanimpedance less thantheindicatedratedimpedance ofthis
unitareused.
Ifthisoccurs, followtheprocedureoutlines below:
1. SwitchOFF thepower.
2. Determinethecause oftheproblemand correct it.
3. SwitchONthepoweronce again.
Note:
Whentheprotection circuitryfunctions, theunitwill notoperateunless thepowerisfirst
switchedOFF and thenONagain.
7

4. SafetyPrecautions
4.1. General Guidelines
1. Whenservicing, observetheoriginal leaddress. Ifashortcircuit
isfound, replace all parts whichhavebeenoverheatedor
damagedbytheshortcircuit.
2. Afterservicing, see toitthat all theprotectivedevices suchas
insulation barriers, insulation papersshieldsareproperlyinstalled.
3. Afterservicing, make thefollowing leakagecurrentchecks to
preventthecustomerfrombeing exposedtoshock hazards.
(This“SafetyPrecaution”isappliedonlyinU.S.A.)
1. Beforeservicing, unplug thepowercordtopreventanelectric
shock.
2. Whenreplacing parts, use onlymanufacturer’srecommended
components forsafety.
3. Check thecondition ofthepowercord. Replace ifwearordamage
isevident.
4. Afterservicing, besuretorestoretheleaddress, insulation
barriers, insulation papers, shields, etc.
5. Beforereturning theservicedequipmenttothecustomer, besure
tomake thefollowing insulation resistance test topreventthe
customerfrombeing exposedtoashock hazard.
4.1.1. LeakageCurrentColdCheck
1. Unplug theACcordand connect ajumperbetweenthetwoprongs
on theplug.
2. Measuretheresistance value, withanohmmeter, betweenthe
jumperedACplug and eachexposedmetalliccabinet parton the
equipmentsuchas screwheads, connectors, control shafts, etc.
Whentheexposedmetallicparthas areturnpathtothechassis,
thereading shouldbebetween1M and 5.2M . / Whenthe
exposedmetal does nothaveareturnpathtothechassis, the
reading must be . Fig. 1
8

4.1.2. LeakageCurrentHotCheck (See Figure1)
1. Plug theACcorddirectlyintotheACoutlet. Donotuse an
isolation transformerforthischeck.
2. Connect a1.5k , 10 watts resistor, inparallel witha0.15 F
capacitor, betweeneachexposedmetallicparton theset and a
good earthground suchas awaterpipe, as showninFigure1.
3. Use anACvoltmeter, with1000 ohms/voltormoresensitivity, to
measurethepotential across theresistor.
4. Check eachexposedmetallicpart, and measurethevoltageat
eachpoint.
5. Reverse theACplug intheACoutlet and repeat eachoftheabove
measurements.
6. Thepotential at anypointshouldnotexceed0.75 volts RMS. A
leakagecurrenttester(Simpson Model 229 orequivalent) maybe
usedtomake thehotchecks, leakagecurrentmust notexceed1/2
milliamp. Incase ameasurementisoutofthelimits specified,
thereisapossibilityofashock hazard, and theequipmentshould
berepairedand recheckedbeforeitisreturnedtothecustomer.
5. Handling the Lead-free Solder
5.1. Aboutleadfree solder(PbF)
Distinction ofPbF P.C.B.:
P.C.B.s(manufactured)using leadfree solderwill have aPbF stampon theP.C.B.
Caution:
-Pbfree solderhas ahighermelting pointthanstandardsolder;
9

Typicallythemelting pointis50 -70°F(30 -40°C)higher. Please
use ahigh temperaturesoldering iron. Incase ofsoldering iron
withtemperaturecontrol, please set itto700 ±20°F(370 ±10°C).
-Pbfree solderwill tend tosplashwhenheatedtoo high (about
1100°F/600°C).
-Whensoldering orunsoldering, please completelyremoveall ofthe
solderon thepinsorsolderarea, and besuretoheat thesoldering
points withthePbfree solderuntil itmelts enough.
6. Prevention of ElectroStaticDischarge (ESD) to
ElectrostaticallySensitive(ES) Devices
Somesemiconductor (solidstate)devices canbedamagedeasilybyelectricity. Such
componentscommonlyarecalledElectrostaticallySensitive (ES)Devices. Examples oftypical
ES devices areintegratedcircuitsand somefield-effecttransistorsand semiconductor “chip”
components. Thefollowing techniques shouldbeusedtohelpreduce theincidence of
componentdamagecausedbyelectro staticdischarge(ESD).
1. Immediatelybeforehandling anysemiconductorcomponentor
semiconductor-equipedassembly, drainoff anyESDon yourbody
bytouching aknownearthground. Alternatively, obtainand wear
acommerciallyavailabledischarging ESDwrist strap, which
shouldberemovedforpotential shock reasonspriortoapplying
powertotheunitundertest.
2. Afterremoving anelectrical assemblyequipedwithES devices,
place theassemblyon aconductivesurface suchas aluminium
foil, topreventelectrostaticchargebuildup orexposureofthe
assembly.
3. Use onlyagrounded-tipsoldering iron tosolderorunsolderES
devices.
4. Use onlyananti-staticsolderremoverdevice. Somesolder
removal devices notclassifiedas “anti-static(ESDprotected)”can
generate electrical chargetodamageES devices.
5. Donotuse freon-propelledchemicals. These cangenerate
electrical charges sufficienttodamageES devices.
6. DonotremoveareplacementES device fromits protective
packageuntil immediatelybeforeyou arereadytoinstall it. (Most
replacementES devices arepackagedwithleadselectrically
10

shortedtogetherbyconductivefoam, aluminiumfoil or
comparableconductivematerial).
7. Immediatelybeforeremoving theprotectivematerial fromthe
leadsofareplacementES device, touchtheprotectivematerial to
thechassisorcircuitassemblyintowhichthedevice will be
installed.
Caution
Besureno powerisappliedtothechassisorcircuit, and observe
all othersafetyprecautions.
8. Minimizebodymotionswhenhandling unpackagedreplacement
ES devices. (Otherwise harmless motion suchas thebrushing
togetherofyourclothes fabricorthelifting ofyourfootfroma
carpetedfloorcangenerate staticelectricity(ESD)sufficientto
damageanES device).
7. Accessories Remotecontrol
ACpowersupplycord
11

AMloop antenna
FMindoor antenna
Videocables
75 coaxial cable
System cable
Speakercables
12

Antennaplug

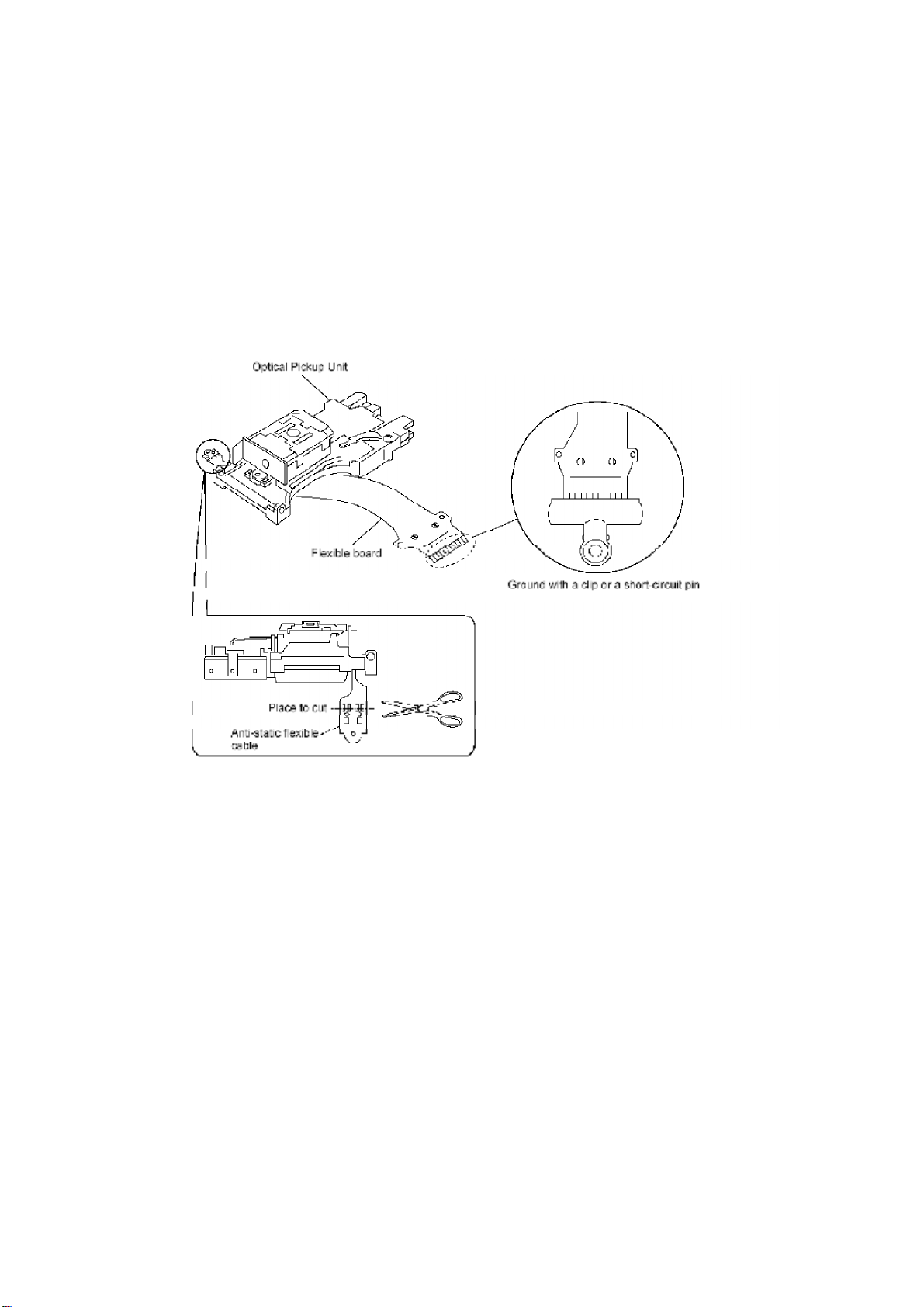

8. Precaution of LaserDiode
CAUTION:
Thisunitutilizes aclass 1laser.
Invisiblelaserradiation isemittedfromtheoptical pickup lens.
Wavelength:658nm(DVD)/780nm(VCD/CD).
Maximumoutputradiation powerfrompickup:100 W/VDE
Whentheunitisturnedon :
1. Donotlookdirectlyintothepick up lens.
2. Donotuse optical instruments tolookat thepick up lens.
3. Donotadjust thepreset variableresistoron thepickup lens.
4. Donotdisassembletheoptical pick up unit.
5. Iftheoptical pick up isreplaced, use themanufacturer’sspecified
replacementpick up only.
6. Use ofcontrol oradjustments orperformance ofprocedures other
thanthose specifiedhereinmayresultinhazardousradiation
exposure.
13

CAUTION!
THIS PRODUCTUTILIZES ALASER.
USE OFCONTROLS ORADJUSTMENTS ORPERFORMANCE OFPROCEDURES OTHERTHAN
THOSE
SPECIFIEDHEREINMAYRESULTINHAZARDOUS RADIATIONEXPOSURE.
Use ofCaution Labels
9. Optical Pickup Self-Diagnosisand Replacement
Procedure(DVD Section)
9.1. Self-diagnosis
Thisunitisequippedwiththeoptical pickup self-diagnosisfunction and thetiltadjustmentcheck
function. Followtheproceduredescribedbelowduring repairinordertoperform self-diagnosis
and tiltadjustmenteffectively. Especiallywhen"NODISC" isdisplayed, besuretoapplytheself-
diagnosisfunction beforereplacing withanoptical pickup. Replacementofoptical pickup
generallyrequires whenthepresentvalueoflaserdrive exceeds55.
Note:
Startdiagnosiswithinthree minutes afterturning on thepower(as
diagnosisfailswhentheunitbecomes warm).
14

9.2. CautionstoBeTakenDuring ReplacementofOptical Pickup and
SpindleMotorAssembly
Beforereplacing theoptical pickup and spindlemotor assembly, check ausagetime
respectively. Followthechecking method describedbelow.
15

Statusand Key Function Display
Checking CD laserusagetime Withtheunitstopped, press the
"PLAY" button on theDVDplayer,
the"FORWARD" button on VTR
and thenumber"5" button on the
remotecontrollerunitatthesame
time.
XX YYYY
yyyy =total timeis
displayed
four-digitnumberbythe
ten
Checking DVDlaserusagetime Withtheunitstopped, press the
"PLAY" button on theDVDplayer,
the"FORWARD" button on VTR
and thenumber"5" button on the
remotecontrollerunitatthesame
time.
XX YYYY
xxxx =total timeis
displayed
four-digitnumberbythe
ten
Checking SP motor usagetime Withtheunitstopped, press the
"PLAY" button on theDVDplayer,
the"FORWARD" button on VTR
and thenumber"6" button on the
remotecontrollerunitatthesame
time.
T2_xxxx
xxxx =total timeis
displayed
four-digitnumberbythe
ten
Resetting eachusagetimeofDVD
and CD lasers(simultaneous
resetting)(Applythisoperation
beforelaserusagetimechecking
modeiscancelled.)
Whiletheunitstopped, press the
"STOP" button on theDVDplayer,
the"FORWARD" button on VTR
and thenumber"5" button on the
remotecontrollerunitatthesame
time.
00 0000
Resetting SP motor usagetime
(Applythisoperation beforeSP
motor usagetimechecking mode
iscancelled.)
Whiletheunitstopped, press the
"STOP" button on theDVDplayer,
the"FORWARD" button on VTR
and thenumber"6" button on the
remotecontrollerunitatthesame
time.
T2_0000
9.2.1. Cautionstobetakenduring replacementofoptical pickup
Optical pickup couldbedamagedduetothestaticelectricitydischargedfrom humanbody. Wear
properprotection gearagainststaticelectricityduring optical pickup and itsperipheral repair.
(Refertothesection regarding protection againststaticelectricity.)
1. Donottouchlaserdiode, actuatorand theirperipherals.
2. Donotcheck laserdiodewithatesterand such. (Thetesterwill be
destroyed.)
3. Forshort-circuiting orremoving laserdiode, theuse ofananti-
staticsoldering iron isrecommended. / (Recommendedmodel:
HAKKO ESDproduct)
4. Soldertheland oftheflexiblecableintheoptical pickup.
16

Note:
-Ifananti-staticsoldering iron isnotavailable, short-circuitthe
terminal surface oftheflexiblecableand thentheland using aclip
orequivalentdevice.
-Forshort-circuitoftheabovelaserdiode, removesoldering as
instructedinthismanual aftercompleting repair.
10. Self-DiagnosisFunction and Service Mode
10.1. Self-DiagnosisFunction (VTRSection)
10.1.1. Sef-DiagnosisDisplay
<Overview>
Thedetailsoffailures detectedincircuitor mechanism bythemicrocomputerwill be
automaticallydisplayedon theFIP as theresultofselfdiagnosis.
<Setting>
Thedetailsofafailureapplicabletoanerror codearedisplayedon theminute, tenseconds, one
second position oftheFIP.
<Display>
FIP display example:
17

<ListofRemedyCode>
<ListofError Code>
Display Meaning Automatic
display Memory
U11 Detection ofheadclogging-ups O O
U30 Remotecontrollermodeerror O X
H01 Noinitialization ofcylinderduetono
loading(Cylinder, driving circuitfailure, etc.) O O
H02 NocapstanFGatloadposition(Capstan, driving
circuitfailure, etc.) O O
F03 Mechanism locking notbecause ofunloading,
cassetteup* Displayedwhendetectedtwice
consecutively.
O O
F04 Mechanism locking duetounloading* Displayed
whendetectedtwice consecutively. O O
F05 NoS-reel pulse duetounloading(S-reel system,
capstansystem failure) X O
F06 Mechanism locking duetocassetteup O O
F07 Recording circuitoperation failureduring REC
operation O O
F08 Recording circuitoperation failurenotduring REC
operation O O
18

Display Meaning Automatic
display Memory
F15 NocapstanFGwhencassetteisloaded(Capstan
system, S-reel system failure) X O
H16 Cylinderlock detectedduring normal rotation X O
H17 S-reel lock detectedduring normal running O O
H18 T-reel lock detectedduring normal running O O
H80 EJECTmodewhenanerror isdetected X O
F2* Error during PGautomaticadjustment O O
10.1.2. Service Mode
<Service Modeand Service Data>
Number Details Meaning atMinutePosition (Service
Data1) Meaning ofSecond Position (Service Data2)
0Service data VCR mode(real time) Processing number(real time)
Deck mode Treatmentduring mechanism
transition Control number
1Service data Starting/End terminal detect
information Reception key information
Displayed
only
the
reception
key
is
ON.
00 :Detection ofneitherstarting or
end terminal 01 :Detecting starting
terminal 02 :Detecting end terminal
03 :Detecting bothstarting and end
terminals
Whentheunitkey or remote
controllerunitisused, the
reception codeisdisplayed.
2Service data Mechanical position (real time) Motor command (real time)
Because
the
mechanical
operation
available
without
tape,
mode
accepts
starting
terminal
detection
No
detection
No
judgment
tape
and
position
detection
0L:EJECTposition 02 :DOWN
positions03 :R-REWpositions04 :
LOADpositions05 :REV positions
06 :PLAYpositions07 :POFF
positions08 :STOP positions09 :
STOP positions0-:FFREW
positions0_ :Middleofpositions
0*, 2*:CYLoff Capoff 1*:
CYLoff Capon (fwd)3*:CYL
off CapON(rev)8*, U*:CYL
on Capoff 9*:CYLon Capon
(fwd)A*:CYLon CapON(rev)
*0:Moteroff *1:Loading *2:
UnLoading *3:Break (Load+
Unload)
19

Number Details Meaning atMinutePosition (Service
Data1) Meaning ofSecond Position (Service Data2)
3Selfdiagnosis
history(1st
time)
Error codeofHistory1 Additional information 1and 2
ofHistory1
4Selfdiagnosis
history(2nd
time)
Error codeofHistory2 Additional information 1and 2
ofHistory2
5 Selfdiagnosis
history(3rd
time)
Error codeofHistory3 Additional information 1and 2
ofHistory3
6 Service data CylinderONcommand Capmotor ON/OFF and
forward/reverse rotation
command
Same
details
numbered
as
5
of
previous
service
mode.
7Manual operation Real timeMechanical position Real timeMotor command
PLAY
button
loading
direction
STOP
button
Unloading
direction
Sameas thedetailsofService 2 Sameas thedetailsofService
2
10.1.3. Service ModeDisplay
<Overview>
Apartofthemicrocomputerinternal information isdisplayedon theFIP inordertoease
servicing during sales.
<Setting>
Press and holddowntheFF and EJECTbuttonsfor atleastthree secondstoentertheservice
mode. Asthisoperation isrepeated, service numberchanges starting at0up to7, and then
counter(clock)isdisplayed.
<Display>
FIP display example:
20
