Panasonic WX-CS560 User manual

Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
The model number is abbreviated in some descriptions in this manual.
Operating Instructions
Included Installation Instructions
Speaker Microphone
Model No. WX-CS560
FRANÇAIS ENGLISH

2
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC
SHOCK DO NOT OPEN
The lightning flash with arrow-
head symbol, within an equilat-
eral triangle, is intended to alert
the user to the presence of
uninsulated “dangerous volt-
age” within the product's enclo-
sure that may be of sufficient
magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing) instruc-
tions in the literature accompa-
nying the appliance.
WARNING:
• The apparatus should not be exposed to drip-
ping or splashing and that no objects filled with
liquids, such as vases, should be placed on the
apparatus.
• All work related to the installation of this prod-
uct should be made by qualified service per-
sonnel or system installers.
• The installation shall be carried out in accor-
dance with all applicable installation rules.
CAUTION:
• Read the label on the rear of the unit for identifi-
cation of the unit and power ratings.
The model number and serial number of this
product may be found on the surface of the
unit.
You should note the model number and serial
number of this unit in the space provided and
retain this book as a permanent record of your
purchase to aid identification in the event of
theft.
Model No.
Serial No.
For U.S.A
ENGLISH VERSION

3
Contents
Important safety instructions......................................................................................................... 4
Limitation of liability....................................................................................................................... 5
Disclaimer of warranty................................................................................................................... 5
Precautions ................................................................................................................................... 6
Precautions for installation............................................................................................................ 8
Preface .......................................................................................................................................... 9

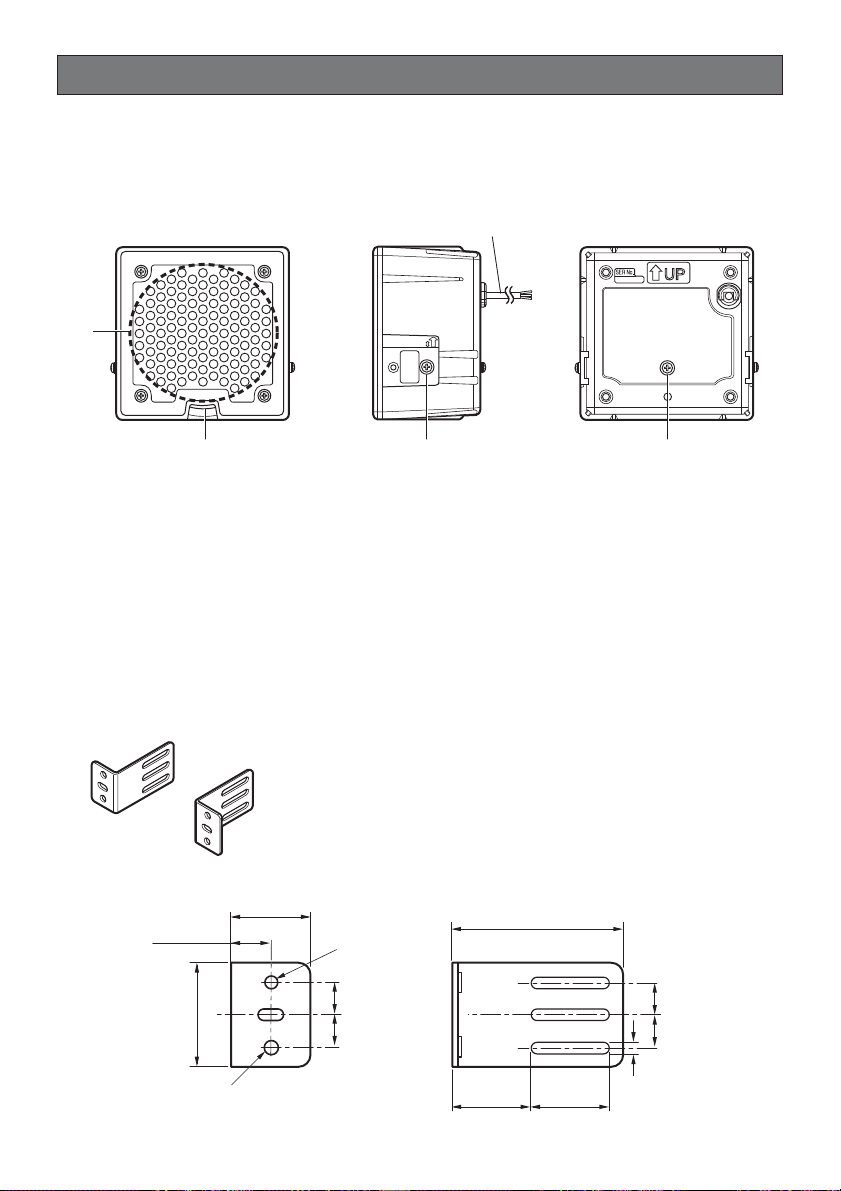

Major operating controls and their functions .............................................................................. 10
Installing ...................................................................................................................................... 12
Specification................................................................................................................................ 22
Standard accessories.................................................................................................................. 22
Appearance ................................................................................................................................. 23
ENGLISH

4
Important safety instructions
1) If the units fall, it can cause serious damage to persons or properties.
2) Read these instructions.
3) Keep these instructions.
4) Heed all warnings.
5) Follow all instructions.
6) Do not install near any heat sources such as radiators, heat registers, stoves, or other appara-
tus (including amplifiers) that produce heat.
7) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as powersupply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
8) Ask your nearest dealer or qualified installers for installation and wiring.
9) Place the units on a stable surface.

5
Limitation of liability
THIS PUBLICATION IS PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR ANY PARTICULAR PURPOSE, OR NON-INFRINGEMENT OF
THE THIRD PARTY’S RIGHT.
THIS PUBLICATION COULD INCLUDE TECHNICAL INACCURACIES OR TYPOGRAPHICAL
ERRORS. CHANGES ARE ADDED TO THE INFORMATION HEREIN, AT ANY TIME, FOR THE
IMPROVEMENTS OF THIS PUBLICATION AND/OR THE CORRESPONDING PRODUCT (S).
Disclaimer of warranty
IN NO EVENT SHALL Panasonic System Networks Co., Ltd. BE LIABLE TO ANY PARTY OR ANY
PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT,
FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW:
(1) ANY LOSS OR DAMAGE, INCLUDING WITHOUT LIMITATION, DIRECT OR INDIRECT,
SPECIAL, CONSEQUENTIAL OR EXEMPLARY, ARISING OUT OF OR RELATING TO THE
PRODUCT;
(2) ANY INCONVENIENCE, LOSS, OR DAMAGE CAUSED BY INAPPROPRIATE USE OR
NEGLIGENT OPERATION OF THE USER;
(3) UNAUTHORIZED DISASSEMBLY, REPAIR OR MODIFICATION OF THE PRODUCT BY THE
USER;
(4) ANY PROBLEM, CONSEQUENTIAL INCONVENIENCE, OR LOSS OR DAMAGE, ARISING
OUT OF THE SYSTEM COMBINED BY THE DEVICES OF THIRD PARTY;
(5) PERSONAL INJURY, ANY LOSS OR DAMAGE, ARISING OUT OF THE DROP CAUSED BY
THE INCOMPLETE INSTALLATION;
(6) ANY PROBLEM CAUSING FAILED SIGNAL TRANSMISSION RESULTING IN CONSEQUENTIAL
INCONVENIENCE, LOSS OR DAMAGE, ARISING OUT OF CAUSES SUCH AS SYSTEM
MALFUNCTION, FAULT, SET UP OR INSTALLATION.

6
Refer installation work to your dealer.
Skill and experience are required for installation
to avoid risk of fire, electric shock, injury and
damage.
Do not install or wire during lightning
storms.
Otherwise fire or electric shock may result.
Avoid placing the product in unstable
positions.
Failure to observe this may cause the product
to fall resulting in injury.
Stop operation immediately when some-
thing is wrong with the product.
When smoke goes up from the product or the
smell of smoke comes from the product, con-
tinued use will result in fire.
Turn off the center module connected with this
product and contact your dealer.
Do not insert objects inside the product.
If metallic items enter the product, it may cause
fire or electric shock.
Turn off the center module connected with this
product and contact your dealer.
Do not attempt to disassemble or modify
the product.
Otherwise fire or electric shock may result.
Consult your dealer for repair or inspections.
Match the wire accurately.
Short circuit or improper connection may cause
fire.
Avoid installing the product in locations
where it is subject to damage by salt or
corrosive gas.
Otherwise, the mounting fixtures will deterio-
rate, causing the product to fall and leading to
accidents.
When installing the product, use the pro-
vided brackets.
Failure to do so may cause the product to fall,
resulting in injury or accidents.
Conduct periodic inspections.
Rust on the metal parts or screws may cause
the product to fall resulting in injury. Refer
inspection to your dealer.
Select an installation surface that can
support the total weight.
Selecting an inappropriate installation surface
or method may cause the product to fall or
topple over, resulting in injury. Contact your
dealer.
Do not install the product in locations sub-
ject to vibration.
Otherwise the mounting portions will deterio-
rate, causing the product to fall and leading to
accidents.
Tighten screws and mounting fixtures to
the specified torque.
Failure to do so may cause the product to fall,
resulting in injury or accidents.
Refer installation to your dealer.
Take measures to prevent the product
from falling.
Failure to do so may cause injury.
If the product displays any abnormalities,
do not leave the problem unattended.
If left unattended for longer periods of time,
parts will deteriorate, causing the product to fall
and leading to accidents.
Refer disassembling to your dealer.
Do not install the product in locations
where it will become oily.
Otherwise the mounting fixtures will deteriorate,
causing the product to fall and leading to acci-
dents.
Precautions

7
Do not replace parts in the state of the
product mounted.
There is a risk of parts falling, resulting in acci-
dents.
Do not install the product with deformed
or damaged mounting fixtures.
There is a risk of the product falling and caus-
ing accidents.
If a crack is observed on the surface of
the product, stop using and remove the
product.
This could cause the product to fall. Be sure to
consult your dealer.
Disassemble any product that is no longer
used or is inoperable; do not leave it unat-
tended.
As parts corrode, there is a risk of the product
falling. Be sure to consult your dealer.
Make sure to inspect after an earthquake.
This could damage the mounting fixtures of the
product, causing it to fall.
Be sure to consult your dealer.
Do not use excessive force.
If the mounting fixtures are damaged, this could
cause the product to fall and lead to accidents.
Ask a professional service company for
disposal.
If the product is burned at your site, the
included chemicals may hurt your eyes, or
cause a fire or a burn injury.
Always turn off the center module before
disconnecting or connecting wires.
Otherwise, electric shock may result, and click-
ing noise may damage the unit.
Do not expose to vibration or strong
impact.
Otherwise fire, electric shock or damage may
result.
Be sure to use the product in combination
with the products for the Panasonic
Wireless Communication System.
Otherwise fire or electric shock may result.
Do not put or install near the equipment or
substance which are affected by magnetic
field.
Bringing magnetic recording media such as
tape, floppy disks or MDs near the product will
result in erasure of recorded data.
In addition, installation of the product near the
equipment or substance which are affected by
magnetic field may lead to damage or malfunc-
tions.
Do not install the product in places of
1.5 m {5 feet} or higher.
The product is not intended for the installation
in high places. Safety measures such as safety
wires are not provided.
[Precautions for use]
Product care
Turn off the center module connected with this
product before cleaning it. Otherwise injuries
may result. Wipe with a dry soft cloth. Do not
clean with volatile liquids such as benzene and
thinner. When using a chemical cloth for clean-
ing, observe the cautions provided with the
product.
Operating temperature
–20 °C to +50 °C {–4 °F to 122 °F}
Using the product at temperatures outside this
range will negatively affect internal parts and
lead to damage or malfunctions.

8
Precautions for installation
Warning
Be sure to contact your dealer for installation.•
Before installing, turn off the center module connected with this product. In addition, be sure to•
read “Precautions” carefully and follow the Instructions (☞page 6, 7). Moreover, be sure to
read operating instructions of the connecting product as well.
Installation work
Installations work is very important as it is closely related to post-installation safety. To prevent•
accidents during or after installation, refer the installation work to service personnel specialized
in installation work.
For safety, take adequate measures to prevent falling and conduct regular maintenance and•
inspection. Refer inspection to your dealer.
The product partially resists splashes and sunshine. However, the product cannot be
fully exposed to the outside.
Otherwise, deformation, discoloration, damage or malfunction could occur.
Keep the product away from direct water droplets or water spray except the front panel.

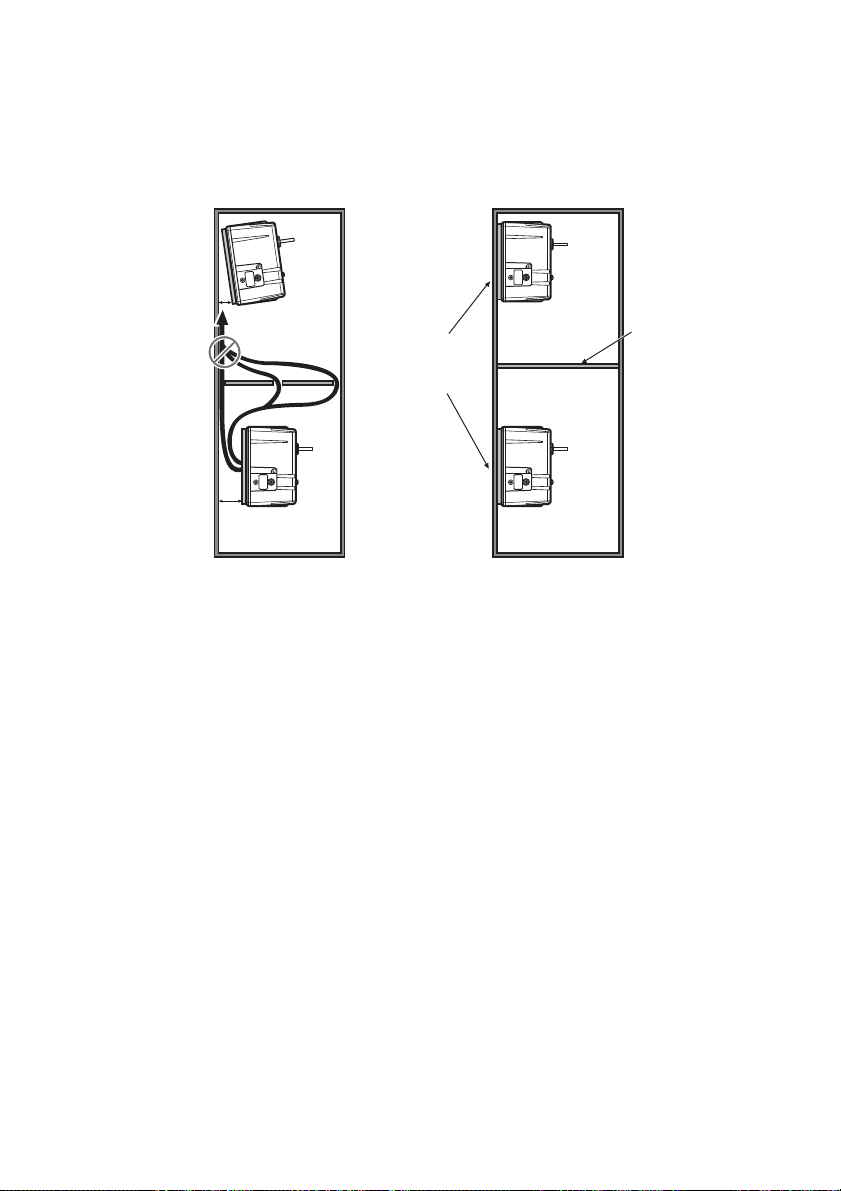

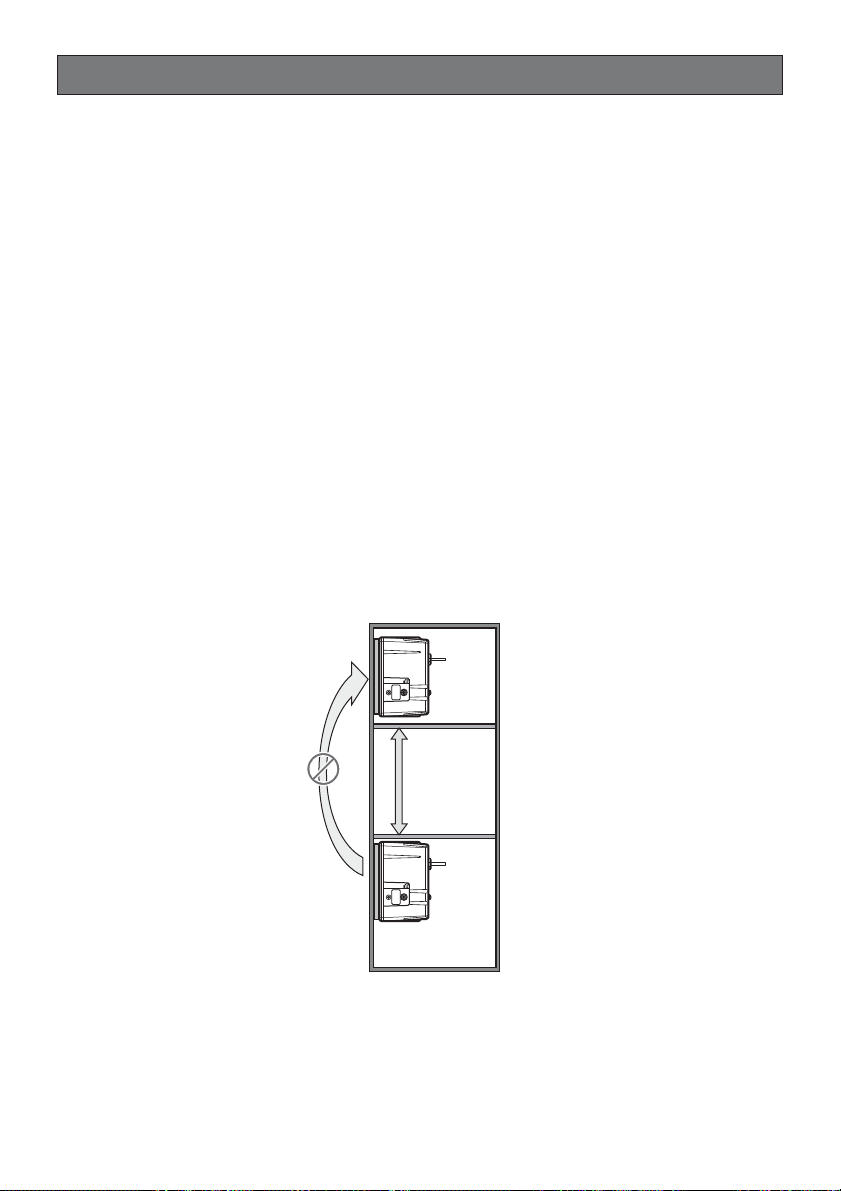

Installation place
Do not install the product in locations where it is exposed to direct sunlight or near a warm air•
flow.
Avoid installing the product in places that are subject to vibration.•
Make sure that the structure of the installation site is strong enough and the mounting surface•
is flat and thick.
Do not install the unit in the following places.•
Places in high humidity may cause fire.
Places where flammable gases exist may cause explosion.
Places where corrosive gases exist may cause units falling.
Places where oil mists exist may cause units falling.
Places subject to strong vibration or shock may cause units falling.
Places of 1.5 m {5 feet} or higher.
<For example>
Hanging below the eaves
Wall mounting
Sea or seaside, near a hot spring

9
Precautions for installation work
Safety precautions for installation work
Take safety against falling objects or personnel.•
Make sure to turn off the power of the product and of any devices, such as a center module,•
before connection to the product. Failure to observe this may cause electric shock.
Ascertain that other safety controls are implemented as well to ensure that the work is carried•
out safely and reliably.
Do not install the product using mounting fixtures that were deformed due to damage suffered•
during transport or installation, or on a damaged outer wall. This could cause the product to
fall.
Tightening of screws and bolts
Tighten screws and bolts to the specified torque. Do not overtighten screws and bolts.•
Overtightening will damage the thread and cause the product to fall. If the torque is too low, on
the other hand, screws and bolts will be loose.
Use a torque driver or torque wrench to maintain the specified torque.•
The range of use of torque drivers and torque wrenches is limited. Choose a torque driver or•
torque wrench suitable for the recommended torque value.
Do not use impact drivers or powered screwdrivers as these may damage the screws or bolts.•
When tightening a screw or bolt, make it at a right angle to the surface. After tightening the•
screws or bolts, check visually for looseness.
Preface
This product is the Speaker Microphone designed for the exclusive order posts to be used in•
combination with the Panasonic Wireless Communication System. The product can be used as
a speaker or microphone.
While the slim and small-sized shape is compatible with the installation on most of the order•
posts, the product has accomplished the clear sound which can achieve the communication
even under the engine noise.
The provided brackets and urethane foams help the flexible mounting and speedy installation.•

10
Sound aperturesq
Drainage holew
Mounting screws (x3)*e
Input wirer
Major operating controls and their functions
Main unit
The product can be used as a speaker or microphone. Two units (one for the speaker and the other
for the microphone) are installed as a set on each order post.
MAX 12mm
r
q
w e e
(Also on the opposite side)
* To prevent the sound leakage, do not remove these screws even if the brackets are not attached.
In addition, do not insert screws whose length is 12 mm {1/2 inches} or more.
Accessories
Bracket (x2)•
They are used for the installation on the order post. On the mounting surface for the order post,
the M5 taps for the provided screws and the 1/4-20UNC taps are located.
M5
32 mm
{1-1/4 inches}
16 mm
{5/8 inches}
69 mm
{2-23/32 inches}
32.3 mm
{1-9/32 inches}
13 mm
{1/2 inches} 13 mm {1/2 inches}
13 mm
{1/2 inches} 13 mm {1/2 inches}
4.5 mm
{3/16 inches}
31.5 mm
{1-1/4 inches}
42 mm
{1-21/32 inches}
1/4-20UNC

11
Screw for installation (x2)•
They are the mounting screws (M5 x 15) for the order post.
Wind screen•
The screen is used for the reduction of wind noise when the main unit is installed as a micro-
phone.
Gaskets for front panel and bracket•
By sticking the front side of the main unit with the order post, the gaskets are used for the pre-
vention of sound leakage and the reduction of transmitted vibration.
Foam 1, Foam 2 for installation•
(Shock-absorbing material used for the packing of this product)
These foams are used for the prevention of sound leakage from/to the front side of the main
unit to/from the interior of the order post and the reduction of transmitted vibration from/to
chassis of order post.
Foam 1
220 mm x 220 mm x 120 mm
{8-21/32 inches x 8-21/32 x 4-23/32 inches}
Foam 2
113 mm x 113 mm x 40 mm
{4-7/16 inches x 4-7/16 inchesx 1-9/16 inches}

12
Installing
■Important notice
Caution for safety
This product is only installable inside the order post or similar structure ,must not exposed out-•
side or sunshine directly. In addition, safety measures such as safety wires are not provided
with the product. Do not install the product in places of 1.5 m {5 feet} or higher when the prod-
uct is installed inside the order post or similar structure.
Make sure that the installation site in the order post or similar structure has the sufficient load•
bearing capacity for the weight of the product. The weight of the product is 1.2 kg{2.65 lbs.}
including the brackets.
Notice to realize adequate sound
Two units of this product are required for the two-way communication. One is used for the•
speaker and the other is used for the microphone.
Make sure that the order post has the secure structure which can prevent the transmitted•
vibration from the surfaces and extra chattering sounds. As necessary, do the reinforcement
work or take a vibration control measure.
When installing the units for the speaker and the microphone, keep them as distant as possi-•
ble. Otherwise, feedback noise may occur or the sound clearness may be spoiled since the
unit for the microphone may pick up the sound from the speaker.
When the sound from the speaker leaks into the interior of the order post, the microphone may•
pick up the sound. Then, feedback noise and extra chattering sounds may occur and the
sound clearness may be spoiled.
Make the opening of the order post wider than the sound apertures of the Speaker•
Microphone so that the entire sound apertures can be set in the opening. In addition, the
opening of the order post should be smaller than the external dimensions of the main unit.
MAX 12mm
MAX 12mm
Keep them
as distant
as possible.
Order post
Microphone
Speaker

13
Expose the sound apertures of the Speaker Microphone from the opening of the order post.•
When covering the opening with a mesh net or punching metal sheet, select the one with
relatively high aperture ratio.
Stick the Speaker Microphone with the front side of the order post without gap.•
Isolate the sound in the order post with fit-sized panels so that the sound from the unit for•
the speaker does not leak into the area around the unit for the microphone.
Notice to avoid breakdown
Take measures to prevent water splash on the input cable and the connection section of the•
wireless communication system.
Do not install the unit inclining upward to prevent standing water on the unit.•
Others
Do not install near the equipment or substance which are affected by magnetic field.•
MAX 12mm MAX 12mm
MAX 12mm
MAX 12mm
Space
Space
Fit-sized panel without
openings
Bad example Good example
Sound
leakage Stick each unit with
the front side of the
order post without
gap
Microphone
Speaker

14
■Installation of the Speaker Microphone
These servicing instructions are for use by qualified personnel only. To reduce the risk of electric•
shock do not perform any servicing other than that contained in the operating instructions
unless you are qualified to do so. Refer all servicing to qualified service personnel.
GENERAL
Install the unit for the speaker at the lower part of the order post and install the unit for the•
microphone at the higher part.
Make the opening of the order post wider than the sound apertures of the Speaker Microphone•
so that the entire sound apertures can be set in the opening.

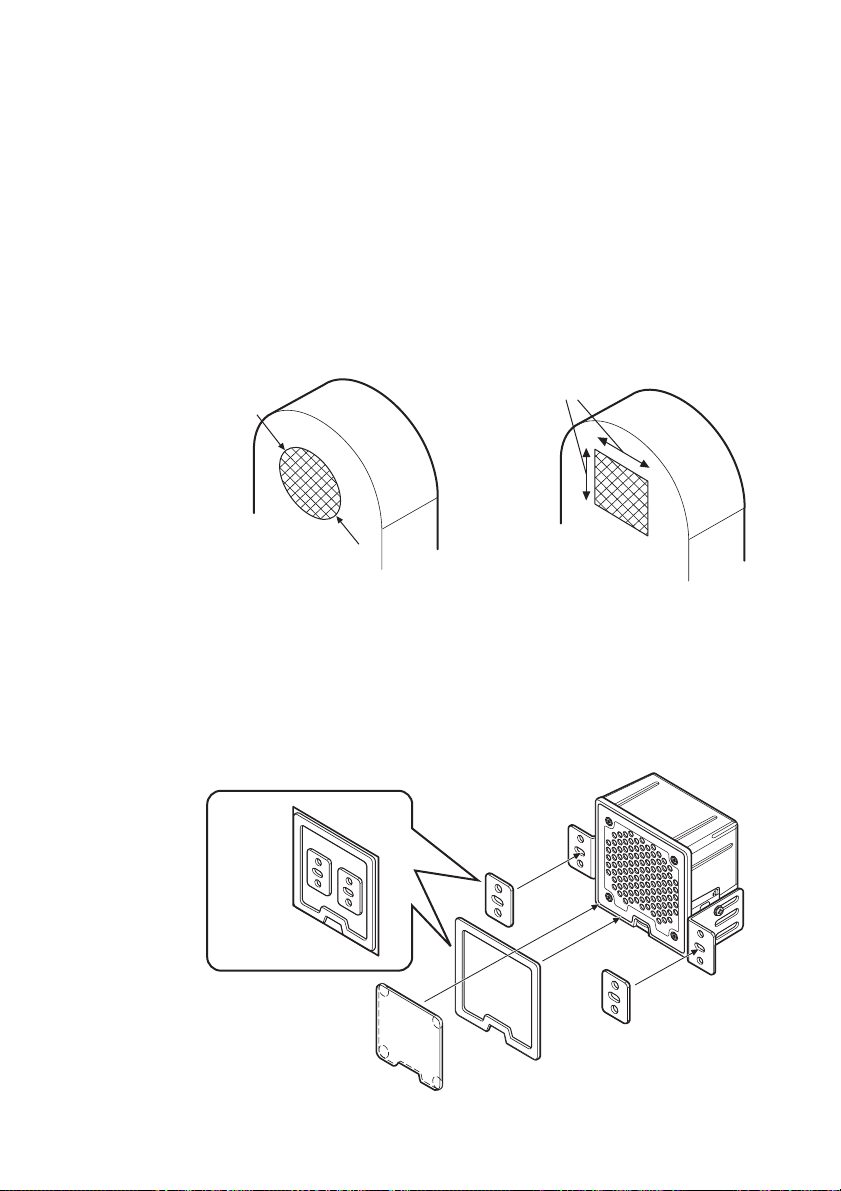

For a circular hole: ø100 mm {3-15/16 inches} or more
For a square hole: 90 mm x 90 mm {3-17/32 inches x 3-17/32 inches} or more
As necessary, attach the provided gaskets in front of the units. By sticking the main unit with•
the order post, it is possible to prevent the sound from leaking into the interior of the order
post.
As necessary, attach the provided wind screen on the unit for the microphone. It is possible to•
prevent wind noise.
To maintain the sufficient acoustic performance, install the unit in accordance with the descrip-•
tion of “Notice to realize adequate sound” (☞page 12).
ø100 mm {3-15/16 inches}
or more
90 mm x 90 mm {3-17/32 inches x
3-17/32 inches} or more
For a circular hole For a square hole
Using the tapes on each corner,
attach the wind screen on the unit.
Wind screen
(Attach it only when using the unit for the microphone.)
MAX 12mm
Gaskets for front
panel and bracket

15
The unit has the drainage hole at the bottom of the front side. Install the unit so that the “UP”•
mark on the rear side points upward.
When installing the unit, do not block the drainage hole at the bottom of the front side. Even if•
either of the front or bottom side of the unit is stuck with the order post, the drainage hole will
not be blocked. However, the hole will be blocked if both sides are stuck. When installing the
unit with the front and bottom sides close to the order post, keep a distance of 3 mm {1/8
inches} or more from the bottom side so that water can be drained. When the provided Foam
1 is used for the installation, this treatment is not required since the foam can drain the water.
The gaskets and the wind screen used for the installation may deteriorate depending on the•
operating environment. Replace them with new ones regularly. For replacement, contact your
dealer.
Drainage hole
Front side
Bottom side
3 mm {1/8 inches}
or more
MAX 12mm
MAX 12mm

16
Example of installation using the brackets
Example of how to use the brackets
Using the brackets, this unit can be installed as follows.
MAX 12mm
When tightening the screws
from the front side
When tightening the screws
from the front and lateral sides
MAX 12mm
MAX 12mm
When tightening the screws from the bottom side (1)
When tightening the screws from the bottom side (2)
MAX 12mm

17
Installation by tightening the screws through front panel of order post
On the mounting surface for the order post, the M5 taps for the provided screws and the 1/4-•
20UNC taps are located. Instead of the provided screws, two 1/4-20UNC screws can also be
used for the installation of the unit if procured locally. (Tightening torque: 2 N·m {1.48 lbs·ft})
The following is an installation example using the provided M5 screws.
Attach the two brackets to the unit.1.
Remove the two M4 screws from the unit, and use the screw for the brackets. (Tightening•
torque: 1.2 N·m {0.88 lbs·ft})
* Be sure not to leave screws removed, otherwise unintended noise may go through screw
hole, and the acoustic performance may be affected.
When the brackets are attached on each side with the positions shown in the illustration, it is•
possible to align the height of the screws exposed out of the order post.
Bracket
Bracket
Remove the screws from the unit,
and tighten them onto the brackets.
MAX 12mm
1/4-20UNC tap
M5 tap
M5 tap
1/4-20UNC tap

18
When attaching the brackets, align the front sides of the brackets and the unit.•
* Otherwise, the unit cannot be stuck with the front panel without gap, and the sound may
leak into the order post.
Install the unit on the order post.2.
Make two holes (ø6 mm {ø1/4 inches}) for the mounting screws near the front opening of•
the order post. Refer to the appearance diagrams “Dimension for settlement” on page 23 for
details on the positions and dimensions of the holes. Make the holes precisely so that the
entire sound apertures of the Speaker Microphone can be set in the opening of the order
post.
Using the two provided M5 screws, install the unit on the order post.•
(Tightening torque: 2 N·m {1.48 lbs·ft})
Caution:
When using locally procured screws instead of the provided ones, select stainless-steel or•
plated steel screws.
To prevent the unit from falling, the mounting screws must be long enough to reach the rear•
side of the brackets.
After installation, do a check and make sure that nothing is unsteady and the screws are tight.•
Exercise good care not to generate resonance and abnormal sound from the mounting parts•
and around the Speaker Microphone.
Front side of the brackets
MAX 12mm
Front panel of the order post
MAX 12mm
Screw for installation

19

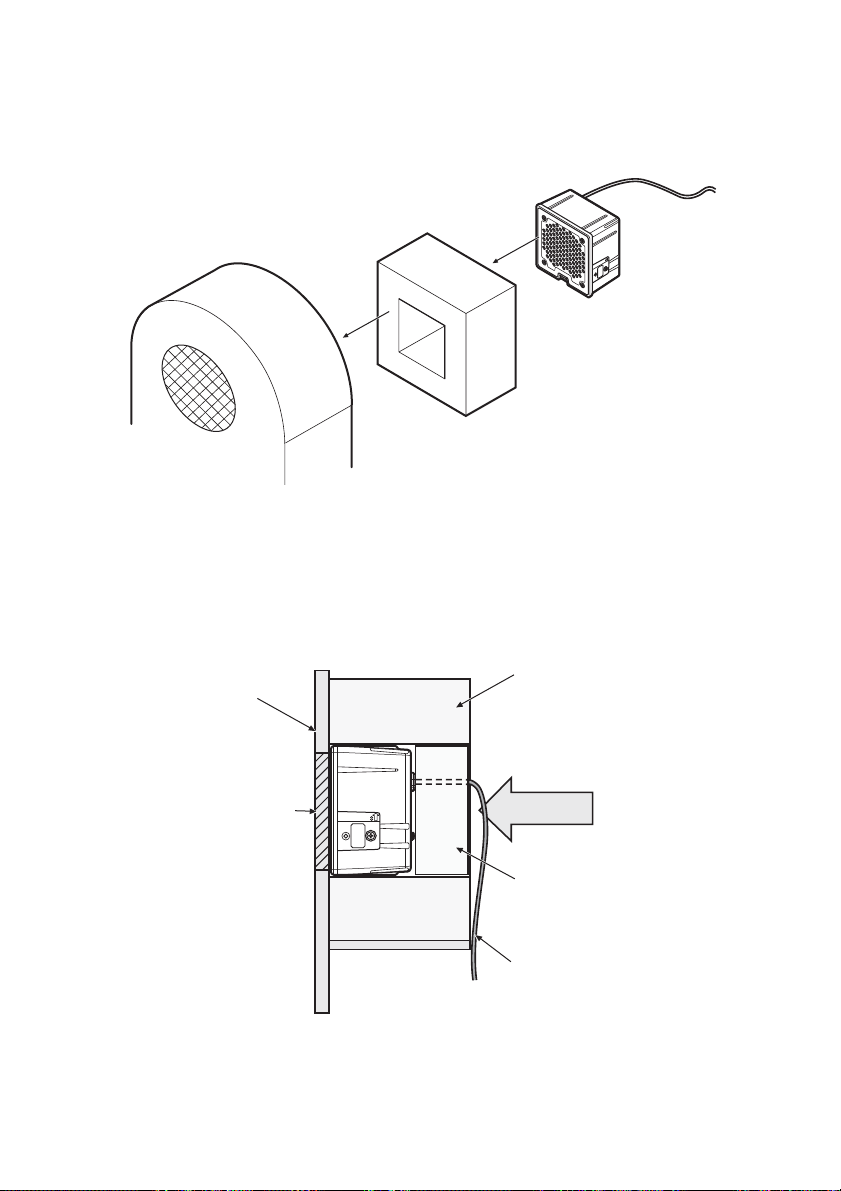

Example of installation using the provided Foam 1 and 2
Mount the unit onto Foam 1, and install them into the order post.1.
When installing the unit and Foam 1, make sure that the entire sound apertures of the•
Speaker Microphone can be set in the opening of the order post. If Foam 1 is larger than the
order post, cut the exterior with a cutter or knife to set the form into the order post.
Push the rear side of the unit toward the front panel of the order post with the provided Foam2.
2.
Push the rear side of the speaker with Foam 2 so that the front side of the main unit can be•
stuck with the mounting surface of the order post without gap. If Foam 2 is larger than the
order post, cut the exterior to set the form into the order post. Pass the cable through the
space between Foam 1 and Foam 2.
Foam 1, Foam 2, the gaskets and the wind screen used for the installation may deteriorate•
depending on the operating environment. Replace them with new ones regularly. For
replacement, contact your dealer.
MAX 12mm
Foam 1
Foam 2
Cable
Push the unit with Foam 2
from behind.
Front panel of the order post
MAX 12mm
This unit
Foam 1
Order post
Opening

20
■Wiring
The following instructions are for works to be conducted by qualified personnel. To prevent electric
shock, works relating to installation shall be conducted by qualified personnel.
Wiring to this product
Connect the cable coming from the center module to the input cable of this product.•
The core of the input cable is approximately 0.2 mm• 2(AWG24). The applicable cross sectional
area of the cable is between 0.8 mm2and 0.1 mm2(AWG18-AWG28).
When using for microphones, use a shield cable meeting the• above conditions.
When using for speakers, use a cable whose cross sectional area is between• 0.8 mm2and
0.5 mm2(AWG18-AWG20). According to the installation place, select a cable as thick as pos-
sible within this range. It is possible to use an unshielded cable.

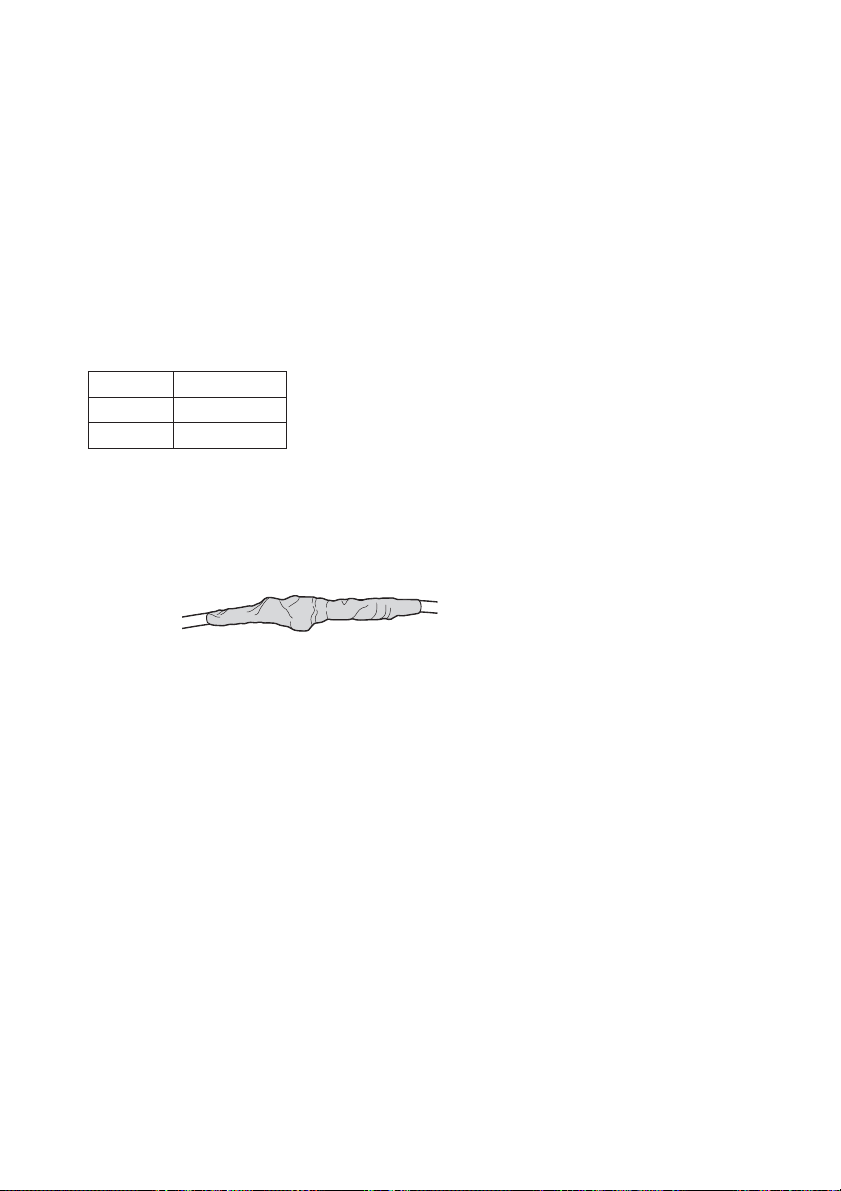

Perform wiring while matching the polarities correctly.•
Red +
Black –
Gray* Shield (GND)
* When using for speakers, it is unnecessary to connect the shielded cable (GND).
(No problem if it is connected.)
Make sure that the connector section is completely insulated by insulation tapes. Make also•
sure that the waterproof treatment is executed in the cable connected part using a self-adhe-
sive waterproofing tape.
Cautions on connection
Be sure to turn off the power before starting the connection.•
Do not use any damaged cable. Otherwise, fire or electric shock may be caused.•
Appropriately adjust volume for speakers and microphones by following the instructions on the•
manual of the center module.
Make sure that sound is clear and no• feedback noise is detected.
